Промышленный мгновенный стерилизатор для стерилизации в течение короткого времени грибов овощей порошка чили
11 021 130,00 ₽
Заводской стерилизатор для молока UHT полностью автоматический стерилизационный аппарат управления PLC
- Категория: >>>
- Поставщик: Antler Automation Equipment (suzhou) Co. Ltd.
Сохранить в закладки 1601027373070:
Описание и отзывы
Характеристики
Product Description

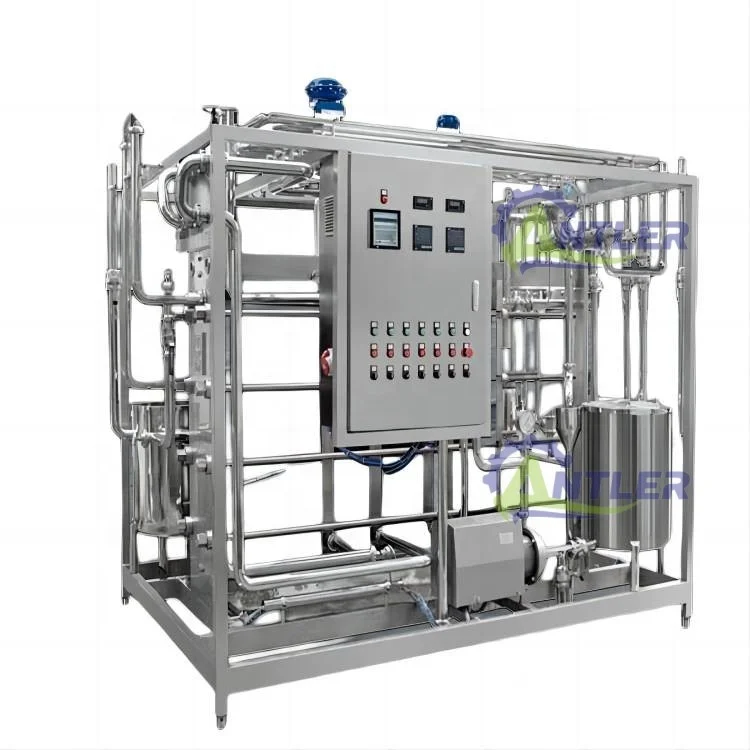

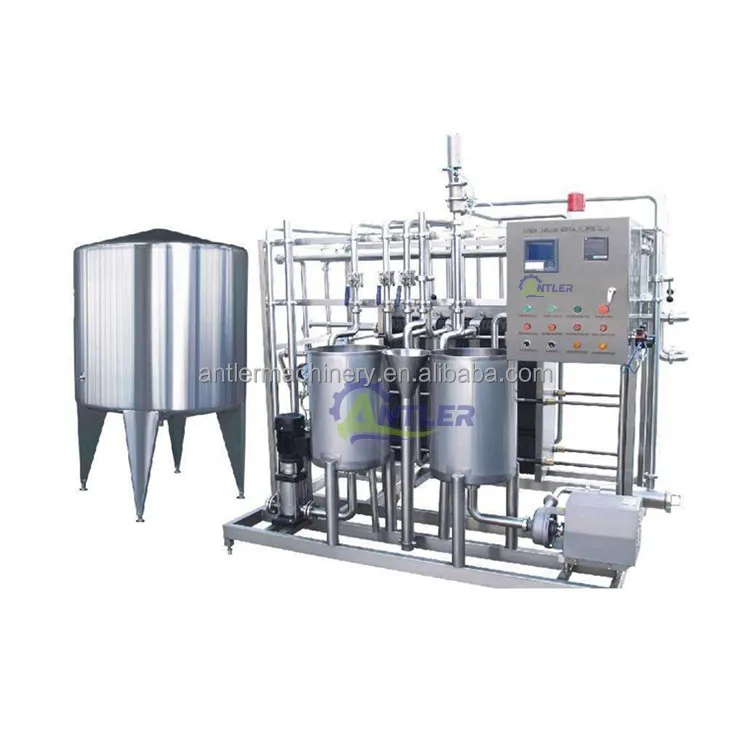

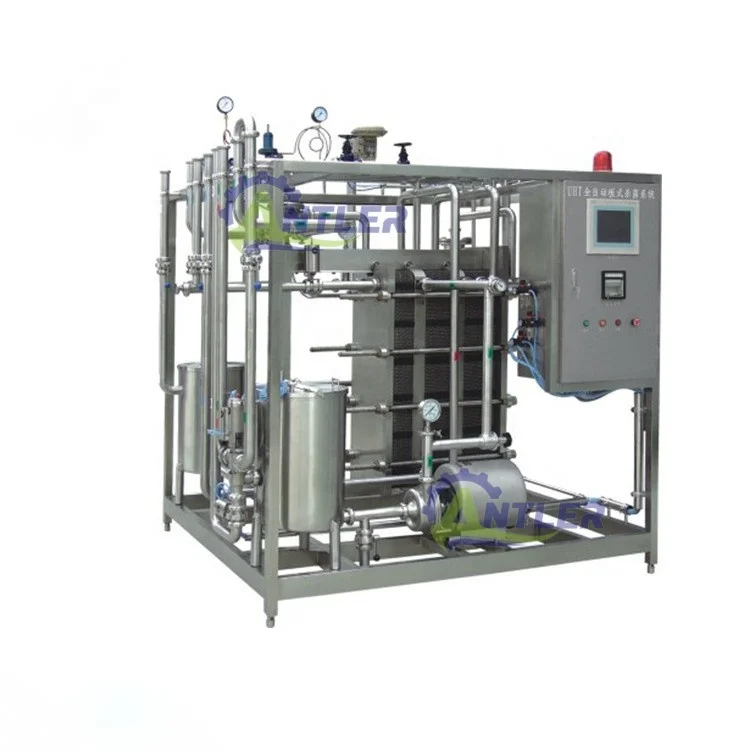

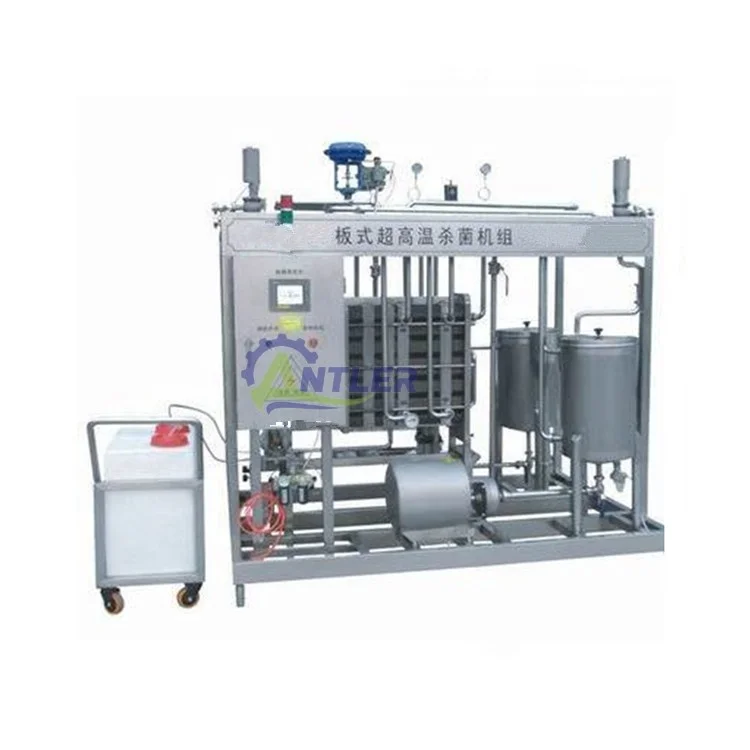

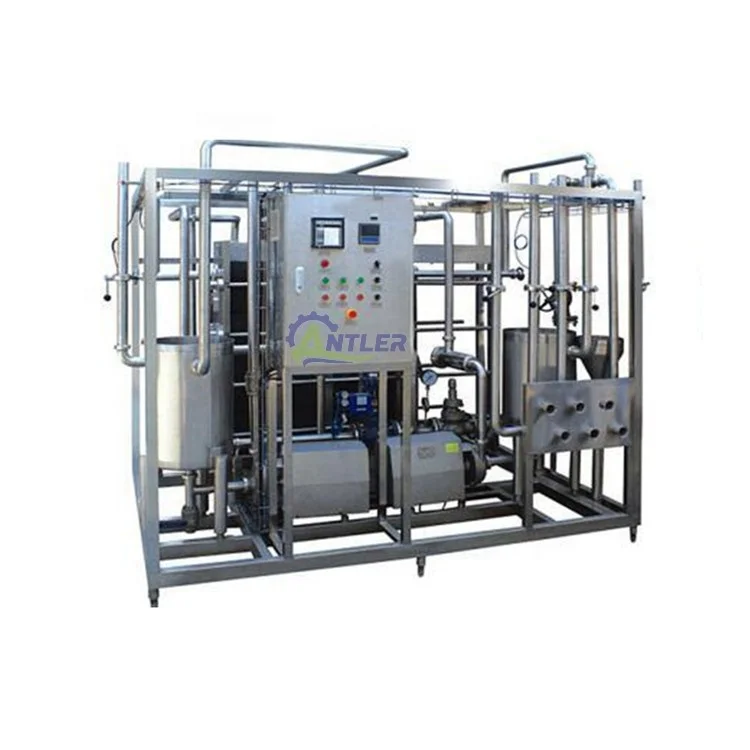

UHT plate sterilizer
It is designed for continuous sterilization for milk, fruit juice, soy milk, tea drinks and similar products. If it is linked with
aseptic filling equipment, it can be used for production of products with a shelf life of 3 to 5 months. It can also be connected
with machines such as separator, degasser and flash vaporizer. The output of this sterilizer is mainly regulated by the flow
controller in the feed system. Since materials are both heated and cooled in the heat recovery section of the plate heat
exchanger, the heat recovery rate can reach above 90%.
This sterilizer can automatically control heating and sterilizing temperature of materials, and can record temperature on a
continuous basis. Unqualified material will be re-processed in this sterilizer before they are discharged.
This sterilizer has many advantages, such as high heat exchange efficiency, stable and reliable operation, being easy to
operate,clean and maintain, long service life, compact structure, and small floor space.
aseptic filling equipment, it can be used for production of products with a shelf life of 3 to 5 months. It can also be connected
with machines such as separator, degasser and flash vaporizer. The output of this sterilizer is mainly regulated by the flow
controller in the feed system. Since materials are both heated and cooled in the heat recovery section of the plate heat
exchanger, the heat recovery rate can reach above 90%.
This sterilizer can automatically control heating and sterilizing temperature of materials, and can record temperature on a
continuous basis. Unqualified material will be re-processed in this sterilizer before they are discharged.
This sterilizer has many advantages, such as high heat exchange efficiency, stable and reliable operation, being easy to
operate,clean and maintain, long service life, compact structure, and small floor space.
Product features
1. High heat efficiency,90% of heat can be reused after the product be processed;
2. Temperature difference between the product and the heating medium is small, so the heating is gentle;
2. Temperature difference between the product and the heating medium is small, so the heating is gentle;
3. It is of high degree automatic, can automatically caontrol the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable;
4. It is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable;
5. The inside of the tubular adopts advanced polishprocedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;
5. The inside of the tubular adopts advanced polishprocedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;
Pasteurization is primarily used to make products safe to eat or drink, increase shelf life and to reduce spoilage. However, it
can also be used to alter the properties of the end product. For example, pasteurization of yogurt milk the proteins, enabling the
yogurt culture to grow and making the product both more viscous and more stable.
Given the huge variety of different applications and customer requirements, most of the pasteurization equipment we delivered is customized to meet individual customer needs.
can also be used to alter the properties of the end product. For example, pasteurization of yogurt milk the proteins, enabling the
yogurt culture to grow and making the product both more viscous and more stable.
Given the huge variety of different applications and customer requirements, most of the pasteurization equipment we delivered is customized to meet individual customer needs.
1.Capacity: 0.5-10T/H
2. Heating Type: steam heating/electric heating
3.Control: automatic
4. The materials and heating medium are heated by non-contact heat exchange in their own systems to ensure the hygiene and safety of materials.
5. Short sterilization time ensure the nutrient content of the material is not damaged. Good heat transfer effect, high heat
recovery and less energy consumption.
6. PLC control, heating temperature and steam flow regulation of each section of the material can be controlled automatically.
2. Heating Type: steam heating/electric heating
3.Control: automatic
4. The materials and heating medium are heated by non-contact heat exchange in their own systems to ensure the hygiene and safety of materials.
5. Short sterilization time ensure the nutrient content of the material is not damaged. Good heat transfer effect, high heat
recovery and less energy consumption.
6. PLC control, heating temperature and steam flow regulation of each section of the material can be controlled automatically.
Specification
Model | Capacity | Heat exchange area | Power | Steam consumption | Dimension | Weight |
ATL-S500 | 500L/H | 5m2 | 5.2KW | 50KG/H | 1200X1200X1500MM | 700 KG |
ATL-S1000 | 1000L/H | 8m2 | 6KW | 65KG/H | 1500X1400X1700MM | 850 KG |
ATL-S2000 | 2000L/H | 13m2 | 6KW | 105KG/H | 2000X1800X1800MM | 920 KG |
ATL-S3000 | 3000L/H | 20m2 | 7.5KW | 155KG/H | 2200X2000X2000MM | 1050 KG |
ATL-S4000 | 4000L/H | 30m2 | 8KW | 260KG/H | 2250X2000X2200MM | 1140 KG |
ATL-S5000 | 5000L/H | 45m2 | 8KW | 300KG/H | 2250X2000X2200MM | 1250 KG |
ATL-S10000 | 10000L/H | 60m2 | 11KW | 520KG/H | 2800X2000X2200MM | 1400 KG |
Complete Production Line Solution
Water treatment system
Water Treatment purify system for mineral water, pure water and other bottled water for food and beverage industry. It's maunly composed of the following equipment: pre-treatment, membrane system, electrodialysis device, sterilization system etc. The raw water can be ground water, sea water, tap water or the other water source, we choose suitable purify system based on raw water
quality. The capacity usually from 1T to 200T per hour.
quality. The capacity usually from 1T to 200T per hour.
Bottle blowing machine
Bottle blow molding machine is used to make containers for product, PET preforms are heate by lamps and then blowed by high pressure clean air within mold. It will become a bottle container as you designed. The blow molding machine capacity normally from 1,000BPH to 24,000BPH.
Filling machine
Juice filling line production capacity is usual in 1,000-36,000bph, 0.25-2.5L PET bottles are available.Automatic juice filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly
made of SUS304/ SUS316.Juice filling line can apply to fill fruit juice, energy drink, hot tea drink into PET bottle by changing few spare parts.
made of SUS304/ SUS316.Juice filling line can apply to fill fruit juice, energy drink, hot tea drink into PET bottle by changing few spare parts.
Labeling machine
The mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water, food,
etc.Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.High speed, high accuracy, stable performance.
etc.Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.High speed, high accuracy, stable performance.
Similar Products
Company Profile
Packing & Delivery
FAQ
1. Are you a manufacturer or a trading company?
We are a professional manufacturer of food & beverages processing machine.
2. What's the price of your machines?
Please contact us for further communication, we shall make you an offer.
3. What is the payment terms?
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, 100L/C at sight before shipment.
4. What is the supply scope?
We can provide you with turnkey project for complete dairy,fruit and vegetables processing machine.
Along with project design and basic formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your
factory size. We can design the layout according to your factory size.
6. What's your Warranty time?
Our warranty is 2 years after delivery.
We are a professional manufacturer of food & beverages processing machine.
2. What's the price of your machines?
Please contact us for further communication, we shall make you an offer.
3. What is the payment terms?
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, 100L/C at sight before shipment.
4. What is the supply scope?
We can provide you with turnkey project for complete dairy,fruit and vegetables processing machine.
Along with project design and basic formula.
5. What is the workshop size required?
The production line can be put in straight line and also can change the direction according to your
factory size. We can design the layout according to your factory size.
6. What's your Warranty time?
Our warranty is 2 years after delivery.
