Компрессионные фитинги для орошения 16 бар

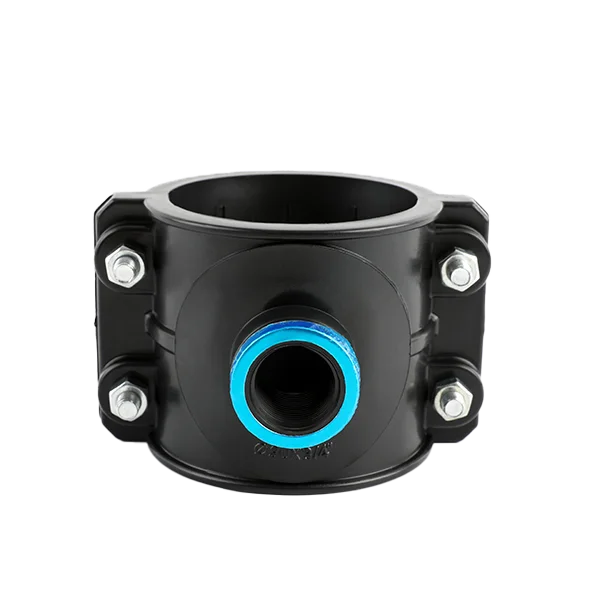

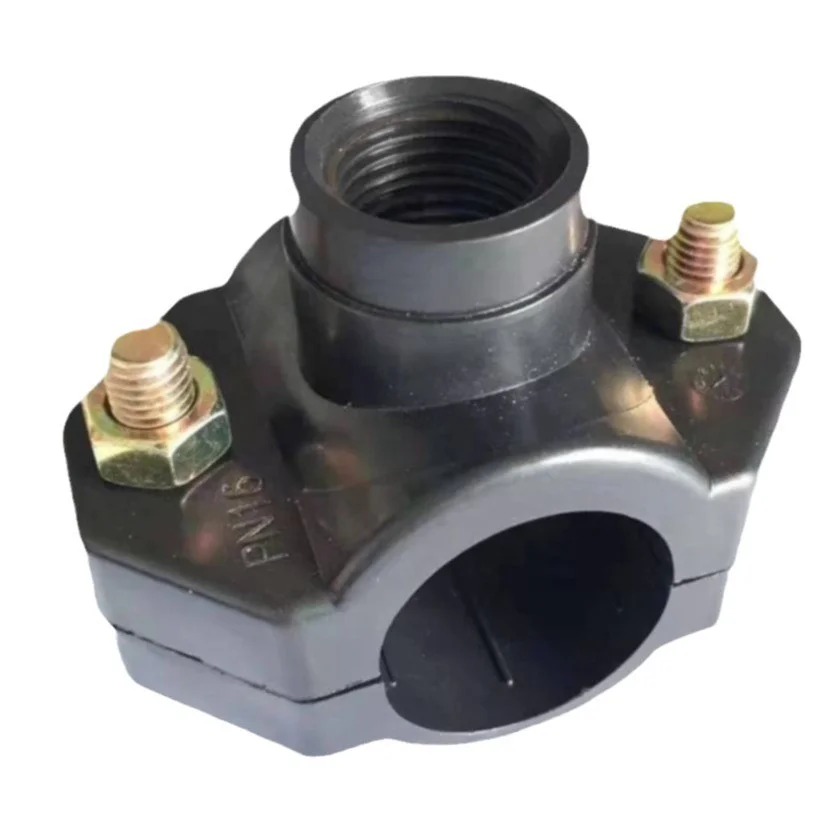

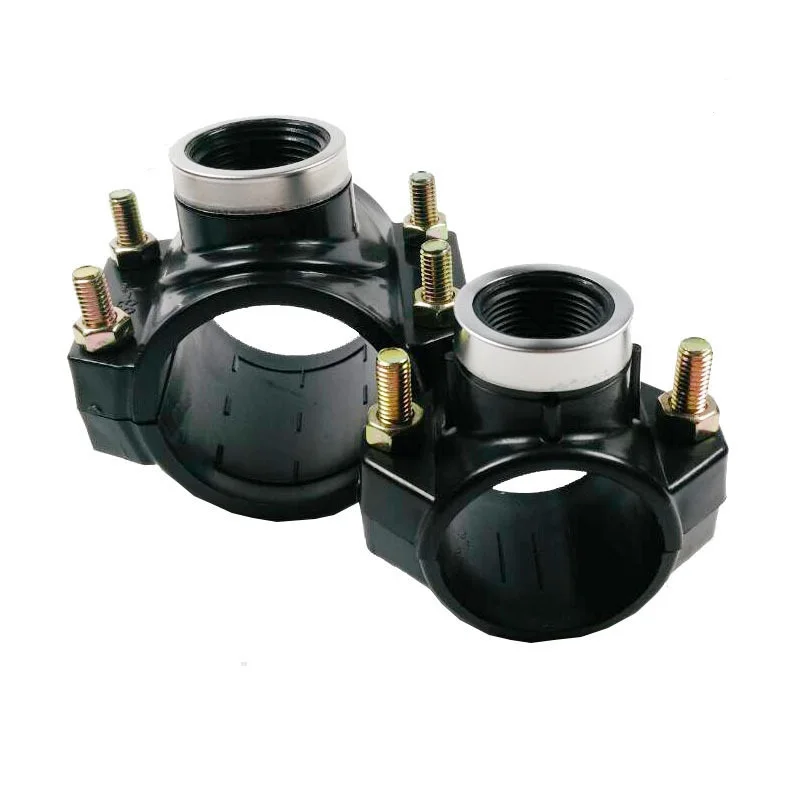

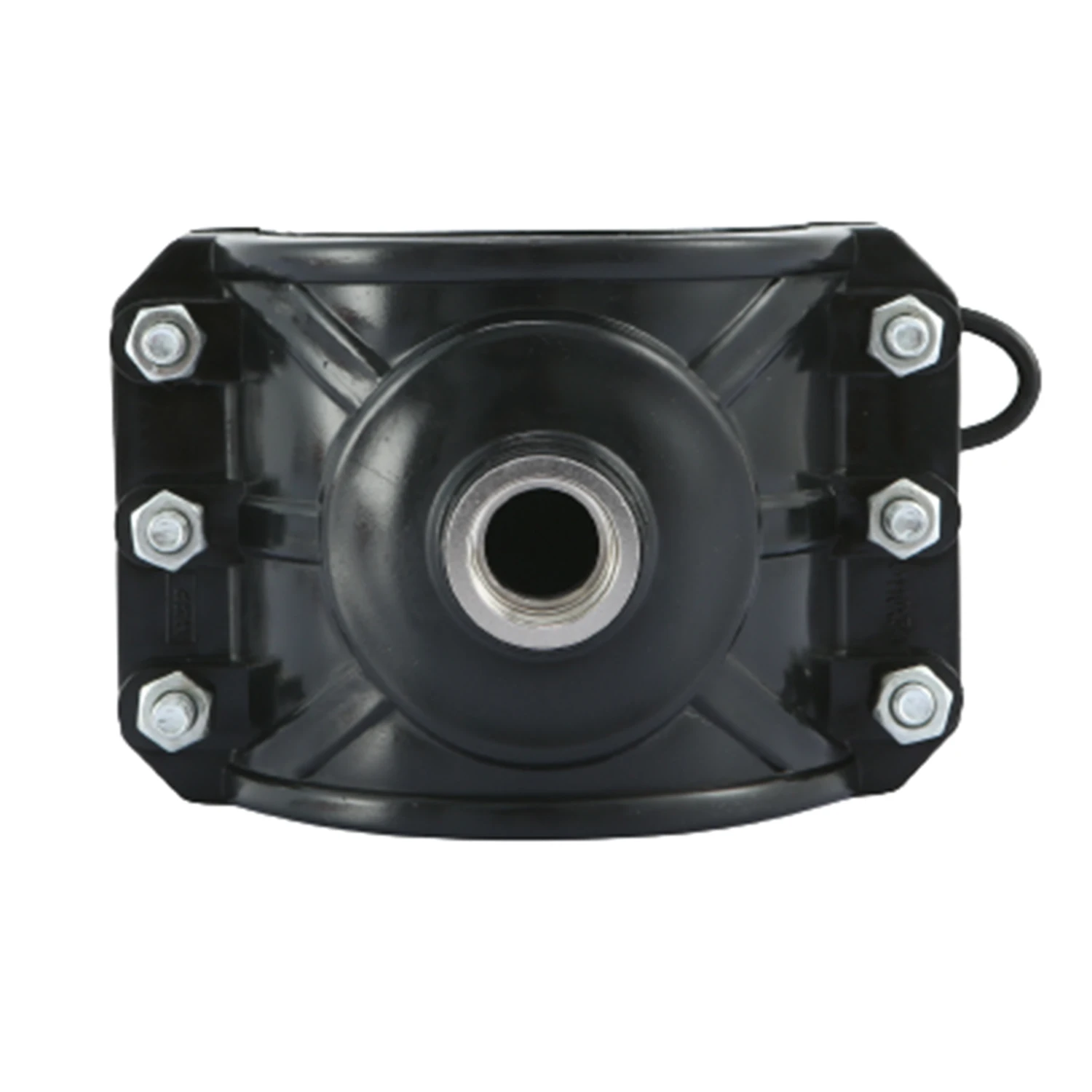

HDPE PE PN10 PN16 16Bar irrigation compression fittings water compression fittings PP clamp saddle PN16

HYRT PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.

Working Pressures

HYRT PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:

Dn	PFA*	PMA*	PEA*
16-63	16	20	24
75-110	10	12.5	15
Temperature(°C )	Da-10a25	Da+26a+35	Da+36a+45
16-63	16	20	24
75-110	10	12.5	15



Reference Standards

Dimensions: UNI 9561Working

Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.

Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201

Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1

Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2









1.    Product bearing pressure is related to time and ambient temperature. At 20 ° C, the diameter is 20-110mm.

2.   The product can carry a maximum pressure of 16 bar,and the diameter of 75-110mm can carry a maximum pressure of 10 bar.

 Compression fittings extensive use of various water pipe connections,  good connection performance, fast and direct,

no leakage.







Shandong HYRTPlastic Products Co., Ltd. is committed to the research, development,production and sales of water-saving irrigation equipment,focusing on new-type irrigation research and development and innovative technology enterprises.

The company is mainly engaged in the production of drip irrigation pipes (belts), quick couplings, fertilizing irrigation, filters, micro sprinklers and PE pipes, and more than 20 series of more than 200 water-saving irrigation equipment. At present, the company has 58 production lines of various types. With an annualoutput of 300 million meters of single drip irrigation tape and patch drip irrigation tape, 80 million meters of in-line cylindrical drip irrigation pipes, 50 million metersof anti-aging PE pipes and 20 million sets of various microtubes. -Sprinkler, filter (centrifugal, mesh, sand, laminated and 20,000 sets of fertilizer boxes.

After more than ten years of development, we are keeping up with the international frontier. Increase research and development efforts, explore domestic and foreign markets  with advantageous products, and help increase agricultural production and harvest.
