Products Description.

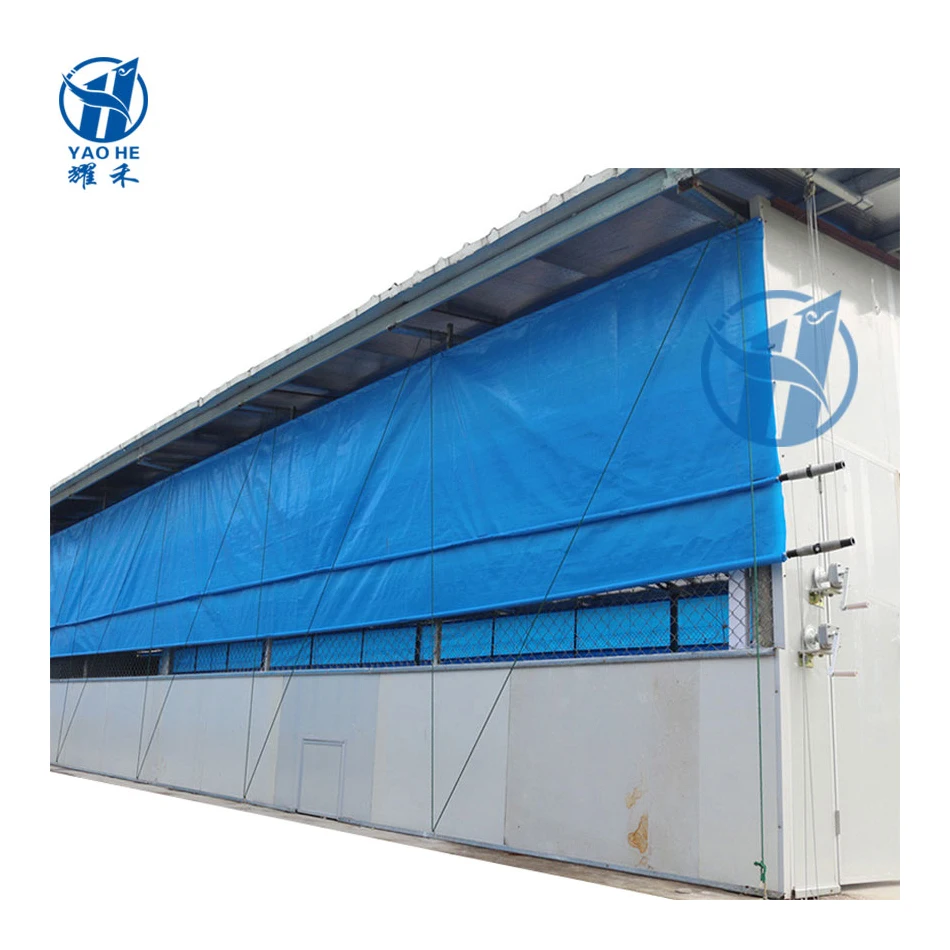

Poultry Farm Chicken Side Wall Curtain System. | ||||||||

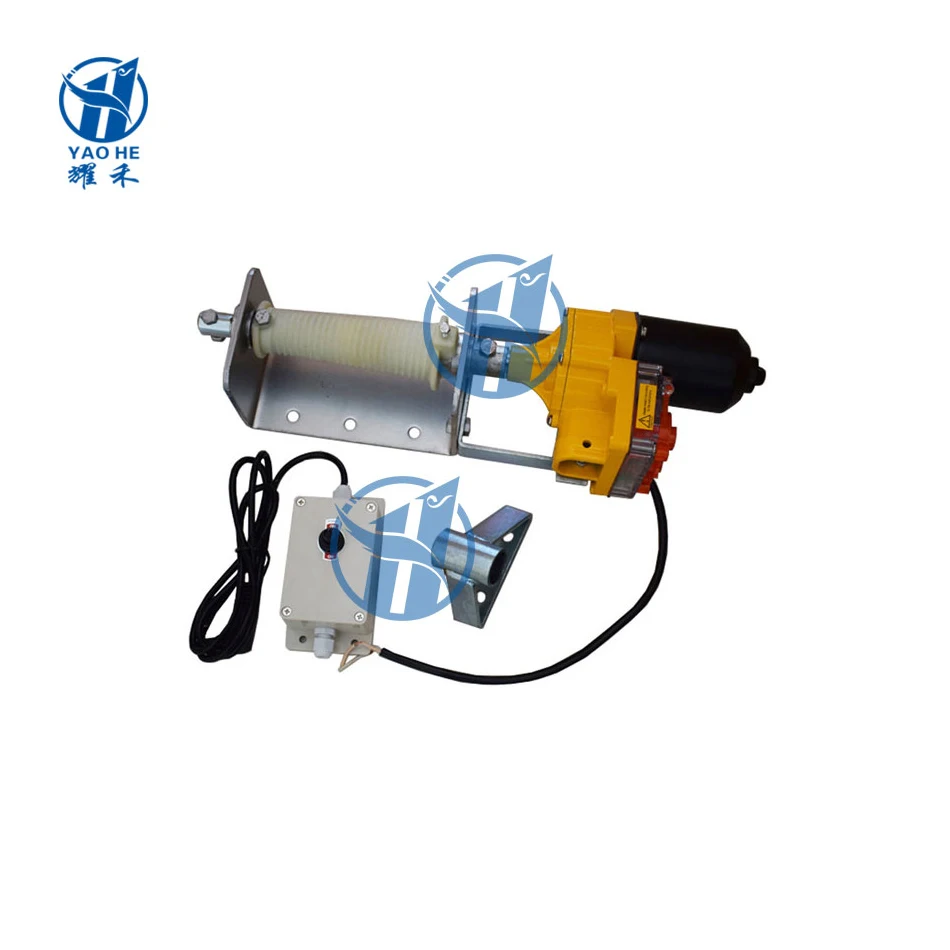

* YAOHE Side Wall Curtain System is widely used in Chicken house, Pig house, Rabbit house, Sheep house, Cow house. * Low product price(1.2-1.8$/m2). * 1.Main purpose: Cover the surface of the evaporative cooling pad, avoid dust adhesion and sunlight exposure, and improve the service life of the evaporative cooling pad. * 2.Main purpose: When open, let fresh air circulate and remove odor. When closed is close tightly, block wind, snow, rain, prevent cold air from entering the farm. * Long service life (>6 years). * TARPAULIN can choose PVC or PE material. * TARPAULIN double-sided waterproof, never seepage, can directly wash the surface. * Open and close can choose manual winch or electric winch. | ||||||||

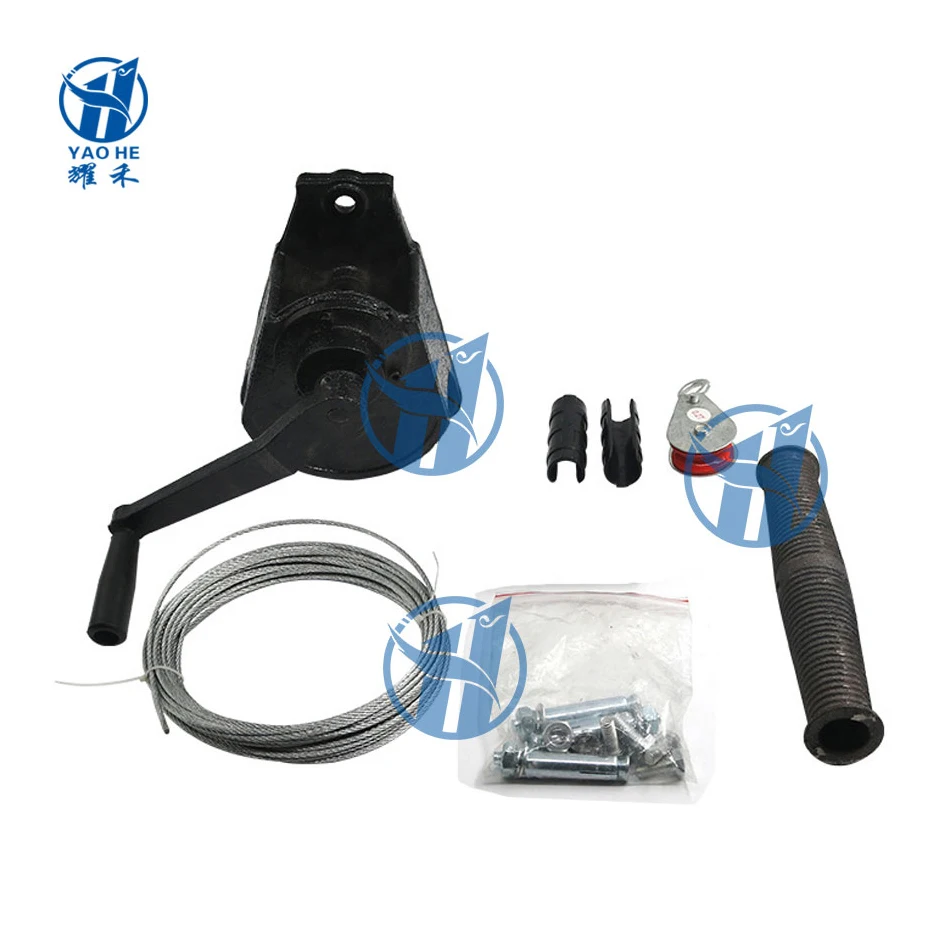

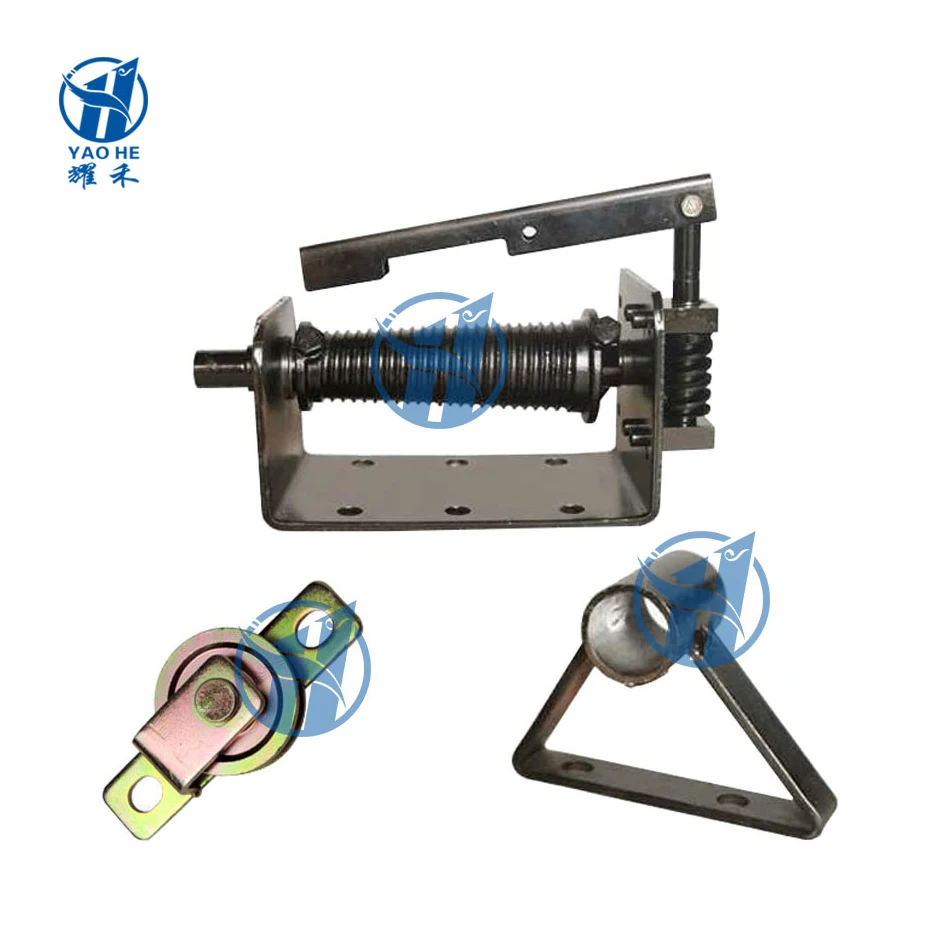

Manual Winch
• Main accessories: Pulley / Manual winch / Wire rope / Winch Cranking bar / Triangular support bracket.
• Maximum use height: 4m
• Maximum use length: 50m
• Manual winch Material: Thickened Cast iron.
• Surface treatment process: Galvanized.
• Output torque: 330N·m.
• Manual winch Weight: 1.9Kg.
• Total weight: 6.9Kg.
• Maximum use height: 4m
• Maximum use length: 50m
• Manual winch Material: Thickened Cast iron.
• Surface treatment process: Galvanized.
• Output torque: 330N·m.
• Manual winch Weight: 1.9Kg.
• Total weight: 6.9Kg.
Rolling Wheel Manual Winch
• Main accessories: Pulley / Manual winch / Winch Cranking bar / Wire rope / Rolling wheel / screw.
• Maximum use height: 3m
• Maximum use length: 40m
• Manual winch Material: Thickened ductile iron.
• Manual winch Weight: 4.92Kg.
• Rolling wheel weight: 0.68Kg.
• Total weight: 6.8Kg.
• Maximum use height: 3m
• Maximum use length: 40m
• Manual winch Material: Thickened ductile iron.
• Manual winch Weight: 4.92Kg.
• Rolling wheel weight: 0.68Kg.
• Total weight: 6.8Kg.
Nylon Pulley
• Diameter: 9cm.
• Pulley material: Nylon.
• Bracket material: Galvanized sheet.
• Installation spacing: 3-4m/1PCS.
• Pulley material: Nylon.
• Bracket material: Galvanized sheet.
• Installation spacing: 3-4m/1PCS.
Steel Pipe Support Pulley
• Diameter: 7cm
• Pulley material: Nylon
• Bracket material: Galvanized sheet
• Installation spacing: 8-10m/1PCS
• Pulley material: Nylon
• Bracket material: Galvanized sheet
• Installation spacing: 8-10m/1PCS
Cast Iron Pulley
• Diameter: 7cm
• Pulley material: Cast iron
• Bracket material: Cast iron.
• Install at both ends or corners.
• Pulley material: Cast iron
• Bracket material: Cast iron.
• Install at both ends or corners.

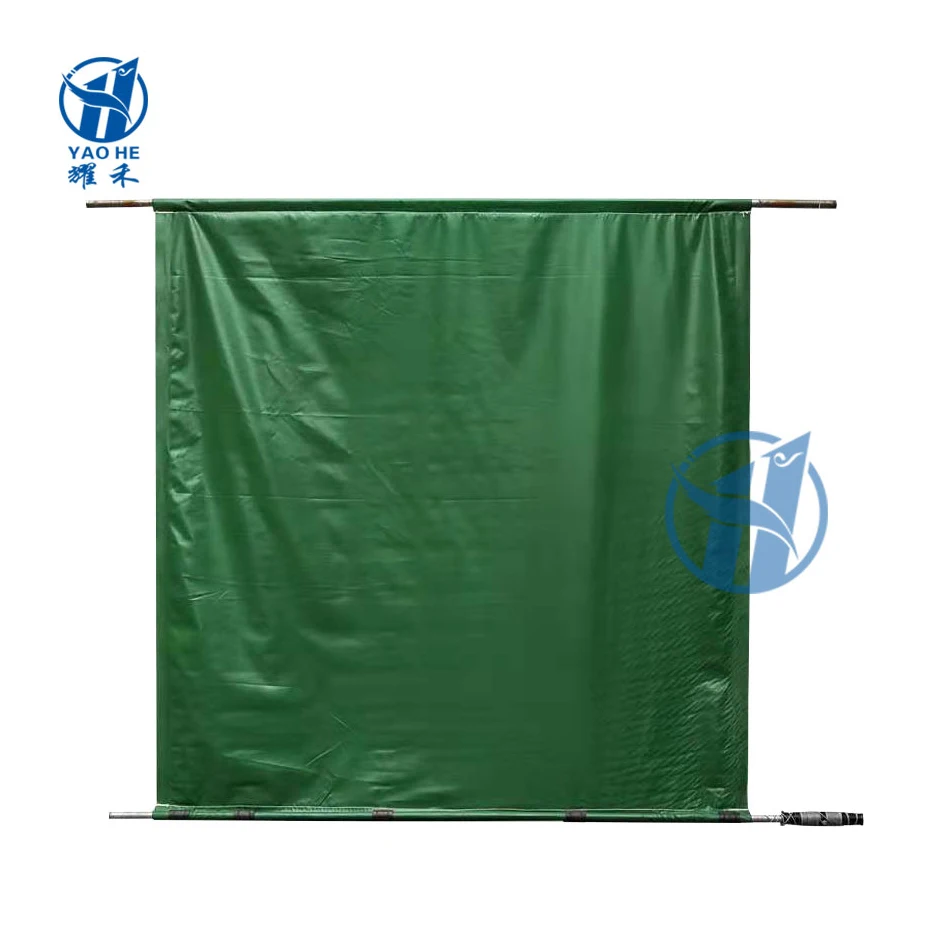

PVC Green Tarpaulin
• Material: PVC.
• Width:1.65m - 3m, can be customized.
• Width:1.65m - 3m, can be customized.
• Length: No limit.
• G Weight of Fabric: 600g/m2.
• Thickness: 0.3mm/0.4mm.
• Length: 100m / roll.
• Color: Green.
• G Weight of Fabric: 600g/m2.
• Thickness: 0.3mm/0.4mm.
• Length: 100m / roll.
• Color: Green.
PVC White Tarpaulin
• Material: PVC.
• Width:1.65m - 3m, can be customized.
• Width:1.65m - 3m, can be customized.
• Length: No limit.
• G Weight of Fabric: 480g/m2.
• Thickness: 0.3mm/0.4mm.
• Length: 100m / roll.
• Color: White.
• G Weight of Fabric: 480g/m2.
• Thickness: 0.3mm/0.4mm.
• Length: 100m / roll.
• Color: White.
PE Green Tarpaulin
• Material: Polyethylene(PE).
• Width:1.65m - 3m, can be customized.
• Length: No limit.
• G Weight of Fabric: 240g/m2.
• Thickness: 0.18mm/0.2mm
• Length: 200m / roll.
• Color: Green.
• Width:1.65m - 3m, can be customized.
• Length: No limit.
• G Weight of Fabric: 240g/m2.
• Thickness: 0.18mm/0.2mm
• Length: 200m / roll.
• Color: Green.
WhatsApp & WeChat & TM Trademanager & Mobile 24hours is online, please feel free to contact me.
WhatsApp: +86 15263635153
WeChat: +86 15263635153
Skype: +86 15263635153
24 Hr. Mobile: +86 15263635153
E-mail: yaohe-ronne@hotmail.com
Installation Diagram
Installation Step:
1. Tarpaulin fixation method. The top steel pipe is reserved for 10cm, and the bottom steel pipe is reserved for 30cm.
2. Place the rolling wheel on the lower steel pipe at a distance of TARPAULIN 3-4 cm and fix it with screws.
3. Install MANUAL WINCH. Fix MANUAL WINCH at the right height to ensure a firm and safe use.
4. Fix the pulley. Install the pulley on the upper steel tube (directly above the rolling wheel) to ensure a firm installation.
5. Winding the wire rope. Fix one end of the wire rope on the MANUAL WINCH wheel. Tighten the wire rope and wrap around the rolling wheel. Finally, tighten the wire rope and fix it on the ground.
2. Place the rolling wheel on the lower steel pipe at a distance of TARPAULIN 3-4 cm and fix it with screws.
3. Install MANUAL WINCH. Fix MANUAL WINCH at the right height to ensure a firm and safe use.
4. Fix the pulley. Install the pulley on the upper steel tube (directly above the rolling wheel) to ensure a firm installation.
5. Winding the wire rope. Fix one end of the wire rope on the MANUAL WINCH wheel. Tighten the wire rope and wrap around the rolling wheel. Finally, tighten the wire rope and fix it on the ground.
TARPAULIN can choose PVC or PE material.
Widely Used.
Use in Poultry, Livestock breeding, Animal husbandry.
Chicken house,
Pig house,
Rabbit house,
Duck house, etc.
Rabbit house,
Duck house, etc.
Product Packaging.
Manual Winch+ Accessories, Carton Packing.
Packing use cartons to ensure no bumps and scratches during transportation.
Product Recommendation.
Evaporative Cooling Pad
(Wet curtain)
*Use in Chicken house, Poultry, Greenhouse, Factory.*High cooling efficiency, wall installation.
Aluminum Alloy Frame for Evaporative Cooling Pad
*Frame Height, Width, Thickness can be customized.*Configured with water pipes, a full set of plastic accessories, water pumps to assemble a complete evaporative cooling pad system.
Stainless Steel Blade Push-pull Centrifugal Exhaust Fan
*Use in Chicken house, Poultry, Greenhouse, Factory.*High air volume, wall installation.
FRP Exhaust Fan
(Fiberglass exhaust fan)
*Glass fiber material has strong corrosion resistance.*A variety of fan blade materials are available.
*High air volume, wall installation.
*High air volume, wall installation.
Feed Silo(Feed Storage)
*3-67tons.*Double-sided galvanized layer 275g.
*Thickness:1.0/1.2/1.5mm(±0.02mm).
Poultry Air Inlet
*Use in Chicken house, Pig house, Duck house, Rabbit house.*Natural ventilation, let fresh air enter the farm, and improve the farm environment.
Contact Information.
WhatsApp & WeChat & TM Trademanager & Mobile 24hours is online, please feel free to contact me.
WhatsApp: +86 15263635153
WeChat: +86 15263635153
Skype: +86 15263635153
24 Hr. Mobile: +86 15263635153
E-mail: yaohe-ronne@hotmail.com
Skype: +86 15263635153
24 Hr. Mobile: +86 15263635153
E-mail: yaohe-ronne@hotmail.com
Похожие товары
Новое состояние животных микрочип для считывания ушных бирок сканер HDX FDX-A FDX-B многопротокольный ISO USB чип RFID Ушные бирки обработки
26,89-31,84 $
Индивидуальное алюминиевое и пластиковое кольцо для клуба голубей
0,06-0,09 $

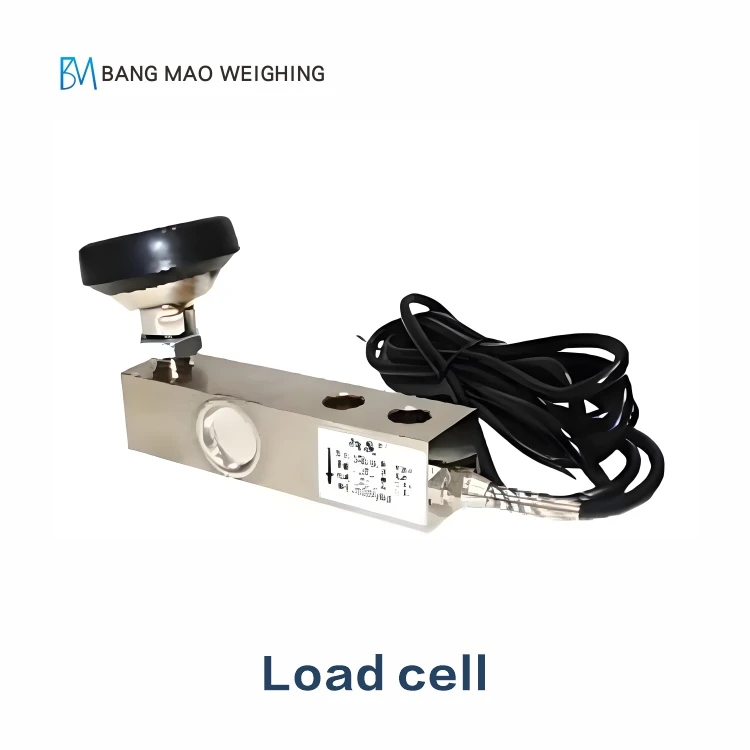

Новый тензодаточный элемент для животноводческого оборудования сельскохозяйственной промышленности
71,00 $
Линия воды новый Высокий Редуктор давления регулятора потока
18,50-20,00 $

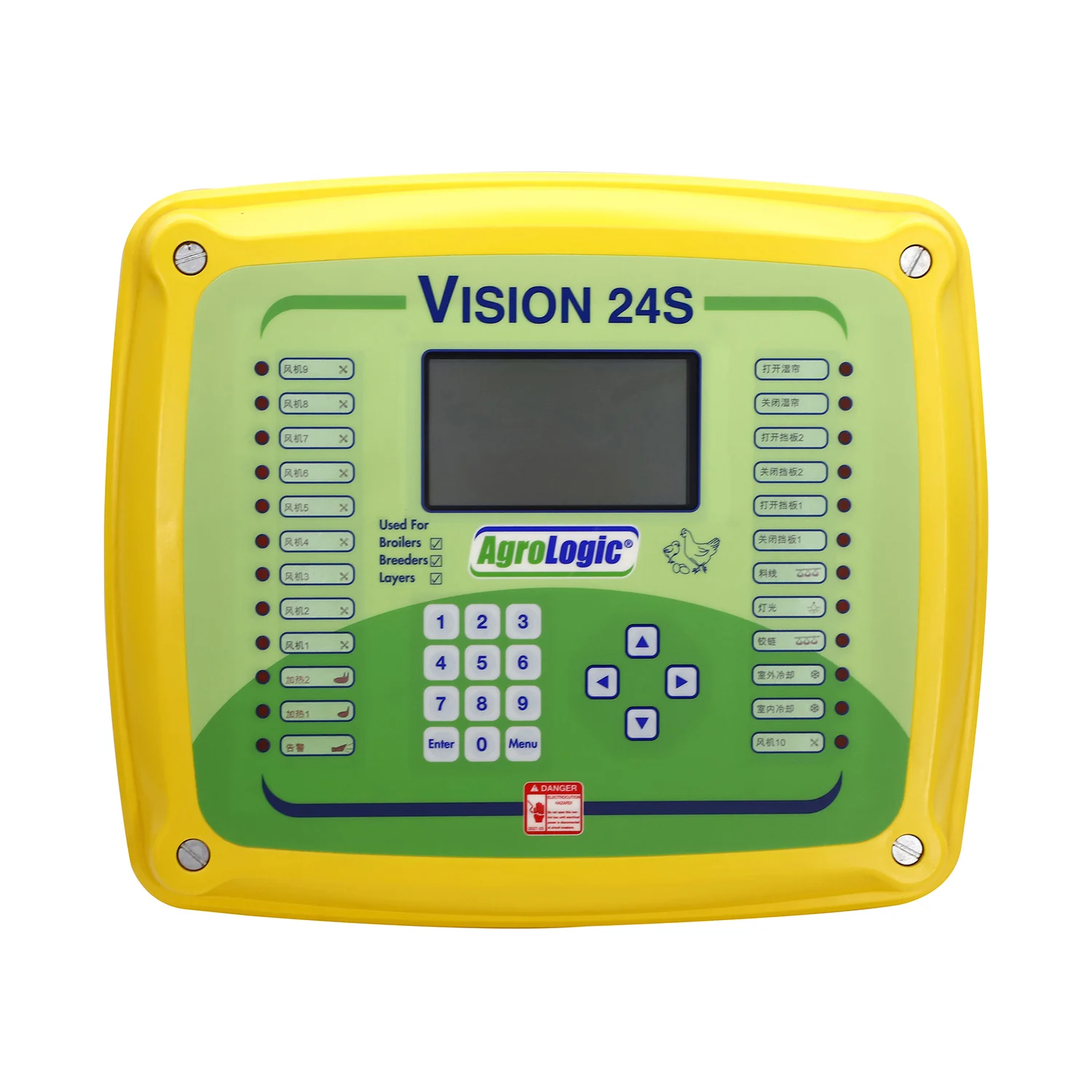

Специальная Горячая продажа высокоточная промышленная система контроля окружающей среды птицы
572,00-612,00 $

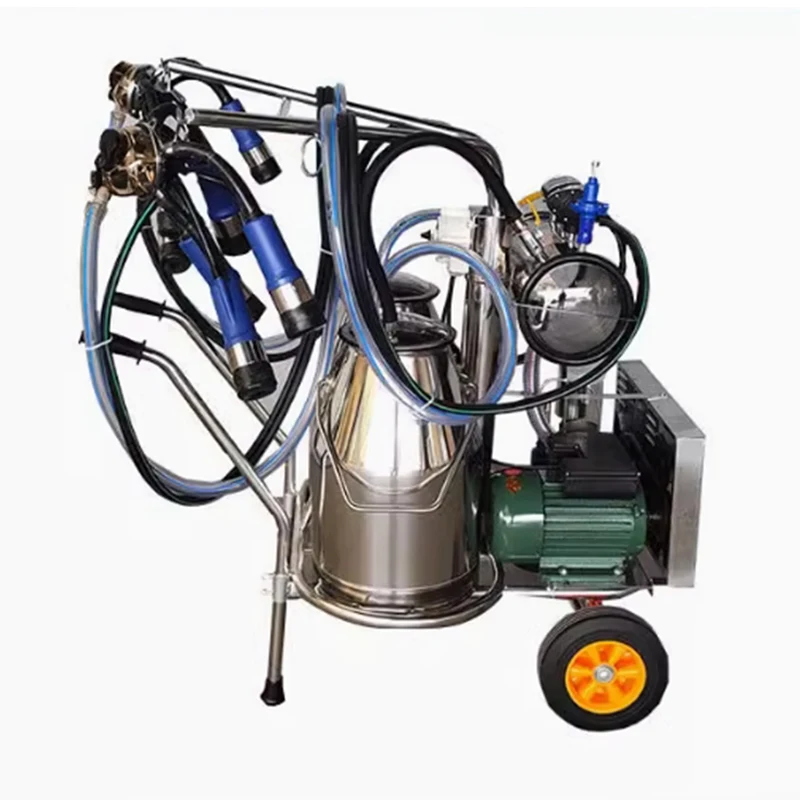

Портативный доильный аппарат для козьей коровы с небольшим вакуумным насосом клетка животных
230,00-260,00 $

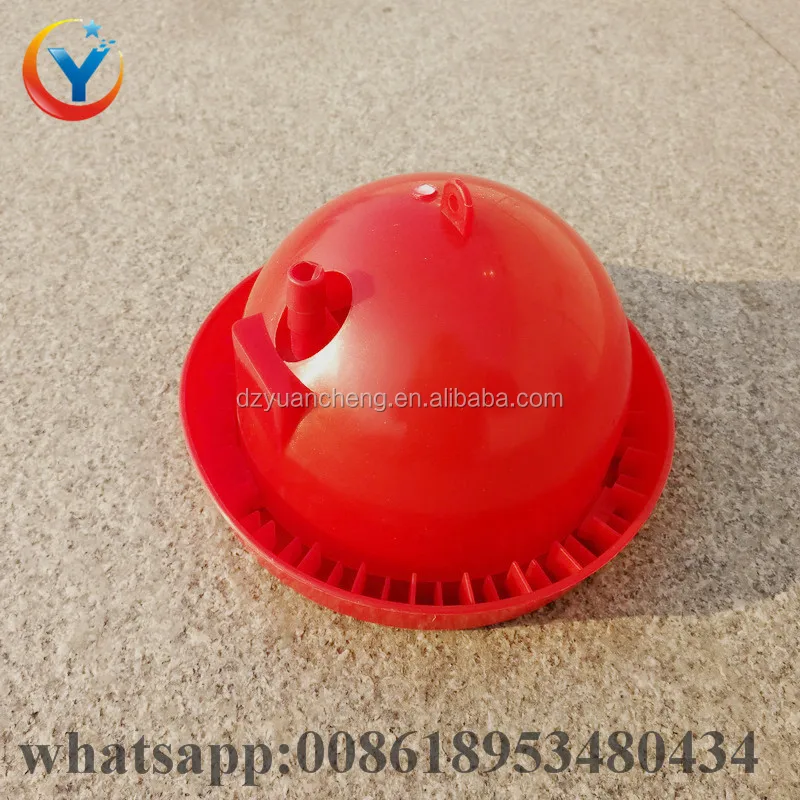

Автоматическая поилка для перепелов новая животных кормушка птиц линия поилки
