Products Description

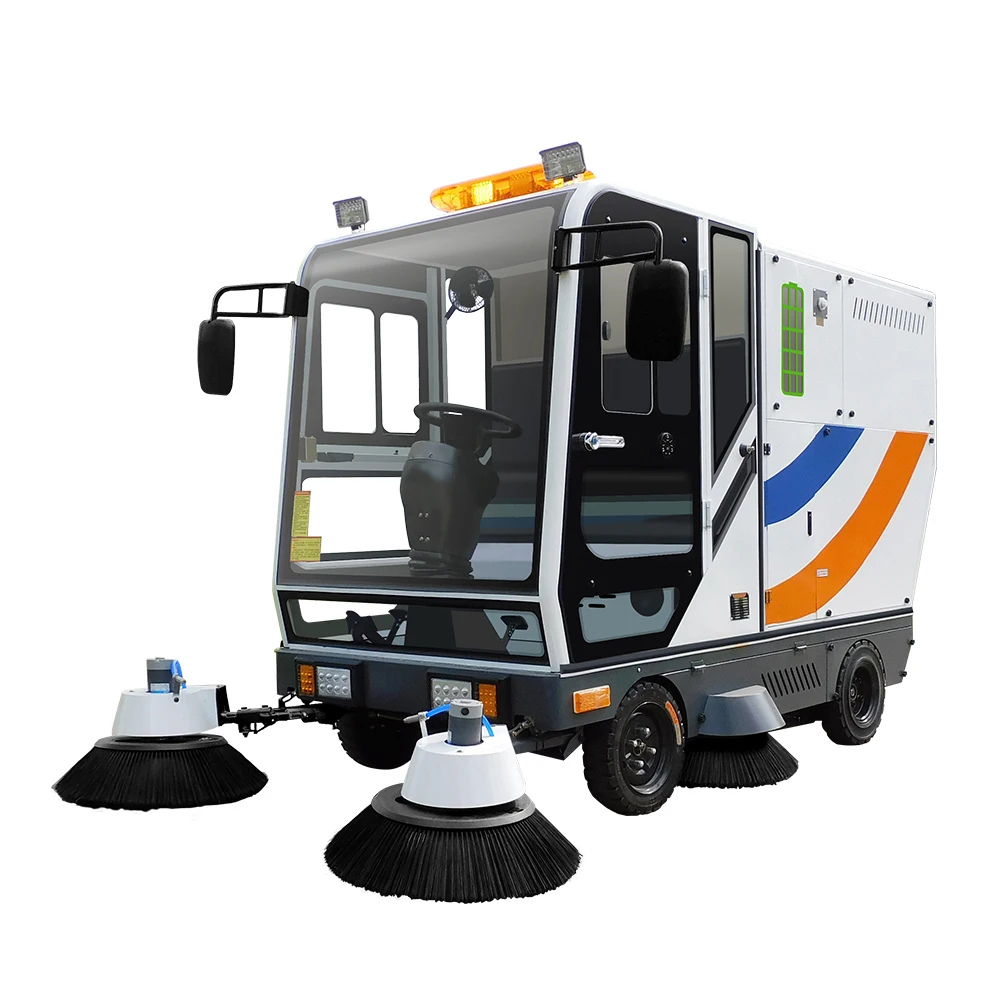

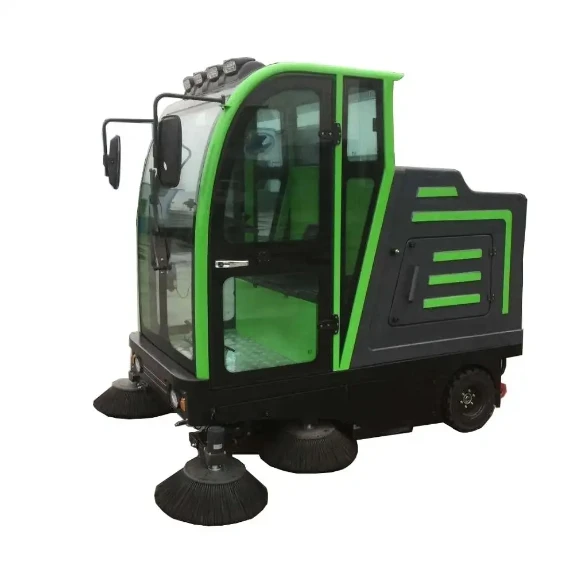

Cophilo C220-T Full Closed Driving China Road Sweeping Machine Sweeper Vehicles
The dustbin of Cophilo C200-T 4 wheels bucket hanging style sweeper can be replaced quickly. The cleaning width can be adjustedquickly based on different application scenes. The sweeper can be used on streets, plants, schools, hospitals, institutions units,etc.








Bucket hanging style


            Vehicle backup camera

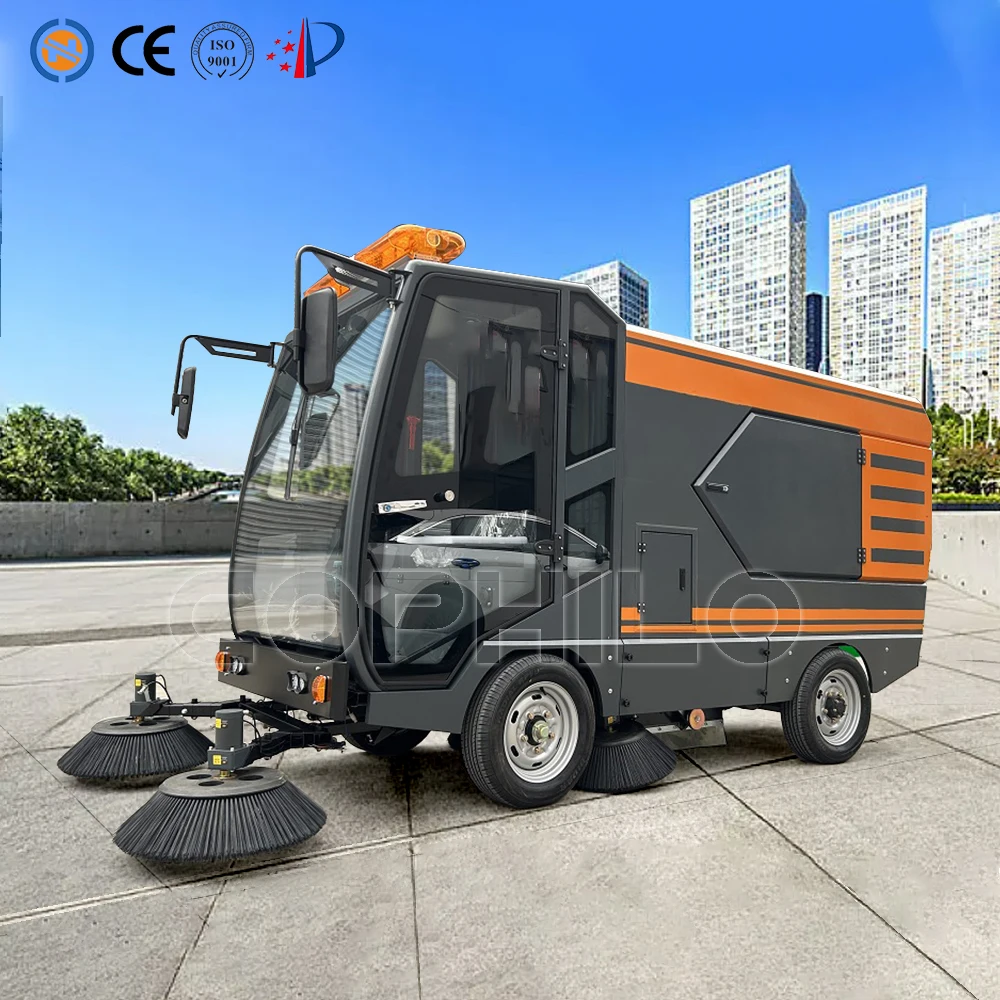

Head View

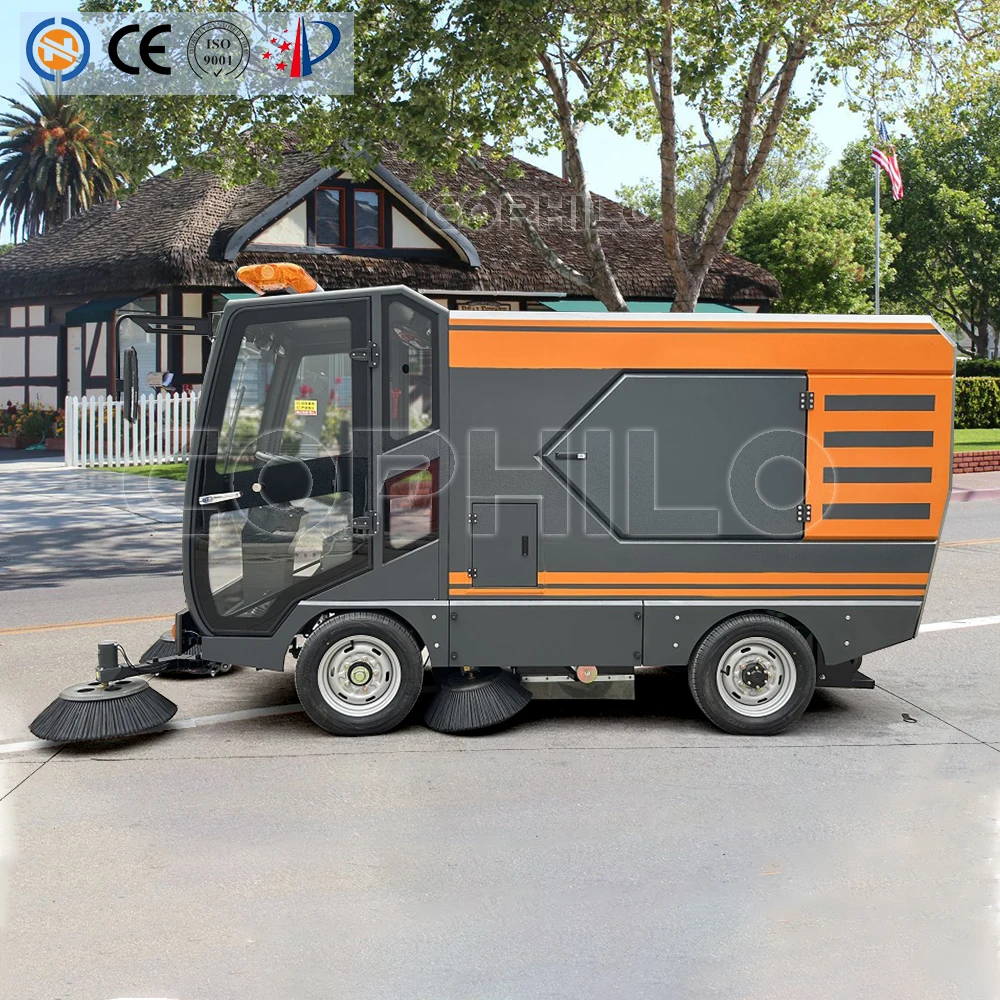

Side View
Back View




Vehicle backup camera
High pressure flushing kit
Fog gun


4 Wheels
Hydraulic Lifting main brush
Bucket hanging style(240L dustbin)


PRODUCT SPECIFICATIONS




No.
Item
Unit
Parameter
1.
Cleaning Width:
mm
1900~2200(Adjustable )
2.
Max operating speed:
km/h
7
3.
Max forward speed:
km/h
25
4.
Max work productivity:
㎡/h
20000
5.
Dustbin capacity:
L
240( Garbae can)
6.
Water tank capacity:
L
240
7.
Power voltage:
V
48
8.
Operation duration :
h
6~8
9.
Gradeability:
%
30
10.
Turning radius:
mm
2000
11.
Drive motor power:
w
5000( Alternating current)
12.
Sucation fan power:
w
500*2
13.
Main brush motor power:
w
800*2
14.
Side brush motor power:
w
120*4
15.
Vibrating motor power:
w
80*2
16.
Filtering area:
8*2
17.
Dimensions:
mm
3950*2050*2000
18.
Main brush length:
mm
700
19.
Side brush length:
mm
700*2 + 600*2
20.
Net Weight:
kg
1580




Battery
Adopt 48V maintenance-free storage battery as power. Its special sealing mechanism can avoid dehydration and dilatant. So it won't seepage and eco-friendly. The maintenance is easy and convenient.
Motor
The motor advantages: long service
life, stable function, precise speed
regulation, large speed regulation
ratio, strong output characteristics, smooth operation.
Electric control system
Adopt car level premium electric control system, overcurrent protection and undervoltage protection, more safe.


Wiringsystem
The sweeper wiringsystem meet the TS16949 standard, reliable power
supply, all key connector are flame
retardant and waterproof.
Charge motor
Standard configuration of APEC active power-factor correction charger.
Brushes
Configuration of preposition adjustable double side brush, center double side brush and rolling brush, cleaning width is 1.9-2.2 meter which suitable for large area cleaning and high work efficiency.


Suction fan system
Postpose double suction fan system, the operation mode of combining suction and sweep let the cleaningin-depth.
Water tank & spraying system
Configuration of 240L large capacity water tank and high-pressure spraying system for dust supperession, avoiding secondary dust source during operation.
Seat and steering wheel
Dual-directional regulation seat and steering wheel improve the operation confortableness


Cap & door
Adopt full closed cap, avoiding mal-condition such as weather and noise affect the cleaning operation. The cab door equipped with anti-collision lock which can be back fold to be fixed. Ventilate and cool the driver's cab in the summer and keep warm in the
winter.
Instrument panel
Function bottons of the whole sweeper centralized to the instrument panel, hotkep operation is more easier to use.
Modularization & integration design
Modularization and integration design on the whole sweeper, reasonable structure ensure the sweeper relibility of daily operation and convenience of maintenance.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.




Main brush
Side brush


Filter element
Mudflap




APPLICATION SCENES










PRODUCT CATEGORY






APPLICATION SCENARIOS




FAQ




Q1:Are you manufacturer?
A1:Yes, warmly welcome you visit our plant.

Q2:What is your MOQ?
A2:There is no MOQ limited. However, the larger quantity, the cheaper price.

Q3:How about the lead time?
A3:Normally 7 to 15 days for small quantity. If the order quantity is bulk, lead time is negotiable.

Q4:Can you put our logo and labels?
A4:Normally the machine shows the brand Cophilo® logo and labels. However, OEM and ODM arewelcomed and your logo and labels can be put on the machines if needed.

Q5:What kind of batteries can we choose?
A5:Our standard configuration is lead-acid battery. Lithium battery is also can becustomized at your request.
