D50mm 300mm подземная дренажная труба мягкий шланг гибкий Проницаемый (дренажный шланг)

Сохранить в закладки 1601028426939:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

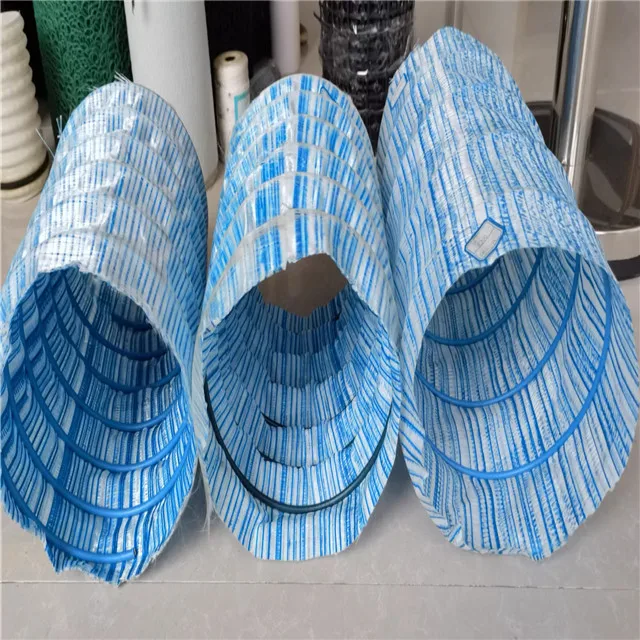

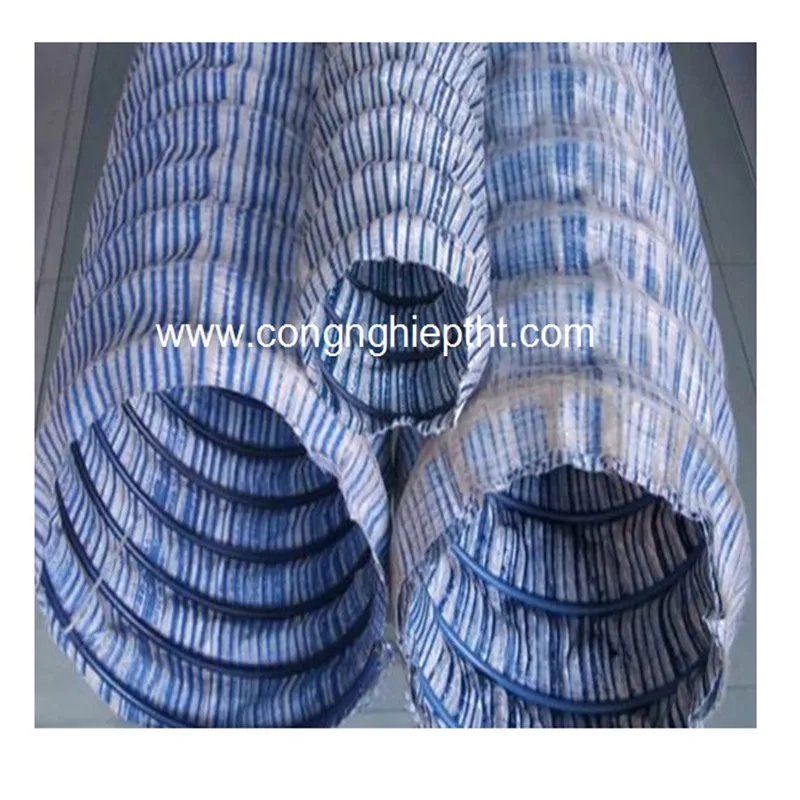

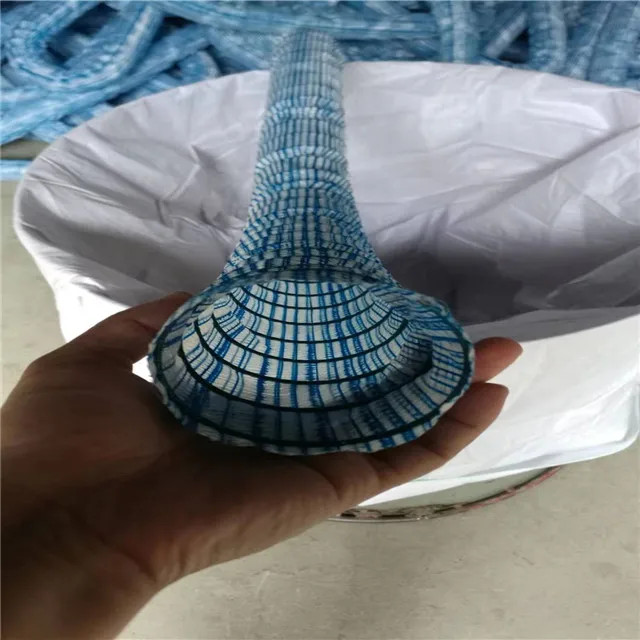

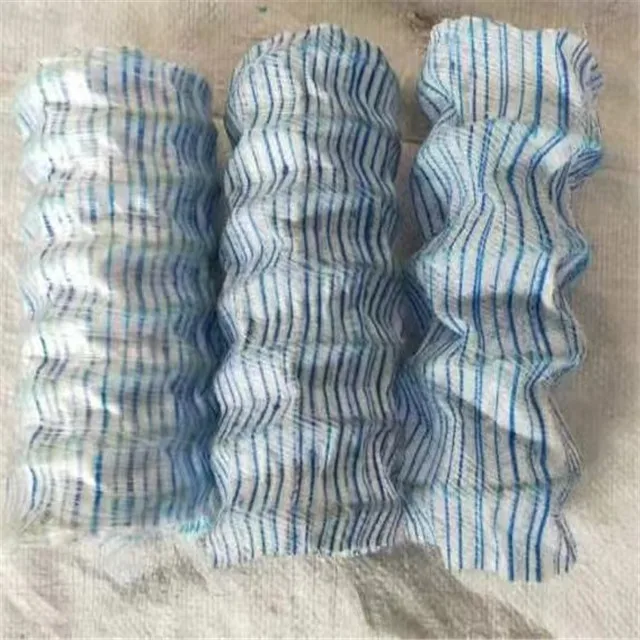

Flexible permeable hose is supported by anticorrosive spring rings to form an anti-high pressure structure.Besides, an additional non-woven cloth works as a filter to prevent the sand and soil from going into the pipe,thus purifying the water. Terylene threads on the outside surface enables the pipe to have a good sopping capacity and c ollect the superabundant water in the soil system. The rubber tendon enables the pipe wall to integrate well with the spring steel circle so that a omnidirectional penetrating function is realized, with the impurities like bedloads blocked out. In this way, penetration, filtering and drainage are done at the same time.





Hose Specification















































































































Art. No.



PLD0101



PLD0102



PLD0103



PLD0104



PLD0105



PLD0106



PLD0107



Item



φ50



φ80



φ100



φ150



φ200



φ250



φ300



Wire diameter(mm)



≥1.6



≥12.0



≥2.6



≥3.5



≥4.5



≥5.0



≥5.5



Distance between wire


(ring/m)



≥47



≥37



≥32



≥24



≥17



≥17



≥17



Filter


cloth



MD Tensile


Strength


 kN/5cm≥



1.0



1.0



1.0



1.0



1.0



1.0



1.0



MD


elongation


% ≥



15



15



15



15



15



15



15



CD tensile


strength


kN/5cm≥



0.8



0.8



0.8



0.8



0.8



0.8



0.8



CO


elongation


% ≥



15



15



15



15



15



15



15



Ball tensile strength kN ≥



1.4



1.4



1.4



1.4



1.4



1.4



1.4



Filter


coefficient


m/s ≥



0.1



0.1



0.1



0.1



0.1



0.1



0.1



Effective


aperture


mm ≥



0.06—0.25






Hose Pressure Resistance Index







































































    Specs


Item



φ50



φ80



φ100



φ150



φ200



φ250



φ300






Flat


rate



1%  N



≥100



≥180



≥400



≥780



≥1000



≥1200



≥1400



2%  N



≥180



≥400



≥780



≥1000



≥1200



≥1400



≥1600



3%  N



≥370



≥780



≥1200



≥1400



≥1700



≥1800



≥1900



4%  N



≥660



≥1200



≥1500



≥1800



≥2100



≥2200



≥2400



5%  N



≥1100



≥1500



≥1800



≥2000



≥2300



≥2600



≥3000



Acid & Alkali


Resistance



No unusual changes when being marinated 72 in 10% Hcl and 10% NaOH
