Комплект солнечных батарей 400 Вт 600 Вт 800 Вт Балконная солнечная система маленькая на сетке солнечные балконные электростанции Balkonkraftwerk
41 569,50 ₽ - 45 945,23 ₽
Комплект солнечных батарей для балкона
- Категория: >>>
- Поставщик: Nuuko Solar Co. Ltd.
Сохранить в закладки 1601028953008:
Описание и отзывы
Характеристики
Product Description
• Based on the half-cell technology, the module produces higher power output and effectively reduces the system cost; The half-cell technology helps to effectively alleviate the hot spot risk, reducing shading loss and lowering internal resistance
• To maximize the customer value by more power yield generation and less carbon emission
• Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes;

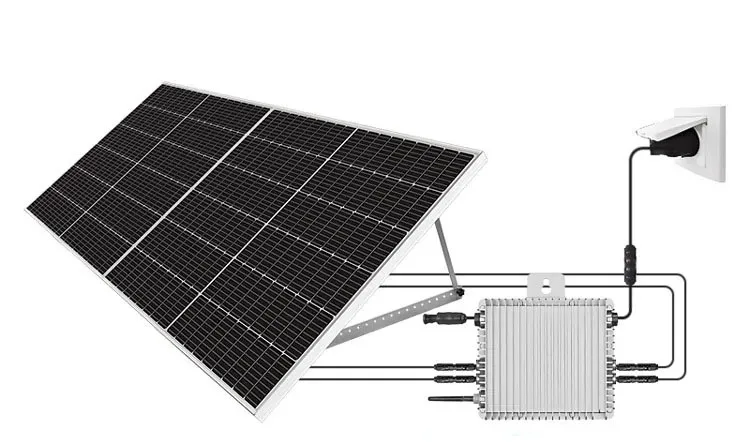

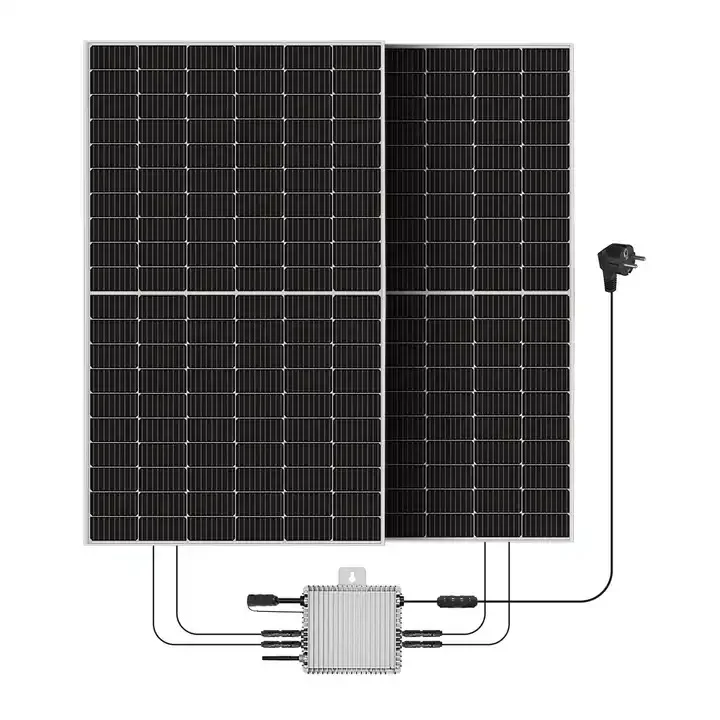

• LEFENG balcony solar system is equipped with two 410 W monocrystalline silicon solar panels, a EU plug with AC cable 1.5mm2x3, 5M length with connectors and a 700w micro inverter

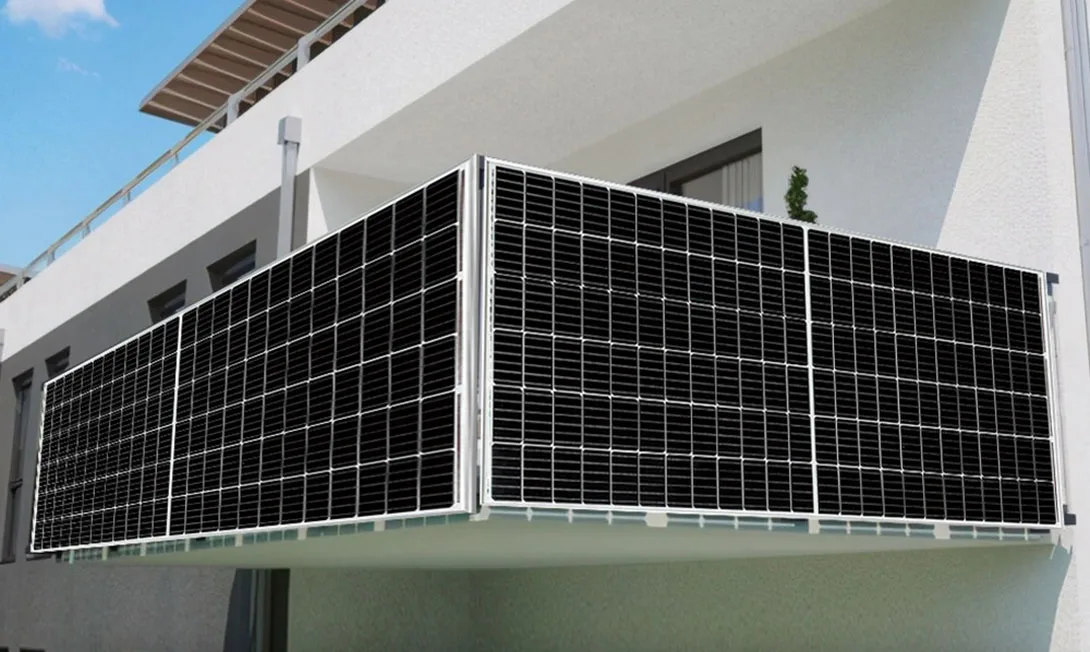

• With its adjustable aluminum bracket and hookers, this solar system could be attached on your balcony or fence stably.
• To maximize the customer value by more power yield generation and less carbon emission
• Materials: high-quality A-grade solar cells. Surface made of high transmittance tempered solar glass with weatherproof coating; corrosion-resistant aluminum frame for extended outdoor use with pre-drilled mounting holes;
• LEFENG balcony solar system is equipped with two 410 W monocrystalline silicon solar panels, a EU plug with AC cable 1.5mm2x3, 5M length with connectors and a 700w micro inverter
• With its adjustable aluminum bracket and hookers, this solar system could be attached on your balcony or fence stably.
Item | 400W | 600W | 800W | 1200W |
Solar Panel | 1 pc of 410W Panel | 2 pcs of 410W Panel | 3 pcs of 410W Panel | 4 pcs of 410W Panel |
Micro Inverter | 400W | 600W | 800W | 1200W |
Cable | EU plug with AC cable 1.5m㎡X3, 5M length | EU plug with AC cable 1.5m㎡X3, 5M length | EU plug with AC cable 1.5m㎡X3, 5M length | EU plug with AC cable 1.5m㎡X3, 5M length |
Bracket | 1 Set | 1 Set | 1 Set | 1 Set |

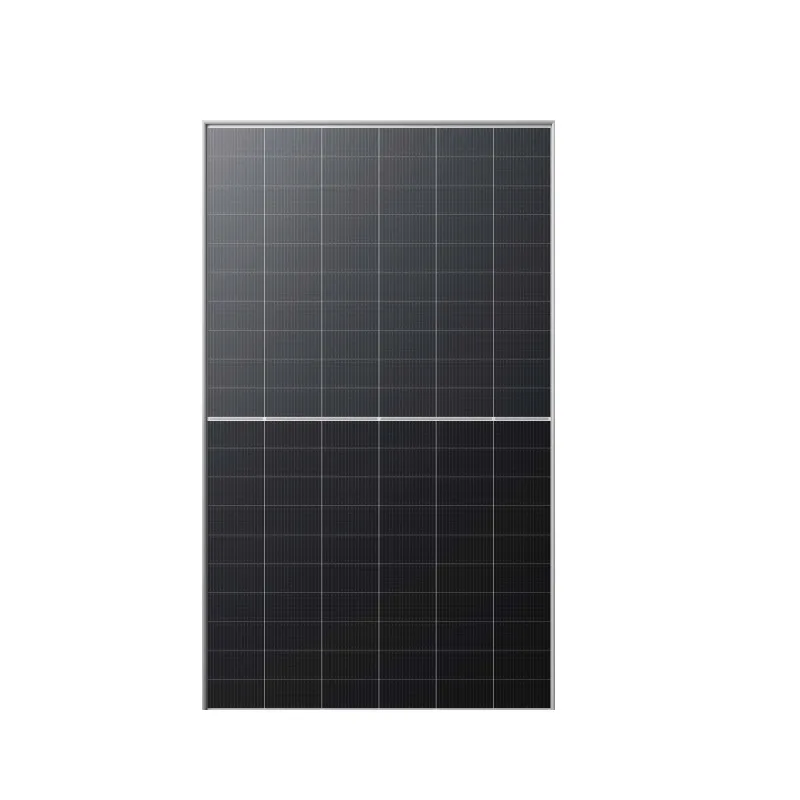

Half Cell Solar Panel-410W
Maximum Power (Pmax/W): 410
Open Circuit Voltage(Voc/V): 37.17
Short Circuit Current(Isc/A): 13.86
Maximun Power Voltage(Vmp/V): 30.80
Maximum Power Current(Imp/A): 13.15
Module Efficiency(%): 20.70
Connector: MC4 Compatible
Dimensions: 1722mm*1134mm*30mm
Open Circuit Voltage(Voc/V): 37.17
Short Circuit Current(Isc/A): 13.86
Maximun Power Voltage(Vmp/V): 30.80
Maximum Power Current(Imp/A): 13.15
Module Efficiency(%): 20.70
Connector: MC4 Compatible
Dimensions: 1722mm*1134mm*30mm
800W 220V Micro Inverter
Number of input MC4 Connector: 2sets
MPPT Voltage Range: 22V-48V
Operation Voltage Range: 20V-50V
Maximum Input Voltage: 50V
Startup Voltage: 22V
Maximum Input Power: 800W
Maximum Input Current: 10.5A
Peak Efficiency: 95%
MPPT Voltage Range: 22V-48V
Operation Voltage Range: 20V-50V
Maximum Input Voltage: 50V
Startup Voltage: 22V
Maximum Input Power: 800W
Maximum Input Current: 10.5A
Peak Efficiency: 95%
Balcony PV Mounting System
Wind Load: up to 60m/s
Snow Load: up to 1.5KN/㎡
Material: AL6005-T5 (Anodized)
Applicable Solar Module: Framed
Panel Layout: Landscape
Small Components: AL6005-T5 (Anodized)
Color: Silver or Customized
Warranty: 10-Year Warranty
Snow Load: up to 1.5KN/㎡
Material: AL6005-T5 (Anodized)
Applicable Solar Module: Framed
Panel Layout: Landscape
Small Components: AL6005-T5 (Anodized)
Color: Silver or Customized
Warranty: 10-Year Warranty
Company Profile
NUUKO SOLAR CO.,LTD
With nearly 10 years of experience in the photovoltaic industry, our factory has an automated production workshop with 3GWproduction capacity. High quality products grade A with with competitive price. Also provide OEM service for clients, help to design Logo and other design service. NUUKO has created a "closed-loop" development model of solar module R&D and production, and distribution cooperation.
Exhibition
And we will attend to the following exhihition in 2024. If you happen to attend the expo, maybe we can have a meeting face to face.
Certifications
Why Choose Balcony System
Smooth Set up
The system is a plug-and-play system composed of solar panel, micro inverter and angle-adjustable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.
Multiple Scenarios

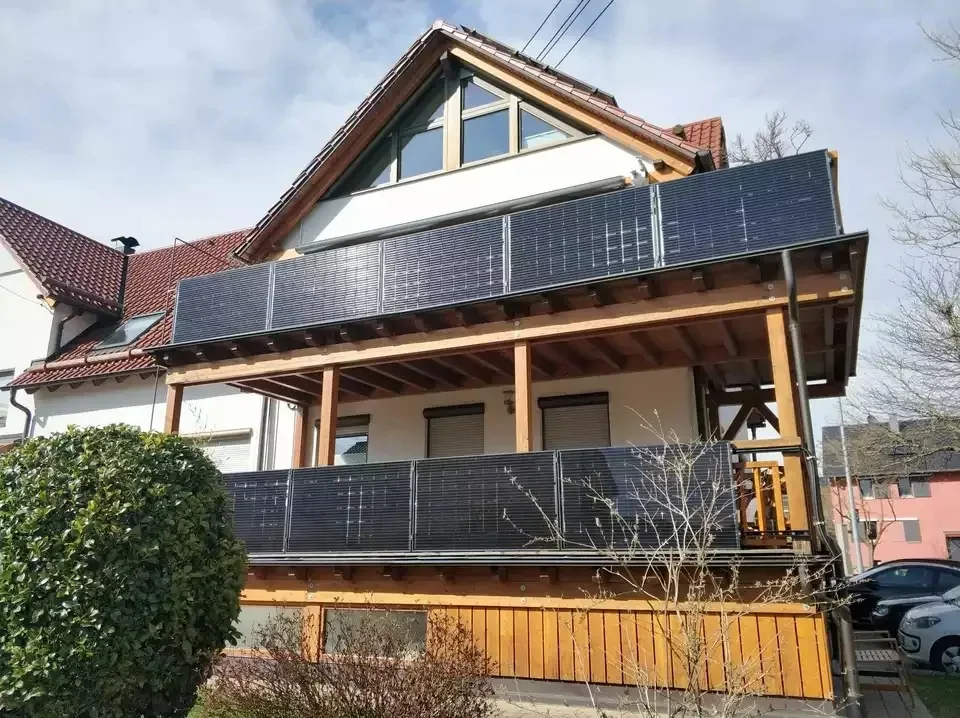

Designed to be installed on balconies, gardens, flat roofs, walls and other limited outdoor spaces, the solar power system is a cost-effective and environmentally friendly way to generate electricity and reduce energy costs.
Cost Saving
The balcony power system brings freedom to the home by exclusively harnessing the power of solar energy. Free yourself from monthly electric bills and make your lifestyle less dependent on the grid. Its relaxed and friendly setup allows the use of unobstructed energy from balconies.
Adjustable Angle
The balcony solar power system allows for manual adjustment of the PV module angle to maximize energy output. Users can set a recommended angle or make manual adjustments based on seasonal time changes.
Contact Us
If you have any questions, welcome to send us inquiry or talk with us directly.
