HYDR STAR AGB06 2T 14/60 9000 PSI двухступенчатый пневматический водородный газовый насос для зарядных баков
- Категория: >>>
- Поставщик: Hydr-Star Fluid Control Company LimitedHydr-Star Limited
Сохранить в закладки 1601029012734:
Описание и отзывы
Характеристики
Specification

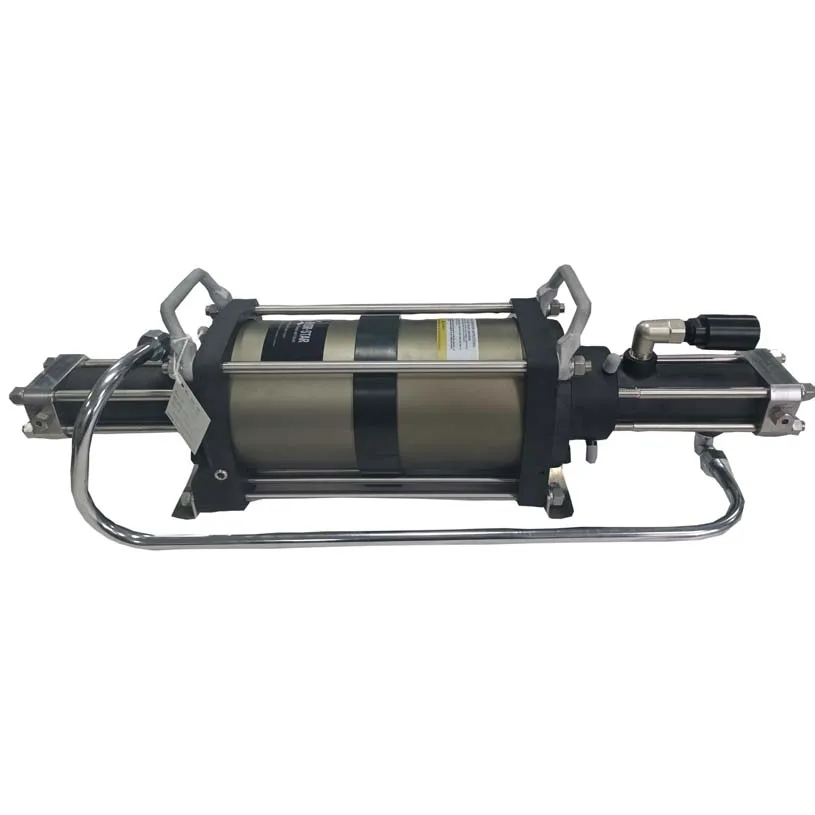

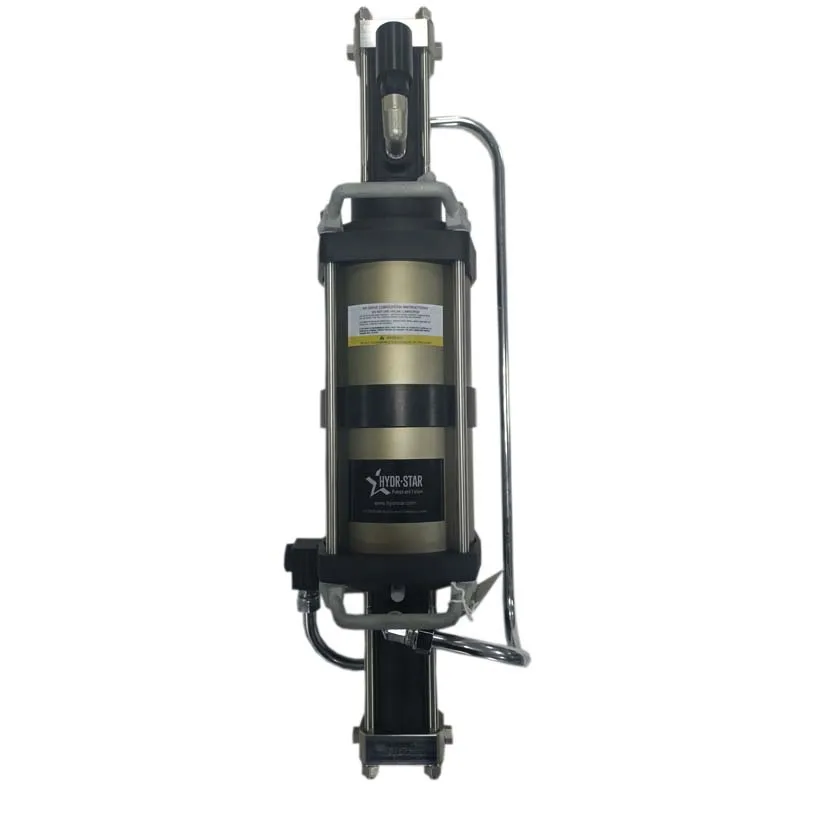

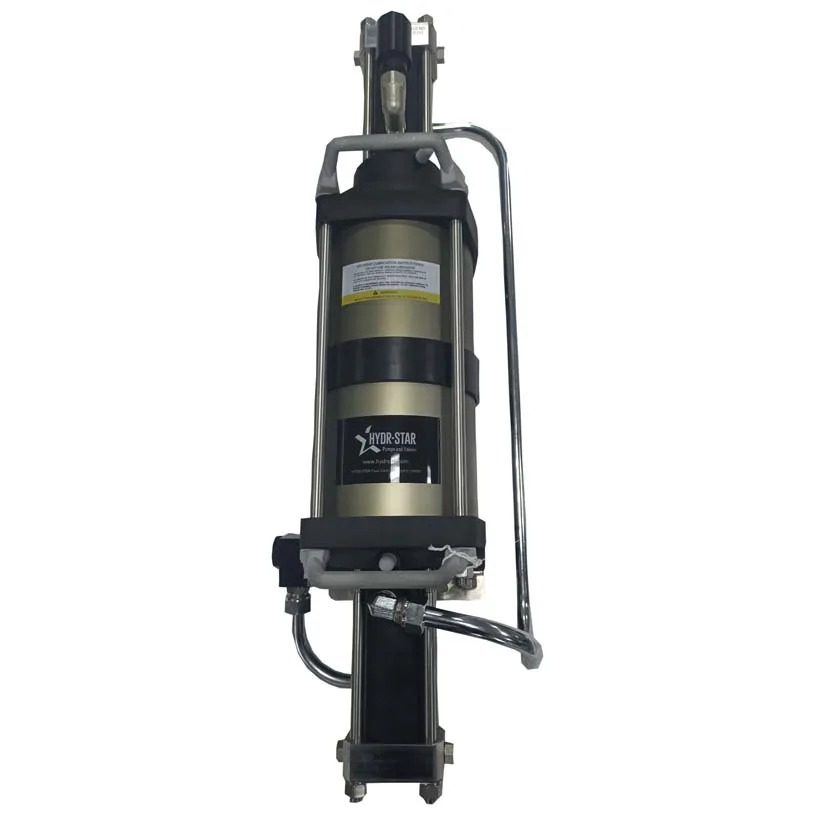

HYDR-STAR AGB06-2T-14/60 9000 PSI Double Stage Pneumatic Driven Hydrogen Gas Pressure Pump For Charging Tanks
Features AGB06-2T Double Drive Double Stage
★ Because it has a higher compression ratio, it can work at lower gas supply pressure Ps.
★ Max. air drive pressure Pa=150 psig(10.3 bar).
★ Choice of seal materials.
★ Pressure to 25000 psig(1724 bar).
★ No lubricator required.
item | value |
Model number | AGB06-2T-14/60 |
Max pressure | 9000 psi |
Max Compression Ratio | 100:1 |
Inlet& Outlet port | 1/4'' HF |
Min. rated gas supply | 25 PSI |
Actual ML per cycle | 216 ML |
Medium | gas |
Applications | Applications in Hydrogen industry ★ Hydrogen filling station ★ Hydrogen compression, storage and transfer ★ Hydrogen production and purification ★ Mobile, portable & stationary fuel cell ★ Hydrogen Generation ★Polycrystal and semiconductor manufacturing ★ Hydrogen gas cylinder filling ★ Chemical reaction for adding Hydrogen ★ Lab gas distribution and pressurization ★ Hydrogen pressure test |
1. All model code listed are standard.
»For pumps with handle add "-H” after the model codes.
»For Pumps with relief valve add"-R” after the model codes.
»For pumps with Viton seals add "-V” after the model codes.
»For pumps with Pressure switch valve add "-P” after the model codes. For cold area service add "-C” after the model codes.
2. Other sizes, materials and types are available upon request.
For special requirements, please contact us.
Easy handling
1. Initial operation
The pump is prepared for operation manually:
Connect supply lines (compressed air, suction and pressure lines).
Set air drive pressure.
Open compressed air supply slowly so that the high-pressure pump starts up .
2. Build up pressure
The pump technology executes all the steps for pressure build-up automatically:
Automatic cycling of 4/2-way valve (spool cycling valve) by means of air pulses from the pilot valve (2/2-way valve)
Suction of medium.
Optimum cycling conditions thanks to large cross-sections .
3. Achieve and hold pressure
The pump controls the processes of reaching and holding pressure.
Pump automatically stops operating when the operating pressure is reached due to equilibrium of forces
Pressure is held.
Pressure holding phase with no energy consumption or heat generation .
Pump restarted automatically if operating pressure drops.
Applications
★Pressure test & leakage test with gas
★Gas transfer
★Charging of nitrogen accumulators
★Supply for isolating gas systems
★Gas assisted injection moulding
★CO2 foaming
★Transfer of oxygen cylinders
★Life Support Gas Transfer and Charging
★Gas recovery: Pressurize the remaining lower pressure gases in the cylinder or pipeline and fill the gases into a cylinder.
Product Description
Air Driven Gas Booster
HYDR-STAR Gas Boosters consist of a large area reciprocating air drive piston directly coupled by a connecting rod to a small area gas piston. The gas piston operates in a high pressure gas barrel section. Each gas barrel end cap contains high pressure inlet and outlet check valves. Varying applications require many different booster and air drive head combinations.
The air drive section includes a cycling spool and pilot valves that provide continuous reciprocating action when air is supplied to the air drive inlet. The ratio between the area of the air drive piston and the gas driven piston is indicated by the number in the model description and approximates the maximum pressure the gas booster is capable of generating.
Features
★ Suitable for most gases（Air, N2, He, CO2, Ne, Ar, O2, H2,CH4,Natural Gas...).
★ Industrial gases like Argon, Helium and Nitrogen can be compressed to operating pressures of 25000 psig (1724 bar ),Oxygen to 5000 psig (345 bar), Hydrogen to 15000 psig bar (1034 bar).
★ Single, double acting, and two-stage models.
★ Reliable, easy to maintain, compact and robust.
★ No heat, flame or spark risk.
★ Infinitely variable cycling speed and output.
★ Air driven boosters are an efficient alternative instead of electrically driven products and can be used in explosion proof areas.
★ Easy to apply automatic controls.
★ No limit or adverse affect to continuous stop/start applications.
★ Seal systems designed for long working life.
★ No airline lubricator required.
★ Separation between air and gas sections.
★ Built-in cooling.
★ Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat.
★ ATEX approved、CE certified.
★ There is no lubrication in the gas section. It will not pollute the gas and ensure the high purity of the gas.
★ The gas supply can be used to extremely low pressure, which improves the gas utilization.
Company Profile
Formed by the technical team with at least 15-year experience in high-pressure technology and fluid control, HYDR-STAR Fluid Control Company Limited has long been regarded as the leading manufacturer in China for pneumatic driven liquid pumps&gas boosters and high pressure(up to 100,000psi) valves. With the growing acceptance from foreign customers on its pumps and valves application experience, HYDR-STAR is accumulating the reputation among some of the most influential players abroad.
Unlike the omnipresent trading companies, HYDR-STAR is typically a manufacturer with an authentic base where the office building and modern workshop cover 30,000 sq meters. The workshop is characteristic of advanced manufacturing equipment, a dust-free level assembly room, a complete range of sophisticated machines for raw materials inspection, and hydraulic & pneumatic units for various functions and performance tests.
The certificates of CE, TUV, SIL, and ATEX are available. In addition, HYDR-STAR has obtained the latest ISO9001:2015 issued by SGS. The business cooperation type we support includes direct purchase, agent/ distributor authorization, OEM service, ODM service, etc. Welcome to contact us and visit our factory!
Certifications&Equipement
Exhibition
Packing & Delivery
Carton box, Wooden case or according to your requirement.
FAQ
1. who are we?
We are based in Hubei, China, start from 2013,sell to Domestic Market(15.00%),Mid East(15.00%),Western Europe(15.00%),Eastern Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),South Asia(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air-driven liquid pumps&boosters,High pressure valve&fitting (stainless steel),Hydraulic power units,Hand pumps,Electrical pumps
4. why should you buy from us not from other suppliers?
HYDR-STAR owns an engineering team with more than 15 years of experience in the field of high pressure testing and fluid control technology, with extensive know-how in R&D, strong capacity of designing of new products and solutions
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2013,sell to Domestic Market(15.00%),Mid East(15.00%),Western Europe(15.00%),Eastern Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),South Asia(5.00%),Southeast Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air-driven liquid pumps&boosters,High pressure valve&fitting (stainless steel),Hydraulic power units,Hand pumps,Electrical pumps
4. why should you buy from us not from other suppliers?
HYDR-STAR owns an engineering team with more than 15 years of experience in the field of high pressure testing and fluid control technology, with extensive know-how in R&D, strong capacity of designing of new products and solutions
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
