Product descriptions from the supplier
Video Description
Gold Mining Bentonite Zircon Aluminium Ball Mill Stone Grinding Machine Lime Kaolin Ball Mill Dry Ball Mill Manufacturer
Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing
industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.
Boorant Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw
material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.
Boorant Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw
material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
Get Quotations!
Working Principle
Get Quotations!
Ball mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in
different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding.
different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding.
Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.
Pruduct Structure
Product Paramenters
Get Quotations!
Model | Effective Volume (m3) | Balls Weight (t) | Feeding Size (mm) | Capacity (t/h) | Main Reducer |
φ1200*4500 | 4.7 | 6.5 | ≤25 | 1.4-2 | ZD30 |
φ1500*5700 | 9.4 | 13 | ≤25 | 3.5-4.5 | ZD40 |
φ1830*6400 | 15.7 | 21.6 | ≤25 | 5.5-6.5 | ZD60 |
φ1830*7000 | 17.1 | 23.5 | ≤25 | 6-7 | ZD60 |
φ2200*6500 | 23 | 31.5 | ≤25 | 8-10 | ZD70 |
φ2200*7500 | 26.5 | 36 | ≤25 | 10-11 | ZD70 |
φ2200*8000 | 28.3 | 39 | ≤25 | 10-12 | ZD70 |
φ2400*11000 | 46.3 | 64 | ≤25 | 19-21 | ZD80 |
φ2400*13000 | 54.7 | 75.5 | ≤25 | 21-23 | MBY710 |
φ2600*13000 | 88.6 | 122 | ≤25 | 28-32 | MBY800 |
φ3000*12000 | 78.9 | 109 | ≤25 | 32-35 | MBY900 |
φ3000*13000 | 85.5 | 118 | ≤25 | 34-37 | MBY900 |
φ3200*13000 | 134.2 | 185 | ≤25 | 45-50 | MBY1000 |
φ3800*13000 | 137.1 | 189 | ≤25 | 60-62 | MFYX250 |
φ4200*13000 | 167.5 | 231 | ≤25 | 85-87 | MFX355 |
Product Application
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw
material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
Features about our products
Ball mills are among the most variable and effective tools when it comes to size reduction of hard, brittle or fibrous materials.
The variety of grinding modes, usable volumes and available grinding tool materials make ball mills the perfect match for a vast
range of applications.
The variety of grinding modes, usable volumes and available grinding tool materials make ball mills the perfect match for a vast
range of applications.
diameter, and the processing capacity is large.
Advantage
1. Save energy consumption
2. The design of the discharging part is flexible
3. The feeding part has a large feeding capacity
4. Adopt a closed system to reduce dust
5. High grinding efficiency and good quality of lining
6. The discharge grate plate is composed of high-quality original parts
2. The design of the discharging part is flexible
3. The feeding part has a large feeding capacity
4. Adopt a closed system to reduce dust
5. High grinding efficiency and good quality of lining
6. The discharge grate plate is composed of high-quality original parts

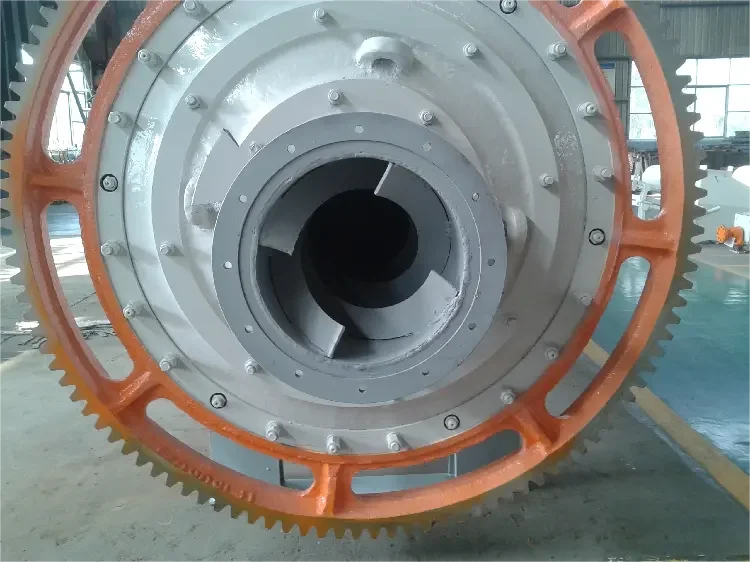

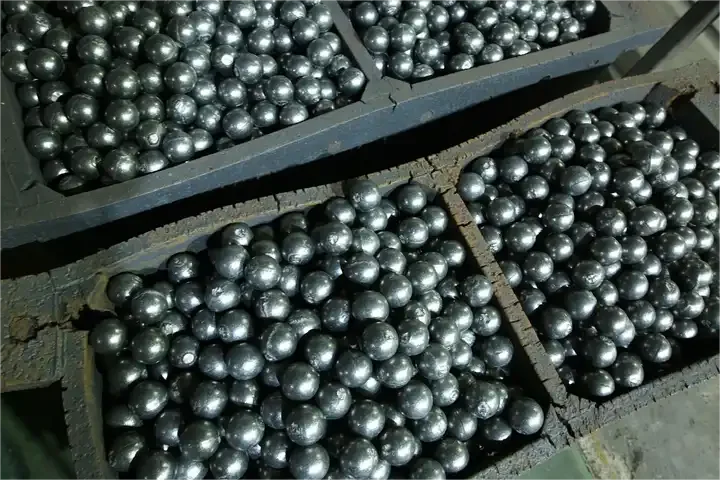

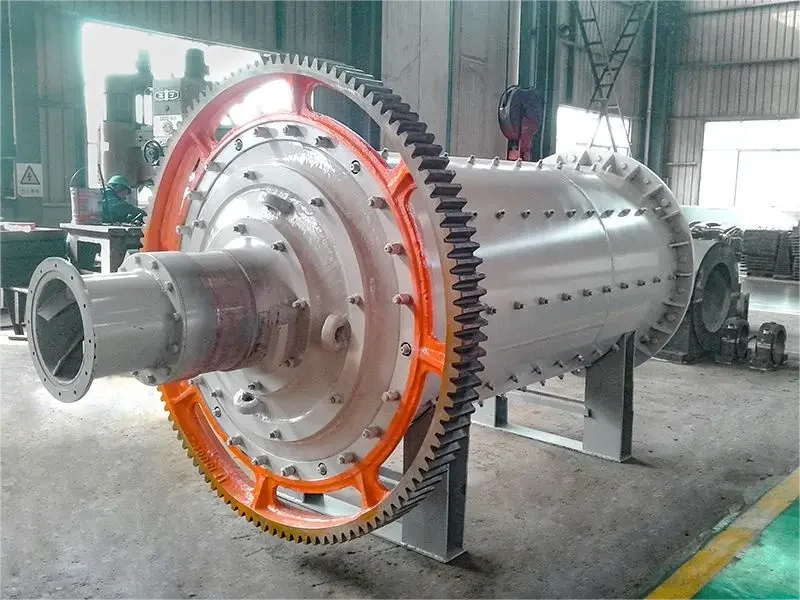

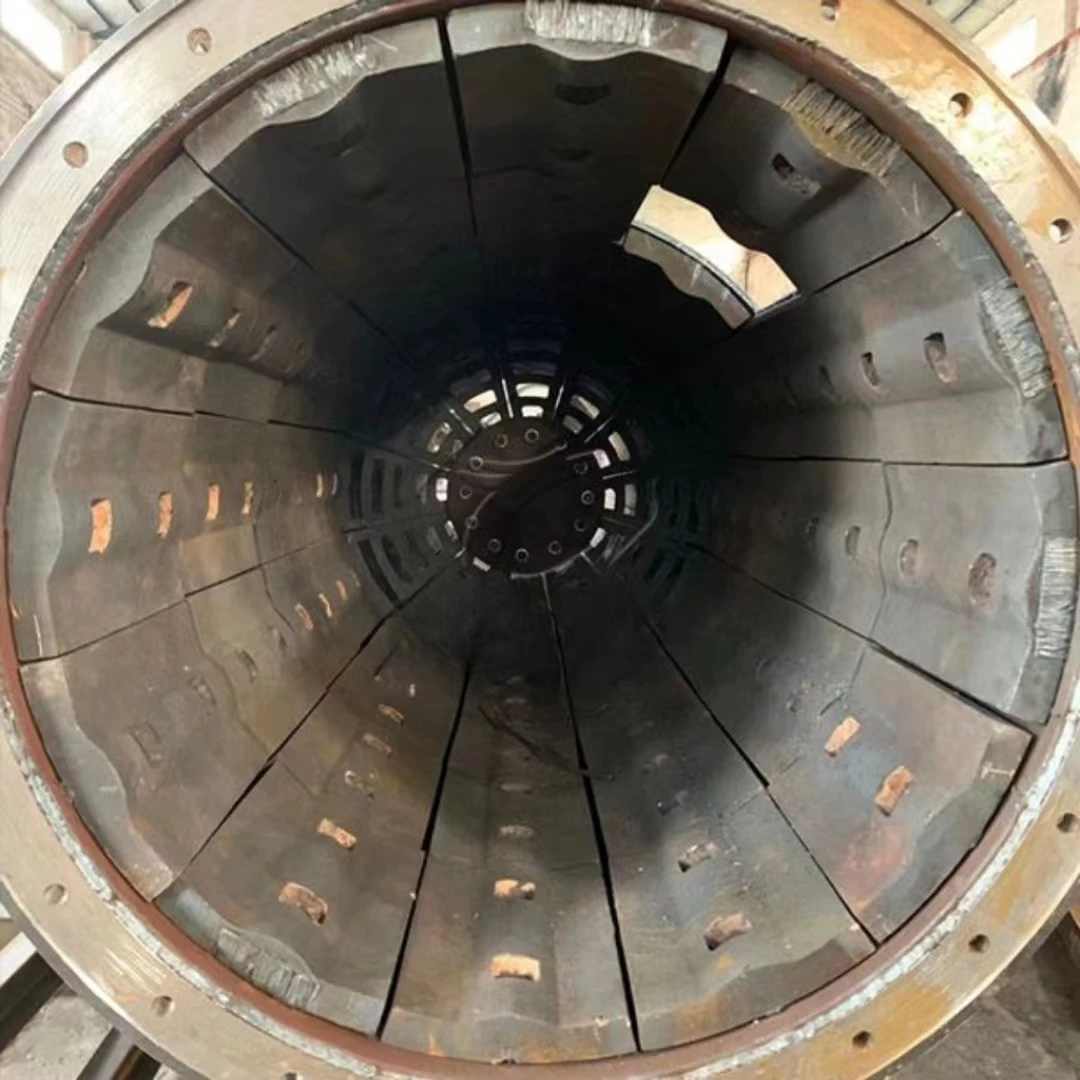

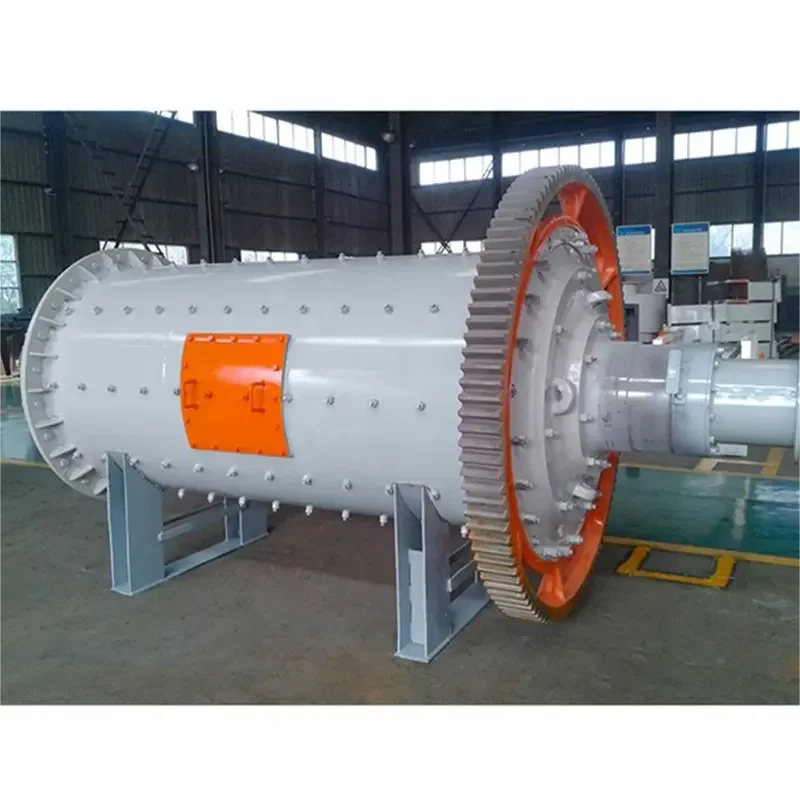

Details Images
Get Quotations!
Packing & Delivery
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers.
Welcome your order!
Packing and Delivery：
(1)simple packaging.Other in wooden boxes;
(2)Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving balance payment ;
(4)Once the product is sold, if it is not a product quality problem, it cannot be returned or refunded.
(1)simple packaging.Other in wooden boxes;
(2)Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving balance payment ;
(4)Once the product is sold, if it is not a product quality problem, it cannot be returned or refunded.
Company Profile
Boorant Groups Machinery is a mining machinery, construction machinery manufacturer with more than30 years of production experience. It is a joint. stock enterprise integrating research and development, production and manufacturing of new environmental protection equipment and mine crushing equipment. Main crushing equipment, sand making equipment, screening equipment. A comprehensive company engaged in equipment research, development, manufacturing and foreign import and export.
The company's existing structural parts display, rolling, stamping, riveting and welding cold processing workshops, metal cutting, heavy machine cutting, chemical composition analysis of metal materials, production section supervision and other metalworking workshops.
The company has an experienced and skilled sales service team and a complete sales service network. Customer service methods are flexible and diverse. In addition to the traditional sales service method, Internet sales and tracking operation services are also implemented. Before the customer purchases, the company will send engineering and technical personnel to guide the customer to install, debug, plan and manage the equipment online free of charge
FAQ
1. Are you a manufacturing or trading company?
We are a factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas
We are a factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas
