Products Description

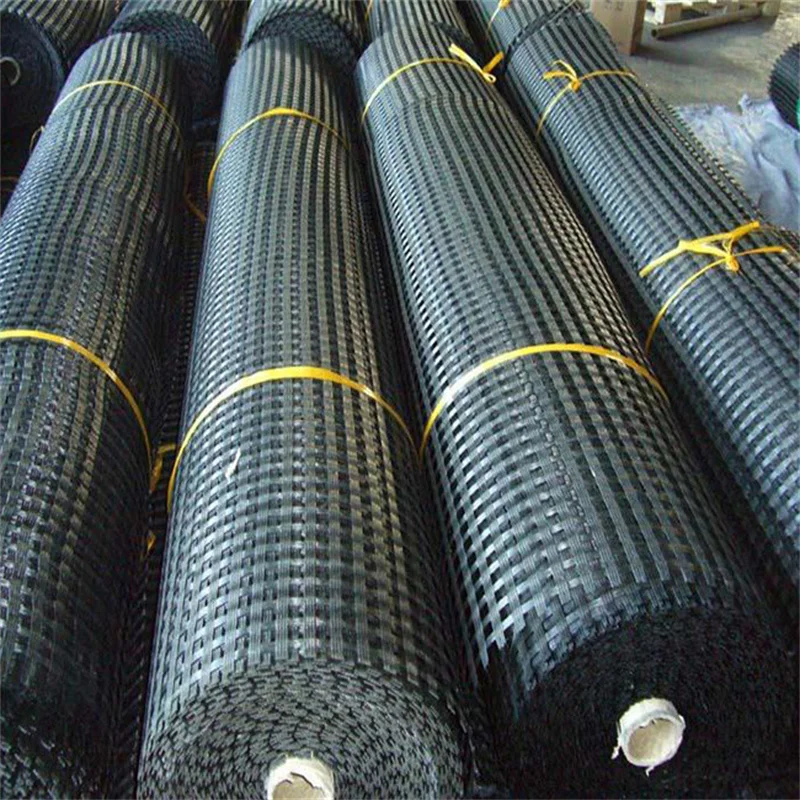

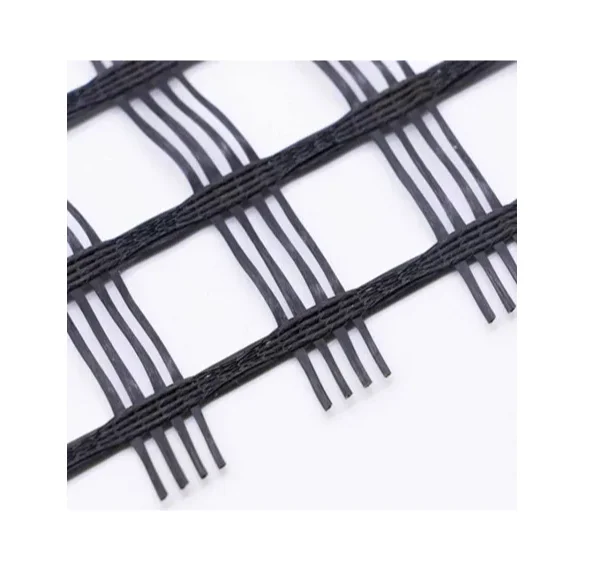

Polyester Geogrid known as PET Grid is woven by high strength polymer yarns as per desired mesh sizes and strength from 20kN/m to 800kN/m(Biaxial type), 40-25kN/m to 600-400kN/m(Uniaxial type). Polyester geogrid is created through interlacing, usually at right angles, two or more yarns or filaments. Exterior of PET Grid is coated with polymer or nontoxic substance material for UV, acid and alkali resistance and prevents the bio-decomposition.
Biaxial type
Property | Test Method | PET 20-20 | PET 30-30 | PET 40-40 | PET 50-50 | PET 60-60 | PET 80-80 | PET 400-400 | |||||||
Utimate tensile strength(1)k/Nm | MD | EN ISO 10139 | 20 | 30 | 40 | 50 | 60 | 80 | 400 | ||||||
CD | 20 | 30 | 40 | 50 | 60 | 80 | 400 | ||||||||
Elongation at maximum load(%) | MD | 13 | |||||||||||||
CD | 13 | ||||||||||||||
Approximate mesh size(mm) | 12.7x12.7 25.4x25.4 40x40 | ||||||||||||||
Roll Width(m) | 1-6 | ||||||||||||||
Roll Length(m) | 50-200 | ||||||||||||||

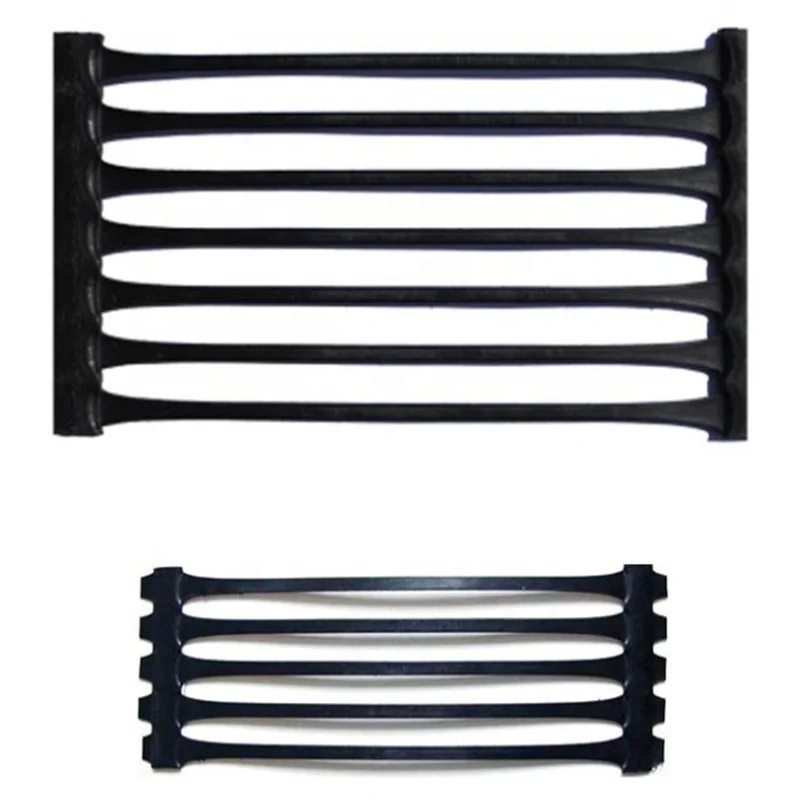

Uniaxial type
Property | Test Method | PET 40-25 | PET 50-35 | PET 60-30 | PET 80-30 | PET 100-30 | PET 200-30 | PET 600-30 | |||||||
Utimate tensile strength(1)k/Nm | MD | EN ISO 10139 | 25 | 35 | 30 | 30 | 30 | 30 | 30 | ||||||
CD | 40 | 50 | 60 | 80 | 100 | 200 | 600 | ||||||||
Elongation at maximum load(%) | MD | 13 | |||||||||||||
CD | 13 | ||||||||||||||
Approximate mesh size(mm) | 12.7x12.7 25.4x25.4 40x40 | ||||||||||||||
Roll Width(m) | 1-6 | ||||||||||||||
Roll Length(m) | 50-200 | ||||||||||||||

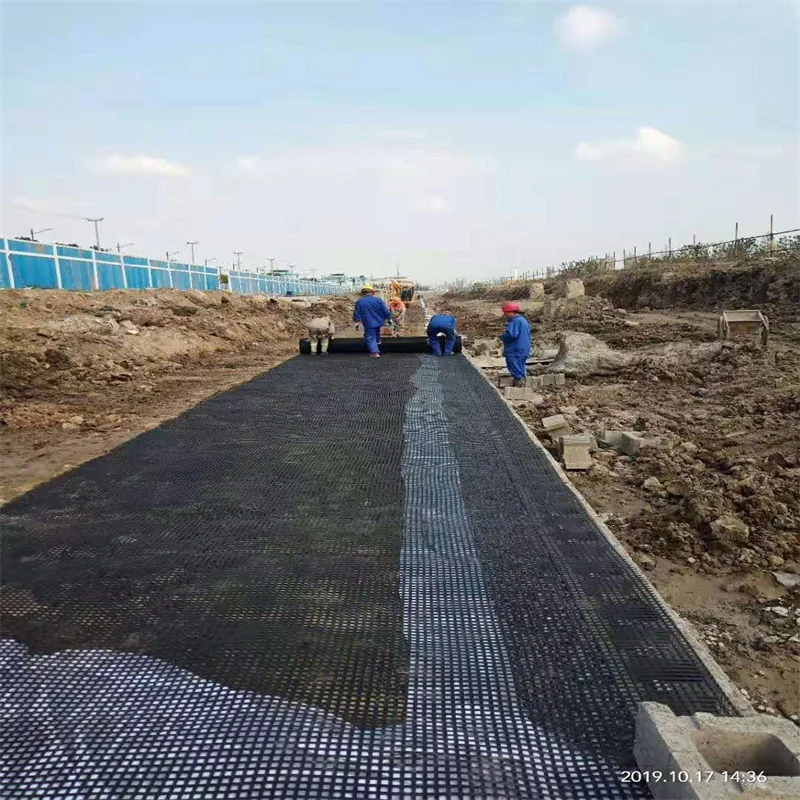

Polyester geogrid is widely introduced to the various fields of civil engineering, transportation engineering, and environment issues.The reinforced steep slopes, reinforced retaining earth walls, reinforced embankments, reinforced abutments and piers are typical applications where geogrids are used.it is mainly applied in strengthening soft ground of road, highway, railway, port, slope, retaining wall, etc. The resulting grid structure possesses large openings that enhance interaction with filling material.
Feature:
High strength, low breaking tensile rate, small creep coefficient, excellent anti ultraviolet and anti microbial corrosion properties.
RELATED PRODUCTS
Company Information

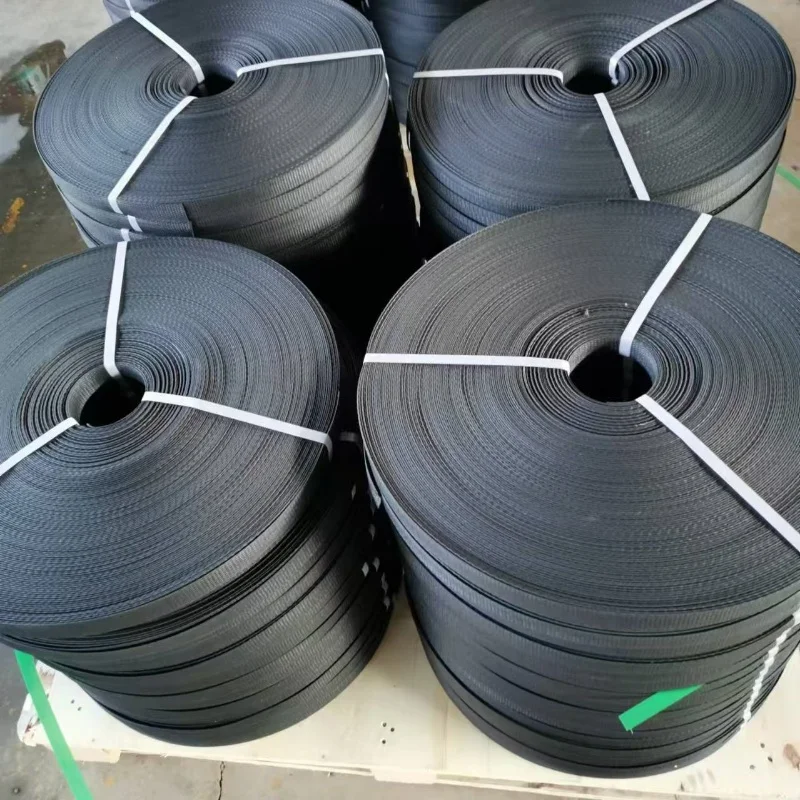

Packing & Shipping
