Коррозионно стойкая и износостойкая машина для прессования шариков роликовая серия запасные части производства древесного угля

Коррозионно стойкая и износостойкая машина для прессования шариков роликовая серия запасные части производства древесного угля

Категория: >>>
Поставщик: Luoyang Pengjie Wear Resistant Materials Co. Ltd.

Цена:271,09 ₽ - 303,63 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Choose processing plant

Did you really choose the right one?

Cutting corners and shoddy goods

Dilapidated machinery and Equipment small workshop

Second-hand supply at outrageous prices

Delivery date cannot be guaranteed

Products Description

Balls press machine

Corrosion resistance

Wear resistance The more you use it, the smoother it gets.

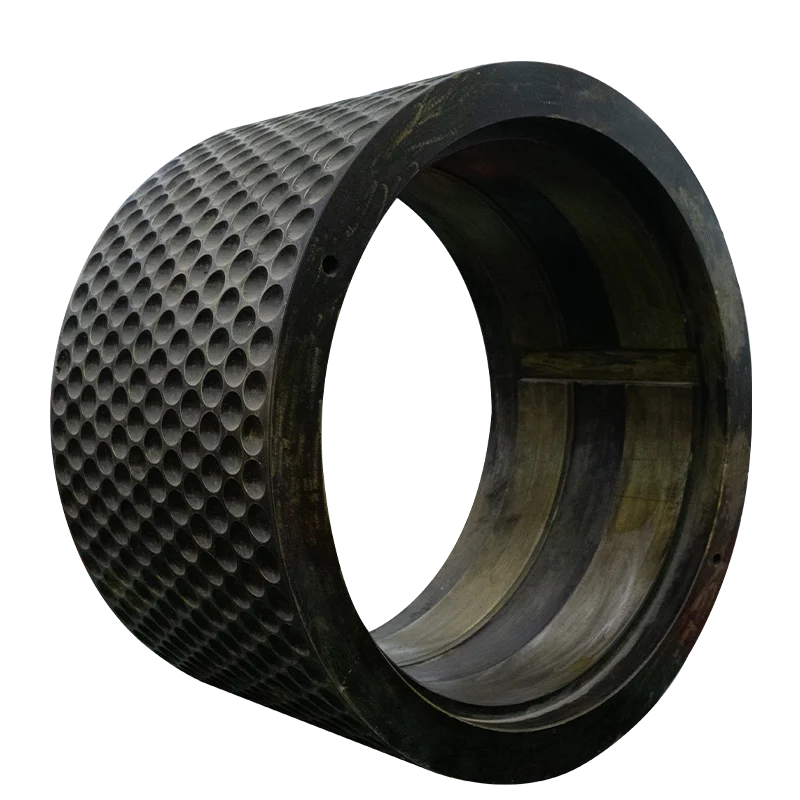

The roller skin of the ball press is generally 65Mn castings, and can also be made of 9Cr2Mo or alloy. The specific situation should be selected according to the actual situation of the material.
Mainstream briquetting machines are generally cast with 9Cr2Mo, which have the strongest wear resistance and will greatly extend the service life of the briquetting machine equipment.

Material			9Cr2Mo 7Cr17
Hardness			HRC: 58-60

^{Pengjie ball press}

^{A variety of models for you to choose from}

The briquetting machine has a wide range of applications and can pellet, pellet or pellet the following materials. Such as aluminum chips, activated carbon, alumina, bauxite, caustic soda, charcoal, clay, coke chips, coal, cryolite, chemical fertilizers, plastics, limestone, pigments, urea, potash...etc.

Our Advantages

Four reasons to choose us

The main reason why you choose us is---Quality

Source manufacturer, advanced equipment, high-quality raw materials, preferential prices

Professional processing and customized materials and sizes according to customer requirements

Professional testing equipment and strict inspection standards ensure product quality

Technical support engineers answer various technical questions for you

Product Paramenters

Good products are a company’s best business card

	Model: 300
Shape of briquettes	2010----6030 Oblate type
Pressure	800KG/CM
Rotating speed	16r/min
Power	4KW-4 level
Reducer	Type 250
Output	6 tons/hour
Weight	600KG
Overall dimensions	(length, width and height) 220011001150MM

	Model: 350
Shape of briquettes	2512----7050 Oblate type
Pressure	1000KG/CM
Rotating speed	18r/min
Power	11KW-4 level
Reducer	Type 400
Output	6-8 tons/hour
Weight	1300KG
Overall dimensions	(length, width and height) 230011001200MM

	Model: 500 high pressure type
Shape of briquettes	2512----7050 Oblate type
Pressure	2800KG/CM
Rotating speed	20r/min
Power	22 level
Reducer	Type ZQ500
Output	10-12 tons/hour
Weight	2200KG
Overall dimensions	(length, width and height) 280015001750MM

	Model: 650
Shape of briquettes	2512----7050 Oblate type
Pressure	3500KG/CM
Rotating speed	22r/min
Power	37 level
Reducer	Type ZQ650
Output	12-15 tons/hour
Weight	4500KG
Overall dimensions	(length, width and height) 300020002000MM

Why Choose Us

Company Profile

Luoyang Pengjie Wear-resistant Material Co., Ltd., is a comprehensive composite company in the application of wear-resistant materials, involving antiwear alloys, braking materials, composite materials, surface engineering and many other fields.With 130 employees, 35 of which are technicians; 4 laboratories, 10% research and development funds?, 25 sets of mechanical processing equipment, 51-ton to 5-ton medium frequency furnace equipment, the company has passed the ISO quality system certification, with a variety of products have their own invention patents and utility patents.
The company’s main production and business scope includes high chromium cast iron series, stainless steel series, ball grinding cast iron series, immersion cast iron series, heat resistant steel series, high manganese steel series alloy steel series and many other high alloy castings.
Welcome new and regular customers to contact us at any time, visit our factory in Luoyang city, Henan, China, and establish a long-term friendly and cooperative relationship with us.

Manufacturing process

Design drawings and Assembly molds

Brush Paint

Boxing and Pouring

Heat Treatment

Sanding and Finishing

Quality Inspection

Certifications

We continue to develop new technologies and have 9 utility model patent certificates and ISO certifications to reduce production costs and improve product quality.

An air-cooled quenching device for castings

A kind of sand drying platform

A kind of lost foam drying room

A wear-resistant alloy casting grinding device

A paint stirring device

A kind of sand box vibration table for wear-resistant casting casting

A kind of wear-resistant paint stirring mechanism for the production of wear-resistant materials

A sand box for lost foam casting

A drying device for wear-resistant material processing_

Product packaging

FAQ

Q1. What’s your company’s casting methods?
A: We support sand casting and lost foam casting.

Q2. Can you make products without drawing?
A: No, we can only make products strictly according to customers’ technical drawing. Because every spare parts must be install to the equipment even little error will make big problem.

Q3. How about the lifetime of your wear spare parts?
A: Different working condition make different results based on same products. You buy our products and try them, you will know our quality.

Q4. What’s the delivery time?
A: Usually abroad brands’ delivery time is 20 days, but if we need to make wooden mould, then 15 days more. Domestic brand’s delivery time will be 20 days.

Q5. What’s the payment term does your company accept?
A: T/T, L/C, Western Union etc.

Q6. Are you a production factory or a trading company?
A: We are a production factory with more than 30 years of production experience. We have our own R&D team, perfect service team, and advanced testing instruments. Our products have been exported to more than ten countries.

Q7. How can we trust your company?
A:We support Alibaba trade insurance, 100% product quality guarantee, 100%。On-Time Shipment Protection, 100% Payment Protection Your Covered Amount.
