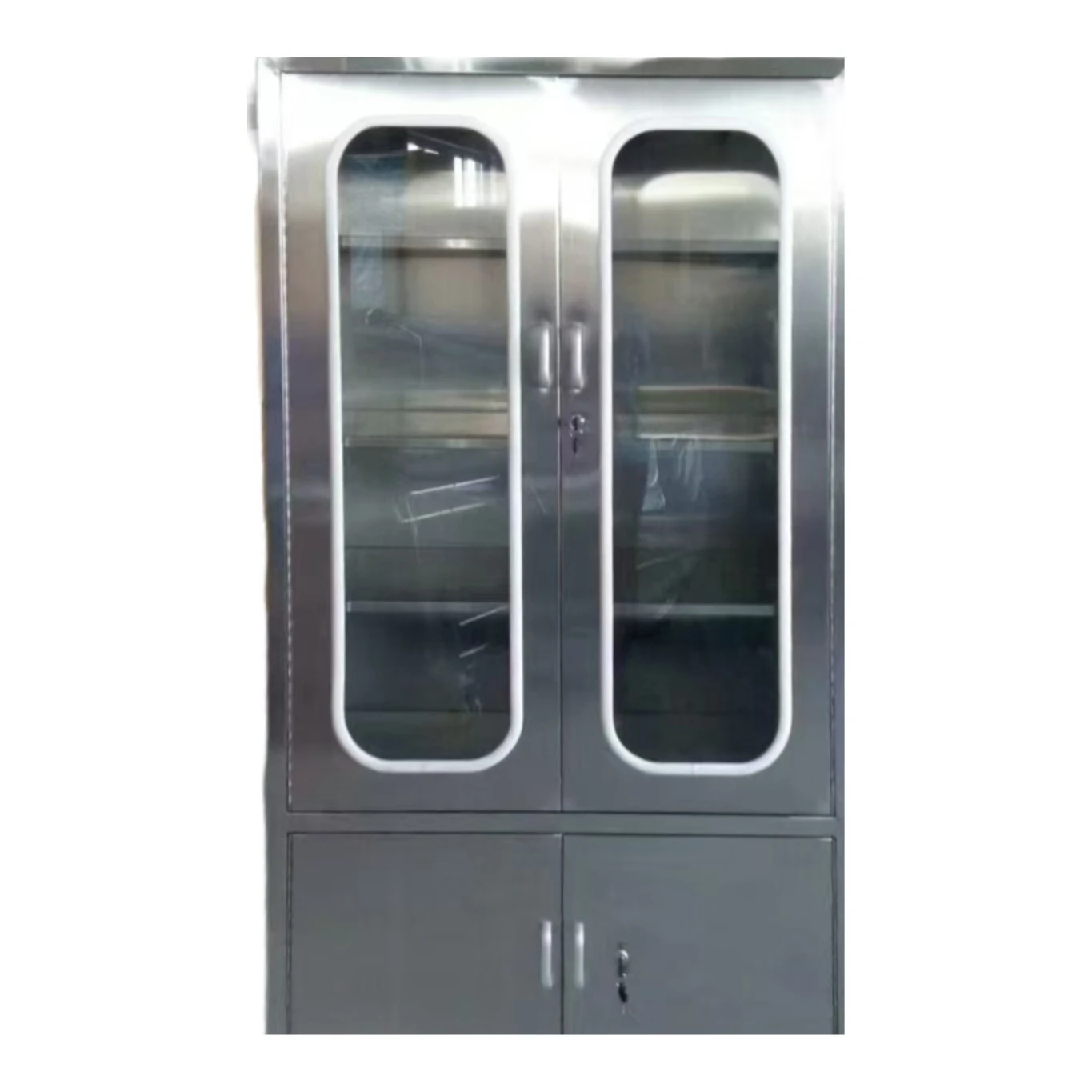

Стеклянные медицинские инструменты из нержавеющей стали витринные шкафы вертикальный медицинский небольшой шкаф
35 161,85 ₽
Эффективная машина для очистки распылением высокого давления стиральное оборудование различных поверхностей
- Категория: >>>
- Поставщик: Sen Hongxin Intelligent Equipment (suzhou) Co. Ltd.Sen Ltd.
Сохранить в закладки 1601029849069:
Описание и отзывы
Характеристики

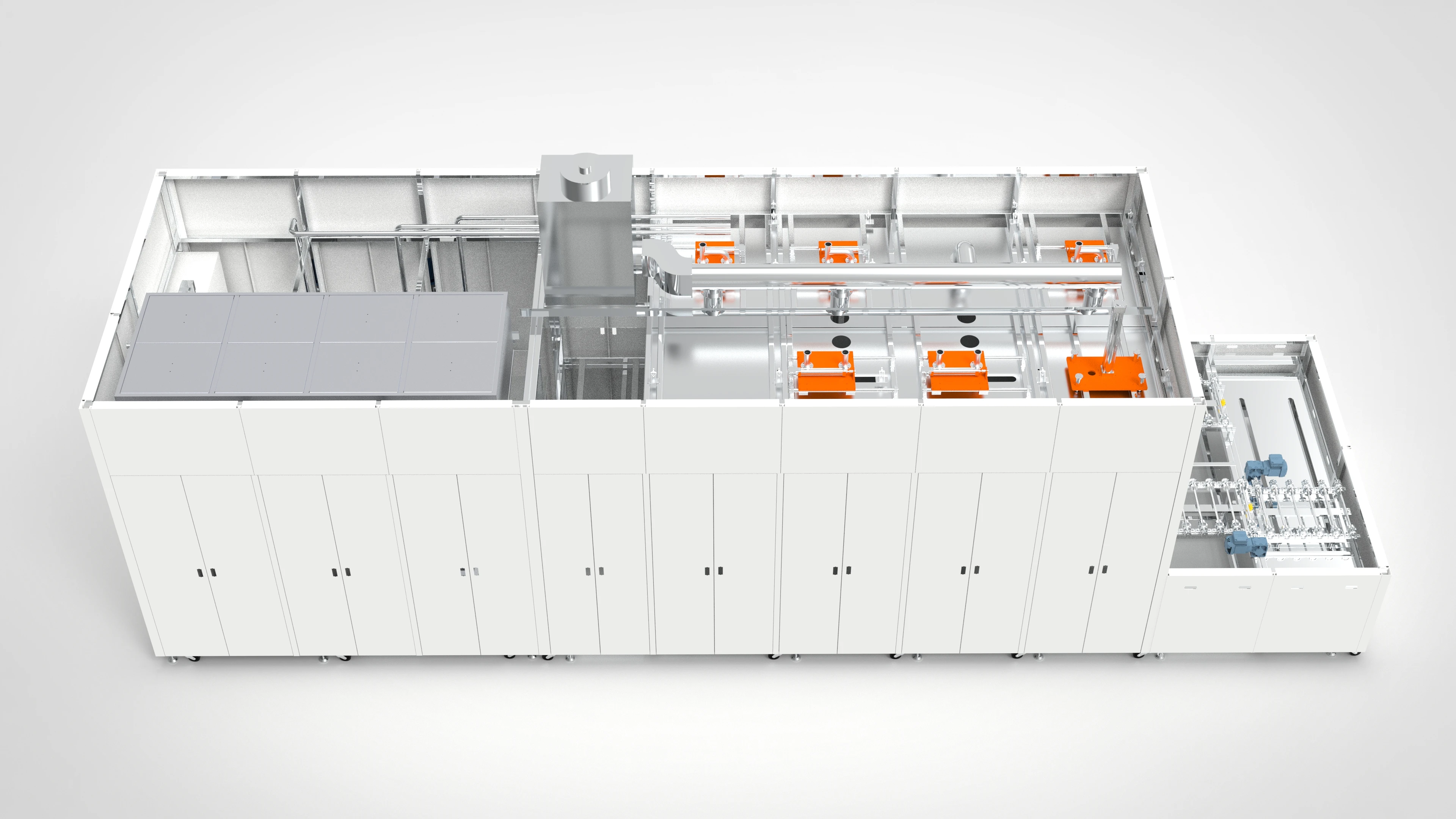

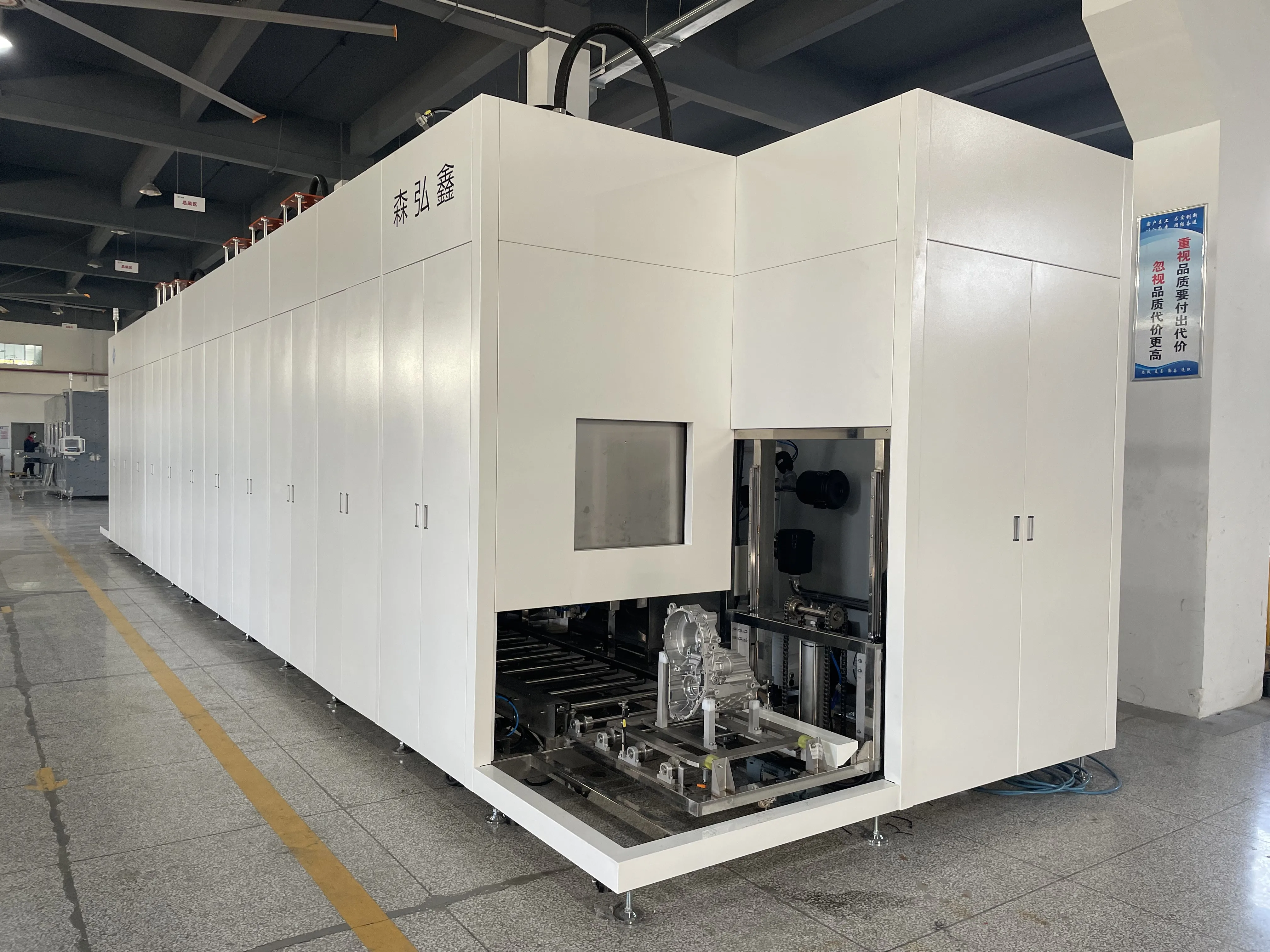

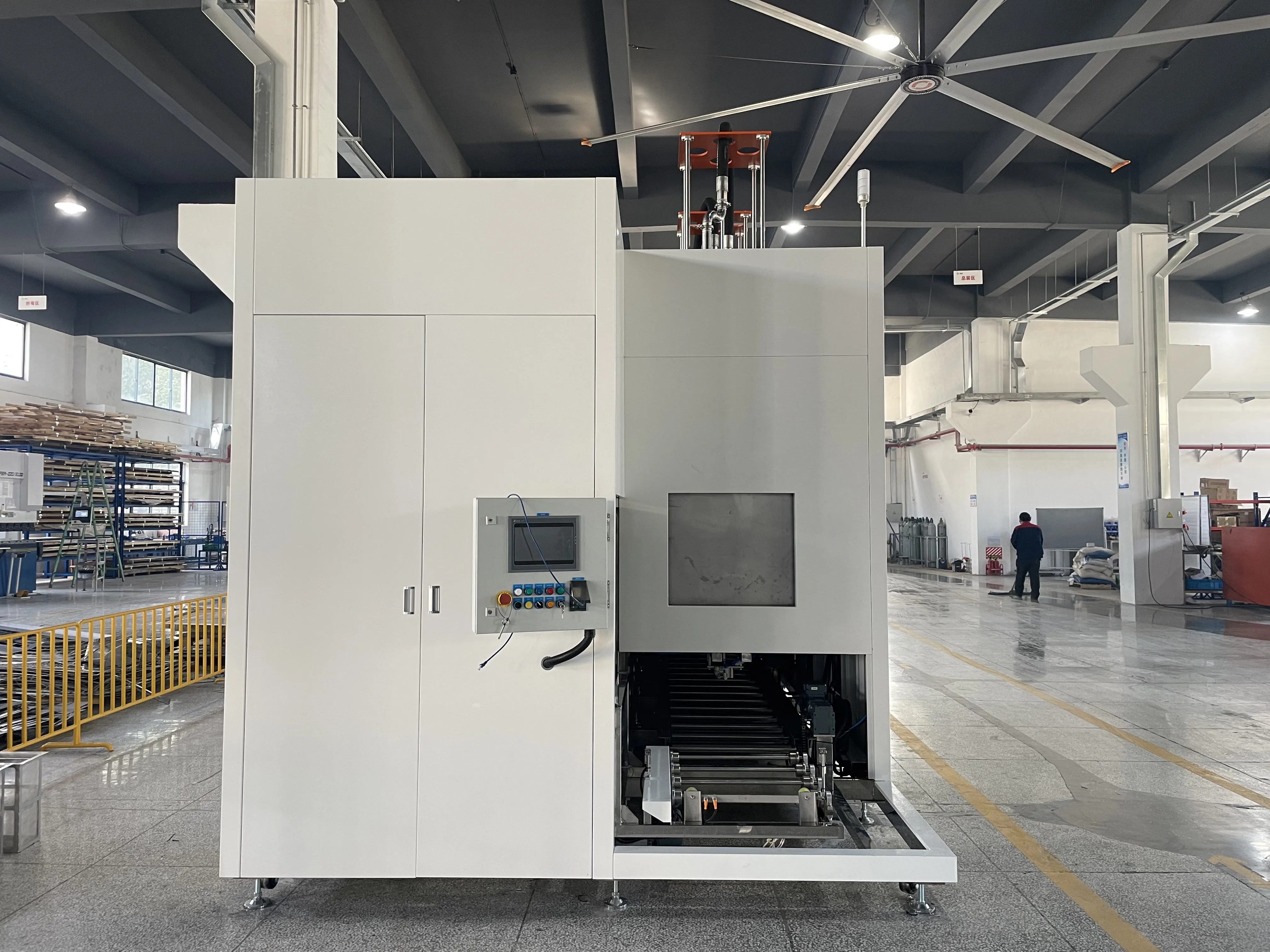

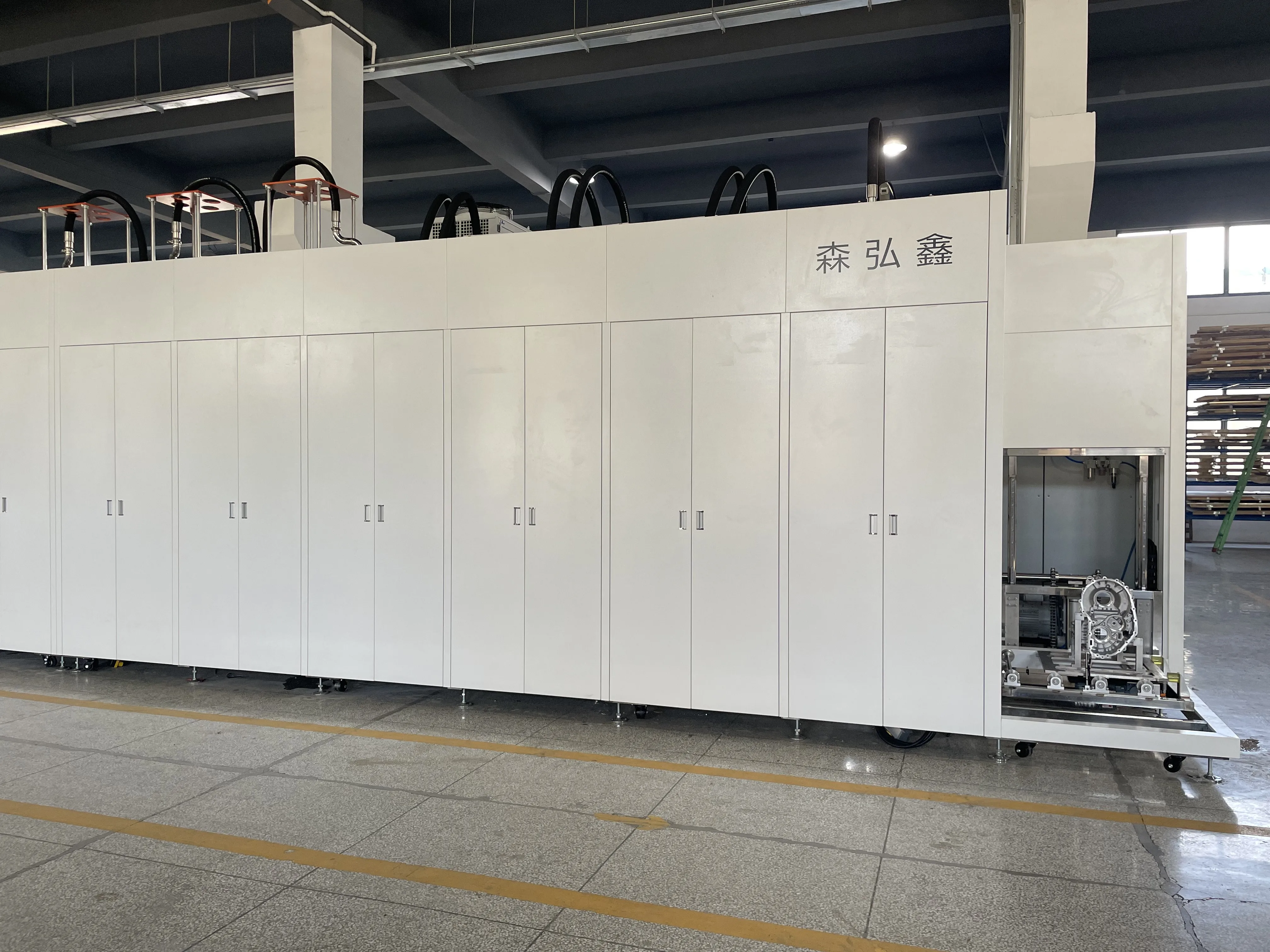

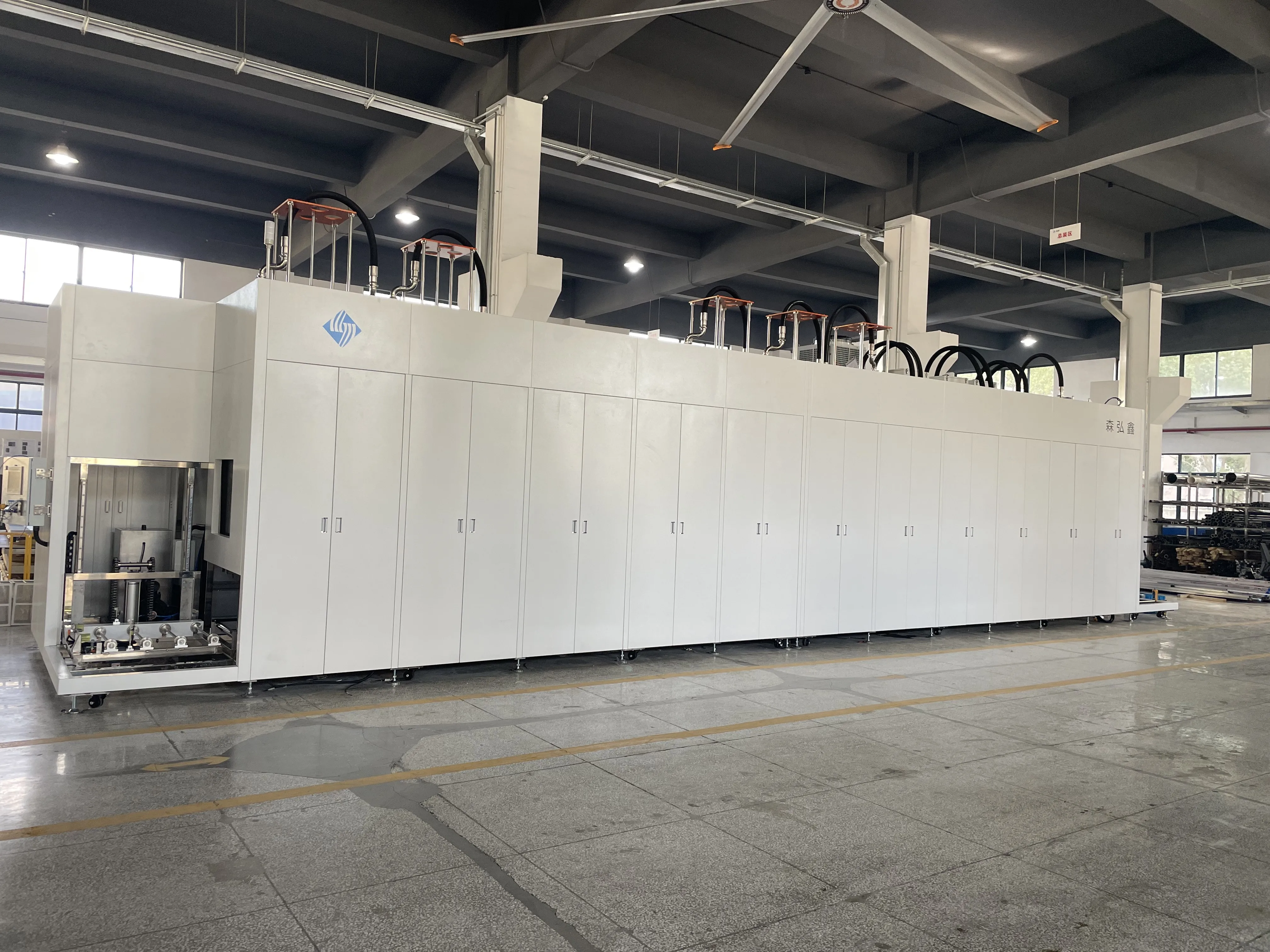

Through-type Spray Cleaning Machine
The cleaning process of through-type spray cleaning machine is controlled by PLC programmable device. The equipment production line is composed of 8 master stations, which includes 1 loading/unloading station, 1 roughing-spray cleaning station, 1 ultrasonic cleaning station, 1 robot high-pressure cleaning station, 2 spray rinsing stations, 1 compressed air cutting + hot air drying station, 1 vacuum drying station, 1 cooling station (can accommodate 2 pallets and 4 products) and rotary conveying roller table.
The working principle is to wash the parts through the stepping fixed-point spray, combined with the high-efficiency anionic surface decontamination and oil removal ability of the cleaning agent, so that the workpiece can meet the requirements of high cleanliness.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
Efficient
Durable
Convenient
EQUIPMENT MAIN TECHNICAL FUNCTION PARAMETERS
1. Production time：240S/piece（Time can be customized）
2. Equipment size：about L11710*W2960*H3450(mm)（Size can be customized）
3. The device can be switched manually and automatically
4. It is equipped with electronic pressure sensors on the front and back of the filter, which can realize the pressure difference alarm
5. The whole machine is equipped with water tray made of 304 stainless steel, with the thickness of 2mm.
2. Equipment size：about L11710*W2960*H3450(mm)（Size can be customized）
3. The device can be switched manually and automatically
4. It is equipped with electronic pressure sensors on the front and back of the filter, which can realize the pressure difference alarm
5. The whole machine is equipped with water tray made of 304 stainless steel, with the thickness of 2mm.
All of our equipment can be customized by your requirement !
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Product Name | Through-Type Spray Cleaning Machine |
2 | Application Continuous Commercial Cleaning | Continuous Commercial Cleaning |
3 | Function | Rust Paint Concrete Removal |
4 | Type | Electric Pressure Washing Machines |
5 | Voltage | 380V/ Cstomized |
6 | Pressure | Customized |
7 | Color | Customized |
8 | Ultrasonic frequency | Customized |
9 | Core Parts Warranty Period | 1 year |
All of our equipment can be customized by your requirement !
Technology | Parameter | Description |
Feeding | Manual operation | |
Feedstock | Entrance automatic roller table | |
Spray | About 8-10bar约8-10bar，50℃(Max.70 °C） | Spray pre-clean |
Cleaning 1 (Degreaser) | About 4bar约4bar，50℃(Max.70°C） | Spray + ultrasound |
High pressure cleaning 1 | Max. 50Mpa, room temperature | Robotic high-pressure cleaning |
Rinse 1 | About. 8-10bar, 50°C (Max.70°C) | Spray |
Rinse 2 | About. 8-10bar, 50°C (Max.70°C) | Spray |
Compressed air + fan cut water 1 | 4-6bar | Compressed air + high pressure fan |
vacuum drying | -99Kpa | Puxu vacuum pump |
cooling | 20±2℃ | Cold wind cooling |
Discharging | Automatic, inspection of product parts | |
Rotation | Rotation automatic roller table | |
Blanking | Manual operation |
PACKING
SERVICE NETWORK AND AFTER-SALE SERVICE
Our company's machines have been successfully exported to Germany, America, Russia, India, Hungary, Vietnam, Mexico and other countries.
After purchasing a device, we will set up a whatsapp team quickly for customers to provide 24/7 professional customer service. The warranty period of the equipment is one year, during this year, if there are any problem with the machine, we will provide free guidance and parts replacement.
You can have a look at our official website: en.senhongxin.com.
If you are interested in our products, please feel free to contact us we are delighted to help our customers become
more stronger!
If you are interested in our products, please feel free to contact us we are delighted to help our customers become
more stronger!
COMPANY PROFILE
About Senhongxin
Senhongxin Intelligent Equipment (Suzhou) Co., Ltd. was founded in 2020 by an experienced team in the cleaning industry. This team has served the cleaning industry for 20 years, providing detailed cleaning solutions for many customers. It is a high-tech enterprise focusing on industrial precision cleaning solutions.
The vision of the company is to become one of the advanced precision cleaning solutions providers in China, helping to make in China! Welcome friends from all over the world to visit and negotiate for a better future!
The vision of the company is to become one of the advanced precision cleaning solutions providers in China, helping to make in China! Welcome friends from all over the world to visit and negotiate for a better future!
CERTIFICATIONS
FAQ
1. Q：Are you a factory or a trading company?
5. Q: What are the terms of payment?
A: T/T, Paypal, credit card. 70% deposit before production, balance before delivery.
6. Q: Can we print our own brand?
A. Yes, of course. We are pleased to be one of your excellent OEM manufacturers in China to meet your OEM requirements.
A：We are a factory.
2. Q：Does the product have a CE certificate？
A：yes，other certifications can also be sent.
3. Q：What is the mode of transport?
A: International express and sea freight, depending on the customer.
4. Q: Can I use my own forwarder to ship the
product for me?
A: Yes, if you have your own freight forwarder, you can get yours.The forwarder delivers the product for you.
product for me?
A: Yes, if you have your own freight forwarder, you can get yours.The forwarder delivers the product for you.
5. Q: What are the terms of payment?
A: T/T, Paypal, credit card. 70% deposit before production, balance before delivery.
6. Q: Can we print our own brand?
A. Yes, of course. We are pleased to be one of your excellent OEM manufacturers in China to meet your OEM requirements.
7. Q: How can I place an order?
A: You can send
①the size of the chamber
②equipment function
③the goods that you want to clean
④the quantity you want
⑤destination address
to us on Ali. If you agree with our technical agreement, we will confirm the PI with you.
A: You can send
①the size of the chamber
②equipment function
③the goods that you want to clean
④the quantity you want
⑤destination address
to us on Ali. If you agree with our technical agreement, we will confirm the PI with you.
Похожие товары

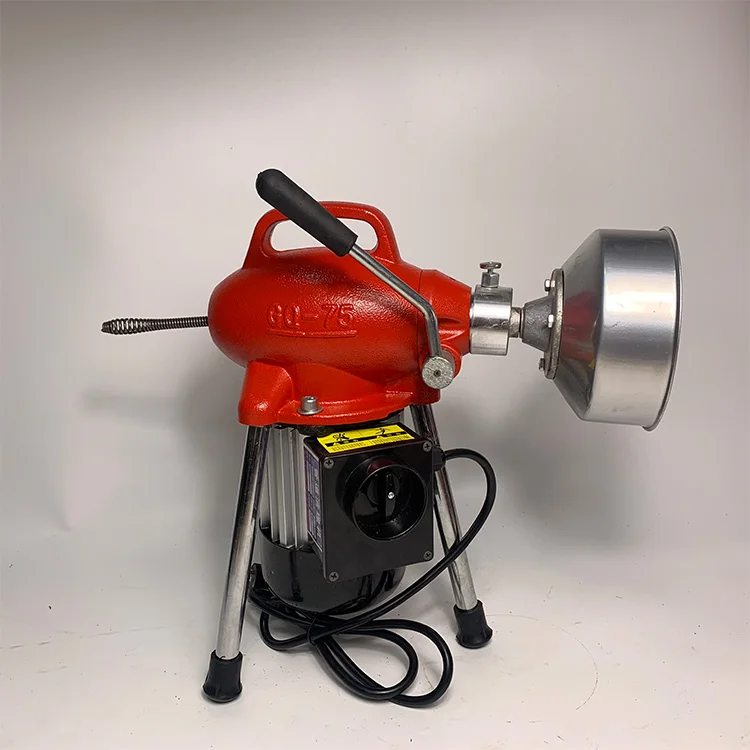

Hotel электрическая кухонная машина для очистки дренажных труб очиститель артефакт канализационных линий
21 381,19-23 692,67 ₽

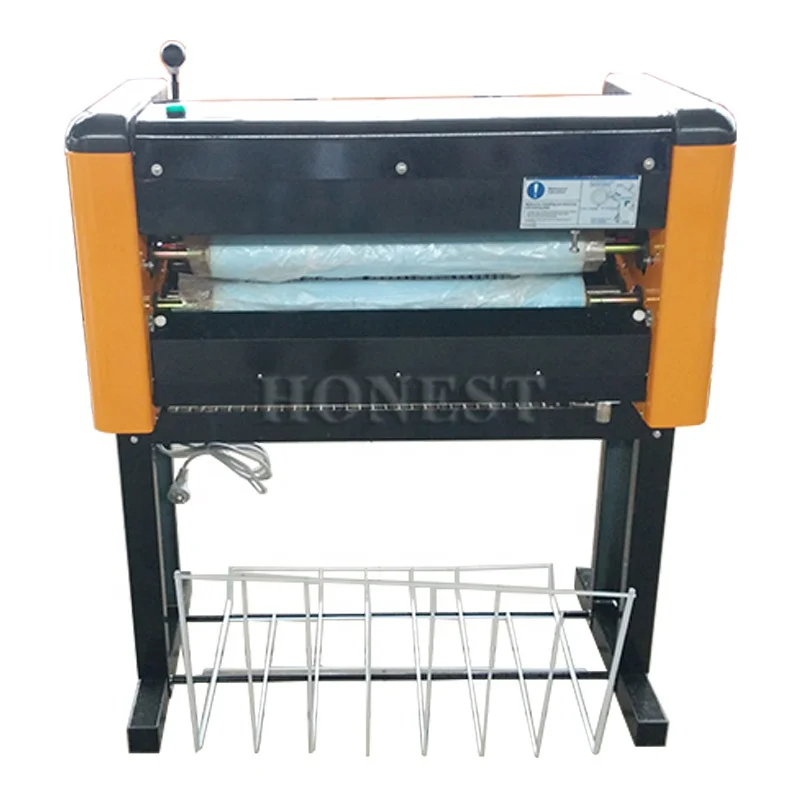

Прочный очиститель автомобильных ковриков/машина для чистки ковриков в автомобиле
127 943,83-162 869,35 ₽

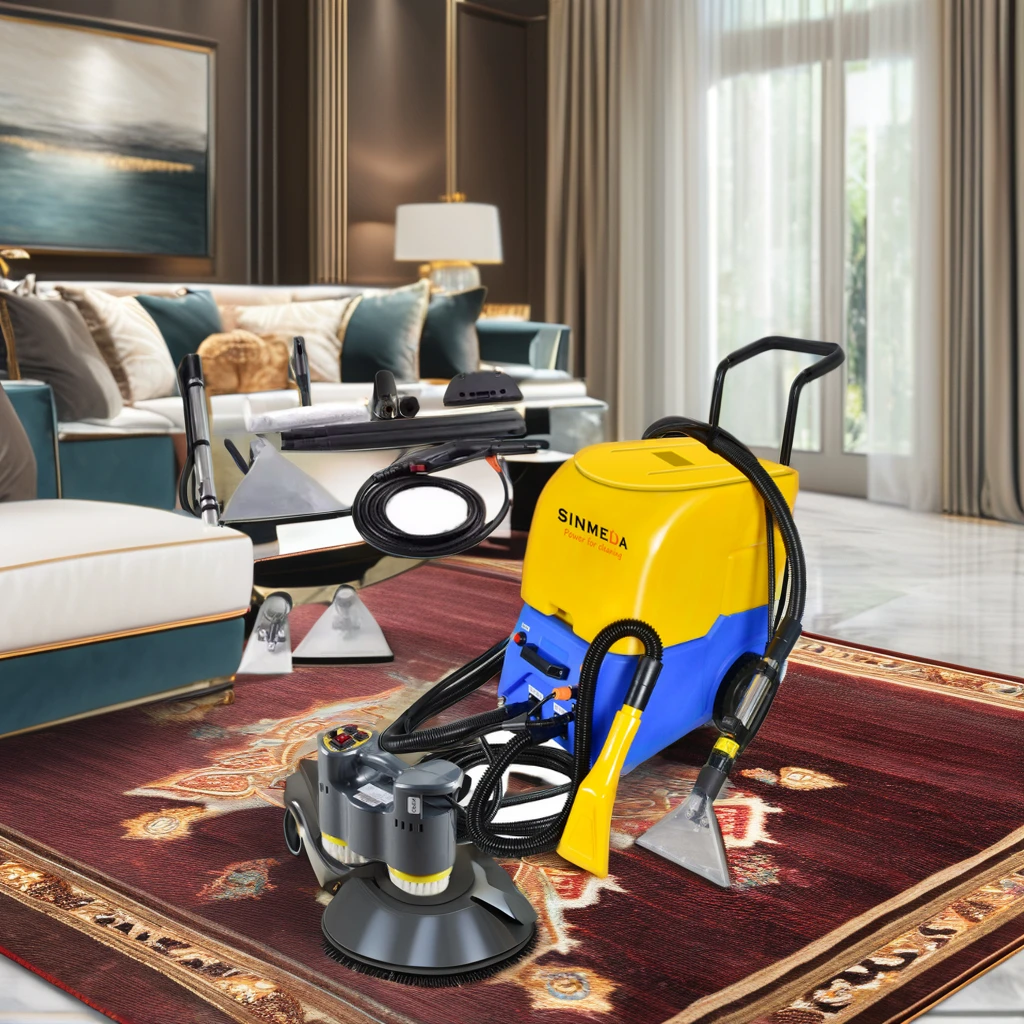

Очиститель ковров для автомобиля
68 073,09-92 343,63 ₽

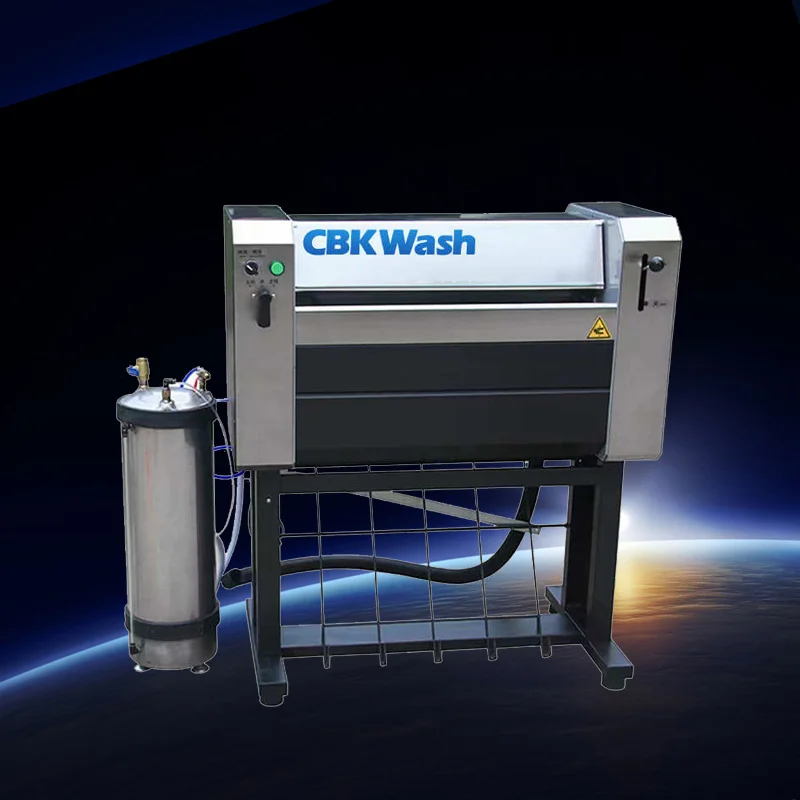

CBKWash новая стильная автоматическая машина для мытья автомобильных ковриков/Высококачественная очистки ковриков
