Открытый IP65 ЖК дисплей 2500nits Водонепроницаемый Анти туман 4 г Android система высокая яркость наружный LCD digital signage
- Категория: >>>
- Поставщик: Shenzhen Refee Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601030143101:
Описание и отзывы
Характеристики
Product Description
PRODUCT SPECIFICATION
FEATURES:
Refee 2024 New Floor standing series is commercial grade LCD screen technology with Android OS . They are widely used in public environments, including airport, hotel, Bank, Metro station.
● Support optional IR touch, Capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.
● Support 7*24 Hours long time playback
● FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlight, Different screen diagonal ,
32”, 43”, 55” 65” 75” 86”.

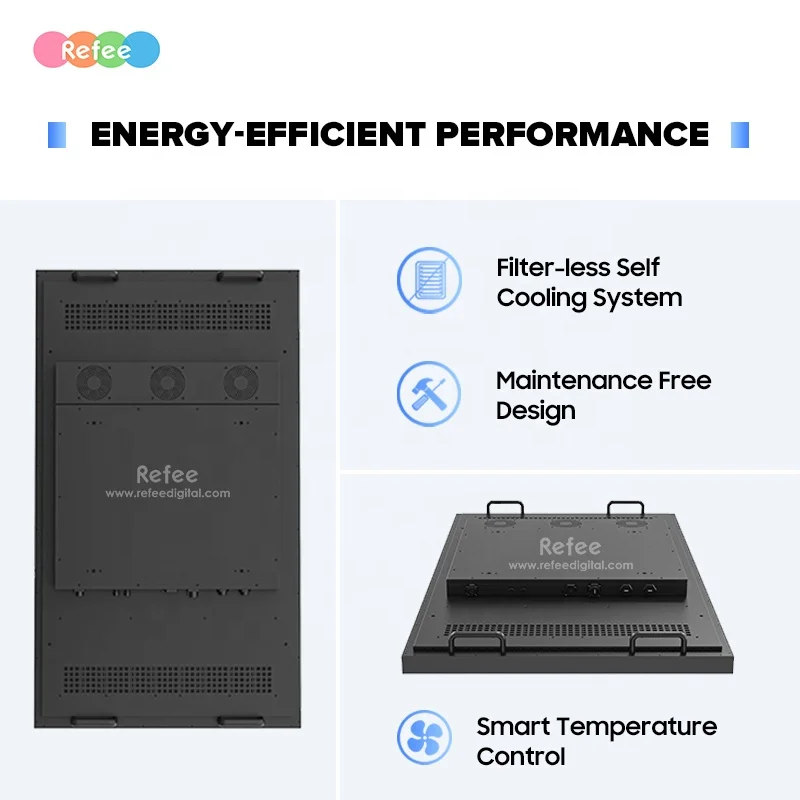

● Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.

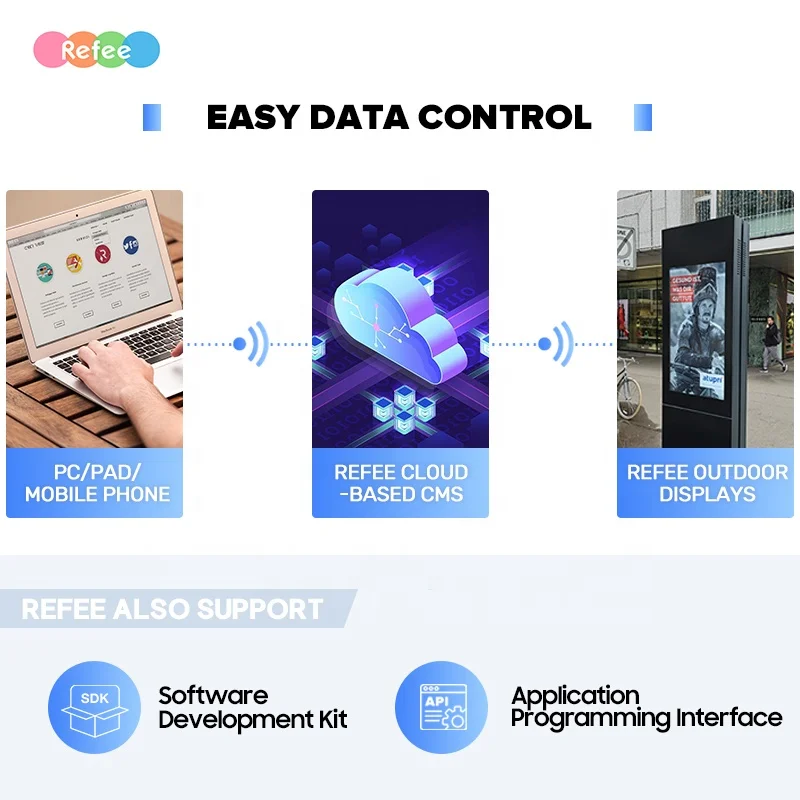

● Supporting connecting WIFI, Ethernet, 4G(option) to achieve different Internet connection access.
● Support optional IR touch, Capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.
● Support 7*24 Hours long time playback
● FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlight, Different screen diagonal ,
32”, 43”, 55” 65” 75” 86”.
● Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.
● Supporting connecting WIFI, Ethernet, 4G(option) to achieve different Internet connection access.
Specification: | ||||||||||||||||
Electric/Heat dissipation | Waterproof loudspeaker | Waterproof high quality 2*10W speaker | ||||||||||||||
Power supply | Industrial power supply from Meanwell | |||||||||||||||
SPD | Level 3 lightning protection | |||||||||||||||
leakage protector | Protection current 30mA | |||||||||||||||
Timer | Set the switching time by day and week | |||||||||||||||
Ventilation | High precision filter, filter 99.6% dust | |||||||||||||||
Structure | The housing material shell | All aluminum, surface spray outdoor special powder, protection capacity of more than 7 years. | ||||||||||||||
Glass | Adopt 6mm high light transmittance AG glass | |||||||||||||||
Waterproof structure | Door design waterproof structure, seal with outdoor rubber strip, meet IP65 protection level | |||||||||||||||
Model No.: | OA32W | OA43W | OA55W | OA65W | OA75W | OA86W | ||||||||||
Optional | 10points Capacitive Touch Optional ; 4G SIM optional | |||||||||||||||
Panel | ||||||||||||||||
LCD Panel Type | 32 inch IPS LCD | 43 inch IPS LCD | 55 inch IPS LCD | 65 inch IPS LCD | 75 inch IPS LCD | 86 inch IPS LCD | ||||||||||
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 | 3840*2160 | ||||||||||
Backlight | LED | |||||||||||||||
Brightness | 2500 nit | |||||||||||||||
Contrast Ratio | 1200:01:00 | |||||||||||||||
Color Depth | 8 bits | |||||||||||||||
Response Time | 8 ms (typ) | |||||||||||||||
Viewing Angle | 178° / 178° | |||||||||||||||
Light Life Time | 50,000 hrs (typ.) | |||||||||||||||
POWER | ||||||||||||||||
Power Supply | Internal | |||||||||||||||
Rated Voltage | AC 100 V ~ 240 V, 50 Hz / 60 Hz | |||||||||||||||
Power Consumption | 80W (max) | 110W (max) | 175W (max) | 270W (max) | 450W(max) | 750W(max) | ||||||||||
USER INTERFACE | ||||||||||||||||
Language | English (by default) | |||||||||||||||
Dimming Control (DCR) | Yes | |||||||||||||||
Ambient Light Sensor | Yes | |||||||||||||||
Internal Temperature Sensor | Yes | |||||||||||||||
I/O PORTS | ||||||||||||||||
HDMI | In (x1) | |||||||||||||||
Audio | Out (x1) | |||||||||||||||
INTERNAL PLAYER | ||||||||||||||||
Processor | ARM Cortex -A55 , Quad-core, 2.0GHz | |||||||||||||||
Main memory interface | 2GB DDR3 | |||||||||||||||
Graphics | Mali-G52 | |||||||||||||||
Storage (FDM) | eMMC 16GByte(2GB occupied by o/s) | |||||||||||||||
Multimedia | Decoder:4K60fpsH.265/H.264/VP9. Encoder: 1080P 100fps H.265/H.264 | |||||||||||||||
IO ports | USB 2.0 x2, micro SD slot x1 | |||||||||||||||
Operating system | Android 11 | |||||||||||||||
Network | WLAN 802.11 b/g/n (2.4GHz) ,RJ45 | |||||||||||||||
ENVIRONMENT | ||||||||||||||||
Operating Temperature | -20° C ~ 60° C | |||||||||||||||
Storage Temperature | -10° C ~ 60° C | |||||||||||||||
Humidity | 10% ~ 80% RH Non-condensing | |||||||||||||||
CERTIFICATION | ||||||||||||||||
CE, FCC&Rohs | CE, FCC&Rohs | |||||||||||||||
MECHANICAL SPECS | ||||||||||||||||
Orientation | Portrait /LandScape | |||||||||||||||
Cabinet Color | Black | |||||||||||||||
Dimension (LxHxD) | 804.5*499*100mm | 1050*638*100mm | 1315 *786*100mm | 1534.5*909.5*100mm | 1756*1034*100mm | 2001*1172*100mm | ||||||||||
Weight (N.W) | 18kg | 28kg | 48kg | 62kg | 75kg | 85kg | ||||||||||
Weight (G.W) | 35kg | 50kg | 88kg | 95kg | 105kg | 120kg | ||||||||||
Packing & Delivery
Company Profile
REFEE TECHNOLOGY CO., LTD, was founded in 2005 and obtained CHINA National High-tech Enterprise certification. We are committed to the latest technology application, design, research and development of commercial displays and provides complete solutions. With experienced software and hardware engineer team, Refee bring customer concept,sketch, to engineering sample,and final mass production .
"REFEE" mainly operates in the North American, European and Middle Eastern markets, and has signed strategic partnership agreements with well-known local companies in the United States, Germany, Britain, France, and UAE. We adhere to the concept of "leading new advertising media and spreading brand value" to help customers enhance brand value and the profits brought by advertising.
We focus on the commercial display industry and provide software and hardware solutions. The company has obtained ISO 9001 certification and various product certifications exported abroad: CCC CE, ROHS, FCC.
Our competency lies in our innovative design, expert engineering, personalize customer service and competitive pricing.
FAQ
1) Q:What is the minimum order quantity?
Refee: Qty: 1 unit. Different order quantity different price.
2) Q:What payment methods your company accept?
Refee: It’s usually wire transfer T/T. For partner relationship, we may consider other payment terms.
3) Q:How long is the warranty time for your products?
Refee: We provide 1 year warranty for all of our products and supply life-time maintenance.
4) Q:I haven't done business with your company before, how can i trust your company?
Refee: Our company is a registered golden member on Alibaba site for more than 15 years.
We supply to all over the world, and business partners including P&G,Unilevel, BAT,CocoCola,WalMart etc. Feel free to contact us for more cases and solutions.
5) Q:what's the shipment terms and delivery time of your company?
Refee: It depends on order quantity, shipping address and shipping methods.
6) Q:Do you give any discount ?
Refee: Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price
based on the right solution.
based on the right solution.
7) Q:I would like to ask you if it's possible to have my logo on the product.
Refee: Logo printing service is available for mass order based on our M.O.Q
8)Q:What kind of certification do you get?
Refee: We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
9)Q: What’s the HS CODE?
Refee: Digital Signage HS CODE: 8528591090
