Suoer 10000 Вт солнечный инвертор 10kw Гибридный
- Категория: >>>
- Поставщик: Foshan Suoer Electronic Industry Co. Ltd.
Сохранить в закладки 1601031239159:
Описание и отзывы
Характеристики
Products Description
MODEL | SVM-10.2KW PRO |
Phase | 1-phase |
Maximum PV Input Power | 10200W |
Rated Output Power | 10200W/10200VA |
Maximum Solar Charging Current | 180A |
GRID-TIE OPERATION | |
PV Input（DC） | |
Nominal DC Voltage/Maximun DC Voltage | 360VDC/500VDC |
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
MPPT Voltage Range | 90VDC/450VDC |
Number of MPPT Trackers/Maximum Input Current | 2/27A |
GRID OUTPUT(AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 195-253VAC |
Nominal Output Current | 44.3A |
Power Factor | >0.99 |
Feed-in Grid Frequency Range | 49-51±1hz |
EFFICIENCY | |
Maximum Conversion Efficiency(DC/AC) | 98% |
TWO LOAD OUTPUT POWER | |
Full Load | 10200W |
Maximum Main Load | 10200W |
Maximum Second Load(battery mode) | 3400W |
Main Load Cut Off Voltage | 44VDC |
Main Load Return Voltage | 48VDC |
OFF-GRID OPERATION | |
AC INPUT | |
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
Maximum AC Input Current | 50A |
Nominal operating frequency | 50/60Hz |
Surge power | 20400W |
PV INPUT（DC） | |
Maximum DC Voltage | 500VDC |
MPPT Voltage Range | 90VDC~450VDC |
Number of MPPT Trackers/Maximum Iput Current | 2/27A |
BATTERY MODE OUTPUT(AC) | |
Nominal Output Voltage | 48VDC |
Output Waveform | Pure sine wave |
Efficiency(DC to AC) | 94% |
BATTERY & CHARGER | |
Nominal DC Voltage | 48VDC |
Maximum Solar Charging Current | 180A |
Maximum AC Charging Current | 160A |
GENERAL | |
PHYSICAL | |
Dimension,DxWXH(mm) | 420*310*110 |
Cartoon Dimension,DXWXH(mm) | 588*463*205 |
Net Weight(kgs) | 14.5 |
Gross Weight(kgs) | 16 |
INTERFACE | |
Communication Port | RS232/WIFI/RemoveLCD/GPRS |
ENVIRONMENT | |
OperatingTemperature | -10~50℃ |
Feature
1.Small size and light weight
2.Bluetooth App connected,power generation at any time to watch
3.Mobile intelligent cloud monitoring, simple operation and maintenance
4.Friendly connection to the power grid, more coordinated response
5.Power generation does not use electricity, and the efficiency is visible
5.Power generation does not use electricity, and the efficiency is visible
Advantage
1.180A Max pv charging
2.Pure sine wave
3.Works with and without battery
4.Upgrader MPPT
5.Li-ION battery
6.Bulit in nnti dust kit
1.180A Max pv charging
2.Pure sine wave
3.Works with and without battery
4.Upgrader MPPT
5.Li-ION battery
6.Bulit in nnti dust kit
Recommend Products
Company Introduction
Foshan Suoer Electronic Industry Co.,Ltd.,located in Dali, Nanhai, Foshan City, Guangdong Province,which is a comprehensive joint-stock corporation integrating R&D, production and sales as one of the high-tech enterprises.Our company has established an industrial park covering a land area of 20 thousand square meters, with standard workshop, advanced production equipment, a standard R&D building and world-leading facilities
FAQ
Q1.Who are we?
A1.We are a R&D and manufacture company which start from 2005. "SUOER" is a registered brand in China. We can take OEM orders as well.
Q2.What can you buy from us?
A2.Solar tied inverter, solar off grid hybrid solar inverter, Solar pumping inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, battery charger, Solar lighting system, power converter
Q3. What is our advantage ?
A3.We have professional R&D team, can customized the products you want.
We have 20,000 square meters and more than 600 staffs.
Q4. How can we guarantee quality?
A4.Always a pre-production sample before mass production;
Always final Inspection before packing.
Q5. How to select a suitable products?
A5.Tell us your demand, we can recommend a suitable inverter to you.
Q6. How long can we offer a sample?
A6.Most products are in stock, you can buy sample and be shipped at any time.
A1.We are a R&D and manufacture company which start from 2005. "SUOER" is a registered brand in China. We can take OEM orders as well.
Q2.What can you buy from us?
A2.Solar tied inverter, solar off grid hybrid solar inverter, Solar pumping inverter, Pure sine wave inverter, Modified sine wave inverter, MPPT/PWM solar controller, battery charger, Solar lighting system, power converter
Q3. What is our advantage ?
A3.We have professional R&D team, can customized the products you want.
We have 20,000 square meters and more than 600 staffs.
Q4. How can we guarantee quality?
A4.Always a pre-production sample before mass production;
Always final Inspection before packing.
Q5. How to select a suitable products?
A5.Tell us your demand, we can recommend a suitable inverter to you.
Q6. How long can we offer a sample?
A6.Most products are in stock, you can buy sample and be shipped at any time.
Похожие товары

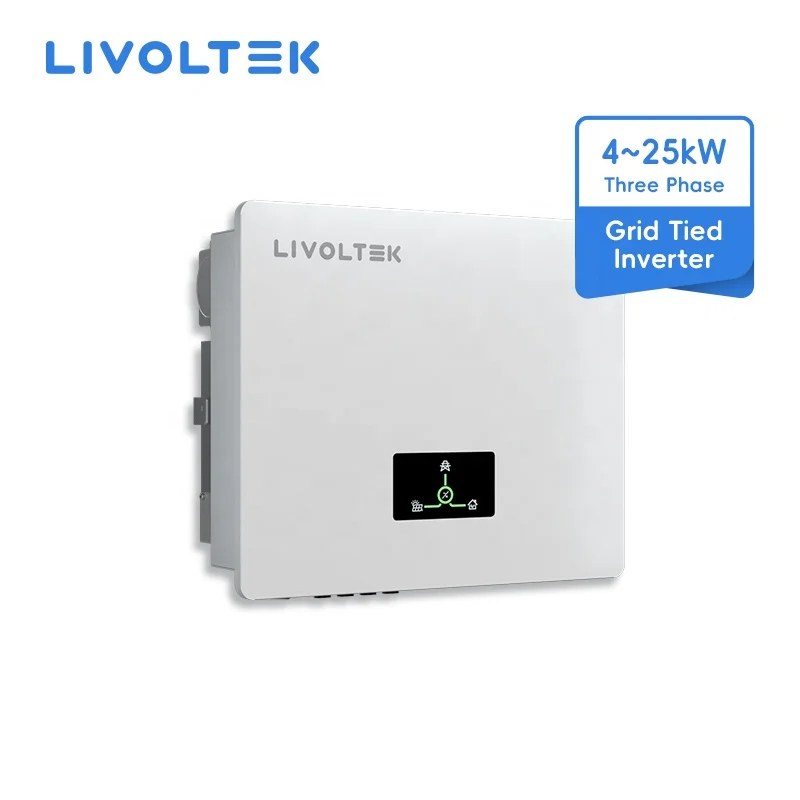

Трехфазный сетевой инвертор LIVOLTEK, 10 кВт с MPPT AFCI IP65, домашний Инвертор солнечной энергии, 3 фазы, 10000 Вт, встроенная в сеть солнечная система
65 493,97 ₽ - 94 302,68 ₽
10000 Вт Чистая синусоида солнечный инвертор 12V/24V постоянного тока до 220VAC для умного дома
75 528,46 ₽ - 96 892,23 ₽
Чистый синусоидальный инвертор, двойной MPPT, 24 В, 8000 Вт, 10000 Вт, 12000 Вт
129 369,47 ₽ - 172 420,69 ₽

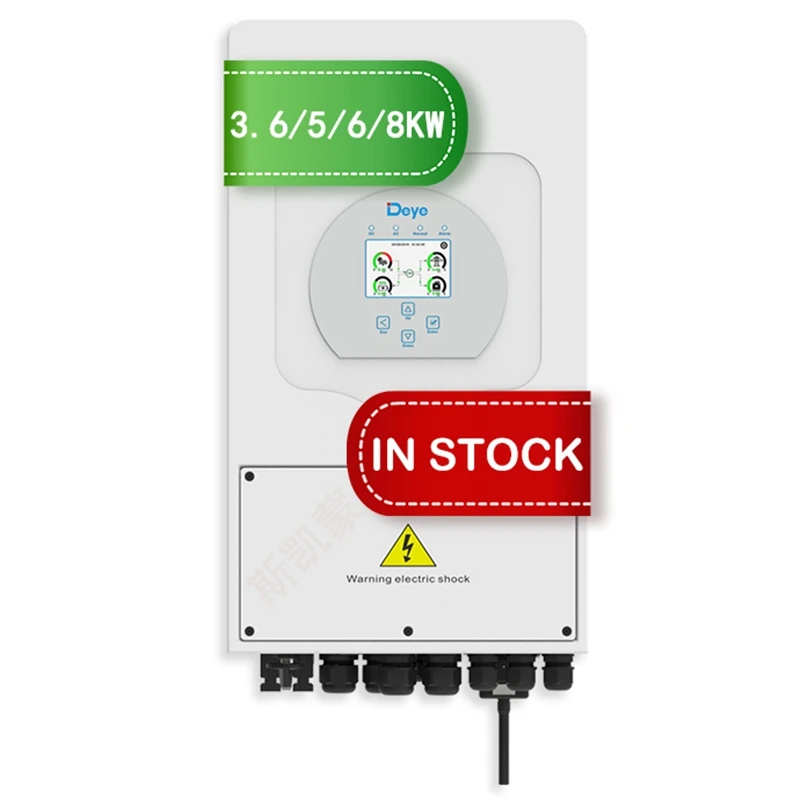

Гибридный солнечный инвертор Ningbo Deye 6 кВт, 1 фаза, Wi-Fi, 2mppt, SUN-6K-SG03LP1-EU Гибридный солнечный инвертор, на складе
94 950,07 ₽
Deye 10 кВт sun-10k-sg04lp3-eu 3 фазен солнечный инвертор 10 Гарантия 5 Гарантия домашние системы хранения энергии пилон
185 584,22 ₽

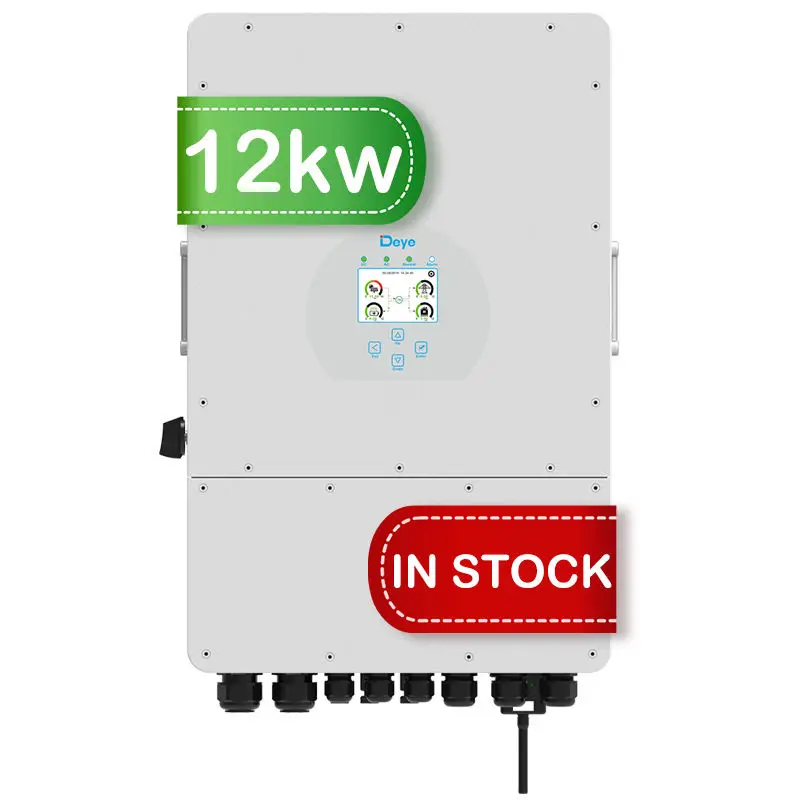

Deye sun-10k-sg04lp3-eu Склад 8 кВт 10 кВт 12 кВт 3 фазы deye sun-6k-sg04lp1-eu Гибридный солнечный инвертор
192 058,09 ₽ - 235 217,21 ₽

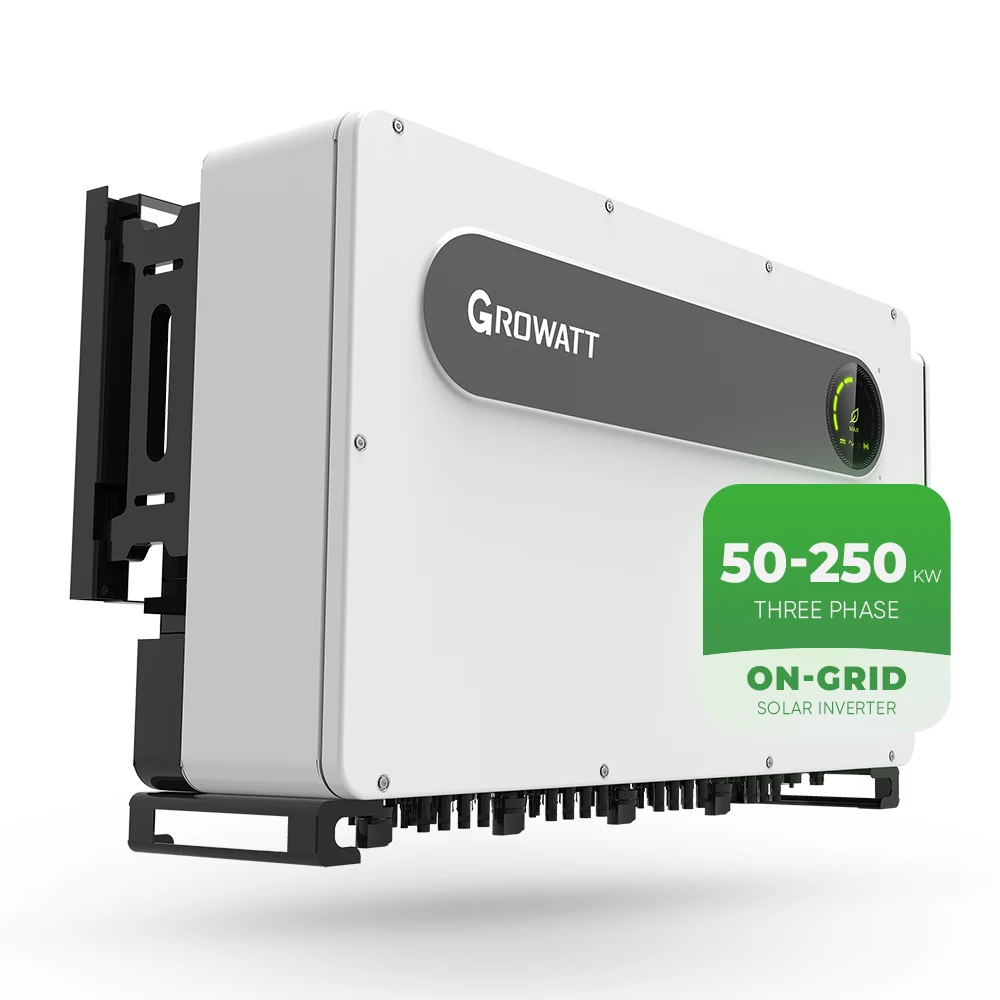

Гибридный инвертор Growatt MAX50KTL3-LV 50 кВт 60 кВт 100 кВт 125 кВт Солнечная инверторная система на сетке для завода
