Нулевой Z ULTRA R410A 18 Seer2 Hyper Smart Inverter Multi Air Сплит 220 В климатический Кондиционер Электрический AC
- Категория: >>>
- Поставщик: Zero Technologies Co. Ltd.
Сохранить в закладки 1601031377223:
Описание и отзывы
Характеристики
OVERVIEW
PRODUCT FEATURE
SPECTIFICATION

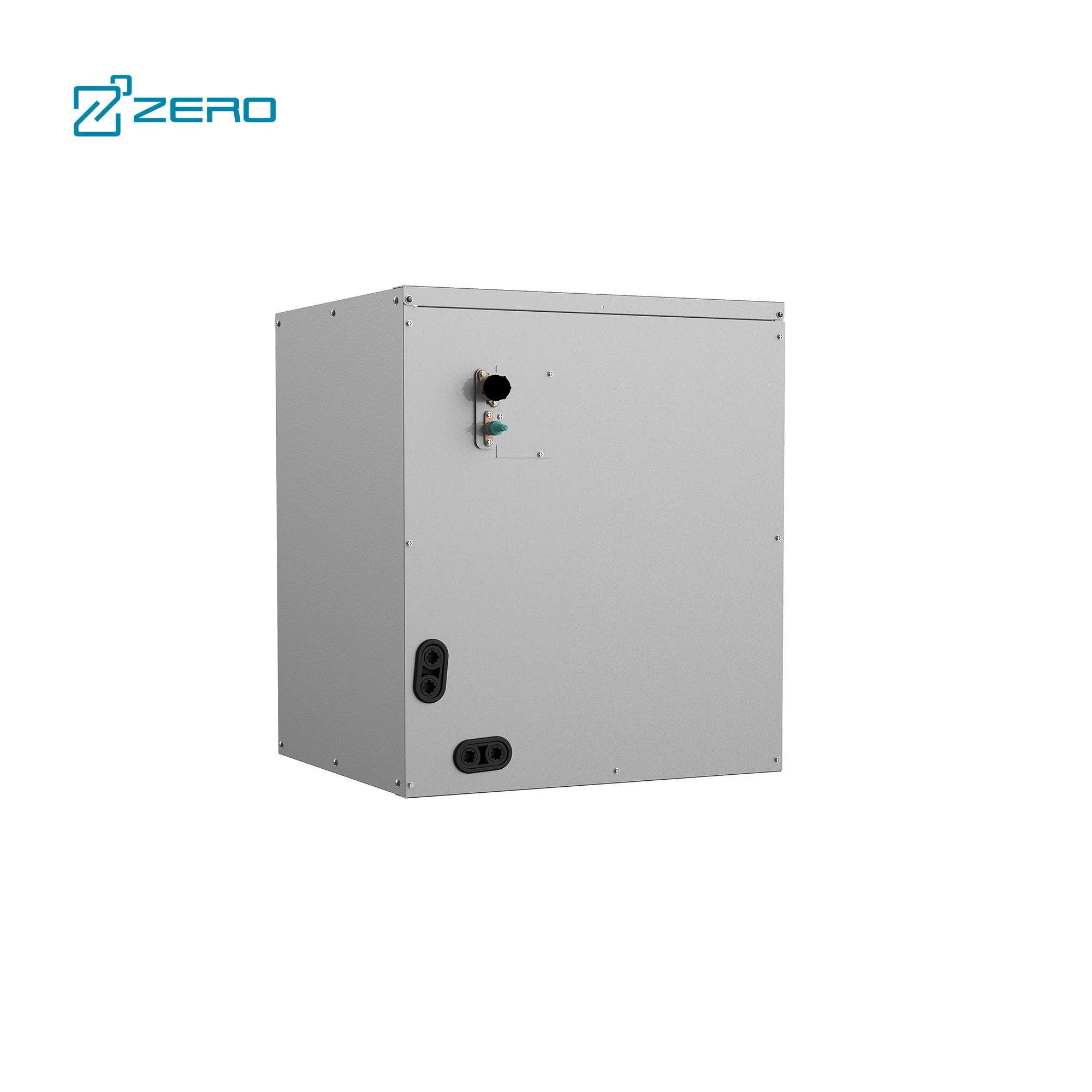

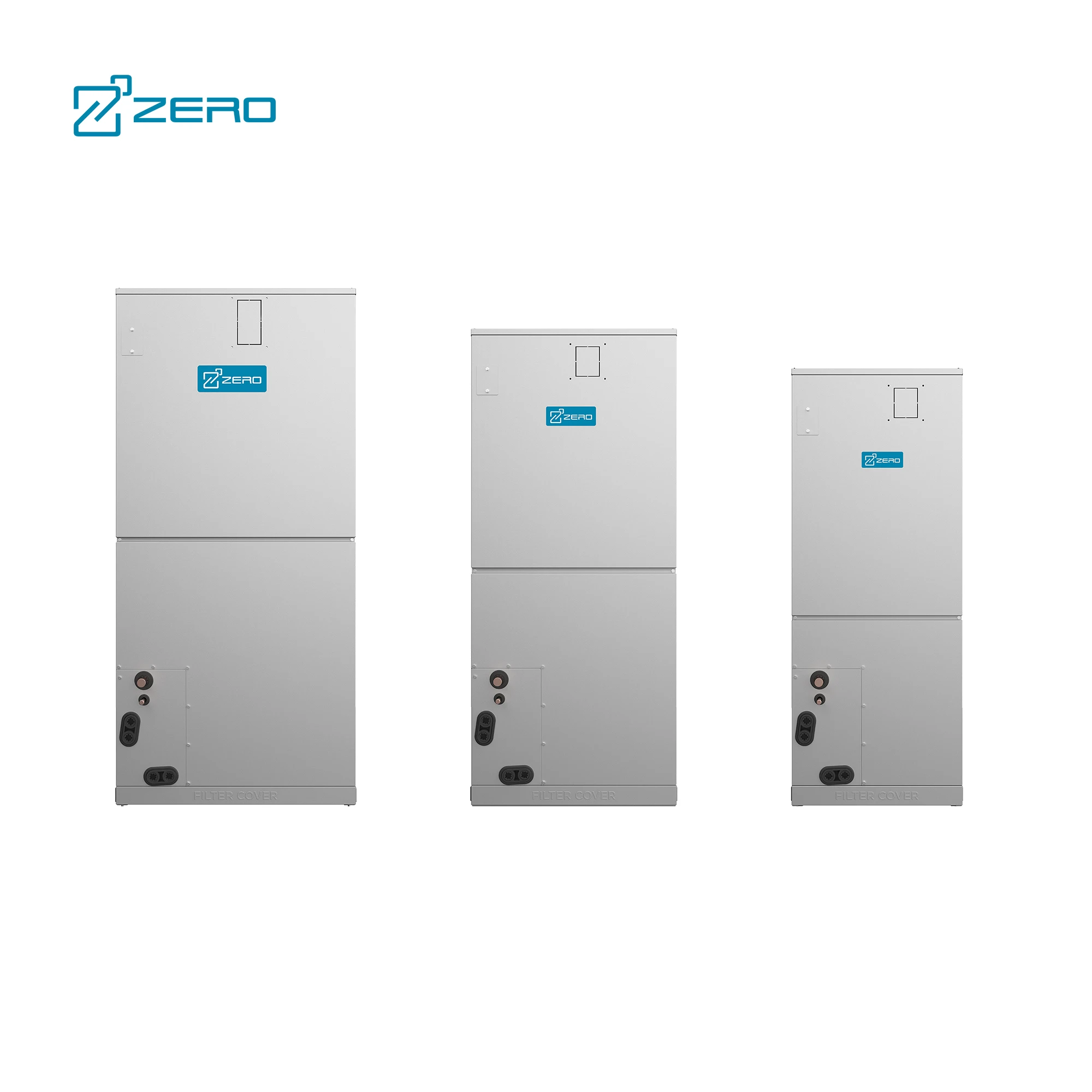

Z-ULTRA 485+24V AHU | ||||||||||
Model | Indoor Unit | ZAVA-18HDM-US | ZAVA-24HDM-US | ZAVA-30HDM-US | ||||||

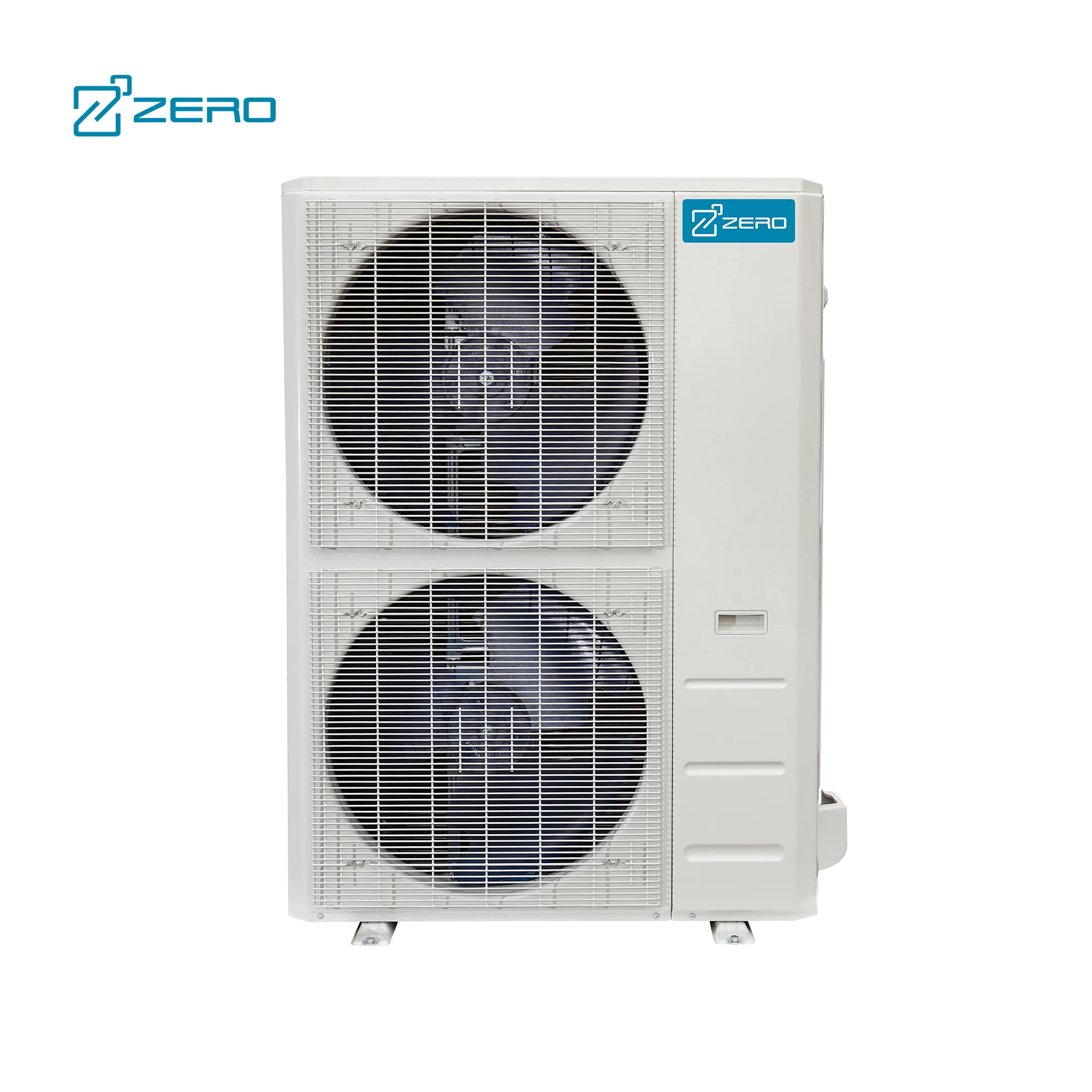

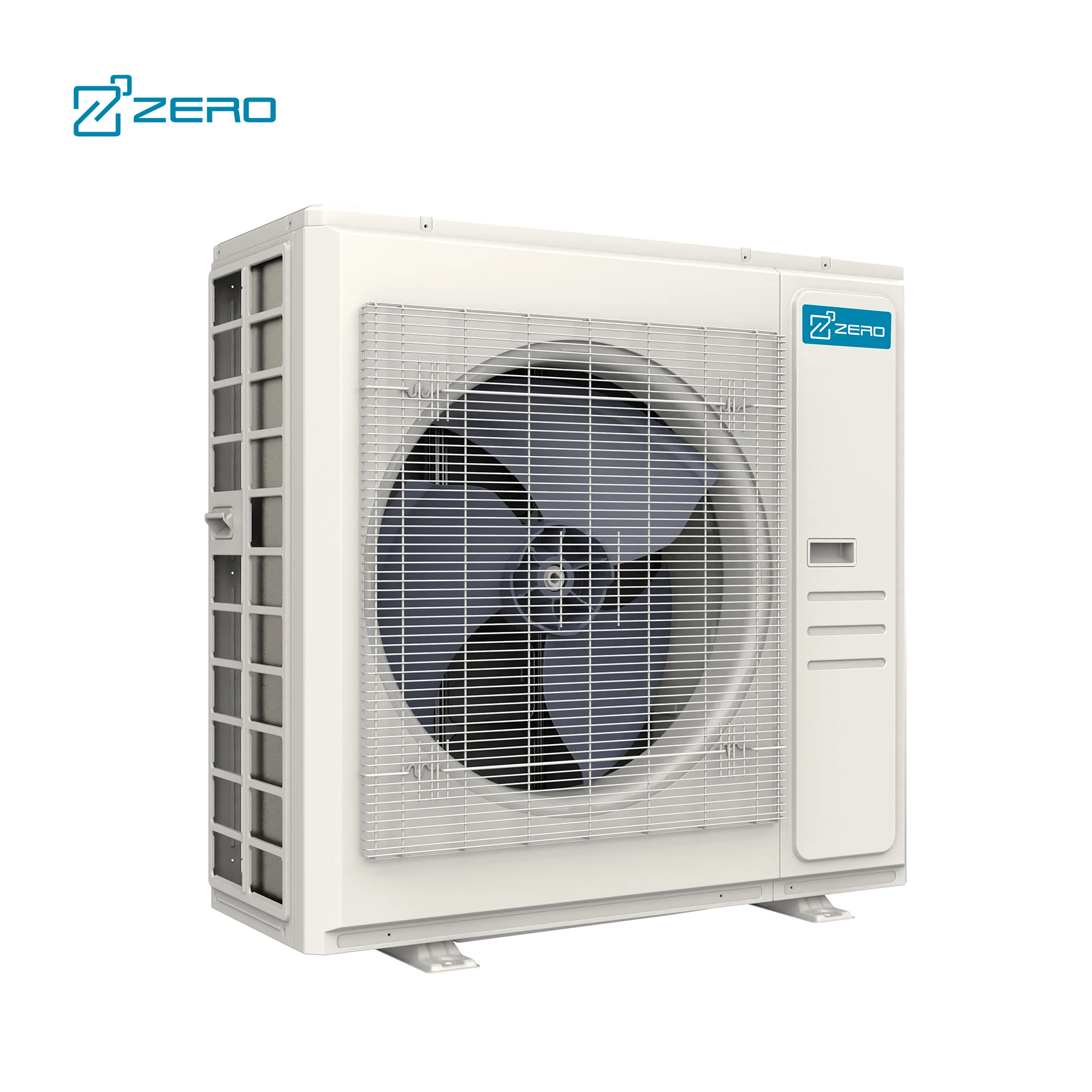

Outdoor Unit | ZSOVA-18HDM-US | ZSOVA-24HDM-US | ZSOVA-30HDM-US | |||||||
Performance | ||||||||||
Power Supply | V, Ph, Hz | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | ||||||
SEER2(AHRI 210/240-2023) | Cooling/Heating Capacity | Btu/h | 18000/18000 | 24000/26000 | 30000/31000 | |||||
SEER2 | Btu/W | 17 | 17 | 17.3 | ||||||
EER2 | Btu/W | 10.9 | 10.5 | 10.6 | ||||||
HSPF4 | Btu/W | 8.8 | 9.2 | 8.5 | ||||||
Heating | Rated capacity | Btu/h | 11000 | 19400 | 17800 | |||||
COP | W/W | 2 | 2.1 | 1.7 | ||||||
Indoor Unit | 5/7.5/10 | 5/7.5/10/15 | 5/7.5/10/15/20 | 5/7.5/10/15/20 | ||||||
Air Flow Volume | H/M/L | CMF | 576/529/488 | 758/694/629 | 894/805/711 | |||||
Noise Level | H/M/L | dB(A) | 34/32/30 | 42/40/37 | 40.5/37.5/28 | |||||
Net Dimension | W×D×H | mm | 534×445×1143 | 534×445×1143 | 534×534×1245 | |||||
W×D×H | inch | 21.02×17.52×45 | 21.02×17.52×45 | 21.02×21.02×49.02 | ||||||
Packing Dimension | W×D×H | mm | 675×530×1235 | 675×530×1235 | 675×620×1335 | |||||
W×D×H | W×D×H | inch | 26.57×20.87×48.62 | 26.57×20.87×48.62 | 675×530×1235 | |||||
Net/Gross Weight | kg | 18 5/64*12 29/32 | 18 5/64*12 29/32 | 18 5/64*12 29/32 | ||||||
lbs | 459*328 | 459*328 | 459*328 | |||||||
Stuffing Quantity | ||||||||||
Stuffing Quantity | set | |||||||||
Model | Indoor Unit | ZAVA-36HDM-US | ZAVA-48HDM-US | ZAVA-60HDM-US | ||||||
Outdoor Unit | ZSOVA-36HDM-US | ZSOVA-48HDM-US | ZSOVA-60HDM-US | |||||||
Performance | ||||||||||
Power Supply | V, Ph, Hz | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | ||||||
SEER2(AHRI 210/240-2023) | Cooling/Heating Capacity | Btu/h | 36000/36000 | 47000/50000 | 57000/60000 | |||||
SEER2 | Btu/W | 16.9 | 15.8 | 14.9 | ||||||
EER2 | Btu/W | 10.1 | 8.8 | 8.8 | ||||||
HSPF4 | Btu/W | 8.2 | 9.4 | 8.5 | ||||||
Heating | Rated capacity | Btu/h | 21000 | 36000 | 34600 | |||||
COP | W/W | 1.9 | 1.95 | 1.9 | ||||||
Indoor Unit | 5/7.5/10 | 5/7.5/10/15 | 5/7.5/10/15/20 | 5/7.5/10/15/20 | ||||||
Air Flow Volume | H/M/L | CMF | 1082/970/864 | 1282/970/864 | 1582/1358/1135 | |||||
Noise Level | H/M/L | dB(A) | 45.5/42.5/40 | 53/50/46 | 52/48/43 | |||||
Net Dimension | W×D×H | mm | 534×534×1245 | 534×534×1245 | 534×622×1346 | |||||
W×D×H | inch | 21.02×21.02×49.02 | 21.02×21.02×49.02 | 21.02×24.49×52.99 | ||||||
Packing Dimension | W×D×H | mm | 675×620×1335 | 675×620×1335 | 710×680×1435 | |||||
W×D×H | W×D×H | inch | 26.57×24.41×52.56 | 26.57×24.41×52.56 | 27.95×26.77×56.5 | |||||
Net/Gross Weight | kg | 58.6/70.6 | 59.2/70.9 | 73.8/87.5 | ||||||
lbs | 129.19/155.64 | 130.51/156.31 | 162.7/192.9 | |||||||
Stuffing Quantity | ||||||||||
Stuffing Quantity | set | 27/57/57 | 27/57/57 | 27/54/54 | ||||||
Z-ULTRA HYPER HEAT 485+24V AHU | ||||||||||
Model | Indoor Unit | ZAVA-18HDM-USHH | ZAVA-24HDM-USHH | ZAVA-30HDM-USHH | ||||||
Outdoor Unit | ZSOVA-18HDM-USHH | ZSOVA-24HDM-USHH | ZSOVA-30HDM-USHH | |||||||
Performance | ||||||||||
Power Supply | V, Ph, Hz | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | ||||||
SEER2(AHRI 210/240-2023) | Cooling/Heating Capacity | Btu/h | 18000/19000 | 24000/24000 | 30000/33000 | |||||
SEER2 | Btu/W | 18 | 17.4 | 16.2 | ||||||
EER2 | Btu/W | 12.4 | 11.7 | 10 | ||||||
HSPF4 | Btu/W | 9.3 | 10 | 8.9 | ||||||
Heating | Rated capacity | Btu/h | 16500 | 22600 | 24000 | |||||
COP | W/W | 2.04 | 1.91 | 1.77 | ||||||
Indoor Unit | 5/7.5/10 | 5/7.5/10/15 | 5/7.5/10/15/20 | 5/7.5/10/15/20 | ||||||
Air Flow Volume | H/M/L | CMF | 576/529/488 | 758/694/629 | 894/805/711 | |||||
Noise Level | H/M/L | dB(A) | 34/31/30 | 39/36/33 | 42/40.5/36.5 | |||||
Net Dimension | W×D×H | mm | 534×445×1143 | 534×445×1143 | 534×534×1245 | |||||
W×D×H | inch | 21.02×17.52×45 | 21.02×17.52×45 | 21.02×21.02×49.02 | ||||||
Packing Dimension | W×D×H | mm | 675×530×1235 | 675×530×1235 | 675×620×1335 | |||||
W×D×H | W×D×H | inch | 26.57×20.87×48.62 | 26.57×20.87×48.62 | 675×530×1235 | |||||
Net/Gross Weight | kg | 18 5/64*12 29/32 | 18 5/64*12 29/32 | 18 5/64*12 29/32 | ||||||
lbs | 459*328 | 459*328 | 459*328 | |||||||
Stuffing Quantity | ||||||||||
Stuffing Quantity | set | |||||||||
Model | Indoor Unit | ZAVA-36HDM-USHH | ZAVA-48HDM-USHH | ZAVA-60HDM-USHH | ||||||
Outdoor Unit | ZSOVA-36HDM-USHH | ZSOVA-48HDM-USHH | ZSOVA-60HDM-USHH | |||||||
Performance | ||||||||||
Power Supply | V, Ph, Hz | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | ||||||
SEER2(AHRI 210/240-2023) | Cooling/Heating Capacity | Btu/h | 35000/39000 | 47000/50000 | 55000/59000 | |||||
SEER2 | Btu/W | 16.3 | 15.6 | 15.3 | ||||||
EER2 | Btu/W | 11.7 | 8.2 | 8.8 | ||||||
HSPF4 | Btu/W | 9.5 | 9.4 | 9.4 | ||||||
Heating | Rated capacity | Btu/h | 38000 | 46000 | 48500 | |||||
COP | W/W | 1.8 | 1.9 | 1.91 | ||||||
Indoor Unit | 5/7.5/10 | 5/7.5/10/15 | 5/7.5/10/15/20 | 5/7.5/10/15/20 | ||||||
Air Flow Volume | H/M/L | CMF | 1082/970/864 | 1282/970/864 | 1582/1358/1135 | |||||
Noise Level | H/M/L | dB(A) | 45.5/42.5/40 | 53/50/46 | 52/48/43 | |||||
Net Dimension | W×D×H | mm | 534×534×1245 | 534×534×1245 | 534×622×1346 | |||||
W×D×H | inch | 21.02×21.02×49.02 | 21.02×21.02×49.02 | 21.02×24.49×52.99 | ||||||
Packing Dimension | W×D×H | mm | 675×620×1335 | 675×620×1335 | 710×680×1435 | |||||
W×D×H | W×D×H | inch | 26.57×24.41×52.56 | 26.57×24.41×52.56 | 27.95×26.77×56.5 | |||||
Net/Gross Weight | kg | 58.6/70.6 | 59.2/70.9 | 73.8/87.5 | ||||||
lbs | 129.19/155.64 | 130.51/156.31 | 162.7/192.9 | |||||||
Stuffing Quantity | ||||||||||
Stuffing Quantity | set | 27/57/57 | 27/57/57 | 27/54/54 | ||||||
FAQ
1.Can you provide drawing design service?
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which
includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
3.What is your delivery time?
For the standard unit, about 35-40days.
4.What is your guarantee?
Our products has strict quality control, lifespan for proper use can be 5-10 years.
Also we provide 1% free spare parts for your maintenance and aftersales services.
5.Do you have technical support?
We have professional technical team to answer technical question at 24x7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.
6.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.
7.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which
includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
3.What is your delivery time?
For the standard unit, about 35-40days.
4.What is your guarantee?
Our products has strict quality control, lifespan for proper use can be 5-10 years.
Also we provide 1% free spare parts for your maintenance and aftersales services.
5.Do you have technical support?
We have professional technical team to answer technical question at 24x7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.
6.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.
7.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
Похожие товары

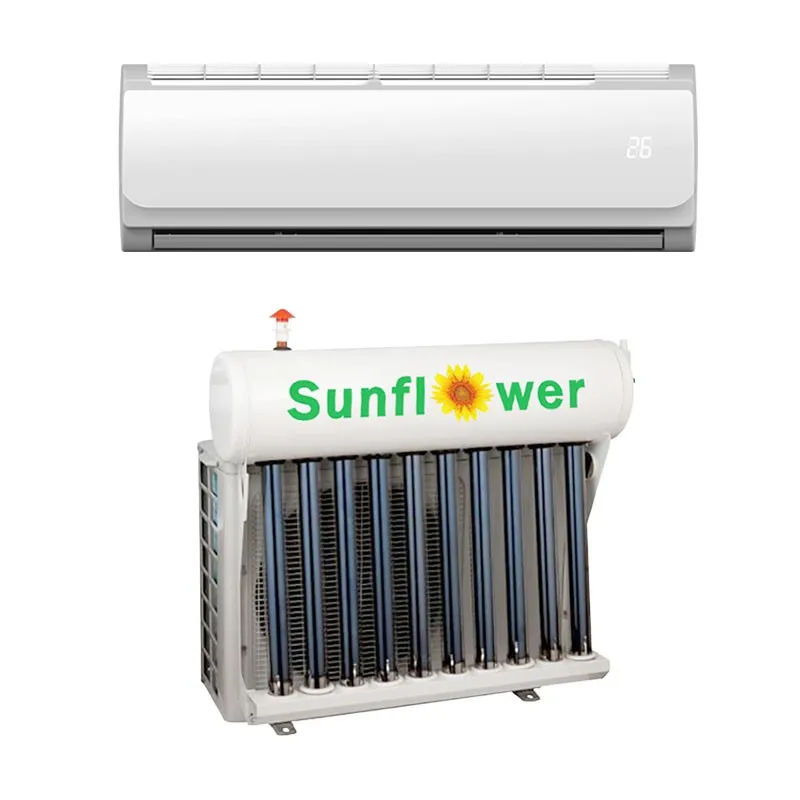

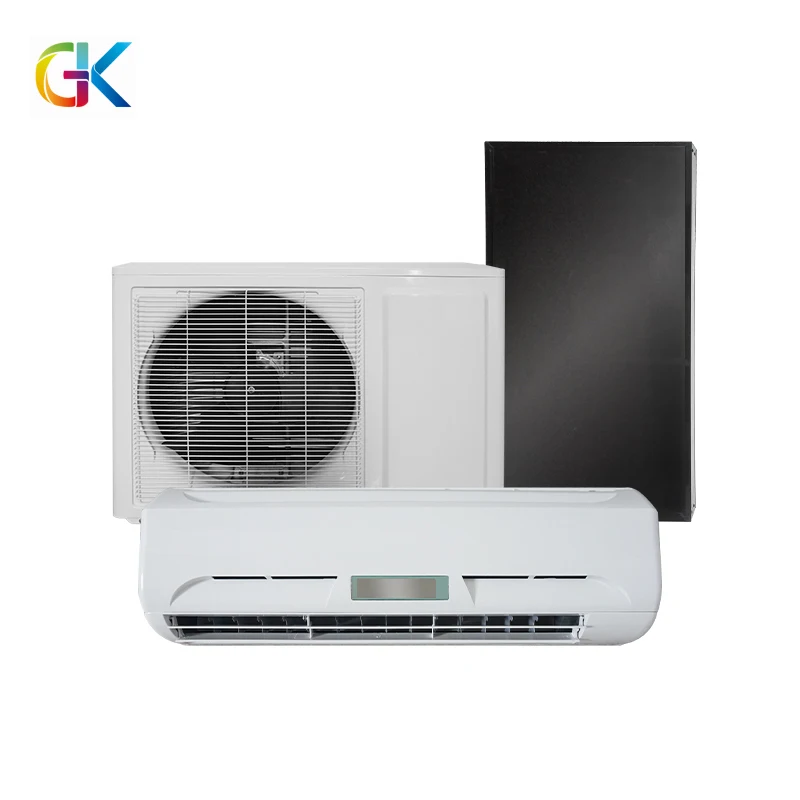

Гибридный солнечный кондиционер Green energy заводская цена 5 лет гарантии 9000 бту 1 л.с. 0 75 тонн
52 135,93 ₽ - 60 011,78 ₽
Высокоэффективный R290 14 кВт постоянного тока инвертор воздух-вода Моно блок теплового насоса HAVC система 3-фазного охлаждения нагреватель горячей воды
330 186,80 ₽ - 343 609,03 ₽
TKF(R)-60GW настенный гибридный солнечный кондиционер
73 101,23 ₽ - 89 740,35 ₽

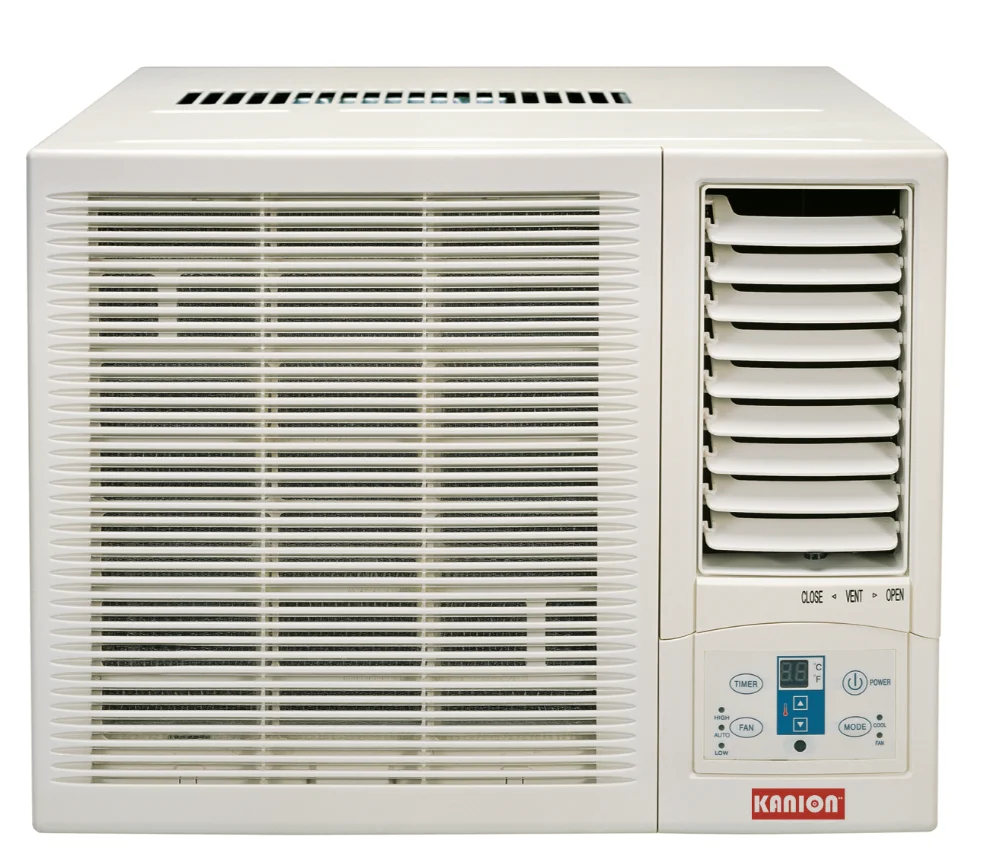

7000btu 9000btu 12000btu Aire acondicionado de ventana кондиционер для окон Frio R410A
