Молекулярный насос для смазки с воздушным охлаждением 650Z покрытия PVD
644 168,10 ₽ - 655 629,78 ₽

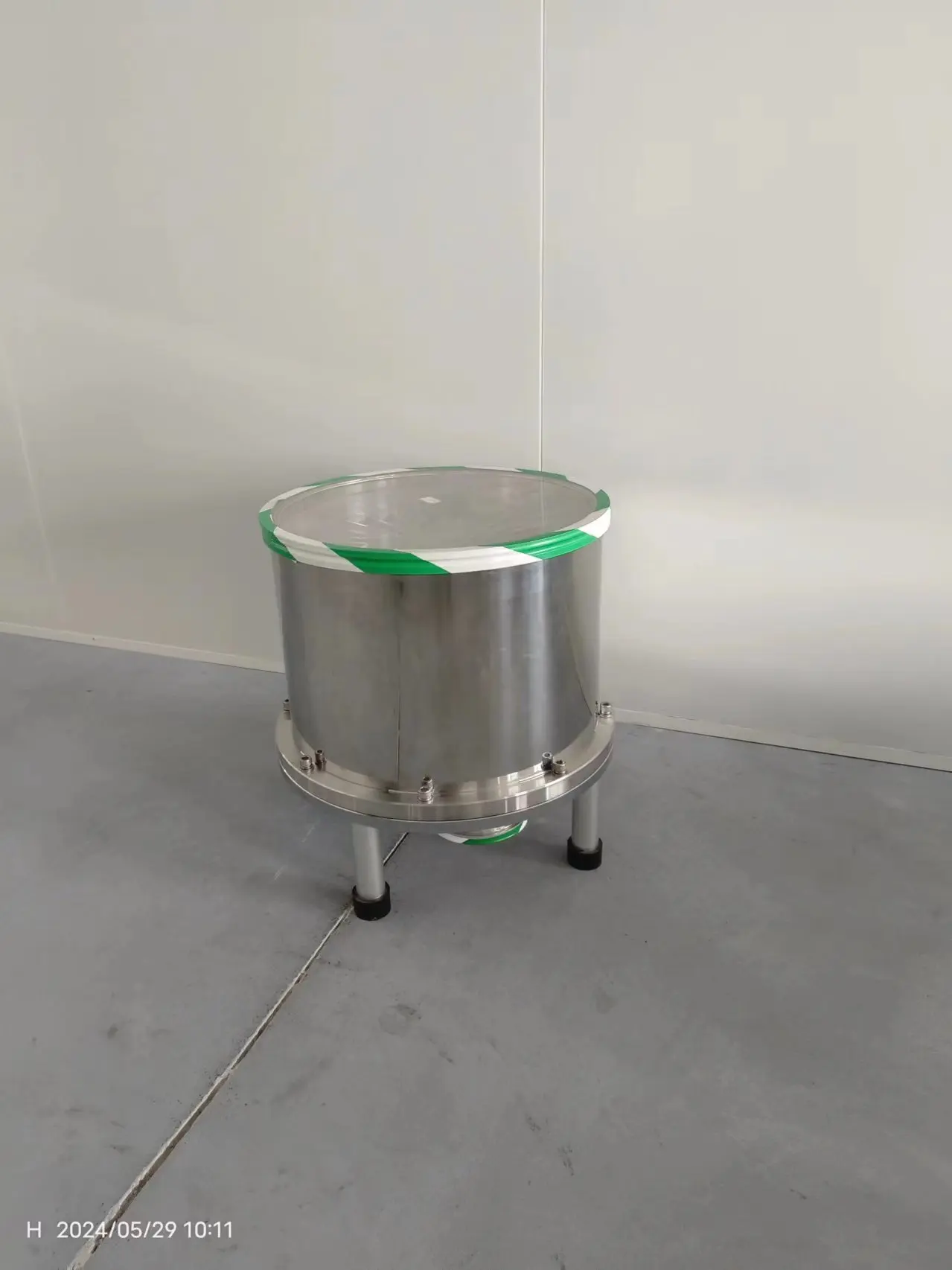

Заводские прямые продажи сверхвысокого вакуумного насоса JTFB 1600 композитного молекулярного с водяным охлаждением
- Категория: >>>
- Поставщик: Shandong Century Hongtu Vacuum Equipment Co. Ltd.
Сохранить в закладки 1601031778432:
Описание и отзывы
Характеристики
Product Description

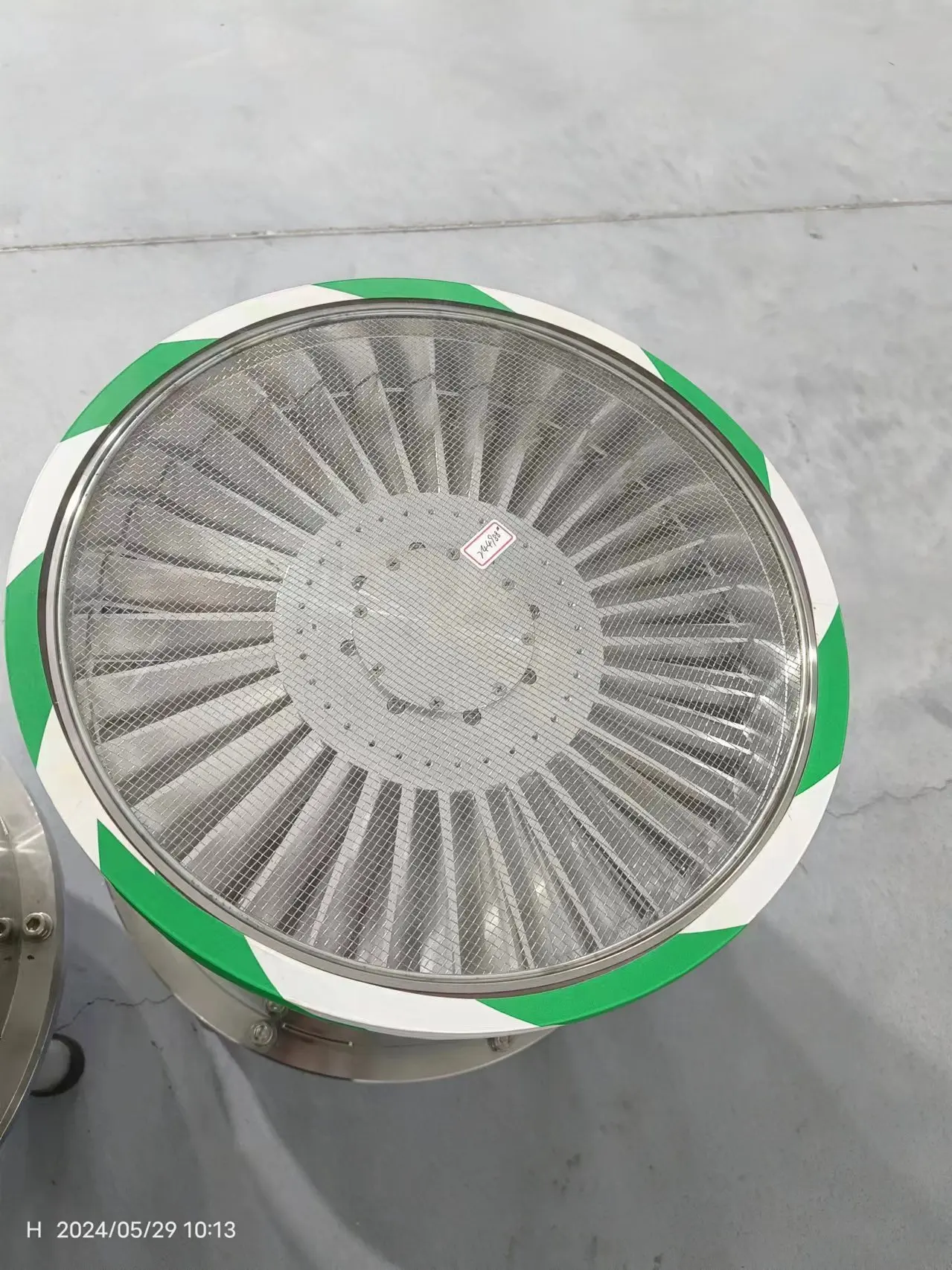

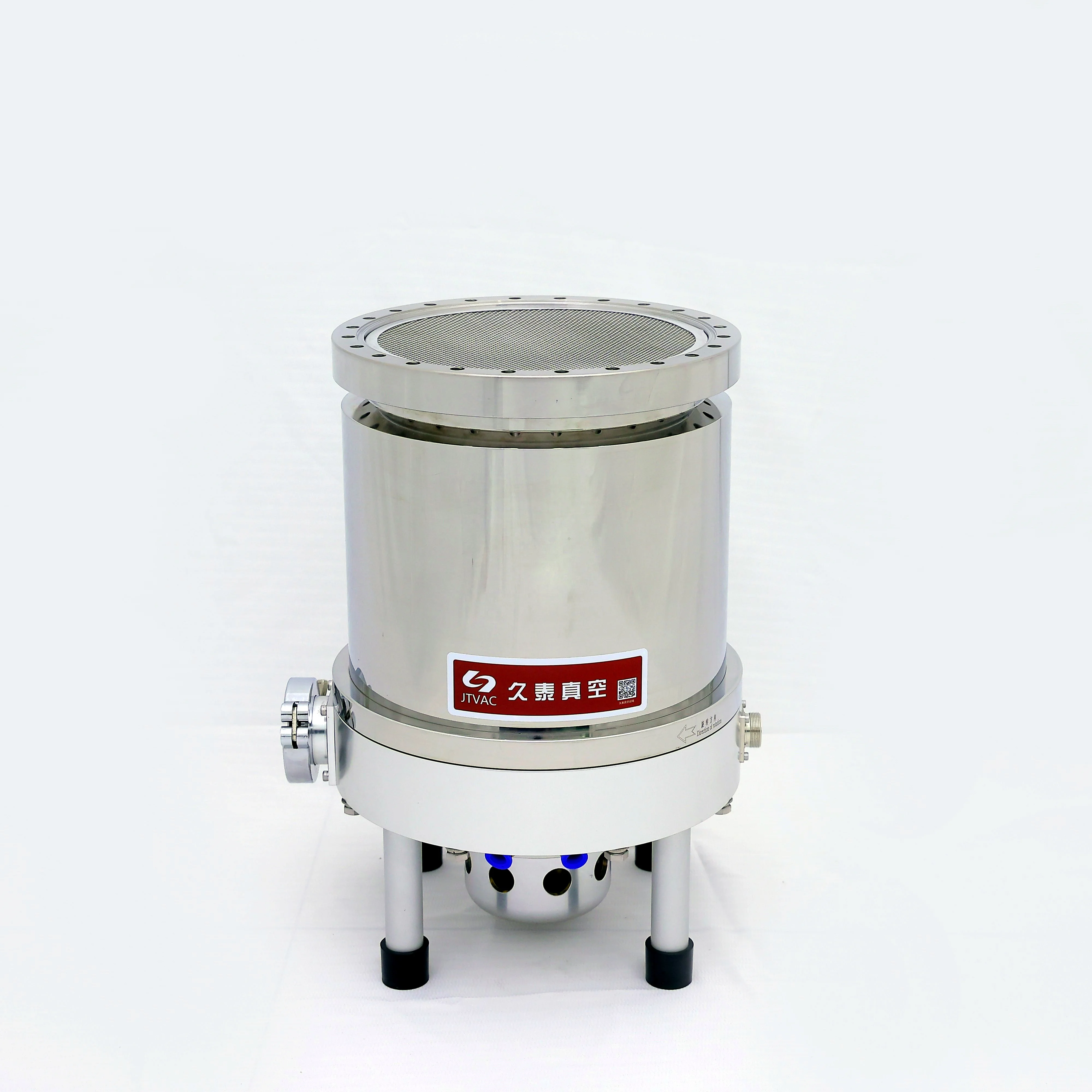

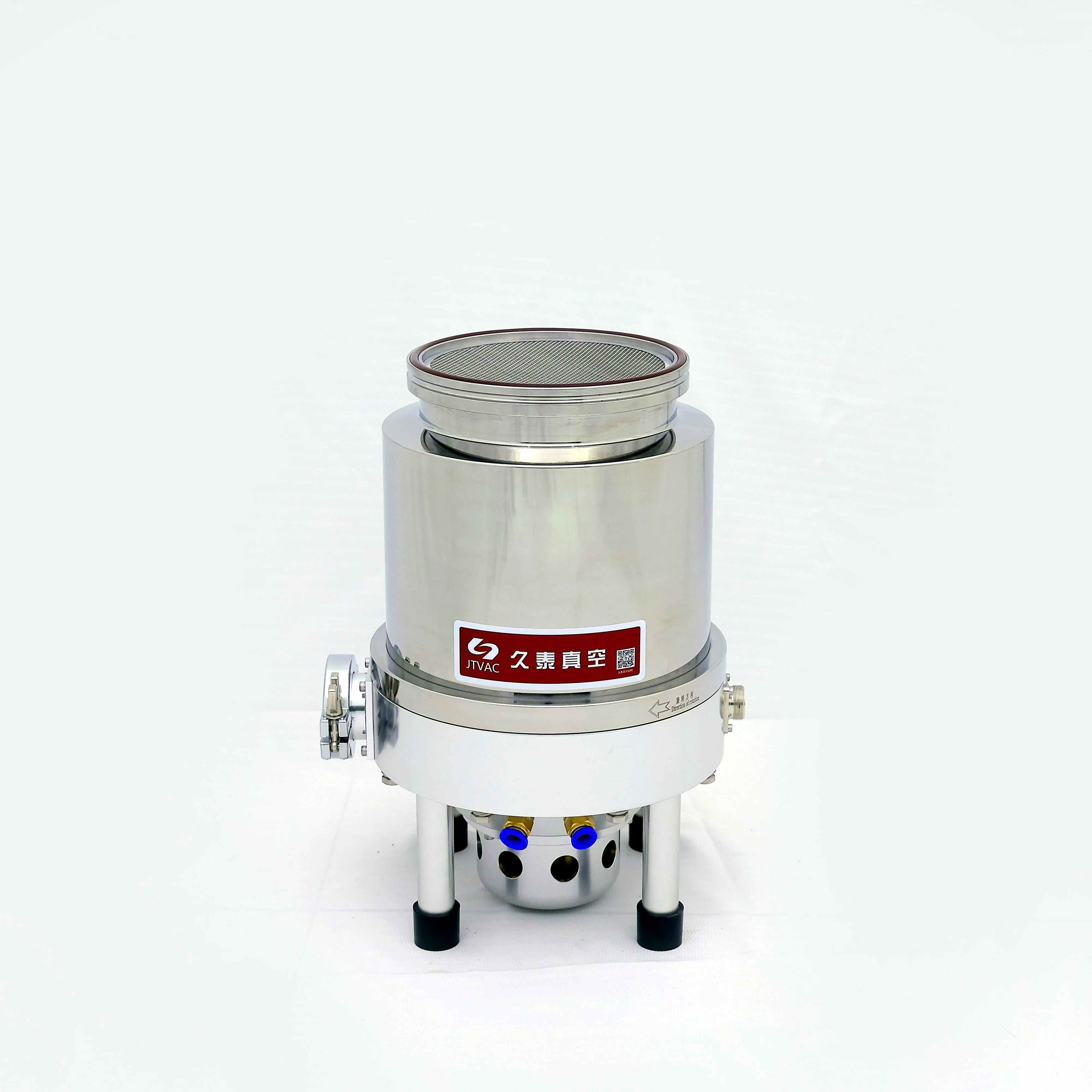

The JTFB-Z series grease-lubricated molecular pump is a mechanical vacuum pump that achieves air extraction through relatively high-speed rotation of multi-stage dynamic and static turbine blades. This turbo molecular pump has the characteristics of large pumping speed and high compression ratio in the molecular flow area. It is more energy-saving than diffusion pumps and has no oil vapor pollution.The JT series grease-lubricated molecular pump is currently the 100-caliber molecular pump with the largest pumping speed in China.
This molecular pump has no selectivity or memory effect on the pumped gas. Since it has a high compression ratio for gases with large molecular weights, the pump does not require cold traps and oil baffles to obtain clean high vacuum and ultra-high vacuum. . It is widely used in various fields of electronics, metallurgy, chemical industry, scientific research and vacuum technology.
Specification
JTFB-1600Z Grease Lubricated Molecular Pump Technical Data | ||||||||
Technical data | JTFB-2000Z Grease lubricated molecular pump | |||||||
High vacuum flange | 250 CF | 250 ISO-K | ||||||
Front pipe flange | 50 KF | |||||||
Pumping speed (L/S) | 1600 | |||||||
Compression ratio | N2 | >109 | ||||||
Compression ratio | H2 | >1X104 | ||||||
Ultimate pressure(Pa) | <8×10-8 | <5×10-7 | ||||||
Motor revolutions(n／min) | 27000 | |||||||
Vibration value | ≤0.15μm | |||||||
Start Time(min) | <6 | |||||||
Downtime(min) | 8 | |||||||
Recommended backing pump | 15 L／S | |||||||
cooling method | Water cooling | |||||||
Water cooling cooling water temperature | ≤20℃ | |||||||
Water cooling cooling water flow(L/min) | 1-2 | |||||||
Pump body baking temperature (℃) | <120 | |||||||
Heater power(w) | <350 | |||||||
Heater input voltage (v) | AC220 | |||||||
Mounting position | Vertical ±5° | |||||||
Pump weight | ≈31 | |||||||
Company Profile
"Shandong Century Hongtu Vacuum equipment Co., Ltd." was established in 2023 and is located on the 11th floor of the Advertising Creative Building of Bohai Advanced Technology Research Institute in Binzhou City, Shandong Province. Its manufacturing factory is located at the intersection of Gao Si Road and Xin Ba Road, 440 meters south, in the High-tech Zone. It is a leading global manufacturer and seller of vacuum pumps. The company serves as a supplier and service provider of vacuum solutions for enterprises in the semiconductor, photovoltaic energy, biopharmaceutical, and chemical industries.
We always put our users at the center and have established offices and sales networks worldwide to serve them. We are committed to being a hundred-year service company and have three sales companies under our factories, building a leading global platform for manufacturing and sales. As a pioneer in the real economy, we focus on industrial development and also delve into the fields of intelligent business and industrial Internet. We create high-end brands,scene brands, and ecological brands, and customize intelligent tools for global users through technological innovation. This helps enterprises achieve digital transformation and promotes high-quality development of the economy and society. We are dedicated to sustainable development and actively promote environmental protection and social responsibility. We will continue to provide better products and services to our users, driving sustainable development for enterprises and society.
The company mainly produces 600~1600L composite type; 3600L turbine type; 300L, 650L, 1300L, 2000L grease lubrication and other ultra-high vacuum obtaining equipment, vacuum traction molecular pumps, various specifications of ultra-high vacuum gate valves and ultra-high vacuum units. The company's products are constantly innovating and are at an excellent level among similar international products.
The company adheres to the business philosophy of honesty, integrity, and surpassing, and always insists that quality is the eternal theme of the enterprise! It continuously takes technological innovation as the driving force, quality as the foundation, market demand as the guide, and aims at achieve 100% customer satisfaction by providing high-quality products and thoughtful pre-sales, sales, and after-sales services to new and old customers.
Packing & Delivery
FAQ
Q: What does your company do?
A: We are a company focused on the vacuum field. We offer a wide range of vacuum accessories, vacuum
pumps, vacuum chambers and special customisation services. Our products are widely used in scientific research laboratories,industrial processes, medical equipment and other fields.
Q: How do you guarantee the quality of your products?
A: We always put product quality first. We cooperate with reliable suppliers and strictly enforce quality control standards during production. Our products undergo rigorous testing and inspection to ensure their stability, reliability and durability.
Q: What vacuum accessories and types of vacuum pumps do you have?
A: We offer many types of vacuum accessories and vacuum pumps, including but not limited to rotary vane pumps, Roots pumps, rotary vacuum pumps, molecular pumps, etc. In addition, we also provide various specifications, models of vacuum valves, vacuum gauges,vacuum pipes and other accessories.
Q: How do I choose the right vacuum system for me?
A: Please tell us your application requirements and system parameters, such as working pressure, pumping speed, pump size, etc.Our expert team will advise you individually and help you choose the right vacuum system for you.
Q: Do you offer special services?
A: Yes, we do. We offer customized services. If you have special needs, such as custom size, materials or special features, we will design and manufacture to your requirements to ensure that the product meets your unique needs.
Q: I found a problem after receiving the product. What should I do?
A: If you find any quality problem or transportation damage after receiving the product, please contact us in time and provide relevant photos and detailed description. We will actively address your issue and assist in resolving it.
pumps, vacuum chambers and special customisation services. Our products are widely used in scientific research laboratories,industrial processes, medical equipment and other fields.
Q: How do you guarantee the quality of your products?
A: We always put product quality first. We cooperate with reliable suppliers and strictly enforce quality control standards during production. Our products undergo rigorous testing and inspection to ensure their stability, reliability and durability.
Q: What vacuum accessories and types of vacuum pumps do you have?
A: We offer many types of vacuum accessories and vacuum pumps, including but not limited to rotary vane pumps, Roots pumps, rotary vacuum pumps, molecular pumps, etc. In addition, we also provide various specifications, models of vacuum valves, vacuum gauges,vacuum pipes and other accessories.
Q: How do I choose the right vacuum system for me?
A: Please tell us your application requirements and system parameters, such as working pressure, pumping speed, pump size, etc.Our expert team will advise you individually and help you choose the right vacuum system for you.
Q: Do you offer special services?
A: Yes, we do. We offer customized services. If you have special needs, such as custom size, materials or special features, we will design and manufacture to your requirements to ensure that the product meets your unique needs.
Q: I found a problem after receiving the product. What should I do?
A: If you find any quality problem or transportation damage after receiving the product, please contact us in time and provide relevant photos and detailed description. We will actively address your issue and assist in resolving it.
Похожие товары

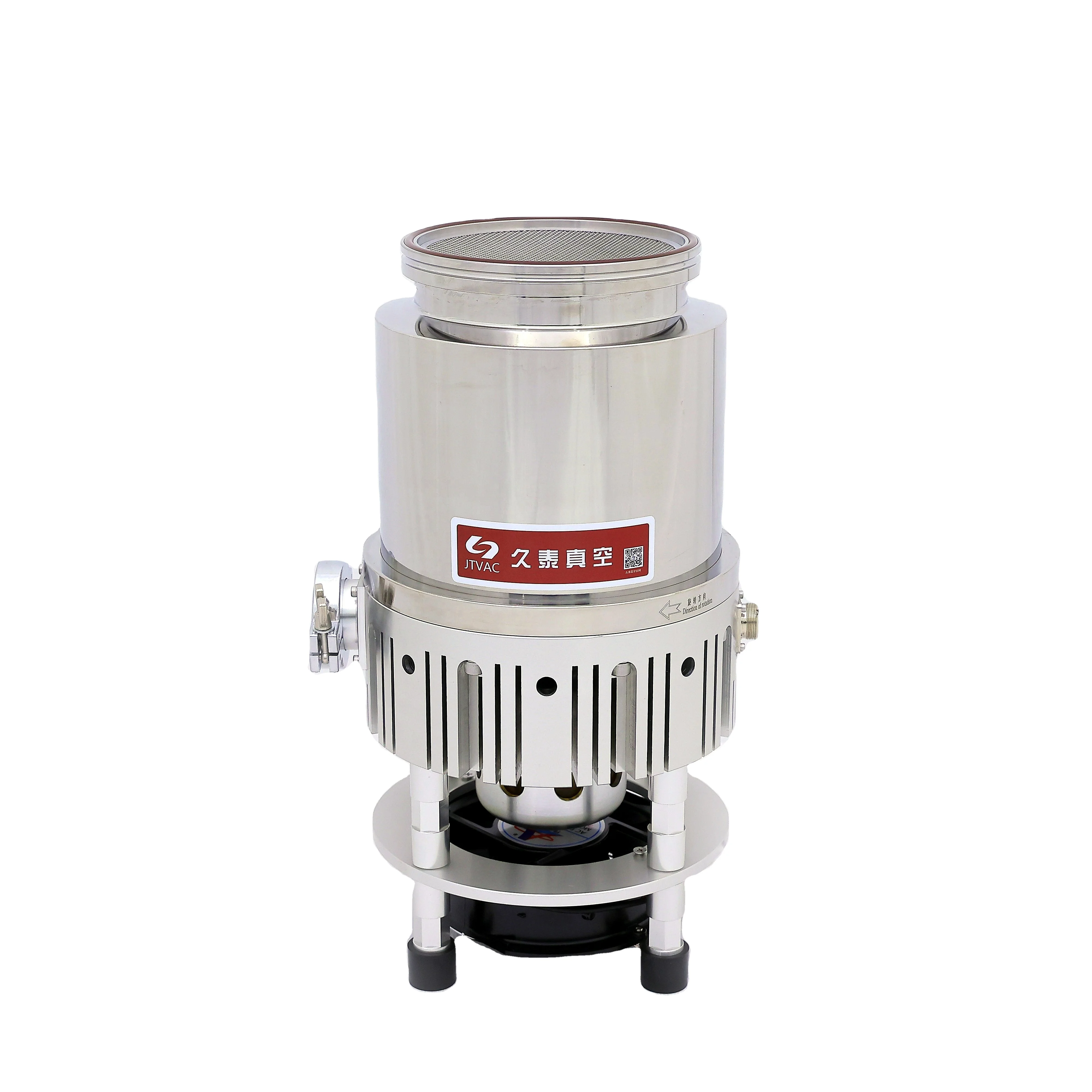

600L/S турбо молекулярный вакуумный насос для точного покрытия
352 666,88 ₽ - 374 708,56 ₽

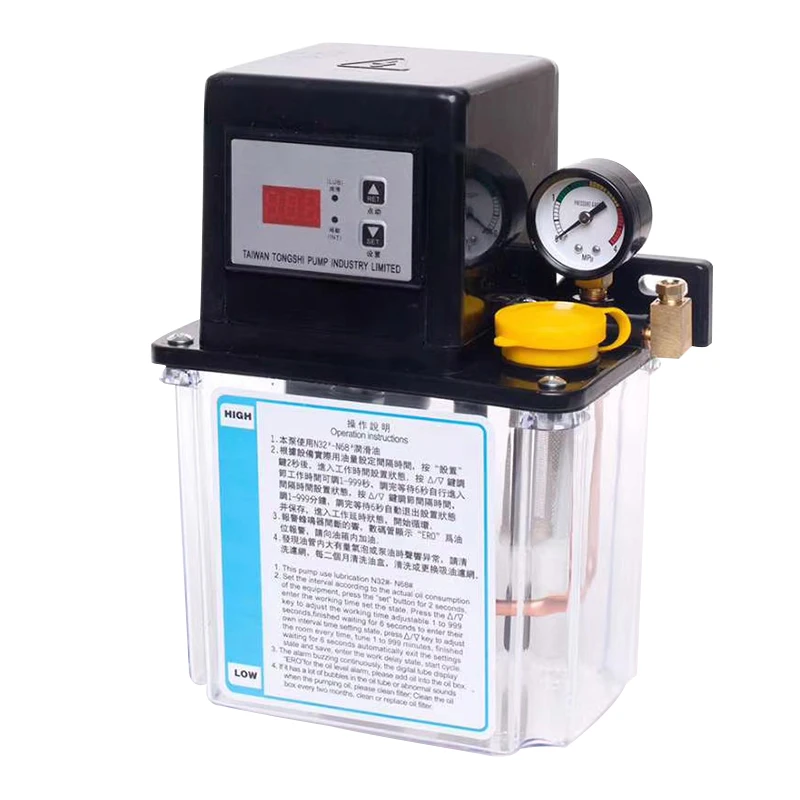

Детали для фрезерного станка с ЧПУ автоматическая система смазки 2L 220V 2mpa токарный масляный автоматический Шестеренчатый насос 32 #-68 #
2 204,17 ₽ - 3 526,67 ₽

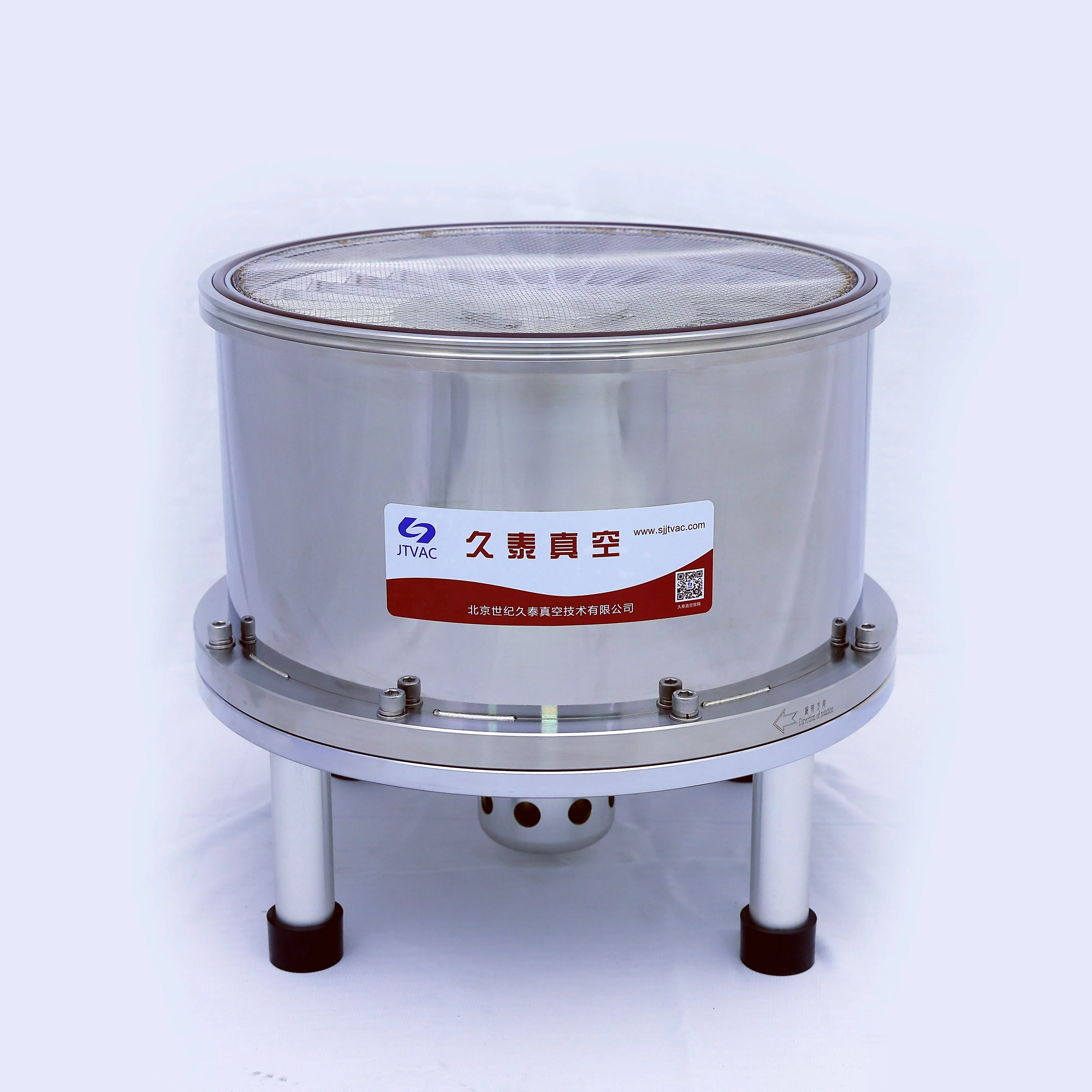

Прямые продажи с завода Молекулярный вакуумный насос смазка JTFB-1600 композитный молекулярный водяным охлаждением
473 896,12 ₽ - 495 937,80 ₽
Горячая продажа модель турбо вакуумной насосной системы высоковакуумной молекулярной станции JTFB-4200 молекулярного насоса
771 458,80 ₽ - 815 542,16 ₽

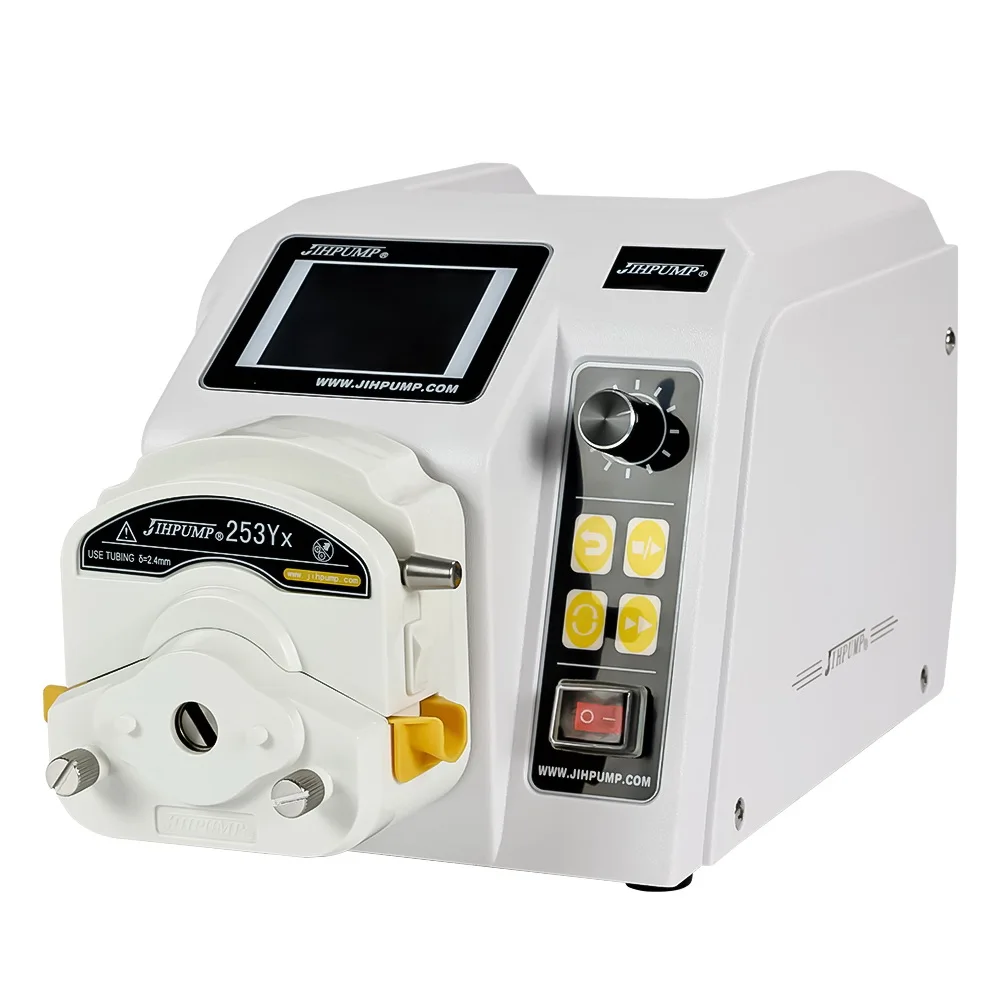

Jihpump перистальтический насос Высокой Точности Насос распределителя мыла с ЖК-дисплеем BT-CA серия полная насосная система шаговый двигатель
28 433,77 ₽ - 45 956,91 ₽

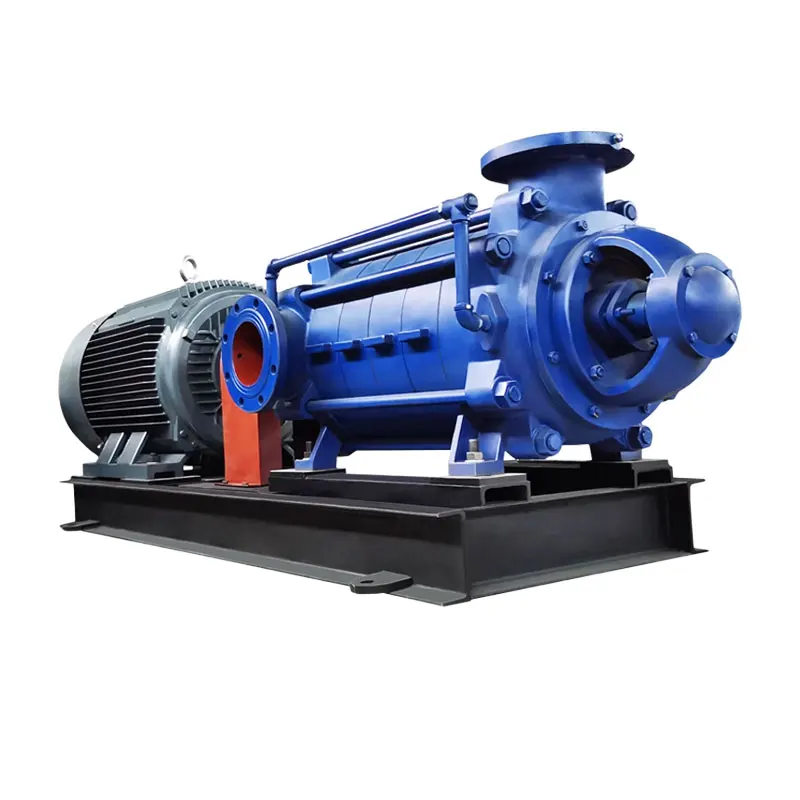

Горный горизонтальный центробежный многоступенчатый водяной насос высокого подъема большой мощности 500 hp D type
165 312,60 ₽ - 176 333,44 ₽

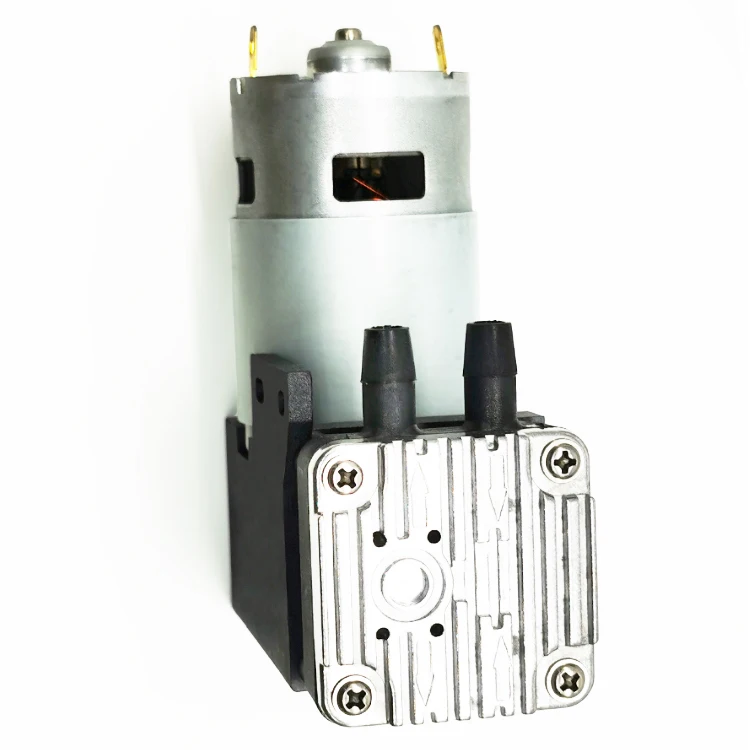

HCKG 2020 изготовленный на заказ 20 Вт 30 35/40L щетки DC микро поршневой воздушный насос
