What is MJF ?
Multi Jet Fusion (MJF) is HP’s proprietary 3D printing process. HP Multi Jet Fusion (MJF) is a powerful 3D printing technology that produces highly accurate and durable parts at fast speeds, especially compared to other powder bed fusion technologies like selective laser sintering (SLS) or direct metal laser sintering (DMLS).
Multi Jet Fusion (MJF) is HP’s proprietary 3D printing process. HP Multi Jet Fusion (MJF) is a powerful 3D printing technology that produces highly accurate and durable parts at fast speeds, especially compared to other powder bed fusion technologies like selective laser sintering (SLS) or direct metal laser sintering (DMLS).
Due to their affordability, speed, and high resolution, multi jet fusion technology can be used for end-use, low volume production, rapid prototyping, or as a bridge process to injection molding. MJF allows engineers to get a feel for how parts will perform with minimal upfront costs.
MJF HP's Multi Jet Fusion (MJF)
MJF HP's Multi Jet Fusion (MJF) is a 3D Printing technologies that belong to the powder bed fusion family, built by thermally fusing polymer powder particles layer-by-layer. The materials used in MJF is thermoplastic polymers (usually Nylon) that come in a granular form.
MJF HP's Multi Jet Fusion (MJF) is a 3D Printing technologies that belong to the powder bed fusion family, built by thermally fusing polymer powder particles layer-by-layer. The materials used in MJF is thermoplastic polymers (usually Nylon) that come in a granular form.

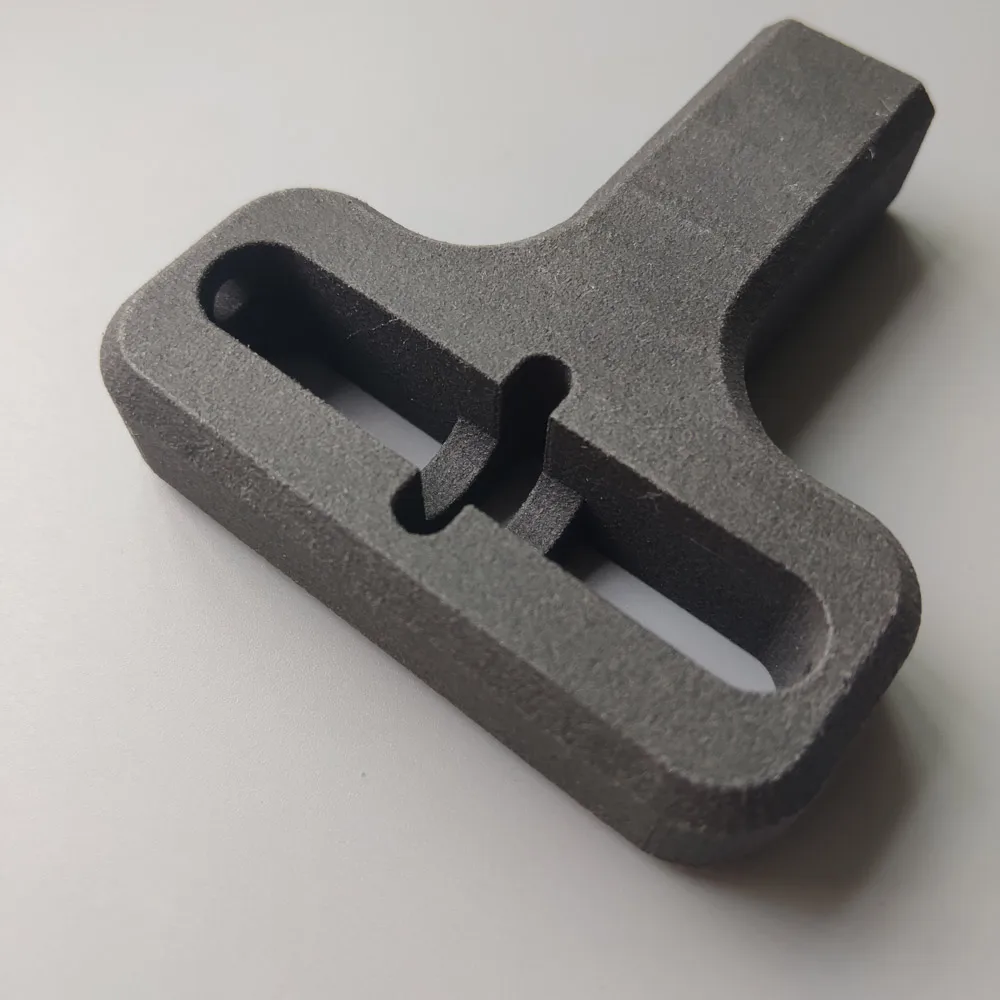

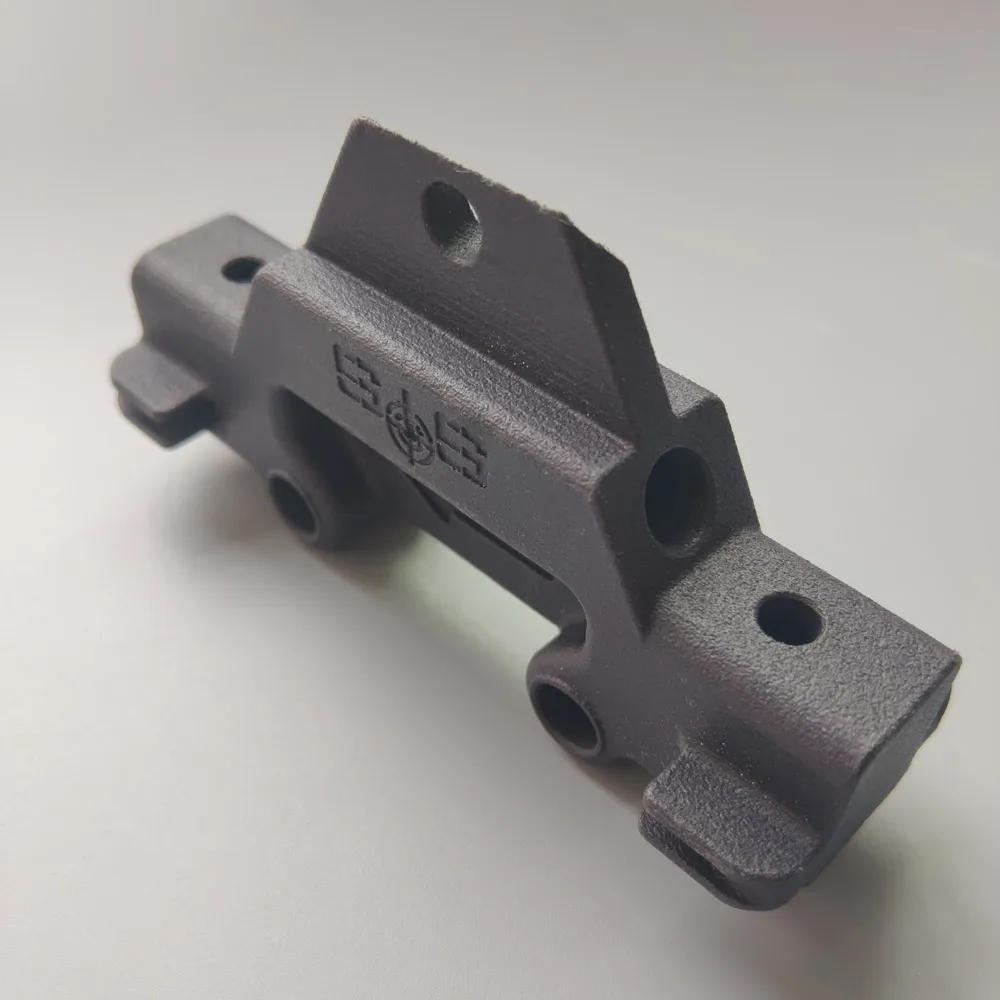

MJF 3d printing service widely use for both prototypes and high end products. Can be made with brass inserts, perfect for small batch production, tolerance at ±0.2mm, the biggest printing bed size: 380*380mm, Good price-quality ratio, short lead time, good for mechanical and aesthetic parts.
Materials
Nylon 12 is a robust thermoplastic with all-around excellent physical properties and chemical resistance, ideal for functional prototypes and end-use applications.
Glass-filled nylon is reinforced with glass bead and creates parts with higher stiffness and thermal stability than standard nylon.
Glass-filled nylon is reinforced with glass bead and creates parts with higher stiffness and thermal stability than standard nylon.
Material Name | Description | Shore Hardness | Elongation at Break (XY, ZX %) | Elongation at Break (XY, ZX %) |
Nylon PA11 | HP 3D High Reusability PA11 | 80D | 55%, 40% | 6 kJ/m², 5 kJ/m² |
Nylon PA12 | HP 3D High Reusability PA12 | 80D | 20%,15% | 3.6 kJ/m², 3.5 kJ/m² |
Nylon PA12 Glass Filled | HP 3D High Reusability PA12 Glass Beads (40% GB) | 82D | 10% | 3 kJ/m² |
Size and Tolerance
From prototyping to small-batch production, our global network of certified MJF 3D printing facilities will allow you to produce highly accurate parts with quality comparable to injection molding.
Capabilities | Description |
Maximum build size | 380 x 285 x 380 mm (14.9'' x 11.2'' x 14.9'') |
Standard lead time | 3 days |
Dimensional accuracy | ± 0.3% with a lower limit on ± 0.3 mm (0.012'') |
Layer thickness | 80 μm |
Surface Treatment

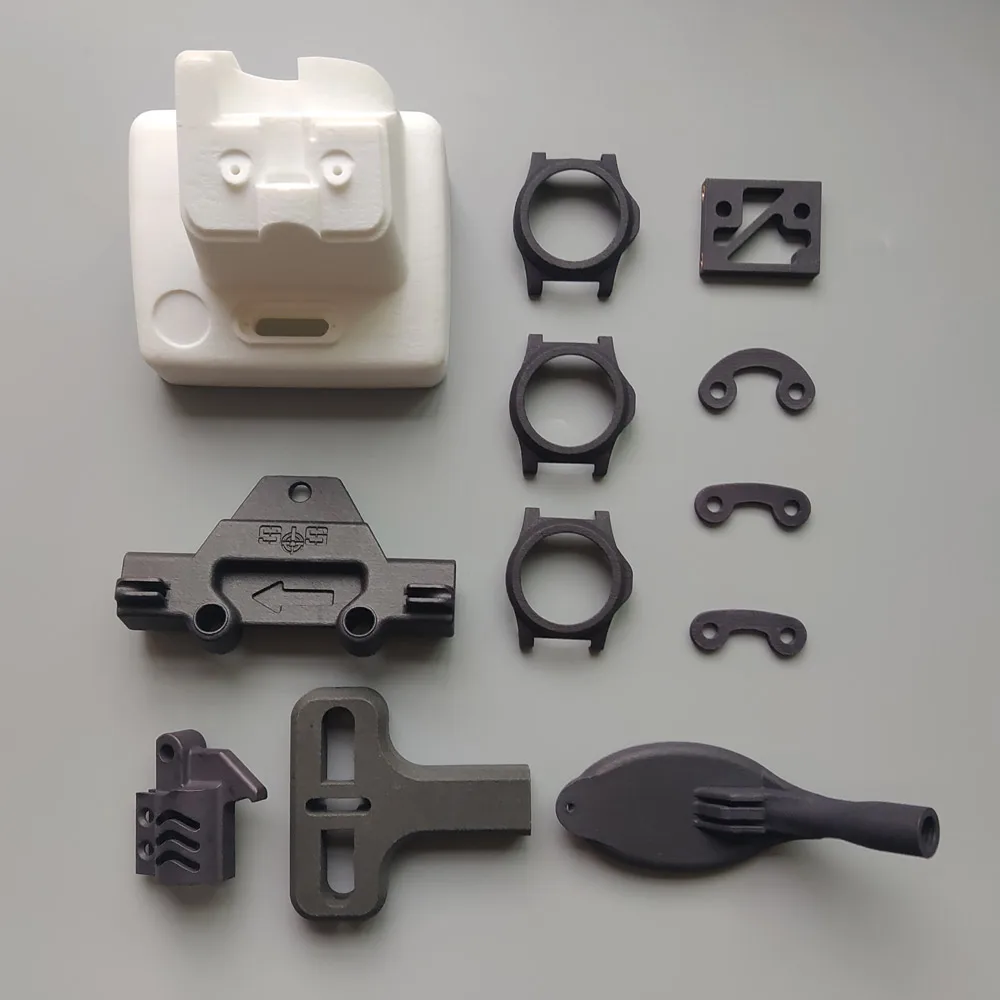

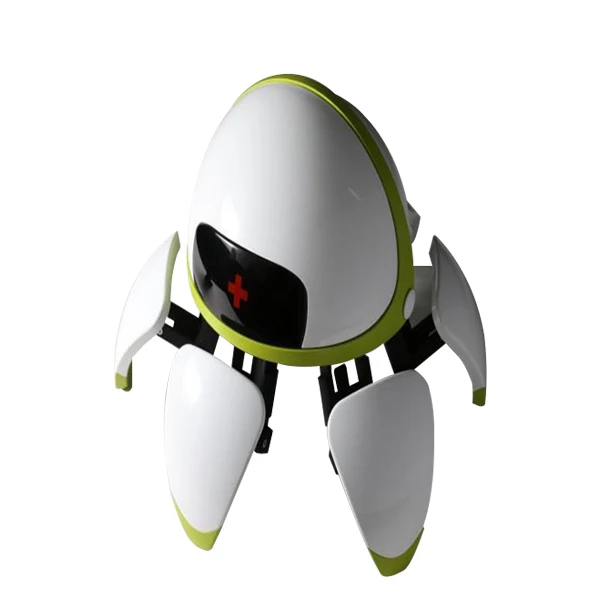

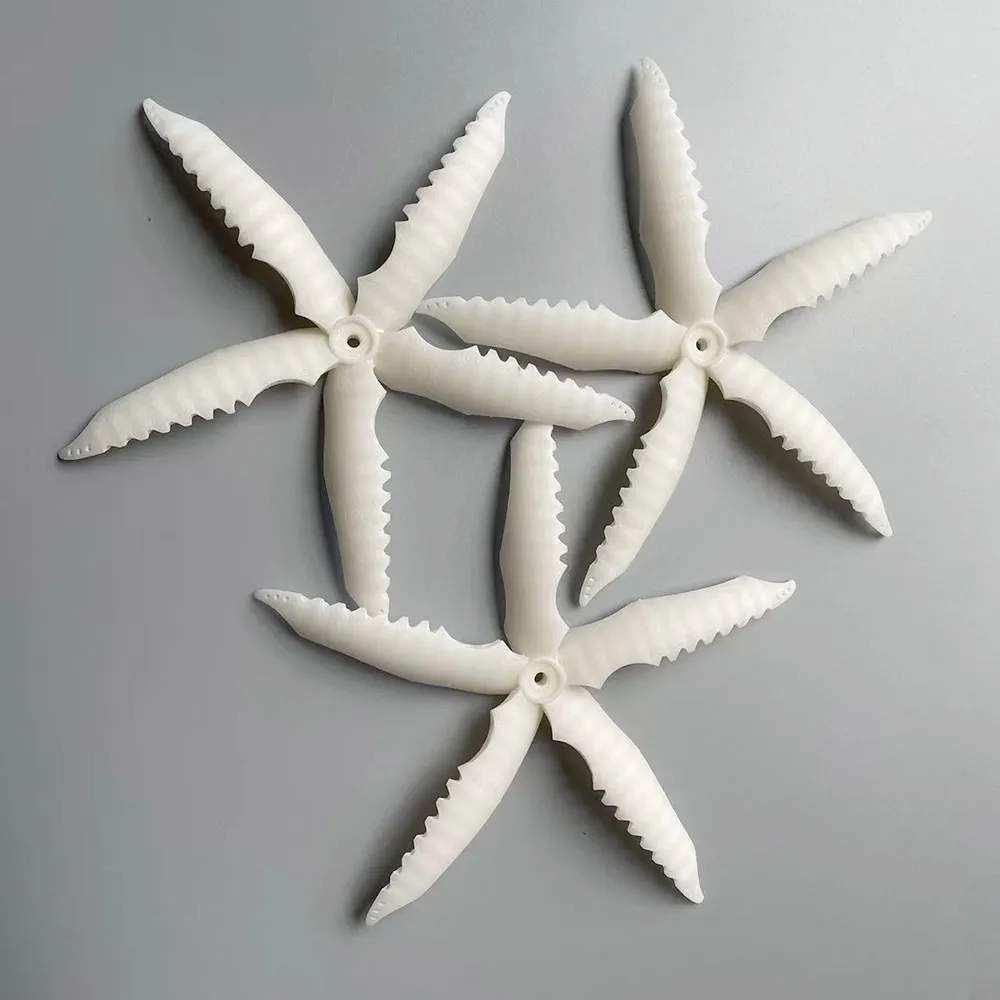

Applications in Prototype
Company Profile
DANO Intelligent Technology
DANO is a Design and Engineering company from your concept stage to prototyping and fabrication of the completed product with injection molding.
With multiple years of experience and with an impressive portfolio. We are your partner in production, we process your project all the way from Zero to hero. We make all projects possible. Getting your idea valued, designed, tested, prototyped or manufactured shouldn’t be a long and dawning process.
We want to offer the future of rapid prototyping and additive manufacturing. A process that is fast, reliable, easy and
supportive. We make this with a few things in mind: precision, timely delivery, low cost structure.
From Idea to Reality.
Our main focus is to help all the small and big sized companies to turn their dream projects into reality. We work very closely with our clients and strive to give them the best services at all times. Our 3D printing equipment includes SLA SLS, HP MJF machines and metal 3D printer.
With multiple years of experience and with an impressive portfolio. We are your partner in production, we process your project all the way from Zero to hero. We make all projects possible. Getting your idea valued, designed, tested, prototyped or manufactured shouldn’t be a long and dawning process.
We want to offer the future of rapid prototyping and additive manufacturing. A process that is fast, reliable, easy and
supportive. We make this with a few things in mind: precision, timely delivery, low cost structure.
From Idea to Reality.
Surface Finishes Operation Site
Our Services
FAQ
What is the average turn around for 3D printed parts?
What type of files do I need to prepare for print?
--Native CAD, STL, 3MF, STEP and IGES.
--Most 3D printed parts can be made the same business day, howevercomplexities, multi-materials, quantity of parts and increase lead times. Shipping time is subject to preferences.
Can you expedite rush orders of custom parts?
--Yes, we can accomodate to rush orders and expedited delivery for your custom parts.
What 3D printing materials and technologies do you offer?
--We can produce parts in FDM, PolyJet, Stereolithography, Origin One (P3 Technologies), and SAF (Powderbed Fusion) technologies.With access to over 50+ different material options.
Is there a minimum order amount required?
--No, there is not.
Can you expedite rush orders of custom parts?
--Yes, we can accomodate to rush orders and expedited delivery for your custom parts.
What 3D printing materials and technologies do you offer?
--We can produce parts in FDM, PolyJet, Stereolithography, Origin One (P3 Technologies), and SAF (Powderbed Fusion) technologies.With access to over 50+ different material options.
Is there a minimum order amount required?
--No, there is not.
What type of files do I need to prepare for print?
--Native CAD, STL, 3MF, STEP and IGES.
What objects can you 3D print?
3D printing is being applied in many different areas to manufacture components and end use parts. Some of the countless objects
you can 3D print are:
* Aircraft Bracket
* Pump Impeller
* Sprocket
* End Effector
* Soft Jaws
* Welding Fixture
* CMM Fixture
* Assembly Jig
* Brake Lever
* Metal Bracket
* Stainless Steel Clevis
* Motor Housing
* Engine Block Model
* Oil Pan
* Gear Set
* Spaceship Model
* Vase
* Jewelry
* Water Bottle
you can 3D print are:
* Aircraft Bracket
* Pump Impeller
* Sprocket
* End Effector
* Soft Jaws
* Welding Fixture
* CMM Fixture
* Assembly Jig
* Brake Lever
* Metal Bracket
* Stainless Steel Clevis
* Motor Housing
* Engine Block Model
* Oil Pan
* Gear Set
* Spaceship Model
* Vase
* Jewelry
* Water Bottle
Похожие товары
Фрезерная станка с ЧПУ 5 осей

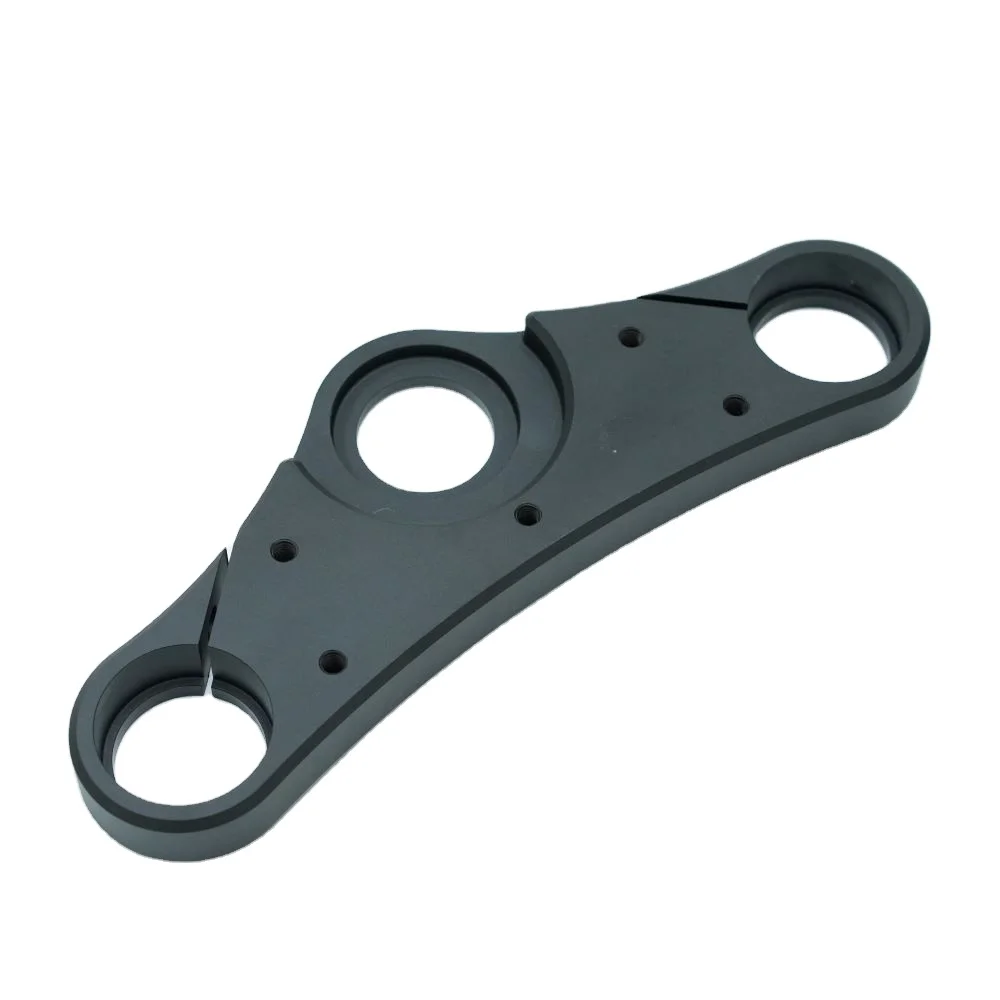

OEM Корпус мотоцикла из алюминиевого сплава 6061 t6 изготовленный на заказ тройной зажим для дерева анодированная гоночная часть обслуживание с ЧПУ
109,30 ₽ - 661,32 ₽
Изготовленные на заказ металлические стальные алюминиевые ковочные детали горячая ковка кованые Алюминиевая латунь медная услуги
883,23 ₽ - 1 104,04 ₽

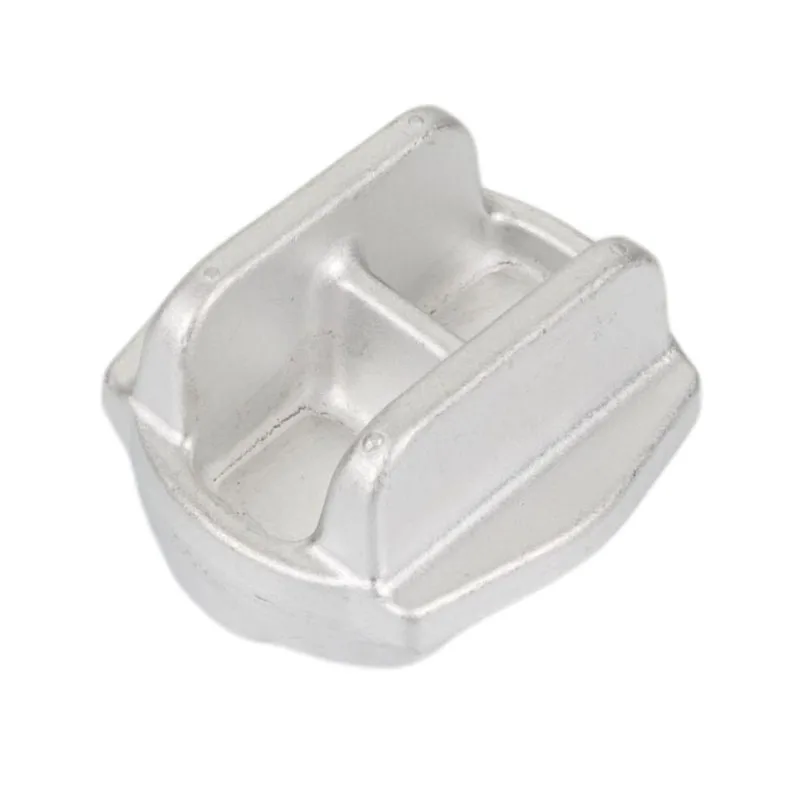

Литейные детали из цинкового металла
110,41 ₽

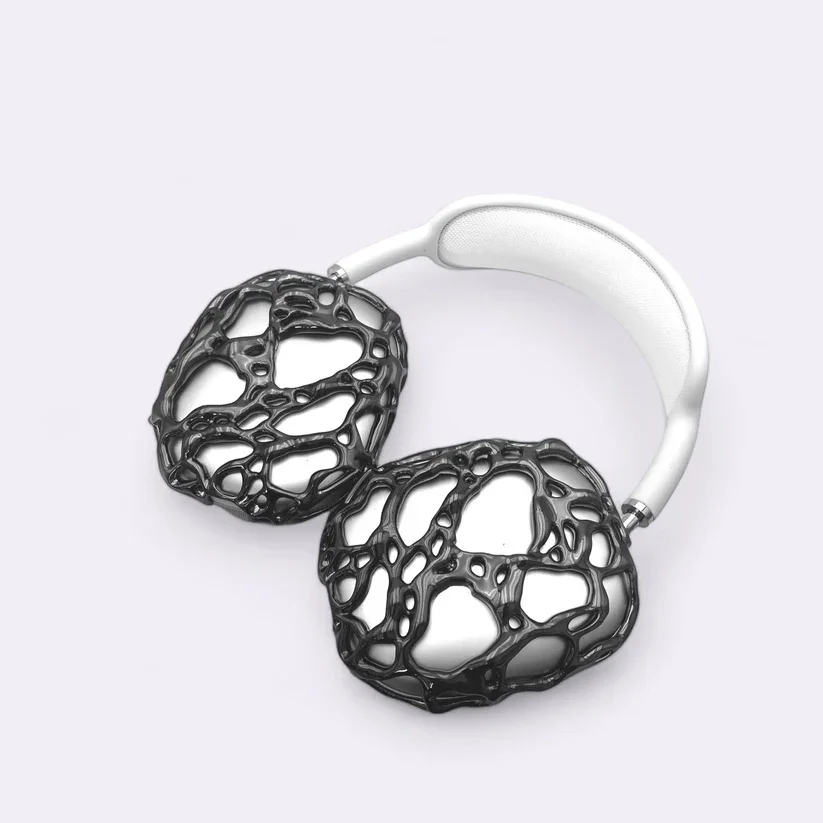

Наушники Cyberpunk с 3D-печатью
