Смартовый светодиодный проектор высокого разрешения для мостового крана красный зеленый желтый синий виртуальный луч напольный свет
- Категория: >>>
- Поставщик: Changzhou Maxtree Technology Co. Ltd.Changzhou Ltd.
Сохранить в закладки 1601033176089:
Описание и отзывы
Характеристики
Product Presentation
Line length:
MXLS LED Line projector is fixed and depends on two factors: the projection distance and the fan angle. The larger the fan angle and projection distance,the longer the line. Currently, there are three fan angles available: 53°, 73°, and 90°.
Fan Angles:
●53°: Line length = 1x distance
●73°: Line length = 1.5x distance
●90°: Line length = 2x distance
How to Read the Illumination Values | ||||||||
40-60 | Sufficient brightness for dim warehouses and facilities. | |||||||
60-90 | Sufficient brightness for bright and medium bright warehouses. | |||||||
90-180 | The most common brightness bracket for regular production floors and modern warehouses. | |||||||
180-700 | Very high brightness for very bright environments, such as very bright production floor. | |||||||
700+ | Extreme brightness for extremely bright environments, extremely bright production environments (no direct sunlight). | |||||||
Metric Conversions: For Meters multiply feet by .305. For Lux multiply footcandles by 10.76 | ||||||||
OTHERS | More Projection Size and Illumination Charts for Gobo Projectors，please contact us. | ||||||
COMMON | MODEL： | MXLS03 | Power： | 100W/200W | |||
IP GRADE: | IP67 | Power Type： | Meanwell Power | ||||
Voltage： | 100-240/277VAC 50/60Hz | Temperature Range： | -45°C to 50°C | ||||
EFFICIENCY: | 120Lm/W | Material： | Aluminium | ||||
CCT： | 3000K-6500K | Light Source： | LED | ||||
WARRANTY: | 2 Years | Life Time： | 100000 Hours | ||||
Specification： | 29*25*14cm | Weight： | 5.3kg | ||||
Line Length： | up to 48ft | Line Width: | 3 to 6in | ||||
CERT | CE,IP67 | ||||||
FEATURES | ●Specifically engineered for extreme conditions； ●Wide temperature and power range； ●Adjustable cable length options； ●Easy Installation：plugs into standard AC outlet, Low cost of labor, no additional upkeep ●Highly visible projection：comparable or better visibility than tape/paint or laser lines； ●Smart Triggered Projection：using activity sensors； ●Productivity will not be lost due to surface treatment or drying and sealing time； ●Durable components and highly efficient lights； ●30000 hours of continuous use； | ||||||
APPL | Mainly used for cranes. ●Warehouses ●Safety Signage ●Emergency Signage ●Pallet Staging Area ●Dock Signage ●5S/6S Signage ●Exclusion Zone Demarcation ●Walkways | ||||||
Product Description

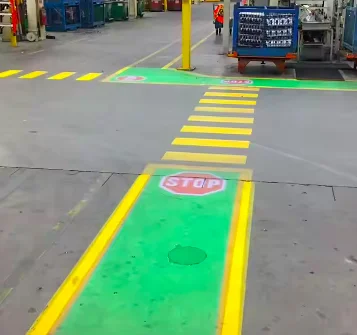

Virtual Walkway LED Line - Project Routing Lines Virtually
A Virtual LED Line projector is a creative and cost-effective solution for replacing floor tape and painted lines in your warehouse.
Virtual line LED projectors cast durable floor lines that clearly mark walkways and lanes, eliminating the need for the routine maintenance required to repair or replace tape and paint. An LED line projector can increase awareness, reduce accidents, and create a safe work environment in your warehouse.
Virtual line LED projectors cast durable floor lines that clearly mark walkways and lanes, eliminating the need for the routine maintenance required to repair or replace tape and paint. An LED line projector can increase awareness, reduce accidents, and create a safe work environment in your warehouse.
Vivid, damage-proof virtual lines for all surfaces.
LED floor marking lines are completely impervious to damage by forklifts, foot traffic, pallets, water and other common causes for tapes and painted lines to fail.
Eliminate the need to replace floor tapes or repaint lines.
Even the toughest floor tapes and paints can fail in areas with heavy forklift and truck traffic, or in areas subjected to industrial hazards. Using projected lines prevents these issues from damaging your lines.
Key Features
Reliability：The device is weather-resistant, making it suitable for both indoor and outdoor use even in harsh weather conditions without compromising its functionality.
Flexibility：The choice of different colors (red, green, yellow and blue), ease of installation, and the ability to display corridors make this tool easily customizable to meet the current needs of the company.
Convenience：The lines enable pedestrians and machine operators to complete projects comfortably and efficiently while ensuring their safety at all times.
Flexibility：The choice of different colors (red, green, yellow and blue), ease of installation, and the ability to display corridors make this tool easily customizable to meet the current needs of the company.
Due to its durable components and efficient lighting, the virtual line is the perfect choice for all weather and lighting conditions. Operation ensures that the lines remain clearly visible at all times.
Crane warning lights of the same series

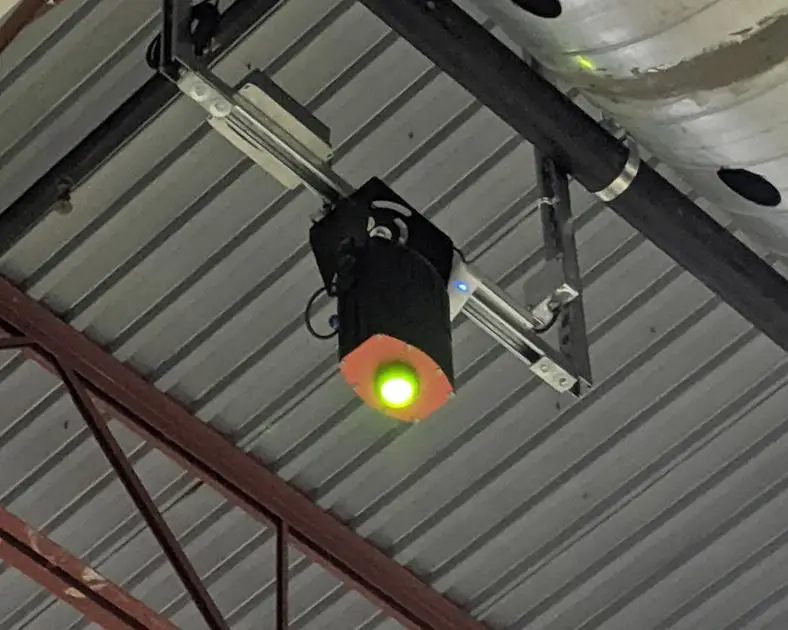

The projector is installed on an overhead beam at your facility, where it sends a message down onto the floor through a glass and metal GOBO (aka "go before optic") slide. When light passes through the slide and lens, the sign is brightly projected down onto the necessary area, which can be seen even in dimly lit regions. Best of all, you can easily move the signage to where you need it, and don’t need to worry about damage or repair.
Virtual line lasers can create durable floor lines in your warehouse, eliminating the need for the ongoing maintenance required with floor tape and paint. These virtual line lasers are compact, lightweight, durable, and reliable. They produce a fine line that is clearly visible in bright conditions and completely safe for the eyes. They can be used along walkways and driveways, or in combination with virtual signs for specific displays.
The crane hazard system is the ideal solution for adding bright visual warnings to overhead cranes in areas where traditional wall and floor markings are easily overlooked or obstructed. Floor dot projections are perfect for high-traffic areas where markings are not visible due to certain lighting conditions or wear and tear. Line projections can outline safety warnings around heavy equipment and machinery where extra safety is required.
Dimensions
Application
Product Application
Mainly used for cranes.
●Warehouses
●Safety Signage
●Emergency Signage
●Pallet Staging Area
●Dock Signage
●5S/6S Signage
●Exclusion Zone Demarcation
●Walkways
●Safety Signage
●Emergency Signage
●Pallet Staging Area
●Dock Signage
●5S/6S Signage
●Exclusion Zone Demarcation
●Walkways

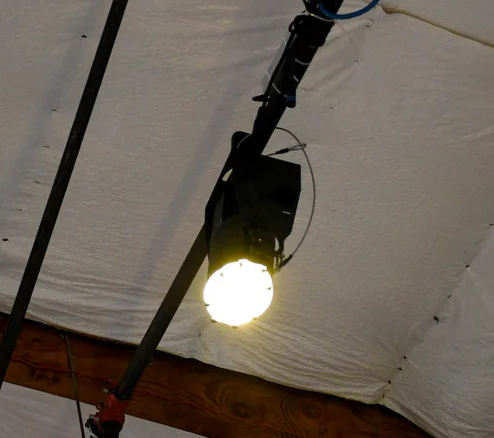

LAMP SUITE Actual Installation Diagram
Packaging & Shipping
Company Profile
About Maxtree
Maxtree was established in 2016. It is a national high-tech enterprise that intearates R&D production, sales and service. The headquarters is located in Changzhou Dianya Plaza.
There are more than 200 workers including the R&D team, technical engineers and other workers. We have more than 28 production lines. Monthly output can reach 10000 units. With the German OSRAM, PHILPS, Cree and other international brand enterprises to cooperate fully, the introduction of advanced technology and production testing equipment at home and abroad, the realization of machining precision automation.
Among them, Maxtree upholds strict quality management, applies new ideas, new forces, new technologies, and is committed to R&D and production various kinds of industrial lighting fixtures, and provides professional customization according to the individual needs of the market such as oil, chemical, natural gas, marine platform, coal mine, army, public security, fire, railway, highway, port and other industries.
There are more than 200 workers including the R&D team, technical engineers and other workers. We have more than 28 production lines. Monthly output can reach 10000 units. With the German OSRAM, PHILPS, Cree and other international brand enterprises to cooperate fully, the introduction of advanced technology and production testing equipment at home and abroad, the realization of machining precision automation.
Among them, Maxtree upholds strict quality management, applies new ideas, new forces, new technologies, and is committed to R&D and production various kinds of industrial lighting fixtures, and provides professional customization according to the individual needs of the market such as oil, chemical, natural gas, marine platform, coal mine, army, public security, fire, railway, highway, port and other industries.
FAQ
1.How long a line the Virtual LED Line projector create?
The length of the line is dependent upon the mounting height. The higher the mounting height the longer the line but dimmer in intensity.
2.How thick a line will the Virtual LED Line projector create?
Based on the mounting height, the line thickness usually is between 2″-3″ wide.
3.What happens to the Virtual LED Line Projectors when they reach End of Life?
As the product reaches end of life, the intensity of the projection will start to dim and eventually fade away.
4.What is the expected life of these products?
The Virtual LED Line projectors are based on LED technology and have an operating life of 30,000+hrs of continuous use. This translates to over 5 years of operational life in a 2-shift environment.
5.How do the Virtual LED Line Projectors hold up in an industrial environment?
The Virtual LED Line Projectors are air cooled units. These units have an operating temperature ranges of -45°C to 50°C.
The length of the line is dependent upon the mounting height. The higher the mounting height the longer the line but dimmer in intensity.
2.How thick a line will the Virtual LED Line projector create?
Based on the mounting height, the line thickness usually is between 2″-3″ wide.
3.What happens to the Virtual LED Line Projectors when they reach End of Life?
As the product reaches end of life, the intensity of the projection will start to dim and eventually fade away.
4.What is the expected life of these products?
The Virtual LED Line projectors are based on LED technology and have an operating life of 30,000+hrs of continuous use. This translates to over 5 years of operational life in a 2-shift environment.
5.How do the Virtual LED Line Projectors hold up in an industrial environment?
The Virtual LED Line Projectors are air cooled units. These units have an operating temperature ranges of -45°C to 50°C.
Похожие товары
Многофункциональный гибкий складной портативный магнитный фонарик из алюминиевого сплава с питанием от сухих аккумуляторов 15 светодиодов рабочее освещение
1,55-1,95 $
Перезаряжаемый рабочий светильник 1000 люмен светодиодный с точечным и заливающим монолитным блоком светодиодов
12,50-16,00 $

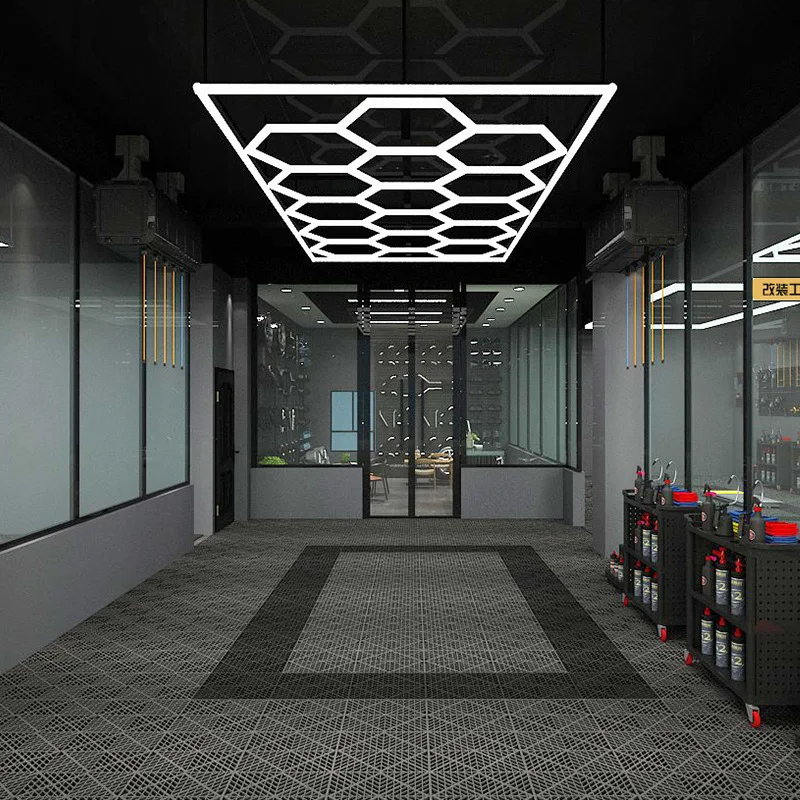

Гексагональные светодиодные светильники для автомойки
71,00-99,00 $

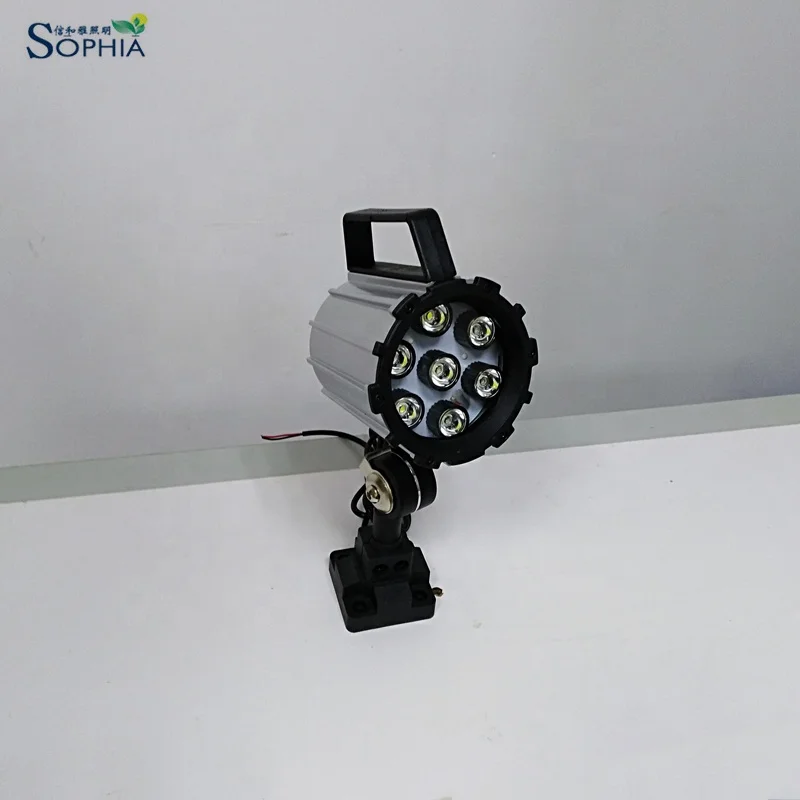

Новая Светодиодная рабочая лампа IP67 7 Вт 24 В или 230 от компании Sophia
