Машина для изготовления железных труб/машина для изготовления труб из нержавеющей стали/машина для изготовления труб из изоляции
11 868 758,00 ₽
Китайский производитель высокая прибыль декоративная машина для производства труб из нержавеющей стали GI / SS
- Категория: >>>
- Поставщик: Zhengzhou Howann Machinery Co. Ltd.
Сохранить в закладки 1601033244409:
Описание и отзывы
Характеристики
Product Description
Pipe Making Machine
Pipe making machines are mainly used to produce industrial stainless steel pipes, which are widely used in chemical industry, medicine, brewing, petroleum, food, automobiles, papermaking, air conditioning and other fields. The pipe making machine is newly designed based on the actual production and absorbing the advantages of domestic and foreign equipment. It is easy to operate and maintain.
The whole production line includes machines from uncoiler to cutting saw. Welding speed can be adjusted according to the pipe diameter, thickness and length.
The following are the specifications of the two most common shapes we provide, and the specific shapes can be customized according to customer requirements (punching is optional).
The following are the versions we have sold, you can also send me your drawings, we will customize the machine for you.
Our Advantanges:
1.Produce different purlin size without changing rollers or spacers.2.No need changing cutter for different size.
3.Easy operation, low maintenance cost.
4.Infinite sizing(any size within machine range),help to save material.
5.Optional Punch hole at any position of purlin web side and flange side.
The Working Flow
Manual uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table
Product name | Pipe Making Machine | |||||||
Frame materials | 350H steel | |||||||
Diameter | 80mm | |||||||
Forming roller | 14-16row | |||||||
Forming shaft | Material 45# quenched and tempered | |||||||
Max.speed | 20m/min | |||||||
Feeding width | As Required | |||||||
Cutting system | Flying saw cutting | |||||||
Main engine power | 22 KW with cycloidal reducer | |||||||
Voltage | 380V 50 Hz 3 Phase or as your requirements | |||||||
Hydraulic oil | 40# hydraulic oil | |||||||
Material of cutting table | Cr 12 mould steel with quenched treatment | |||||||
Applicable industries | Building Material Shops, Manufacturing Plant, Construction works | |||||||
Feeding table
Adopt adjustable round wheel design.
Small error good operation.

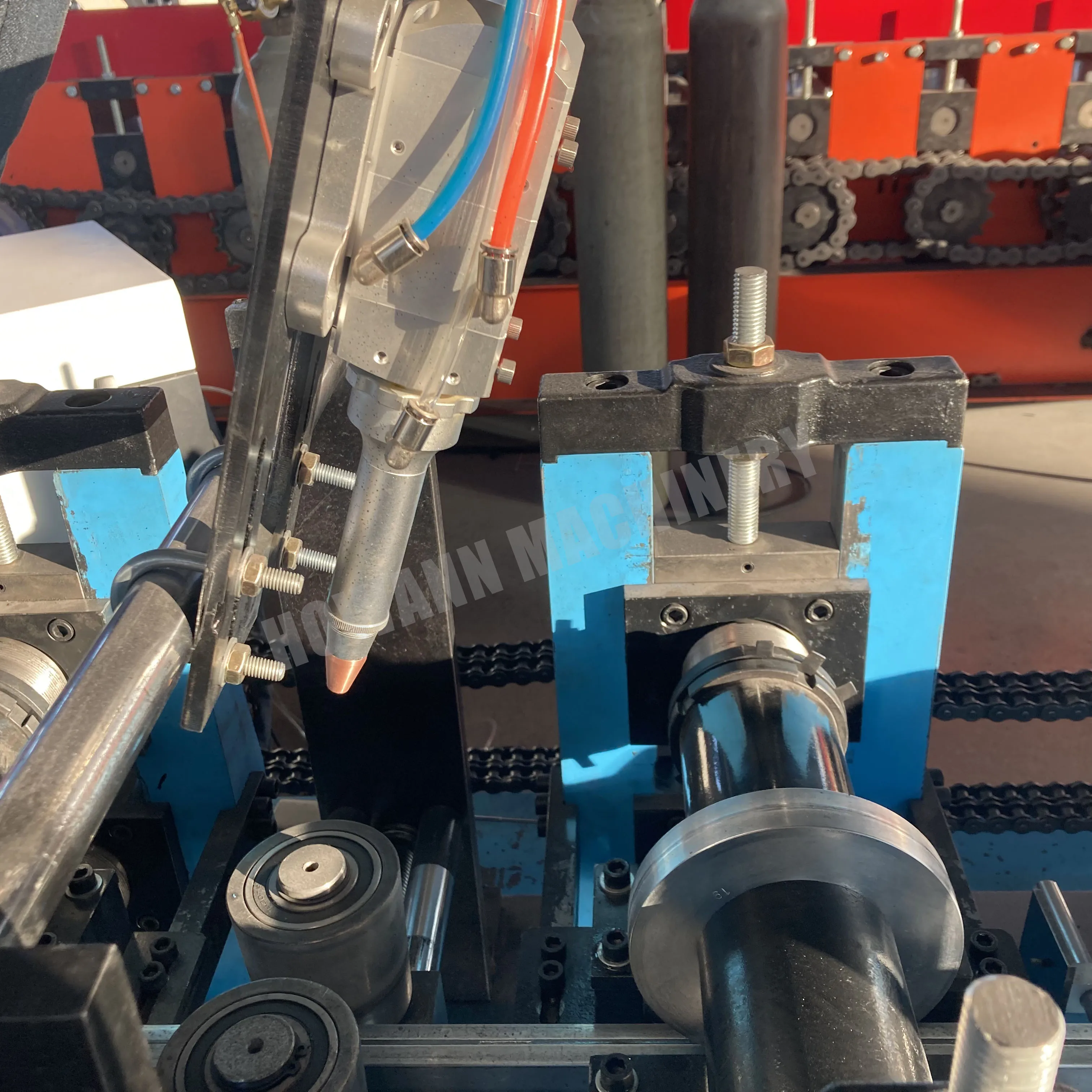

Welding Section
Welding tracking system
The welding automatic correction
The welding arc voltage automatic control
The welding automatic correction
The welding arc voltage automatic control
Material of the roller: High grade No.45 forged steel
Roller station: 14-16 rows
Thickness of feeding material: 0.3-0.6mm

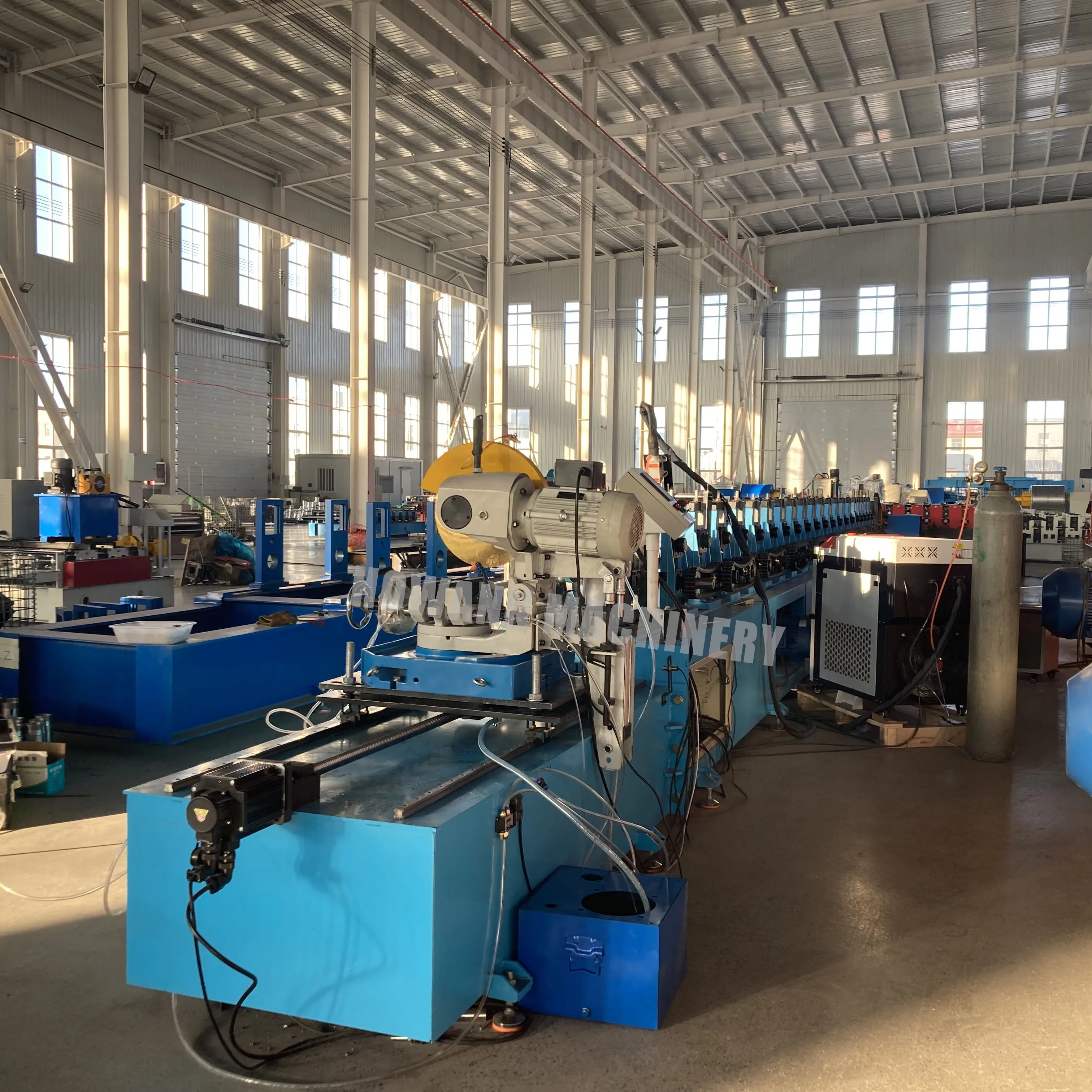

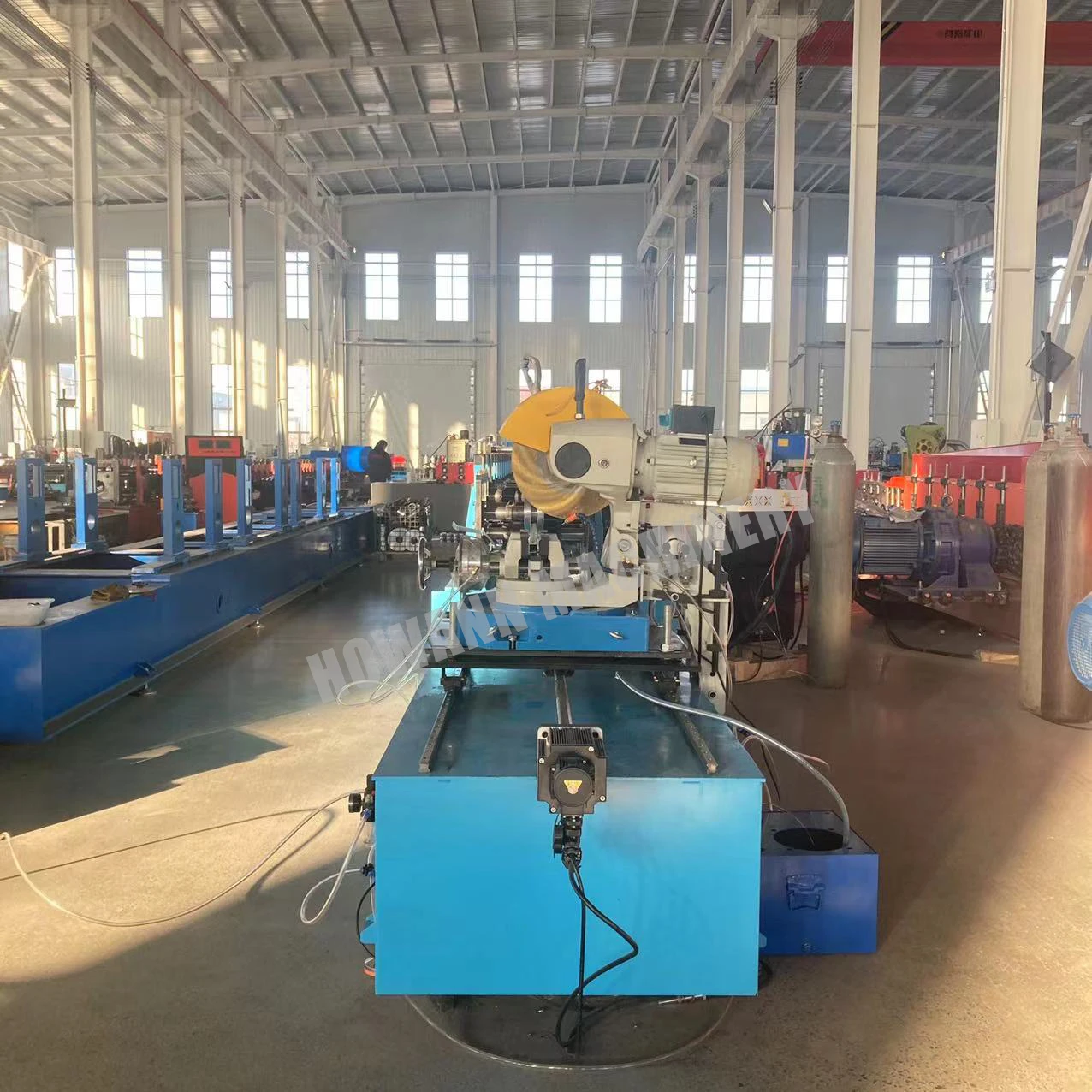

Flying saw cutting
More efficient and time-saving
Automatic activation.
More efficient and time-saving
Automatic activation.

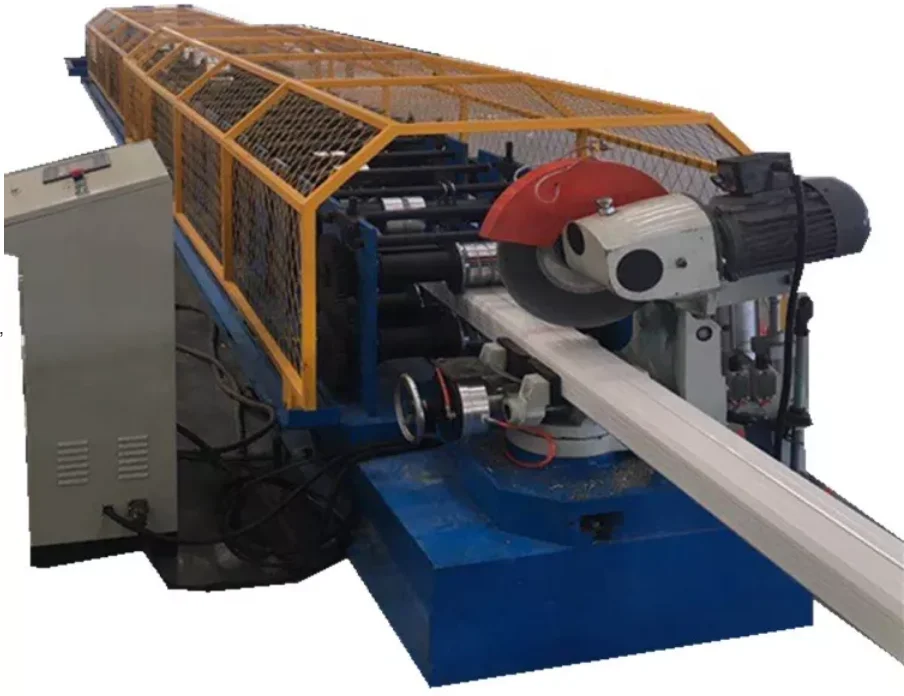

Metal Saw Cutter
Less burr in the end of the pipe
Less burr in the end of the pipe
If you are interested in our products, please do not hesitate, you can contact us directly, I believe we will have a good cooperation.
Details Images
Our Advantages
Company Profile
Zhengzhou Howann Machinery Co., Ltd. focuses on one-stop service solutions for Metal cold forming machinery. The factory covers an area of 9700 square meters and has 273 employees, including 29 senior engineers and 56 technical personnel. There are total 2 big workshops of Metal processing machinery .Main products: Purlin Forming Machines\\gusset plate machine series\\Roof/Wall Sheet Forming Machine\\Highway Guardrail Roll Forming Machine\\Shelf Rack Series Roll Forming Machine\\Door and Window Series Roll Forming Machine\\Container House Series Cold Roll Forming Machines\\Uncoiler/Leveler/Slitter\\Shearing/Bending/Rolling Machine\\Metal Embossing Machine\\Customized Roll Forming Roofing roll formers etc.
The company has its own professional R&D center and design team, responsible for equipment drawing and continuous innovation to break through technical difficulties, research and development of new equipment; independent finishing department and electronic department are responsible for equipment aluminum and steel structure hardware processing and ultrasonic electronic device development and power distribution; assembly department assembly line assembly equipment. Howann Machinery has always adhered to technological innovation as its leading force, and its R&D team has continuously overcome technical bottlenecks. The technical content of some of its main equipment is far away in the industry.
The company has its own professional R&D center and design team, responsible for equipment drawing and continuous innovation to break through technical difficulties, research and development of new equipment; independent finishing department and electronic department are responsible for equipment aluminum and steel structure hardware processing and ultrasonic electronic device development and power distribution; assembly department assembly line assembly equipment. Howann Machinery has always adhered to technological innovation as its leading force, and its R&D team has continuously overcome technical bottlenecks. The technical content of some of its main equipment is far away in the industry.
Customer Photos
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and otherparts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and otherparts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
