Product Description

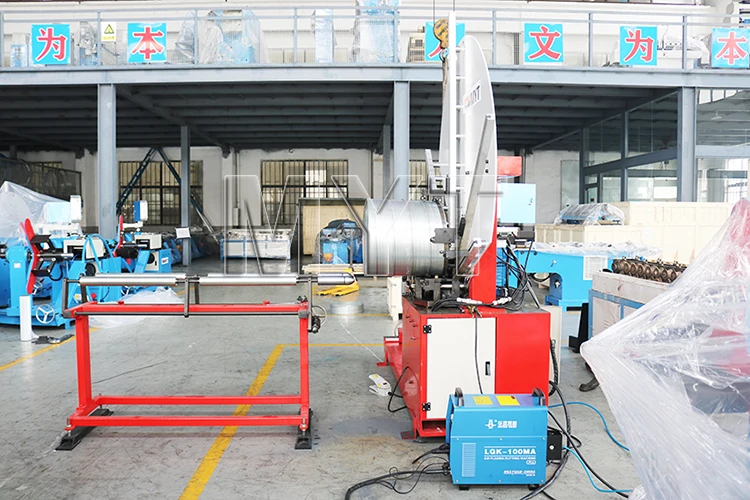

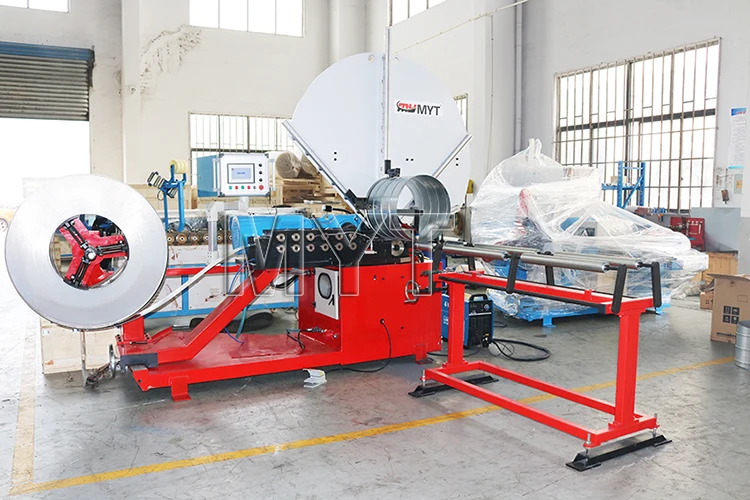

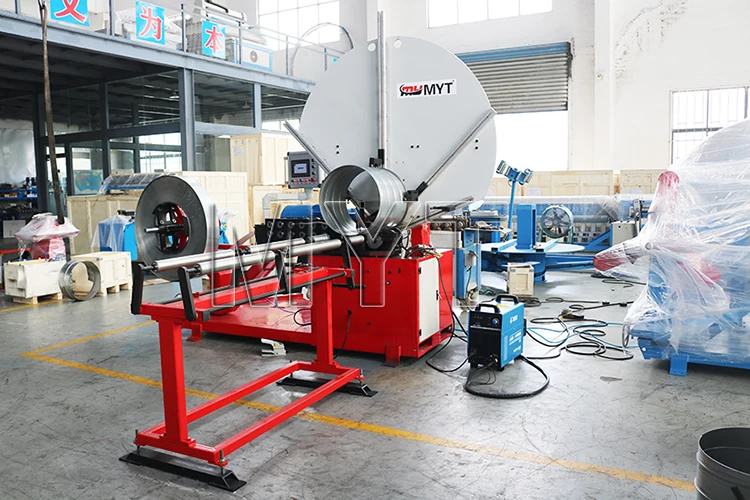

MYTF-1500C Spiral Duct Forming Machine
This spiral duct forming machine is for producing round air duct for various uses, such as for HVAC round ducts, oval ducts,chimney flue, etc.
Product description
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
Advantages of MYTF-1500C spiro tubeformer
1) Special belt steel moulds for various tube diameters, very easy to change and adjust, no need crane or too much manpower.
2) Large diameter range.
3) High speed synchro saw cutting system and plasma cutting system.
4) PLC control, convenient operation.
5) Light and small, suitable for site work.
6) Perfect swage, without leakage.
2) Large diameter range.
3) High speed synchro saw cutting system and plasma cutting system.
4) PLC control, convenient operation.
5) Light and small, suitable for site work.
6) Perfect swage, without leakage.
Specification
Type | MYTF-1500C | ||
Diameter range | Φ100-φ1500mm | ||
Strip Speed | 1-30m/min | ||
Thickness of strip | Galvanization | 0.4-2.0mm | |
Stainless steel | 0.4-1.2mm | ||
Strip Speed | 1-30m/min | ||
Cutitng System | Plasma cutter, Saw blade Cutting | ||
Lockseam | Outside lockseam,on the inside on request | ||
Main motor power | 16.5KW | ||
Weight | 2300KG | ||
Dimension | 3800mm*2160mm*2720 | ||
Machine body
Heavy Duty rack, Fuselage castings.With high strength, not easy to deform and other characteristics.
The unwinding machine is a vertical feeding mechanism, the inner coil diameter of the 460-520mm, the outer coil diameter of 1100mm, the maximum load of 1200kg.

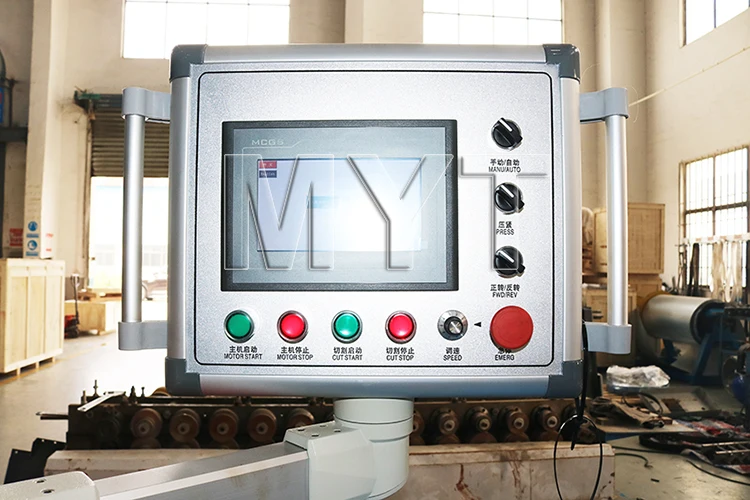

System to ensure the stability of the system and better processing pipes.The interface supports multiple languages, providing more convenience for customers' production
It is best for thin sheet formed round pipes cutting.Ensure good cutting effect, and will not be blunt.
Schneider Electric, to ensure the stability of electrical components, durable, safe.

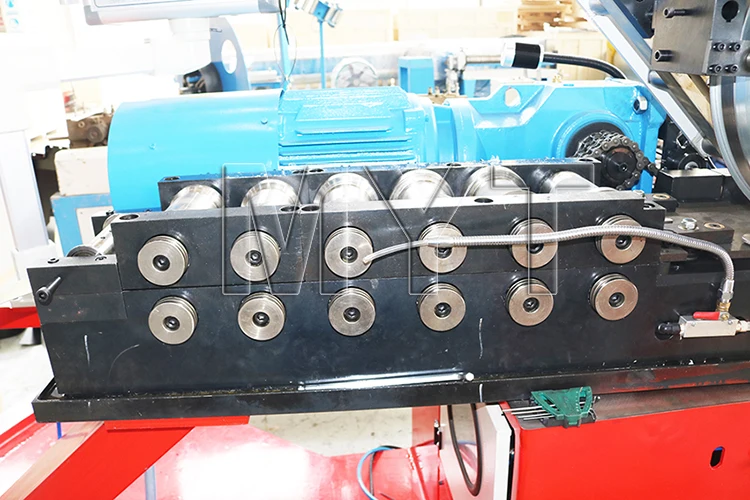

GCr15 bearing steel, quenched, HRC58-62.
Spiral subulate gear type decelerator (low noise, large moment).
Take automatic feeding function,it is cast in one piece that to ensure a more stable processing project. And it also has a touchable height that makes operation easier.
More About The MYTF-1500C Spiral Duct Forming Machine
When you are hesitant to purchase a spiral tube machine,MYT Machine spiral duct forming machine will be a good choice.
It will be your best assistant in the production of spiral round tube forming ducts. There is no machine that can replace MYT spiral duct forming forming machine.
MYT Machine spiral duct forming machine can be directly on the material alre- spiral duct making machine can be directly on ady do flange bending machine, sheet of same board using flange is essential ady do flange bending machine process of practical equipment, but
also can be used as a general ruffled machine usde as a general ruffled machine use.
also can be used as a general ruffled machine usde as a general ruffled machine use.
Spiral tube coil is made of spiral seam of thin walled tube, metal belt round, no welding, no leakage, no Water Leakage, used for air and bulk transport, instead of the traditional tin pipe (i.e. manual seam pipe). A wind pipe, the straight pipe without manual mechanism on the main purposes are as follows:
1) Air, including ventilation, such as air supply and exhaust, the range is very wide, such as factory workshop, the production site needs to be discharged due to outdoor air, harmful gas, and need to be transported to the indoor outdoor air. Then it is necessary to use large flow and low pressure air delivery pipe, spiral duct is the most suitable, use galvanized iron pipe in
general, corrosive and wet places stainless steel tube.
2) To send cold air. The most common is the central air-conditioning pipe, this pipe need to add heat preservation material.
3) Hood hotel, restaurant, hotel kitchen has a lot of fume, need to discharge, using circular duct is fume chimney. Here, the spiral duct is called the fume pipe.
4) Dust removal. There are many factories in the production workshop a lot of dust, the need for specialized dust removal device, in which the air flow is larger, can be used in a spiral duct.
5) Bulk material transport. In some factories, the production process, need to transport loose particles, in particular, the proportion of small, such as foam plastic particles, such as the use of a low cost, good effect.
1) Air, including ventilation, such as air supply and exhaust, the range is very wide, such as factory workshop, the production site needs to be discharged due to outdoor air, harmful gas, and need to be transported to the indoor outdoor air. Then it is necessary to use large flow and low pressure air delivery pipe, spiral duct is the most suitable, use galvanized iron pipe in
general, corrosive and wet places stainless steel tube.
2) To send cold air. The most common is the central air-conditioning pipe, this pipe need to add heat preservation material.
3) Hood hotel, restaurant, hotel kitchen has a lot of fume, need to discharge, using circular duct is fume chimney. Here, the spiral duct is called the fume pipe.
4) Dust removal. There are many factories in the production workshop a lot of dust, the need for specialized dust removal device, in which the air flow is larger, can be used in a spiral duct.
5) Bulk material transport. In some factories, the production process, need to transport loose particles, in particular, the proportion of small, such as foam plastic particles, such as the use of a low cost, good effect.
When you are hesitant to purchase a spiral tube machine,MYT Machine spiral duct forming machine will be a good choice.
It will be your best assistant in the production of spiral round tube forming ducts. There is no machine that can replace MYT spiral duct forming forming machine.
Company Profile
Packing & Delivery
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is two years since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is two years since the date of B/L.
Похожие товары
Воздуховод оцинкованная пластинчатая металлическая машина для резки и срезов
560,00-600,00 $

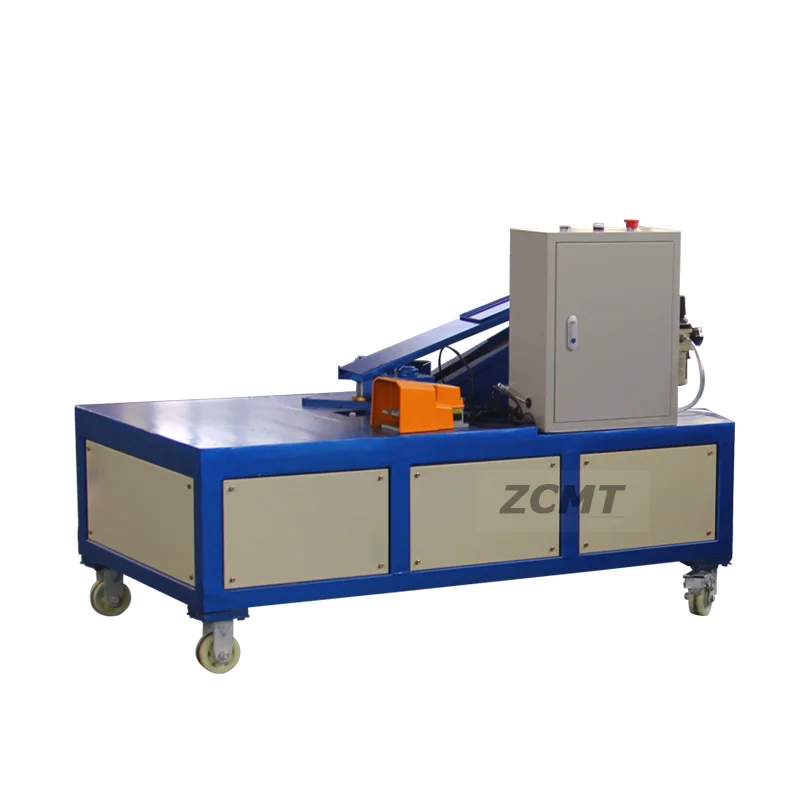

Автоматическая квадратная машина для вставки углов воздуховода HVAC прямоугольная формовочная установка установки TDF Прямая продажа с завода
2 500,00-3 100,00 $

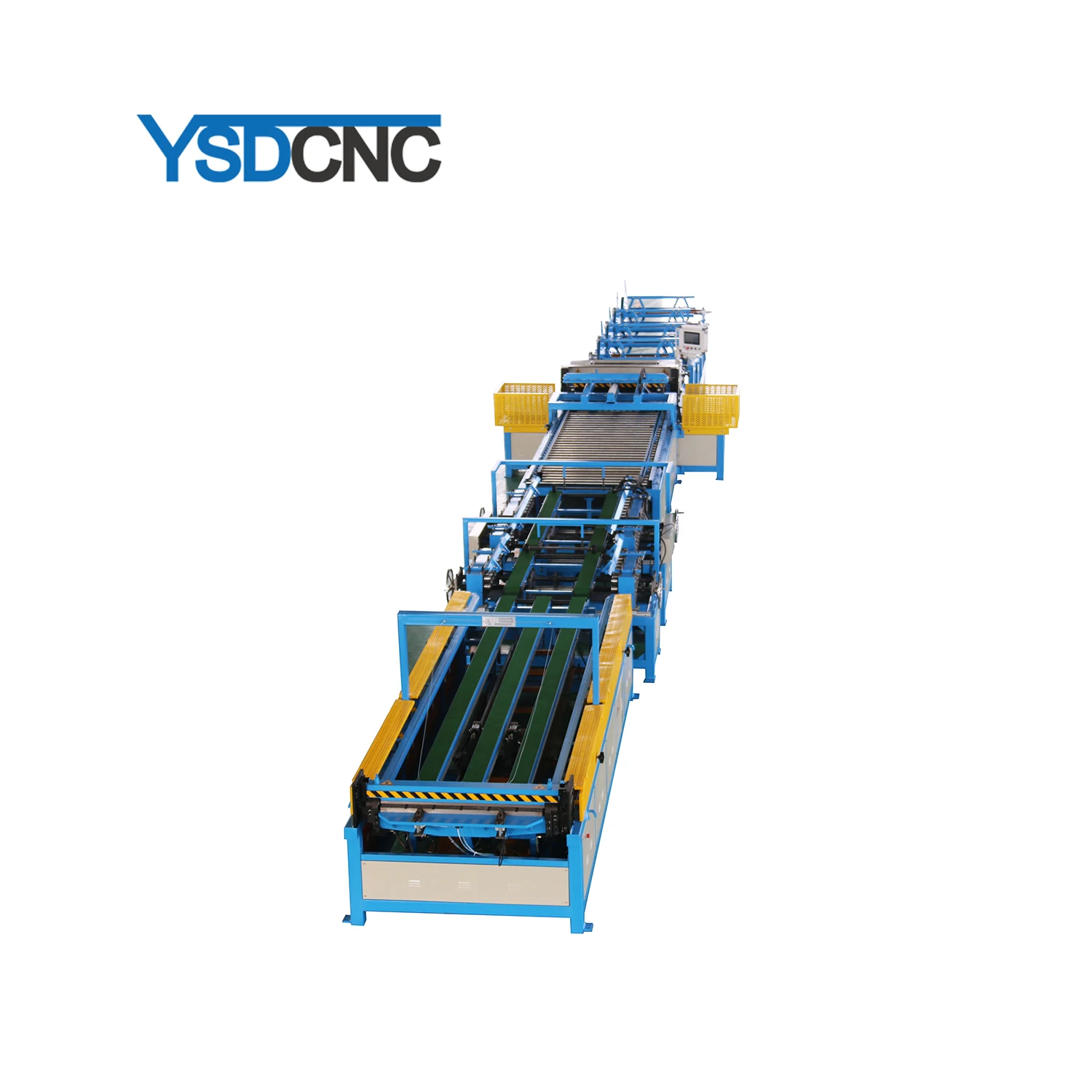

Вентиляционная Автоматическая трубка 5 прямоугольная Smart line hvac ductwork
38 640,00-39 560,00 $

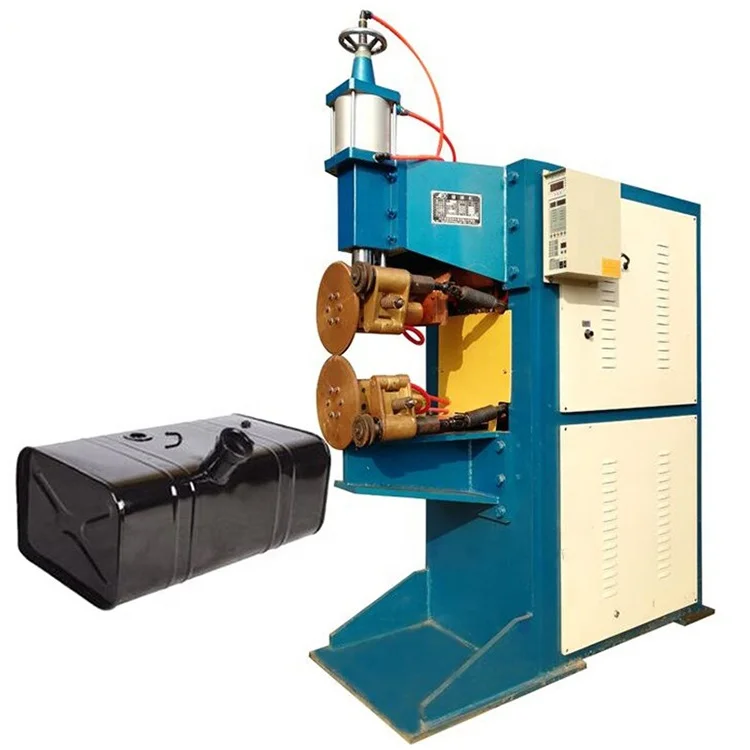

Сварочный аппарат с сопротивлением сварочный для скручивания швов автоматический труб
3 700,00-3 900,00 $
Легкий в эксплуатации роликовый сварочный аппарат круглый канальный шов
2 800,00-3 200,00 $

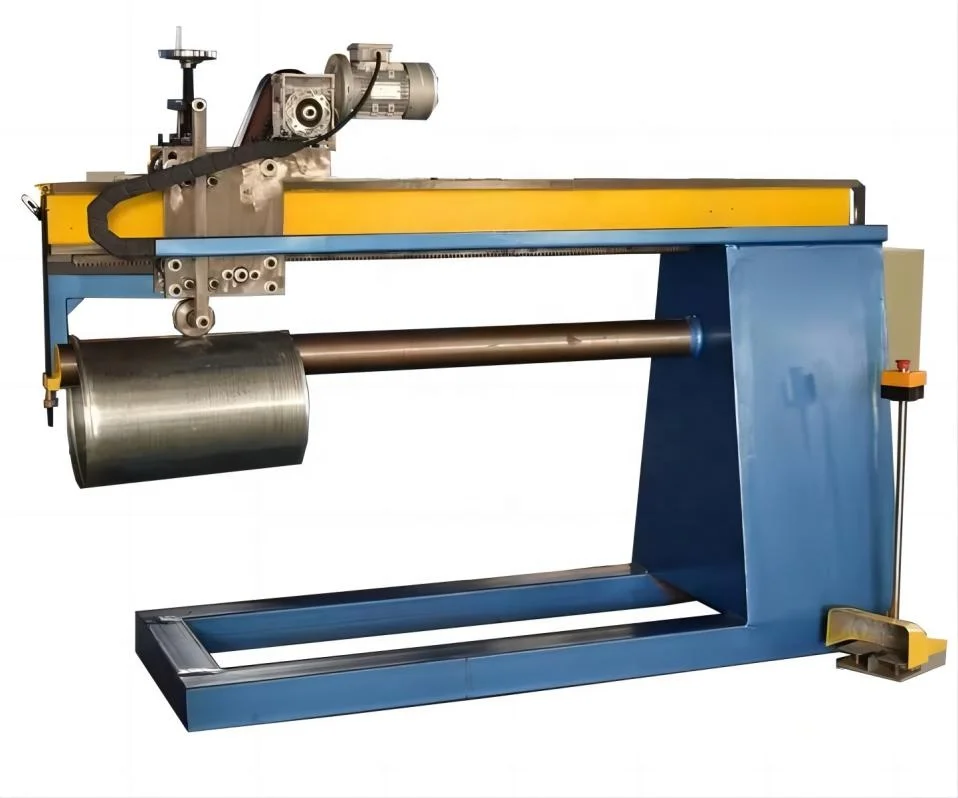

Продольная прокатка воздуховодов hvac сварочный аппарат
1 800,00-3 200,00 $

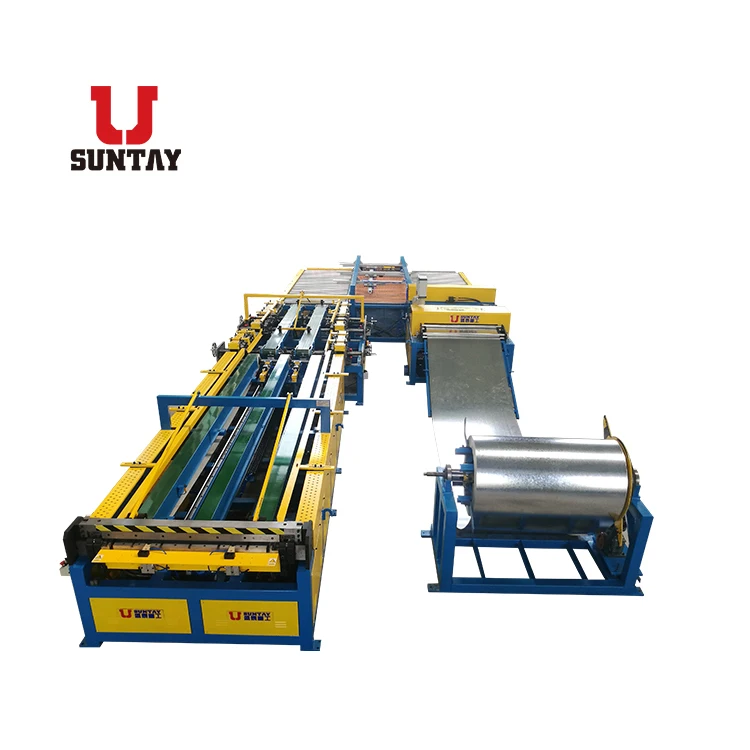

Листовой двойной фланец TDF бывший воздуховод U-образный автоматический канал производственная линия 5 в продаже
