2024 Новый гибридный инвертор deye SUN-3/4/5/6K-SG05LP3-EU 3-6kw трехфазный для встроенной и автономной системы
98 955,64-106 872,10 ₽
ЕС склад в наличии гибридный инвертор с тройной фазой включением и выключением сети 5 кВт 48 В
- Категория: >>>
- Поставщик: Ningbo Chisage Ess Technology Co. Ltd.Ningbo Ltd.
Сохранить в закладки 1601033976398:
Описание и отзывы
Характеристики
Products Description
Specification
Model | Mars-5G2-LE | Mars-6G2-LE | Mars-8G2-LE | Mars-10G2-LE | Mars-12G2-LE | Mars-14G2-LE | ||||||
Battery Input | ||||||||||||
Battery Type | Lead-acid or Li-Lon | |||||||||||
Battery Voltage Range (V) | 40~60 | |||||||||||
Max. Charge Current (A) | 120 | 130 | 200 | 220 | 250 | 280 | ||||||
Max. Discharge Current (A) | 120 | 130 | 200 | 220 | 250 | 280 | ||||||
Charging Curve | 3 Stages / Equalization | |||||||||||
External Temperature Sensor | Optional | |||||||||||
Charging Strategy for Li-Ion Battery | Self-Adaption to BMS | |||||||||||
PV String Input | ||||||||||||
Max. DC Input Power (W) | 7500 | 9000 | 12000 | 15000 | 18000 | 20000 | ||||||
PV Input Voltage (V) | 650 (160~800) | |||||||||||
MPPT Range (V) | 200~700 | |||||||||||
Full Load DC Voltage Range (V) | 260~650 | |||||||||||
Start-up Voltage (V) | 160 | |||||||||||
PV Input Current (A) | 17+17 | 26+17 | ||||||||||
Max. PV Isc (A) | 20+20 | 34+20 | ||||||||||
No. of MPPT Trackers | 2 | |||||||||||
No. of String per MPPT Trackers | 1+1 | 2+1 | ||||||||||
AC Output | ||||||||||||
Rated AC Output and UPS Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 14000 | ||||||
Max. AC Output Power (W) | 6000 | 7200 | 9600 | 12000 | 13200 | 15400 | ||||||
Peak Power (off grid) | 2 times of rated power, 10s | 1.8 times of rated power, 10s | ||||||||||
AC Output Rated Current (A) | 7.6/7.3 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 | 21.2/20.3 | ||||||
Max. AC Current (A) | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 | 27.6/26.4 | ||||||
Max. Continuous AC Passthrough (A) | 30 | 50 | ||||||||||
Power Factor | 0.8 leading to 0.8 lagging | |||||||||||
Output Frequency and Voltage (V) | 50/60Hz, 380/400Vac(Triple phase) | |||||||||||
Grid Type | Three phase | |||||||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||||||
Efficiency | ||||||||||||
Max. Efficiency | 97.90% | |||||||||||
Euro Efficiency | 96.90% | |||||||||||
MPPT Efficiency | 99.90% | |||||||||||
Protection | ||||||||||||
Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection | |||||||||||
PV Arc Fault Detection | Optional | |||||||||||
Output Over Voltage Protection | DC Type II / AC Type III | |||||||||||
Certifications and Standards | ||||||||||||
Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11 | |||||||||||
Safety Regulation | IEC/EN62109-1, IEC/EN62109-2 | |||||||||||
EMC | IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |||||||||||
General Data | ||||||||||||
Operating Temperature Range (°C) | -40~60, >45 Derating | |||||||||||
Cooling | Smart Cooling | |||||||||||
Noise (dB) | ≤45 | |||||||||||
Communication with BMS | RS485; CAN | |||||||||||
Weight (kg) | 38 | 40 | 42 | 44 | 44 | 45 | ||||||
Dimensions (mm) | 510Wx630Hx290D | |||||||||||
Protection Degree | IP65 | |||||||||||
Installation Style | Wall-mounted | |||||||||||
Warranty | 5 years | |||||||||||
Why Choose Us
FAQ
·Q1: Are you a factory or trading company?
We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team.
Chisage ESS prioritizes innovation and reliability, committed to delivering top-tier solutions to our customers.
·Q2: What is the MOQ?
The MOQ is 1 unit, and for items in stock, we will ship within 7 business days.
· Q3: Do you accept custom products?
Yes, OEM and ODM is supported.we have a professional R&D team with over 20 years of experience and a wealth of customisation experience to provide you with professional customisation support including but not limited to packaging, functionality etc.
·Q4: What is your after-sales service?
a. More than 10 after-sales team members to provide online service 7x24 hours a day throughout the year
b. We offer product replacement for quality issues during the warranty period.
c. We provide flexible training and warranty services, strictly adhering to the warranty terms.
d. For purchases of more than 5000 units, we set up a technical support centre in your city for comprehensive support.
·Q5: What's the payment term?
We support a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.
We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team.
Chisage ESS prioritizes innovation and reliability, committed to delivering top-tier solutions to our customers.
·Q2: What is the MOQ?
The MOQ is 1 unit, and for items in stock, we will ship within 7 business days.
· Q3: Do you accept custom products?
Yes, OEM and ODM is supported.we have a professional R&D team with over 20 years of experience and a wealth of customisation experience to provide you with professional customisation support including but not limited to packaging, functionality etc.
·Q4: What is your after-sales service?
a. More than 10 after-sales team members to provide online service 7x24 hours a day throughout the year
b. We offer product replacement for quality issues during the warranty period.
c. We provide flexible training and warranty services, strictly adhering to the warranty terms.
d. For purchases of more than 5000 units, we set up a technical support centre in your city for comprehensive support.
·Q5: What's the payment term?
We support a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.
Похожие товары
Гроуатт солнечный инвертор США сетчатый Гибридный однофазный 220 В 6 кВт 5 8 10 Ongrid
45 403,18-52 388,28 ₽

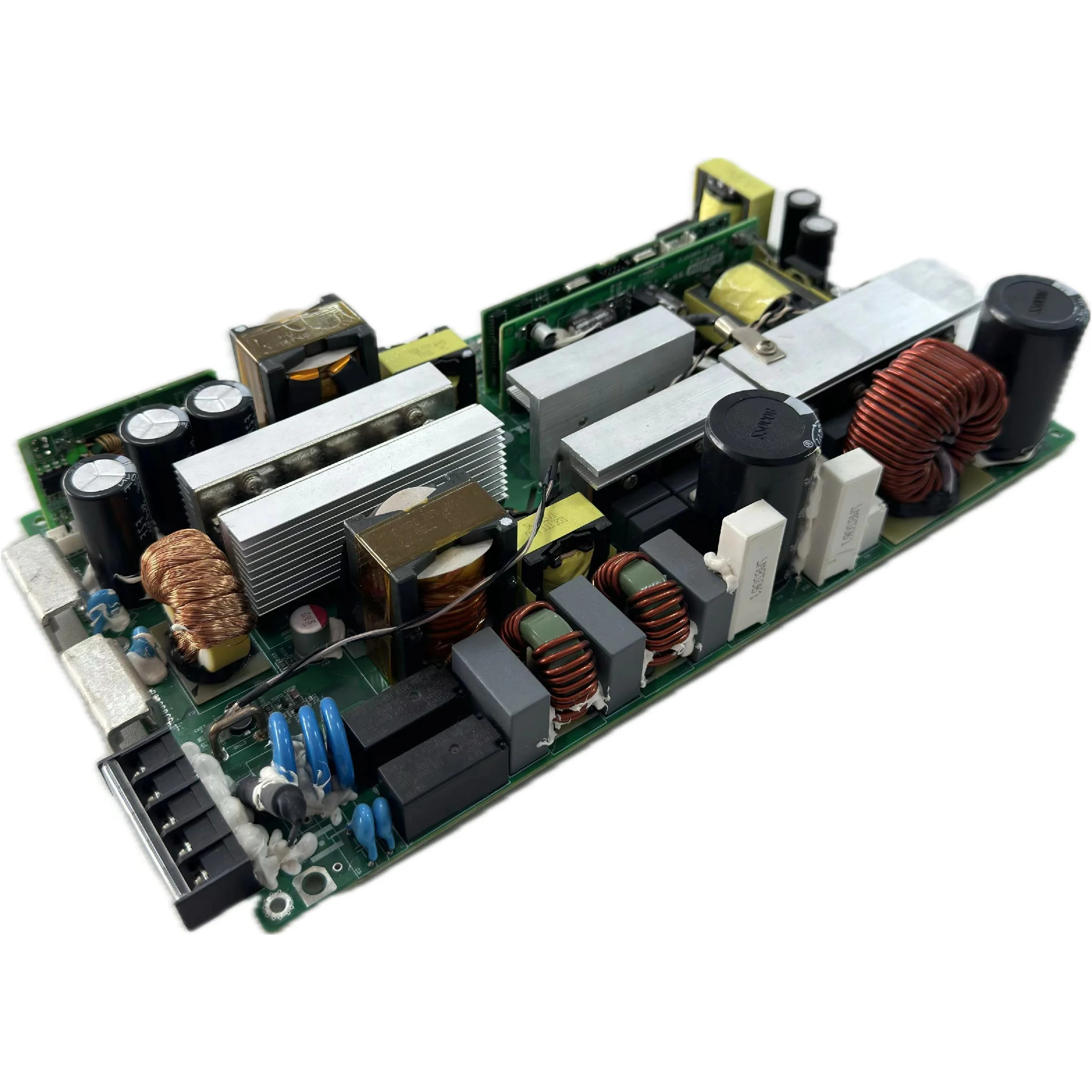

48V 2000W инвертируемая плата PCB/инвертор мощности PCB(PCM2KW-2A48V)
11 641,84 ₽
Солнечный Инвертор 24 В 48 солнечный гибридный чистый синусоидальный инвертор для солнечной системы с Mppt солнечное зарядное устройство по низкой цене
20 373,22-21 886,66 ₽
3 кВт-12 кВт домашний солнечный инвертор автономный чистый синусоидальный однофазный/двухфазный с MPPT Wi-Fi выход переменного тока
Солнечный инвертор 3 кВт 24 В бессетевой MPPT эффективность отслеживания 96.9% подходит для домашней солнечной системы
29 104,60-31 432,97 ₽
12 кВт низкочастотный выключенный солнечный инвертор 4 5 6 8 10 48 В
34 672,20-36 983,68 ₽

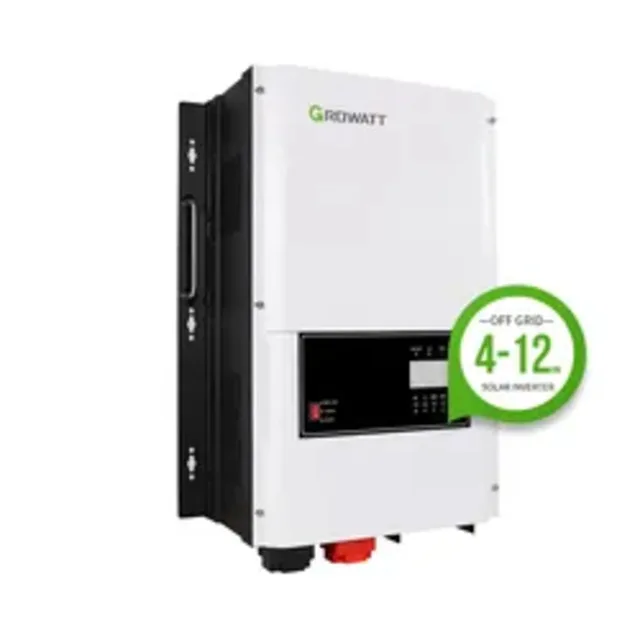

Growatt SPF 4000-12000 т DVM-MPV 4-12kw однофазный 120/240VAC автономный инвертор для солнечной энергетической системы
