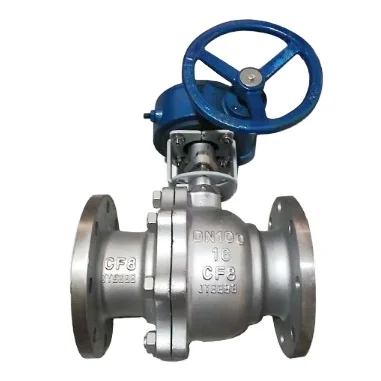

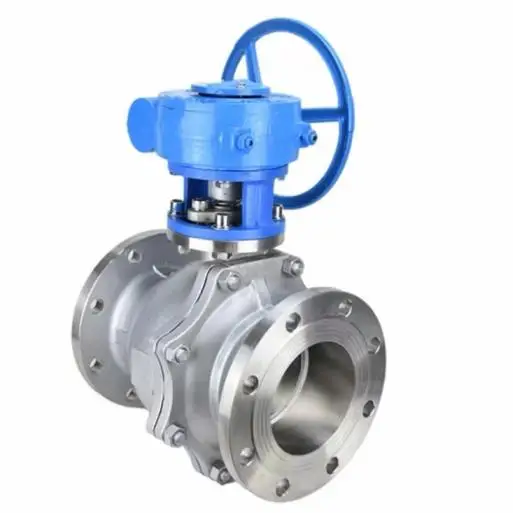

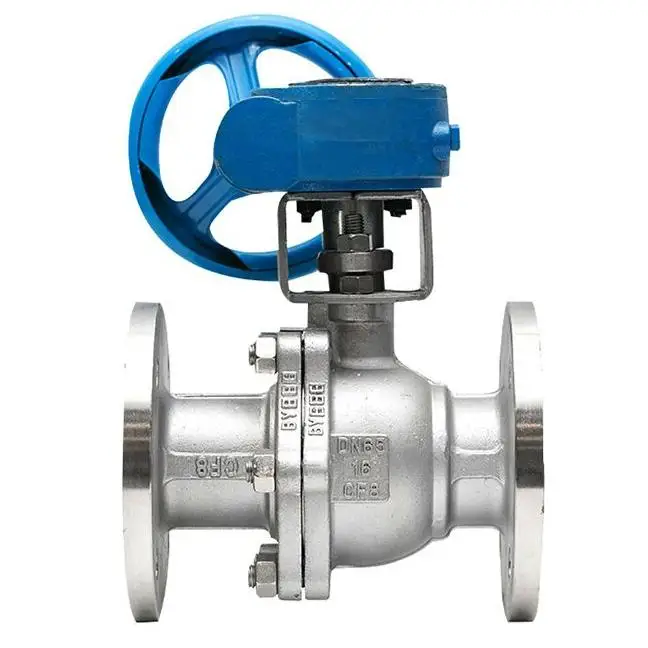

Хит продаж Заводское производство Q341F 16P гидравлический шаровой клапан из нержавеющей стали с фланцевой головкой
- Категория: >>>
- Поставщик: Shanghai Biaoyi Valve Co. Ltd.
Сохранить в закладки 1601034378148:
Описание и отзывы
Характеристики
Why Choose Us
Accept customization
1, material customization
2, size customization
3, color customization
4, Pressure customization
5, logo customizationPlease tell
our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
3, color customization
4, Pressure customization
5, logo customizationPlease tell
our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
Our company participates in large-scale urban construction projects in China.
1、Project of China Railway
2、Project of GREENTOWN CHINA HOLDINGS LTD.
3、Project of Hangzhou asian games village
4、Project of Shenzhen Fangda Plaza
4、Project of Shenzhen Fangda Plaza
Product Description

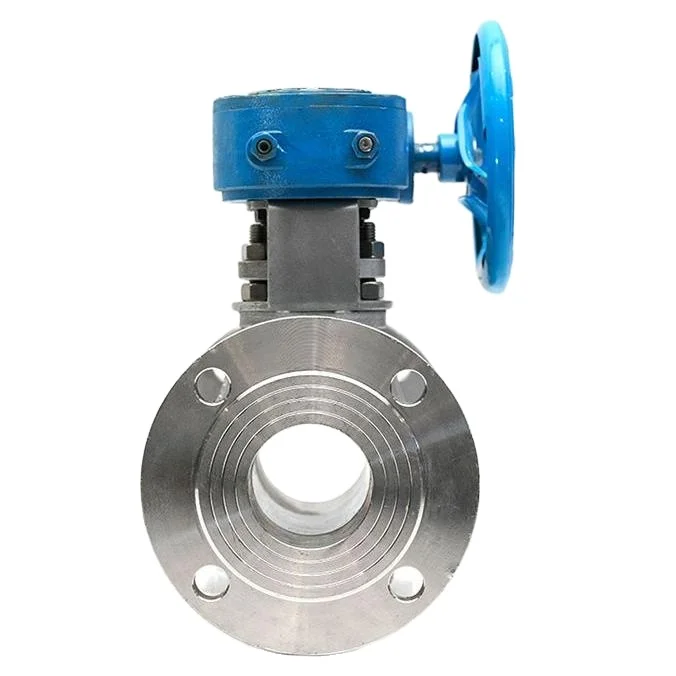

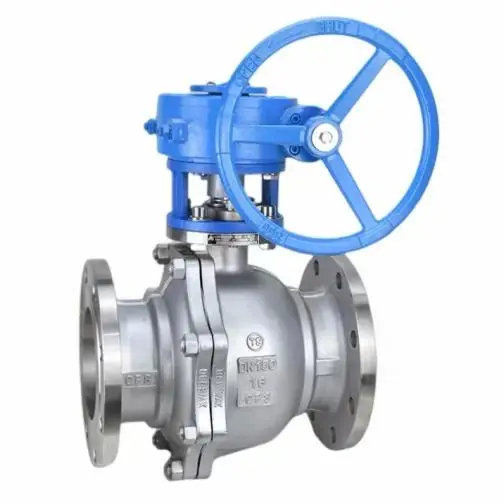

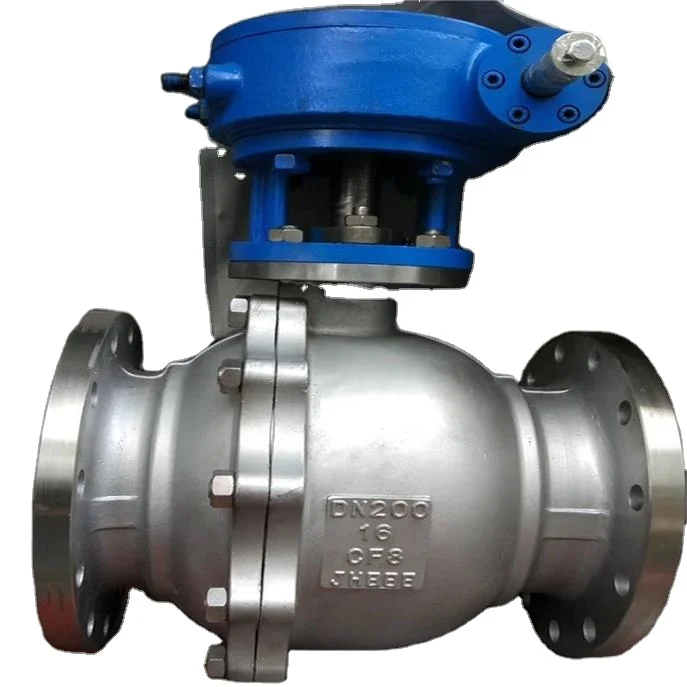

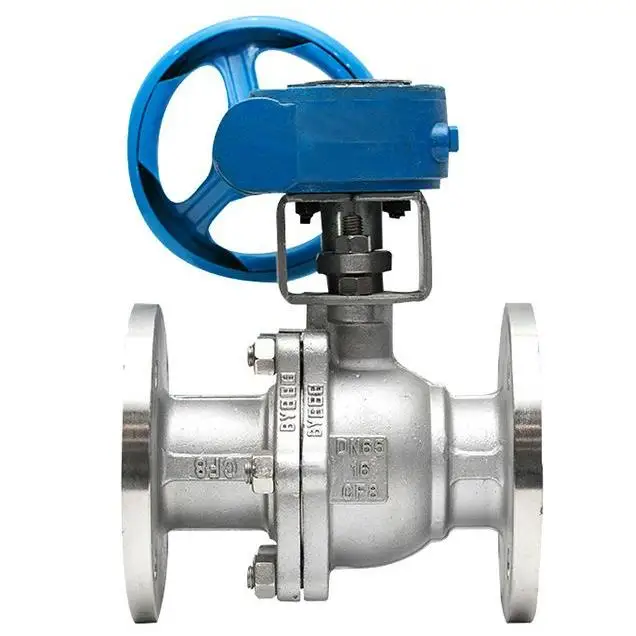

Q341F-16P Stainless Steel Worm Gear Flange Ball Valve is an important valve, which is widely used in petrochemical, long-distance pipelines and other fields. The closing part of the ball valve is a ball (or part of the ball) with a hole, and the ball rotates with the valve stem to realize the opening or closing of the valve.
Among the various valves, the flow resistance of the ball valve is the smallest, and when the full-diameter ball valve is opened, the ball channel, the valve body channel and the connecting pipe are equal in diameter and form a diameter, and the medium can flow through almost without loss.
The ball valve can be fully closed and fully opened by rotating 90°, and the opening and closing are fast. Compared with gate valves and globe valves of the same specifications, ball valves are small in size and light in weight, which is convenient for pipeline installation.Suitable for water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea and other media.
Main features
1.Turbine switch is adopted, the switch is slow and easy to control the flow.
2.Using spring loading, when the valve is abnormally pressurized, the valve can automatically relieve pressure.
3.Easy switching.
4.Long service life.
5.Structural characteristics; It has the characteristics of full warp, emergency sealing, fire prevention and so on.
6.Flexible operation: the valve seat and stem bearing with small friction coefficient and good self-lubrication are adopted, which greatly reduces the operating torque of the valve. This enables flexible operation of the valve for a long time, even when no sealing grease is supplied
7.Sealing emergency grease injection rescue: due to the unexpected failure of the valve seat seal due to foreign matter or fire in the medium, the grease injection valve provides a quick connection with the grease injection gun, which is convenient and quick to inject the sealing grease into the sealing part of the valve seat to alleviate leakage.
2.Using spring loading, when the valve is abnormally pressurized, the valve can automatically relieve pressure.
3.Easy switching.
4.Long service life.
5.Structural characteristics; It has the characteristics of full warp, emergency sealing, fire prevention and so on.
6.Flexible operation: the valve seat and stem bearing with small friction coefficient and good self-lubrication are adopted, which greatly reduces the operating torque of the valve. This enables flexible operation of the valve for a long time, even when no sealing grease is supplied
7.Sealing emergency grease injection rescue: due to the unexpected failure of the valve seat seal due to foreign matter or fire in the medium, the grease injection valve provides a quick connection with the grease injection gun, which is convenient and quick to inject the sealing grease into the sealing part of the valve seat to alleviate leakage.
Relevant implementation standards
Design standards:GB/T12237,AP16D,ANSI B16.34
Flange connection structure length:GB/T12221,AP16D,ANSI B16.10
Length of structure (welded):GB/T15188.1,AP16D,ANSI B16.10
Connection flange:GB/T9113,JB/T79,Hg20592,ANSI B16.5、B16.47
Butt weld ends:GB/T12224,ANSI B16.25
Trials and inspections:GB/T9092,AP16D,AP1598
Flange connection structure length:GB/T12221,AP16D,ANSI B16.10
Length of structure (welded):GB/T15188.1,AP16D,ANSI B16.10
Connection flange:GB/T9113,JB/T79,Hg20592,ANSI B16.5、B16.47
Butt weld ends:GB/T12224,ANSI B16.25
Trials and inspections:GB/T9092,AP16D,AP1598
item | value |
Application | General |
Port Size | DN15~DN200 |
Warranty | 3 years |
Place of Origin | China |
Shanghai | |
Model Number | Q341F-16P |
Power | Hydraulic |
Temperature of Media | HighTemperature, Low Temperature, Medium Temperature, Normal Temperature |
Brand Name | |
Structure | Ball |
Media | Water |
Customized support | OEM, ODM, OBM, Software reengineering |
Product name | Q341F-16P |
Design standards | GB/T12237,AP16D,ANSI B16.34 |
Flange connection structure length | GB/T12221,AP16D,ANSI B16.10 |
Length of structure (welded) | GB/T15188.1,AP16D,ANSI B16.10 |
Connection flange | GB/T9113,JB/T79,Hg20592,ANSI B16.5、B16.47 |
Butt weld ends | GB/T12224,ANSI B16.25 |
Trials and inspections | GB/T9092,AP16D,AP1598 |
Main parts and materials
Part name | material |
Left valve body | CF8 |
sphere | F304 |
Sealing rings | PTFE |
Right valve body | CF8 |
Stem | F304 |
bracket | Q235 |

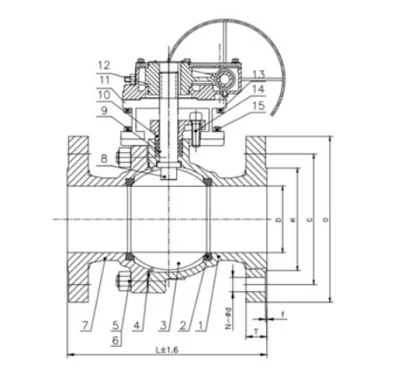

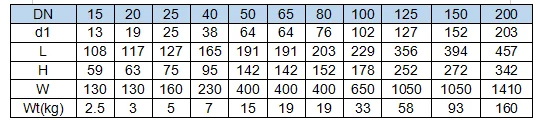

Main structure and connection dimensions
Company Profile
VIP customers from Zambia visited our factory.
VIP customer from South Africa visited our factory.
Participated in the International Water System Exhibition in 2006.
VIP customers from Saudi Arabia visited our factory.
Canton Fair
FAQ
Похожие товары
Новая игровая консоль FC3000 V2 в стиле ретро, 2000 встроенных классических игр, портативная консоль с поддержкой 8 форматов, 10 симуляторов, игровой плеер AV out
Пользовательские клетчатые заколки для волос каменная заколка с лягушкой в виде Луны корейские матовым
0,40 $ - 0,50 $

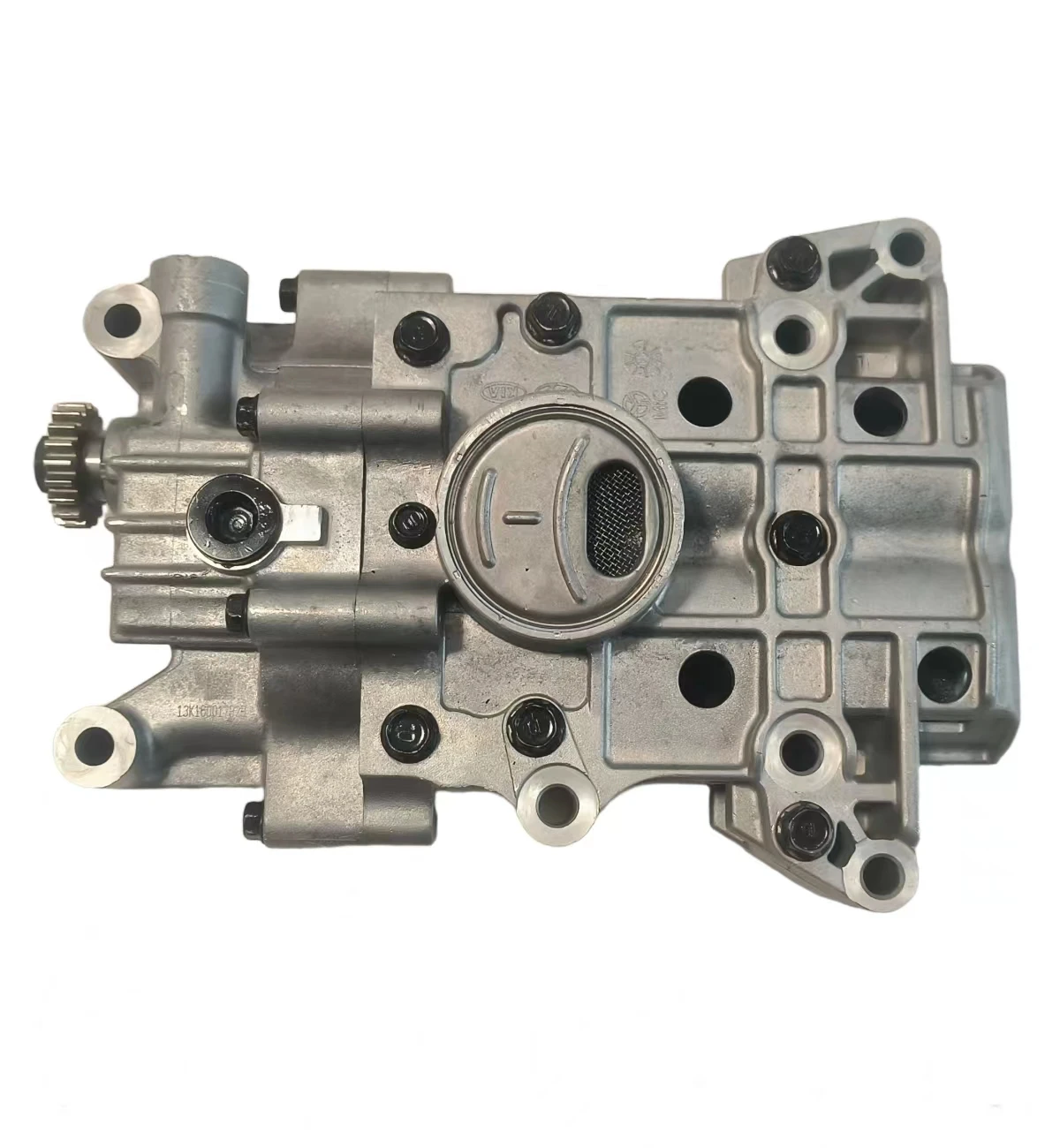

23300-2G400 23300-2G410 для Sonata Santa Fe IX45 высококачественный масляный насос G4KJ233002G400 233002G410
75,35 $ - 82,20 $

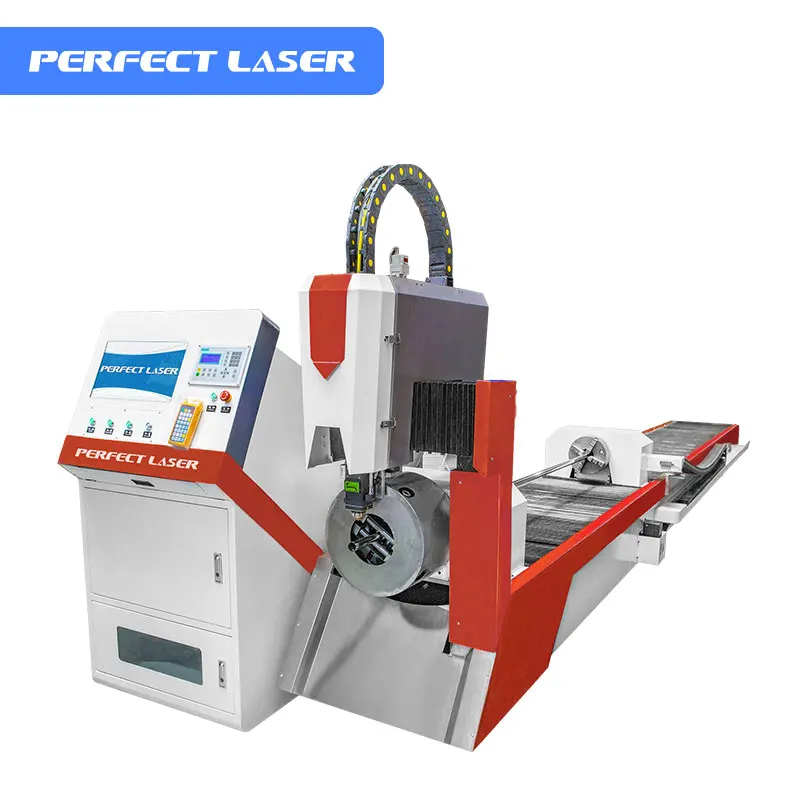

Металлическая машина для лазерной резки с круглой трубкой, оборудование для фитнеса, офисная мебель, кухонный шкаф, масляная трубка
55 000,00 $
Качественное крепление для наушников динамик супер бас Hi-Fi
8,60 $

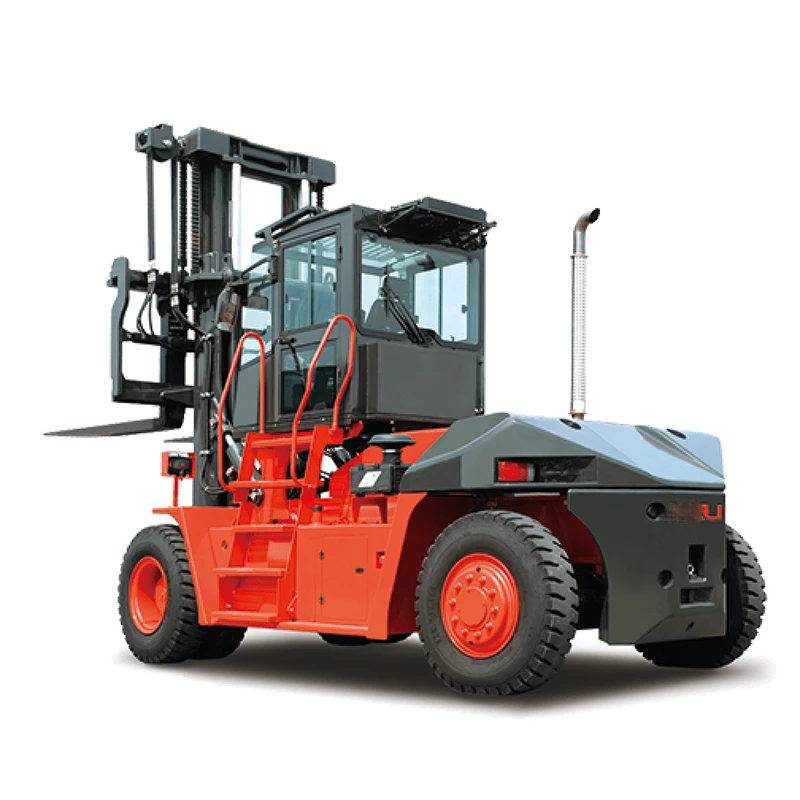

Тяжелый Вилочный Погрузчик Heli 35 тонн 32 тонны 33 тонны с мощным двигателем и закрытой кабиной Cpcd350
320 000,00 $ - 345 000,00 $

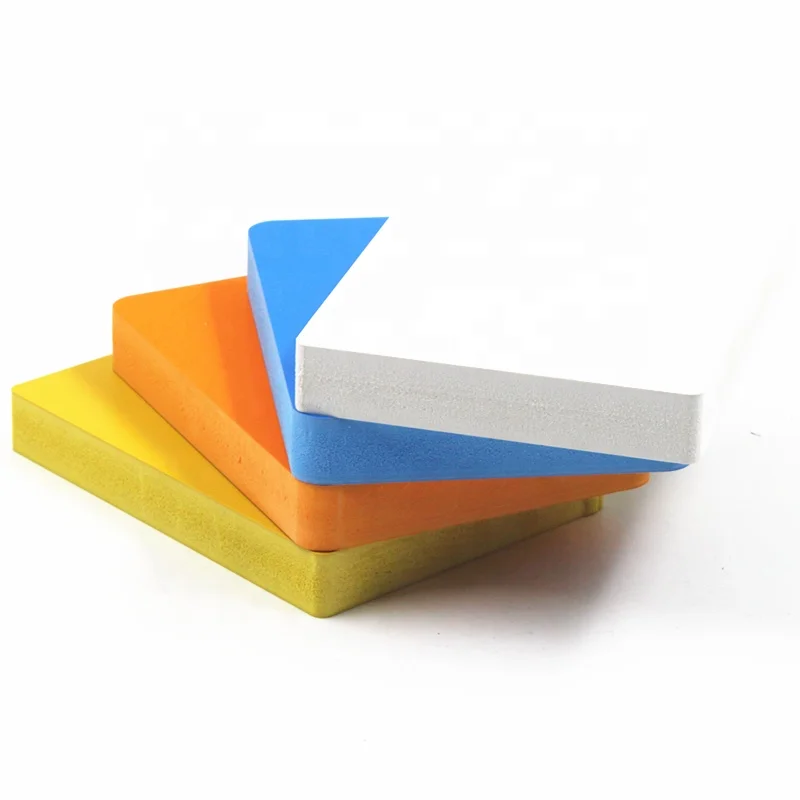

Белый лист пены sintra pvc forex доска пены pvc 3 мм 5 мм
