Products Description

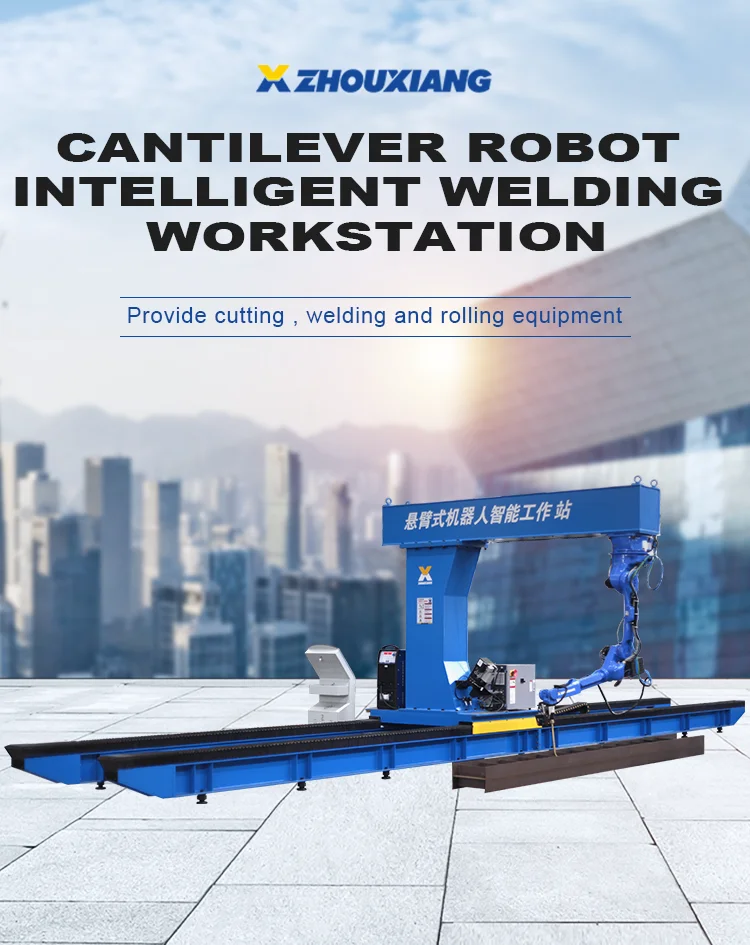

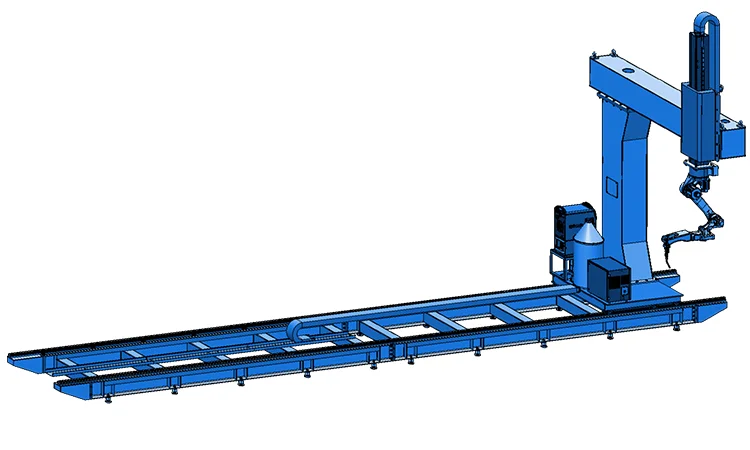

The cantilever robot intelligent welding workstation is equipped withthe Friendess teaching-free welding system and Friendess wide-view sea m tracker, which directly import the 3D model file of Tekla, SOLIDWORKS or UG, directly match the welding process parameters, automatically identify the exact position of the weld and generate the optimal welding process for welding. The ro bot is equipped with automatic gun cleaning device. Track length can be customized according to the product, the userdetermines the required track length according to the length of the workpiece, the application is more flexible;
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
At present, it is mainly used for the welding of H beam steelordinary reinforcement plate, transverse reinforcement plate, column bottom plate, purlin support plate, corbel and other structures.
At present, it is mainly used for the welding of H beam steelordinary reinforcement plate, transverse reinforcement plate, column bottom plate, purlin support plate, corbel and other structures.
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
The advantage of the cantilever type is that the workpieces can belifted to the workstation in batches, saving lifting time.
The advantage of the cantilever type is that the workpieces can belifted to the workstation in batches, saving lifting time.
Parameter
Robot | MR12-2010 |
Welder | Aotai/Megmeet |
Welding gun | TRM water-cooled extended welding gun |
Control system | Friendess teaching-free welding system |
Vision system | Friendess large viewing distance sea m finder |
Rail | 12m(length can be customized) |
Application scenario | secondary processing for steel structure |
Machine spec | (7 axis)ZX-XRYH100(8 axis) ZX-XRYHSW100 |
Total power | (7 axis) Robot 10KVA +welder 31KVA(8 axis) Robot 13KVA+welder31KVA |
Max. operating range | (7 axis)10m×1.3m×0.4m(12mground rail) (8 axis)10m×1.3m×1.2m(12m ground rail) |
Average welding efficiency | 0.3-0.5m/min(different weldingprocess, different speed) |

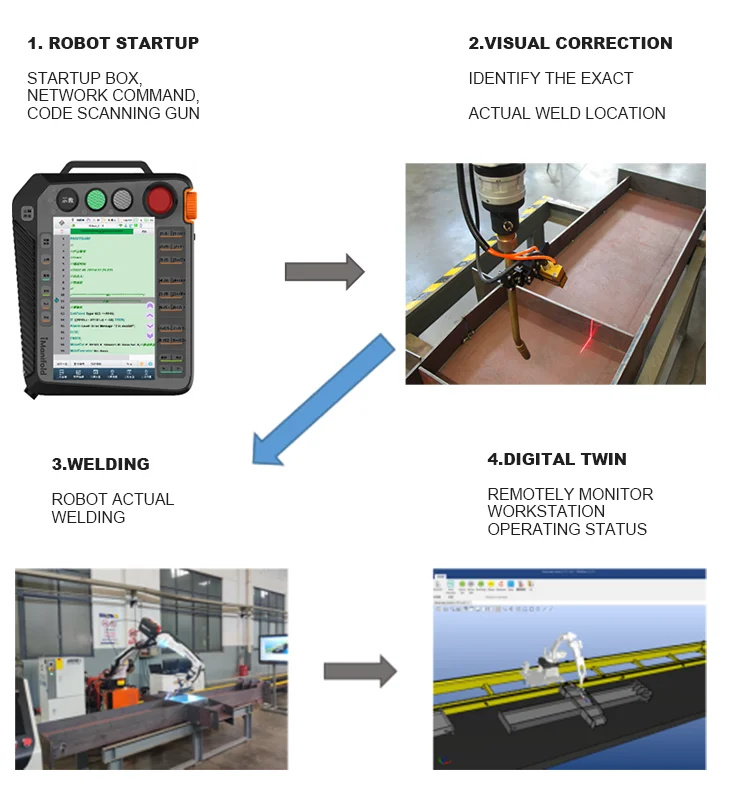

Robot Operation Process
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation

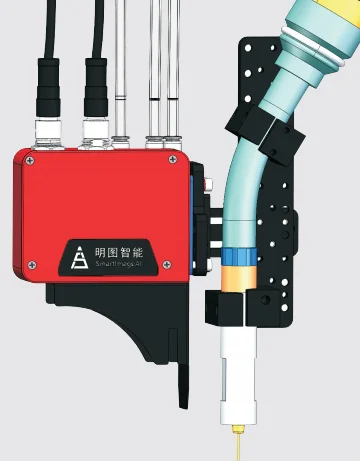

CP350V laser tracker
CP350V is an intelligent line scanning welding seam sensor. It obtains the contour information of the welding seam section through line laser scanning, and guides the robot or welding machine to automatically complete the welding. The image acquisition, processing and welding seam identification functions are completed inside the sensor without the need for an external computer. It has high integration and reduces the overall hardware cost of the system. Resistant to arc light and spatter, intelligently identifies weld seams, and is easy to operate. It has an exquisite structure, compact size, high accessibility, and rich types. It can be selected and used according to the application scenario, and the most suitable parameters can be customized. Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation

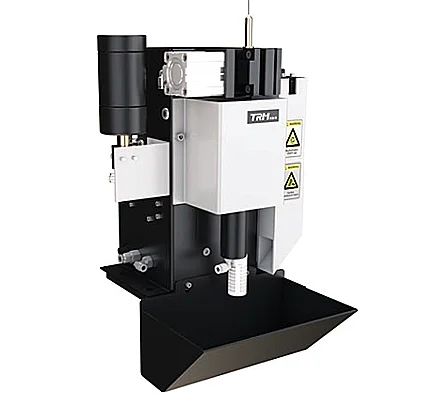

Gun Clearing System
The SC220A gun cleaning station is a device for cleaning robot welding guns. It is used to automatically clean the welding slag of
the welding gun during robot welding, automatically cut wires, and protect the welding gun nozzle and contact tip, extending the service life of the welding gun and saving money. Reduce consumable costs, maintain good welding quality, and improve welding
efficiency. Simple operation and easy to use.Advantages of gun cleaning stations: 1. The gun clearing time is short and the system
availability is high. 2. Automatically complete the gun cleaning process without manual operation. 3. Prevent quality problems
caused by contamination during welding. 4. Equipped with robot TCP calibration needle.
the welding gun during robot welding, automatically cut wires, and protect the welding gun nozzle and contact tip, extending the service life of the welding gun and saving money. Reduce consumable costs, maintain good welding quality, and improve welding
efficiency. Simple operation and easy to use.Advantages of gun cleaning stations: 1. The gun clearing time is short and the system
availability is high. 2. Automatically complete the gun cleaning process without manual operation. 3. Prevent quality problems
caused by contamination during welding. 4. Equipped with robot TCP calibration needle.
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation

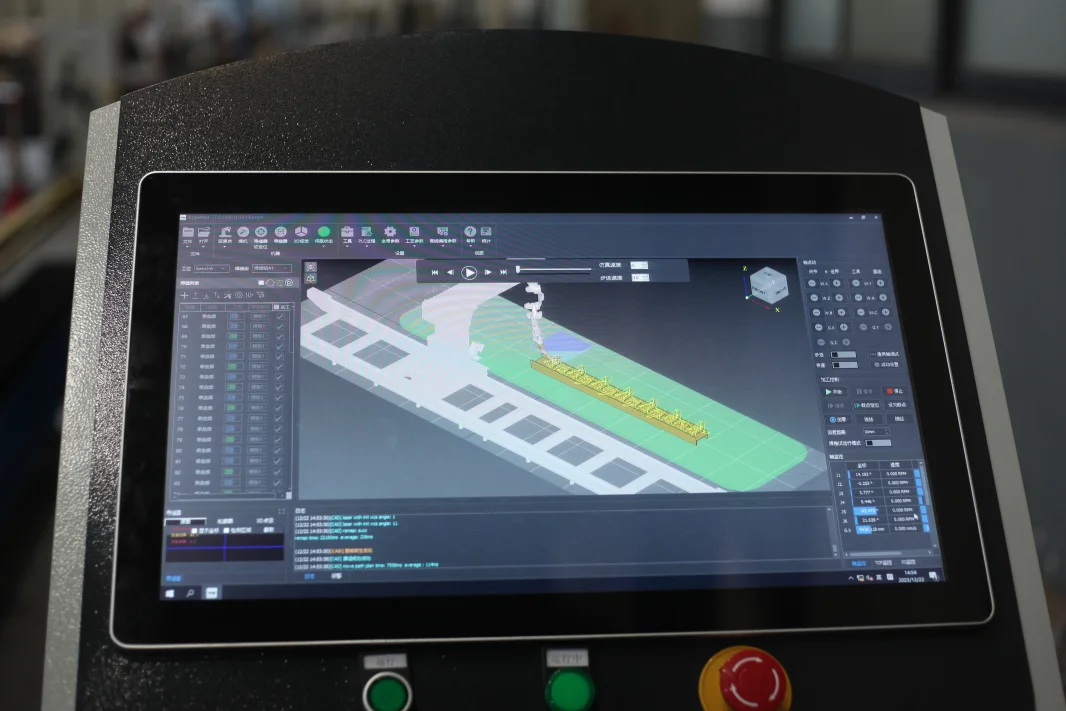

The software can automatically extract welds from drawings without weld marking, reducing the workload of manual participation. With the high-performance 3D engine and robot controller, the automatically created points are simulated and verified to avoid collisions in actual work.
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
Advantage
Advantage
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
Supports teaching-free for various products such as sandwich panels, truss beams, bracket, bridge partitions, and panel stands;
Supports teaching-free for various products such as sandwich panels, truss beams, bracket, bridge partitions, and panel stands;
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
There is no need to mark welds at the design stage, and the target weld position can be automatically extracted by importing 3D drawings;
There is no need to mark welds at the design stage, and the target weld position can be automatically extracted by importing 3D drawings;
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
No human intervention is required, the robot automatically completes actions such as zero return, transition, position finding, welding, counting, and gun cleaning;
No human intervention is required, the robot automatically completes actions such as zero return, transition, position finding, welding, counting, and gun cleaning;
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
No on-site operation is required, the program can be generated at any time and place, and remotely sent to the robot for production according to the specified time;
No on-site operation is required, the program can be generated at any time and place, and remotely sent to the robot for production according to the specified time;
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
Self-developed offline programming, 1:1 simulation of robot movements, avoids robot interference in advance and avoids collisions;
Self-developed offline programming, 1:1 simulation of robot movements, avoids robot interference in advance and avoids collisions;
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
Digital twin technology can display on-site robot trajectory, welding voltage, current, speed and other production information in real time.
Digital twin technology can display on-site robot trajectory, welding voltage, current, speed and other production information in real time.

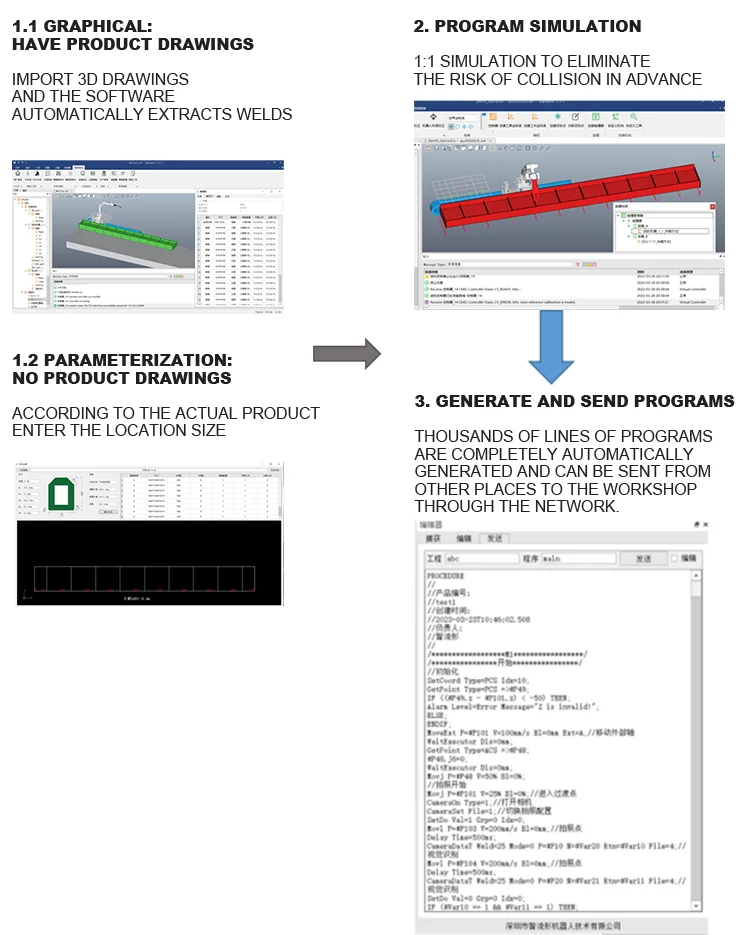

Software Operation Process
Main Products
Related Products
Customers of Zhou Xiang
Why Choose Us
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships. Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships. Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
We actively participate in and hold exhibitions, and reach friendly cooperation with foreign friends. Our cooperation is not only our progress but also the world's progress!
Our Service
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
2.Q: What are the payment terms?
A: L/C; T/T.
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
3.Q: How long is the delivery time?
A: 30 Days.
Integrated Cantilever Robot 7 Axis Robotic Arm Industrial Welding Workstation
4.Q:How long is the warranty period?
A: 1 Years.
Похожие товары
Робот OTC для дуговой сварки FD-V8 6-осевой сварочный робот-манипулятор со сварочным аппаратом DM350 и позиционером CNGBS автоматического сварочного робота
2 204 168,00 ₽ - 2 755 210,00 ₽
Автоматизированная сварочная Роботизированная рука с 7-осевым FD-V6S CNGBS Сварочный позиционер для автоматизации сварки
4 752 737,25 ₽ - 5 854 821,25 ₽
Оборудование для сварки проволоки HWASHI автоматическая корзина/проволочная сетка/линейная сварочная машина
2 204 168,00 ₽

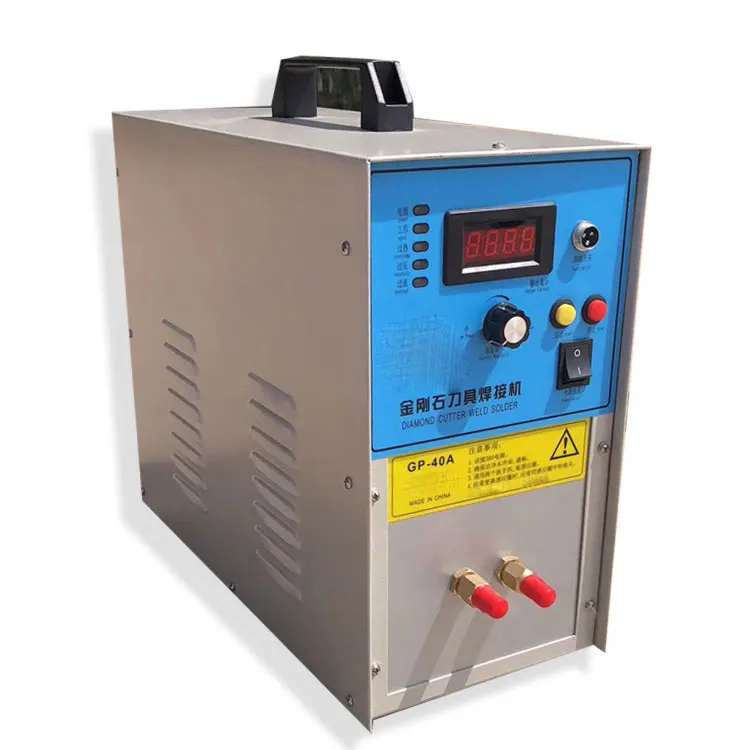

Индукционная полуавтоматическая Алмазная сегментная паяльная машина
