Механизм движения стрелок и часов длинный вал набор 22 мм для настенных
0,69-0,90 $
Замена 6168 часов Sangtai и длинная рука
- Категория: >>>
- Поставщик: Fuzhou Youfeng Import And Export Co. Ltd.Fuzhou Ltd.
Сохранить в закладки 1601034792716:
Описание и отзывы
Характеристики
Product Description
Highlights:
* Ideal to build your own clock
* Highly precision quartz movement
* Hundred different designs of hands
* Faster shipment (1-15 days )
* Long battery life (up to 1 years)
* Highly precision quartz movement
* Hundred different designs of hands
* Faster shipment (1-15 days )
* Long battery life (up to 1 years)
1. The clock movement machine has a spindle size from 12-23 mm, making it compatible with a wide range of clock hands.
2. Clock Movement Machine Size: 5.5 x 5.5 x 1.5 cm.
3. The machine is designed for use in clocks, ensuring reliable and accurate timekeeping ±30s/month.
4. The compact size of the machine makes it easy to install in a variety of clock cases.
5. The machine is easy to use and maintain, making it a practical choice for anyone looking to repair or replace a clock movement.
2. Clock Movement Machine Size: 5.5 x 5.5 x 1.5 cm.
3. The machine is designed for use in clocks, ensuring reliable and accurate timekeeping ±30s/month.
4. The compact size of the machine makes it easy to install in a variety of clock cases.
5. The machine is easy to use and maintain, making it a practical choice for anyone looking to repair or replace a clock movement.
6.The 6168S silent movement is not a little sound. It is impossible to realize a completely quiet.
7.It still be heard when it is working, because the gear will inevitably produce friction.
8.The hour pipe is the shaft the hour hand presses onto and the minute pipe is the shaft the minute hand presses on to
8.The hour pipe is the shaft the hour hand presses onto and the minute pipe is the shaft the minute hand presses on to
Important Note
A: pls order with shaft (12-23 mm available )/thread size (5-16 mm available )
B: Pls advise size of three (hour/minute/second )hands , color(black red silver gold and white also needed .thanks dear.
B: Pls advise size of three (hour/minute/second )hands , color(black red silver gold and white also needed .thanks dear.

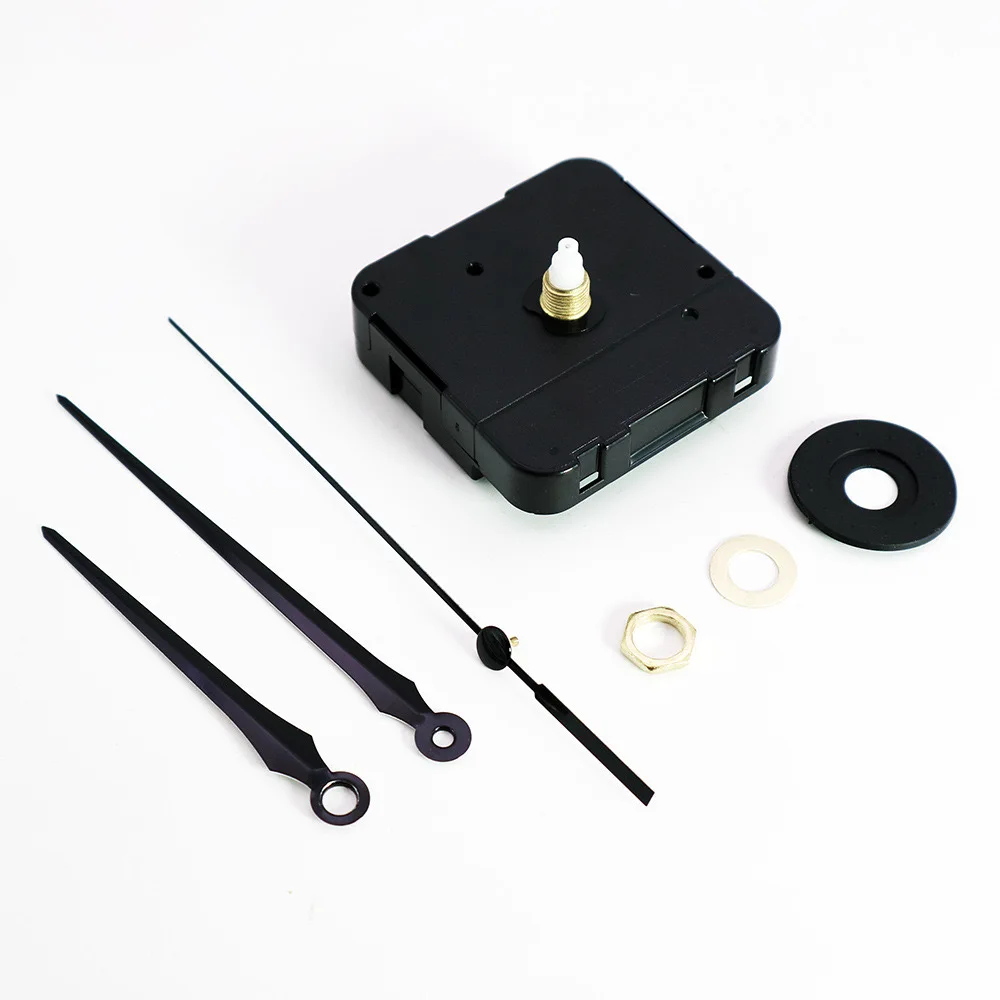

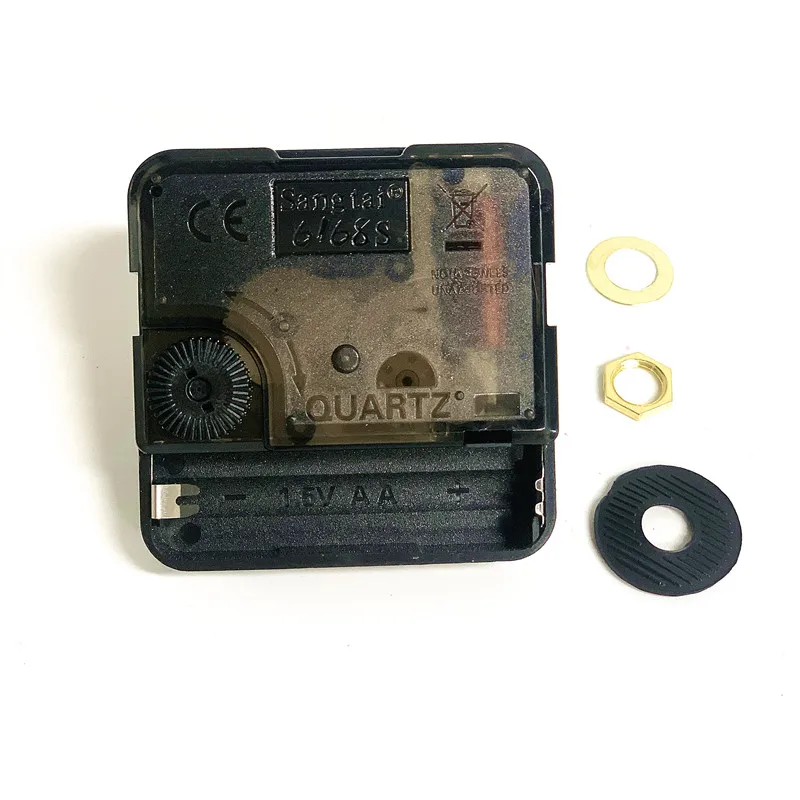

Shipment includes:
1PC x Clock movement
1PC x Hour hand
1PC x Minute hand
1PC x Second hand
1PC x Rubber washer
1PC x Metal washer
1PC x Metal nut
1PC x Hour hand
1PC x Minute hand
1PC x Second hand
1PC x Rubber washer
1PC x Metal washer
1PC x Metal nut
AA battery is not included
Size：56*56*16mm
Powered by AA battery (not include )
Thread length: 5-15 mm . Suitable for clock panel with a thickness not more than 2-13 mm
Powered by AA battery (not include )
Thread length: 5-15 mm . Suitable for clock panel with a thickness not more than 2-13 mm
Material: ABS
Item Number | 6168S | Style | Silent/Sweep/Non Ticking | ||
MOQ | 500pcs | Warranty | 24 months | ||
Battery | AA*1 no included | Guaranty | 12 months | ||
Torque | 180-230μM | Delivery Time | 1-15days | ||
Certificate | CE ROHS FCC | ||||
Shaft Details
Shaft | A（Thread) | D |
12 | 5.3 | 12.5 |
13 | 5.6 | 12.9 |
14 | 7 | 13.9 |
16.5 | 8.1 | 16.3 |
18.5 | 9.5 | 18.7 |
20 | 12 | 20.2 |
22 | 14 | 22.4 |
23 | 16 | 23.4 |
Important :
*12 mm shaft, 5.3 mm thread is suitable for 1-2 mm /1/24-2/25 inch clock plate /panel
*13 mm shaft, 5.6 mm thread is suitable for 1-2 mm /1/24-2/25 inch clock plate /panel
*14 mm shaft, 7 mm thread is suitable for 3-4 mm /2/25- 3/25 inch clock plate /panel
*16 mm shaft, 8.1 mm thread is suitable for 4-5 mm /4/25-1/5 inch clock plate /panel
*18 mm shaft, 9.5 mm thread is suitable for 5-6 mm / 1/5-6/25 inch clock plate /panel
*20 mm shaft, 12 mm thread is suitable for 8-9 mm /8/25-9/25 inch clock plate /panel
*22 mm shaft, 14 mm thread is suitable for 10- 11 mm /10/25-11/25 inch clock plate /panel
*23 mm shaft, 16 mm thread is suitable for 12- 13 mm /12/25-13/25 inch clock plate /panel
Pls carefully read these information and leave messages about shaft/thread size when you place order,many thanks ..
*12 mm shaft, 5.3 mm thread is suitable for 1-2 mm /1/24-2/25 inch clock plate /panel
*13 mm shaft, 5.6 mm thread is suitable for 1-2 mm /1/24-2/25 inch clock plate /panel
*14 mm shaft, 7 mm thread is suitable for 3-4 mm /2/25- 3/25 inch clock plate /panel
*16 mm shaft, 8.1 mm thread is suitable for 4-5 mm /4/25-1/5 inch clock plate /panel
*18 mm shaft, 9.5 mm thread is suitable for 5-6 mm / 1/5-6/25 inch clock plate /panel
*20 mm shaft, 12 mm thread is suitable for 8-9 mm /8/25-9/25 inch clock plate /panel
*22 mm shaft, 14 mm thread is suitable for 10- 11 mm /10/25-11/25 inch clock plate /panel
*23 mm shaft, 16 mm thread is suitable for 12- 13 mm /12/25-13/25 inch clock plate /panel
Pls carefully read these information and leave messages about shaft/thread size when you place order,many thanks ..
Clock Hand Catalog
Remark :
A. Pls advise size of three (hour/minute/second )hands ,
B. Color(black red silver gold and white avaialble )
C. Item number
Installation Instructions
Remark :
First, gently press the hour hand
Pls keep three hands parallel distance, do not rub it
Pls do not make much pressure in the three hands during installation, otherwise they will be bent .
Pls pay more attention to the pointer ,which must be aligned at 12 o'clock
Pls keep three hands parallel distance, do not rub it
Pls do not make much pressure in the three hands during installation, otherwise they will be bent .
Pls pay more attention to the pointer ,which must be aligned at 12 o'clock
Certifications
CE Ceriticate
ROHS Ceriticate
FCC
Packing & Delivery
Truck ,Train ,Sea, Express (TNT FEDEX UPS ,DHL ARAMEX
Shaft (mm) | Quantity (pcs) | Carton Size (cm) | G.W (kgs) | N.W (kgs) |
6-9 | 500 | 37*37*35 | 13.8 | 13 |
12-16 | 500 | 37*37*40 | 14.7 | 13.7 |
18-22.5 | 500 | 49*37*44 | 15.6 | 14.6 |
12-16 | 100 | 38*39*13 | 3.4 | 3 |
18-22 | 100 | 49*38*13 | 3.5 | 3 |
Company Profile
Fuzhou YouFeng Import And Export CO., LTD is specialized in the repair and replacements parts for wall clocks .Our factory was founded in 1993 , over 30 years production experience now , we are located in Fujian with 10000 square meters , 3 floors as our working area , 5 production lines available to faster all production orders .We have been committed to applying our production lines and advanced technological to offer high-quality and updating designs to our clients . 30+ advanced injected molding machines, automatic former machine and center shaft machine to offer reliable clock movements, 100% COB testing, 24H 48H 72H movements quality testing before packing to make quality sure .All our goods are got CE ROHS FCC certificate approved. In order to make your purchase easier and happier ,a wide range of clock replacements (clock movement, clock hand, pendulum, DIY wall clock, clock movement holder,clock tools and so on )offered in our company
Almost working all European countries we are exporting to, like (Ukraine,UK Germany ,France Holland and Belgium and so on ), which takes around our 40 %business . Others 20% is in North American, 20% of Asia , 10%of Oceania ,and the rest 10% is for Africa .
Youfeng continues to grow it's customer base ,product offering and services . You can pop into any of our sites to get everything you want
Almost working all European countries we are exporting to, like (Ukraine,UK Germany ,France Holland and Belgium and so on ), which takes around our 40 %business . Others 20% is in North American, 20% of Asia , 10%of Oceania ,and the rest 10% is for Africa .
Youfeng continues to grow it's customer base ,product offering and services . You can pop into any of our sites to get everything you want
FAQ
Q .What is the MOQ ?
A. 100pcs for stock items, otherwise pls make more than 500pcs order
Q What is the production time ?
A. Order quantity less than 100K ,around 15 days to prepare . 15 to 25 days required if quantity over 100K .
Q.Are free samples provided ?
A.Yes, we would more love to help make testing before bulk order .
Q.What kind terms of payment accepted?
A.T/T ,Western Union PayPal , Alibaba Trade Assurance ,D/P,D/A,LC at sight ,Money Gram,Alipay ,Wechat.
Q.How to make sure quality under control ?
A.All products are 100% automatically tested before being packing
Q.How to do shipment ?Any options ?
A. DHL TNT FedEx, Alibaba shipment, by sea ,by air,by train.by truck
Q.Is OEM & OEM accepted ?
A.Yes, as longs as art drawing can be shared , but MOQ is 50K .
A. 100pcs for stock items, otherwise pls make more than 500pcs order
Q What is the production time ?
A. Order quantity less than 100K ,around 15 days to prepare . 15 to 25 days required if quantity over 100K .
Q.Are free samples provided ?
A.Yes, we would more love to help make testing before bulk order .
Q.What kind terms of payment accepted?
A.T/T ,Western Union PayPal , Alibaba Trade Assurance ,D/P,D/A,LC at sight ,Money Gram,Alipay ,Wechat.
Q.How to make sure quality under control ?
A.All products are 100% automatically tested before being packing
Q.How to do shipment ?Any options ?
A. DHL TNT FedEx, Alibaba shipment, by sea ,by air,by train.by truck
Q.Is OEM & OEM accepted ?
A.Yes, as longs as art drawing can be shared , but MOQ is 50K .
