Zhengzhou Hexi машина для резки соломы цена кукурузы пшеницы риса хлопка стебель
61 622,41 ₽ - 72 587,25 ₽

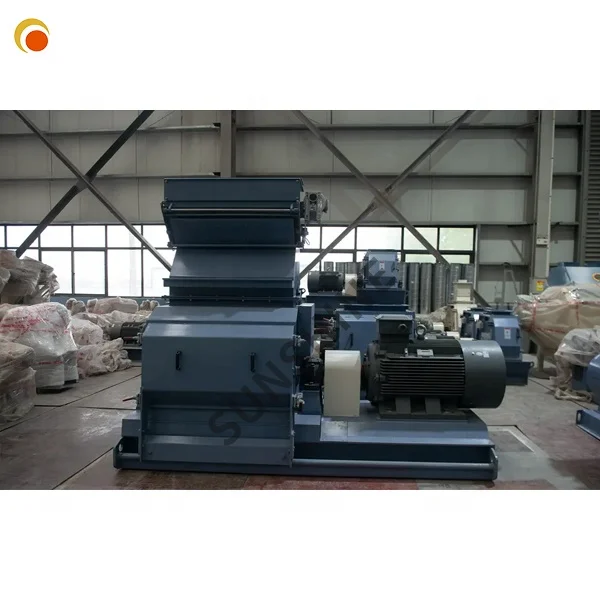

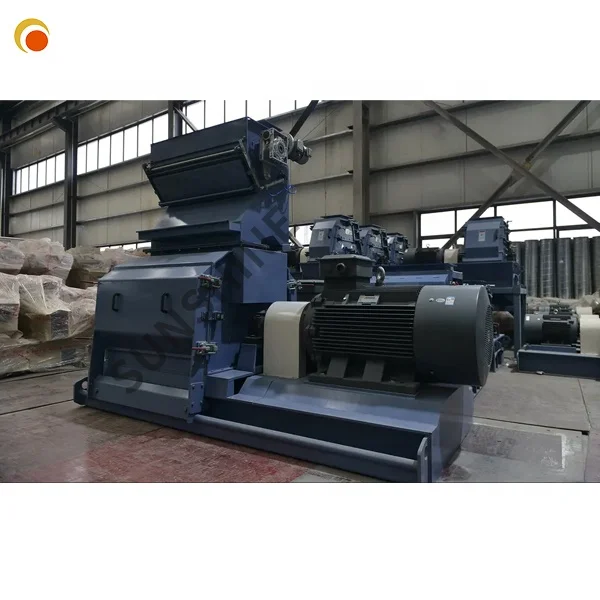

Оптовая цена горизонтальная корма вертикальная молотковая дробилка для измельчения кукурузы
- Категория: >>>
- Поставщик: Henan Sunshine Industry Co. Ltd.
Сохранить в закладки 1601034902128:
Описание и отзывы
Характеристики
Products Description
Advantages Of Crusher

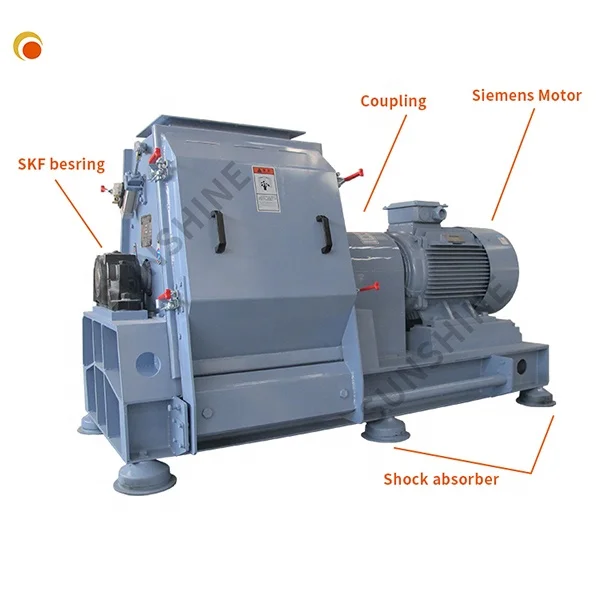

Siemens motor&SKF Bearing
High output and low energy consumption
High output and low energy consumption
*Advanced water droplet crushing chamber design and reasonable secondary crushing mechanism increase the output by 20% compared with other models in the same period;
*Wear-resistant tooth plates are installed on both sides of the feed inlet to effectively disrupt the material circulation, increase the impact, rubbing, tearing, and shearing of the material, and improve the crushing efficiency;
*Set up an air supply device at the end of the shaft to supplement the air volume in the crushing chamber and destroy the crushing circulation;
*Wear-resistant tooth plates are installed on both sides of the feed inlet to effectively disrupt the material circulation, increase the impact, rubbing, tearing, and shearing of the material, and improve the crushing efficiency;
*Set up an air supply device at the end of the shaft to supplement the air volume in the crushing chamber and destroy the crushing circulation;
Ultra stable and durable
*The base is integrally milled to ensure the stability of the overall operation;
*The hammer is made of special alloy steel and surface-hardened with suspended tungsten carbide to achieve higher strength and durability;
*High-precision dynamic balance detection rotor, smoother operation and lower noise;
*Test machines one by one, the running time is >45min, the stability is in accordance with national standards, and the vibration speed can reach 2-4mm/s (Chinese standard ≤16mm/s).
*The base is integrally milled to ensure the stability of the overall operation;
*The hammer is made of special alloy steel and surface-hardened with suspended tungsten carbide to achieve higher strength and durability;
*High-precision dynamic balance detection rotor, smoother operation and lower noise;
*Test machines one by one, the running time is >45min, the stability is in accordance with national standards, and the vibration speed can reach 2-4mm/s (Chinese standard ≤16mm/s).
Easy to operate and more user-friendly
*The movable operating door and linkage screen pressing mechanism make operation and maintenance more convenient;
*Equipped with safety interlocking device to protect personal safety;
*Various feeding devices such as spirals and impellers can be selected according to actual needs.
*The movable operating door and linkage screen pressing mechanism make operation and maintenance more convenient;
*Equipped with safety interlocking device to protect personal safety;
*Various feeding devices such as spirals and impellers can be selected according to actual needs.
The water drop hammer crusher adopts direct transmission, scientific and reasonable hammer screen gap, changing the gap can carry out coarse and fine crushing, and the secondary impact technology of the crushing chamber; the feeder of this machine is equipped with a self-removing iron device; it is widely used In the large and medium-sized aquatic or poultry feed pellet manufacturing industry.

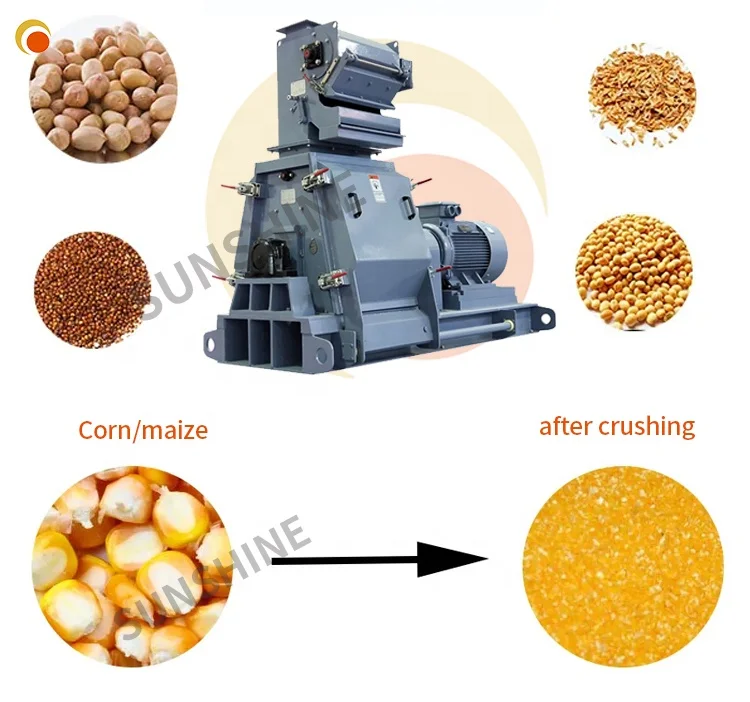

Common raw materials for water droplet hammer crushers are grains such as wheat, corn, rice, soybeans, peanuts, millet or other solid raw materials such as bones, dried meat, etc. The SFSP water droplet crusher is equipped with movable screen tooth plates to meet different feed raw material fineness requirements.

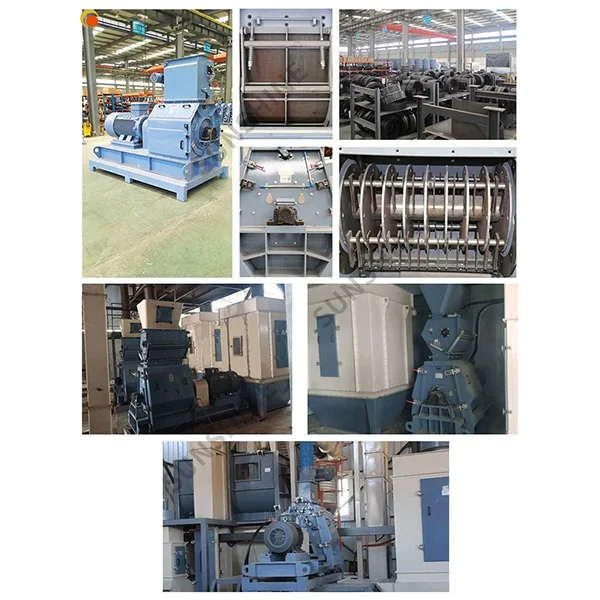

Manufacturing Technique
Product Paramenters
Introduction To The Important Parts Of water Droplet Crusher
Impeller feeder: consists of feed port, impeller, shell, impeller transmission device, air inlet, magnetic plate, discharge port, etc. The impeller transmission device uses a variable frequency speed motor to adjust the impeller speed to change the feeding amount. The magnetic plate can automatically absorb magnetic metal impurities in the material. After the work is completed, the magnetic plate can be manually opened and cleaned. You can also use a cylinder to push the magnetic plate for automatic cleaning. The impeller feeder is easy and reliable to adjust, and the feed is uniform and stable.
Hammer: Hammer processing process: After carburizing and quenching of low carbon steel, heat treatment of medium carbon steel, the working edges and corners of the hammer are overlayed with wear-resistant tungsten carbide alloy, with a thickness of 5-6mm; the wear of the hammer has positional differences, and the hammers on both sides It wears faster than the hammer in the middle because the material on both sides flows slower than the material in the middle and the material layer is thicker.
Screen mesh: Screen processing process: It is punched from low carbon steel plate and carbonitrided to improve its surface hardness and service life.
Tooth plate: The function of the tooth plate is to enhance the collision and rubbing effect on the materials. At the same time, it can block the movement of the material circulation layer in the crushing chamber and reduce its speed, especially for materials with many fibers, high willfulness and high water content. The plate effect is more obvious.
Hammer: Hammer processing process: After carburizing and quenching of low carbon steel, heat treatment of medium carbon steel, the working edges and corners of the hammer are overlayed with wear-resistant tungsten carbide alloy, with a thickness of 5-6mm; the wear of the hammer has positional differences, and the hammers on both sides It wears faster than the hammer in the middle because the material on both sides flows slower than the material in the middle and the material layer is thicker.
Screen mesh: Screen processing process: It is punched from low carbon steel plate and carbonitrided to improve its surface hardness and service life.
Tooth plate: The function of the tooth plate is to enhance the collision and rubbing effect on the materials. At the same time, it can block the movement of the material circulation layer in the crushing chamber and reduce its speed, especially for materials with many fibers, high willfulness and high water content. The plate effect is more obvious.
Function Of Water Droplet Crusher
1. Increase the specific surface area of feed and improve the utilization rate of animals.
a. Increase the contact area
betweendigestive enzymes and raw materials.
betweendigestive enzymes and raw materials.
b. Reduce chewing energy consumption during animal feeding and help improve feed compensation.
c. Crushed raw materials are easy to mature during the granulation and tempering stages.
2. Improve the quality of subsequent processes and improve work efficiency.
a. The material size is the same or similar, and the mixing uniformity is higher.
b. Crushed feed can greatly reduce power consumption during the pelleting process.
b. Crushed feed can greatly reduce power consumption during the pelleting process.
Screen Configuration-Crusher
① Preliminary feed for broiler chickens and early broiler ducks: medium 2. 0mm ~ medium 2. 5mm mesh;
② Broilers use mid-term and late-stage chicken feed, and broiler ducks use mid-term and late-stage duck feed: medium 2. 5mm ~ medium 3. 5mm mesh;
③Suckling pig feed (before 30 kg): medium 0.8mm ~ medium 2.0mm mesh;
④Medium and large pig feed (30kg~slaughter): Medium 1.5mm~Medium 2.5mm mesh;
⑤Fry feed (0~50g): Medium 0.8mm~Medium 1.00mm mesh;
⑥Small fish feed (50g~250g): Medium 1.00mm~Medium 1.2mm mesh;
⑦ Large fish feed (more than 250 grams): medium 1.2mm ~ medium 1.5mm mesh;
⑧Egg and chicken material: Medium 2. 00mm ~ Medium 2. 5mm mesh;
⑨Egg and laying hen feed: medium 3.0mm ~ medium 4.0mm mesh.
② Broilers use mid-term and late-stage chicken feed, and broiler ducks use mid-term and late-stage duck feed: medium 2. 5mm ~ medium 3. 5mm mesh;
③Suckling pig feed (before 30 kg): medium 0.8mm ~ medium 2.0mm mesh;
④Medium and large pig feed (30kg~slaughter): Medium 1.5mm~Medium 2.5mm mesh;
⑤Fry feed (0~50g): Medium 0.8mm~Medium 1.00mm mesh;
⑥Small fish feed (50g~250g): Medium 1.00mm~Medium 1.2mm mesh;
⑦ Large fish feed (more than 250 grams): medium 1.2mm ~ medium 1.5mm mesh;
⑧Egg and chicken material: Medium 2. 00mm ~ Medium 2. 5mm mesh;
⑨Egg and laying hen feed: medium 3.0mm ~ medium 4.0mm mesh.
Product packaging
Company Profile
Henan Sunshine Industry Co.,Ltd is a manufacturing enterprise,integrating scientific research,production and marketing.The main products are feed pellet machine and feed pellet production line,fish feed extruder machine.Our company regards the product quality as the life of our exterprise.We have ISO,CE,SGS certificate.Our pellet machines are the recommended products in China machinery industry.At the same time, we are also introducing international advanced technologies and processes, coupled with a comprehensive and complete modern production operation management system. High-quality requirements, excellence in manufacturing, and long-term and extensive technical experience have continuously improved the quality of our company's products and services. All products and projects can run effectively, stably and reliably,Win a great reputation in domestic and abroad.We have exported more than 100countries like USA,Ecuador,Peru, Germany，Mexico, Canada, Spain, Tanzania, Saudi Arabia，Russia, Singapore, Thailand, India etc.
Quality is life,Efficiency is guarantee,service is foundation,Innovate is our motive power,reputation is premise,Brand is target.
Quality is life,Efficiency is guarantee,service is foundation,Innovate is our motive power,reputation is premise,Brand is target.
FAQ
Q:I know little for feed machine and production line , what should i do?
A:please tell us your requirement, such as what kind of feed you want produce, the output you want per hour, how many raw materials you use and so on, we will design the flow diagram for you, and further our engineer will designer the whole feed factory for you depend on your site.
Q:our worker can not know how to operation the production line, what should i do?
A:we has installation and after sale service team, our engineer can go to give customer installation guide. If customer need, our whole engineer team also go to customer's country.
Q:Whether you could make our brand on your products?
A.Yes. We can print your Logo on both the products and the packages.
Q:Whether you could make your products by our color?
A;Yes, The color of products can be customized.
Q:our worker can not know how to operation the production line, what should i do?
A:we has installation and after sale service team, our engineer can go to give customer installation guide. If customer need, our whole engineer team also go to customer's country.
Q:Whether you could make our brand on your products?
A.Yes. We can print your Logo on both the products and the packages.
Q:Whether you could make your products by our color?
A;Yes, The color of products can be customized.
Похожие товары
Экструдер для производства соевых бобов
131 578,08 ₽ - 164 472,60 ₽

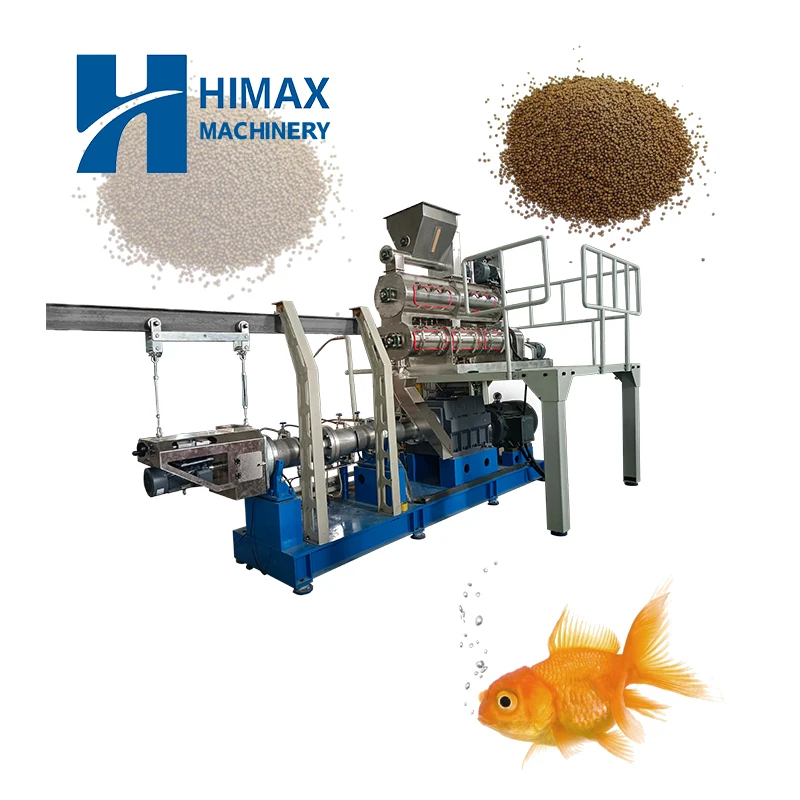

Многофункциональное оборудование для производства плавающих кормов рыб
877 187,20 ₽ - 2 192 968,00 ₽
Низкая цена крупный рогатый скот курица птица корова рыба свинья кормовое зерно кукуруза SFSP66 молотковая мельница
932 011,40 ₽ - 975 870,76 ₽
1-2 тонны в час экструдер для корма рыбы машина производства кормов воды цена
1 370 605,00 ₽ - 3 596 467,52 ₽

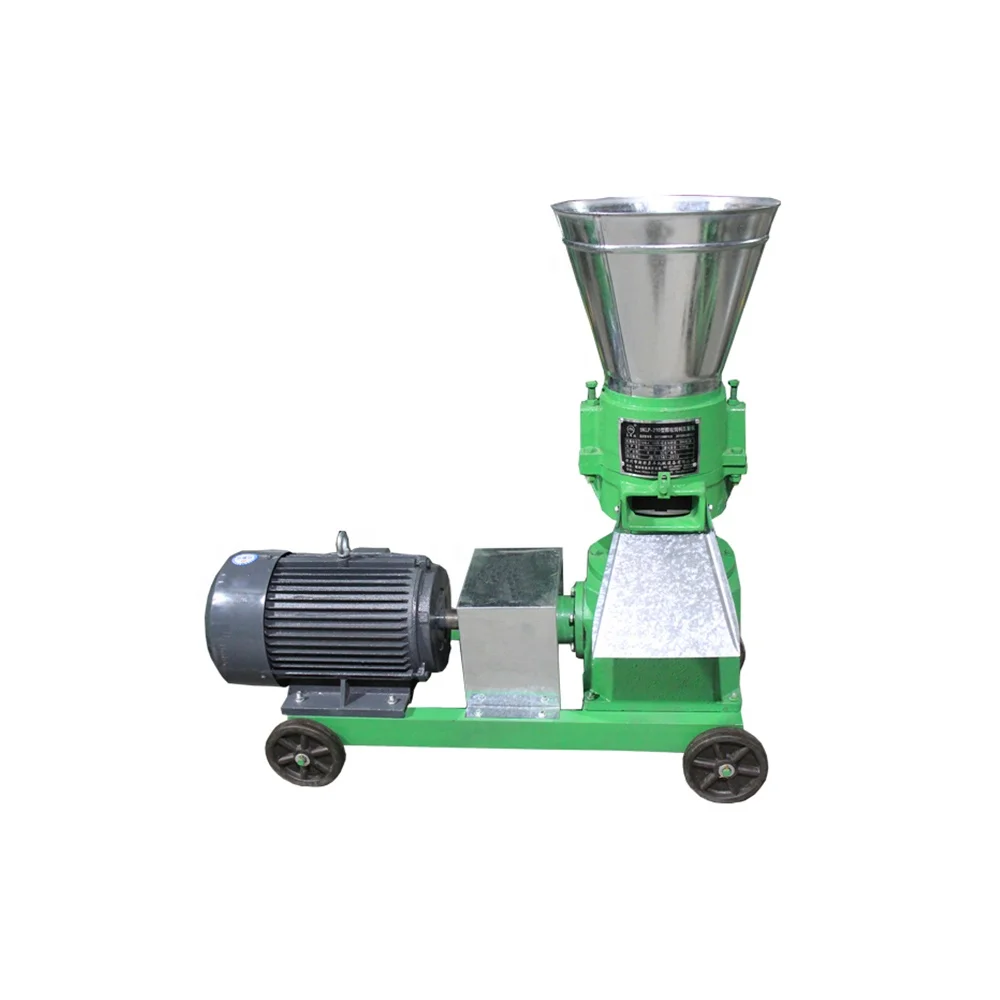

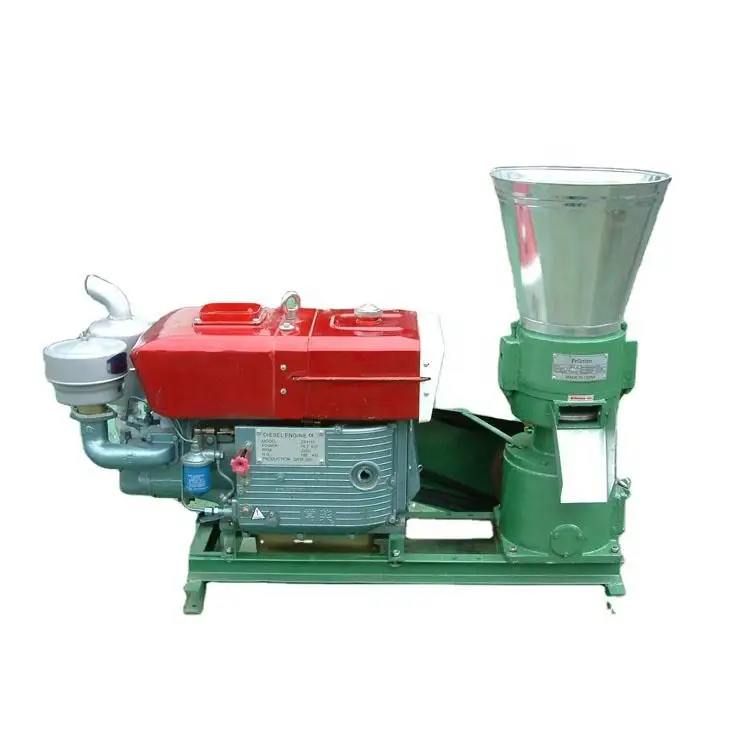

Дизельный Двигатель Машина для гранулирования пластиковых древесных грануляторов машина обработки кормов с четырьмя роликами животных
208 331,96 ₽ - 274 121,00 ₽

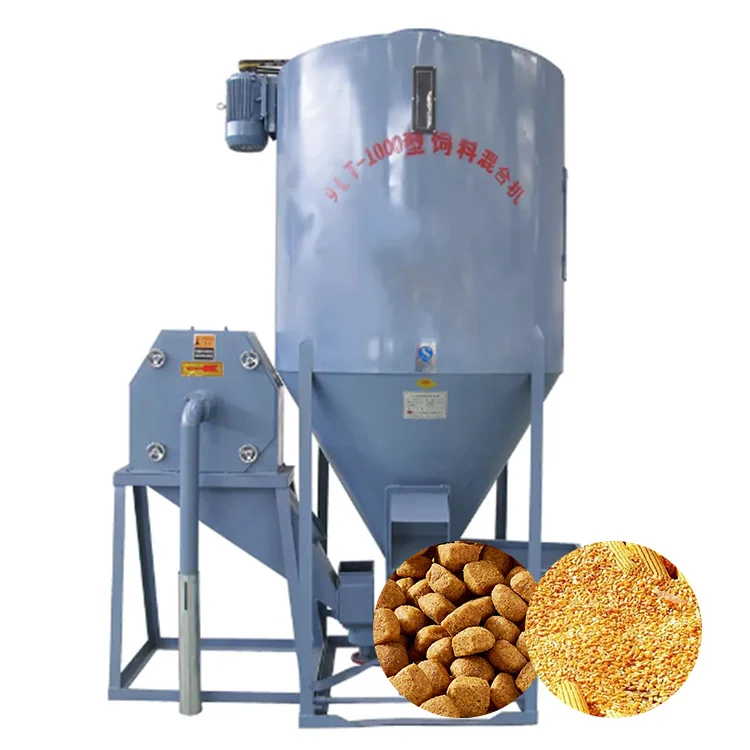

Интегрированная дробилка машина для смешивания кормов птицы вертикальная производства гранул
