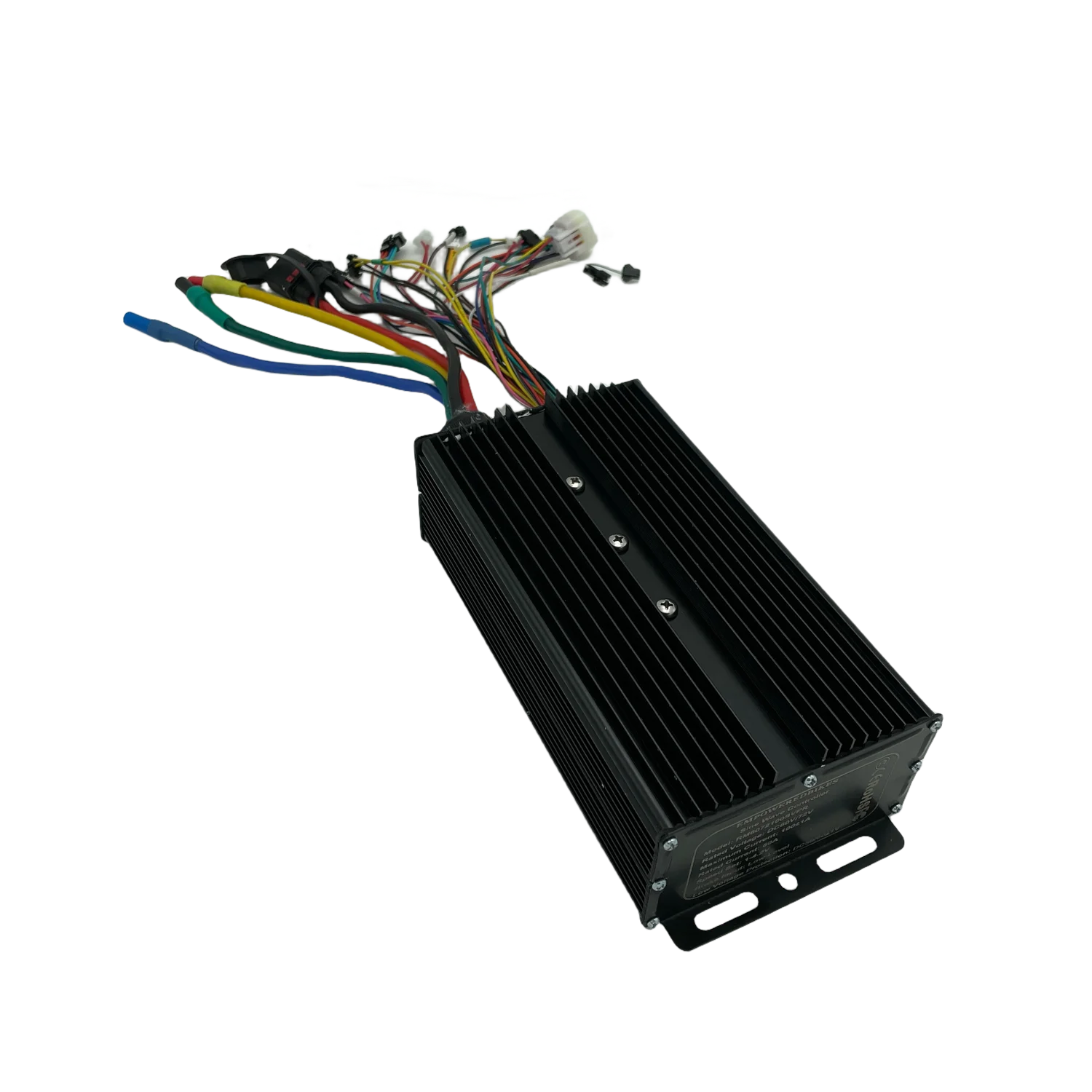

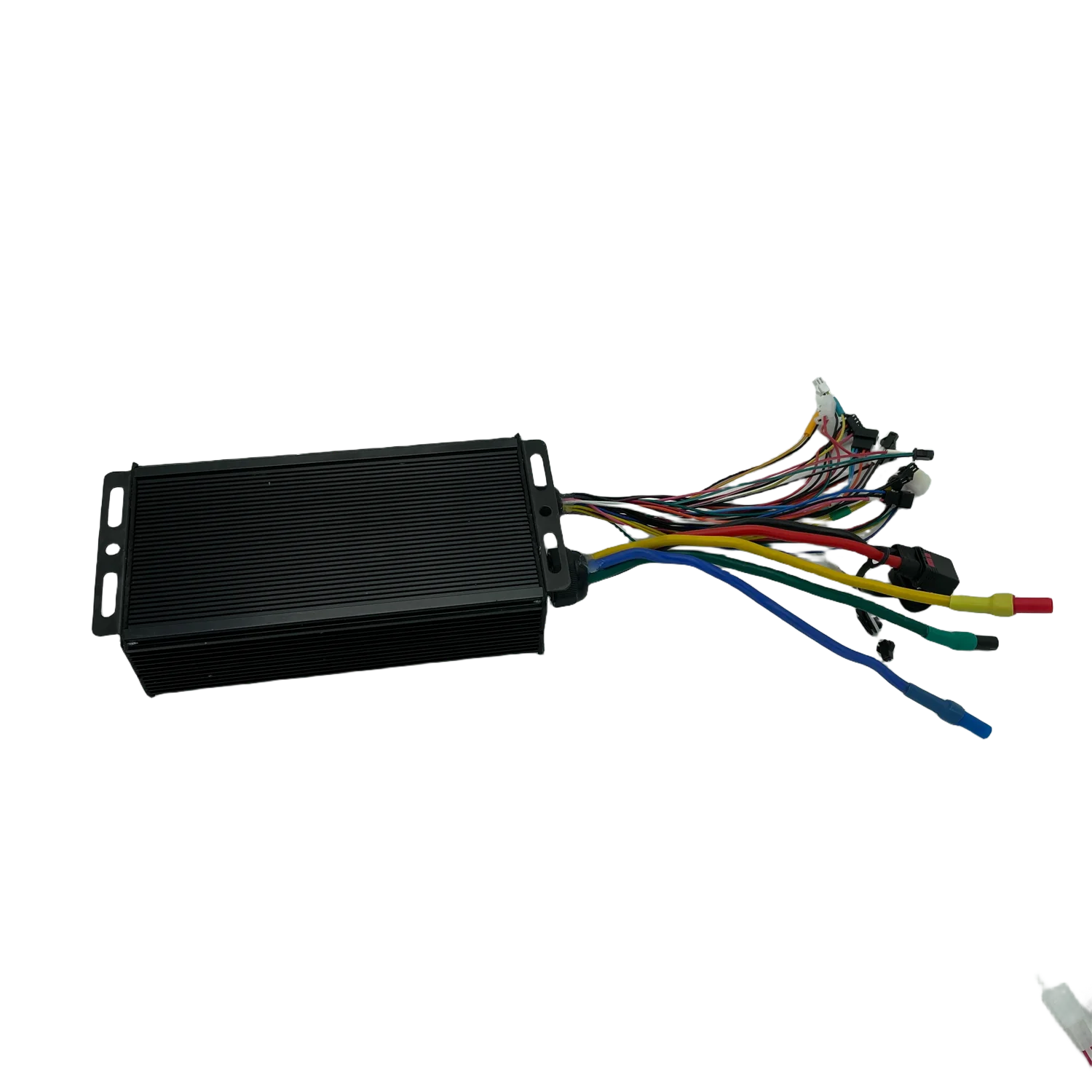

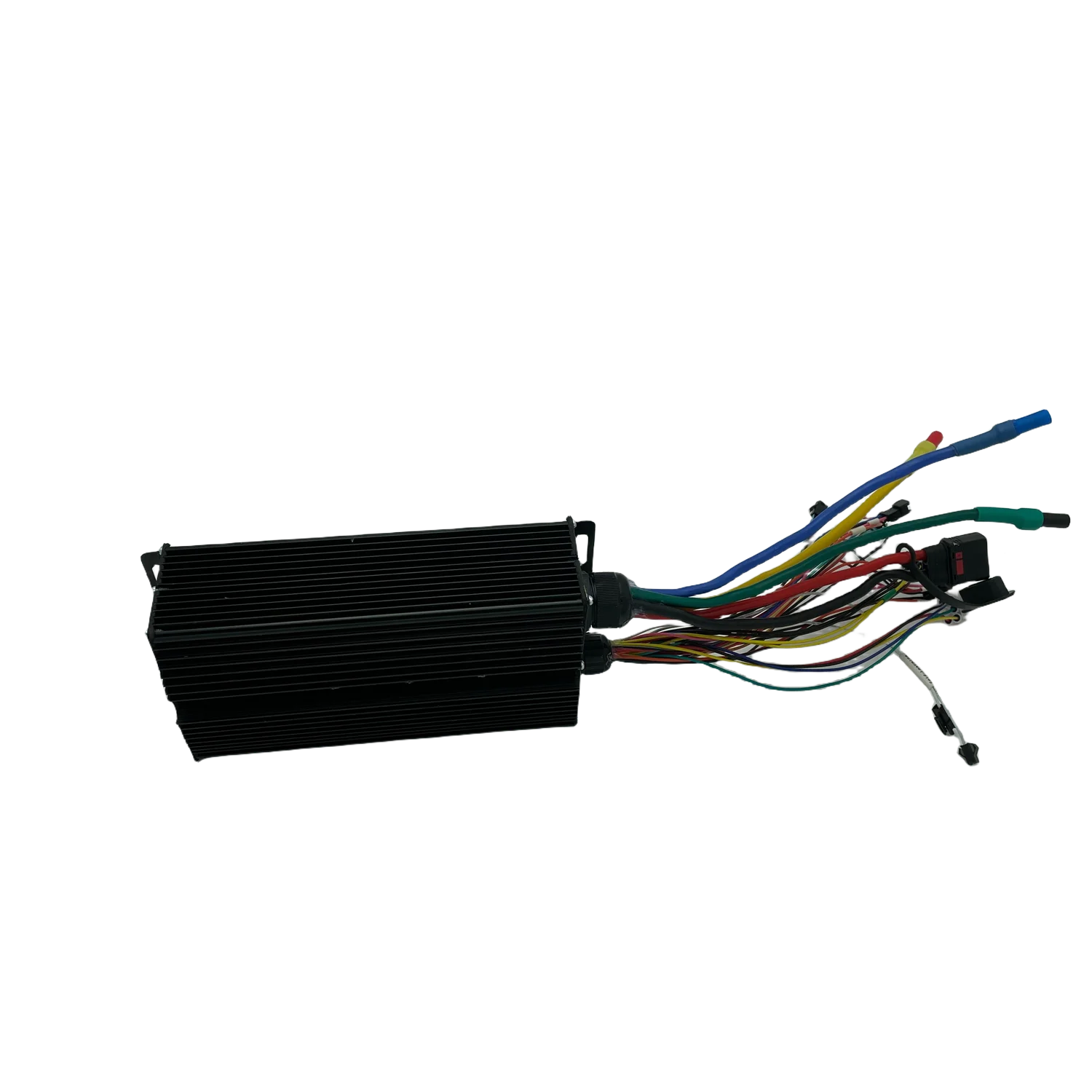

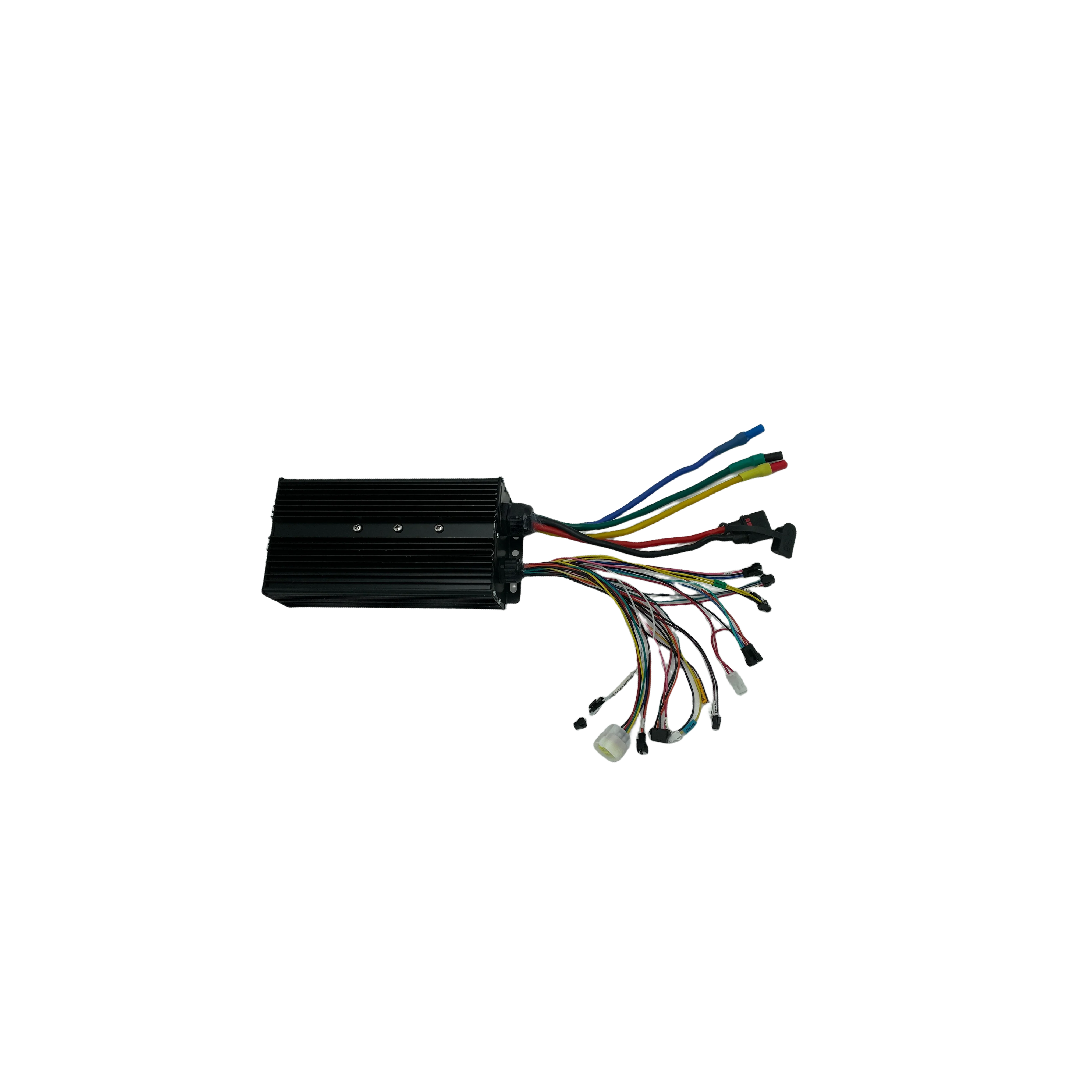

Rrisunmotor 100 А интеллектуальный мощный контроллер синусоидальной волны 60 В 72 Универсальный 4000 Вт 5000 Вт для электрического велосипеда
- Категория: >>>
- Поставщик: Shanghai Leishun Industry Co. Ltd.
Сохранить в закладки 1601035261679:
Описание и отзывы
Характеристики
Intelligent Sine Wave 60-72V 100A 4000W-5000W eBike Controller + Color LCD 36V 48V 60V 72V Universal for eBike Electric Bike
Very important Notice:
This controller can only work without display or with our display, please never use it with your own display (because program is different)
Why Self-learning Controller?
Self-learning Function:
(1). Wrong color wires combination of 5-hall sensor wires (But please ensure hall sensor is good, red and black hall sensor wires must be connected correctly) between motor and controller, doesn’t matter, self-learning process can correct it!
(2). Wrong color wires combination of 3-phase wires between motor and controller, doesn’t matter, self-learning process can correct it!

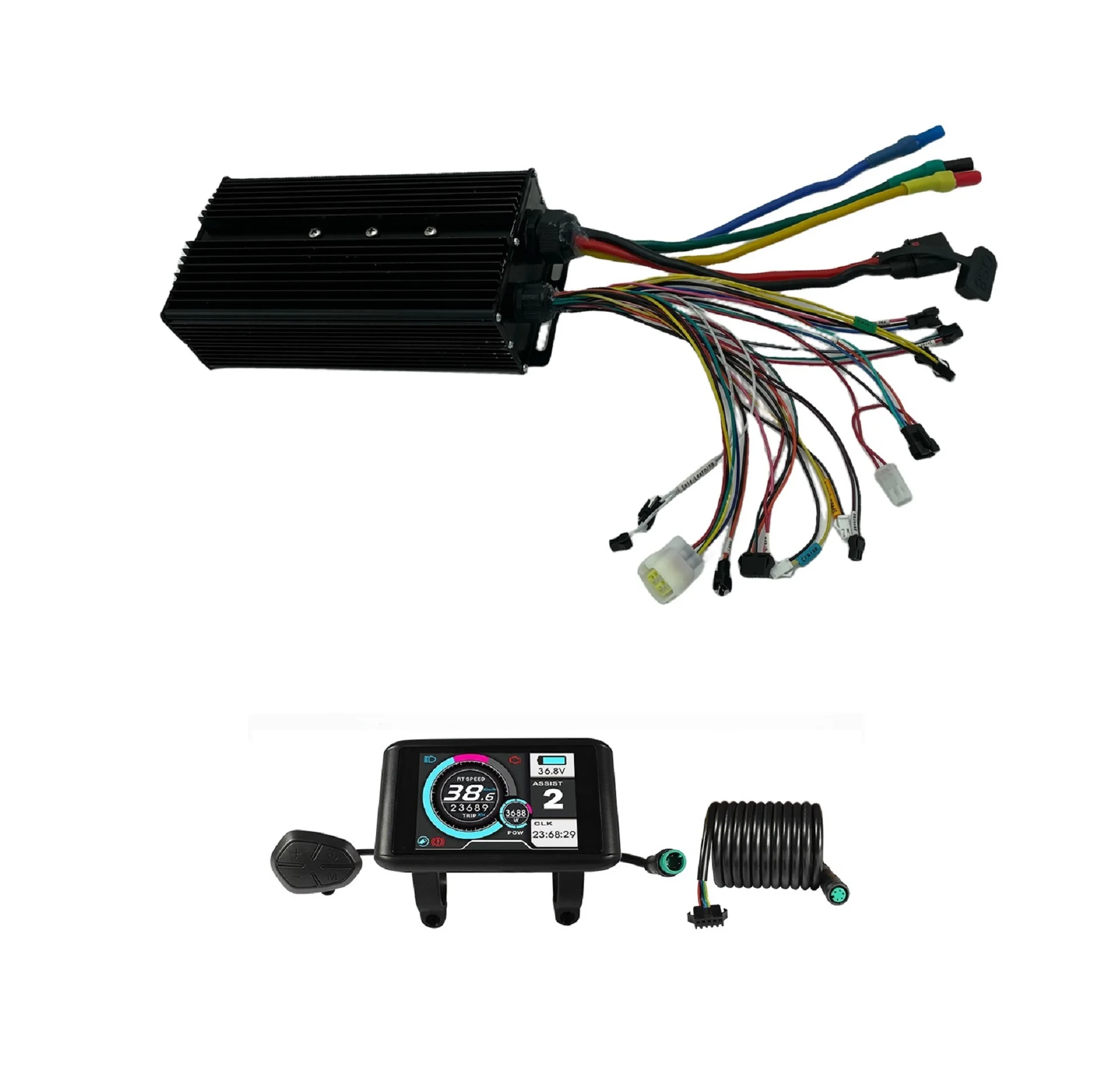

Parts Including:
1. 24 MOSFET 60V 72V Universal Voltage 4000W-5000W Intelligent Sine Wave Controller
2. XT150 Male Connectors x 3pcs, QS8 Female Connector x 1pc
3. 36V, 48V, 52V, 60V, 72V UKC1 Colorful Display (Optional)
Advantage:
1. Sine Wave Controller which support self-learning and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2. Universal Input Voltage Range: 60V/72V
3. Work with or without display
4. Parameter setting via display
5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
6. Multi functions: Work with hall sensor mode or non-hall mode, smart match with different motor, 3/5/9-speed level for throttle and PAS, Current limit, Speed limit, Reverse, Push Assistant, Anti-thief, Regenerative Braking (Can set different level: Off, Standard, Weak, Strong), Speed detecting (Magnet quantity simulated or internal speed sensor) and etc.
7. Best heat sinking with Aluminium Case
8. Black anodized Aluminium Controller Case against scratch
Technical Data:
General Specification:
1. Rated Power: 60V 3000W/ 72V 3600W
2. Peak Power: 60V 6000W/ 72V 7200W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. 3-Phase Connectors: XT150 Female Plugs
7. Power Input Connector: QS8 Male Plug
8. 3-Phase and Power Input Cable Size: 8AWG (8mm2)
9. Size: 252x121x74mm
10. Net Weight: 1900g
11. Waterproof Grade: IP65
LCD Specification: 3.5 inch IPS screen
1) Input Voltage: 24V/36V/48V/52V/60V/72V
2) Rated operating power: 1W
3) Max operating power: 5W
4) USB charging port: 5V 500mA
5) Off leakage current: < 1uA
6) Support current to controller: 100mA
7) Size: 111.1*66.8*82.8mm
8) Waterproof grade: IP65
9) Operating temperature: -20~70℃,
10) Storage temperature: -30~80℃
Very important Notice:
This controller can only work without display or with our display, please never use it with your own display (because program is different)
Why Self-learning Controller?
Self-learning Function:
(1). Wrong color wires combination of 5-hall sensor wires (But please ensure hall sensor is good, red and black hall sensor wires must be connected correctly) between motor and controller, doesn’t matter, self-learning process can correct it!
(2). Wrong color wires combination of 3-phase wires between motor and controller, doesn’t matter, self-learning process can correct it!
Parts Including:
1. 24 MOSFET 60V 72V Universal Voltage 4000W-5000W Intelligent Sine Wave Controller
2. XT150 Male Connectors x 3pcs, QS8 Female Connector x 1pc
3. 36V, 48V, 52V, 60V, 72V UKC1 Colorful Display (Optional)
Advantage:
1. Sine Wave Controller which support self-learning and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2. Universal Input Voltage Range: 60V/72V
3. Work with or without display
4. Parameter setting via display
5. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
6. Multi functions: Work with hall sensor mode or non-hall mode, smart match with different motor, 3/5/9-speed level for throttle and PAS, Current limit, Speed limit, Reverse, Push Assistant, Anti-thief, Regenerative Braking (Can set different level: Off, Standard, Weak, Strong), Speed detecting (Magnet quantity simulated or internal speed sensor) and etc.
7. Best heat sinking with Aluminium Case
8. Black anodized Aluminium Controller Case against scratch
Technical Data:
General Specification:
1. Rated Power: 60V 3000W/ 72V 3600W
2. Peak Power: 60V 6000W/ 72V 7200W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. 3-Phase Connectors: XT150 Female Plugs
7. Power Input Connector: QS8 Male Plug
8. 3-Phase and Power Input Cable Size: 8AWG (8mm2)
9. Size: 252x121x74mm
10. Net Weight: 1900g
11. Waterproof Grade: IP65

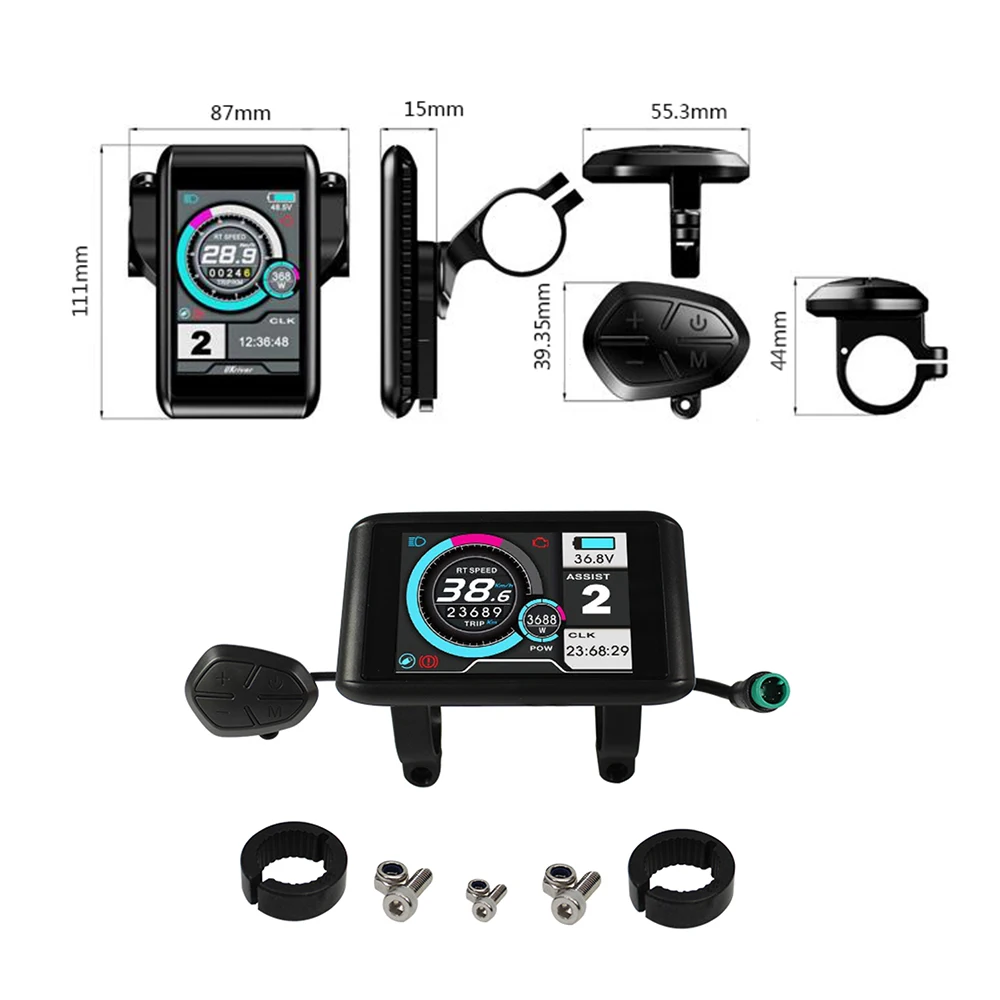

LCD Specification: 3.5 inch IPS screen
1) Input Voltage: 24V/36V/48V/52V/60V/72V
2) Rated operating power: 1W
3) Max operating power: 5W
4) USB charging port: 5V 500mA
5) Off leakage current: < 1uA
6) Support current to controller: 100mA
7) Size: 111.1*66.8*82.8mm
8) Waterproof grade: IP65
9) Operating temperature: -20~70℃,
10) Storage temperature: -30~80℃
Похожие товары
Прецизионное качество водонепроницаемый 72 В Электрический велосипед DC мотор регулятор скорости 1500 Вт 2000 Вт E рикша контроллер
1 328,48 ₽ - 1 436,49 ₽

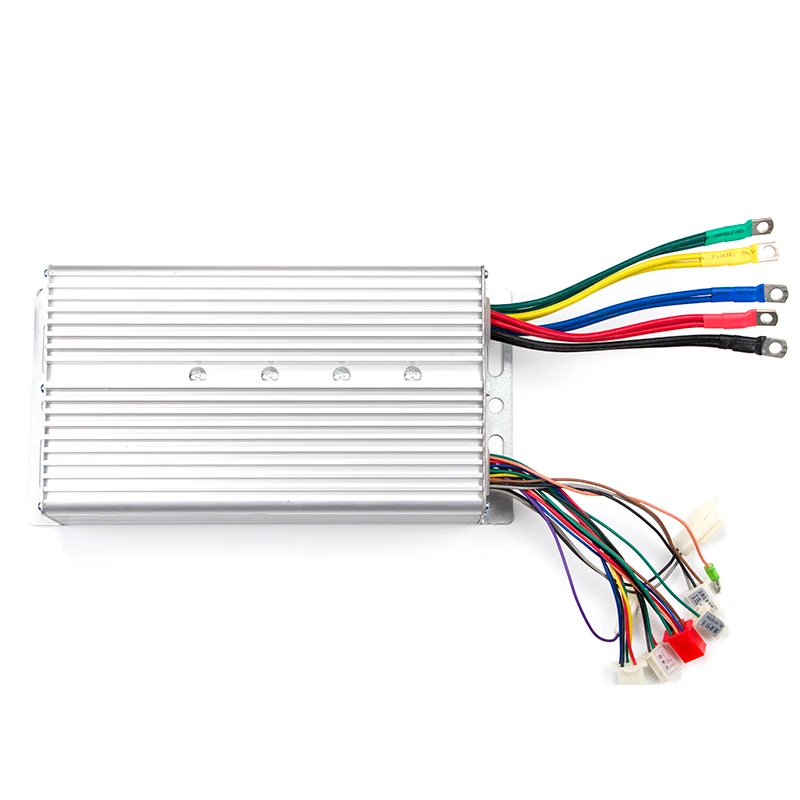

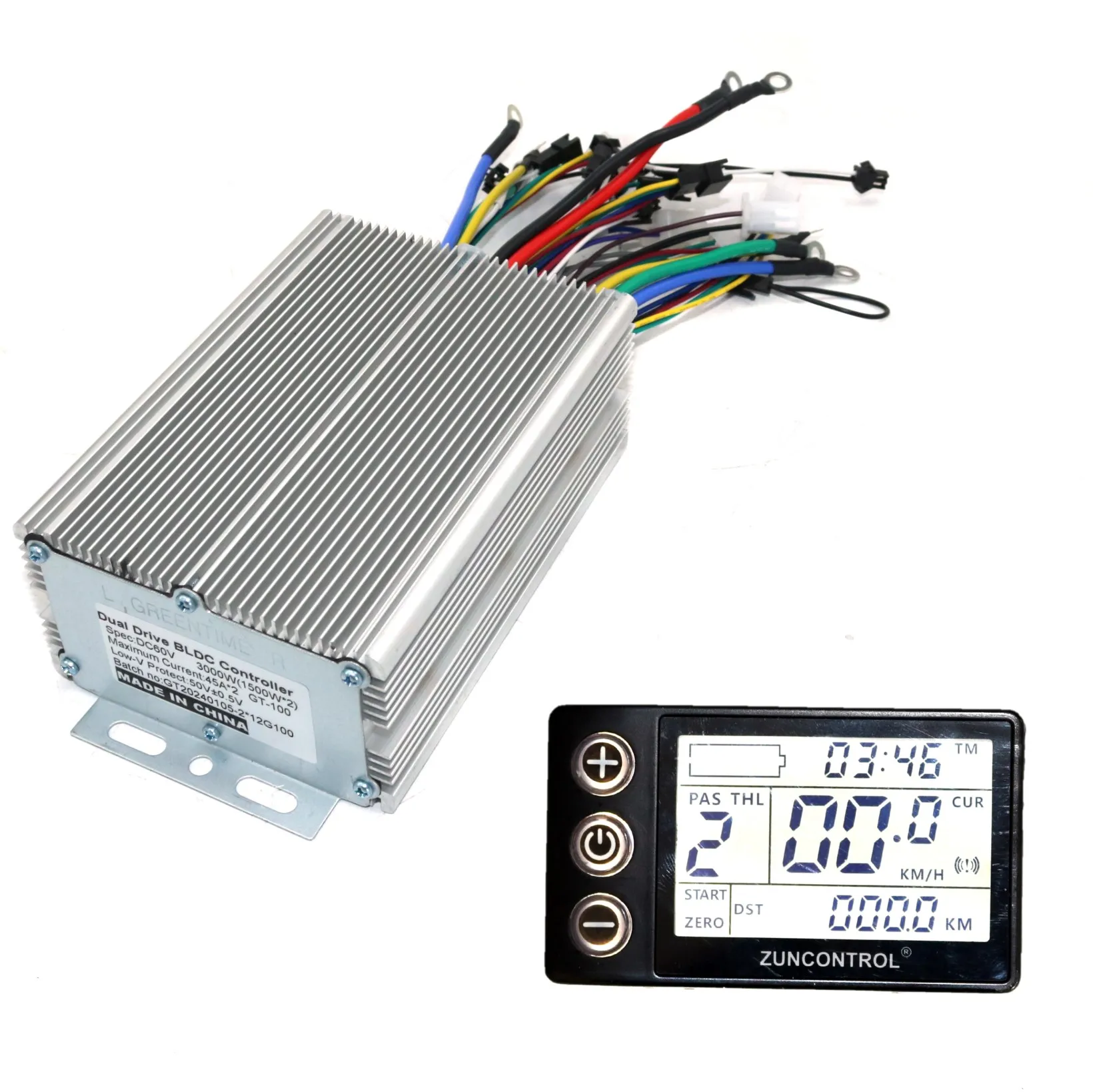

GREENTIME двойной привод 48/60/72 В 3000 Вт бесщеточный контроллер двигателя постоянного тока Электрический скутер E-bike Driver и S866 один комплект

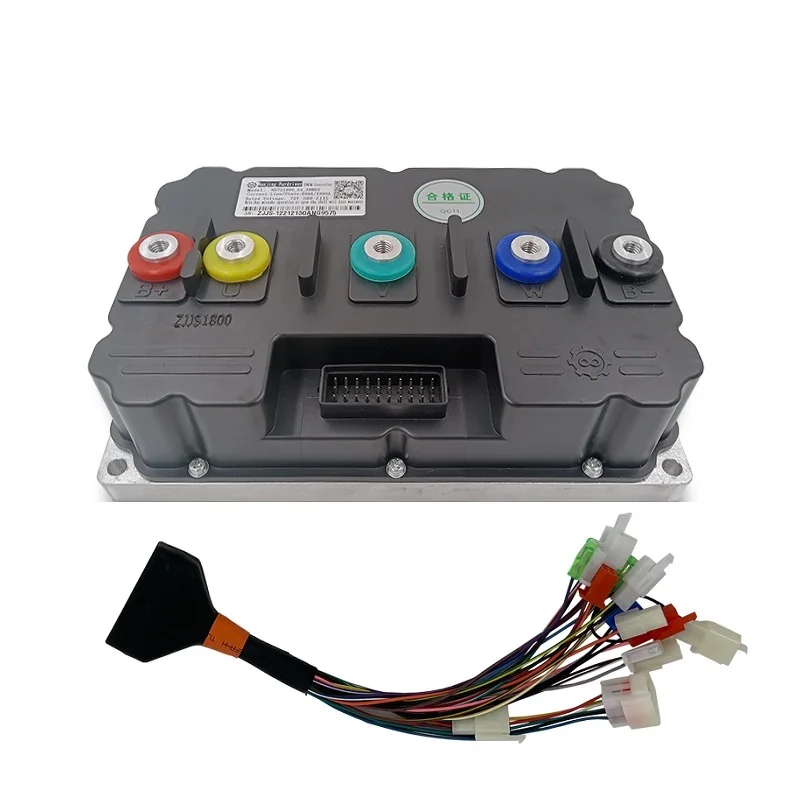

FarDriver ND721200 ND961200 BLDC 8000W-12000W высокомощный контроллер для электрического мотоцикла

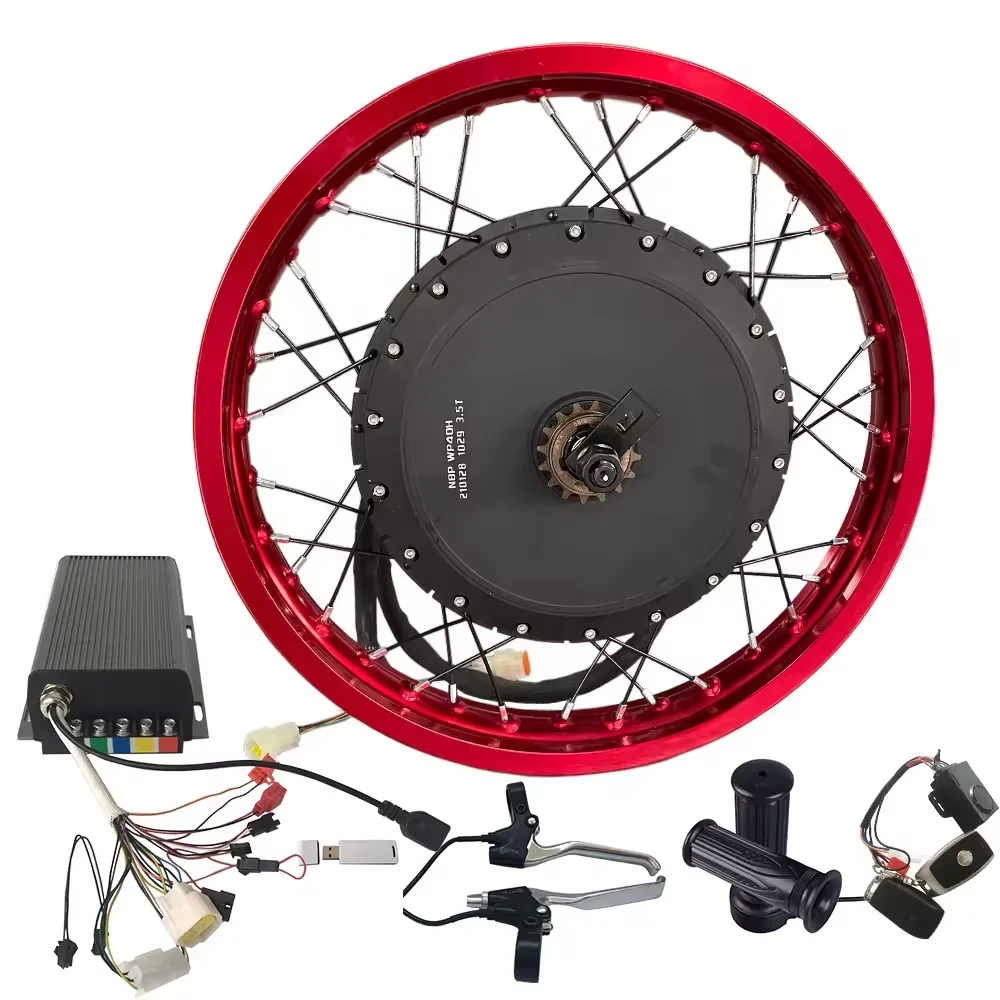

120 км/ч 72 В 8000 Вт QS273 40H 8 кВт высокоскоростной электровелосипед комплект для преобразования электровелосипеда с контроллером Sabvoton 150A

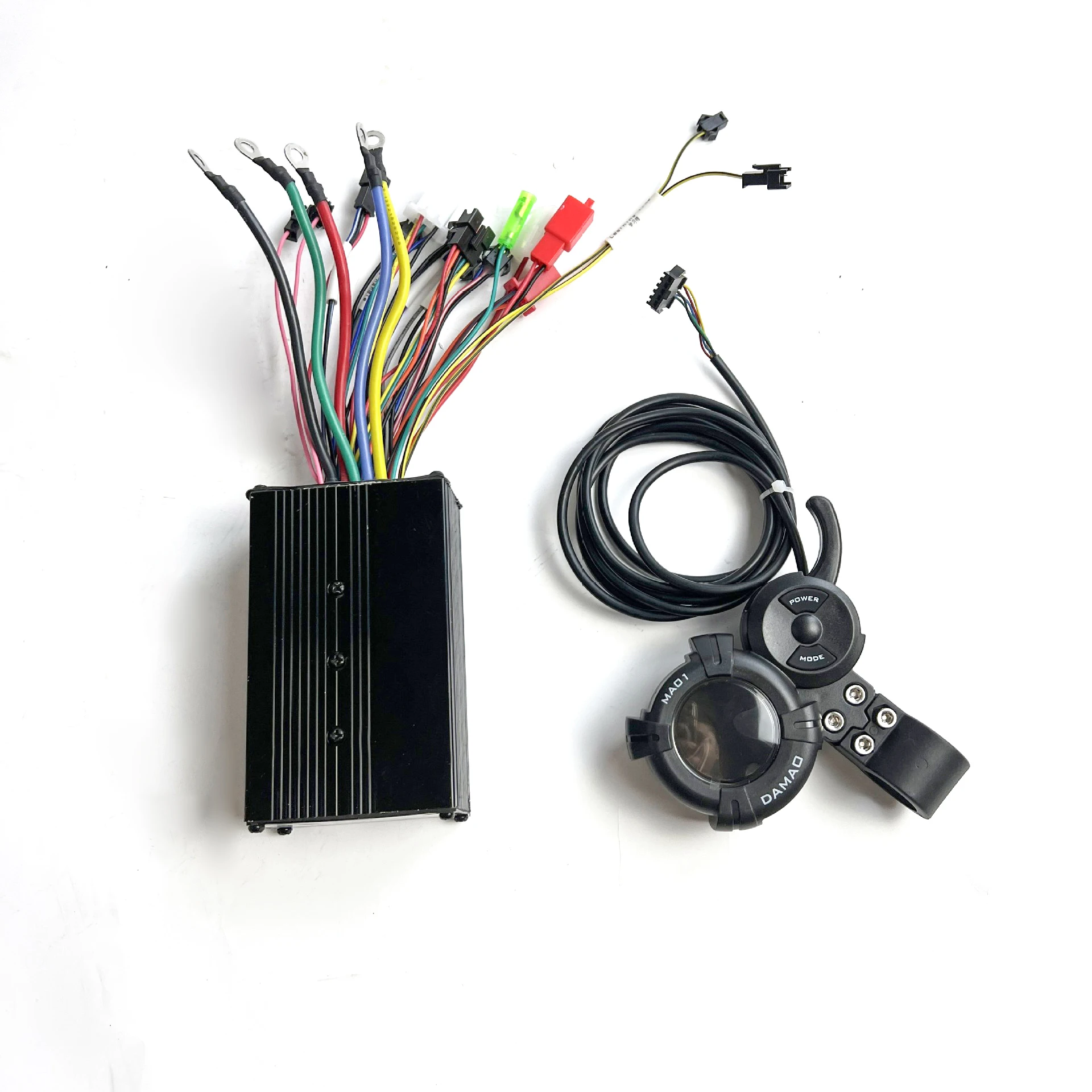

Электрический велосипед 36V-52V 35A, 36V-52V 45A, 48V-72V 45A 3-режимный двигатель и регулятор скорости с красочным дисплеем UKC1

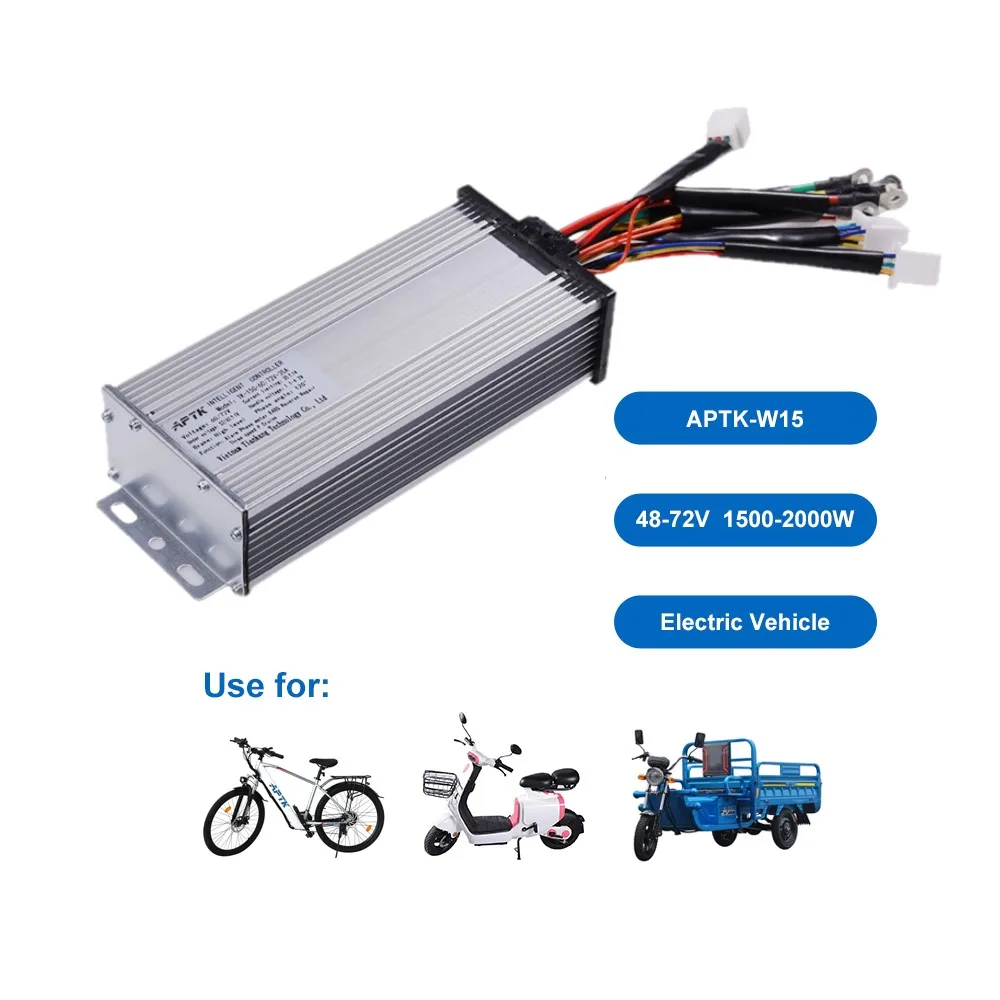

48 в 60 в 72 в 1500 Вт 2200 Вт Электрический трехколесный бесщеточный контроллер скорости двигателя для электровелосипеда и скутера
5 400,31 ₽ - 10 368,60 ₽

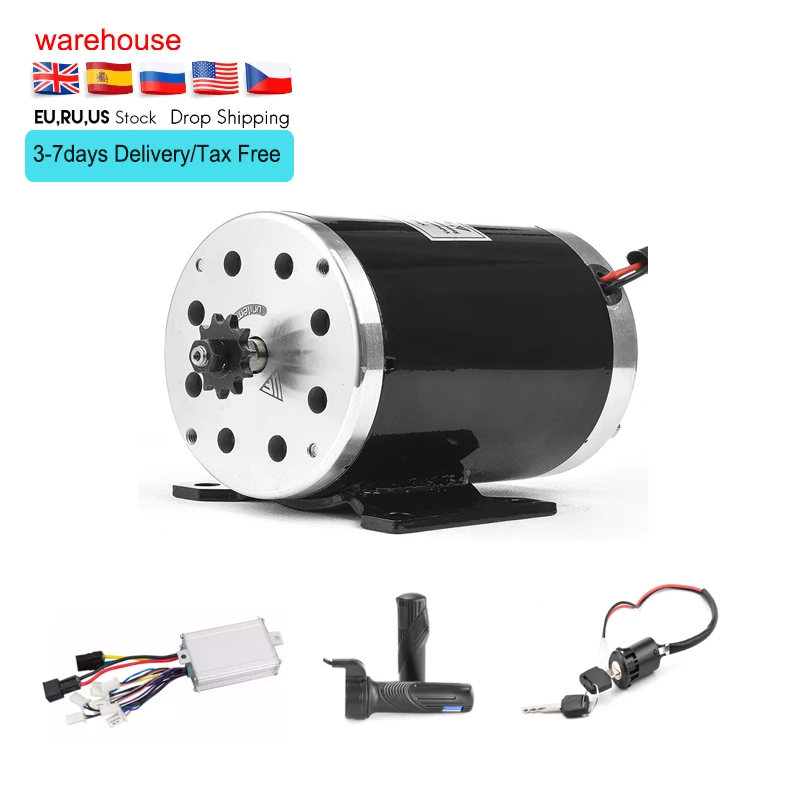

EU Stock MY1020 36V 48V 1000W Электрический щеточный мотор, комплект для преобразования электрического скутера, электродвигателя велосипеда
