Оборудование для буровых установок высокого качества, буровая установка
248 318,22 ₽ - 291 692,58 ₽

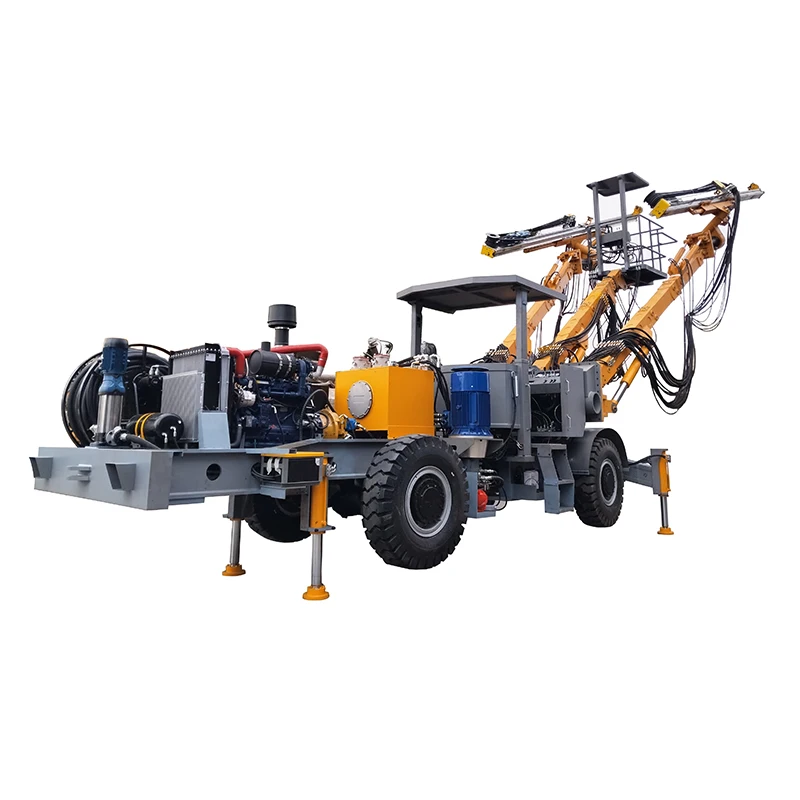

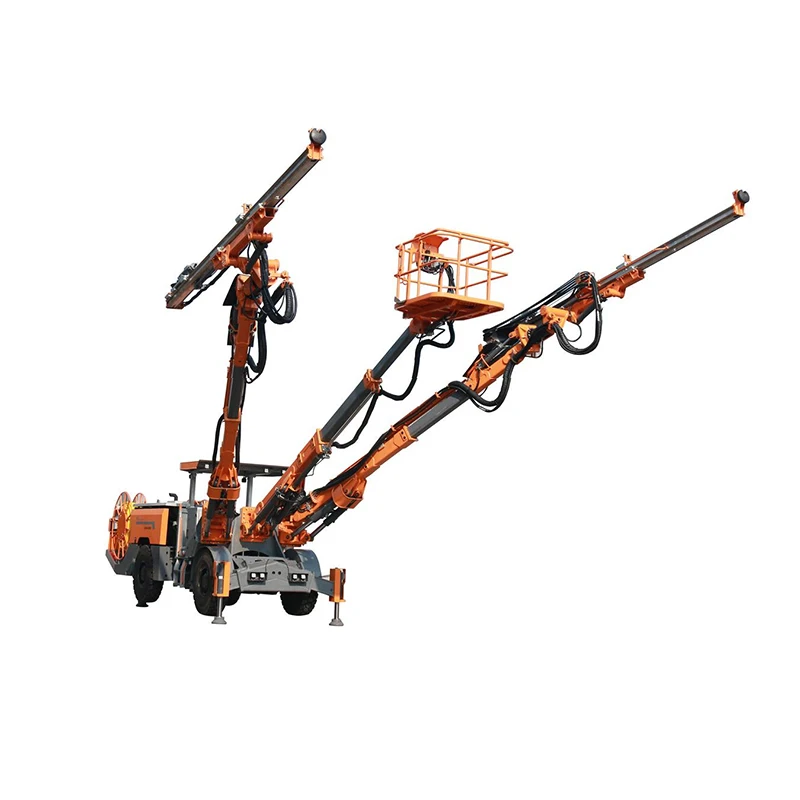

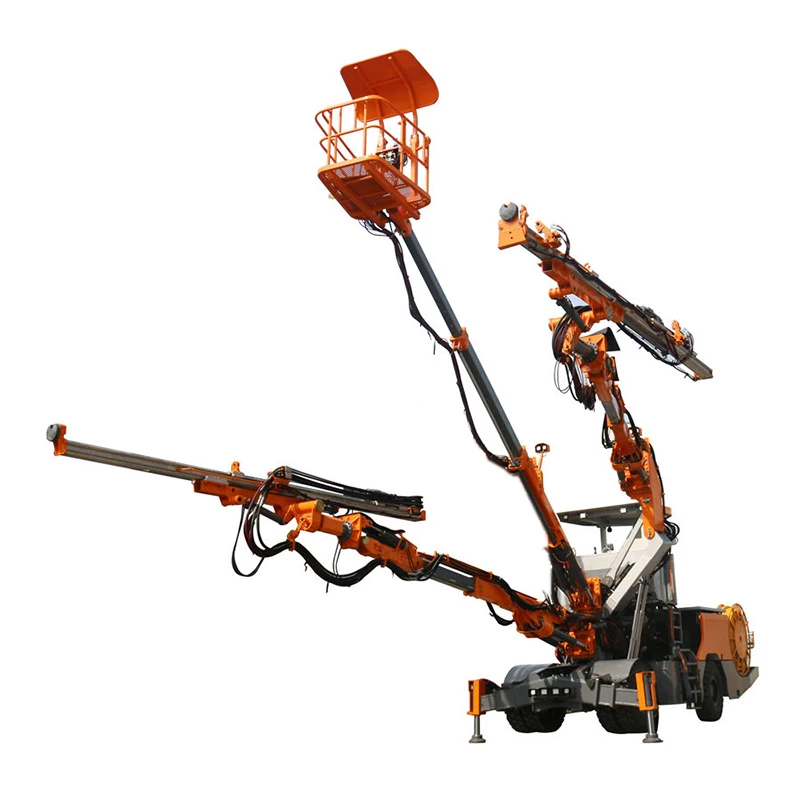

Гидравлическая буровая тележка с двумя стрелами для туннеля
- Категория: >>>
- Поставщик: Fuzhou Tuowei Mechanical & Electrical Equipment Co. Ltd.
Сохранить в закладки 1601035386298:
Описание и отзывы
Характеристики
Product Description
High cost-effectiveness, stable and reliable.
Hydraulic control: The entire rock drill's propulsion impact rotation is controlled by hydraulic pressure, which has a faster reaction speed, lower failure rate, and lower drill pipe and bit loss compared to electronic hydraulic control.
Engineering chassis, with good rigidity and high strength, engineering axle, hydraulic transmission, stable performance, low failure rate, and easy maintenance.
129KW water-cooled turbocharged engine, powerful, with a climbing slope of>18 °; Good passability, with a minimum ground clearance of 400mm;
According to customer needs, different drill rods such as 3700/4300/4915
/5525/6400 can be selected.
Arm system: Fully hydraulic double triangle telescopic arm, single stage telescopic, with a telescopic stroke of 1600mm for a single arm; Raise the upper arm by 70 ° and lower it by 30 °, and the upper and lower arms can be automatically leveled.
Adopting a 10 inch large screen reverse camera can greatly reduce blind spots in the field of vision.
Using high-power rock drills from well-known Chinese brands, the drilling speed is faster and the after-sales service is more convenient. (Can be equipped with well-known Swedish brand rock drills)
The entire hydraulic system is independently developed by Aivyter, which has been tested to maximize the ability of the rock drill and has an extremely low loss rate of drill pipes and tools
AZT2-9700 hydraulic tunneling drilling rig is suitably qualified for the drilling of tunnels whose section falls in the range of 16-95 square meters, capable of drilling the blast hole and rock bolt in a vertical, inclined and horizontal way.

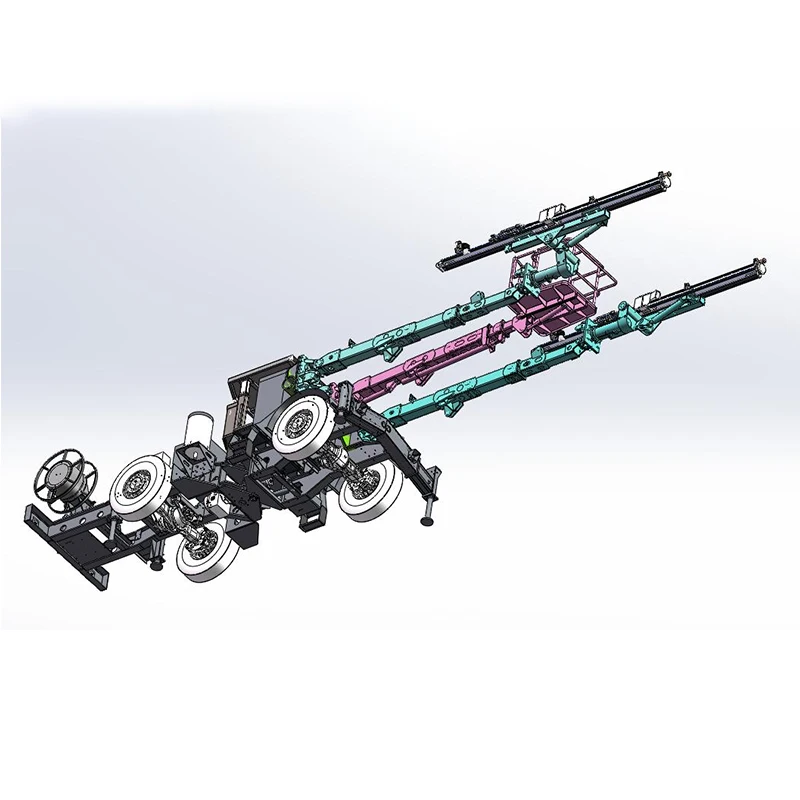

The drill rig is fitted with the flexible boom in two symmetric rectangular coordinates，without any operation blind spot.360。rotation and self-leveling beam make drill positioning easy；it can also be used for the drilling of lateral cross-cut and rock bolting.
The drilling rig provides a good view for the operator；balanced layout and the articulated chassis of four-wheel drive ensure the flexible，fast and safe driving in the narrow tunnel.
The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and make it in good condition；
Considerable space and automatic functions enable the driver to concentrate on drilling in a safe，fast and accurate manner；
All the relevant parts are kept in good protection，meanwhile maintenance easily.
The drilling rig provides a good view for the operator；balanced layout and the articulated chassis of four-wheel drive ensure the flexible，fast and safe driving in the narrow tunnel.
The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and make it in good condition；
Considerable space and automatic functions enable the driver to concentrate on drilling in a safe，fast and accurate manner；
All the relevant parts are kept in good protection，meanwhile maintenance easily.
Product Paramenters
Basic parameters of double arm rock drilling rig - AZT2-9700 | ||
Main parameter | Parameter values | |
Size | 17000*2800*2900/3750mm | |
Excavation height | 9700mm | |
Drilling diameter | φ38mm-φ45mm | |
Drill pipe length | 5525mm | |
Drilling depth | 5300mm | |
Drilling speed | 0.8-2m/min | |
Motor power | 55*2KW | |
Fuel tank capacity | 600L | |
Overall weight | 33000kg | |
Rock drilling power head model | 1838ME | |
Rotation | Positive 135 ° Reverse 225 ° | |
Swing arm | 45 ° left and right | |
Travel compensation | 1800mm | |
Main arm stroke | 1600mm | |
Sliding rail swing angle | 2 ° elevation and 90 ° elevation | |
Diesel engine power | 129kw | |
Turn | ±40 | |
Tires | 14.00-24 | |
Climbing ability | ≤17° | |
Rear axle swing angle | ±10° | |
Approach angle/departure angle | 20°/17° | |
Walking speed | 15km/h | |
Ground clearance | 350mm | |
Fuel tank capacity | 120L | |
Air compressor flow rate | 1m³/min | |
Pressure | 0.3-0.6MPa | |
Air compressor motor power | 7.5KW | |
Water pump flow rate | 10m³/h | |
pressure | 0.2-0.8MPa | |
Pump motor power | 4.5kw | |
Main parameter | Parameter values | |
Battery rate | 2x12v | |
Driving lighting | 24v | |
Work lighting | 220v | |
Company Information
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: No. 15 Xiandong Road, Lianggang Industrial Zone, Changle District, Fuzhou City, Fujian Province
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: What is the payment deadline?
A6: T/T, L/C, Western Union, etc. We can also accept USD, RMB and other currencies.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-30days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: No. 15 Xiandong Road, Lianggang Industrial Zone, Changle District, Fuzhou City, Fujian Province
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: What is the payment deadline?
A6: T/T, L/C, Western Union, etc. We can also accept USD, RMB and other currencies.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-30days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Похожие товары
Гидравлическая буровая установка FYC800, 280-800 м

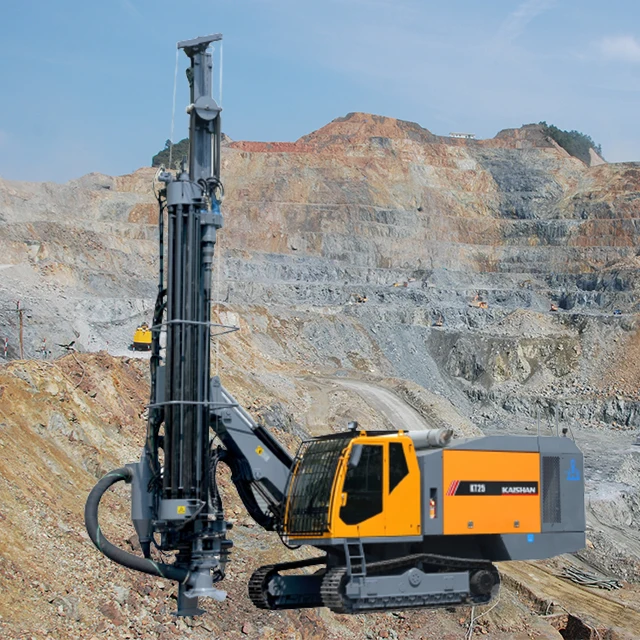

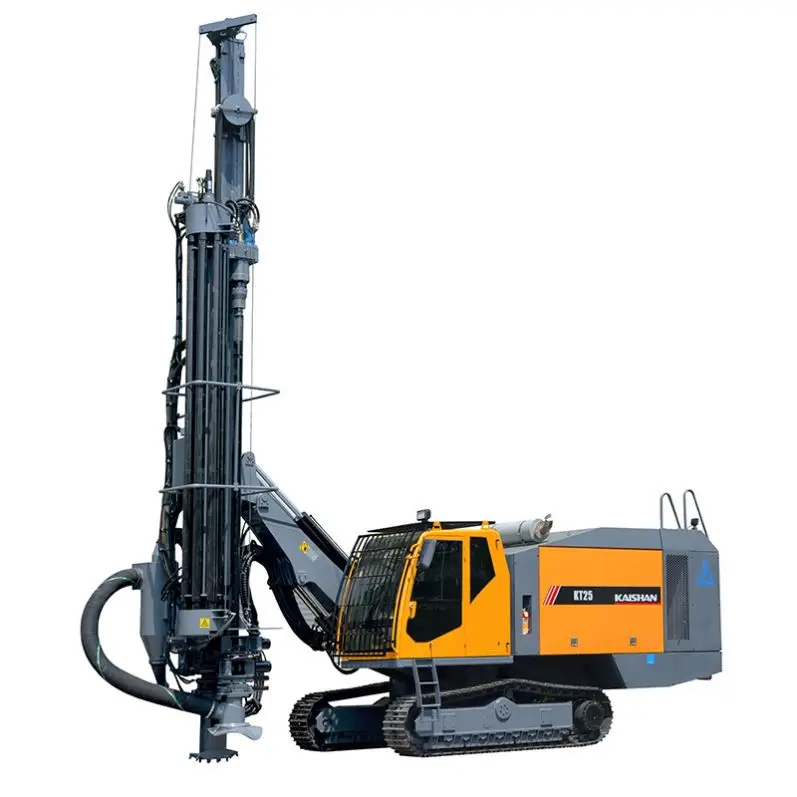

Высокое качество, известный бренд kaishan kt25, буровая установка для струйной обработки
25 493 822,27 ₽ - 25 598 788,23 ₽
Лидер продаж, новинка, буровое оборудование KT25 для бурения пескоструйных отверстий, буровое оборудование

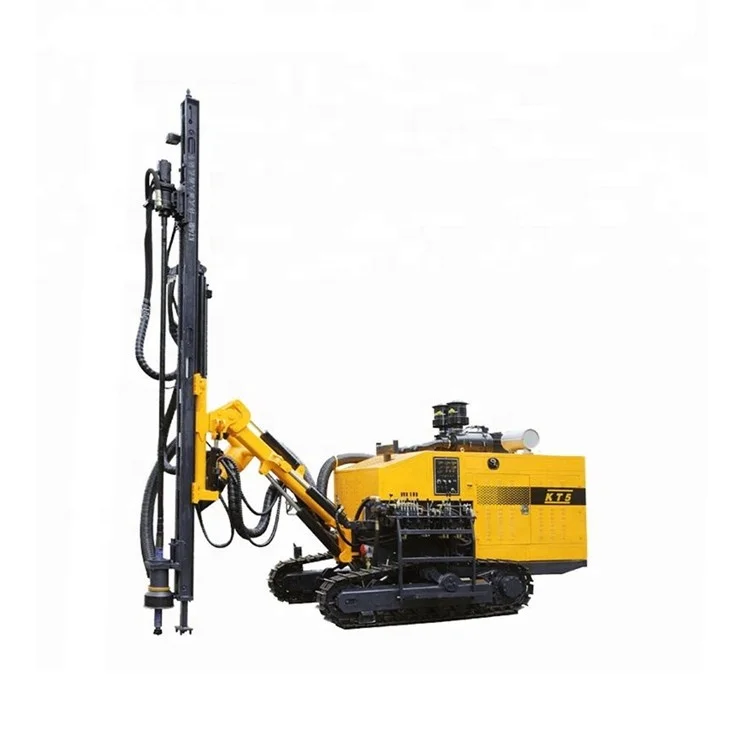

Буровая установка 25 м гусеничная, буровая установка для добычи, встроенная буровая установка KT5 б/у
1 247 012,85 ₽

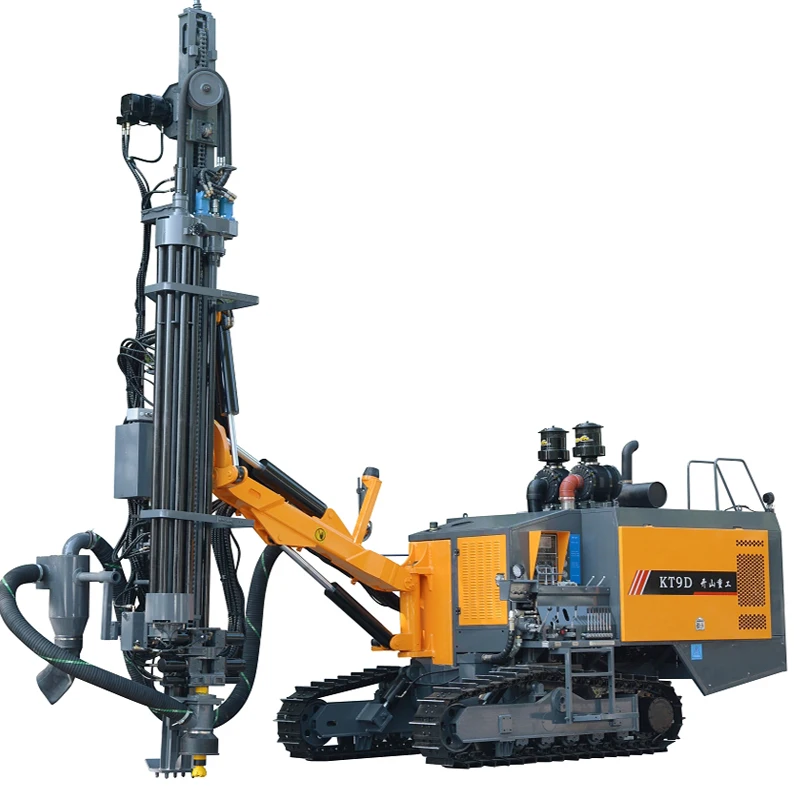

Китай, новый продукт, буровая установка KT9D, буровая установка KAISHAN, буровая установка для открытых скважин, буровая установка dth для продажи
