Металлическая оцинкованная алюминиевая Гофрированная Стальная листовая крыша стеновая панель рулонная машина для производства листовой крыши
7 888,00-8 888,00 $
Машина для производства черепицы
- Категория: >>>
- Поставщик: Shandong Canhua International Trade Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601038087264:
Описание и отзывы
Характеристики
PRODUCT DESCRIPTION
Color steel stone coated metal roofing tile making machine made in China
Colorful stone-coated metal roof tile is a modern environmentally friendly roofing material with the basic of 0.4mm Al-zine coated steel.
The working speed adopts frequency conversion stepless speed regulation, glue spraying, sanding, and drying are completed at one time.
Covering color vermiculite surface which carried under the high temperature technology.It is high-performance, stable, energy-efficient and easy operation.
Order Process:
Confirm the profile------Got the order-pay advance payment------Start design and make machine(send process photo)-------Nearly finishing machine-------Send invitation letter-------try the machine for inspection-------Pay balance payment--------Delivery machine--------Send documents to clear the custom------Engineer help install if the customer need
Main specifications of the production line | ||
Production speed | 4000-7000pcs/day | |
Machine weight | About 35MT | |
Total installed capacity | 200 kw,AC380V 50 HZ | |
Suitable material | Coil material color steel sheets, galvanized plates,galvalume plates | |
Steel plate thickness | 0.32-0.5mm | |
Steel plate width | 1000mm-1450mm as per the profile drawing | |
Product condition | Plant area 2000 square mcters(25meters*80meters),Mainframe product environment temperature above 20°C | |
Production line characteristics | Horizontal, continuous product, stepless frequency conversion variable speeds,PLC control, having reliable performances, easy operation. | |

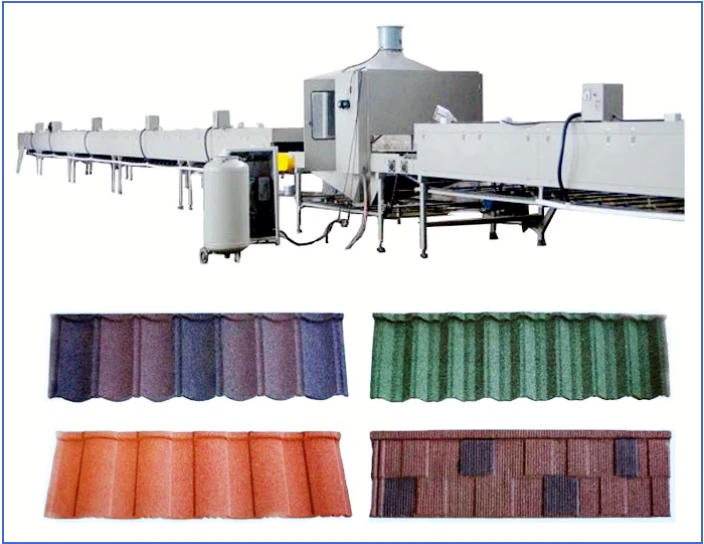

The sand spray steel roof sheet linecontains THREE main parts:
Part 1: The roofing tile profile forming
Part 2: Stone coated machines production line
Part 3: Accessories making machines

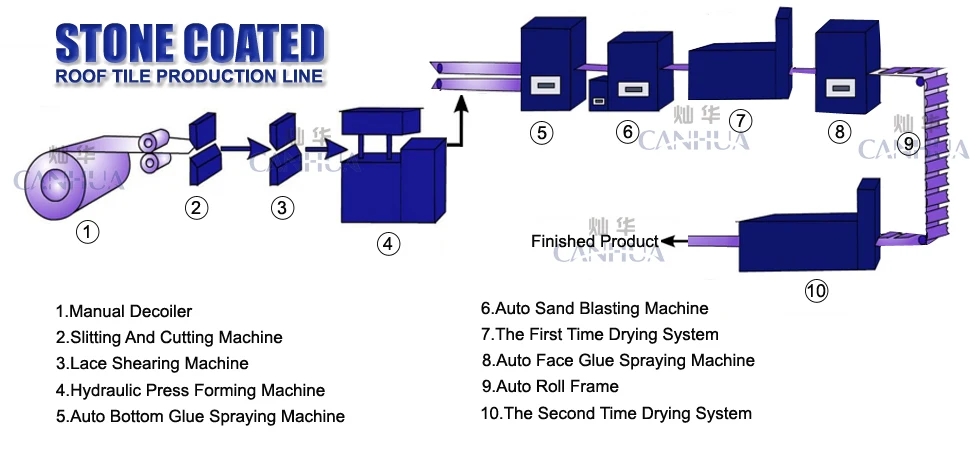

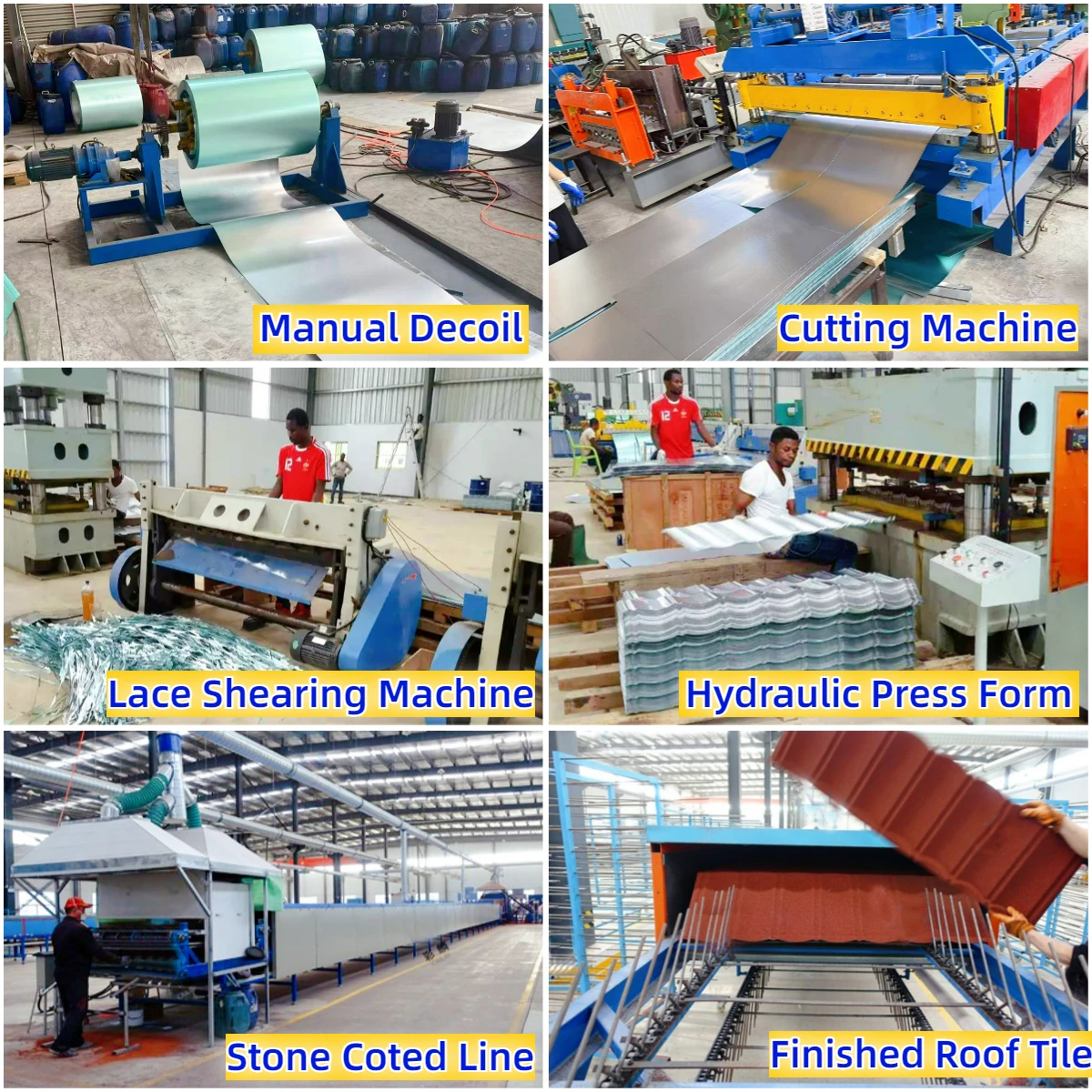

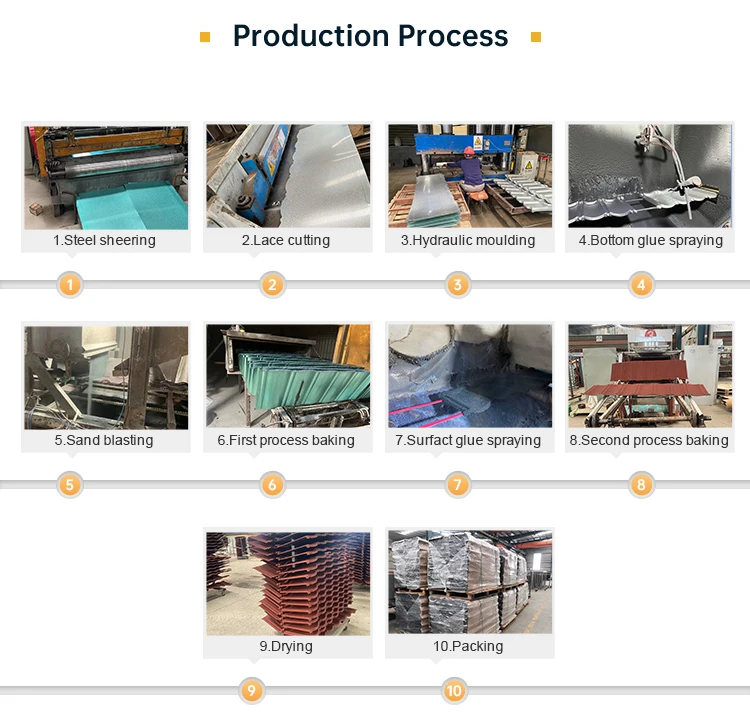

Components of the whole production line | ||||
Manual decoiler | 1 set | |||
Slitting and cutting machine | 1 set | |||
Lace Shearing Machine | 1 set | |||
Hydraulic pressing machine | 1 set | |||
Auto bottom glue spraying section | 1 set | |||
Auto stone coated section | 1 set | |||
The first time drying section | 1 set | |||
Auto face glue spraying section | 1 set | |||
The second time drying section | 1 set | |||
Accessories making machine (Ridge tile production line) | Punching machine | 1 set | ||
Rolling machine | 1 set | |||
MAIN PARTS DETAILS

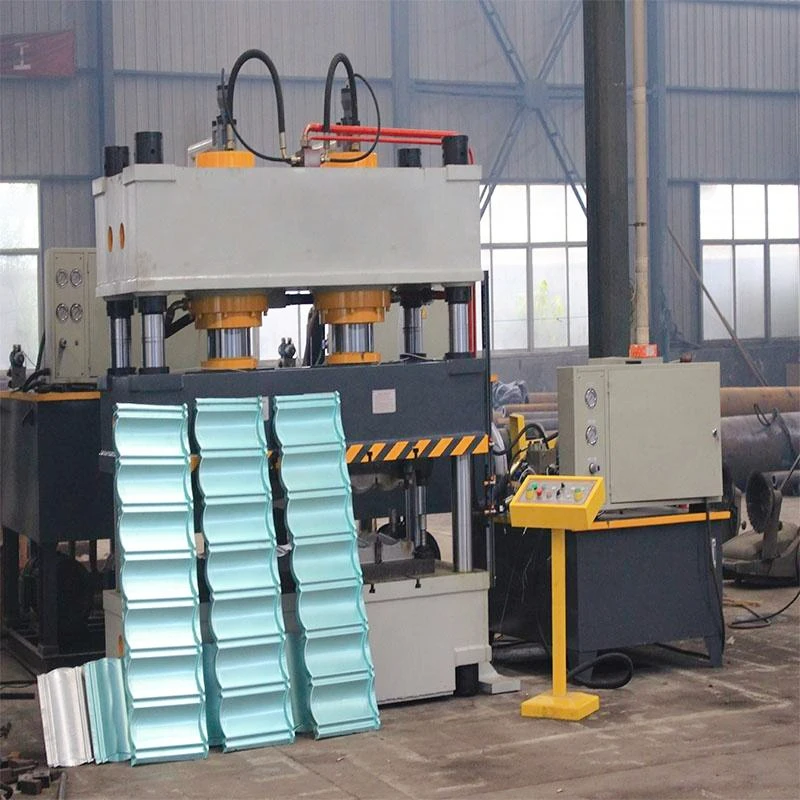

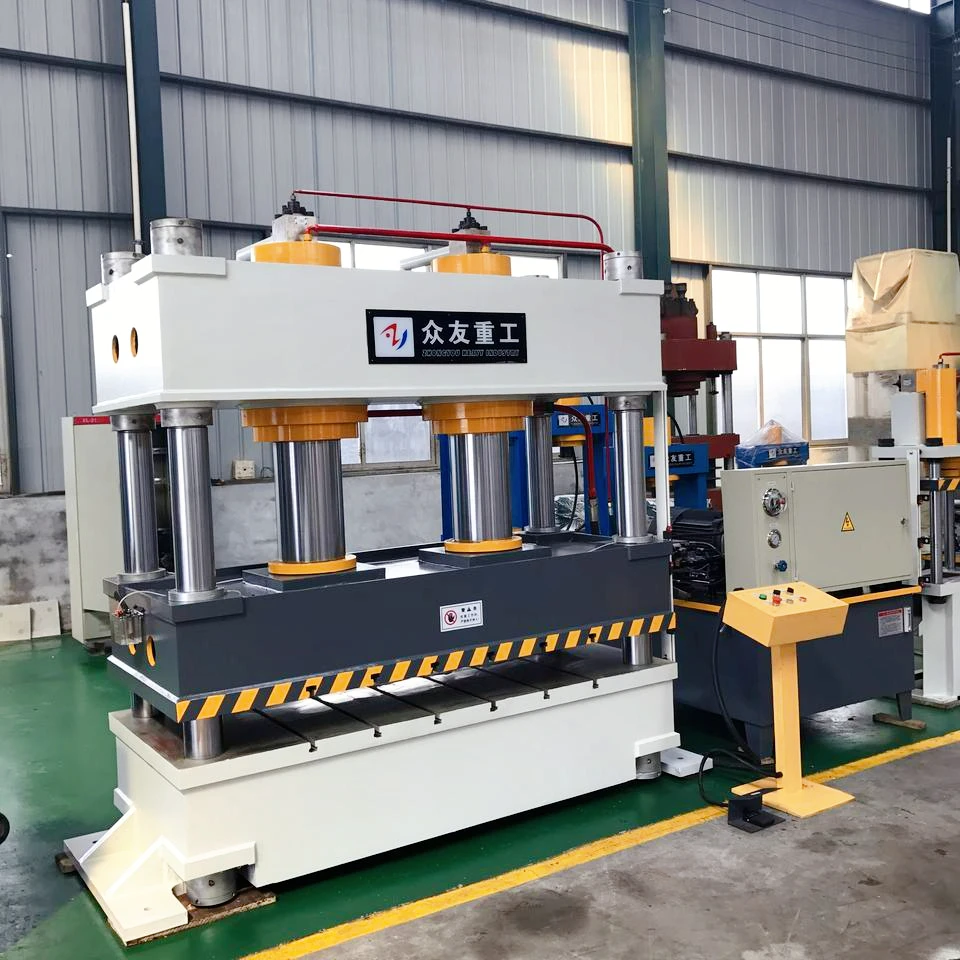

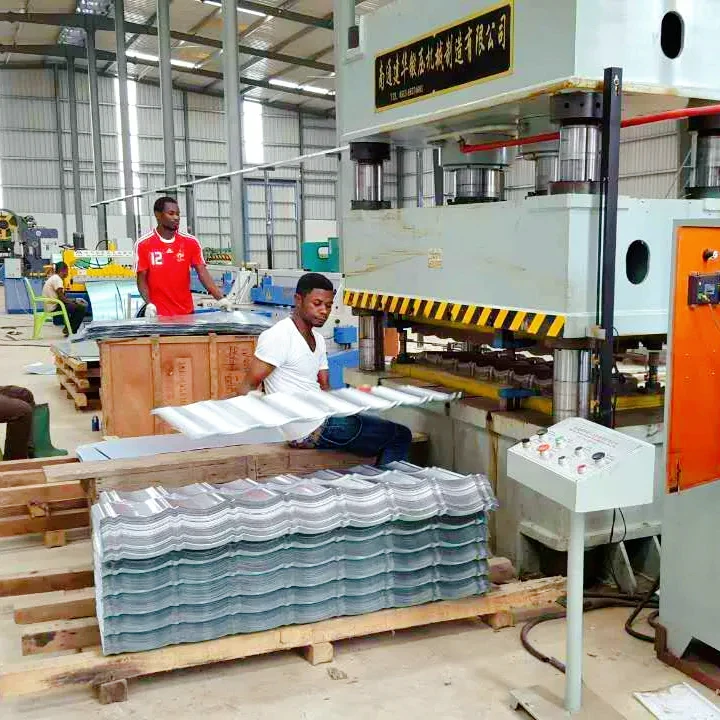

Hydraulic Press System
The 315-ton color stone metal tile stamping hydraulic press is a special equipment for stamping and stretching of the color stone
metal tile substrate. The fuselage design adopts a three-beam four-column structure. The equipment is composed of a fuselage, an
oil cylinder, a stroke limit device, and a mold. The structure is simple, economical and practical.
metal tile substrate. The fuselage design adopts a three-beam four-column structure. The equipment is composed of a fuselage, an
oil cylinder, a stroke limit device, and a mold. The structure is simple, economical and practical.
Glue Spray System
Automatic primer spraying equipment (closed automatic glue spraying system) Structure: channel steel, welded
Transmission device:2.2 kilowatt variable Conveying device: reciprocating chain Conveyor adjustment range, 0.1-0.6MPa Automatic glue gun: 4 sets Glue gun: 5 sets Glue gun holder: 1 set

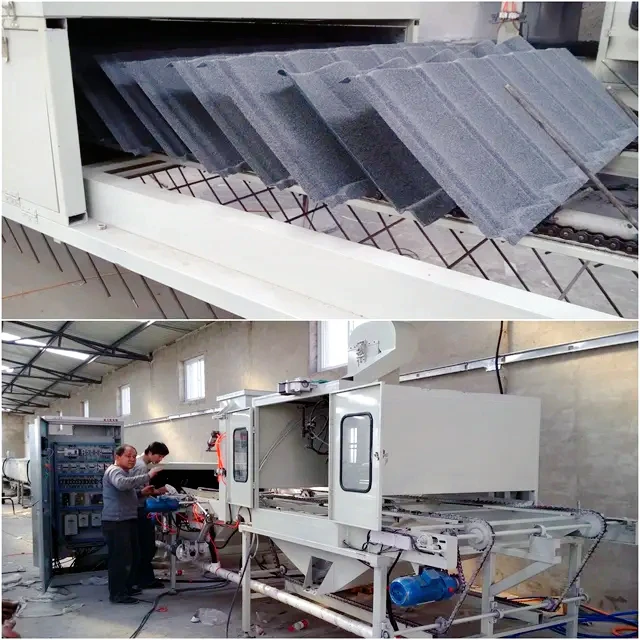

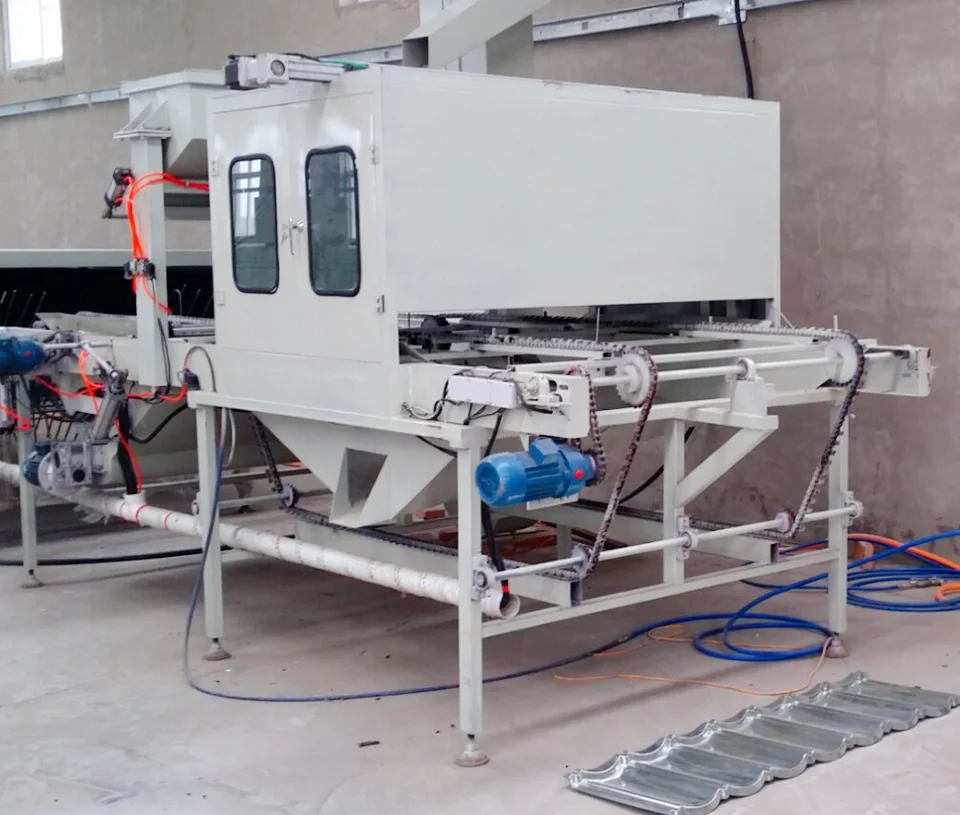

Sand Blasting System
Automatic sandblasting room: 1 set Dimensions: 3000×1850×700 unit mm Structure: channel steel, angle steel, welded
Transmission device: with glue spraying equipment, chain compound transmission Automatic sand bucket: 1 set 550×600×500
Automatic lifting machine: 1 set
Automatic lifting machine: 1 set
Lifting height 1.9 meters, power 300 kg/hour Sandblasting gun: 4 sets.

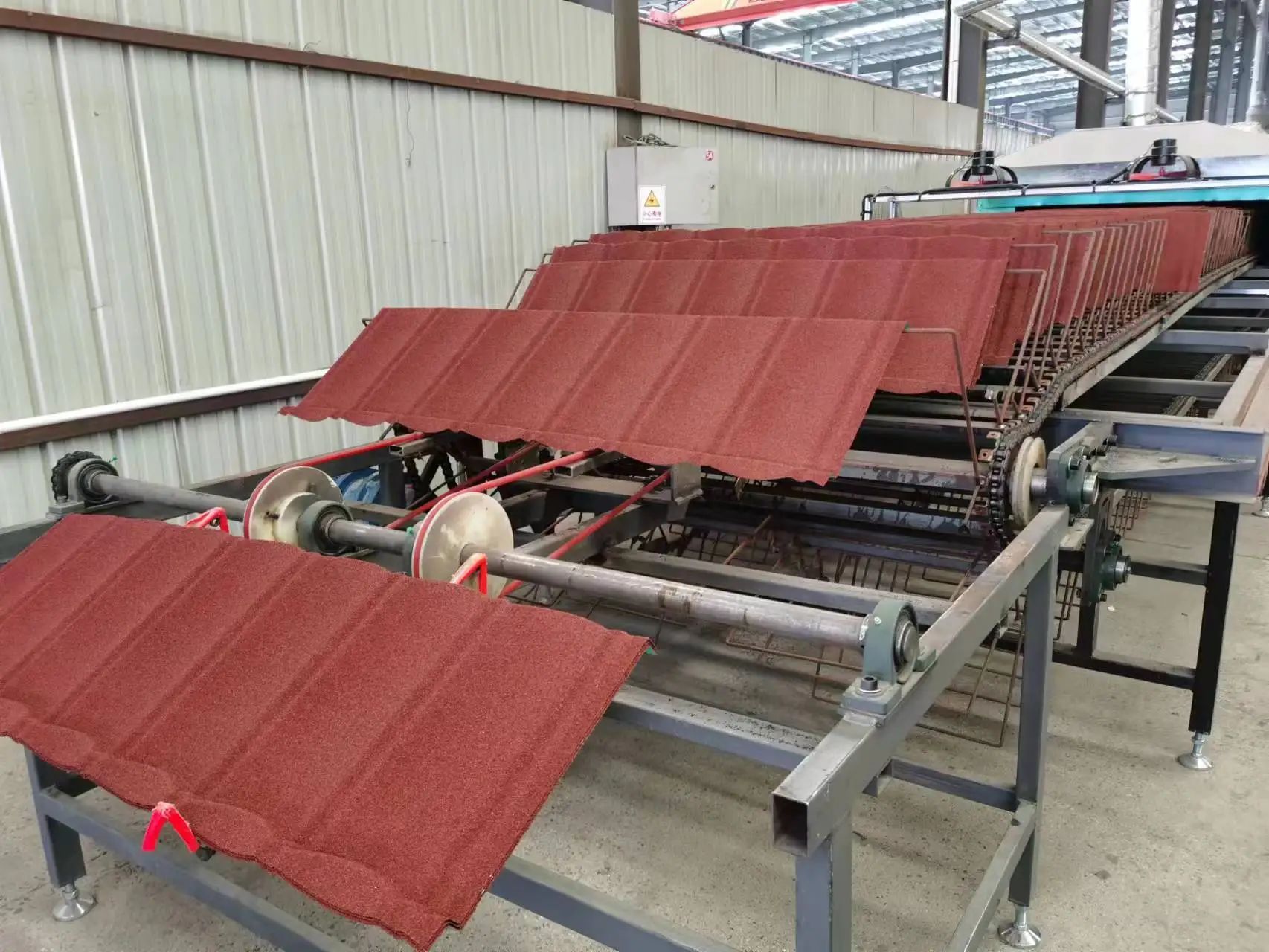

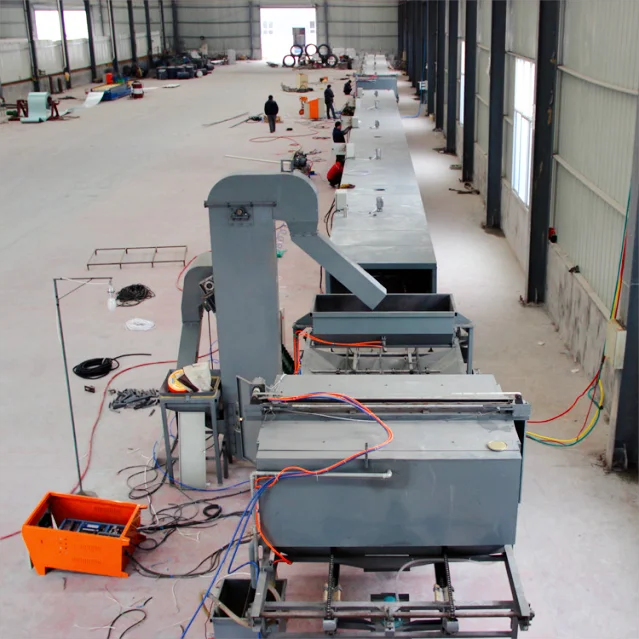

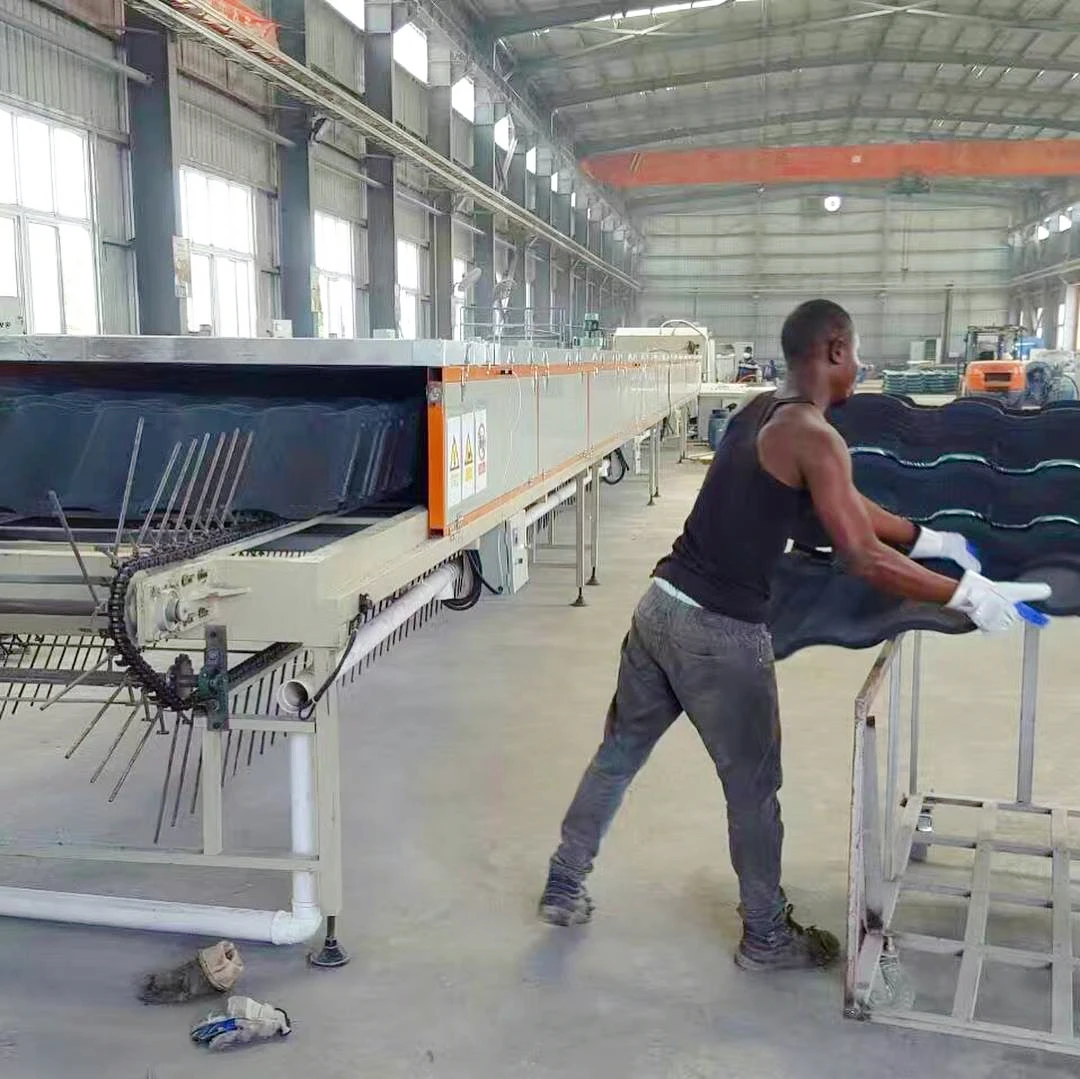

Drying System
Structure: Welded by carbon steel
Frame insulation wall: 60 meters, 1 mm thick cold plate bending forming insulation cotton
Filling Infrared heating tube: 100 pieces Automatic temperature controller: 2 sets of temperature adjustment range 0-160°
Filling Infrared heating tube: 100 pieces Automatic temperature controller: 2 sets of temperature adjustment range 0-160°
Cooling device: 1 set

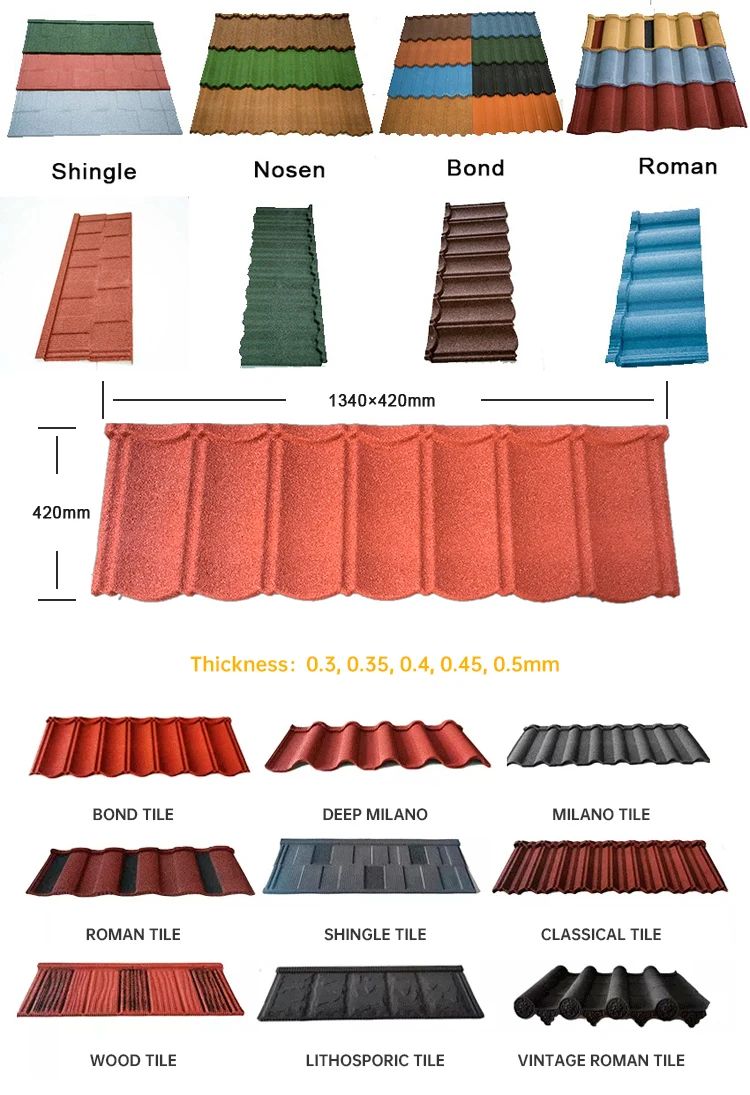

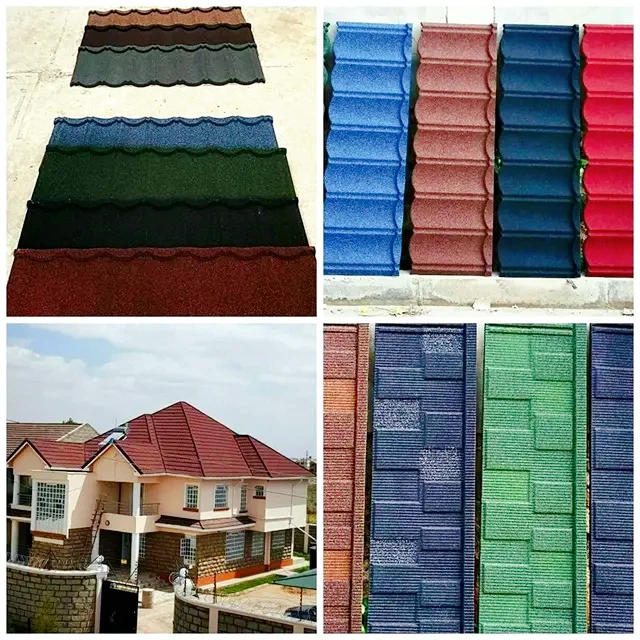

PRODUCT APPLICATION
Stone coated metal roof tile making machine production line use for make different types stone coated roofing sheet,the roof tile mould type and size can be customized,we also supply raw material for stone coated.

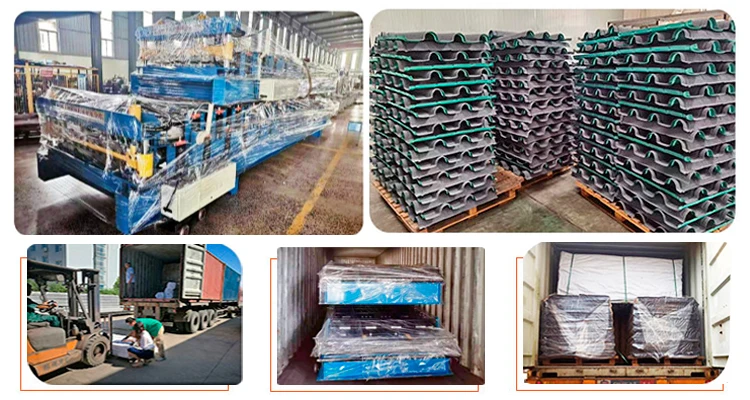

PACKING AND SHIPPING
1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded in one 40’ container.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
4).we have a good cooperation with the shipment company ,we give the client the best transport plan and the best freight cost.2). The subjects can be loaded in one 40’ container.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.

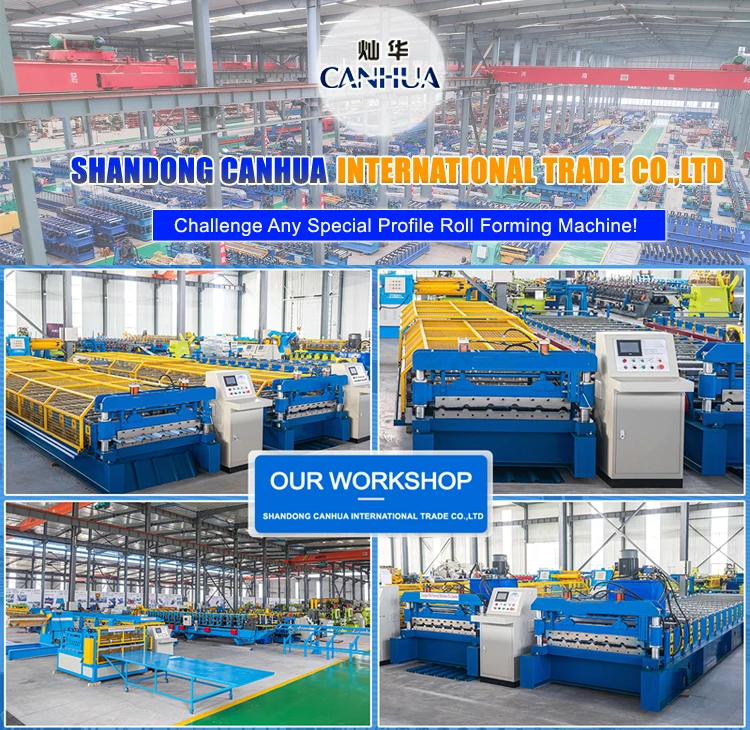

OUR FACTORY
Shandong Canhua International Trade Co.,Ltd is the professional manufacturer and exporter for block machine technology,Stone coated roof tile machine,construction machinery. Our company is located inLinyi city Shandong Province and our factory has three manufacturing bases that cover an area of 500 acres and a plant construction area of 100,000 square meters. We are always developing advanced products to international standards to meet consumer demands.We had exported to more than 116 countries from the Philippines, Russia, Egypt, South Africa, Ghana, Oman, India, Armenia, Israel, Chile etc. and have an exceptional high reputation from our customers. We cooperate with SIEMENS for Motors and PLC intelligent control system,Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad. We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation.
1. Professional R&D TeamCompany owns research,design,manufacture,sale after-sales service.
2.Excellent Service
Multiple payment method,provide free training,free spare parts,24 hours online service,provide intergrated block making solutions
3.European technical standards,Strict quality control
Every machine before delivery,need be carefully checked to meet domestic quality standard and export standard.
Welcome to the video inspection at any time！
WHY CHOOSE US
OUR BLOCK MACHINE
