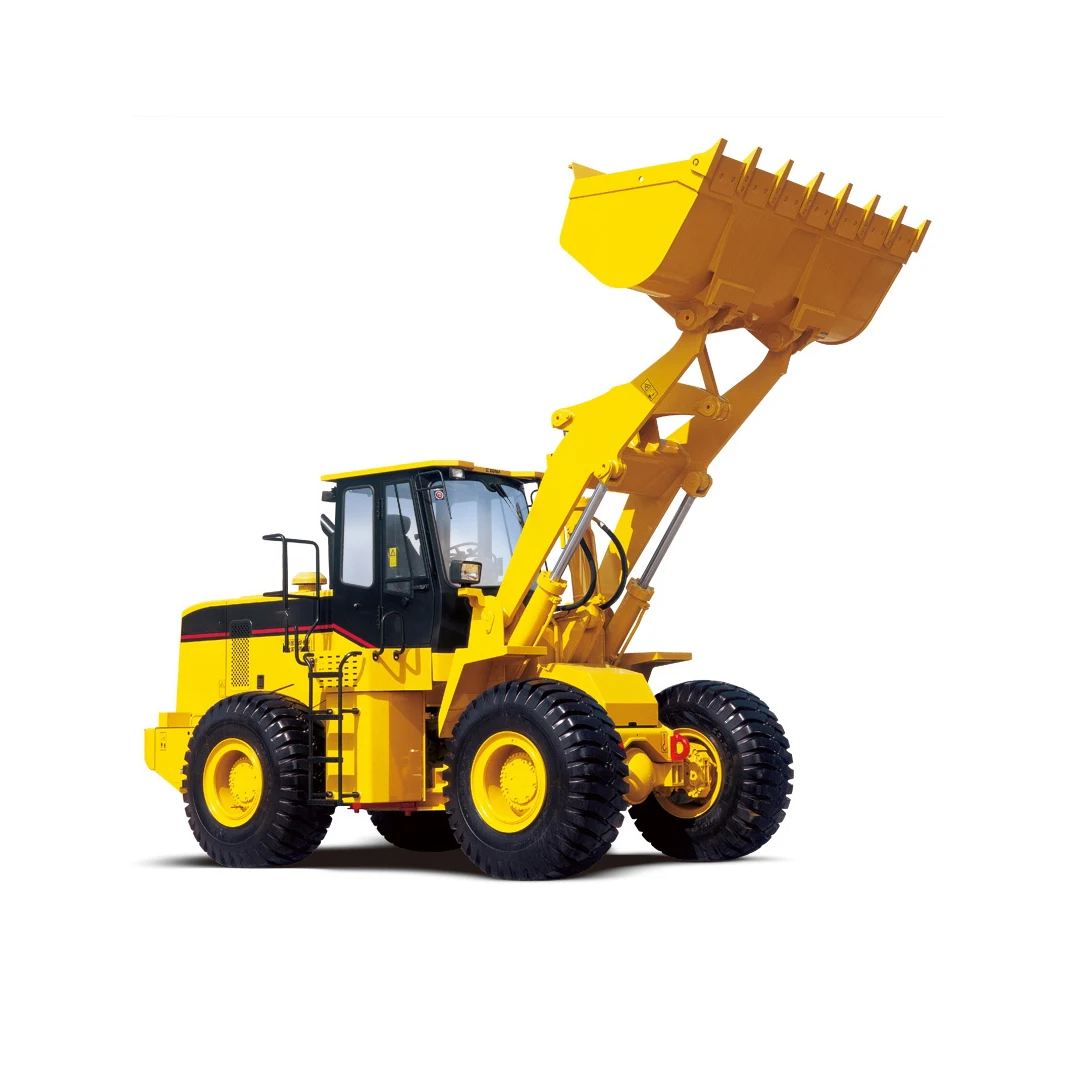

Китайский бренд xgma 5-тонный колесный погрузчик xg956 xg956n
43 000,00-45 000,00 $
LK200 мини гусеничный самосвал мини погрузчик мини самосвал высокого качества
- Категория: >>>
- Поставщик: Henan Pssroh Trading Co. Ltd.Henan Ltd.
Сохранить в закладки 1601038155619:
Описание и отзывы
Характеристики
Product Description

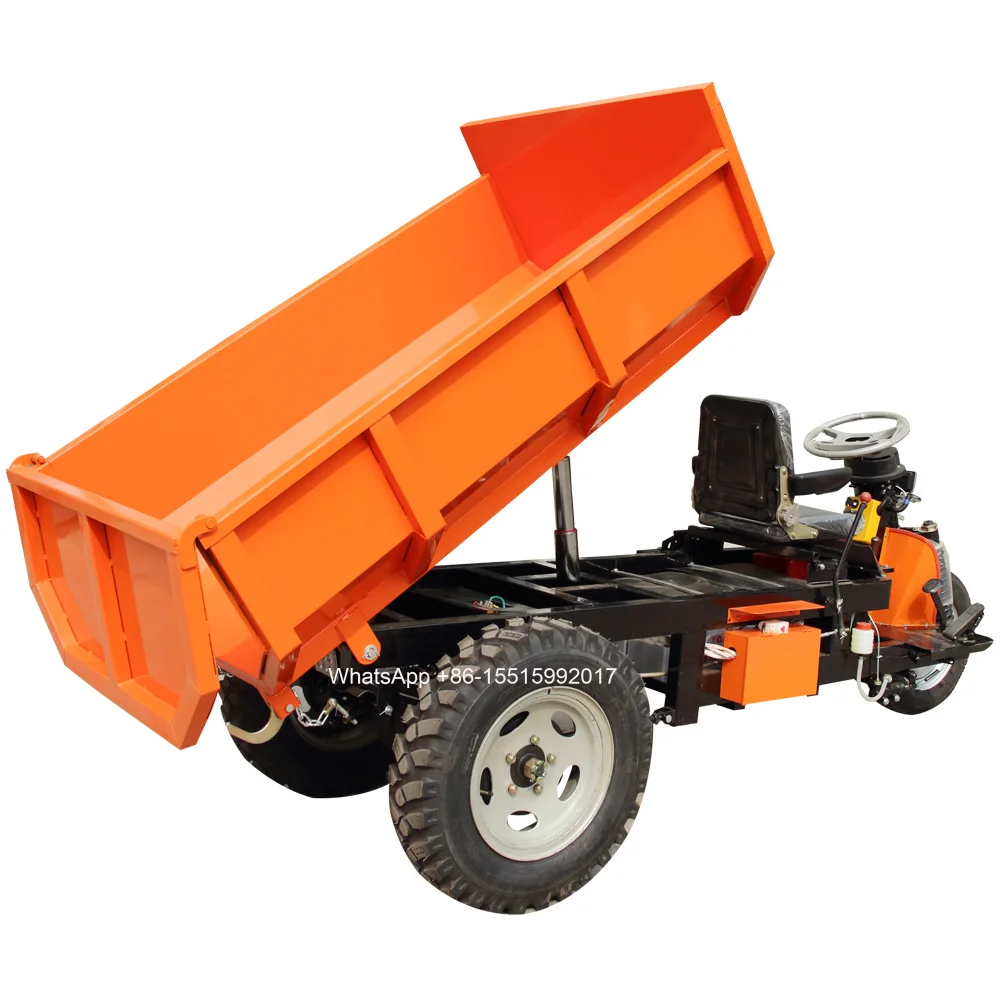

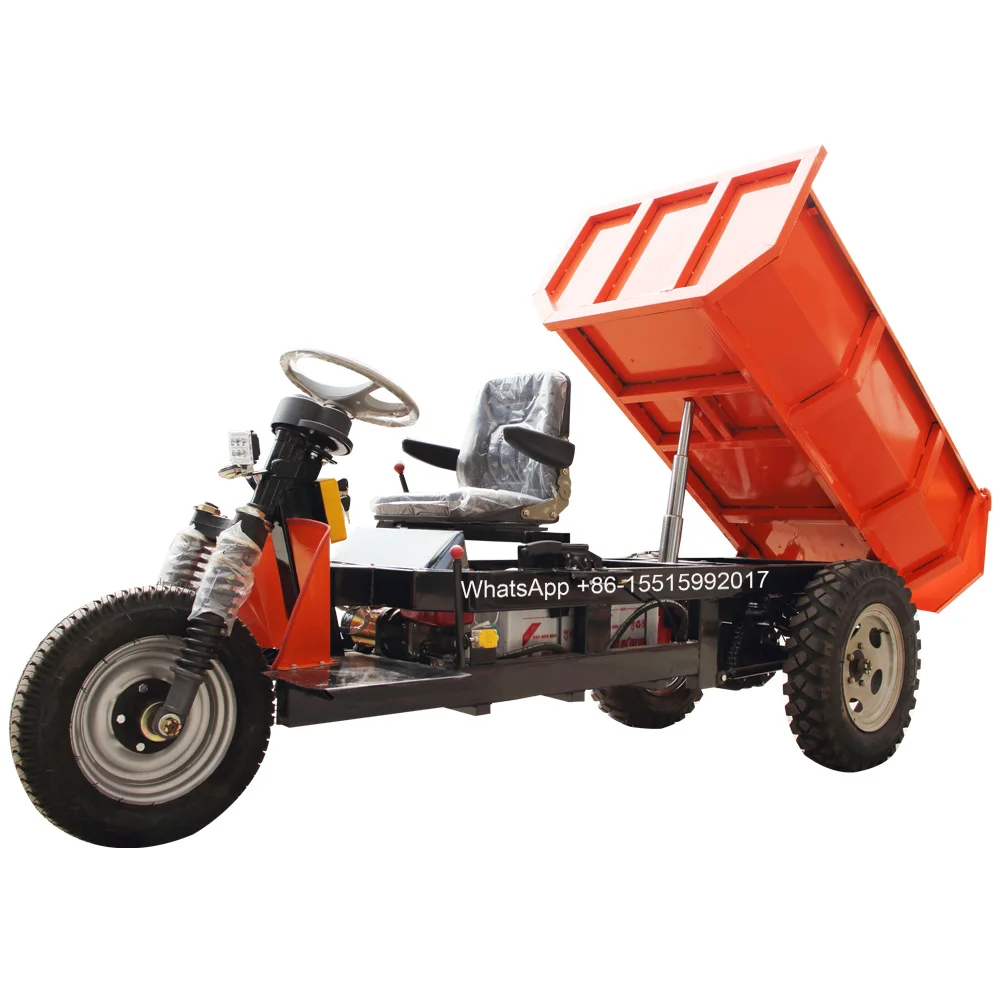

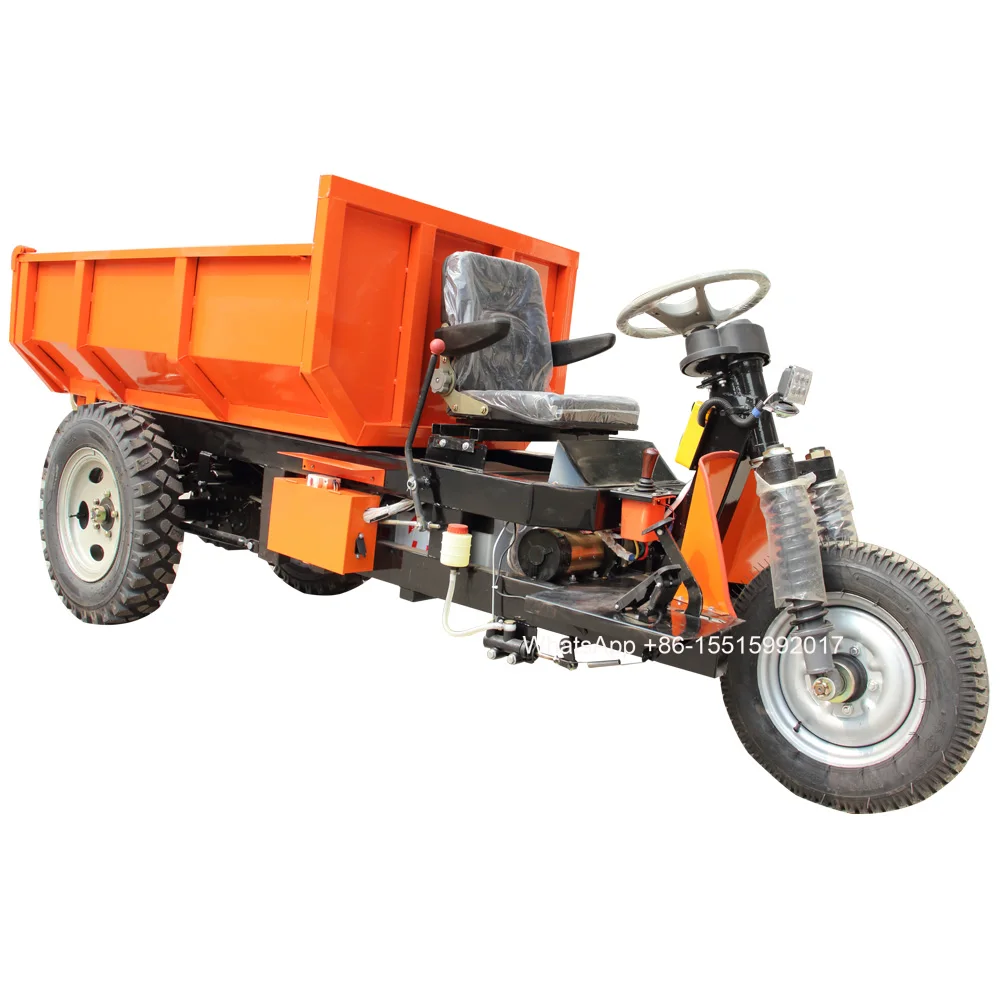

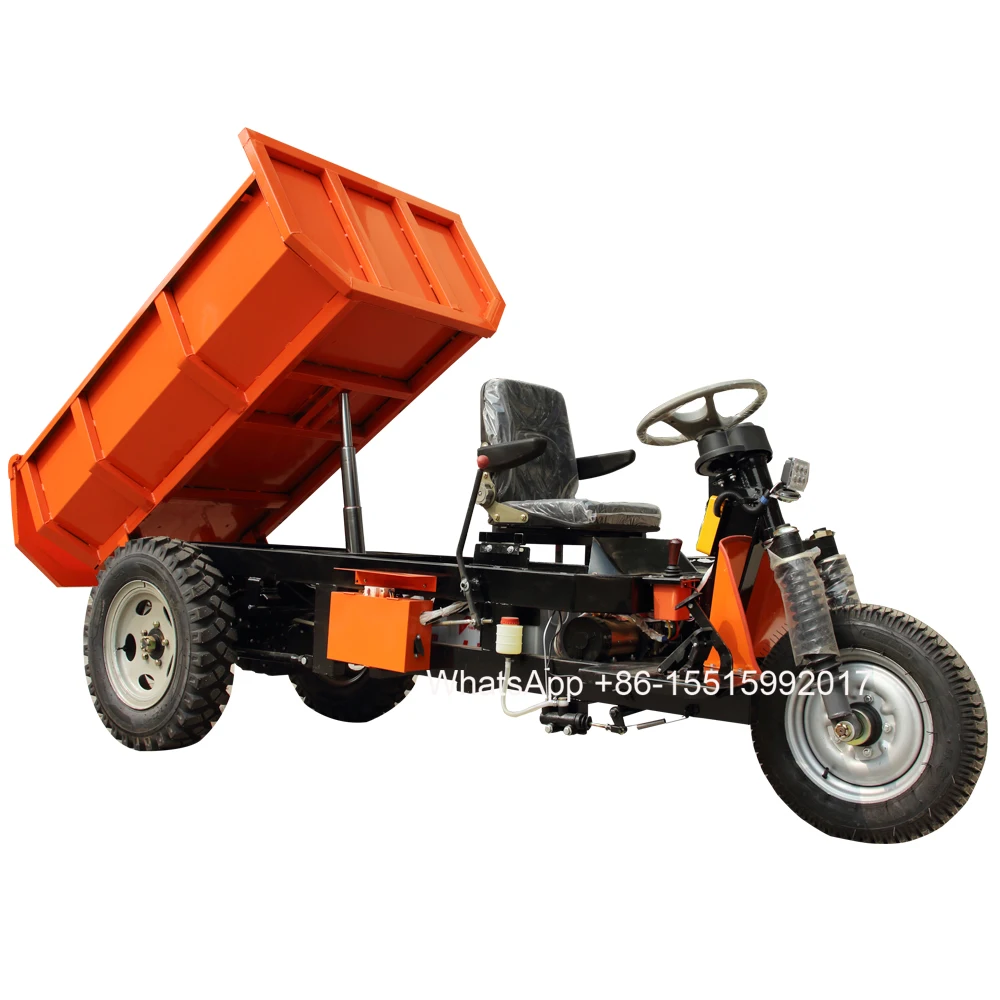

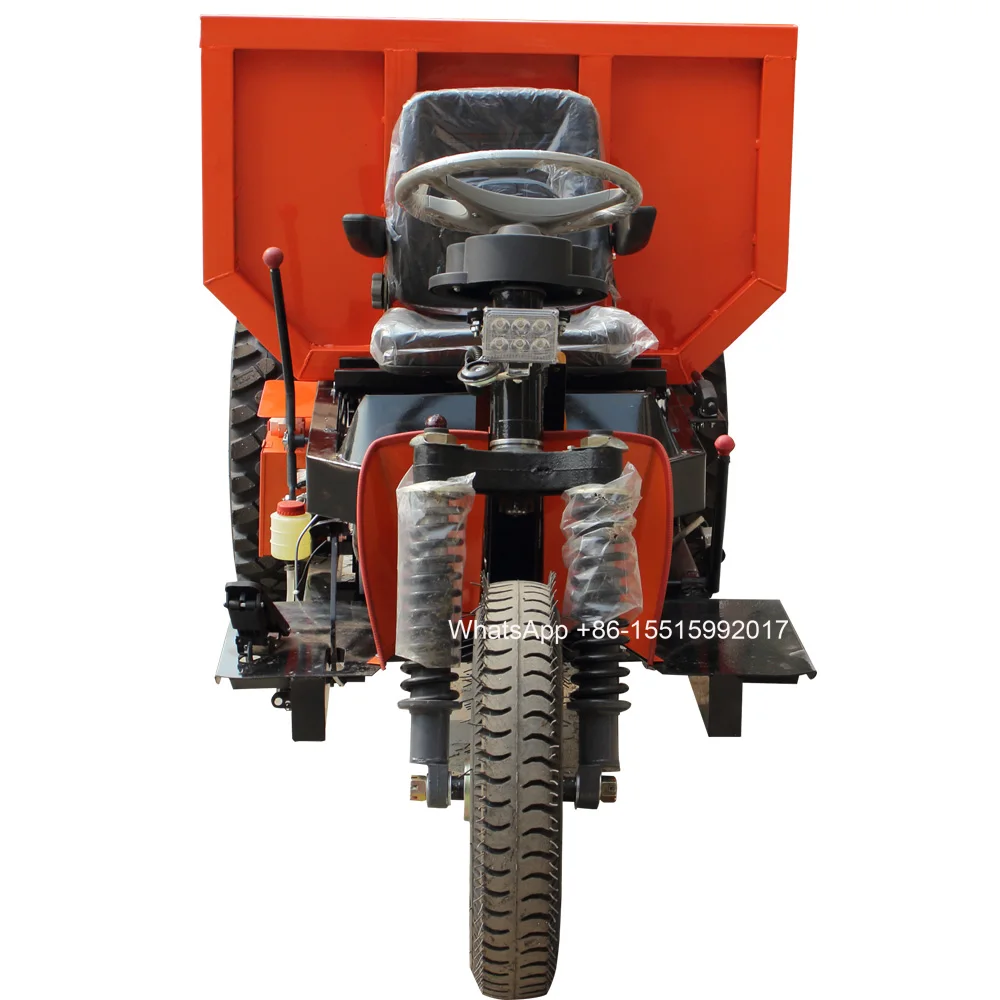

High-quality Pure Electric minidumper 2 Ton Capacity Electric Dumper For Sale
Zhengzhou Lianke Machinery Manufacturing Co., Ltd. is a professional factory in the production of electric mini dumpers and other mining machines. The electric dumper is our best-selling product, especially in countries with many mines such as Peru, Chile, Bolivia, etc.
FCL Delivery
20'GP can hold 8 sets LK200 electric dumpers, 40'HC can hold 20 sets LK200 electric dumpers ,we also have LK135 and LK270,These models can be mixed into one container
LK200 electric dumper standard configuration Among them, red word are customized by customer | ||||||
Loading capacity | 2000kg | Net weight | 685kg | |||
Front tire | 4.50-14 (Huanyan) | Rear tire | 6.00-16 (Huanyan) | |||
Overall size(L*W*H) | 3300*1100 *1350mm | Cargo box size(L*W*H) | 1800*1100 *500mm | |||
Driving motor power | 60V3000W | Driving motor type | Brushed motor Brushless motor | |||
Lifting motor power | 1000W/60V | Lifting motor type | Brushed motor | |||
Batteries type | Lead-acid (water) battery, 30kg/piece Dry battery can be customized | Driving type | Double chain gearbox rear axle with high and low speed Direct coupling way rear axle can be customized | |||
Front shock absorption type | Single row large shock absorption Double -row shock absorption can be customized(SHIFENG) | Brake | Oil brake | |||
Hopper thickness | 5mm | Speed | 35km/h | |||
Detailed configuration
Rear axle type can be customized
1-Standard type:Double chain gearbox rear axle with high and low speed
Standard motor is 60V3000W,but Larger power motor and brushless motor are all available.
Equip with high and low speed gears ,Max speed is 35km/h
The rear axle of LK200 electric dumpers is equipped with high and low speed gears, and the maximum speed can reach 35km/h.
Gear 1 and gear 2, these two speed change gears realize the high and low speed switching of the vehicle. The ordinary double chain rear axle does not have the two speed change gears 1 and 2, but only 3, so the ordinary LK135 's double chain rear axle does not have the speed change function.
Gear 1 and gear 2, these two speed change gears realize the high and low speed switching of the vehicle. The ordinary double chain rear axle does not have the two speed change gears 1 and 2, but only 3, so the ordinary LK135 's double chain rear axle does not have the speed change function.
Optional rear axle can be customized
If the double chain gearbox rear axle can not be meet your requirement,You can also choose the following rear axle as needed
Front shock absorption
The standard shock absorption of the LK200 is a single row shock absorption with strong bearing capacity and good shock absorption effect. It is usually used for the LK270 before.
Optional shock absorption
Double row shock absorption has better shock absorption effect, and the bearing capacity is usually about 3 tons. The brand is China Shifeng. Shifeng Company is a factory specializing in the production of large tonnage diesel agricultural vehicles in China. The quality of shock absorption is very good.
Weight:32.5kg
Weight:32.5kg
The rear leaf spring
The rear leaf springLK200 and LK270 models use heavy and thickened steel plates with a weight of 21kg and strong bearing capacity.
Liquid battery or Dry battery
The standard battery is 5 pcs,and total is 60V ,one piece weight of the battery is 30kg.
If you want us to replace it with dry batteries,it is also available
Upgrade of LK200 electric dumper hopper
1-The LK200 and LK270 both use a 5mm bottom plate，it is more stronger than 3mm
2-We have strengthened the front gantry of the vehicle, There was only one upright before,now we add 2 uprights at the front.This can greatly strengthen the strength of the front gantry.
Mining tires
Front wheel :4.50-14
Rear Tire:6.00-16
Company:HENAN HUANYAN TYRE CO.,LTD
Dump hook was upgraded
The previous dump hook was only fixed outside, and it would be anti -hook when unloading. At present, we improved the dump truck,and their positions are fixed.
Auti-rust for electric dumper
Seat: No longer use black paint, because it is easy to rust due to collision during shipping. The seats of the LK135 and LK200 aregalvanized in silver and no longer need to be painted.
Seals were added to the Tail of the girl: Other factories directly use rectangular tubes without sealing. When used in a humid environment, the inside of the beam is easy to rust.
Seals were added to the Tail of the girl: Other factories directly use rectangular tubes without sealing. When used in a humid environment, the inside of the beam is easy to rust.
Spare parts of our electric dumpers
We are a factory that specializes in the production of electric Dumper and diesel dumper. In addition to vehicles, if you also need accessories, please contact us.ωhatsapp:+86 15515992017
Related product
Factory Show
1.New frame design, using laser cutting machine, the cargo box and the frame are mutually matched
Use laser cutting machine to cut the frame of the dumper.
The advantage of laser cutting is that the precision is particularly high, and the edges of the steel after cutting are neat and free of burrs. Production is standardized so that the same model of hopper and frame can be matched to each other. The first picture is the rectangular tube after laser cutting, we cut it where it needs to be bent. The second is the girder that is bent after cutting. The third picture is the finished frame, you can see that the outer edge of the finished frame is curved without any welding
The advantage of laser cutting is that the precision is particularly high, and the edges of the steel after cutting are neat and free of burrs. Production is standardized so that the same model of hopper and frame can be matched to each other. The first picture is the rectangular tube after laser cutting, we cut it where it needs to be bent. The second is the girder that is bent after cutting. The third picture is the finished frame, you can see that the outer edge of the finished frame is curved without any welding
2-Integrated bending machine and shot blasting machine production
One-piece bending cargo box. The cargo box and the produced frame enter the shot blasting machine for rust removal.
3-Spray and paint production line
The frame and cargo box after being derusted by the shot blasting machine will enter the plastic spraying production line.
Different from the traditional spray painting, the workers will spray a layer of paint powder on the surface of the box board first, and then enter the paint baking room on the automatic line. At a high temperature of 200 degrees, the paint powder will melt , and then it will be very evenly attached to the box board and the frame, the paint surface is not easy to fall off, and it is very beautiful.
Different from the traditional spray painting, the workers will spray a layer of paint powder on the surface of the box board first, and then enter the paint baking room on the automatic line. At a high temperature of 200 degrees, the paint powder will melt , and then it will be very evenly attached to the box board and the frame, the paint surface is not easy to fall off, and it is very beautiful.
Contact Information
Похожие товары

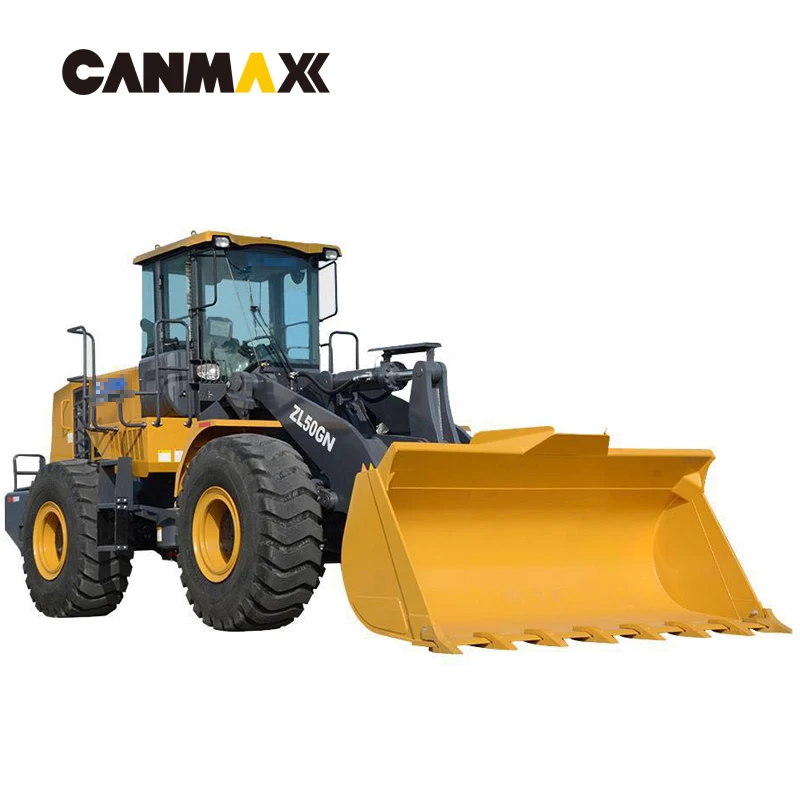

Китайский бренд top1 5-тонный погрузчик lw500fn lw550fn lw500kn 5 t колесный zl50gn для продажи
41 000,00 $

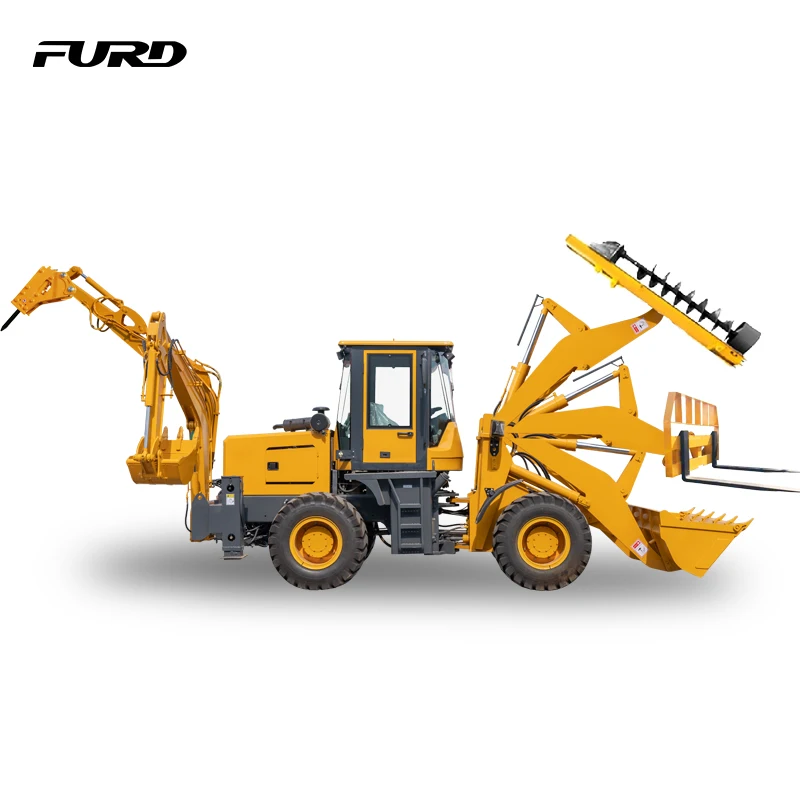

Популярный экскаватор-погрузчик для продажи низкая цена погрузчик-digger другая строительная машина

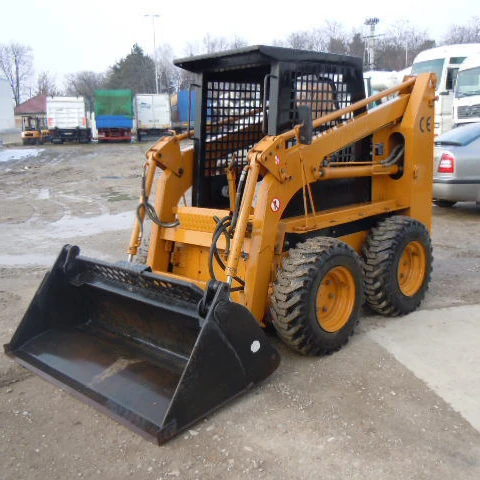

Супер энергосберегающий топливный Luyue 380 кг мини-погрузчик с бортовым поворотом JC25 импортным двигателем
5 000,00-8 000,00 $

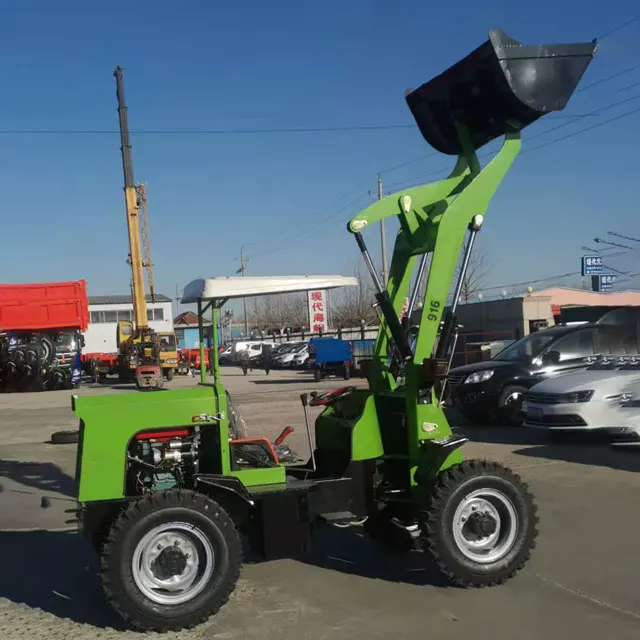

Небольшой мини-погрузчик с колесным приводом электрический/дизельный двигатель нагрузка 1000 кг 600 низкая цена распродажа
3 150,00-3 350,00 $
Мини-садовая лопата 604 500 кг
3 999,00-4 900,00 $

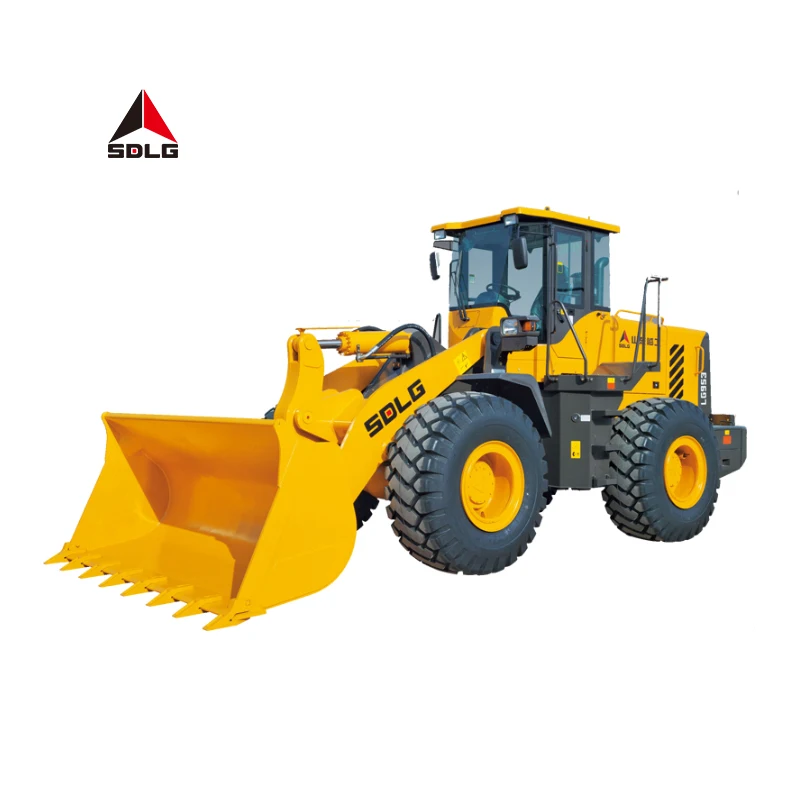

Высококачественный 5-тонный Телескопический сочлененный мини-погрузчик SDLG 4 колеса 5 т Удлинительный погрузчик с двигателем WD10G220E21 купить колесный
41 580,00 $

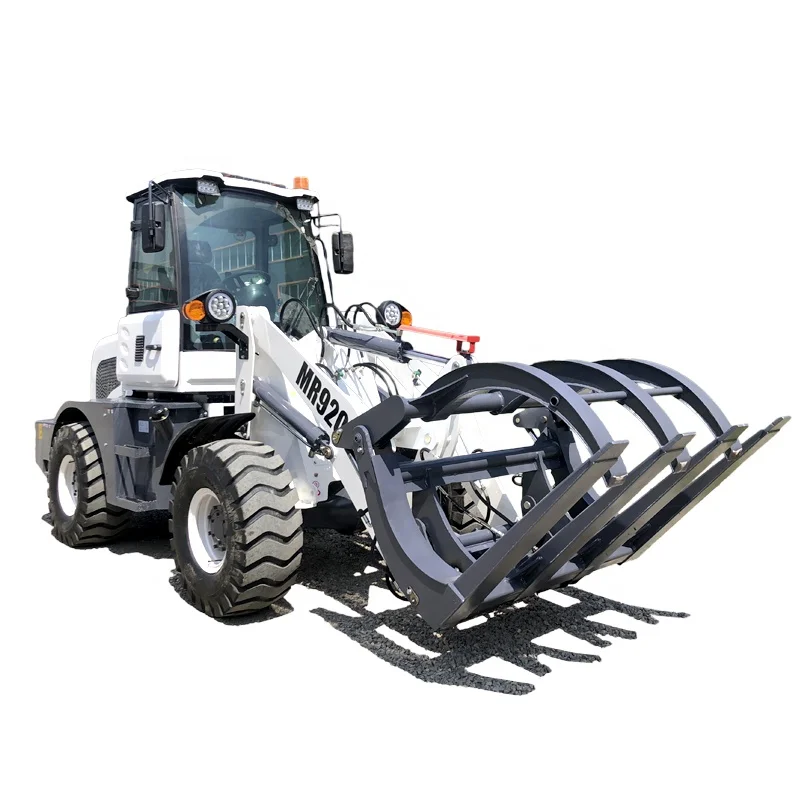

Погрузчик Weifang фронтальный погрузчик с воздушным кондиционированием
