Дымоходные вытяжки из нержавеющей стали
5 579,07 ₽
Кухонная Вытяжка с бесшумным электродвигателем/электродвигателем переменного тока защитой от отпечатков пальцев и функцией 30 часов умной очистки автомобиля
- Категория: >>>
- Поставщик: Arcturus (zhongshan) Electric Appliance Co. Ltd.
Сохранить в закладки 1601038759208:
Описание и отзывы
Характеристики
Products Description

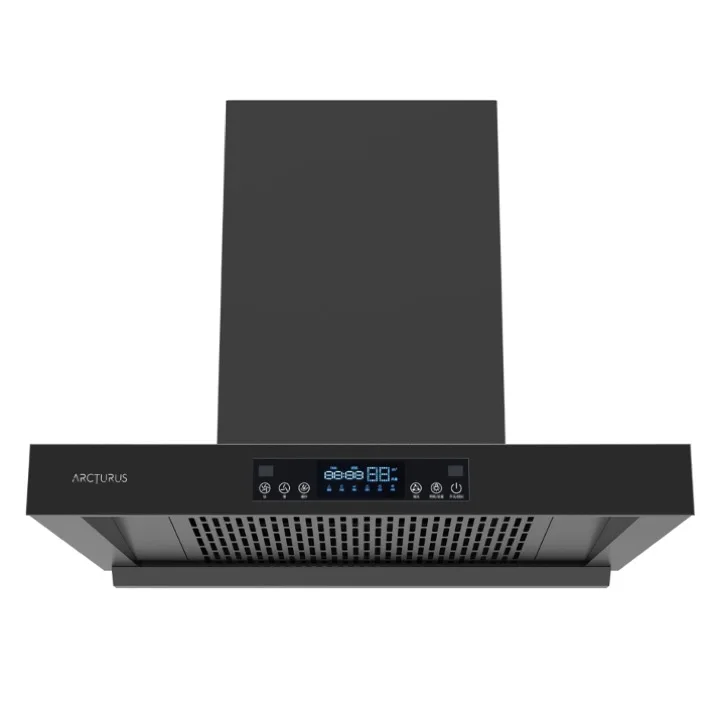

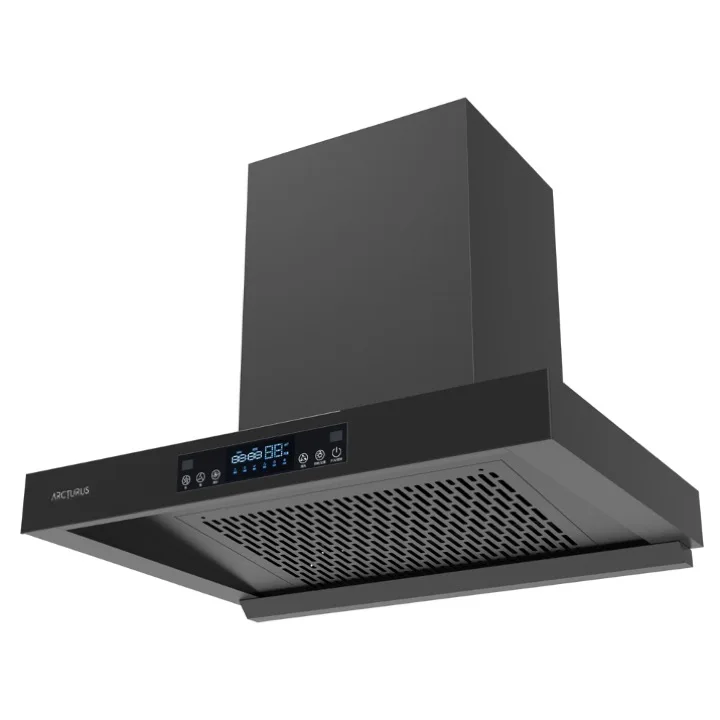

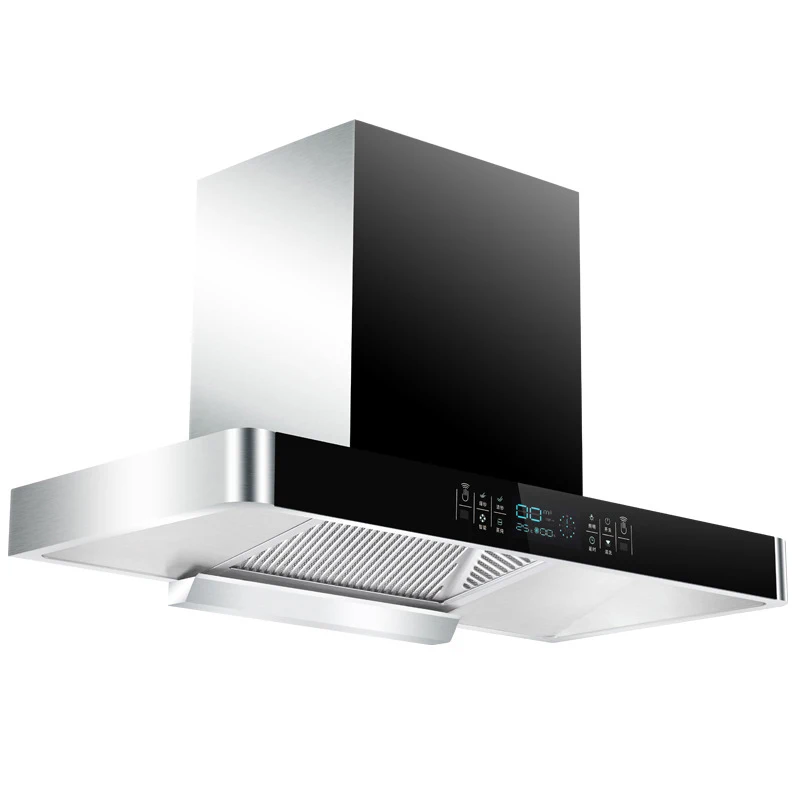

T SHAPE KITCHEN HOOD
1,130W BLDC motor/180W AC motor
2.0.5MM cold rolled steel body
3.filterless
4.30 hour smart auto heat cleaning-after being used for 30hour chimney will start auto cleaning
5..heat sensor-chimney will start automatically when senses heat
4.30 hour smart auto heat cleaning-after being used for 30hour chimney will start auto cleaning
5..heat sensor-chimney will start automatically when senses heat
6.9 speed gesture control for BLDC/3 speed gesture control for AC motor Chimney
7.210*90MM blower
8.210*110MM metal housing
9.LED light-1*3W
10.Heating film-60W(foil heating film/PET heating film)
11.size available:60CM,75CM & 90CM
LOADING DETAILS-
60CM KITCHEN HOOD-
40HQ - 388 Pcs
75CM KITCHEN HOOD-
40HQ - 331Pcs
90CM KITCHEN HOOD-
40HQ - 228Pcs
Product name | Hot dry cleaning BLDC motor range hood |
Body material | cold rolled electrophoresis/stainless steel |
Body thickness | 0.5 mm |
Motor | BLDC 130watt (grade 4, insulation class B)/AC180watt(grade 4,insulation class B) |
Switch | Gesture control display switch |
Power cable | 3*0.75mm2, 1.8 meters |
Rated voltage | 220VAC |
Rated frequency | 50Hz |
Lighting power | 3W |
Rated total power | 133 w/183w |
Air volume | 850m3/h |
Wind pressure | ≥172Pa |
Noise label | ≤76dB(A) |
Maximum static pressure | ≥166.27Pa |
Motor RPM- | 1100rpm |
Filter size | 160*750mm |
Oil filter net | cold rolled, black coated |
Hot dry cleaning | 65W heating film(foil heating film/PET heating film,as per the customer requirement) |
Outlet seat/pipe | Φ150*1500mm aluminum foil pipe |
Oil Cup size and metrial | Cold rolled, black coated 752*54*30mm |
Hood size, material and finish | 480*332*275mm, cold rolled black coated |
Spigot Size | 150mm, |
front glass | 5mm GLASS THICKNESS |
Screw size and no | 5*50, 4 no |
net weight | 20.1kg |
Gross weight | 21.00 kg |
Dimensions | 600*385*535. 750*380*520 |
Package dimensions | 660*615*465. 810*560*420 |
FEATURES | Hood & Top Glass |
1, switch : intelligent gesture controll , with hot dry cleaning function. | |
2, power : energy-efficient circuit board back and chip surface coated with moisture-proof paint. | |
3, wind wheel: 12-axis diameter 250*90, 43 fins, electropheresis. | |
4,smart auto heat cleaning function-chimney will start auto cleaning after being used for 30hr. |
130W BLDC MOTOR
*130W Copper Clad Aluminium BLDC Motor.
METAL HOUSING
- Cold Steel Housing with Electrophoresis Black treatment.
- 260*110mm housing
- 260*110mm housing
METAL BLOWER
- Cold steel blower with Electrophoresis Black treatment.
- 250*90mm metal blower which provides desired airflow.

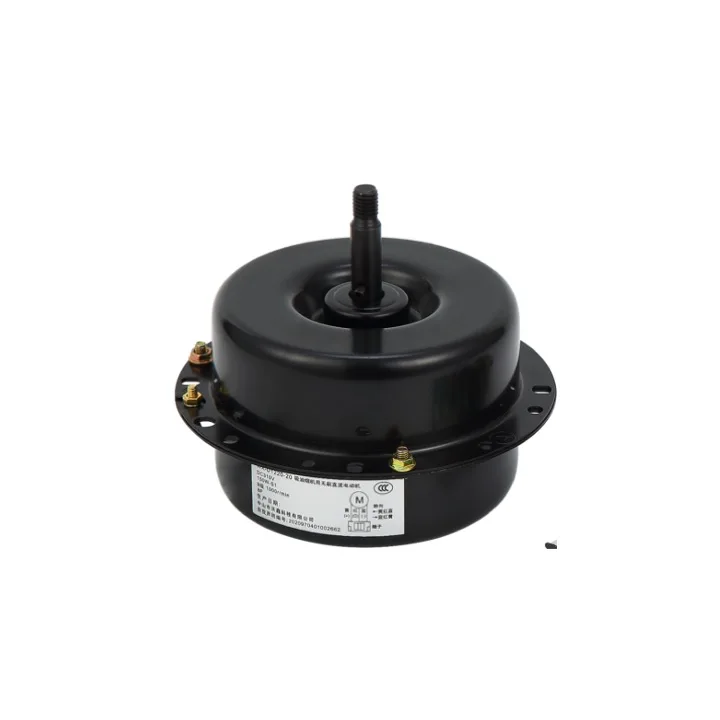

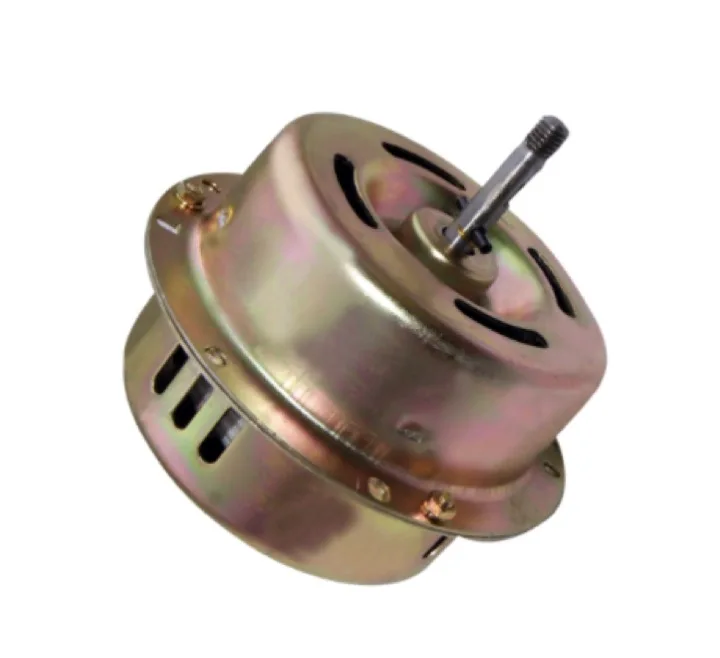

180W PURE COPPER MOTOR
*100% Pure copper motor
*180W grade 4,class insulation B.
253g copper.
*180W grade 4,class insulation B.
253g copper.
HEATING FILM
PET heating film 60w,80°C
60*440mm
desired length can be customised
FOIL HEATING FILM.
foil heating film 60w,80°C
60*650mm
60*650mm
desired length can be customised

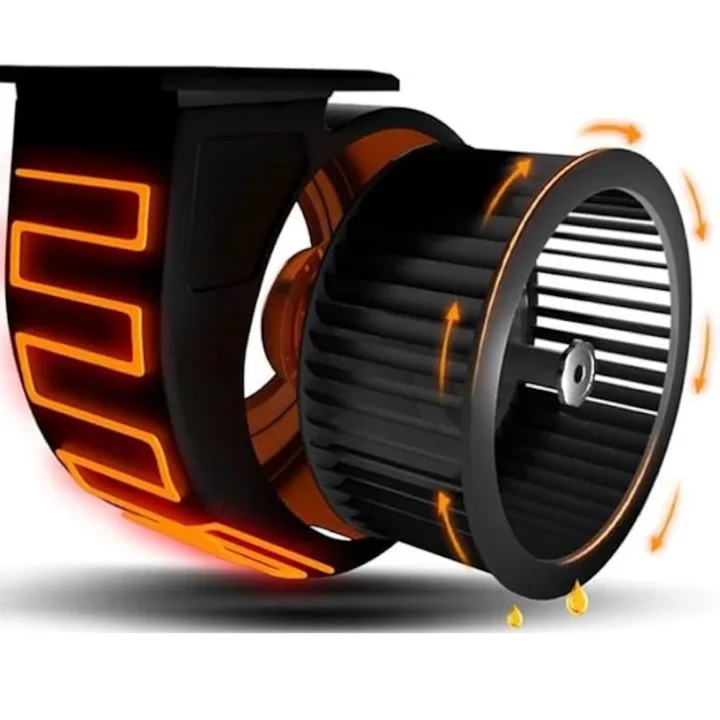

Smart Auto clean function
*After being used for 30hr,the chimney will start auto cleaning.
*When required range Hood can be auto cleaned within minutes by one click. Cook with ease and cabinet will no longer be greasy.
High Air flow and air suction
Our chimney are designed in a way that it allows heavy air flow and air suction. Even the heavy smoke is exhausted in seconds
without backflow.
without backflow.
DIFFERENT PANEL DESIGN TO CHOOSE-
OTHER MODEL-
ISLAND RANGE HOOD
MODEL:AIS-900
ELECTROPHORESIS BLACK ISLAND RANGE HOOD
MODEL:AIS1-900
STAINLESS STEEL ISLAND RANGE HOOD
MODEL:AIS2-900
STAINLESS STEEL RANGE HOOD
MODEL NO: AG-750
STAINLESS STEEL RANGE HOOD
MODEL:AG1-750
STAINLESS STEEL RANGE HOOD
MODEL:AG2-750
CURVE RANGE HOOD
MODEL: AGC-600
CURVED RANGE HOOD
MODEL:AGC1-600
CURVE RANGE HOOD
MODEL:AGC2-600
For more information and to check our complete product catalog, please contact us-
Company Profile
Our Advantages
Why choose us
* OEM & ODM
* 10-15 Days for sample customization .
* New Designs : The blend of technology and innovation to create the better and improved version of chimney and perfect
* OEM & ODM
* 10-15 Days for sample customization .
* New Designs : The blend of technology and innovation to create the better and improved version of chimney and perfect
solution for kitchen.
* 30 to 40 days delivery time for the mass production.
* Strong R&D team .
Multiple inspection team for every process in order to provide the best of the quality.
* Strong R&D team .
Multiple inspection team for every process in order to provide the best of the quality.
FAQ
1. Are you a manufacture or trading company?
We “ Zhongshan Arcturus appliances co ltd “ , are both manufacture located in Zhongshan Huangpu area and trading company.
2: What's the term of the delivery?
We normaly use the Nansha port , and terms that we use is FOB , EX FACTORY .
3: What's the lead time?
Normally is 30 days after deposit. Same as the sample. If there is the customization then it will be 45 days , the repeat orders
required 30 days
4: What is the MOQ?
1 Piece is available for charged sample. For mass production, the MOQ is 1*20'GP container of each model. Detailed QTY depends on
the packing dimension.
5 : Why choose us ?
We reluctantly work on the innovation technology and the quality of the product . choosing us gives you more wider range of
latest range of product and exclusivity in your market. also the current update about the changing scenario of the product and
market analysis .
6 : Whats the process to get the samples and if samples available for the testing ?
Yes The samples are available and can be developed, the samples lead time is 15 days on chargeable bases .
7 : do you accept the customization
Yes we do customization as per the customer requirement, also can be done a new development , be it opening a new mold or
customizing the existing product
8 : how do you test the samples and quality
We have inhouse testing facilities to test the airflow and noise level , also the multiple layer of quality inspection goes on
for each and every production and samples , to ensure the quality
We “ Zhongshan Arcturus appliances co ltd “ , are both manufacture located in Zhongshan Huangpu area and trading company.
2: What's the term of the delivery?
We normaly use the Nansha port , and terms that we use is FOB , EX FACTORY .
3: What's the lead time?
Normally is 30 days after deposit. Same as the sample. If there is the customization then it will be 45 days , the repeat orders
required 30 days
4: What is the MOQ?
1 Piece is available for charged sample. For mass production, the MOQ is 1*20'GP container of each model. Detailed QTY depends on
the packing dimension.
5 : Why choose us ?
We reluctantly work on the innovation technology and the quality of the product . choosing us gives you more wider range of
latest range of product and exclusivity in your market. also the current update about the changing scenario of the product and
market analysis .
6 : Whats the process to get the samples and if samples available for the testing ?
Yes The samples are available and can be developed, the samples lead time is 15 days on chargeable bases .
7 : do you accept the customization
Yes we do customization as per the customer requirement, also can be done a new development , be it opening a new mold or
customizing the existing product
8 : how do you test the samples and quality
We have inhouse testing facilities to test the airflow and noise level , also the multiple layer of quality inspection goes on
for each and every production and samples , to ensure the quality
Production Process
* RAW MATERIAL INSPECTION : All the incoming raw material go through the inspection stage to clear.
* Spare parts Inspection : All the electronic spare parts including Motor , heating film control , lifting motor , PCB goes
through with the inspection before to ensure the quality and hazzle free production.
* Product Asembly : Our QC team frequently observe the assembly line and if there is any flaw that will get corrected at
* Finished Product : fisnihed product goes though with another inspection
* Warehouse : after the finished goods inspection the goods go to the warehouse and ready to ship
* Shipping : Our logistic team help to load goods safely
* Spare parts Inspection : All the electronic spare parts including Motor , heating film control , lifting motor , PCB goes
through with the inspection before to ensure the quality and hazzle free production.
* Product Asembly : Our QC team frequently observe the assembly line and if there is any flaw that will get corrected at
the same time.
* Finished Product : fisnihed product goes though with another inspection
* Warehouse : after the finished goods inspection the goods go to the warehouse and ready to ship
* Shipping : Our logistic team help to load goods safely
Product packaging
Loading Container
Our Team
Похожие товары
Коммерческий вытяжной кухонный вытяжной, сильный всасывающий автомобильный, боковой всасывающий вытяжной капюшон
3 828,77 ₽ - 4 922,71 ₽
Двухмоторная вытяжка из нержавеющей стали MAXKY, кухонная медная вытяжка из нержавеющей стали
16 407,92 ₽ - 18 925,06 ₽
60 см кухня Остров настенное крепление латунь американский стиль broan отель Диапазон капот медный остров вентилируемый Диапазон капот
14 877,51 ₽ - 15 862,05 ₽
Настенный кухонный вытяжка 24 36-дюймовый вытяжной вентилятор с двойным всасыванием черный современный умный из нержавеющей стали вытяжка
7 457,35 ₽ - 8 751,48 ₽

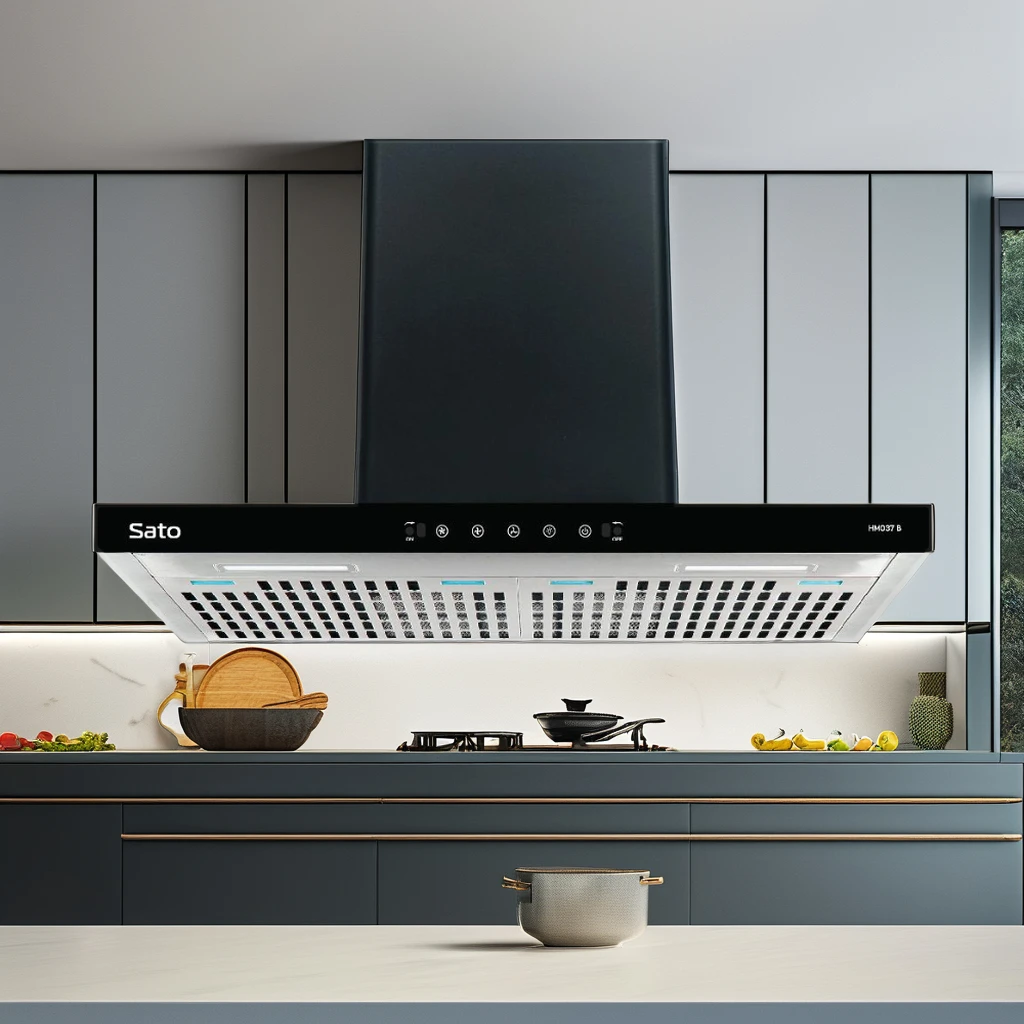

Высокомощная электрическая кухонная вытяжка SATO HM037.B плоская стеклянная Вытяжка с мощным двигателем и тихим всасыванием OEM/ODM
Заводская индивидуальная новая вытяжка, кухонная вытяжка с высокой конкурентоспособностью по цене
16 627,80 ₽ - 16 955,98 ₽

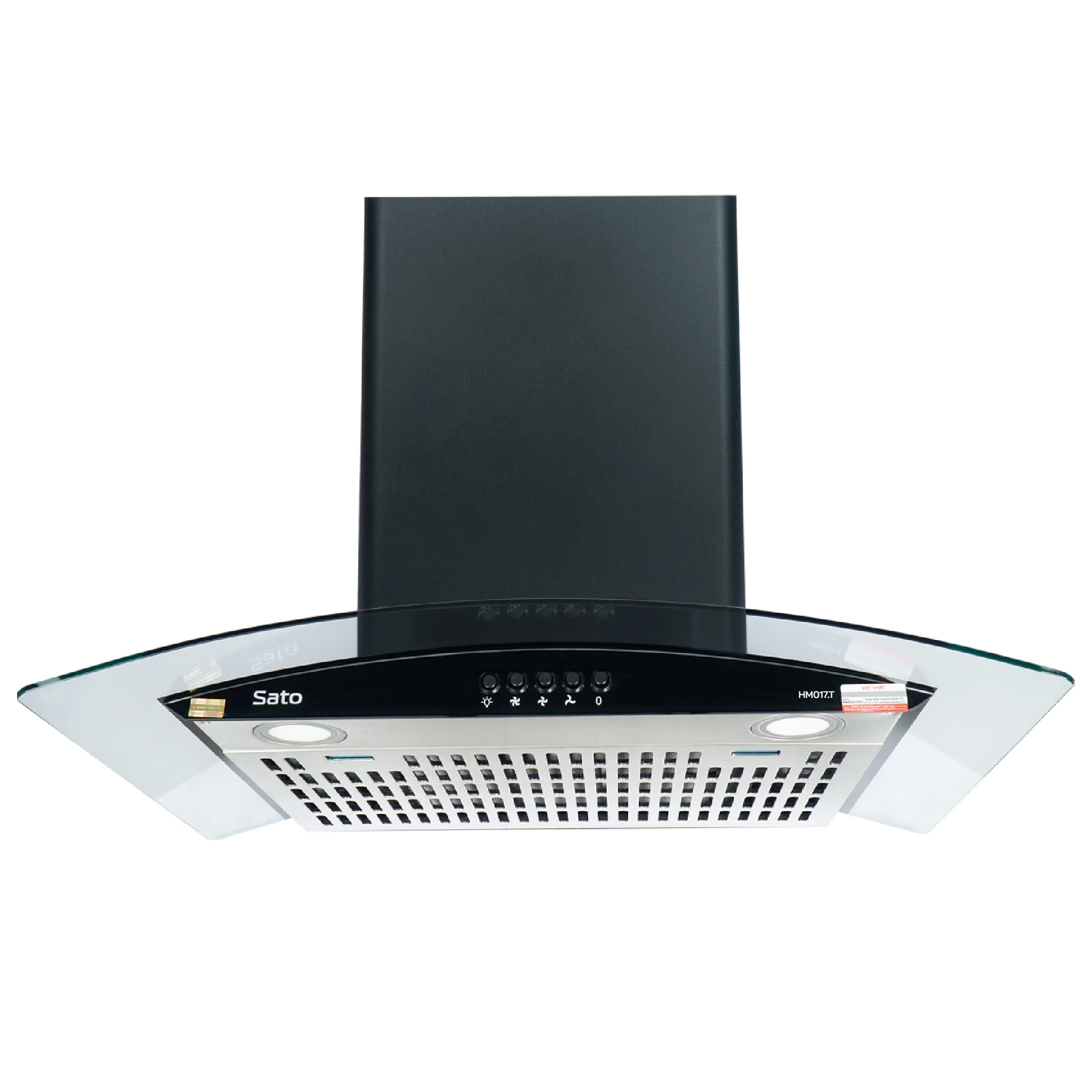

Высокомощная электрическая кухонная вытяжка SATO HM017.T, изогнутая стеклянная Вытяжка с мощным двигателем и тихим всасыванием OEM/ODM
