Product Description

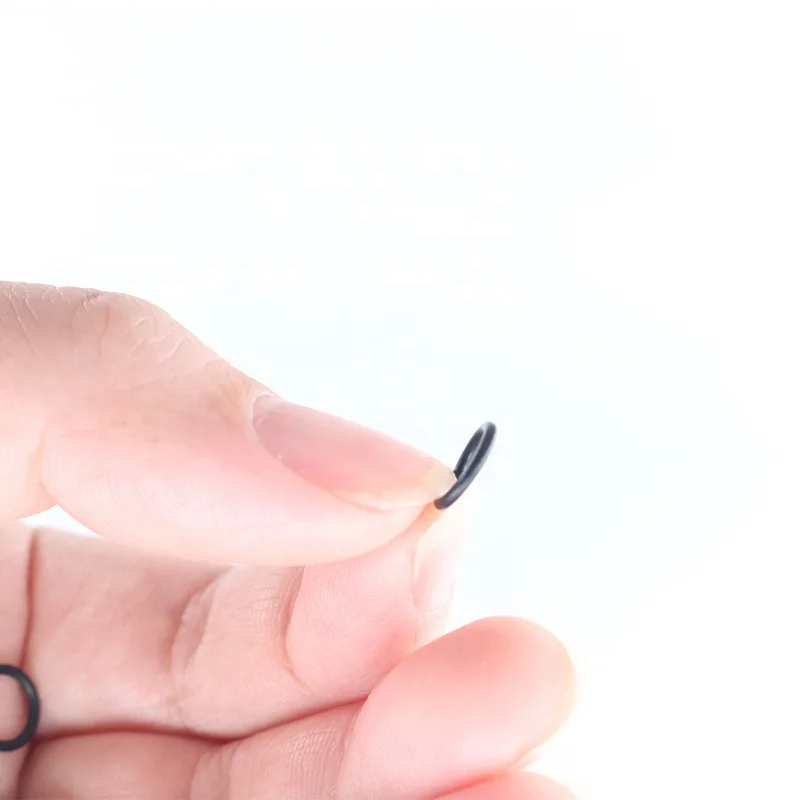

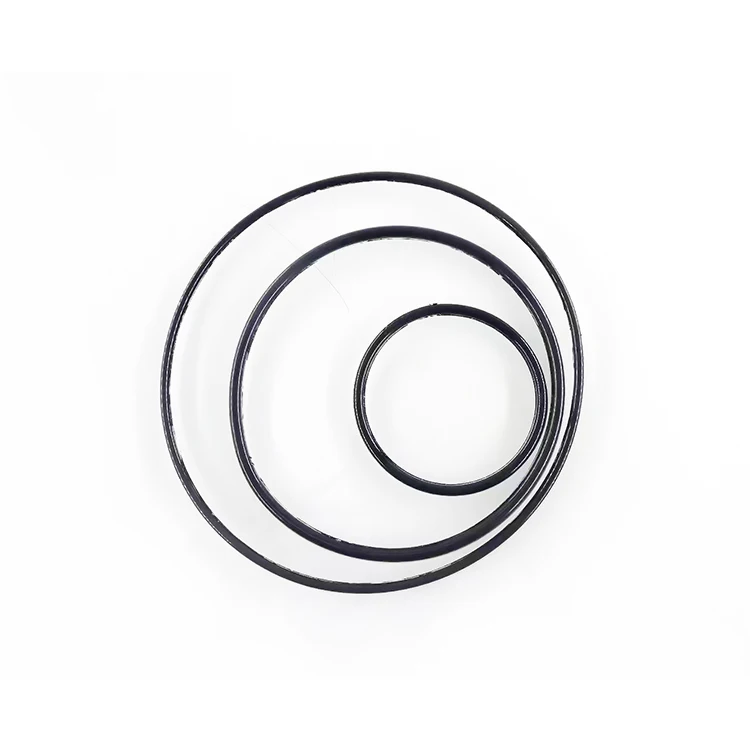

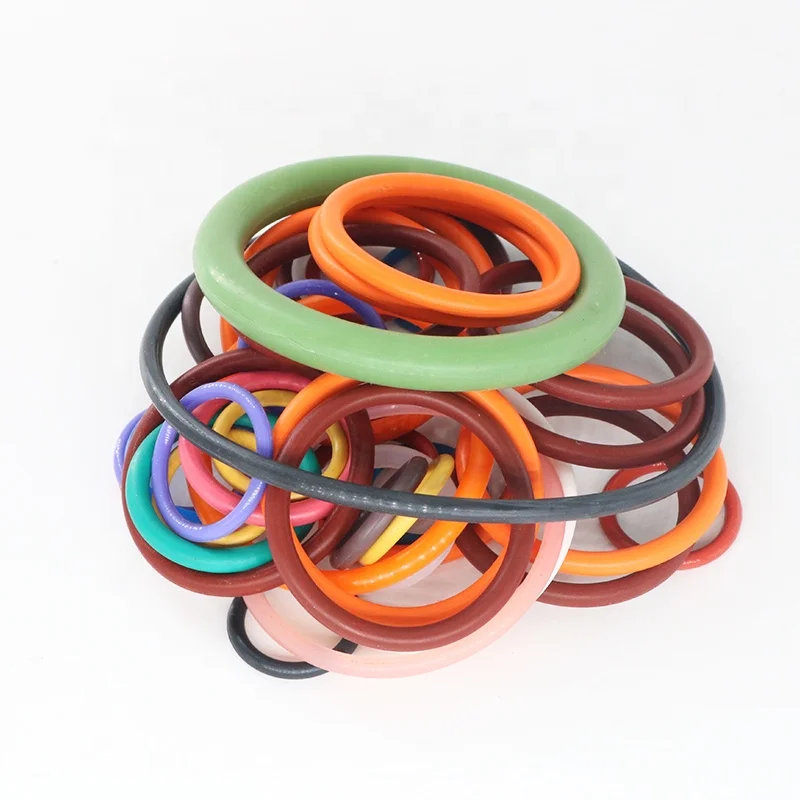

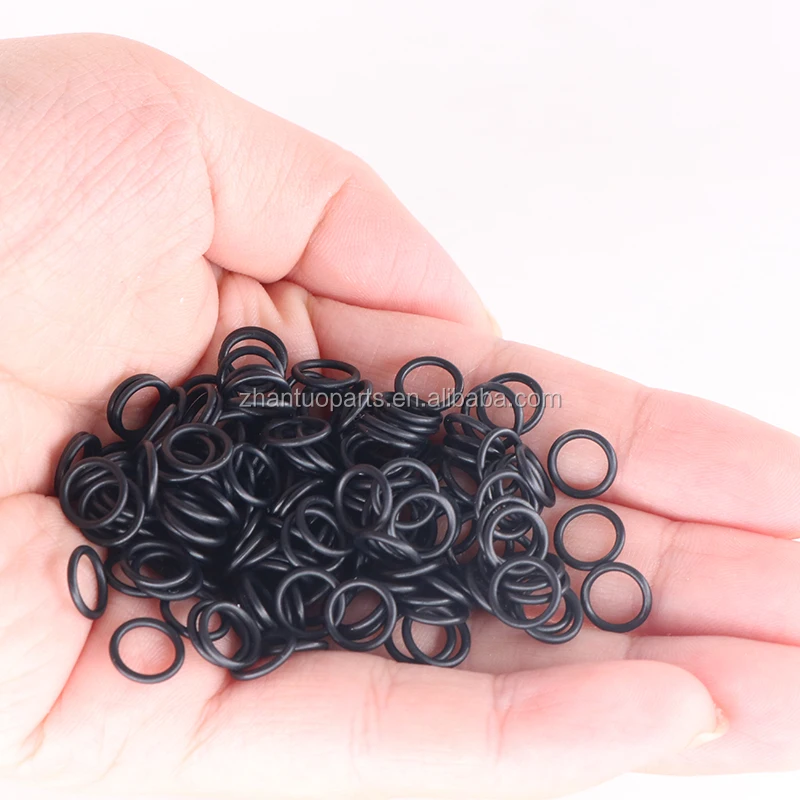

Rubber O ring

The O-ring may be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.
O-rings are one of the most common seals used in machine design because they are inexpensive, easy to make, reliable, and have simple mounting requirements. They can seal tens of megapascals (thousands of psi) of pressure.

Technical Data
Operating conditions
Pressure: static applications: without back-up ring ≤20Mpa, with back-up ring  ≤40Mpa
dynamic applications:   without back-up ring ≤5Mpa
Temperature: NBR -40~+120°c, FKM  -40~+200°c, SI -70~+190°c
Speed: reciprocate ≤0.5m/s, rotate  ≤2.0m/s
Media: Hydraulic oils(Mineral oil-based). Acid-proof alkali for FKM o-ring

Colour	Black or colours
Material	Nitrile (NBR), Viton(FKM), Silicone(MVQ), EPDM, HNBR etc
Cross Section Type	Circular
O-ring type	AS568,JIS, BS,EN Standard.
Hardness (Shore A)	65-75
Operating Temperature Range (°C)	"-30 to +120", "-20 to +210", "-40 to +140", "-60 to +210" , "-45 to +150"
Tensile Strength(MPA)	14
Elogation At Break(%)	385
Specific Gravity	1.2---1.85
Size	Many sizes
Package	Piece--PP bag ---carton
Trial order	Acceptable
MOQ	100pcs
Application	Automotive,machinery,motorcycle etc
Payment	T/T, Western union, Paypal, Escrow
Departure ports	Xingang(Tianjin), Shanghai, Guangzhou, Qingdao, Shenzhen or as your requirements
Delivery time	Usually 20 days after receiving your advance payment.
Place of origin	Xingtai, Hebei, China(mainland)

Product Features:

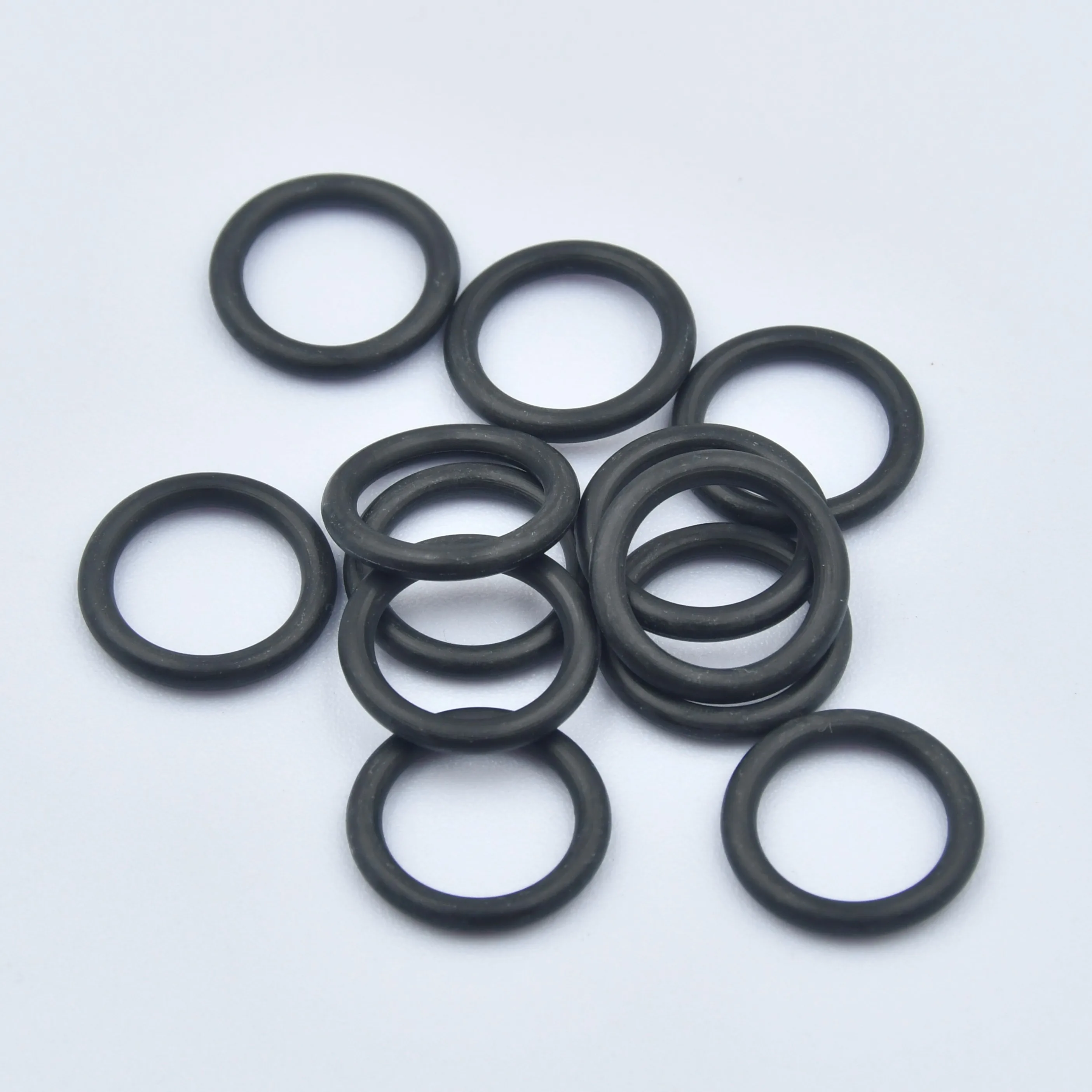

Nitrile (or NBR) O-Rings are most commonly available and are cost effective. Ideal for use as seals on pumps, drive belts, and other general engineering applications.NBR is good for applications that need to withstand fats, Greases and high temperature (+70°C). Temperature Range -30°C to +120°C (avoid prolonged use at higher extremes) Suitable for: Many hydrocarbons, fats, oils gasoline, petroleum based hydraulic fluid etc

Product Features:

Viton (FKM) O Rings have a low compression set and have high temperature and chemical resistance.
More expensive than NBR O Rings.
The terms FPM, FKM and Viton very often cause confusion and lead to incorrect interpretations. All of these designations actually stand for one single base material: fluoro rubber.Temperature Range -30°C to +200°C (avoid prolonged use at higher extremes)

Related Products

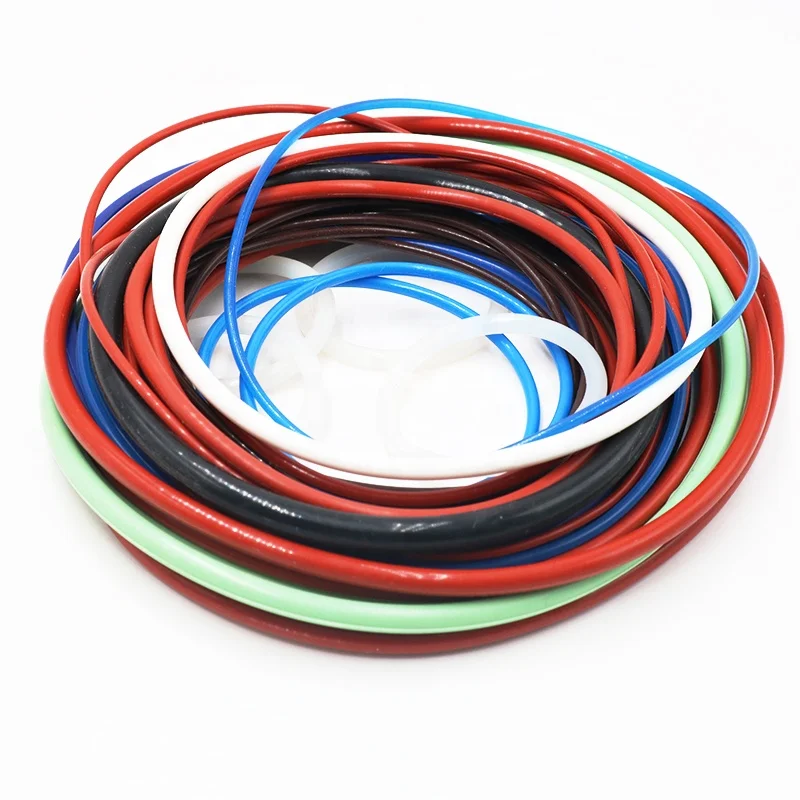

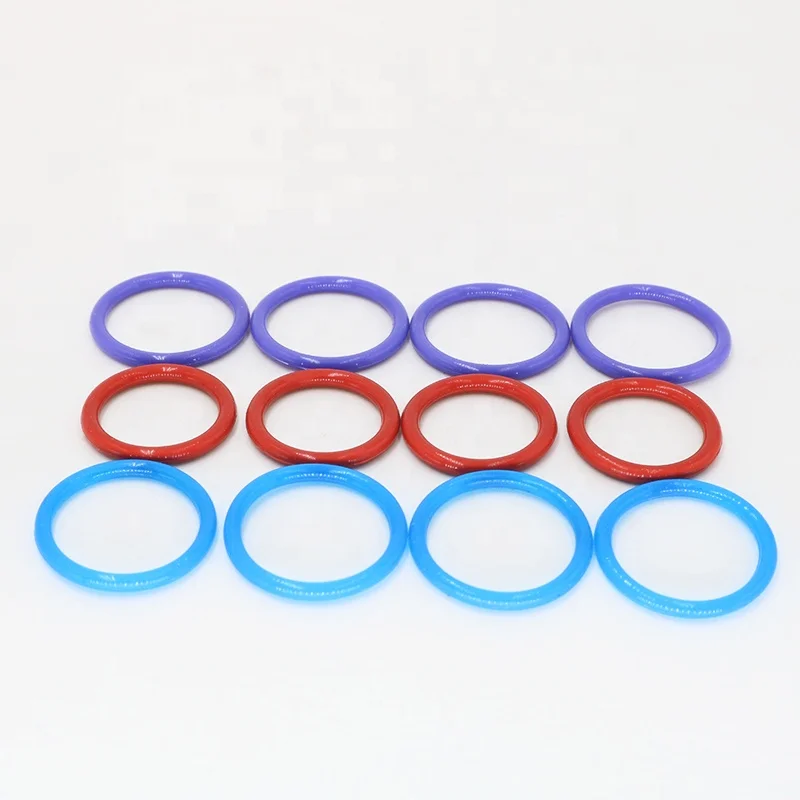

Silicone O Ring

Silicone possess excellent resistance to temperature extremes. Silicone's retention of properties at high temperatures is superior to other elastic materials. Silicone has poor tensile strength, tear resistance and abrasion resistance.
Chemical resistance
Dry heat
High - aniline point oils
Chlorinated DI - phenyls
Food processing applications
Excellent ozone resistance.
Water (Low temperature only)

EPDM O Ring

EPDM is particularly useful when sealing phosphate-ester hydraulic fluids and in brake systems that use fluids having a glycol or silicone base. This results in a highly fluorinated elastomeric compound with exceptional temperature resistance, compatibility with a wide range of aggressive chemical combinations and outstanding resistance to permanent deformation.
Chemical resistance
Hot water and steam up to 149°C with special compounds up to 260°C
Glycol based brake fluids (Dot 3 & 4) and silicone-based brake fluids (Dot 5) up to 149°C
Many organic and inorganic acids
Cleaning agents, sodium and potassium alkalis
Phosphate-ester based hydraulic fluids (HFD-R)
Silicone oil and grease
Many polar solvents (alcohols, ketones, esters)
Ozone, aging and weather resistant

Rubber HNBR O Ring

Hydrogenated nitrile is a synthetic polymer that results from the hydrogenation of nitrile rubber (NBR). This gives it superior mechanical characteristics, particularly high strength, greater thermal stability and helps reduce extrusion and wear.
Chemical resistance
Aliphatic hydrocarbons
Vegetable and animal fats and oils
HFA, HFB and HFC hydraulic fluids
Dilute acids, bases and salt solutions at moderate temperatures
Water and steam up to 149°C (300°F)
Ozone, aging and weathering

Packing&Shipping

PE bag and carton box outside

Company Introduction

XINGTAI ZHANTUO IMPORT AND EXPORT TRADING CO., LTD is located in Xingtai city, Heibei province of China. We specialize in Manufacturing auto parts and rubber goods. Our products have been exported to Europe,Russian, South American, the Middle East etc.
We also can produce according to your requirements and provide OEM service.
We have a strong R&D department and experienced engineers. We can design and make
OEM/ODM products according to your ideas and samples.
Through many years of development, our company has become a large-scale enterprise
with research, production, assembly and marketing capabilities. Our products are
distributed all over the world.
Since our establishment, we have persisted in the business tenet of ZHANTUO beliefs.
We sincerely welcome you to visit and cooperate with us for a prosperous business future

FAQ

1.Are you trading company or manufacturer?
We are manufacturer and licensed exporter.

2. Can I get the sample?
Yes, we can provide you existing sample for free, but a little sample charge for custom design, new customers are expected to pay
for the delivery cost, the sample charge will be deducted from the payment for formal order.

3. How long is the sample lead time?
For existing product, it takes 1-2 days; If you want your design, it may take 3-5 days depends on your design content.

4. How about your product quality control?
We have our QC department empowered with a professional QC team. "Quality First, Cutomer Focus" is our quality policy,

5. Why should I buy yours nbr skeleton oil seals ?
Our skeleton oil seal offers excellent quality, reasonable price, good after-sales service & quality assurance.

6.Is it safe of paying money to you?
We are verified supplier on Alibaba, your payment is guarantee by Alibaba.

For more details or more goods, please feel free to contact us. Welcome to click here, https://zhantuoparts.en.alibaba.com/?spm=a2700.11153138.mamo-user-profile.4.704d71d2F873cf
