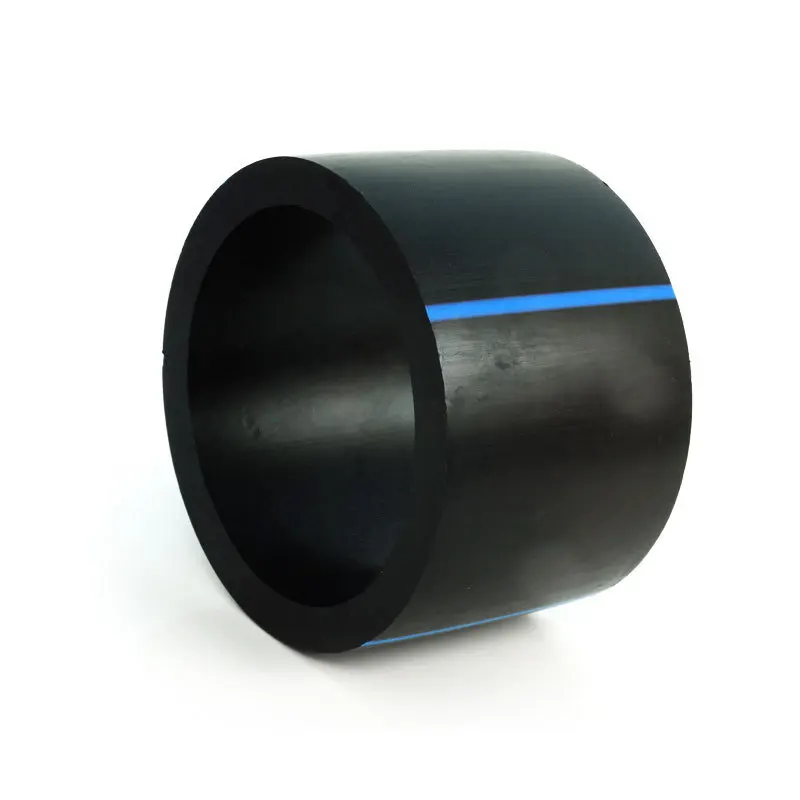

60 мм dn160мм 250 10 бар Высококачественная Черная водопроводная труба Hdpe поставщики цена в ОАЭ с использованием трубы прайс-лист для U
26,41-304,22 ₽
Сохранить в закладки 1601038807684:

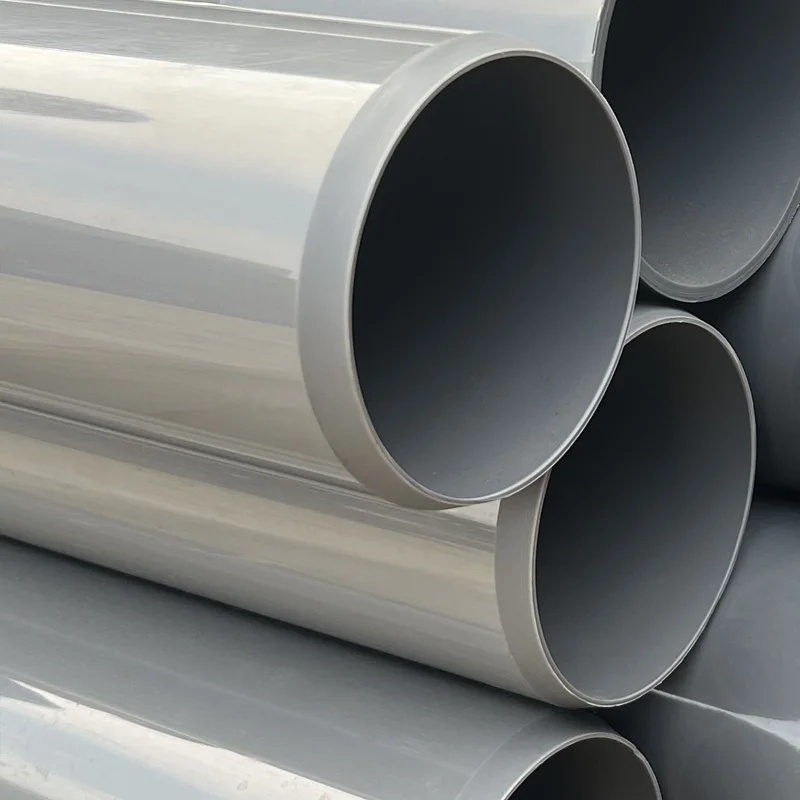

Unplasticized polyvinyl chloride (PVC-U) pipes for water supply | ||||
Test Item | Requestment | Test standard | ||
Density(kg/m³) | 1350-1460 | (GB/T 10002.1-2006) | ||
Vicat softening temperature /℃ | ≥80 | |||
Longitudinal reversion/(%) | ≤5 | |||
Resistance to external blows 0℃ TIR/(%) | ≤5 | |||
Resistance to hydrostatic pressure | No break,no leakage | |||
Joint seal test | No break,no leakage | |||
Opacity | Required to be opaque | |||
Lead、tin、cadmium、mercury dissolution test | 1.The first extraction solution of(Pb)was less than 1ppm The third extraction solution of Pd (Pd) was less than 0.1ppm 2.The frist extraction solution of Sn(Sn)was less than 0.02ppm The frist extraction of cadmium(Cd)was less than 0.01ppm, The frist extraction of mercury(Hg)was less than 0.01ppm | |||
VCM content(mg/kg) | ≤1 | |||
Resistance to dichloromethane test(15℃,15min) | Surface changes are not inferior to 4N |
Specifications of PVC-U pipes glue for water supply GB/T10002.1-2006 | ||||||||||||||||
Nominal diameter (mm) | Actual length (m/PC) | Nominal pressure 0.63Mpa | Nominal pressure 0.8Mpa | Nominal pressure 1.0Mpa | Nominal pressure 1.25Mpa | Nominal pressure 1.6Mpa | Nominal pressure 2.0Mpa | Nominal pressure 2.5Mpa | ||||||||
Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | ||||||||||
20 | 4 | 2 | 2.3 | |||||||||||||
25 | 4 | 2.0 | 2.3 | 2.8 | ||||||||||||
32 | 4 | 2.0 | 2.4 | 2.9 | 3.6 | |||||||||||
40 | 4 | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | ||||||||||
50 | 4 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | |||||||||
63 | 4 | 2.0 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | ||||||||
75 | 4 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 | ||||||||
90 | 4 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | ||||||||
110 | 4 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | ||||||||
125 | 6 | 3.1 | 3.9 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | ||||||||
140 | 6 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | ||||||||
160 | 6 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | ||||||||
200 | 6 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||||||||
225 | 6 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |||||||||
250 | 6 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |||||||||
280 | 6 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |||||||||
315 | 6 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | |||||||||
355 | 6 | 8.7 | 10.9 | 13.6 | 16.9 | |||||||||||
400 | 6 | 9.8 | 12.3 | 15.3 | 19.1 |

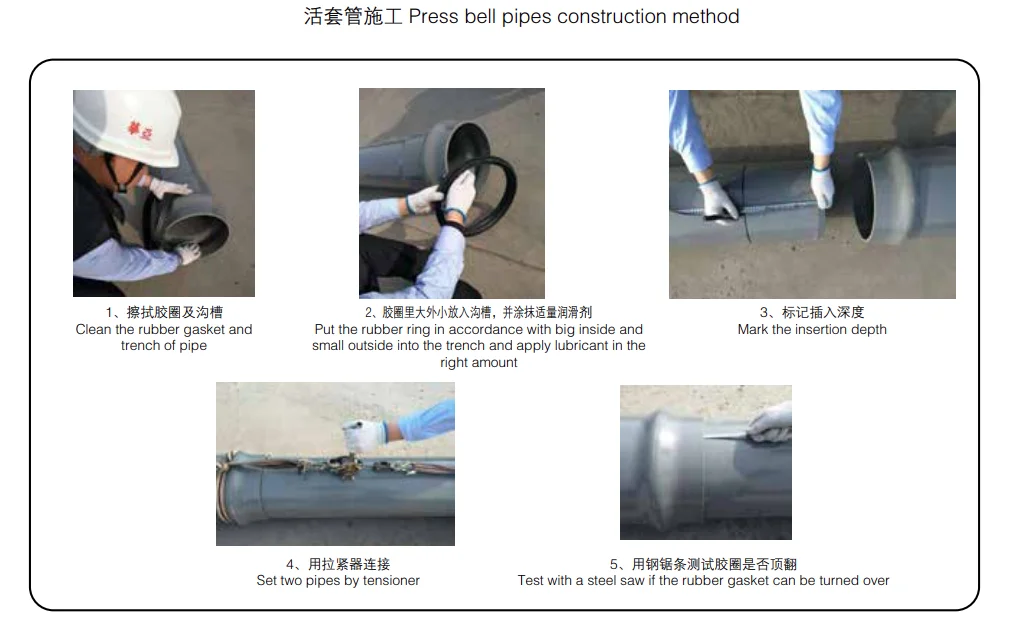

Specifications of PVC-U pipes press bell for water supply GB/T 10002.1-2006 | ||||||||||||||||
Norminal Diameter (mm) | Actual length (m/PC) | Nominal pressure 0.63Mpa | Nominal pressure 0.8Mpa | Nominal pressure 1.0Mpa | Nominal pressure 1.25Mpa | Nominal pressure 1.6Mpa | Nominal pressure 2.0Mpa | Nominal pressure 2.5Mpa | ||||||||
Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | ||||||||||
63 | 4 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | |||||||||
75 | 4 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 | |||||||||
90 | 4 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | ||||||||
110 | 4 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | ||||||||
125 | 4 | 3.1 | 3.9 | 4.8 | 6.0 | 7.4 | 9.2 | |||||||||
140 | 4 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | ||||||||
160 | 6 | 4.0 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | ||||||||
200 | 6 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||||||||
225 | 6 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |||||||||
250 | 6 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |||||||||
280 | 6 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |||||||||
315 | 6 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | |||||||||
355 | 6 | 8.7 | 10.6 | 13.6 | 16.9 | 21.1 | 26.1 | |||||||||
400 | 6 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | |||||||||
500 | 6 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | |||||||||
560 | 6 | 13.7 | 17.2 | 21.4 | 26.7 | |||||||||||
630 | 6 | 15.4 | 19.3 | 24.1 | 30.0 |
Specifications of PVC-U pipes for water supply ISO 1452-2:2009 | ||||||||||||||
Nominal outside diameter, dn | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 | |||||||
Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | Wall thickness (mm) | ||||||||
20 | 1.5 | 1.9 | ||||||||||||
25 | 1.5 | 1.9 | 2.3 | |||||||||||
32 | 1.5 | 1.6 | 1.9 | 2.4 | 2.9 | |||||||||
40 | 1.5 | 1.6 | 1.9 | 2.4 | 3 | 3.7 | ||||||||
50 | 1.6 | 2 | 2.4 | 3 | 3.7 | 4.6 | ||||||||
63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | ||||||||
75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | ||||||||
90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | ||||||||
110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | |||||||
125 | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | |||||||
140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||||||
160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | |||||||
180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | |||||||
200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | ||||||||
225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | ||||||||
250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | ||||||||
280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | ||||||||
315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | ||||||||
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | ||||||||
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | ||||||||
450 | 11 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | ||||||||
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | ||||||||
560 | 13.7 | 17.2 | 21.4 | 26.7 | ||||||||||
630 | 15.4 | 19.3 | 24.1 | 30 |
