Машина для производства гибких металлических трубопроводов/машина труб/машина формовки трубопроводов с квадратным замком
569 320,80-593 042,50 ₽
Отличная производительность одной стены гофрированный шланг делая машину
- Категория: >>>
- Поставщик: Cissco Machinery Co. Ltd.Cissco Ltd.
Сохранить в закладки 1601038871321:
Описание и отзывы
Характеристики
SINGLE WALL CORRUGATED PIPE PRODUCTION LINE
Product Description
1. Introduction of PVC single wall corrugated pipe machine

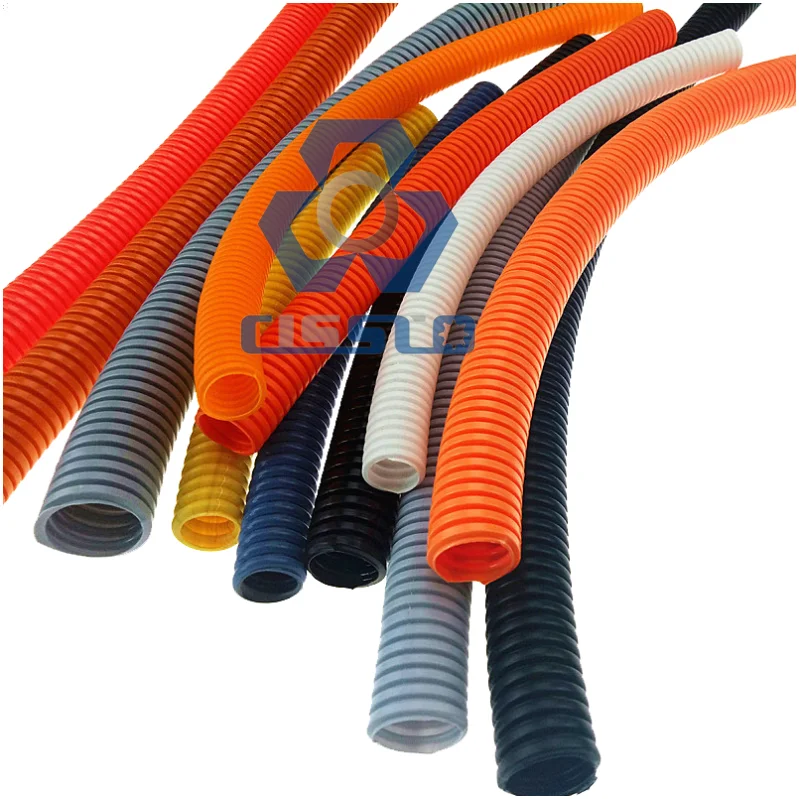

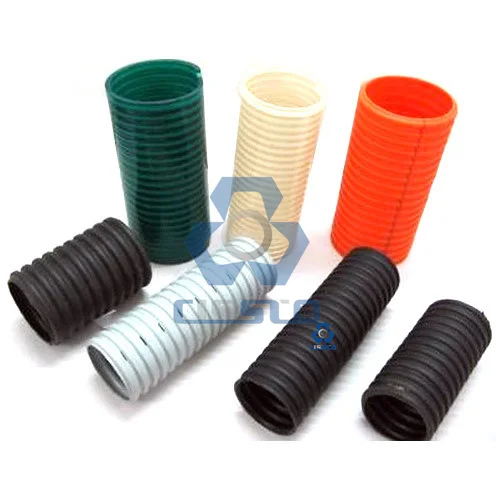

Different extruder and forming machine will be chosen for different material: PA, PE, PP, UPVC, etc. The pipe is mainly use for electrical cable or wire protection, drainage pipe of washing machine, pipe in dust collector, automobile industry, lamp industry and air-exhausted pipe etc.
Standard single wall high speed corrugated pipe forming machine: can produce two diameters or three diameters’ single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and reduce the time for changing the mould blocks, increase the efficiency.
High speed corrugated pipe forming machine: forming blocks running without chain, blocks installed directly in the gear groove, rely on 9Mn2V material forming blocks with machining accuracy of 0.01 mm, realize high speed stable running.
Different extruder and forming machine will be chosen for different material: PA, PE, PP, UPVC, etc. The pipe is mainly use for electrical cable or wire protection, drainage pipe of washing machine, pipe in dust collector, automobile industry, lamp industry and air-exhausted pipe etc.
Standard single wall high speed corrugated pipe forming machine: can produce two diameters or three diameters’ single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and reduce the time for changing the mould blocks, increase the efficiency.
High speed corrugated pipe forming machine: forming blocks running without chain, blocks installed directly in the gear groove, rely on 9Mn2V material forming blocks with machining accuracy of 0.01 mm, realize high speed stable running.
2. Material of PVC single wall corrugated pipe machine
* Material: PA, temperature range: -40°C-115°C, the product does not contain halide, anti-oil, anti-acid. Anti-inflammation rate is HB (U94). The black color pipe is ultraviolet resistant.
* Material: PP, temperature range: -20°C-110°C, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
* Material: PE, temperature range: -40°C-80°C, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
* Material: PA, temperature range: -40°C-115°C, the product does not contain halide, anti-oil, anti-acid. Anti-inflammation rate is HB (U94). The black color pipe is ultraviolet resistant.
* Material: PP, temperature range: -20°C-110°C, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
* Material: PE, temperature range: -40°C-80°C, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
3. Main technical parameter of PVC single wall corrugated pipe machine
Model | DBWG-45 | DBWG-50 | DBWG-65 | DBWG-90 |
Screw diameter(mm) | 45 | 50 | 65 | 90 |
L/D | 30 | 30 | 30 | 30 |
Pipe diameter range(mm) | 4.5-13 | 16-32 | 25-48 | 90-160 |
Mold block quantity (pairs) | 52-70 | 52-70 | 52-60 | 72 |
Production speed (m/min) | 16-20 | 12-16 | 6-10 | 2-4 |
4. Configuration of PVC single wall corrugated pipe machine
NO. | Description | QTY |
1 | Vacuum feeder and hopper loader | 1set |
2 | Single Screw Extruder | 1set |
3 | Die Head(13mm-50mm) | 1set |
4 | Pipe Forming Machine with online cutter | 1set |
5 | Double station winding machine | 1set |
6 | Corrugated pipe perforation machine | 1set |
7 | Free Spare parts | 1set |
8 | Extra mould with month mould and core bar | 1set |

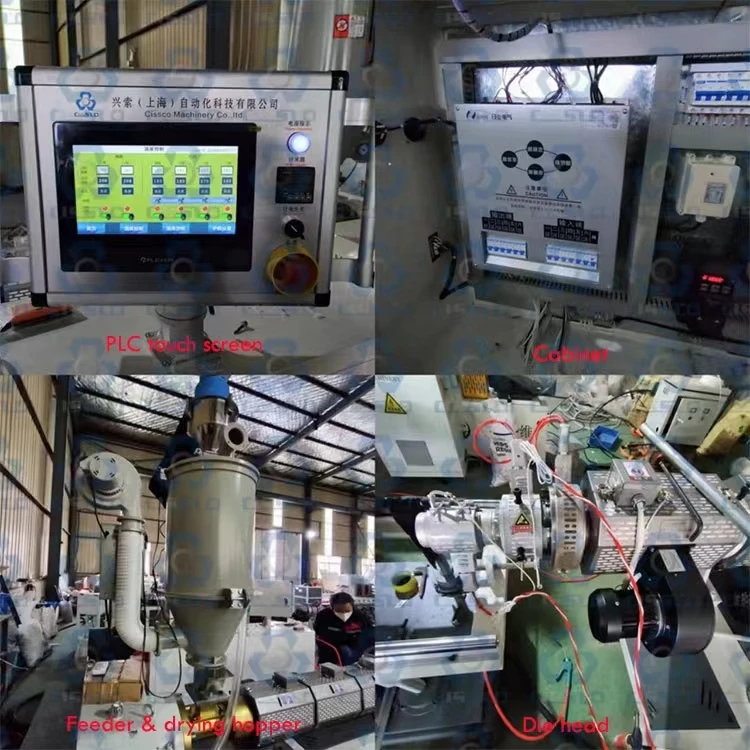

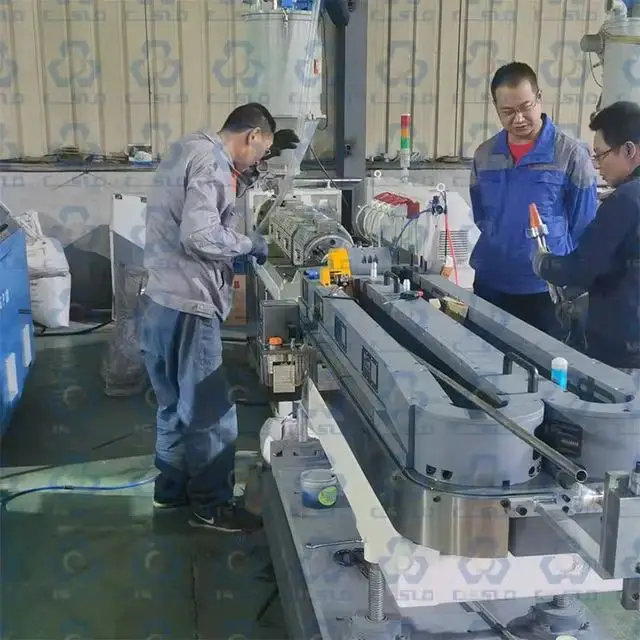

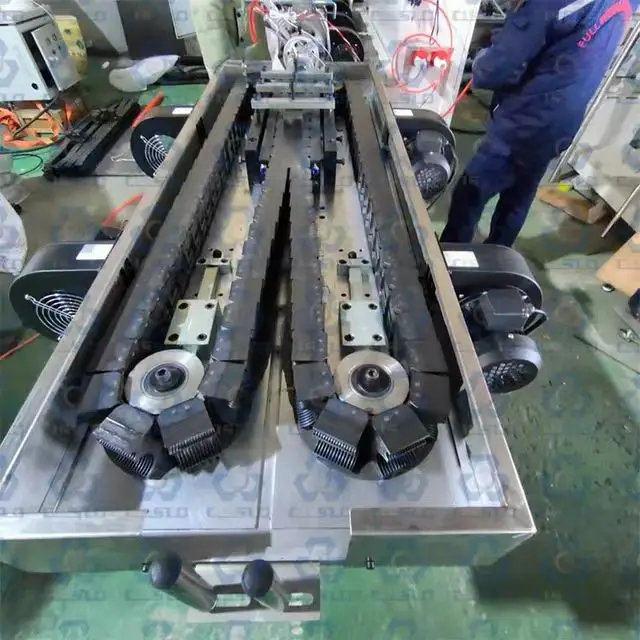

5. Pictures of PVC single wall corrugated pipe machine:
Specification
item | value |
Applicable Industries | Manufacturing Plant |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2024 |
Warranty of core components | 1 Year |
Core Components | PLC, Motor |
Condition | New |
Type | Pipe Production Line |
Pipe Material | PVC |
Application | Drain Pipe |
Production Capacity | Optional |
Place of Origin | China |
Shanghai | |
Brand Name | Single wall corrugated pipe production line |
Voltage | 380V |
Power | 100kw |
Dimension(L*W*H) | 10m*2m*2m |
Weight | 4000kg |
Warranty | 1 Year |
Key Selling Points | Easy to Operate |
Company Profile
CissCo Machinery is a fast forward professional supplier of complete plastic extrusion equipments and systems. At CissCo, we design, engineer and manufacture customized PLASTIC EXTRUSION LINES. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world. we are using the high technology from European. From the pictures, you can find the similarity between our machine and theirs. Our technical advantages are as follows,
1. European pipe extrusion technology;
2. 20 years plastic extrusion experiences;
3. Easy to operate, Stable production performance, Low production cost, Good quality pipes;
4. Quicker production speed, bigger output;
5. Good steel material and well-known brand electrical parts;
6. Good appearance of machine, beautiful;
7. Free training for technical process, formula and know-how;
8. Full time and high level after-sale services.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world. we are using the high technology from European. From the pictures, you can find the similarity between our machine and theirs. Our technical advantages are as follows,
1. European pipe extrusion technology;
2. 20 years plastic extrusion experiences;
3. Easy to operate, Stable production performance, Low production cost, Good quality pipes;
4. Quicker production speed, bigger output;
5. Good steel material and well-known brand electrical parts;
6. Good appearance of machine, beautiful;
7. Free training for technical process, formula and know-how;
8. Full time and high level after-sale services.
Contact Me
Cissco Machinery Co., Ltd.
Your contact: David Duan
Wechat/WhatsApp.: +86 18918189632
Email: cissco@cisscomachine.com
Web: www.cisscomachinery.com
Add: 9F, No.58, New Jinqiao Road, Pudong, Shanghai, China (Zipcode: 201206)
Your contact: David Duan
Wechat/WhatsApp.: +86 18918189632
Email: cissco@cisscomachine.com
Web: www.cisscomachinery.com
Add: 9F, No.58, New Jinqiao Road, Pudong, Shanghai, China (Zipcode: 201206)
Похожие товары
Машина для производства металлических труб
87 355 160,25 ₽
Машина для производства гофрированных труб машина металлических полностью автоматическая
219 425,73-225 356,15 ₽

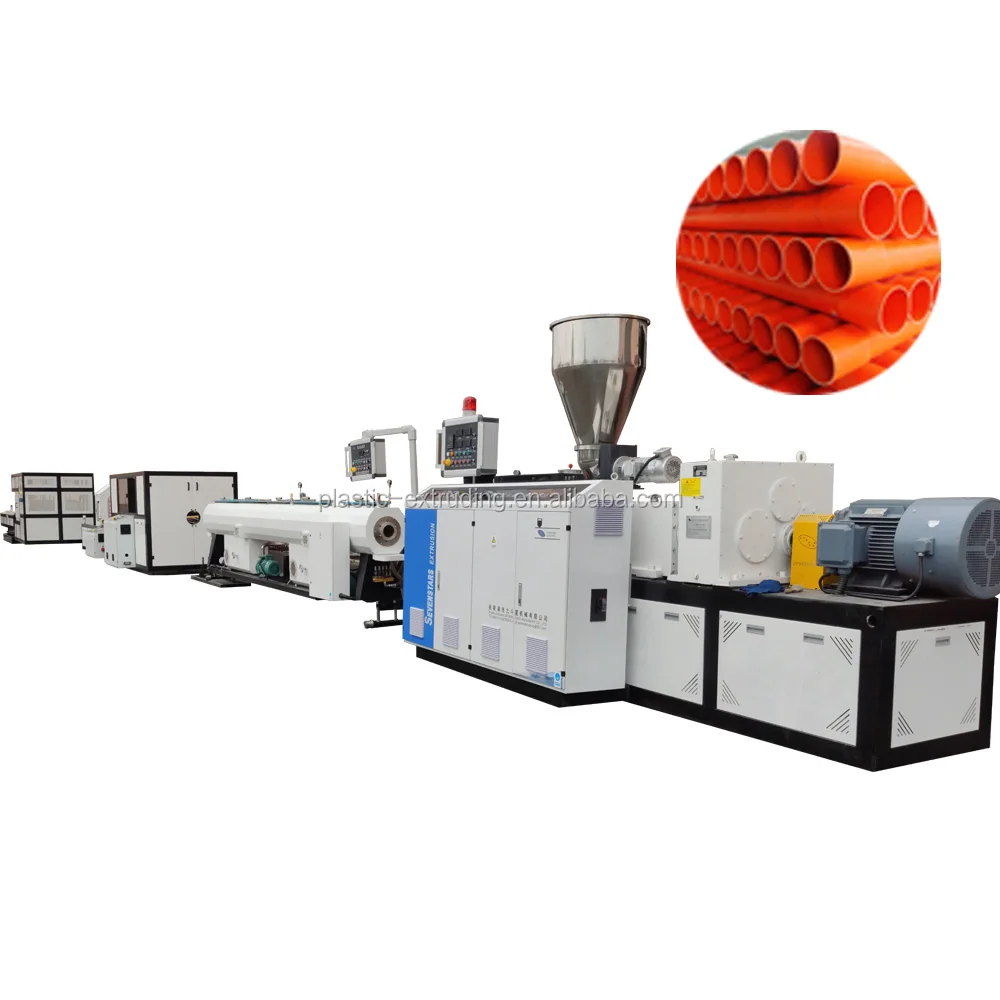

Экструзионная линия по производству пластиковых водопроводных труб из ПВХ/НПВХ/ПВХ
