Высококачественная аккумуляторная свинцово-кислотная батарея 12 В AGM без обслуживания
6,50-8,00 $

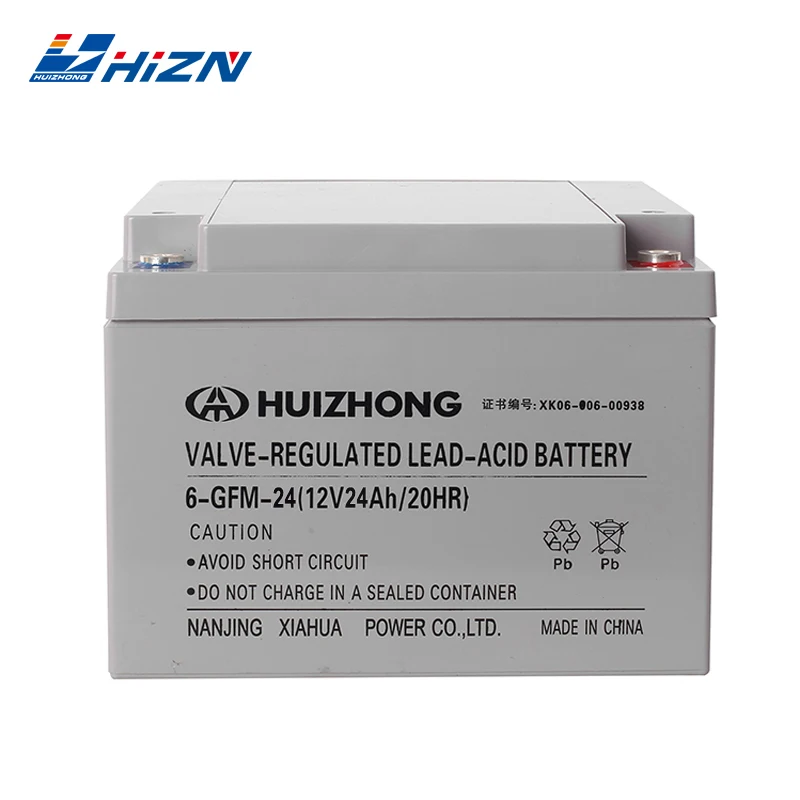

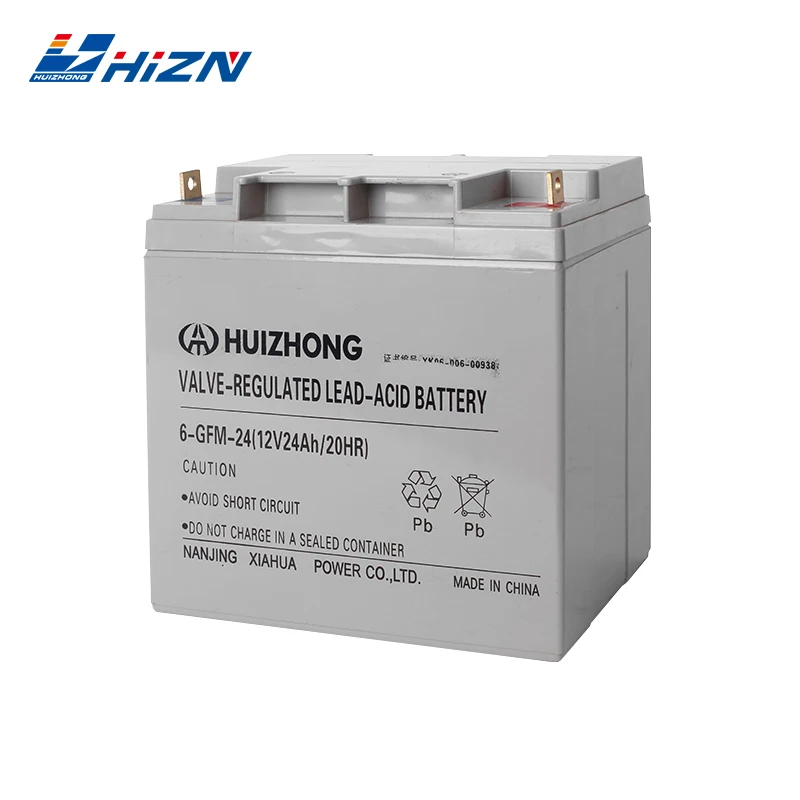

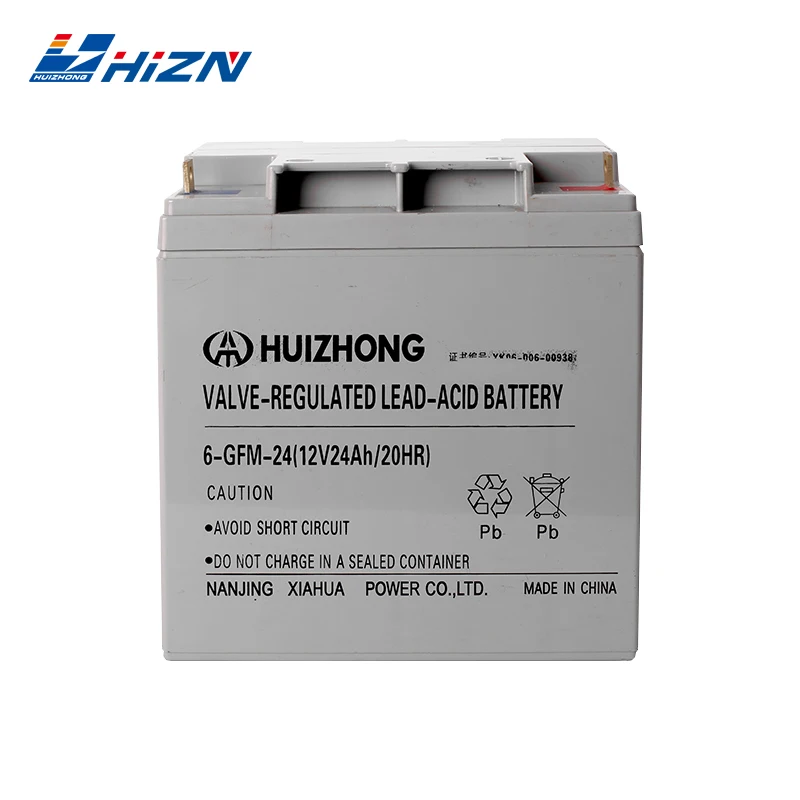

Аккумуляторная Батарея VRLA AGM 12V 24ah многофункциональная аккумуляторная батарея для дома
- Категория: >>>
- Поставщик: Wuxi Huizhong Power Co. Ltd.Wuxi Ltd.
Сохранить в закладки 1601038950090:
Описание и отзывы
Характеристики
Product Description
Product Name | lead acid AGM battery 12V 24AH |
Battery Type | AGM 12V 24AH |
Brand | Huizhong, OEM |
Warranty | 3 Years |
Design Service Life | 5-10 Years |
Maintenance Mode | Free |
Voltage | 12V |
Sizes(mm) (Length * width*Height*Total height) | 176*166*120*125mm |
Technical Features
• Maintenance Free

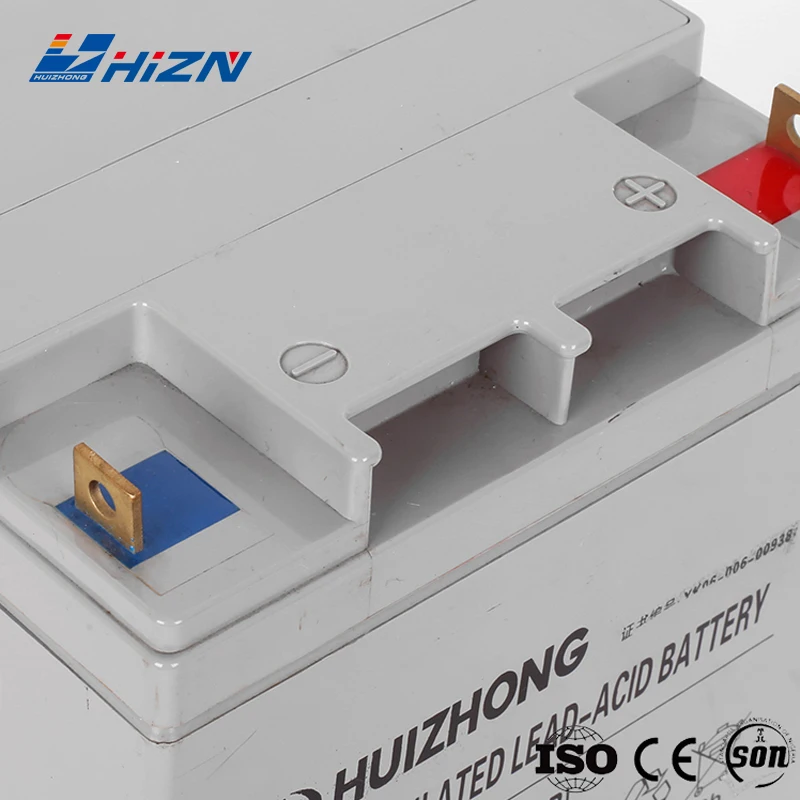

• Top terminal design
• Flexible design for multiple installation space
• Deep discharge recovery
• Strong handles for easy operation for medium capacity types
• Patent Terminal sealing & front access
• Self-regulating pressure relief valve
• Flame retardant ABS case (UL94 V-0, optional)
• Comply with IEC, ISO, UL, EN, CE standards, etc.
• Design life at 25℃ (77℉): 5~10 years
• Maintenance Free
• Top terminal design
• Flexible design for multiple installation space
• Deep discharge recovery
• Strong handles for easy operation for medium capacity types
• Patent Terminal sealing & front access
• Self-regulating pressure relief valve
• Flame retardant ABS case (UL94 V-0, optional)
• Comply with IEC, ISO, UL, EN, CE standards, etc.
• Design life at 25℃ (77℉): 5~10 years
Specification
Nominal Voltage | 12V | ||
Nominal Capacity | 24AH (20 hour rate) to 10.80V/cell @25℃(77℉) | ||
Dimension | Length | 176 ±3mm | |
Width | 166 ±2mm | ||
Height | 120 ±2mm | ||
Total Height | 125 ±2mm | ||
Container Material | ABS/ABS V0(Optioanl) | ||
Terminal | F12 | ||
Max. Discharge | 330A (5s) | ||
Internal Resistance | Approx 14.5mΩ | ||
Operating Temp. Range | Discharge | -40℃～50℃(-40℉～122℉) | |
Operating Temp. Range | Charge | -20℃～45℃(-4℉～113℉) | |
Storage | -20℃～40℃(-4℉～ 104℉) | ||
Standby Use Voltage | 13.7 V~13.9 V @ 25℃ Temperature Compensation: -3mV/℃/Cell | ||
Cycle Use Voltage | 14.6 V~14.8 V @ 25℃ Temperature Compensation: -4mV/℃/Cell | ||
Effect of temp. to Capacity | 40℃ (104℉) 103% 25℃ (77℉) 100% 0℃ (32℉) 86% | ||
Self Discharge | AGM series batterys may be stored for up to 6 months at 25℃(77℉) and then a freshening charge is required. For higher temperatures the time interval will be shorter. | ||
Application
AGM 12V 24AH Rechargeable Battery Application:
• Solar Energy/ Wind Energy System
• Solar Energy/ Wind Energy System
• Telecom Base Station
• Backup Power
• Backup Power
• Medical Equipment
• UPS/EPS
• Security System Golf Cart
• Street light and so on .
• Security System Golf Cart
• Street light and so on .
Production Process
Packaging & Shipping
Successful Case
Company Introduction
♦Huizhong Power was set up at Lanzhou in 2001. Then the company's production base moved to Wuxi, Jiangsu. Meanwhile, Wuxi Huizhong Power Co., Ltd was established. Over 20 years' hard work, today Huizhong Power has grown to one of the most professional storage battery manufacturers in China.
♦Huizhong specializes in lithium battery, lead-acid (AGM/GEL/OPzV/OPzS)battery, deep cycle battery, provide the entire solar system configuration installation scheme for customers.
♦All of our products meet CE & ISO standards. And we also passed the factory audited of BSCI by Intertek.
♦Huizhong products are exported to Latin America, South America, Africa, Australia, Southeast Asia, dozens of countries around the world and regions, and has been recognized by the majority of customers.
♦Together makes stronger. Wuxi Huizhong Power looks forward to working with you for Win-Win Cooperation.
♦All of our products meet CE & ISO standards. And we also passed the factory audited of BSCI by Intertek.
♦Huizhong products are exported to Latin America, South America, Africa, Australia, Southeast Asia, dozens of countries around the world and regions, and has been recognized by the majority of customers.
♦Together makes stronger. Wuxi Huizhong Power looks forward to working with you for Win-Win Cooperation.
FAQ
We are a professional manufacturer of storage batteries with over 20 years of rich experience.
Q1: What are the terms of payment ?
A: T/T 30% deposit in advance, The Balance before shipment. We'll show you the photos of the finished products and packages before you pay the balance.
T/T 30% deposit in advance, The balance against L/C at sight.
Q2: What batteries do we mainly supply ?
A: We supply AGM, Gel( 12V 7AH-300AH) & 2V 200AH-3000AH, OPzV/OPzS (2V 200AH-3000AH) batteries. Our batteries are used in the Solar system, UPS, Street Light, Control Equipment, Wind energy system, Telecommunication, Emergency System, etc.
Q3: How to maintain the battery ?
A: The battery should be stored in a clean, dry, ventilated, dark environment when not using, keep it after a full charge, recharge it every 3 months or 6 months.and must use it in one year.
Q4: If we could accept OEM & ODM Service ?
A: We could accept customized service, such as the brand, Logo, Container color, etc.
Q5: MOQ & Samples
A: We are willing to provide you samples, but the batteries cannot be shipped by express or air, so the MOQ must be above 300KG.
Q1: What are the terms of payment ?
A: T/T 30% deposit in advance, The Balance before shipment. We'll show you the photos of the finished products and packages before you pay the balance.
T/T 30% deposit in advance, The balance against L/C at sight.
Q2: What batteries do we mainly supply ?
A: We supply AGM, Gel( 12V 7AH-300AH) & 2V 200AH-3000AH, OPzV/OPzS (2V 200AH-3000AH) batteries. Our batteries are used in the Solar system, UPS, Street Light, Control Equipment, Wind energy system, Telecommunication, Emergency System, etc.
Q3: How to maintain the battery ?
A: The battery should be stored in a clean, dry, ventilated, dark environment when not using, keep it after a full charge, recharge it every 3 months or 6 months.and must use it in one year.
Q4: If we could accept OEM & ODM Service ?
A: We could accept customized service, such as the brand, Logo, Container color, etc.
Q5: MOQ & Samples
A: We are willing to provide you samples, but the batteries cannot be shipped by express or air, so the MOQ must be above 300KG.
Похожие товары

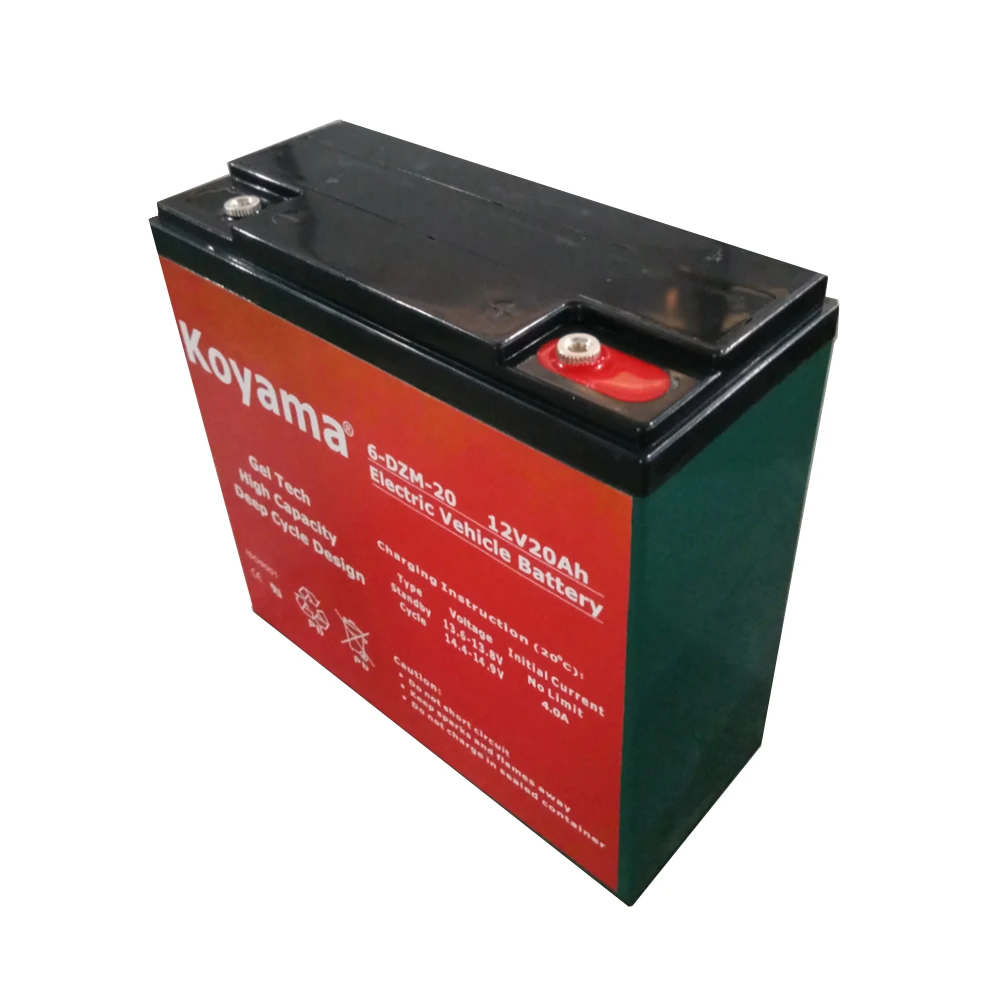

Глубокий цикл 12V20Ah 6-DZM-20 перезаряжаемые сухие заряженные герметичные гелевые свинцово-кислотные батареи для мотоцикла
8,80-16,80 $
Аккумуляторы для глубокого цикла 12 В 7 ампер А/ч 100 150 200 гелевая Солнечная герметичная свинцово-кислотная батарея автомобиля
4,30-5,50 $

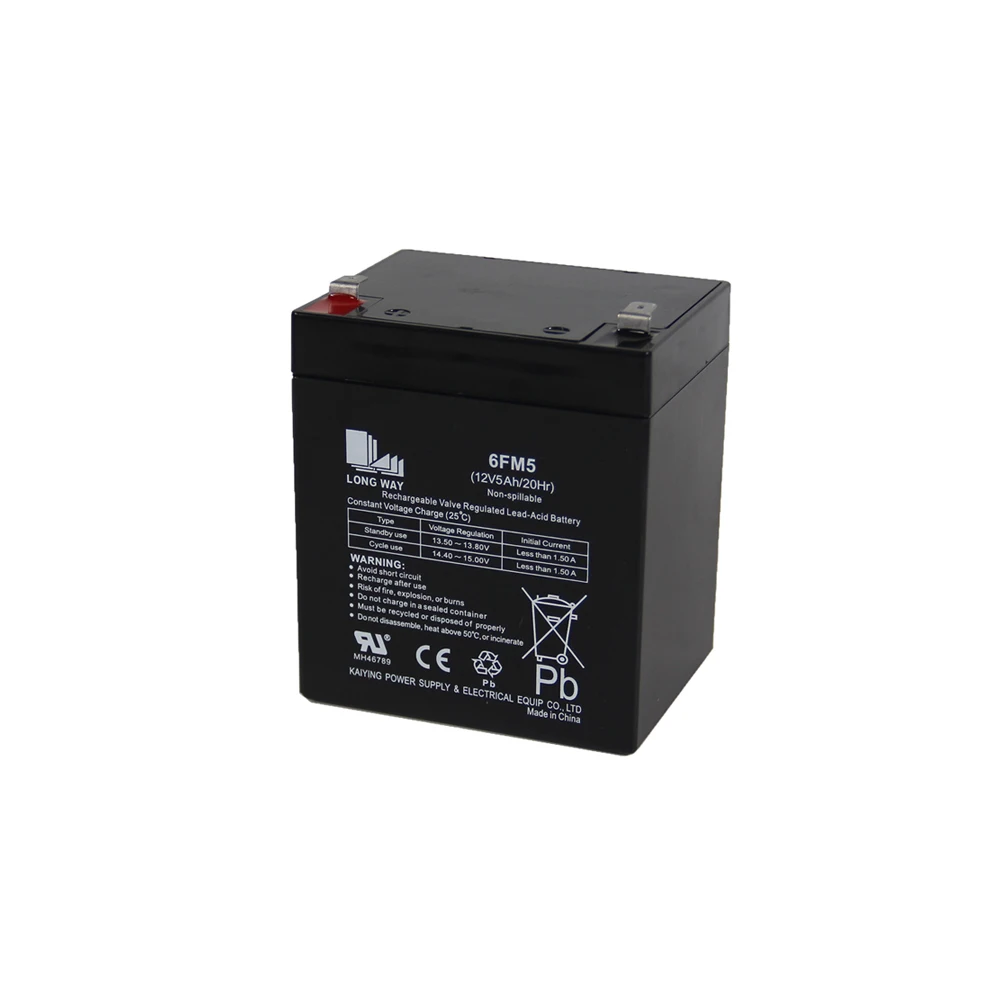

Электрическая аккумуляторная батарея 12 В 5 А/х
6,76-7,04 $
Глубокий цикл 12 В 20Ah 6-DZM-20 перезаряжаемые бесперебойные герметичные гелевые свинцово-кислотные батареи для мотоцикла/электрического велосипеда/гольфа
23,65-25,85 $

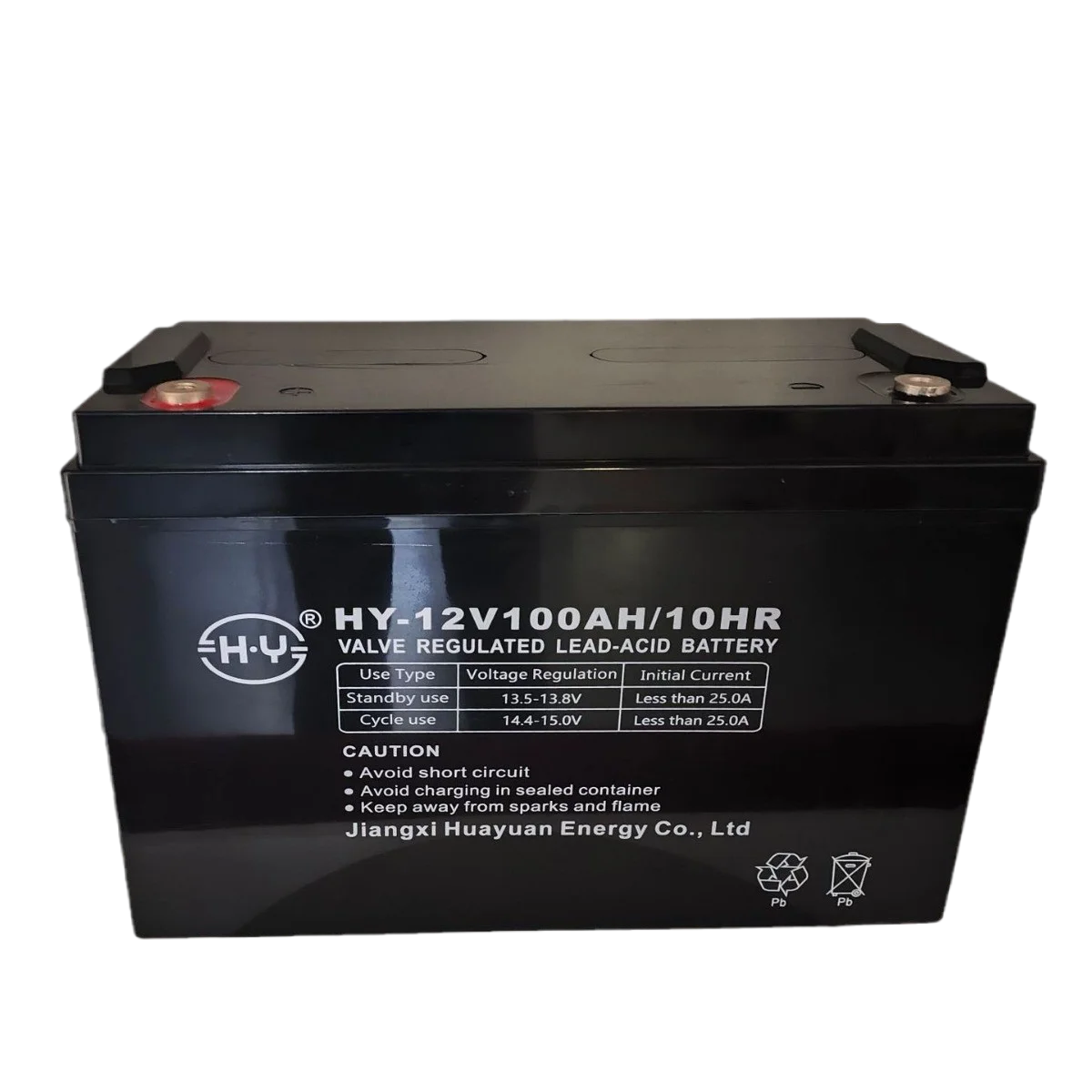

HY 12V100Ah Быстрая доставка свинцово-кислотная батарея для электронных весов перезаряжаемый цикл длительный срок службы
