Тепловые насосы Rohs heatpal 20 кВт воздушные в воду Wi-Fi инвертор R32 умный нагрев
2 528,00-2 588,00 $
Энергосберегающий Солнечный тепловой насос система охлаждения для нагрева горячей воды солнечный фотоэлектрический
- Категория: >>>
- Поставщик: Nulite New Energy (guangzhou) Co. Ltd.Nulite Ltd.
Сохранить в закладки 1601039207762:
Описание и отзывы
Характеристики
★ Best-selling heat pump in Europe
★ Can be connected to solar panels! More energy efficient and save money!
★ Multi-language Controller：English，German，French，Italian，Polish，Danish，Czech
★ R290 R32 refrigeratant , 10kw、16kw、21kw、23kw、30kw、40kw DC Inverter monoblock air source heat pump ★ Wifi remote control, high technology, simple operation
★ Have CE and ERP A+++ certificates
★ Fast shipping, two year warranty
★ Fast shipping, two year warranty
Hey, friend, do you know little about heat pumps? Please contact me to get a free consultation for your home/building!
Are you interested in becoming a distributor/agent of heat pumps? Please tell me, I will give you the fastest delivery and the most competitive price!
Product Details
1. The main function: heating , cooling, domestic hot water.

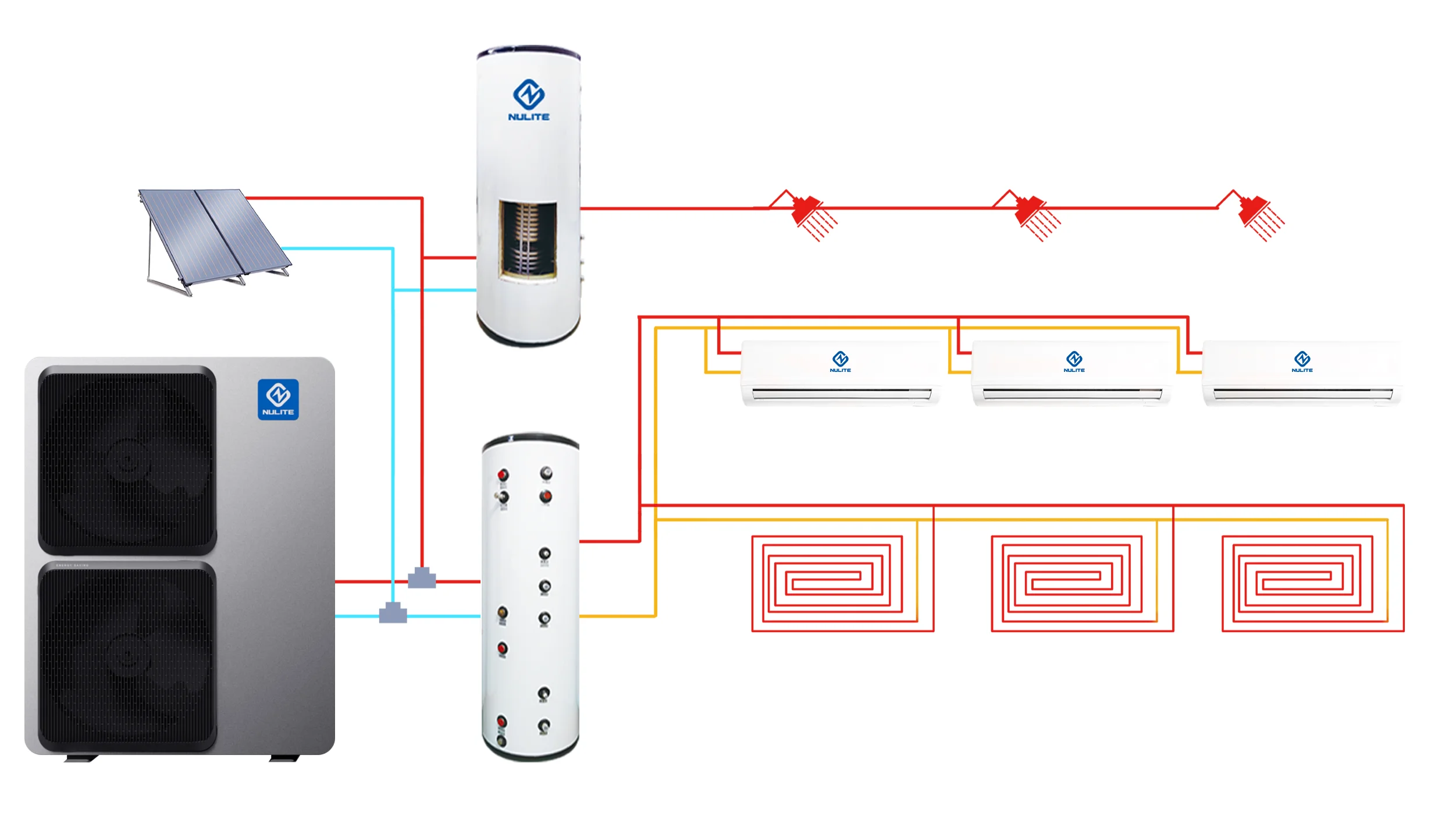

2. Our heat pump can connect fan coil 、floor heating、radiator、storage tank.
3. A heat pump that can work at minus 25°C, suitable for severe cold regions, such as northern Europe, North America, Russia and other regions.
4. Support wifi remote control, life is more convenient.
5. Max hot water temperature: 60 ℃.
6. Adopt advanced DC inverter: it is beneficial to improve the accuracy of temperature control, and it is energy efficient, safer and more environmentally friendly.
7. There is an extra 2kw electric heater for more heating.
8. Has a certificate designated by the European Union : ISO9001, CE, ERP Energy Label, ROHS etc.
9. Welcome dealers, distributors to customize.
10. Best Selling Market: Europe Market（Especially in Germany, Poland, Czech Republic, Slovakia, Hungary, Spain, France, Austria, Sweden, Lithuania, Estonia, Latvia, Denmark, Netherlands, etc.), North America, South Korea.
★ The heat pump has 5 modes for you to choose: ①heating, ②cooling, ③hot water, ④heating + hot water, ⑤cooling + hot water.
★ Support WIFI remote control, more intelligent, and provide convenience for your life.
★ The noise during operation is very low, giving you a baby-like sleep, and you no longer have to worry about noise complaints from neighbors.
★ Support WIFI remote control, more intelligent, and provide convenience for your life.
★ The noise during operation is very low, giving you a baby-like sleep, and you no longer have to worry about noise complaints from neighbors.
Product advantages

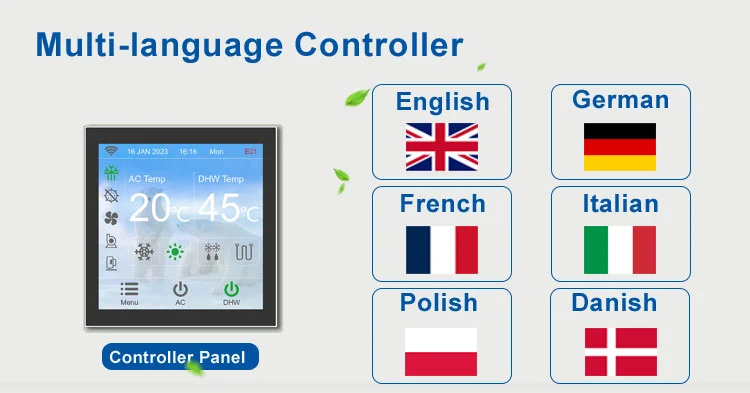

1. Multi-language Controller：English，German，French，Italian，Polish，Danish，Czech
2. Mitsubishi DC Inverter Compressor
Quickly heating&energy saving,automatic to change the power input,-adapted dual-rotor balance technology,operation peaceful,ow noise and longer life time . Stably running down to -25 C ,heating capacity output increased 200% in low temperature.
3. Huge evaporator with strong heating exchanging ability
The evaporator has 40% larger heat exchange area than other suppliers. Ensure that the strong heating capacity can be output stably in the ultra-low temperature.
The evaporator has 40% larger heat exchange area than other suppliers. Ensure that the strong heating capacity can be output stably in the ultra-low temperature.
4. Full dc inverter ultra-quite fan motor with greater air flowing volume
The overall air flow rate will also be greatly increased speeding up the heat transfer rate.
The overall air flow rate will also be greatly increased speeding up the heat transfer rate.
With Linked switch signal connection
3 ways valve signal connection
Dual water sensors control
Heating/Cooling/Domestic hot water/Heating+Domestic hot water/Cooling+Domestic hot water
Bulit-in inverter water pump
Bulit-in 3KW electric heater
Bulit-in expansion tank
Brand new design
R32 dc inverter Mitsubishi compressor
More multifunctional connection
✦ Our components :
Mitsubishi compressor（Famous brand, very durable and efficient），controller system (Support wifi remote control )，Swep heat exchanger, Inverter Pump, Electric Heater, Expansion Tank.
1. Water Flow Switch Protection
When water inlet volume is low,the unit stops to protect the system.When the water volume recovers,the unit starts working again.
When water inlet volume is low,the unit stops to protect the system.When the water volume recovers,the unit starts working again.
2. High/Low Pressure Protection
High/Low pressure switches will switch off the heat pump automatically to protect the whole system when the pressure is over high/low.
High/Low pressure switches will switch off the heat pump automatically to protect the whole system when the pressure is over high/low.
3. High Discharging Temperature Protection
When the compressor discharging temperature is higher than 110℃，the unit will not work until the temperature is lower than 85℃.
When the compressor discharging temperature is higher than 110℃，the unit will not work until the temperature is lower than 85℃.
4. Antifreezing Protection
When the unit is standby and water inlet temperature is lower than 4℃ but higher than 2℃ ,the water pump starts up to protect the system.
When the unit is standby and water inlet temperature is lower than 4℃ but higher than 2℃ ,the water pump starts up to protect the system.
5. Compressor Overload Protection
When the compressor is working overload,the unit will stop working to protect the whole System.
When the compressor is working overload,the unit will stop working to protect the whole System.
Product parameters
Model | Heating capacity (A26W26) | Suitable for the house |
NL-FLM30-95II/R32 | 10 kw | 80-100 ㎡ |
NL-FLM40-150II/R32 | 16 kw | 100-150 ㎡ |
NL-FLM50-200II/R32 | 21 kw | 150-200 ㎡ |
NL-FLM60-220II/R32 | 23 kw | 200-250 ㎡ |
NL-FLM80-300II/R32 | 30 kw | 250-350㎡ |
NL-FLM100-400II/R32 | 40kw | 350-450㎡ |
Model name | NL-FLM30-95Ⅱ/R32 | NL-FLM40-150Ⅱ/R32 | NL-FLM50-200Ⅱ/R32 | NL-FLM60-220Ⅱ/R32 | NL-FLM80-300Ⅱ/R32 | NL-FLM100-400Ⅱ/R32 | ||||||||
Rated heating capicity | KW | 2.8-10 | 3.8-16 | 5.5-21 | 5.6-23 | 7.5-30 | 9.5-40 | |||||||
Rated hot water capicity | KW | 2.5-9.5 | 3.5-15.5 | 4.5-20 | 5.5-22 | 7.0-28 | 9.0-38 | |||||||
Rated cooling capicity | KW | 2.5-7.5 | 3.8-11 | 4.8-14.5 | 5.6-16 | 6.5-22 | 8.0-28 | |||||||
Heating power consumption | KW | 1-3.2 | 1.5-4.5 | 2-5.8 | 2.5-6.9 | 3.5-9 | 4.5-11 | |||||||
Hot water power consumption | KW | 1-3.2 | 1.5-4.5 | 2-5.8 | 2.5-6.9 | 3.5-9 | 4.5-11 | |||||||
Cooling power consumption | KW | 1-3.2 | 1.5-4.5 | 2-5.8 | 2.5-6.9 | 3.5-9 | 4.5-11 | |||||||
Voltage | V/Hz | 220V/240V - Inverter - 1N | 220V/240V- Inverter- 1N & 380V/415V - Inverter - 3N | 380V/415V - Inverter - 3N | 380V/415V - Inverter - 3N | |||||||||
Rated heating water temperature | ℃ | Hot water:55℃ / Heating:45℃ / Cooling:12℃ | ||||||||||||
Rated water flow | m³/h | 1.6 | 2.1 | 2.8 | 3.3 | 5.0 | 6.0 | |||||||
Refrigeration | / | R32 | R32 | R32 | R32 | R32 | R32 | |||||||
Rated of waterproof | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |||||||
Compressor | Form | / | Double-rotor type | |||||||||||
Quantity | / | 1 | ||||||||||||
Brand | / | Mitsubishi Full Inverter Compressor | ||||||||||||
Outdoor unit | Net size | mm | 1050*499*970 | 1050*499*970 | 1050*499*1365 | 1050*499*1365 | 1187*516*1585 | 1187*516*1585 | ||||||
Weight | Kg | 100 | 110 | 140 | 145 | 175 | 190 | |||||||
Noise | dB(A) | ≤49 | ≤50 | ≤52 | ≤53 | ≤58 | ≤59 | |||||||
Heat exchanger | / | Sweden SWEP / Denmark Danfoss / Sanhua Plate heat exchanger | ||||||||||||
Fan | / | Full DC fan motor | ||||||||||||
Auxiliary Element | KW | 3 | 3 | 3 | 3 | 3 | 3 | |||||||
Circulation pump | SHIMGE | Inverter water pump | / | / | ||||||||||
Expansion tank | L | 2 | 5 | 5 | 5 | 8 | 8 | |||||||
Ambient temperature | ℃ | -25℃ —— 43℃ | ||||||||||||
Inlet pipe diameter | / | DN25 | DN25 | DN25 | DN25 | DN40 | DN40 | |||||||
Outlet pipe diameter | / | DN25 | DN25 | DN25 | DN25 | DN40 | DN40 | |||||||
Packing size | mm | 1090*510*1100 | 1090*510*1100 | 1090*510*1490 | 1090*510*1490 | 1220*545*1700 | 1220*545*1700 | |||||||
WIFI function | / | √ | √ | √ | √ | √ | √ | |||||||
Certificates
★ Our quality management system was certified in conformity with ISO9001, ISO14001 Standards, heat pumps with CE, EMC, ERP, CB certificated.
★ Support customized OEM/ODM services for distributors all over the world.
★ Now NuLite brand heat pump has been exported to more than 100 countries, even well installed.

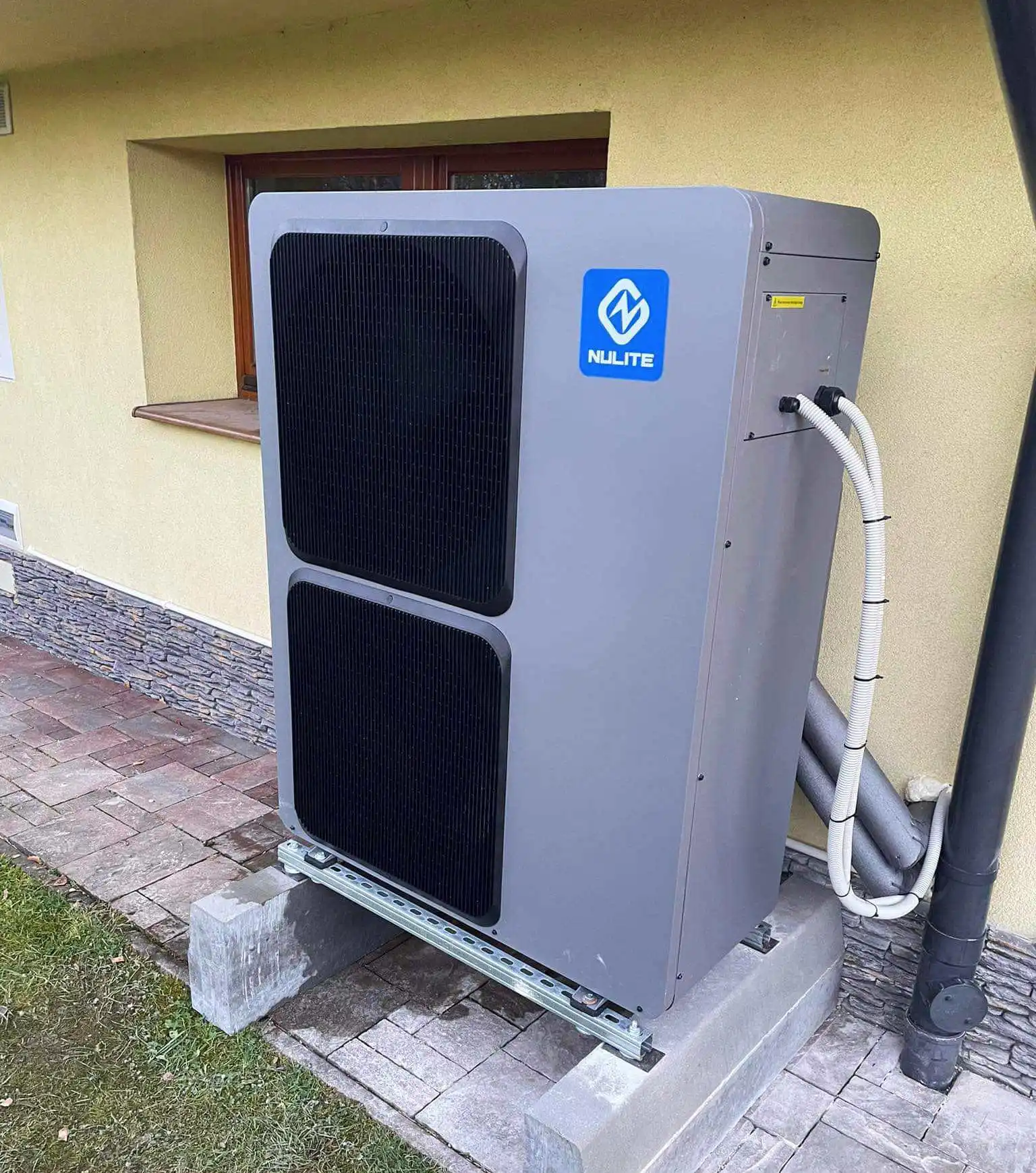

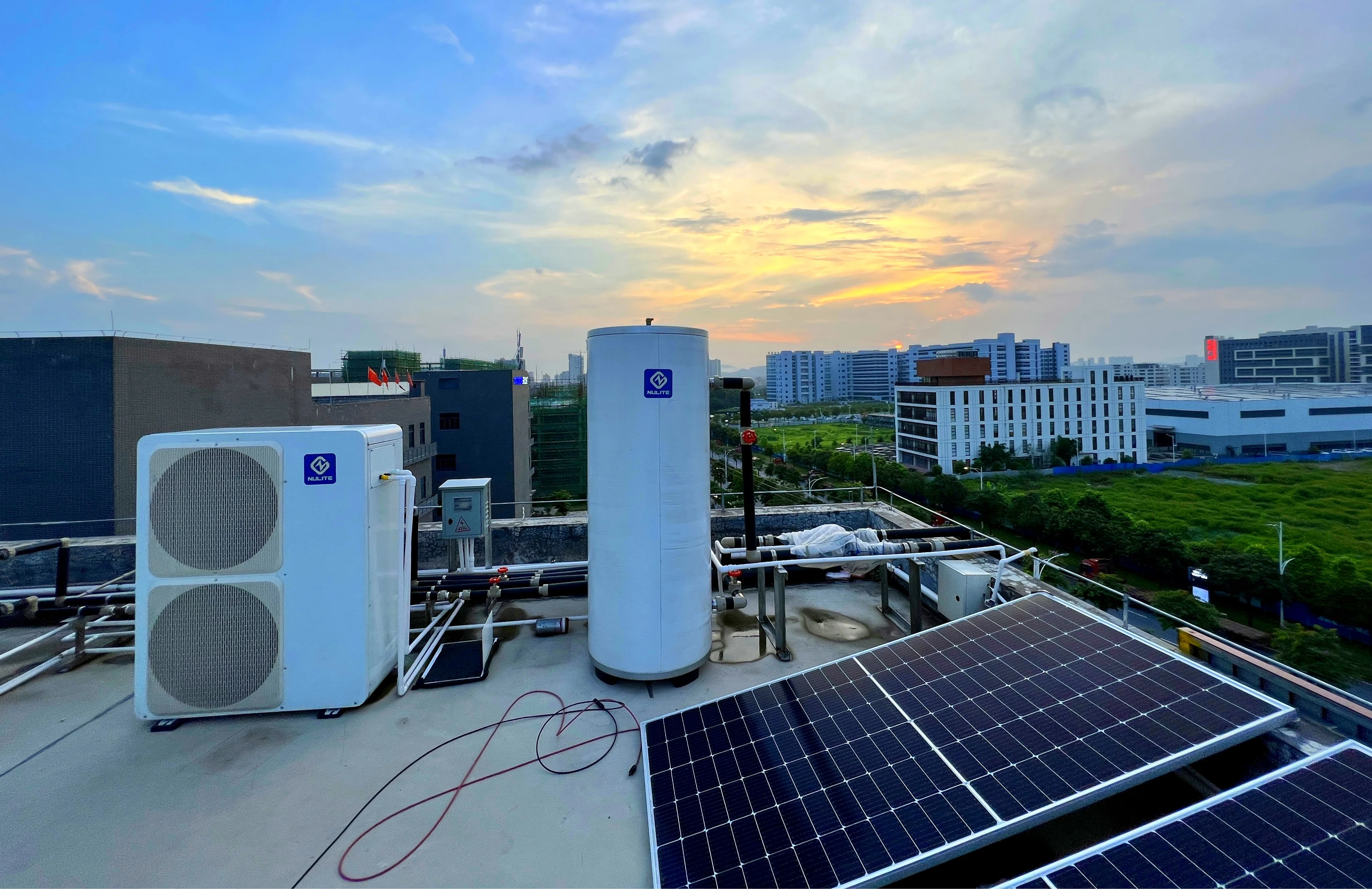

Installation cases and packing
★ We adopt Stable Ply-wooden Package、Professional Container.
You can rest assured of the safety and integrity of fast shipping transportation.
Why choose & trust us
1. As a top heat pump manufacturer, we will sell 100,000+ machines overseas in 2022
2. Fast delivery, fast logistics, and diversified payment methods.
3. After-sales service that can give you peace of mind: Trained engineers are on hand to provide technical support.Any question will be answered and assisted within 12 hours.
4. The heat pump can operate normally at ultra-low temperature -25℃
5. Low Noise, High Efficiency, Easy WIFI Controlling
6. Low maintenance cost, the ideal life of the heat pump is more than 15 years
2. Fast delivery, fast logistics, and diversified payment methods.
3. After-sales service that can give you peace of mind: Trained engineers are on hand to provide technical support.Any question will be answered and assisted within 12 hours.
4. The heat pump can operate normally at ultra-low temperature -25℃
5. Low Noise, High Efficiency, Easy WIFI Controlling
6. Low maintenance cost, the ideal life of the heat pump is more than 15 years
★ Nulite New Energy Heat Pump Company, established in 2003, is an international high-tech enterprise for HVAC products.
★ We have five main modern manufacturing factory covering 580,000 square meters,1,200,000 units production ability and over 1,500 employees.
★ NuLite New Energy Heat Pump Company is fully committed to export service for overseas market.With strong R&D engineers and heat pump experts from Singopore Nanyang Technological University, We is dedicated to supplying high efficiency energy-saving solution for household & commercial applications.
★ As heat pump factory，We have R290, R32, R410A, R134A Refrigerant .
★ We have developed advanced & unique technology and takes the leads of Floor Heating & Inverter Heat Pump，wifi heat pump，heat pump water，air to water heat pump，Wärmepumpe，heatpump heating，Swim Pool Heat Pump, Central Hot Water Heat Pump, Fan Coil Unit and Geothermal Heat Pump.
FAQ
Q: Where is your factory located?
A: Our company is located in Huadu District, Guangzhou City, Guangdong Province, China.Welcome to visit our company and factory!
Q: Air to water heat pump is heating faster?
A:Air to water heat pump heating rate according to the water temperature and outdoor temperature. Summer inlet water temperature and outdoor temperature are high,so heating faster. In winter inlet water and outdoor temperature are lower so the heating is slow.
Q: How much the air to water heat pump power consumption?
A: Mainly influenced by outdoor temperature. When the outdoor temperature is lower, the heating time is longer,the power consumption is more,and vice versa.
Q: What are the benefits of heat pump?
A: There are five main benefits of dual system, safety, long lifespan, low maintenance and eco-friendly.
Q: Can it be used if it rains?
A: The air to water heat pump only influence of the outdoor temperature and inlet water temperature, not affected by rain.This is the most obvious advantages compared with the solar energy heater.
A: Our company is located in Huadu District, Guangzhou City, Guangdong Province, China.Welcome to visit our company and factory!
Q: Air to water heat pump is heating faster?
A:Air to water heat pump heating rate according to the water temperature and outdoor temperature. Summer inlet water temperature and outdoor temperature are high,so heating faster. In winter inlet water and outdoor temperature are lower so the heating is slow.
Q: How much the air to water heat pump power consumption?
A: Mainly influenced by outdoor temperature. When the outdoor temperature is lower, the heating time is longer,the power consumption is more,and vice versa.
Q: What are the benefits of heat pump?
A: There are five main benefits of dual system, safety, long lifespan, low maintenance and eco-friendly.
Q: Can it be used if it rains?
A: The air to water heat pump only influence of the outdoor temperature and inlet water temperature, not affected by rain.This is the most obvious advantages compared with the solar energy heater.
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
Friends, don't hesitate to send your needs and contact me!
Похожие товары

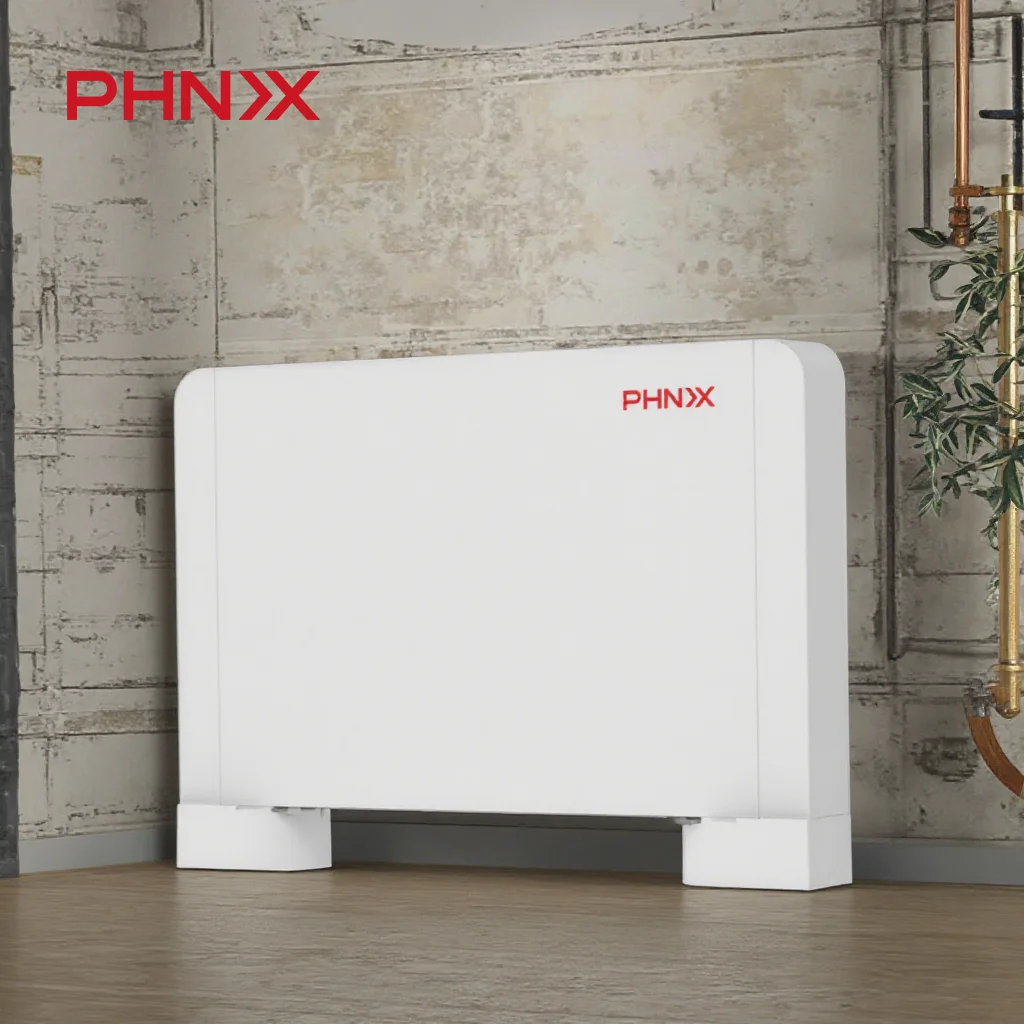

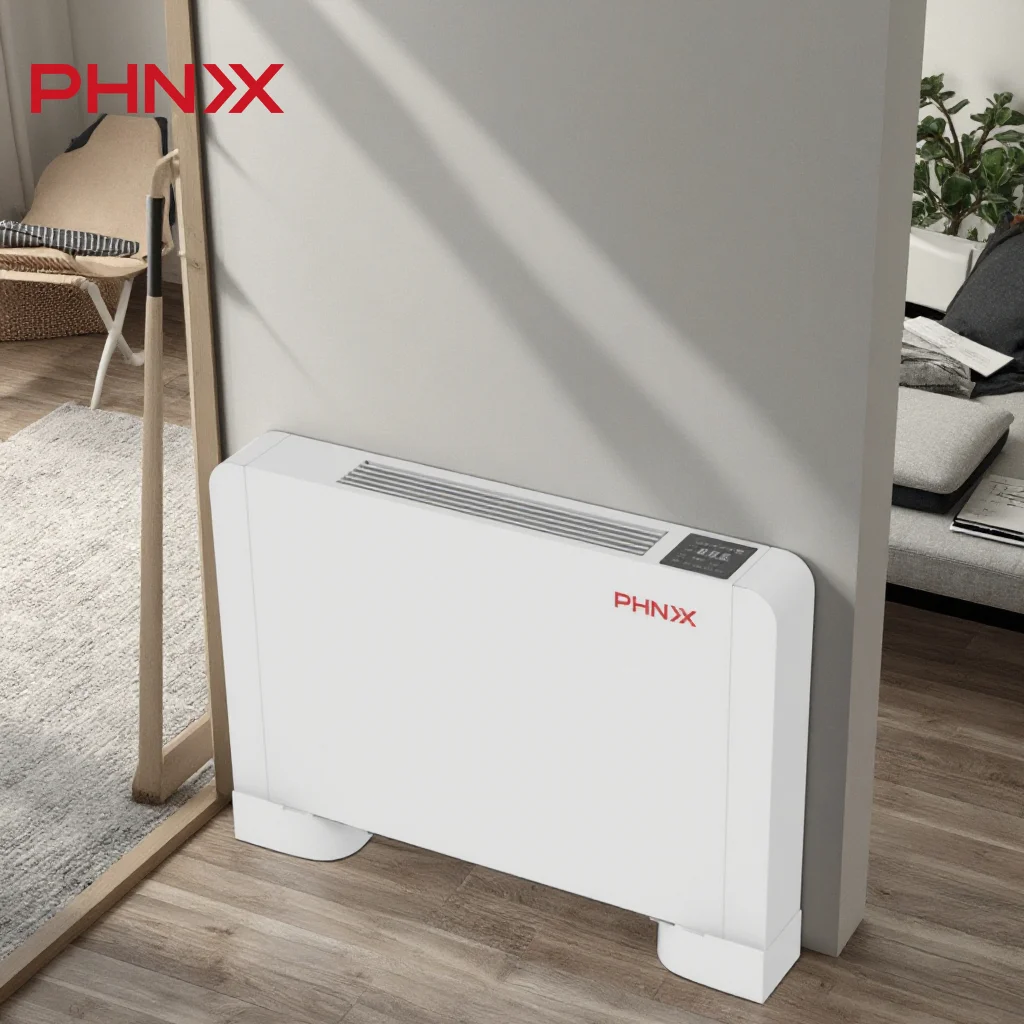

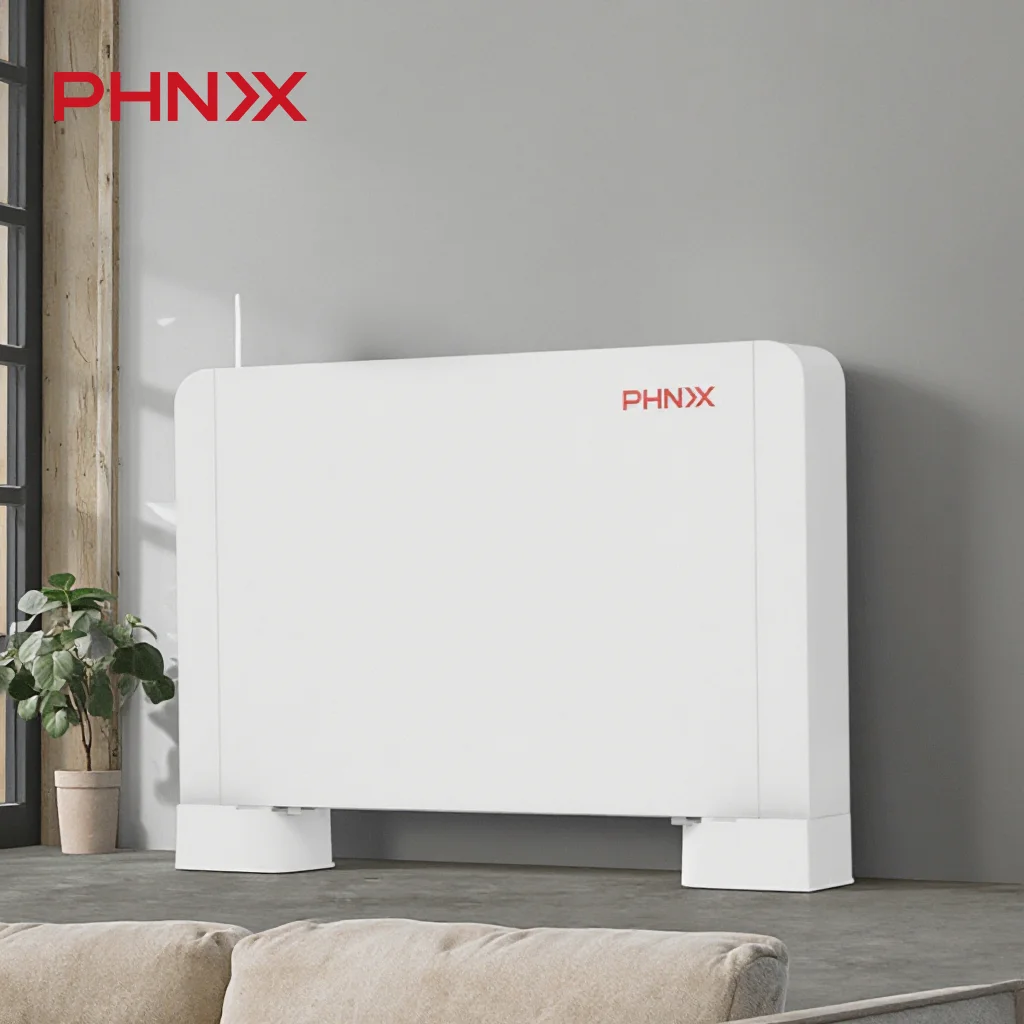

Катушка вентилятора Phnix ультратонкая 125 мм катушка для водяного нагревательный вентилятор дома нагреватель зимнего
