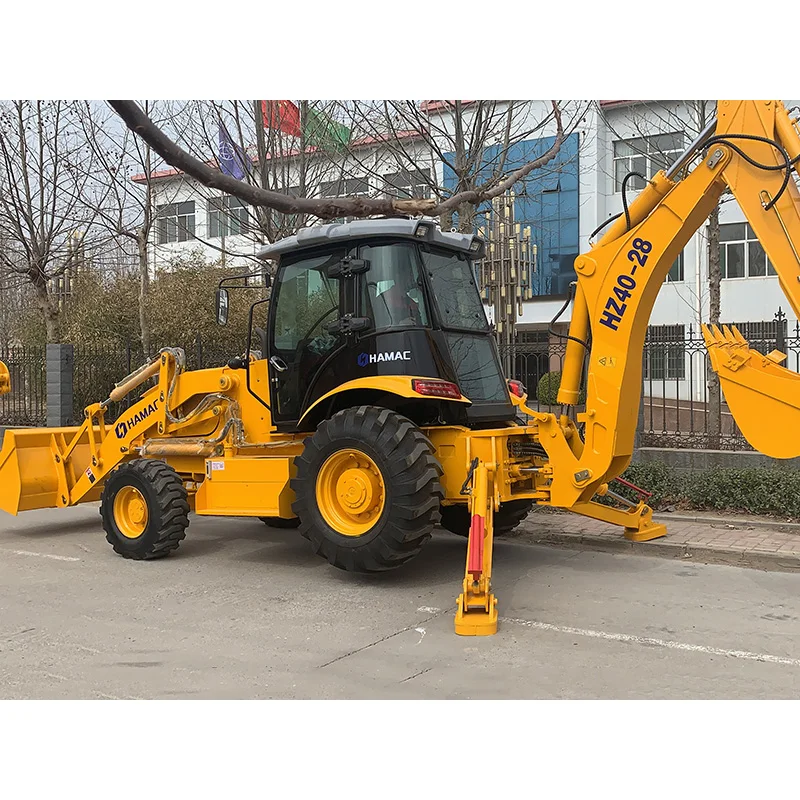

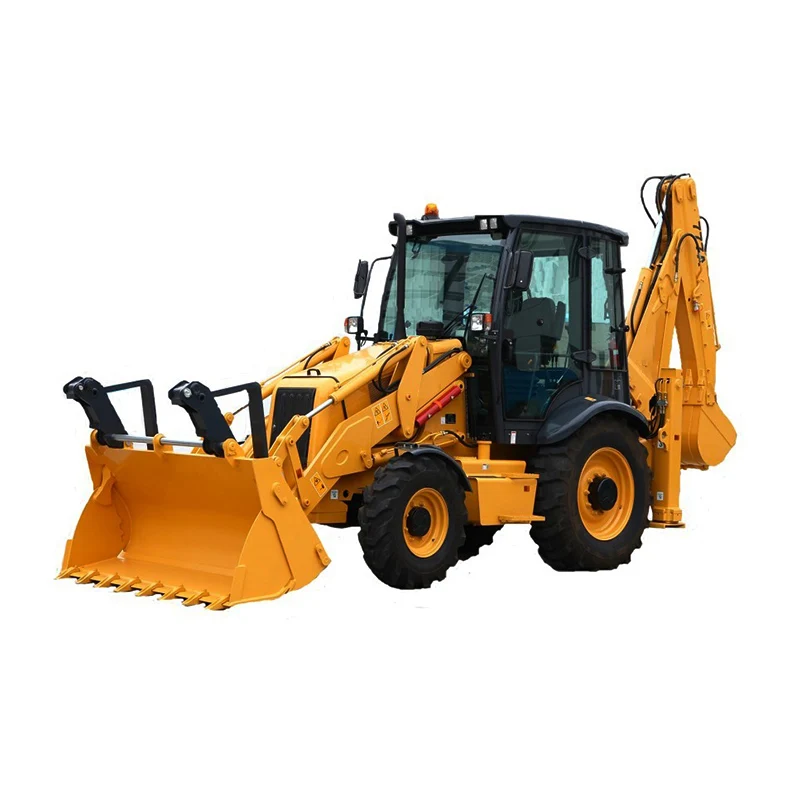

Экскаватор-погрузчик 20 тонн экскаватор-погрузчик 15-20 шарнирный распродажа небольшой экскаватор
9 000,00-12 000,00 $
Прочный гусеничный погрузчик для продажи промышленного строительного оборудования с высокой скоростью гидравлического потока и непревзойденной надежностью
- Категория: >>>
- Поставщик: Shandong Derette Machinery Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601039422979:
Описание и отзывы
Характеристики

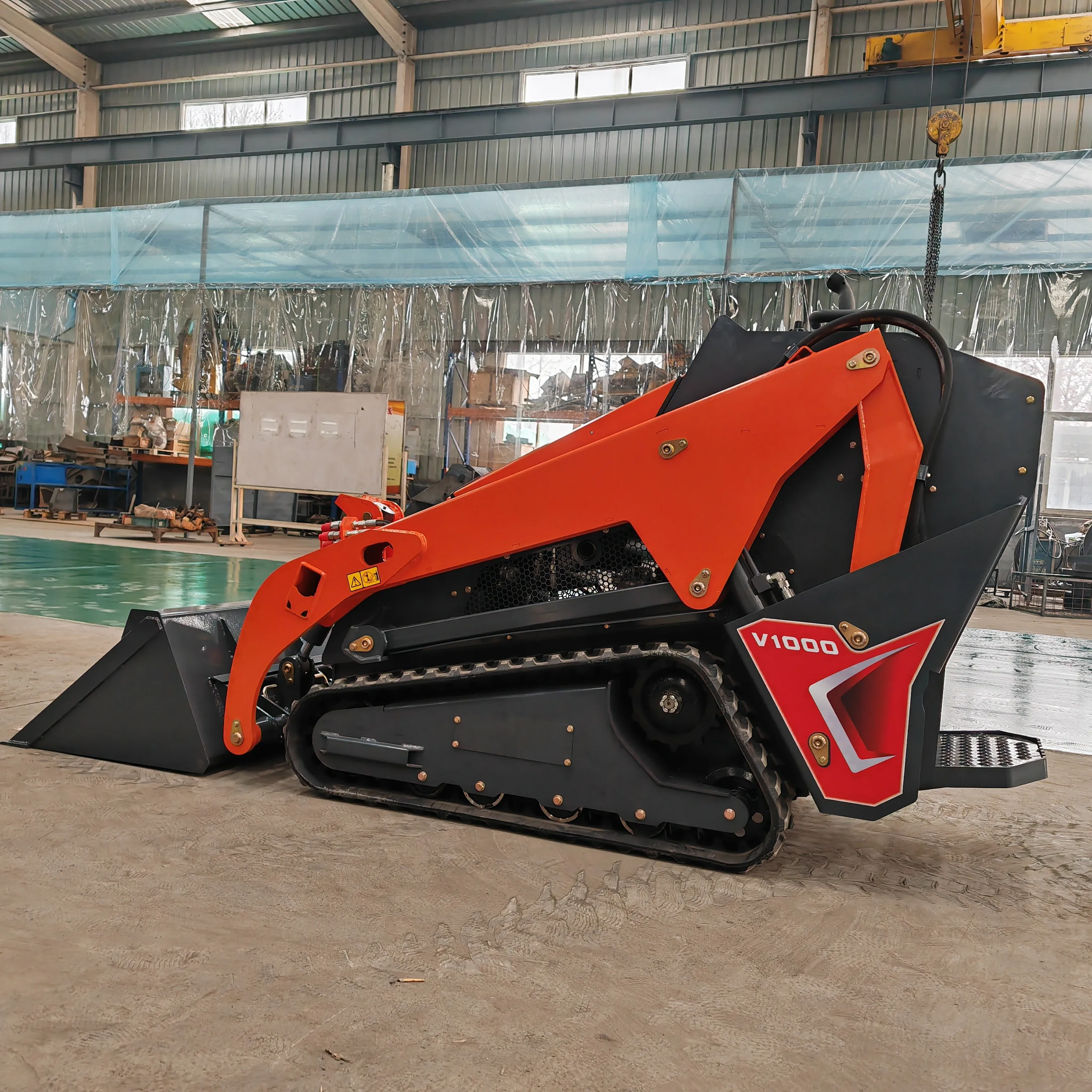

Rugged Crawler Loader for Sale Industrial-Grade Construction Equipment with High Hydraulic Flow Rates and Unmatched Reliability
PRODUCT SPECIFICATIONS
DRT-V1000 Skid Steer Loader Highlights（Advantages）
1. The machine's body width is only 900mm, allowing it to maneuver freely in narrow spaces such as through backyard gates for operation.
2. Its boom features a vertical lift design, with the pin height of the bucket reaching up to 2350mm (compared to industry counterparts at just 2100mm), enabling loading onto high-sided trucks.
3. The engine is selected from EPA and Euro V
dual-certified diesel options - either a British Perkins 403J-18.5KW or a Japanese Kubota D902-18.5KW. The hydraulic system adopts
an Italian HANSA closed-loop system, which is a mainstream configuration among international skid steer loader brands. Operation is carried out via a pilot control handle that allows single-handed control of movement while also precisely operating the boom and bucket during travel.
dual-certified diesel options - either a British Perkins 403J-18.5KW or a Japanese Kubota D902-18.5KW. The hydraulic system adopts
an Italian HANSA closed-loop system, which is a mainstream configuration among international skid steer loader brands. Operation is carried out via a pilot control handle that allows single-handed control of movement while also precisely operating the boom and bucket during travel.
4. The boom comes standard with a float function, ensuring that when using sweeping attachments, it can
follow the contours of the ground.
follow the contours of the ground.
5. The operator's position is equipped with foam padding for added comfort.
Product Paramenters
No | Item | Metric | U.S. |
1 | Max working height (H3） | 3028 mm | 119.2 inch |
2 | Max pin height (H2) | 2352 mm | 92.6 inch |
3 | Max Dumping height (H1) | 1730 mm | 68.1 inch |
4 | Max Dumping distance(E) | 900 mm | 35.4 inch |
5 | Max Dumping Angle (a3) | 95° | 95° |
6 | Rollback of bucket on ground (a2) | 25° | 25° |
7 | Departure angle (a1) | 28° | 28° |
8 | Total height (H) | 1405 mm | 55.3 inch |
9 | Ground clearance (F) | 185 mm | 7.3 inch |
10 | Wheel base (L1) | 1435 mm | 56.5 inch |
11 | Overall length without bucket (L3) | 2152 mm | 84.7 inch |
12 | Total width (B2) | 900 mm | 35.4 inch |
13 | Bucket width (B1) | 920 mm | 36.2 inch |
14 | Total length with bucket (L) | 2895 mm | 114.1 inch |
15 | Turn radius forward turning (R) | 1740 mm | 68.5 inch |
16 | Operating Load | 454 Kg | 1000 Lb |
17 | Bucket Capacity | 0.08 m³ | 3 ft³ |
18 | Max Lifting Force | 300 Kg | 661.39 Lb |
19 | Travel Speed | 0-5.8 Km/h | 3.73 mlie/h |
20 | Operating Weight | 1538 Kg | 3390 Lb |
Our Advantages
The engine is selected from EPA and Euro V dual-certified diesel options - either a British Perkins 403J-18.5KW or a Japanese Kubota D902-18.5KW.
The machine's body width is only 900mm, allowing it to maneuver freely in narrow spaces such as through backyard gates for operation.
Its boom features a vertical lift design, with the pin height of the bucket reaching up to 2350mm (compared to industry
counterparts at just 2100mm), enabling loading onto high-sided trucks.
counterparts at just 2100mm), enabling loading onto high-sided trucks.
The hydraulic system adopts an Italian HANSA closed-loop system, which is a mainstream configuration among international skid steer loader brands. Operation is carried out via a pilot control handle that allows single-handed control of movement while also precisely operating the boom and bucket during travel.

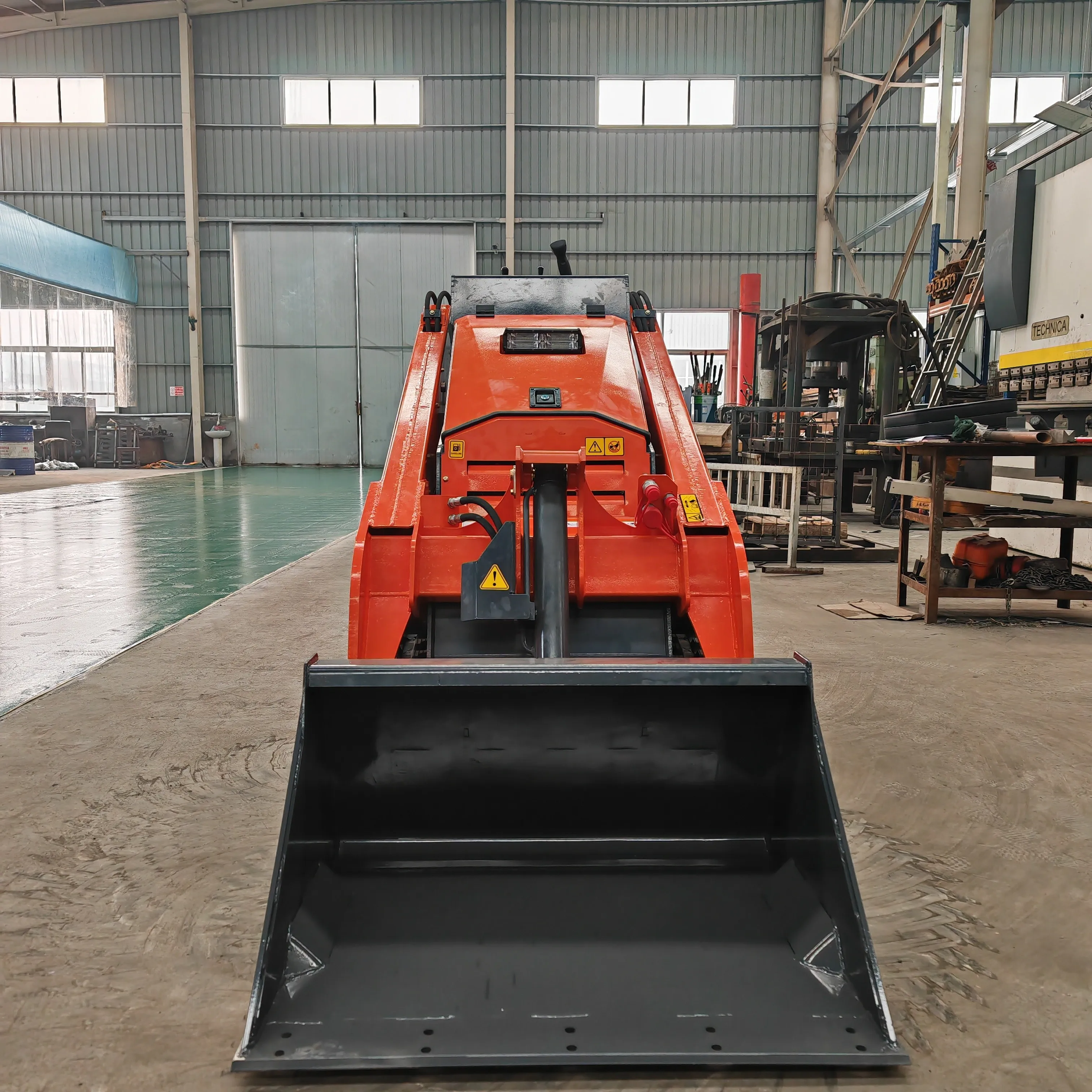

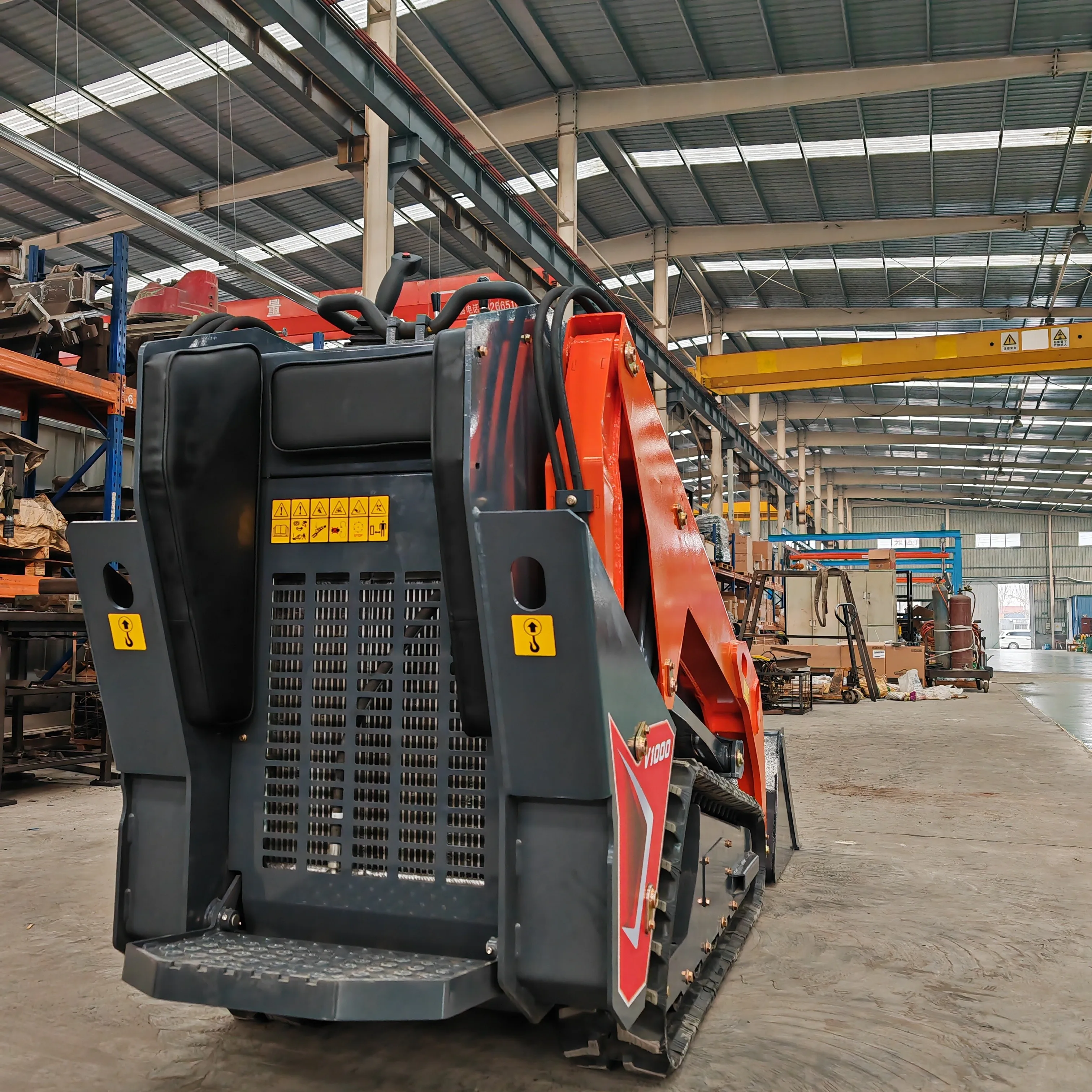

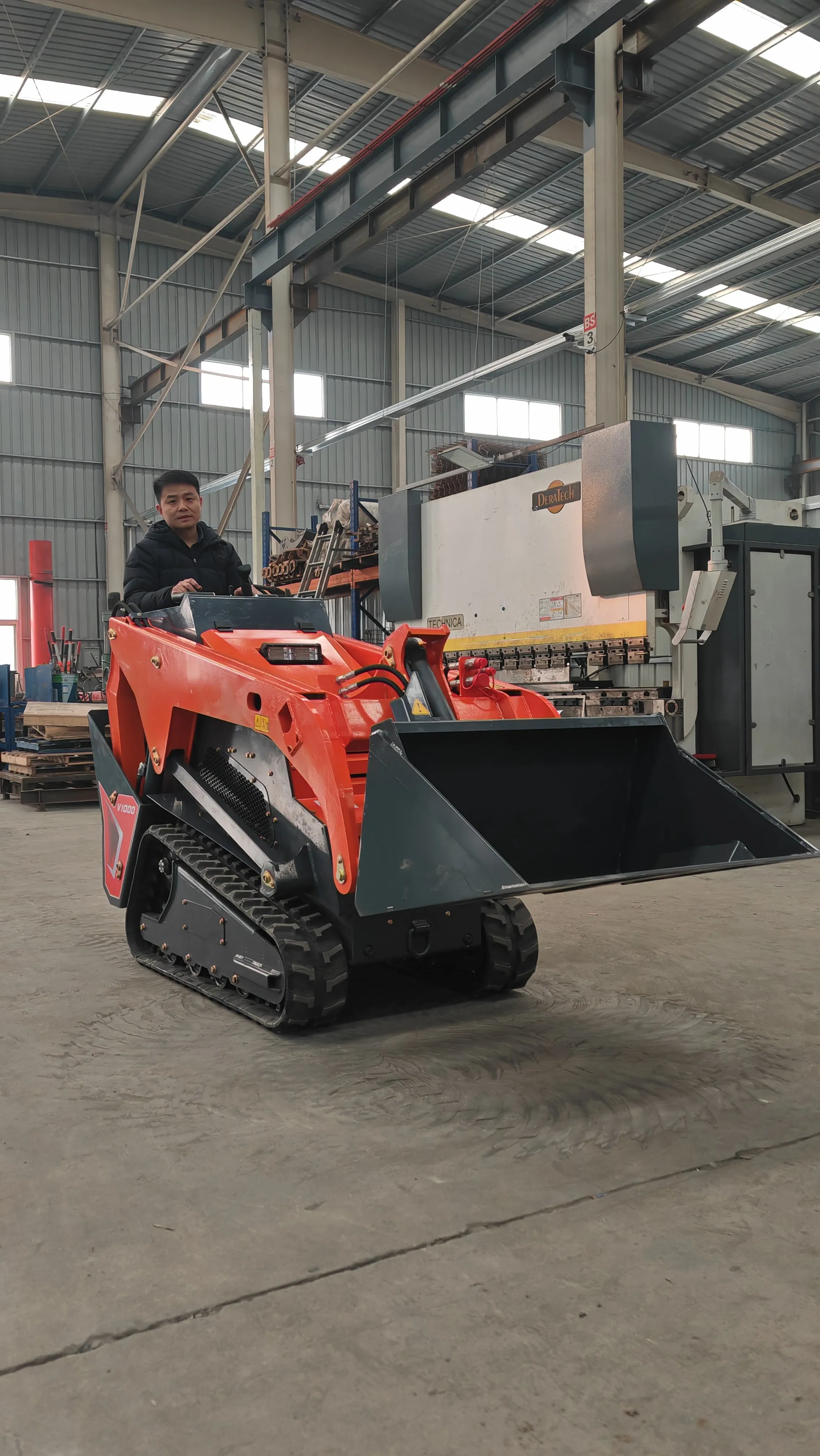

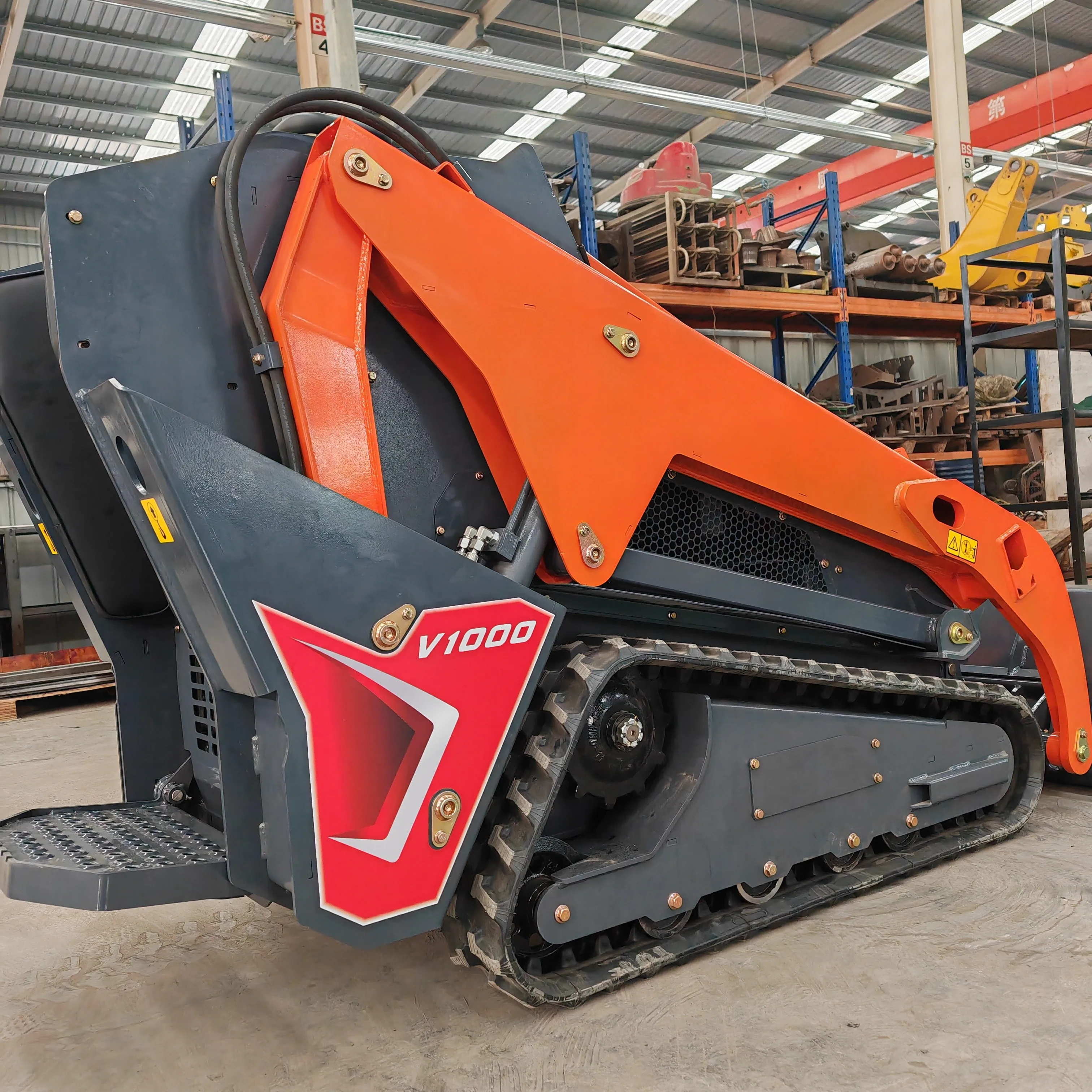

Details Images
A corner of the factory and shipping
Attachment Parameters
FAQ
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines and you can take a video tour of our factory anytime during working hours.
Q: How long is the machine warranty time?
A: One year.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: What is the delivery time ?
A: Generally we need 5-7 days to produce the machine after prepayment ,if you are urgent , 3 days will be ok ,then send to port.
Q: What is the terms of payment?
A: :Normally, we accept 20% advance, 80% should be paid after finished the machine, L/C at sight.
A: Yes. We are manufacturer of construction machines and you can take a video tour of our factory anytime during working hours.
Q: How long is the machine warranty time?
A: One year.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: What is the delivery time ?
A: Generally we need 5-7 days to produce the machine after prepayment ,if you are urgent , 3 days will be ok ,then send to port.
Q: What is the terms of payment?
A: :Normally, we accept 20% advance, 80% should be paid after finished the machine, L/C at sight.
Похожие товары

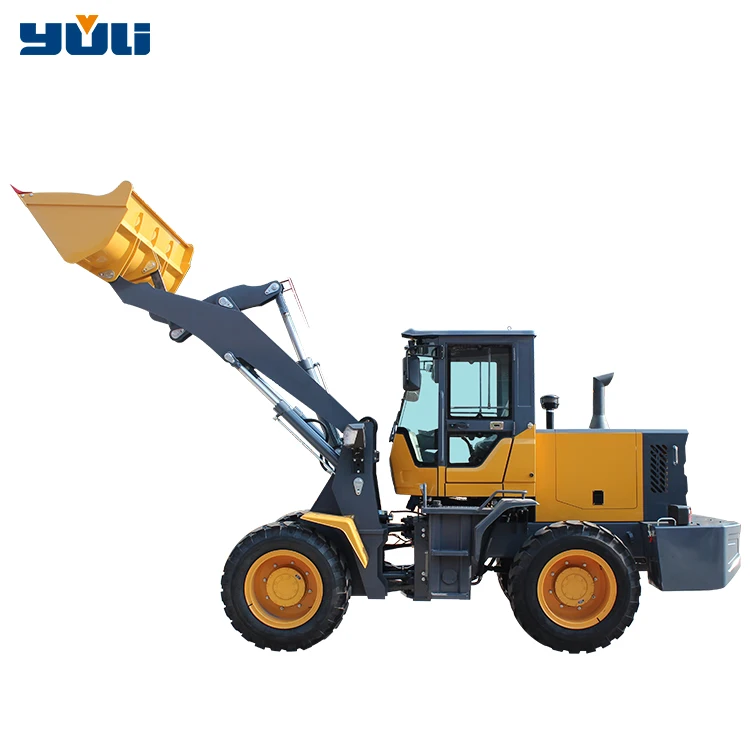

Yuli строительная машина промышленные запасные части для мини-колес тракторные экскаваторы фронтальный погрузчик колесный экскаватор-погрузчик
