Швейная фабрика автоматическое оборудование для одежды автоматическая машина нанесения ткани
861 148,08 ₽ - 1 380 045,00 ₽
Оборудование для резки с ЧПУ
- Категория: >>>
- Поставщик: Jinan Meeshon Cnc Machinery Co. Ltd.
Сохранить в закладки 1601039912501:
Описание и отзывы
Характеристики

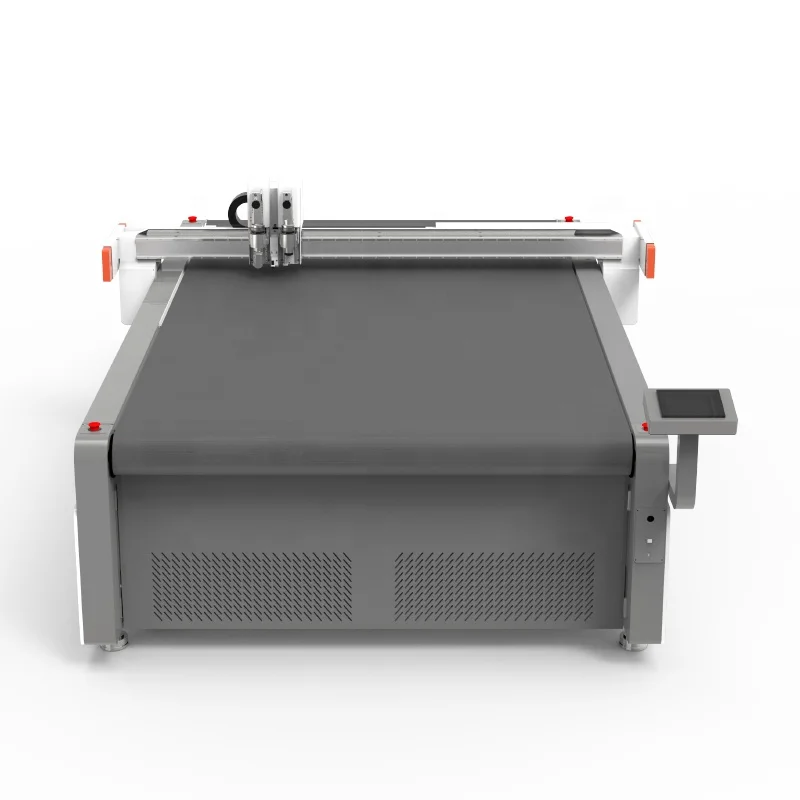

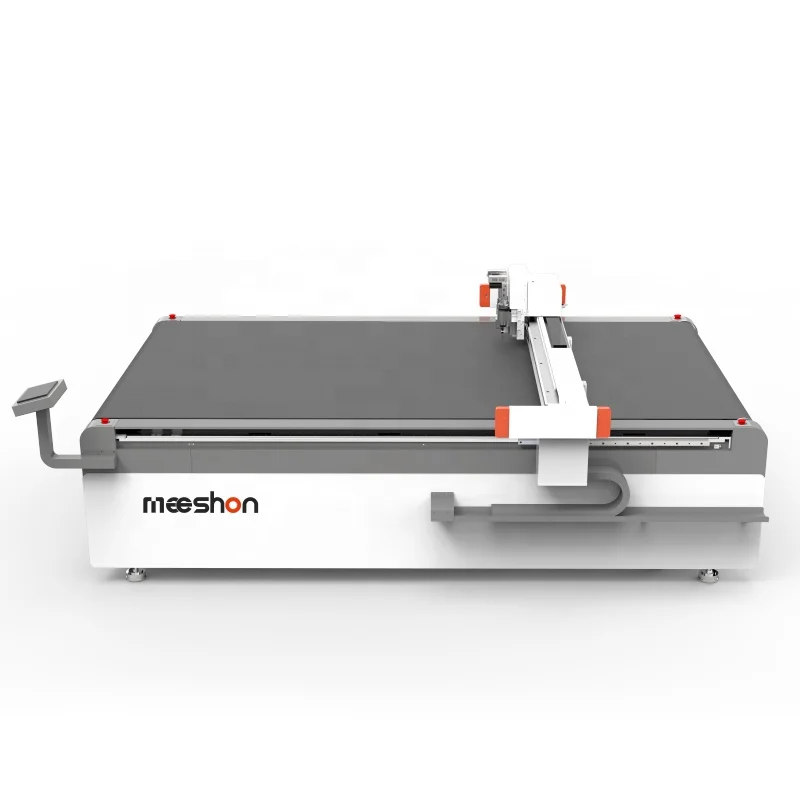

Meeshon CNC Vibrating Knife Cutter Flatbed Cutting Machine For Composite Material
Products Description
Jinan Meeshon vibrating knife cutting machine has developed composite material cutting system to cut single-ply and few-ply material independently, adopting advanced control system, which is with high cutting speed, high-precision and strong stability.
Materials that can be processed: PVC foam board, acoustic panels, carbon fiber, glass fiber, carbon felt, prepreg, rock wool, etc. The digital cutting machines are widely used in aviation, ship building, sport, medical items, defense items, and automotive fields.
Materials that can be processed: PVC foam board, acoustic panels, carbon fiber, glass fiber, carbon felt, prepreg, rock wool, etc. The digital cutting machines are widely used in aviation, ship building, sport, medical items, defense items, and automotive fields.
Product Parameters
Model | MS-2516D | MS-3016D | MS-2516X | MS-3020X | |||
Working Area | 2500*1600mm | 3000*1600mm | 2500*1600mm | 3000*2000mm | |||
Cutting Thickness | 0.1mm-50mm | ||||||
Max. Cutting Speed | 1200mm/s | ||||||
Cutting Tolerance | ±0.1mm | ||||||
Supported Format | DXF, PLT, and More | ||||||
Transmission Interface | Ethernet | ||||||
Fixed Mode | Vacuum Absorb | ||||||
Recommended Configuration | Cutting Tools, Grooving Tools, Marking Tool and Feeding Table | ||||||
Materials Available For Cutting | PVC foam board, acoustic panels, carbon fiber, glass fiber, carbon felt, prepreg, rock wool, etc. | ||||||
Details Images

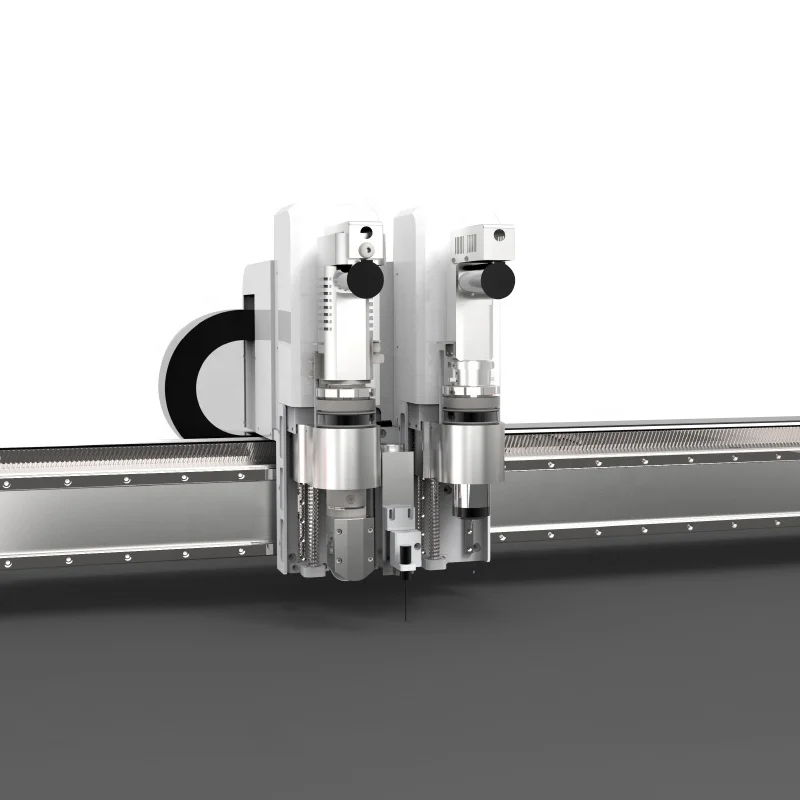

New Modular Tool Holder Design
To meet the different industrial cutting requirements, the cutting head can be flexibly adjusted. We provide convenience for customers to upgrade products. Compatible tools: oscillating cutting tool, pneumatic cutting tool, V-grooving tool, creasing tool, etc.
Panasonic Servo Motor
Stable performance, high precision, low failure rate, high speed performance.
Infrared Sensing Safety Device
Horizontal and vertical anti-collision protection is used to guarantee there’s no uncovered blind angle. This will effectively protect operator's safety.
Distribution Box
The CNC cutting machine fixes the control distribution box on the machine body to avoid separation causing line failure. All lines use high flexible cables with good abrasion resistance, moisture resistance, cold resistance and high temperature resistance.
High Precision Aviation Aluminum Vacuum Table
With the unique inner part of the wind structure, to ensure that each area of the platform
suction even, more powerful suction.
suction even, more powerful suction.
Tablecloth
High-density felt provides excellent support for the material, ensures a tight fit with every positioning, and protects the plate during cutting.
Lathe Bed Structure
The whole machine is made of 5mm thick square metal tube, whole welding process, processed by imported milling machine to ensure solid and durable, which greatly improves the stability of the machine body when the machine is running.
Chain
Simple assembly, durability, long silent circular motion, fast movement and long service life.

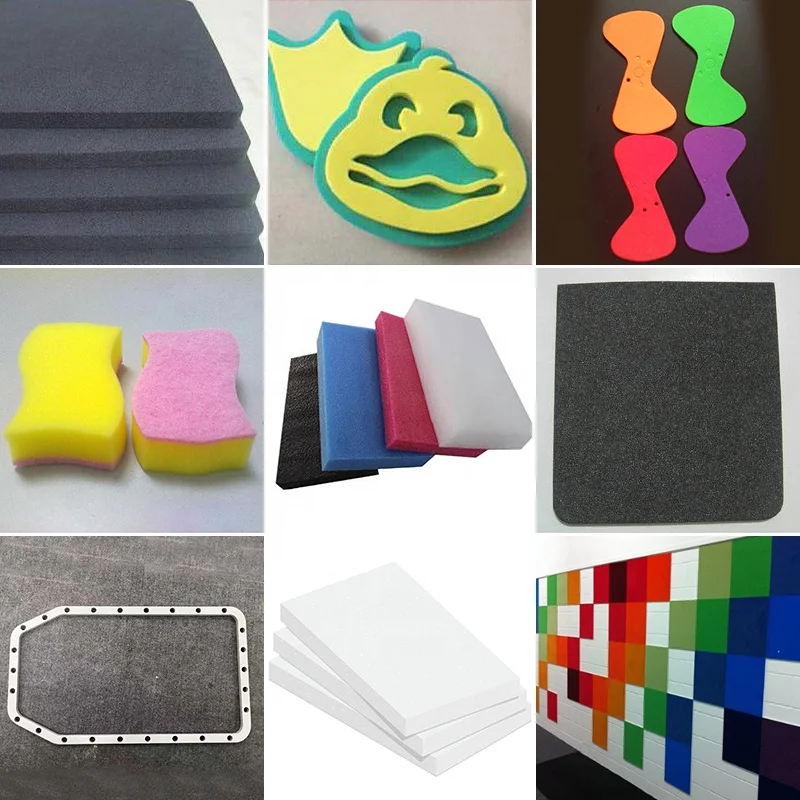

Applicable Material & Industry
Company Profile
Jinan Meeshon CNC Machinery Co., Ltd. is located in Jinan, Shandong Province, China, which is an industry and trade enterprise specializing in the research and development, production, sales and service of CNC cutting equipment. The products are mainly used in flexible material cutting industries and fields, such as advertising packaging, leather shoes and bags, gaskets, home furnishings, soft glass tablecloths, composite materials (e.g., carbon fiber, fiberglass) and so on.
The company is committed to providing traditional manufacturing enterprises with informationization and automation design and production solutions, so as to realize the transformation and upgrading from "Made in China" to "China Smart Manufacturing".
Meeshon equipments are running stably in more than 80 countries and regions all over the world, and are exported to Europe, Middle East, South America and other regions.
FAQ
Q1: How to choose the right cutting machine?
1) What material is to be cut?
2) What is the maximum size of the materials to be cut?
3) What is the thickness of these materials?
Q2: How long is the warranty?
One year. However, if there is any questions, please feel free to contact us and we will provide lifetime technical support.
1) What material is to be cut?
2) What is the maximum size of the materials to be cut?
3) What is the thickness of these materials?
Q2: How long is the warranty?
One year. However, if there is any questions, please feel free to contact us and we will provide lifetime technical support.
Q3: Does this machine have any certificate?
Yes, Meeshon machines are CE, ISO, SGS certified.
Q4: What about the installation and after-sales service of the machine?
We provide software manuals, installation videos and 24-hour online technical support for the machine. We also provide on-site support until you are able to operate the machine proficiently.
Q5: How is the machine shipped?
Normally the machine will be shipped by sea or by train, but we will plan the most suitable shipping method according to your requirements.
Yes, Meeshon machines are CE, ISO, SGS certified.
Q4: What about the installation and after-sales service of the machine?
We provide software manuals, installation videos and 24-hour online technical support for the machine. We also provide on-site support until you are able to operate the machine proficiently.
Q5: How is the machine shipped?
Normally the machine will be shipped by sea or by train, but we will plan the most suitable shipping method according to your requirements.
Похожие товары
Эксклюзивная сделка новая футболка машина для производства пластиковых пакетов китайская эко-футболка мешок мусора выдувания пленки
828 027,00 ₽

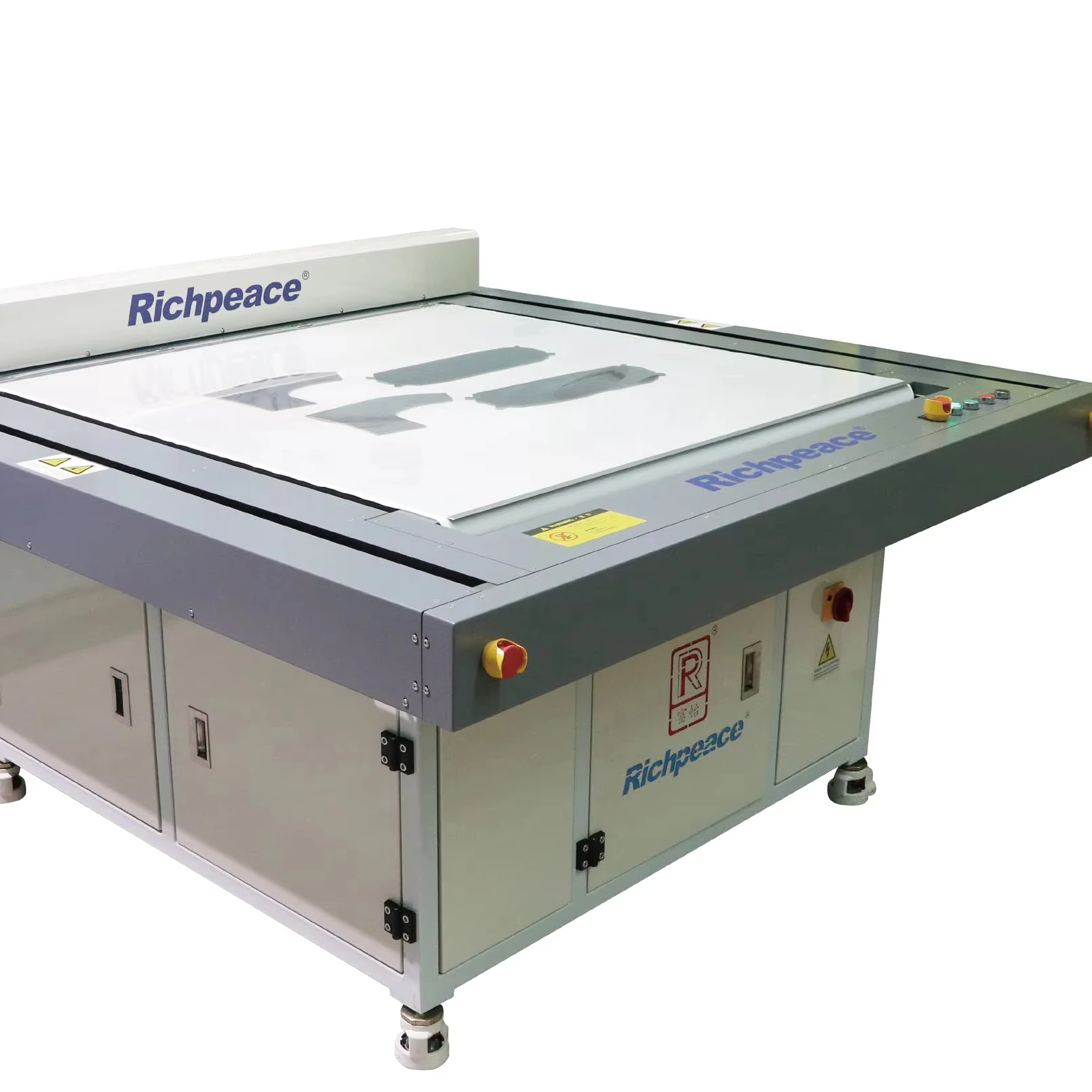

Richpeace планшетный цифровой преобразователь сканирования
993 632,40 ₽ - 1 104 036,00 ₽
Износостойкий и треснувший устойчивый к воздуху/плавучий/вакуумный стол для раскрытия ткани/разделочный Gerber oшимы TOPCUT-BULLMER
23 184,76 ₽ - 24 288,80 ₽
Полуавтоматическая Складная упаковочная машина для футболок одежды рубашек полотенец сумок
276 009,00 ₽ - 496 816,20 ₽
Машина для упаковки кукол и игрушек ML 120 пневматическая машина маркировки одежды
165 605,40 ₽ - 207 558,77 ₽

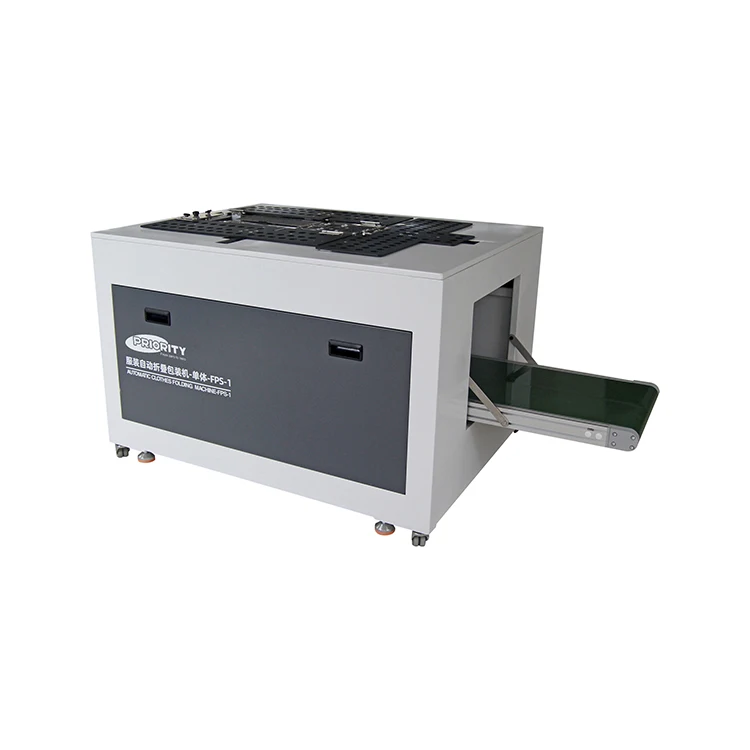

Автоматическая складная и упаковочная машина
