Air Drying System Hollow Fiber Air Dehumidification Membrane
Wholesale Air Desiccation Ultrafiltration Membrane Dehumidification Nitrogen Separation Membrane for Beverage Production
Technical Principle
The working principle of compressed air membrane dehydration is as follows: when water vapor passes through the hollow fiber membrane, water molecules permeate at a faster rate. Under the pressure difference, water vapor (H2O) permeates to the permeable side, while other gas molecules such as O2, N2, CO2, and He in the air remain on the non-permeable side and reach the outlet under pressure, thereby achieving the purpose of dehydration and drying.
Compared to traditional methods, membrane dehydration technology offers several advantages including efficiency, energy saving, cleanliness, simplicity of equipment, ease of operation, no pollution, maintenance-free, and long lifespan. The membrane dehydration device is a compressed air dehydration membrane separation device assembled from special hollow fiber membranes made of polymer materials. The processing capacity of the equipment is flexible and adjustable, allowing for different blow ratios of sweep gas to adjust the dew point of the product gas according to different applications, and it can replace the use of refrigerated dryers.
The characteristics of membrane dehydration technology are as follows:
1. Energy-saving: It operates using the pressure of compressed air itself, eliminating the need for additional energy sources.
2. Clean product gas: It produces clean gas without any pollution, making it environmentally friendly.
3. Low operating cost: It doesn't require regeneration, and the equipment is simple to operate, resulting in low running costs.
4. Low maintenance: With no movable parts, it is noise-free, maintenance-free, and has a long lifespan.
5. Cost-effective for small processing capacities: It offers advantages in equipment investment for smaller processing capacities.
Method | Desiccant | Refrigeration | Membrane |
Dehumidifying Performance | High | Low | Mid-High |
Dew Point | -30--57℃ | 0--20℃ | -20--40℃ |
Installation Area | Large | Large | Small |
Maintenance Requirement | Middle | Middle | Easy |
Device Size | Small-Large | Small-Large | Small-Middle |
Components | Tower / Tank / Heat Exchanger | Refrigerant / Condenser / Heat Exchanger | Separation Membrane/Filter |
Membrane Separation Process
Detailed Photos

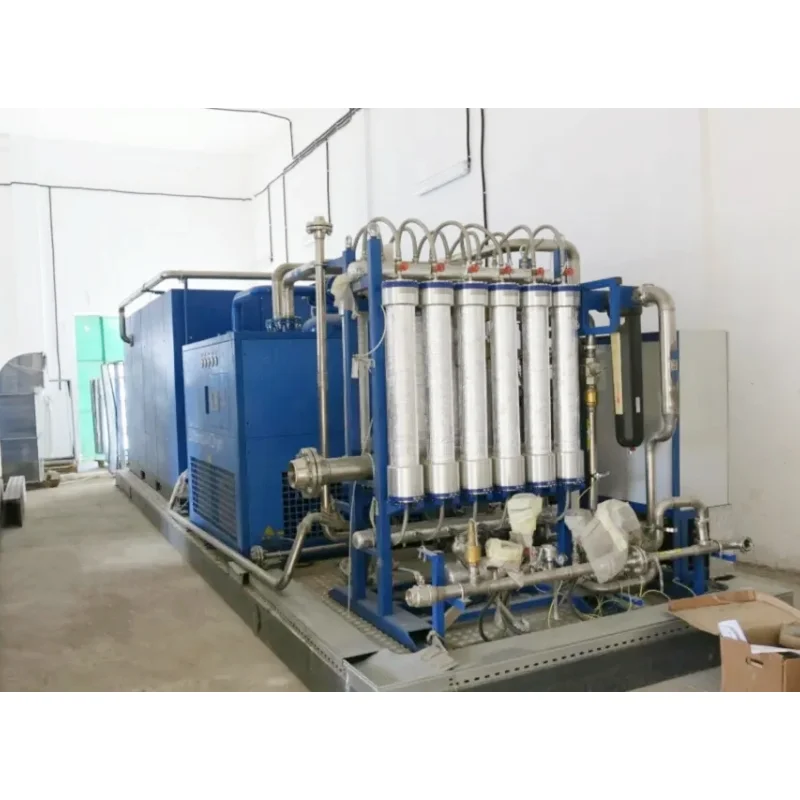

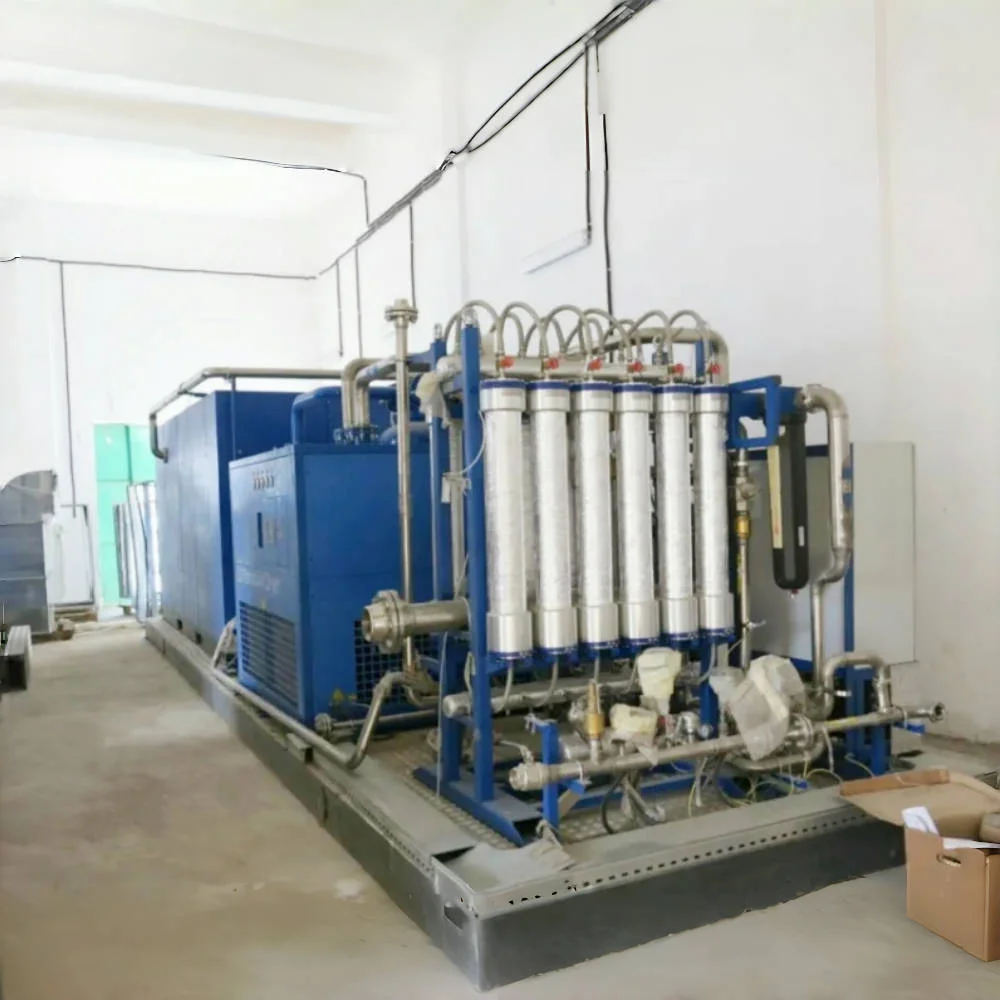

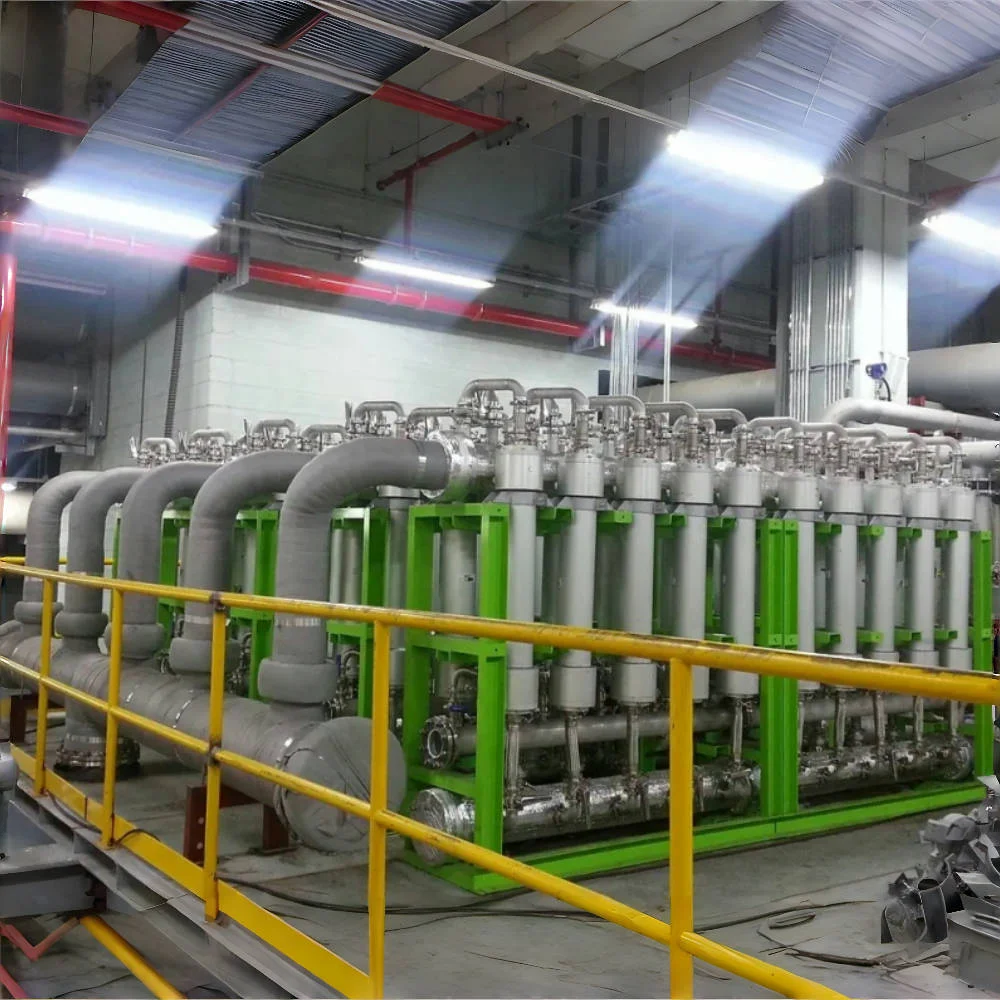

Project Case

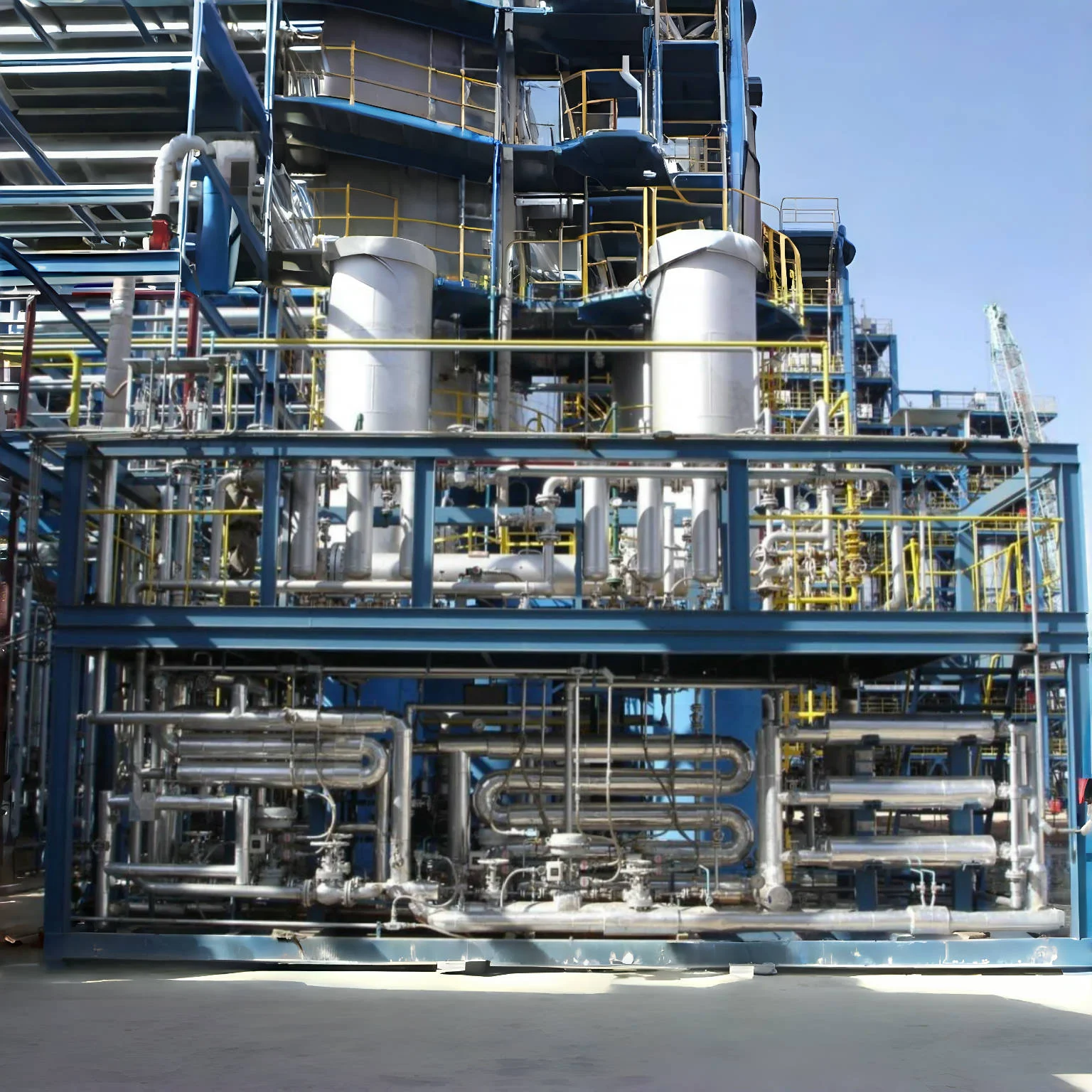

Product Application Field
Company Profile
WOBO Group has been engaged in the cryogenic and air separation industry for decades. It operates a variety of products such as cryogenic vessels, air separation equipment, chemical storage and transportation equipment, etc. It has always been our aim to provide customers with the best products and solutions.
WOBO Group has technically cooperated with a number of large-scale famous membrane manufacturers, and jointly developed with well-known domestic universities and colleges, and established a comprehensive laboratory for production inspection and testing. At present, WOBO membranes have been applied in more than 30 countries around the world.
WOBO Group has technically cooperated with a number of large-scale famous membrane manufacturers, and jointly developed with well-known domestic universities and colleges, and established a comprehensive laboratory for production inspection and testing. At present, WOBO membranes have been applied in more than 30 countries around the world.
Why choose us?
Customized on demand
WOBO offers tailor-made solutions regardless of size, quantity or special requirements. In addition to a complete range of
standard products, WOBO will always actively and timely meet the various needs of customers.
Regional advantage
Having successfully established its own business in the Asia Pacific region, WOBO has a wealth of knowledge and experience in the local market to provide and perfect competitive cost-effective solutions for customers. WOBO has exported products and systems to more than 20 countries including China, Japan, Australia, Turkey, the United Kingdom, and the United States.
Technological innovation
More than 18 years of rich cases have been accumulated through continuous cooperation with our loyal customers. Continuous testing and improvement, coupled with continuous R&D investment, has enabled WOBO to have a wealth of patented products and solutions.
Professional comprehensive team service
WOBO's team of R&D experts has the most professional experience and is responsive to customers' needs. From design and manufacturing to fully tailored solutions to operational training and consulting services, WOBO is a one-stop supplier for all of our customers' gas separation requirements.
Customized on demand
WOBO offers tailor-made solutions regardless of size, quantity or special requirements. In addition to a complete range of
standard products, WOBO will always actively and timely meet the various needs of customers.
Regional advantage
Having successfully established its own business in the Asia Pacific region, WOBO has a wealth of knowledge and experience in the local market to provide and perfect competitive cost-effective solutions for customers. WOBO has exported products and systems to more than 20 countries including China, Japan, Australia, Turkey, the United Kingdom, and the United States.
Technological innovation
More than 18 years of rich cases have been accumulated through continuous cooperation with our loyal customers. Continuous testing and improvement, coupled with continuous R&D investment, has enabled WOBO to have a wealth of patented products and solutions.
Professional comprehensive team service
WOBO's team of R&D experts has the most professional experience and is responsive to customers' needs. From design and manufacturing to fully tailored solutions to operational training and consulting services, WOBO is a one-stop supplier for all of our customers' gas separation requirements.
