Longi HiMO 6 солнечная панель Высокоэффективная Одиночная стеклянная HPBC PV модуели 580 Вт 570 560 коммерческие моно солнечные панели BIPV
14,33 ₽ - 16,54 ₽
Гибридная Тепловая двойная стеклянная Солнечная зарядная панель класса 600 Вт 650 660 680 690 700
- Категория: >>>
- Поставщик: Sunnal Solar Energy Co. Ltd.
Сохранить в закладки 1601040673322:
Описание и отзывы
Характеристики
Specification
Module Number: ANM | 490 | 495 | 500 | 505 | 510 | |||||
Maximum Power Pmax (W) | 490W | 495W | 500W | 505W | 510W | |||||
Open circuit voltage·Voc (V) | 45.3V | 45.5V | 45.7V | 45.8V | 45.9V | |||||
Short circuit current Isc (A) | 13.79A | 13.86 A | 13.92A | 13.99A | 14.04A | |||||
Voltage at Maximum Power Vmp (V) | 38.0V | 38.2V | 38.3V | 38.5V | 38.7V | |||||
Current at Maximum Power Imp (A) | 12.89A | 12.97A | 13.05A | 13.12A | 13.18A | |||||
Module efficiency-n (%) | 20.6% | 20.8% | 21.1% | 21.3% | 21.7% | |||||
Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | |||||
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | ||||||||||
Mechanical Parameters | ||||||||||
Monocrystalline PERC | Monocrystalline PERC 182x182mm | |||||||||
Dimension | 2094x1134x30mm | |||||||||
Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||||||||
Junction Box | IP65&IP67 Rated | |||||||||
Output Cable | Section Size: 4mm² , Length: 900mm | |||||||||
Frame | Anodized Aluminum Alloy | |||||||||
No. of Bypass Diodes | 6 | |||||||||
Connector | MC4 Compatible | |||||||||
Working Conditions | ||||||||||
Maximum System Voltage | ||||||||||
Operating Temperature | -40°c~+85°c | |||||||||
Maximum Series Fuse | 15A | |||||||||
NOCT | 45±2°c | |||||||||
Application Class | Class A | |||||||||
Temperature Coefficient | ||||||||||
Temperature Coefficient of Pmax | -0.39%/°c | |||||||||
Temperature Coefficient of Voc | -0.29%/°c | |||||||||
Grade A Material
EVA
>90% higher light transmittance EVA, higher gel content, provide good packaging and protect cells from vibration, with longer durability.
BACK SHEET
21kV high-voltage breakdown test, multi-layer super insulation backboard with better fire resistance/dust prevention/ultraviolet/tear durability test structure
TEMPERED GLASS
12% ultra transparent tempered glass. 30% low reflection
A Class Solar Cell
23% Higher Efficiency,9BB Cells
93 Fingers PV Cells, Anti-Pid
93 Fingers PV Cells, Anti-Pid
Aluminum Frame
120N tensile strength frame
110% sealing lip design glue injection (black/silver optional)
110% sealing lip design glue injection (black/silver optional)
Junction BOX
IP68 waterproof junction box with innovative full rubber filling
MC4 Connector
4mm² High quality cable with MC4
500N tensile strength
500N tensile strength
Cutomized Label
Waterproof Labels OEM Optional

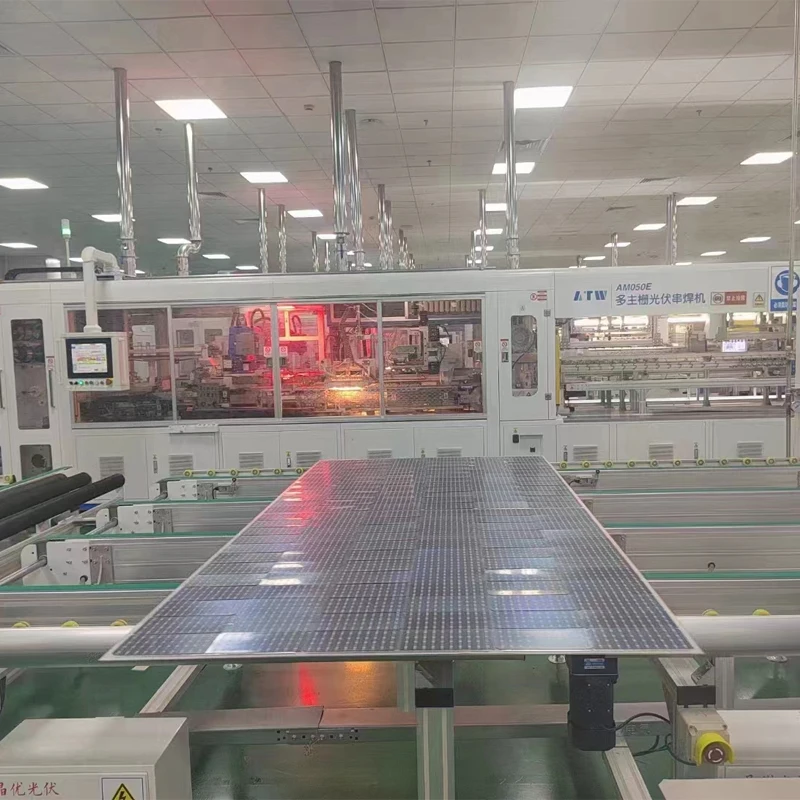

Production Process
Global Projects
Company Profile
Sunnal Solar Energy Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
Exhibition
Packing & Delivery
FAQ
Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to realsituation.
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to realsituation.
