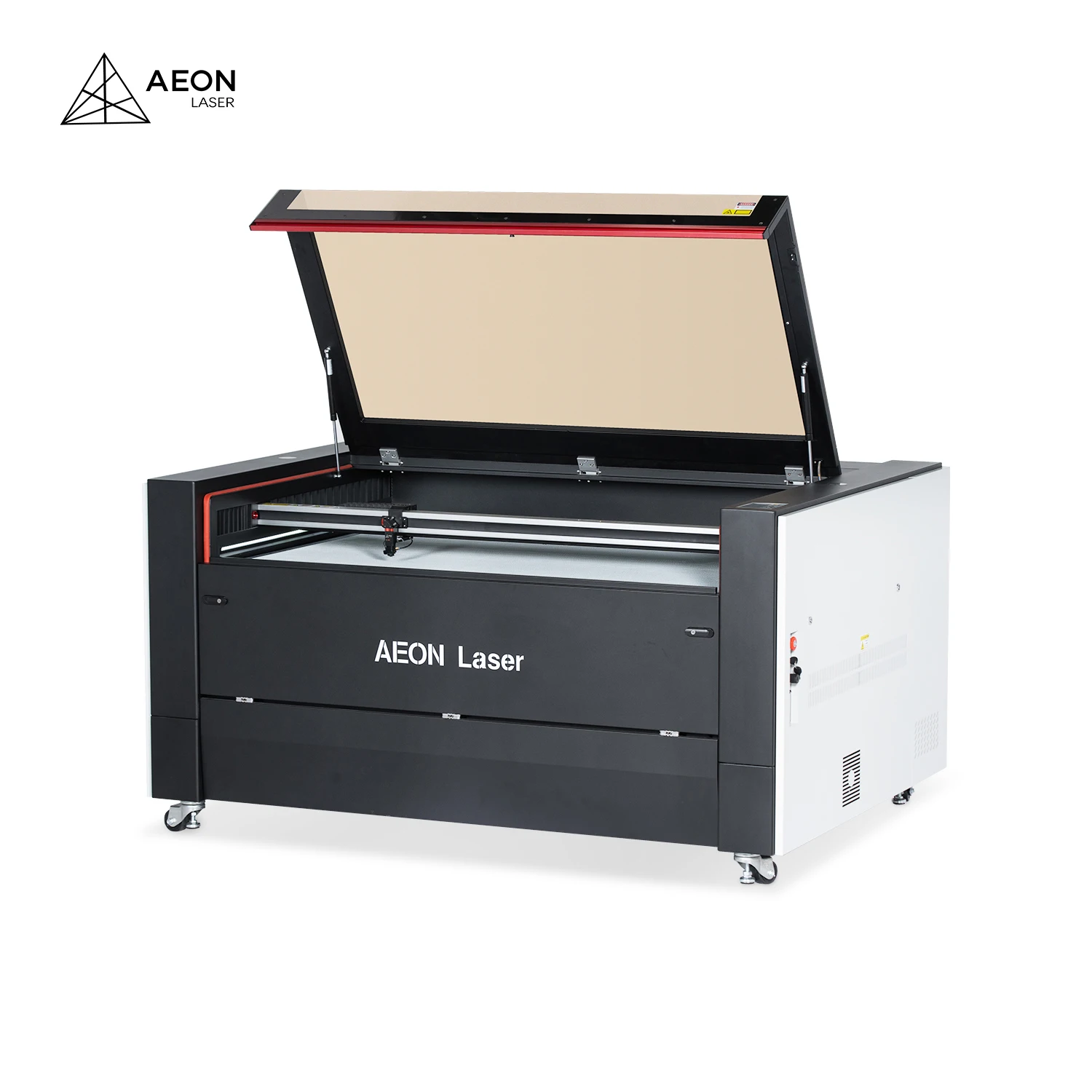

AEON 500 мм * 300 CO2 лазерная резка гравировальный станок для акрилового дерева Стекло 2000 мм/с
776 492,50 ₽
Высокоскоростная высокопроизводительная промышленная Неметаллическая резка CO2 высокомощный CK 1390 EC лазерный гравировальный станок лазер для ПВХ пластика
- Категория: >>>
- Поставщик: Jinan Catek CNC Machinery Co. Ltd
Сохранить в закладки 1601040679979:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

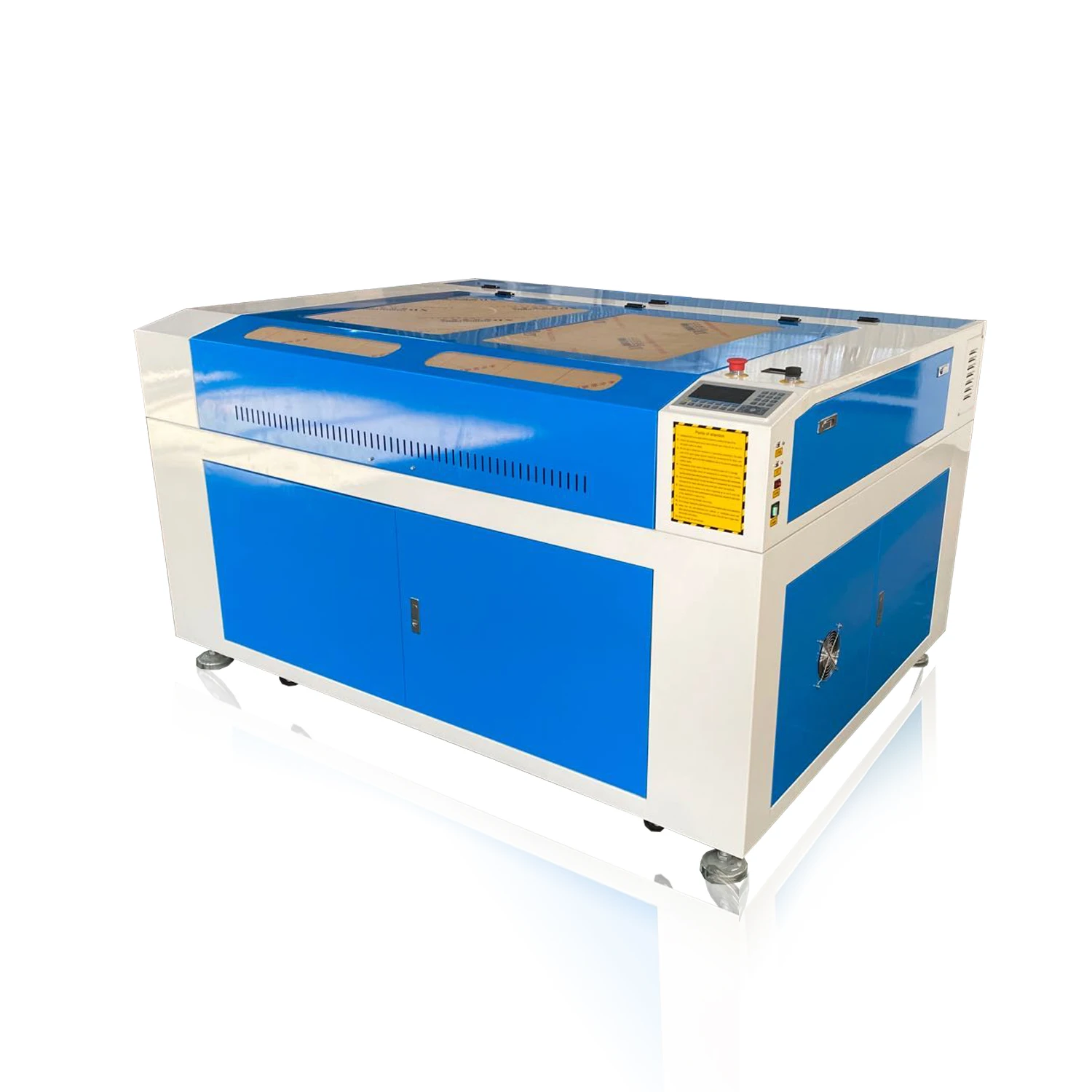

Name | CK-1390-EC Economy model CO2 laser cutting engraving machine |
Working size | 1300*900mm |
Cutting depth | ≤ 25mm (according to material) |
Laser power | RECI/Yongli AS6 laser tube |
Laser type | CO2 glass laser tube |
Power | 80W/100W/150W/200W |
Engraving speed | 1-60000mm/min |
Control system | RDC6442S/ RDC6445G RUIDA |
Working Table | Up and down table |
Laser head | Auto focus and red dot positioning |
Protector | XY dust cover protection |
Air compressor power | Haili 165W |
motor | stepper motor(Customizable servo motor) |
Exhaust fan Power | 550W |
Transmission mode | Taiwan HIWIN high precision linear square rail,Taiwan HIWIN slider |
Cutting speed | 1- 10000mm/min |
Resolution ratio | ≤0.0125mm |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Cooling type | S&A CW5000 water cooling machine |
Support format | JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI |
Voltage | 110V/220V 50HZ 60HZ |
G.W | 450KG |
Size | 2070*1530*1200mm |
focusing lens | Import from America II-VI |
Sample display
It can satisfy the large-volume cutting and engraving needs of clothing fabrics, leather, wood, acrylic, paper and other industries and it is widely used in craft gifts, souvenirs, paper-cutting, advertising signs, clothing, furniture and many other industries
Recommend Products

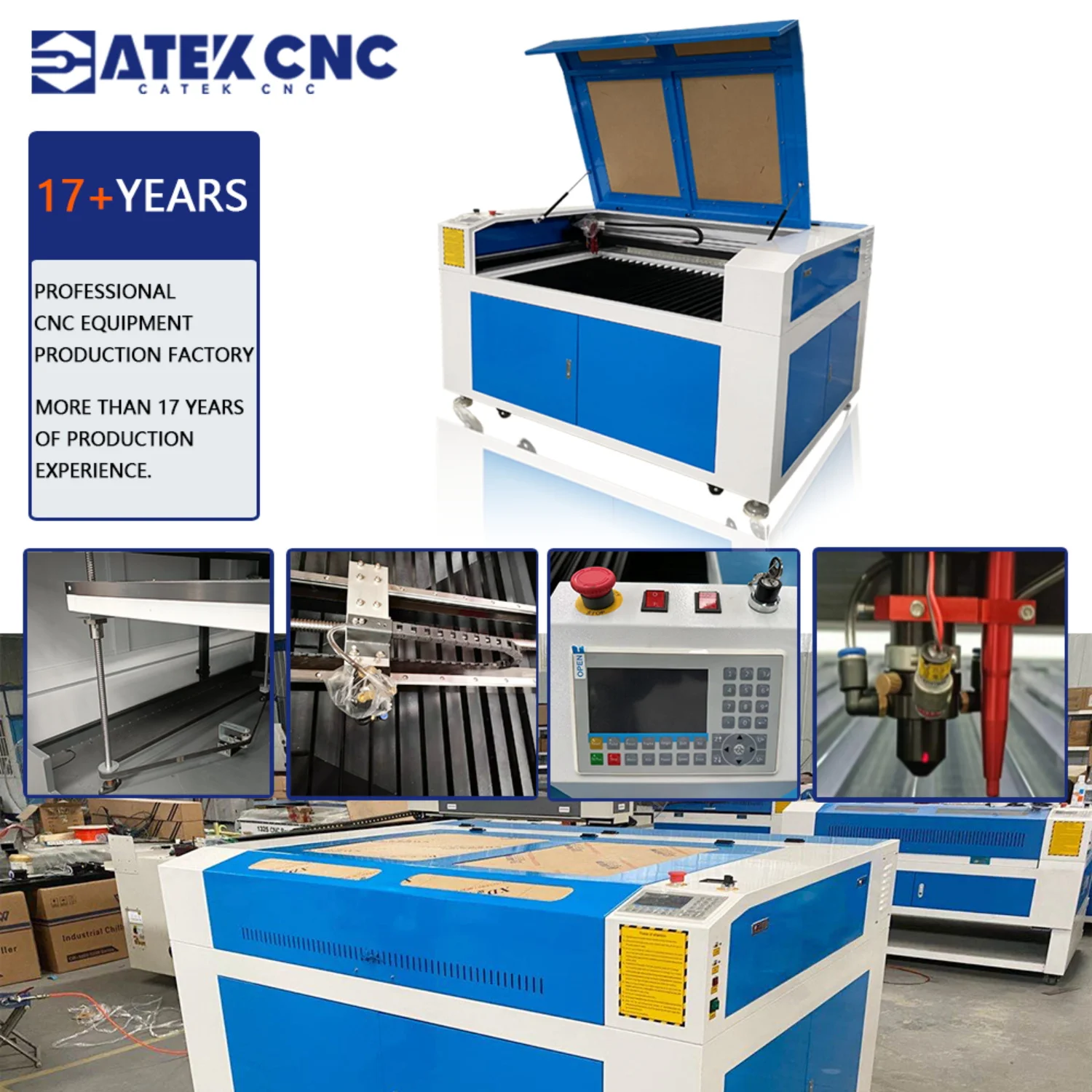

Details Images
RECI CO2 laser tube has a delicate spot and strong penetrating power making it more suitable for long-term use
Ruida rdc laser special control system supports various advanced functions such as auto focus and power-off positioning
Red dot positioning and auto-focus laser head ensure a safe distance between the material and the lens
Imported HIWIN high-precision sliders guide rails and TBI ball screws
Double guide rail screw drive, transmission drag chain and high-flexible cables provide higher precision and durability
S&A cw-5000 water cooling machine enables the machine to work stably in hot environments
Our Advantages
Focusing lens imported from the United States, double size AR coating and high transmittance 99.5%
Ordinary focusing lenses have low transmittance and low laser resistance
Honeycomb workbench + blade workbench dual platforms can be used for both cutting and engraving making it more convenient to use
Ordinary single-blade workbench with single working method
The whole machine uses a thickened sheet metal shell and an aviation-grade aluminum alloy gantry that making it more convenient to control and easier to use
Simple small laser machine with low efficiency slow speed and low precision
Company Profile
Jinan Catek CNC Machinery Co., Ltd
Catekcnc is a foreign trade subsidiary of Lingrui located in China Jinan, Shandong Province. Lingrui CNC was established in 2006 with atotal investment of 300 million RMB. Since 2006 our company has been deeply cultivating the Chinese market for 17 years and cooperating with well-known factories in China and OEM manufacturing for many foreign trade companies around the world. In 2023,Lingruin invested in the development of the foreign trade market and established Ruisheng CNC committed to providing the mostfavorable and practical digital control equipment to the world.
The company has 12 large-scale production workshops with total area of 100000 square meters. The company's main production equipment adopts world-renowned enterprise brands, and heat treatment processes of the equipment are at the world's leading level. Key components with the overall structure of the bed and the connecting shaft are all self-developed which is effectively ensuring product quality.
The company's products mainly cover various CNC equipment such as CNC woodworking lathes, CNC carving machines, CNC woodworking machining centers, laser fiber cutting machines, CNC marking machines, etc., which are applied in various industries such as wood, stone, metal, synthetic chemical materials, etc. Whether in manufacturing, construction, handicrafts, advertising, or other fields, our mechanical equipment help customers achieve outstanding achievements. We work closely with our customers listening to their voices and needs, constantly innovating and improving to ensure that our products are always at the forefront of the industry.
Our company has 1500+ professional assembly technicians, 300+ professional after-sales teams and 300+ professional sales teams.Our company has a diversified product composition and production equipment in various fields. No matter what your needs are, we can meet with all your needs.
Customer Photos
The company has been deeply rooted in China for more than 17 years, serving more than 10000 domestic customers. Factories are involved in various industries and customer satisfaction is 100%. It has become a well-known CNC brand in China. Whether you are a CNC novice or an expert CATEKCNC can meet your any requirements.
As a senior OEM factory has cooperated with many well-known foreign trade companies and shipped equipment to more than 100 countries and regions around the world
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) Alibaba Secure Payment. Reliable and secure, Alibaba will charge a handling fee.
or if you have other payment methods, we can also consider them
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
(2) Alibaba Secure Payment. Reliable and secure, Alibaba will charge a handling fee.
or if you have other payment methods, we can also consider them
Похожие товары
Лазерная гравировальная машина Aeon Co2 для дерева/бутылки клавиатуры/стеклянной ткани лазерная резка 2000 мм/с Лидер продаж
770 468,30 ₽
Лазерная гравировальная машина для дерева и стекла
880 535,20 ₽
Aeon NOVA Super16 1600x1000 мм лазерный гравер с автофокусом Wifi CCD-камерой
770 468,30 ₽
AEON Redline CO2 лазерный резак гравер машина все в одном 40 Вт 60 75 80
776 492,50 ₽

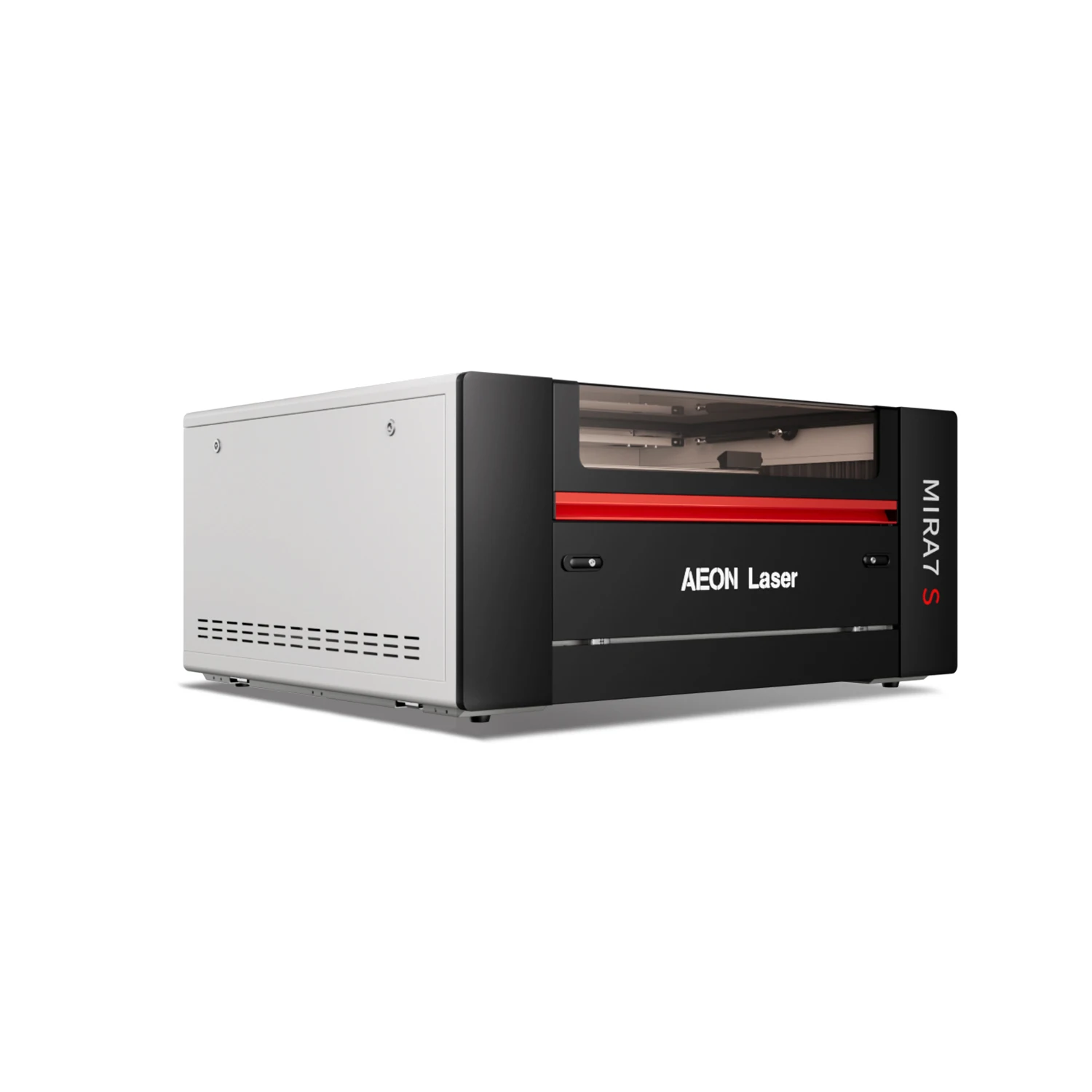

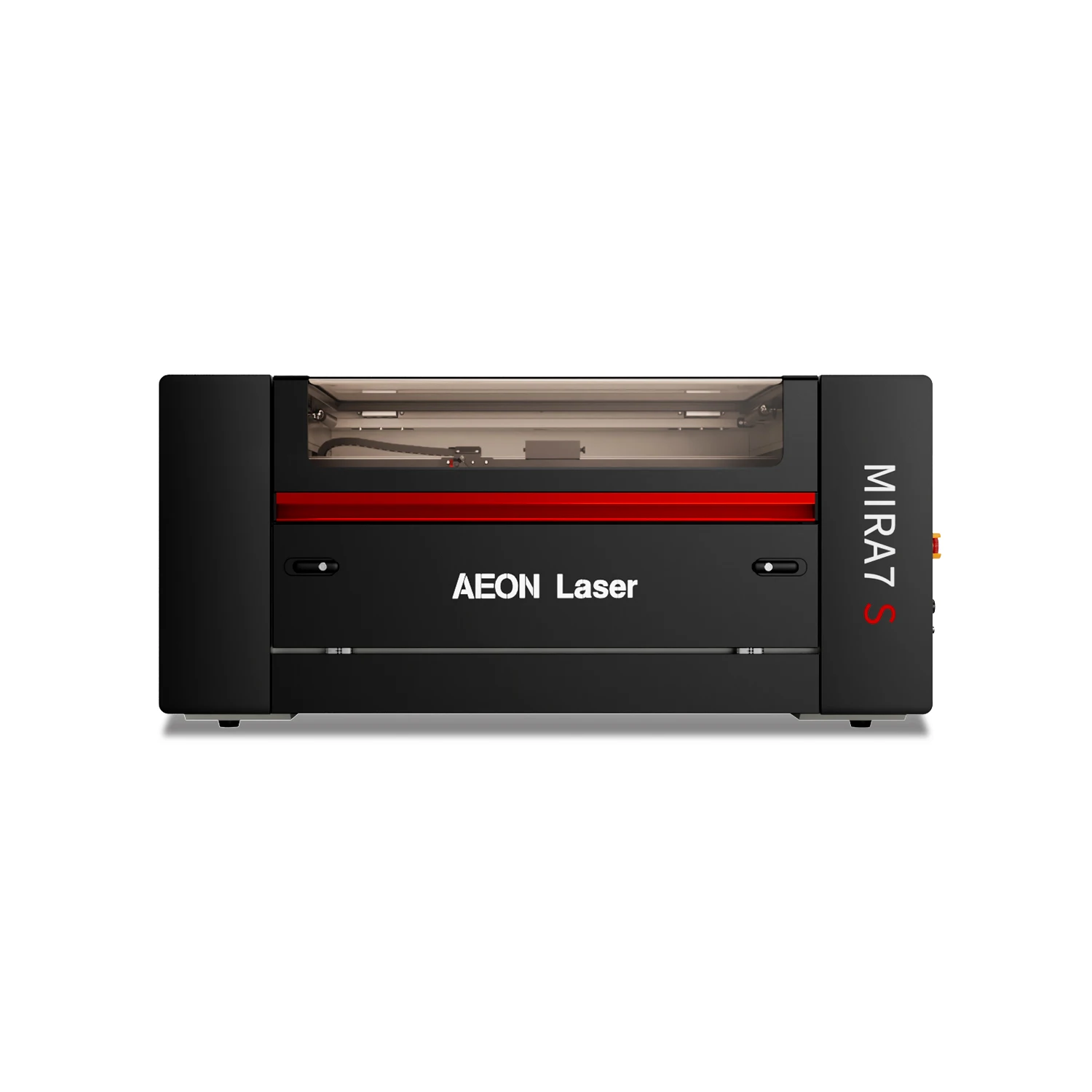

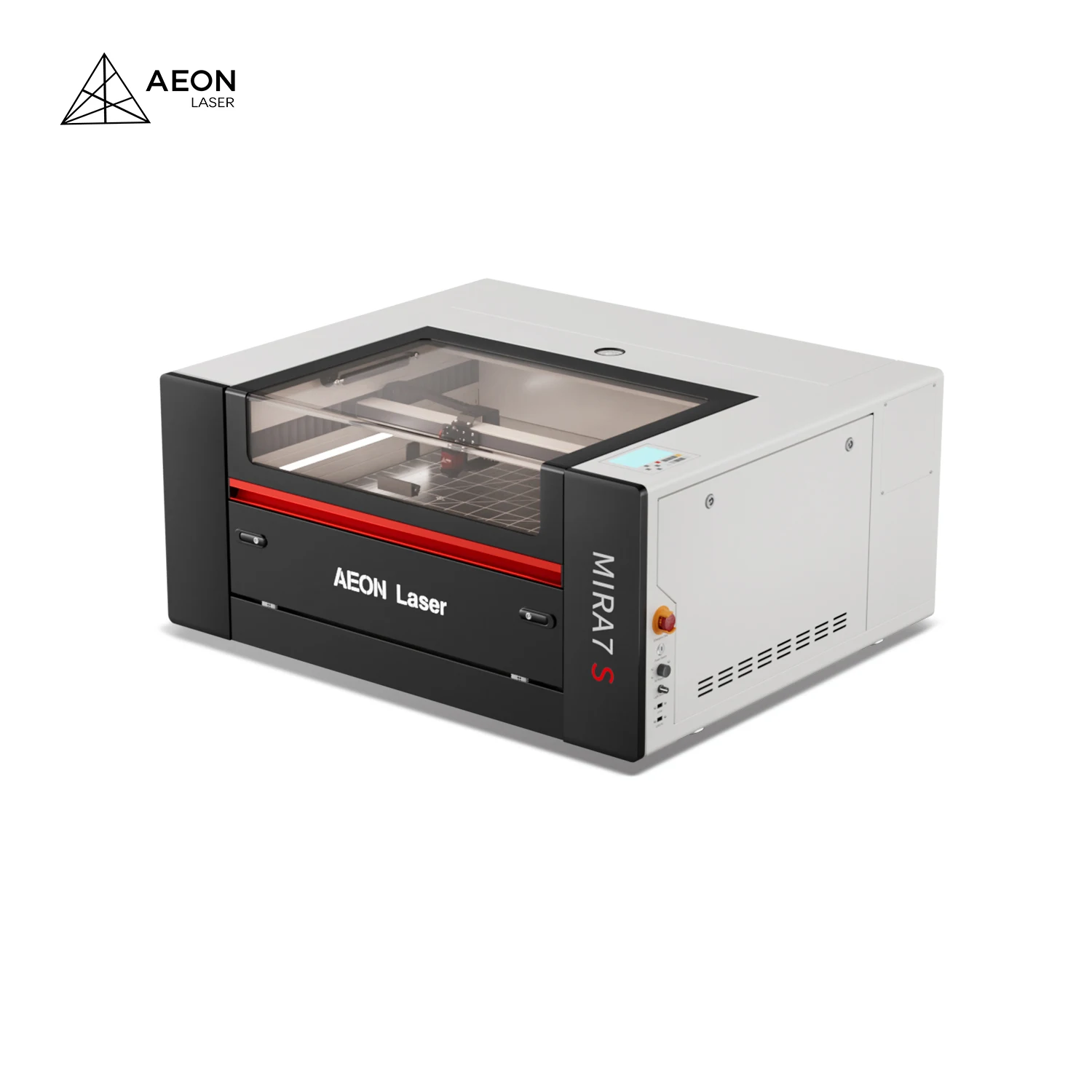

Aeon Mira7S CO2 лазерный гравер для рекламы кожи ремесел деревообрабатывающей промышленности 2000 мм/с
770 468,30 ₽
Лазерный резак AEON Redline CO2 для рекламы древесины высокая скорость 2000 мм/с
776 492,50 ₽

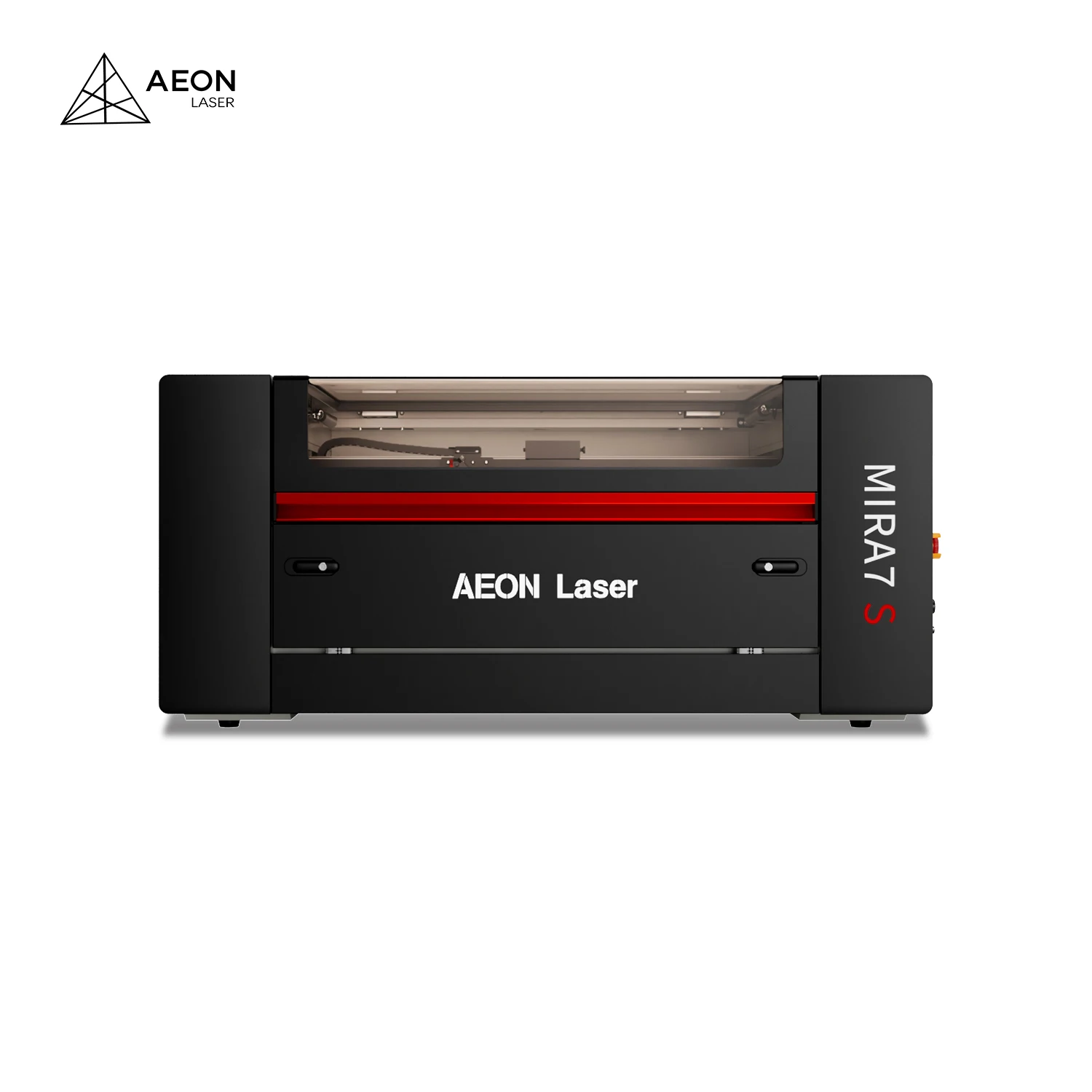

Aeon Mira7S Настольный ЧПУ CO2 лазерный гравер и резак для резины древесины MDF гравировка резка
