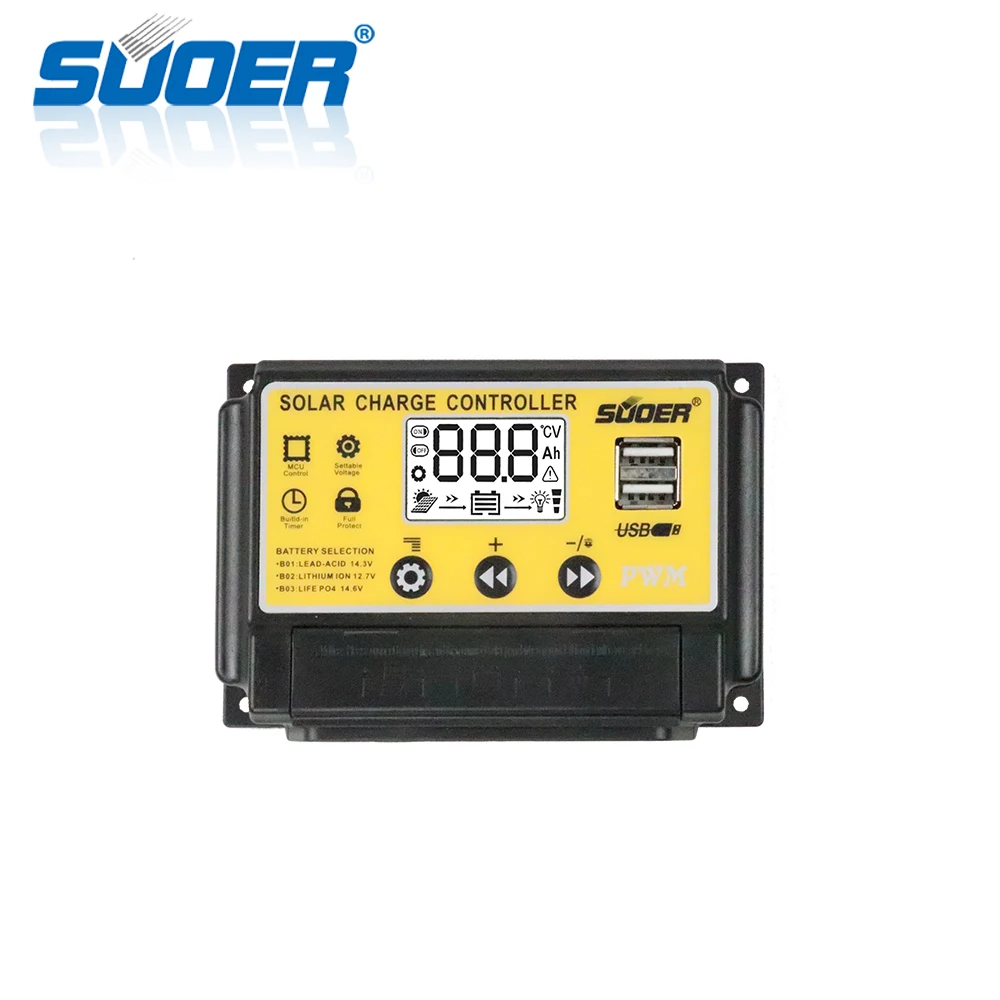

Suoer 12V/24V 20A PWM контроллер солнечного зарядного устройства с USB
693,22 ₽ - 759,34 ₽

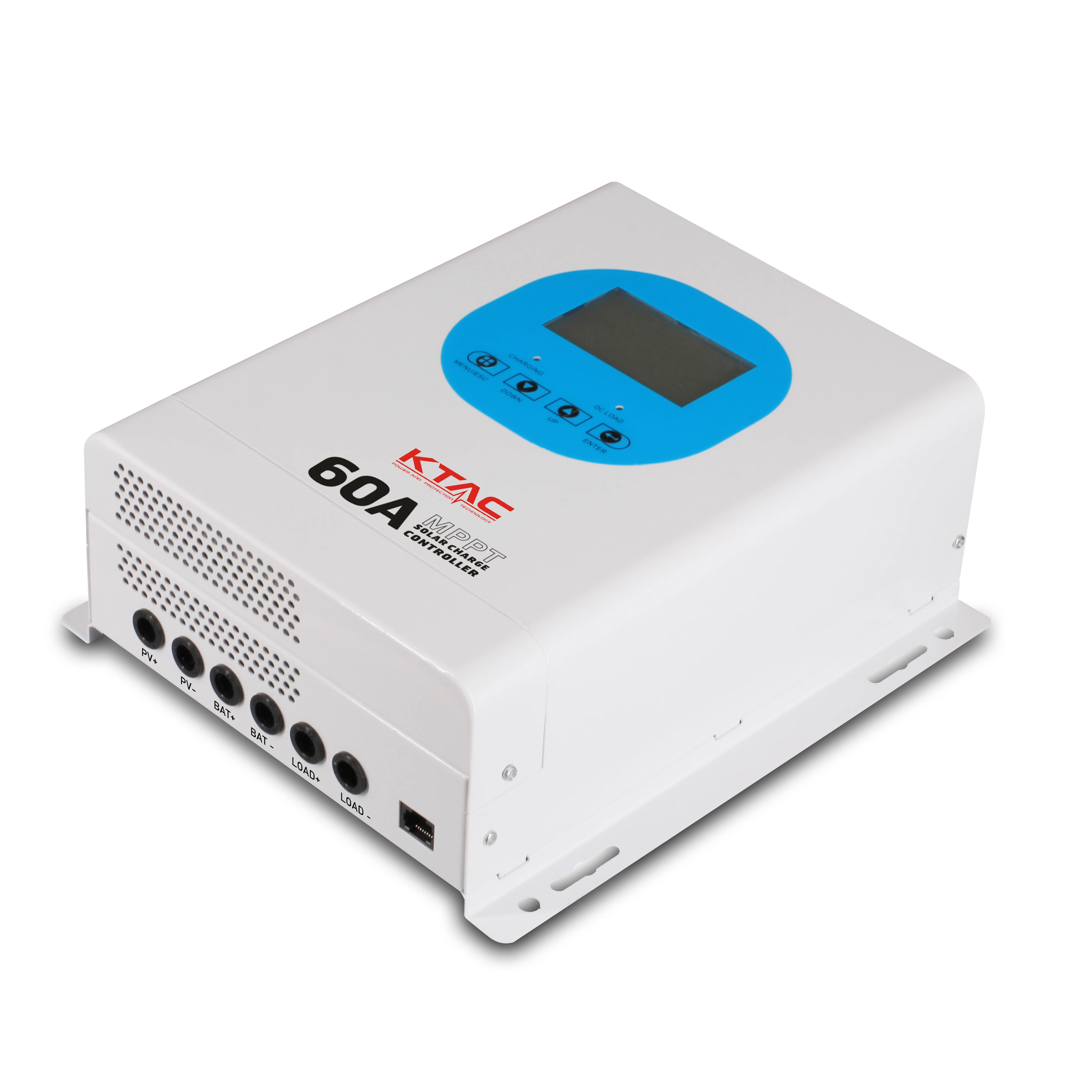

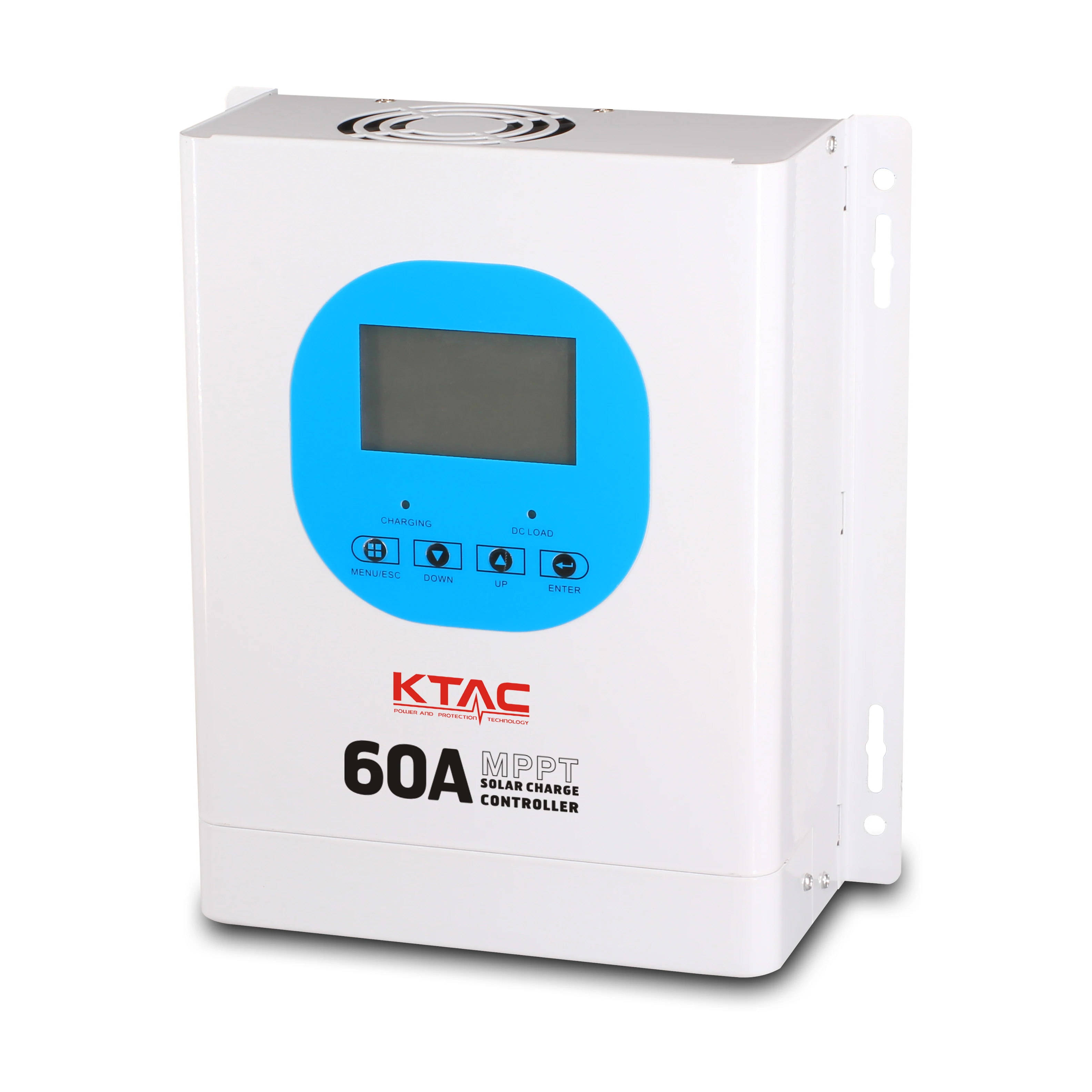

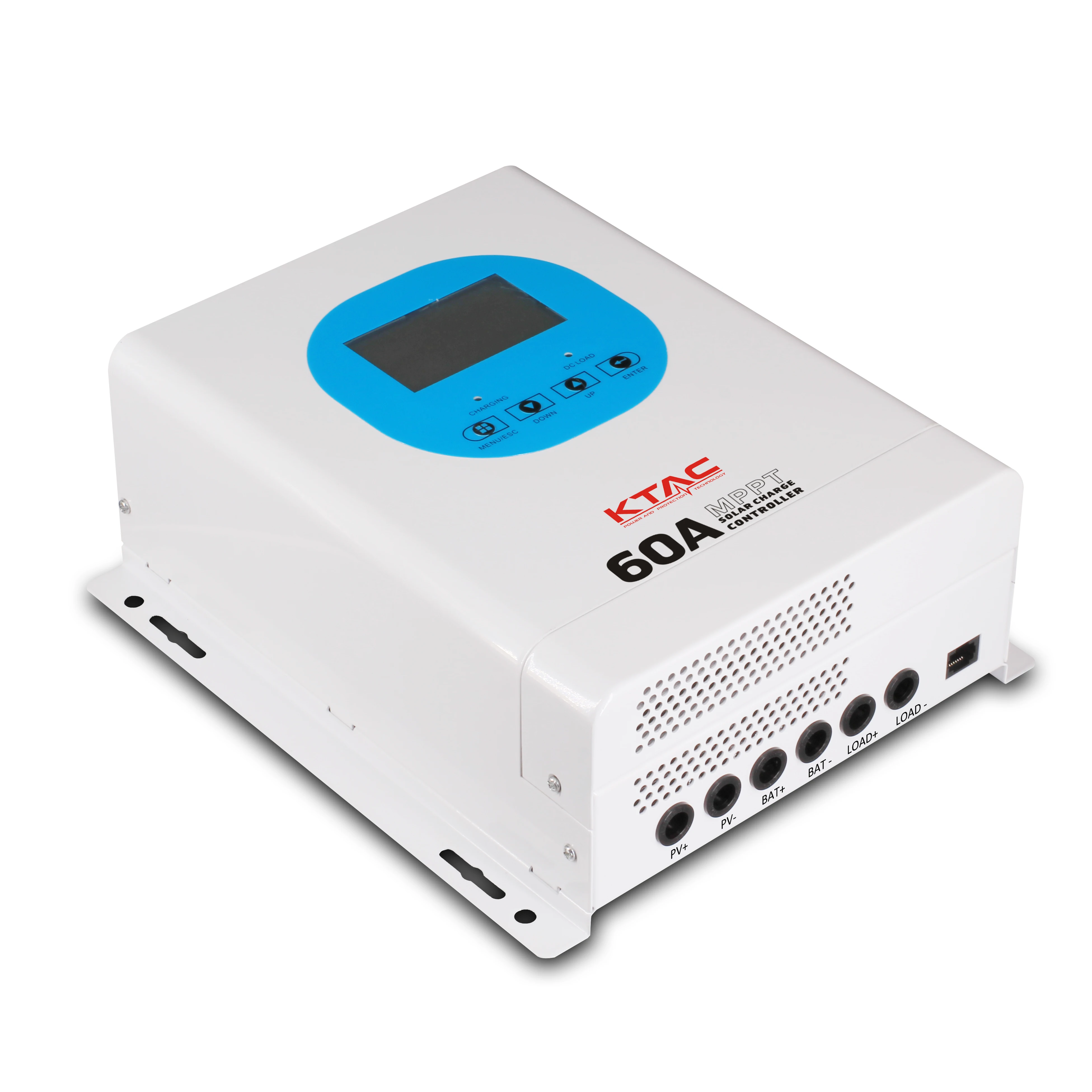

Контроллер солнечного зарядного устройства mppt 60A 100A вход 12v 24v 36v 48v с PV 175V для системы солнечной энергии
- Категория: >>>
- Поставщик: Foshan Ktac Technology Co. Ltd.
Сохранить в закладки 1601041095573:
Описание и отзывы
Характеристики
Product Description
Specification
Model | MPPT-60A | ||
Charging pattern | MPPT automatic maximum power point tracking | ||
Charging mode | three stages: constan current(MPPT),Equalizing charging, float charging | ||
System type | DC 12V/24V/48V | ||
System voltage range | 12V system | DC 9V-DC 15V | |
24V system | DC 18V-DC 30V | ||
48V system | DC 36V-DC 60V | ||
Soft start time | 12V/24V/48V | <10S | |
Dynamic response recovery time | 12V/24V/48V | <500us | |
Static power | 12V/24V/48V | <2W | |
Overall efficiency | 12V/24V/48V | >96.5% | |
PV modules uilization | 12V/24V/48V | <99.7% | |
Input characteristic | |||
MPPT Working | 12V system | DC 18V-DC 175V | |
24V system | DC 34V-DC 175V | ||
48V system | DC 65V-DC 175V | ||
Input low voltage protection | 12V system | DC 16V | |
24V system | DC 30V | ||
48V system | DC 60V | ||
Input low voltage recovery | 12V system | DC 18V | |
24V system | DC 34V | ||
48V system | DC 65V | ||
Input voltage limit | 12V/24V/48V -DC 180V | ||
Input over voltage protection | 12V/24V/48V -DC 175V | ||
Input over voltage recovery | 12V/24V/48V -DC 170V | ||
Solar panel Max input power | 12V system | 900W | |
24V system | 1700W | ||
48V system | 3400W | ||
Output charateristic | |||
Battery type available | 12V/24V/48V | Lead Acid battery, colloidal battery, lithium battery.. | |
Company Profile
About Ktac
Since 2007, Ktac has been dedicated and specializing in research, design,and manufacture of power supply solutions and products
against various power supply problems such as power breakouts, fluctuation, power outage, sags, spikes, surges, transient
etc.Located in Foshan,the power supply hub of China, Scientek electrical holds three factories with more than 8000 square meters
production area,8 production lines, more than 100 workers, with our facility and a highly professional and motivated team of
engineering,manufacturing,quality assurance, materials management and sales personnel, Scientek provide the following products and
solutions:
Uninterruptible Power Supply(UPS): Unexpected power failure can result in damage or serious data lost for computer,
server,security system,UPS can solve power outage problems and protect sensitive equipments from damage or data lost.
AC automatic Voltage regulator: Rural areas may experience dramatic voltage fluctuations due to long power lines. the effects of a
voltage fluctuation cause lights and display screen flicker, heat systems takes longer time to warm up, it may even cause computer
systems to lose data or damage the systems. In industrial field, over voltage and under voltage can cause serious damage to the
expensive equipments like automation machines. AVRs are the most effective way to protect the electrical appliances from voltage
fluctuation damages.
Power Inverters and solar inverters: A power inverter changes DC power from a battery into conventional AC power that you can use
to operate all kinds of device such as electric lights, kitchen appliances, microwaves, power tools, TVs, Radios, Computers, to
name just a few. you just connect the inverter to a battery, and plug your AC devices into the inverter, and you've got portable
and quiet power whenever and wherever you needed. It has never been easier to use free and sustainable solar power, a PV panel
with our solar inverters can help you to achieve green power.
Solar Charge controllers: Solar charge controller is an essential part of the solar system, it is designed to do two primary
things within a solar power system: optimize the charging of your deep cycle batteries by the solar panels and prevent electricity
from the batteries from going through the solar panels when there is no sun. A solar panel module with a solar charge controller
and a power inverter, it is never been so easy to get free sustainable green energy for your home.
Battery Charger: 10A-50A battery charger for lead acid battery and lithum battery.
Power Transformers: Customized power transformers for control system, power supply system, medical systems.
Applications for Ktac products include most electrical home appliances such as washing machine, fridge, freezer, TV, fans, Air
conditioner,lighting products,stage power supply, personal computers,servers, data center, office electrical equipments , factory
electrical equipments and machineries, marine boats, cars, trucks, commercial centers, hotels, residential lighting, automation
control system. With perseverant concentration in power supply and profound understanding of manufacturing and deep awareness of
importance of product quality and reliability, Ktac is confident of our ability to support your requirements by providing the
highest quality and reliable products, delivered on time, and at competitive prices. Whether it's an industrial, commercial,
residential application,
Ktac is uniquely positioned to provide products with engineering innovation, proven quality, and high reliability.
Since 2007, Ktac has been dedicated and specializing in research, design,and manufacture of power supply solutions and products
against various power supply problems such as power breakouts, fluctuation, power outage, sags, spikes, surges, transient
etc.Located in Foshan,the power supply hub of China, Scientek electrical holds three factories with more than 8000 square meters
production area,8 production lines, more than 100 workers, with our facility and a highly professional and motivated team of
engineering,manufacturing,quality assurance, materials management and sales personnel, Scientek provide the following products and
solutions:
Uninterruptible Power Supply(UPS): Unexpected power failure can result in damage or serious data lost for computer,
server,security system,UPS can solve power outage problems and protect sensitive equipments from damage or data lost.
AC automatic Voltage regulator: Rural areas may experience dramatic voltage fluctuations due to long power lines. the effects of a
voltage fluctuation cause lights and display screen flicker, heat systems takes longer time to warm up, it may even cause computer
systems to lose data or damage the systems. In industrial field, over voltage and under voltage can cause serious damage to the
expensive equipments like automation machines. AVRs are the most effective way to protect the electrical appliances from voltage
fluctuation damages.
Power Inverters and solar inverters: A power inverter changes DC power from a battery into conventional AC power that you can use
to operate all kinds of device such as electric lights, kitchen appliances, microwaves, power tools, TVs, Radios, Computers, to
name just a few. you just connect the inverter to a battery, and plug your AC devices into the inverter, and you've got portable
and quiet power whenever and wherever you needed. It has never been easier to use free and sustainable solar power, a PV panel
with our solar inverters can help you to achieve green power.
Solar Charge controllers: Solar charge controller is an essential part of the solar system, it is designed to do two primary
things within a solar power system: optimize the charging of your deep cycle batteries by the solar panels and prevent electricity
from the batteries from going through the solar panels when there is no sun. A solar panel module with a solar charge controller
and a power inverter, it is never been so easy to get free sustainable green energy for your home.
Battery Charger: 10A-50A battery charger for lead acid battery and lithum battery.
Power Transformers: Customized power transformers for control system, power supply system, medical systems.
Applications for Ktac products include most electrical home appliances such as washing machine, fridge, freezer, TV, fans, Air
conditioner,lighting products,stage power supply, personal computers,servers, data center, office electrical equipments , factory
electrical equipments and machineries, marine boats, cars, trucks, commercial centers, hotels, residential lighting, automation
control system. With perseverant concentration in power supply and profound understanding of manufacturing and deep awareness of
importance of product quality and reliability, Ktac is confident of our ability to support your requirements by providing the
highest quality and reliable products, delivered on time, and at competitive prices. Whether it's an industrial, commercial,
residential application,
Ktac is uniquely positioned to provide products with engineering innovation, proven quality, and high reliability.
Похожие товары
SUYEEGO заводское качество 30 Ампер ЖК-дисплей PWM солнечная панель 12 В 24 цифровой контроллер солнечного зарядного устройства

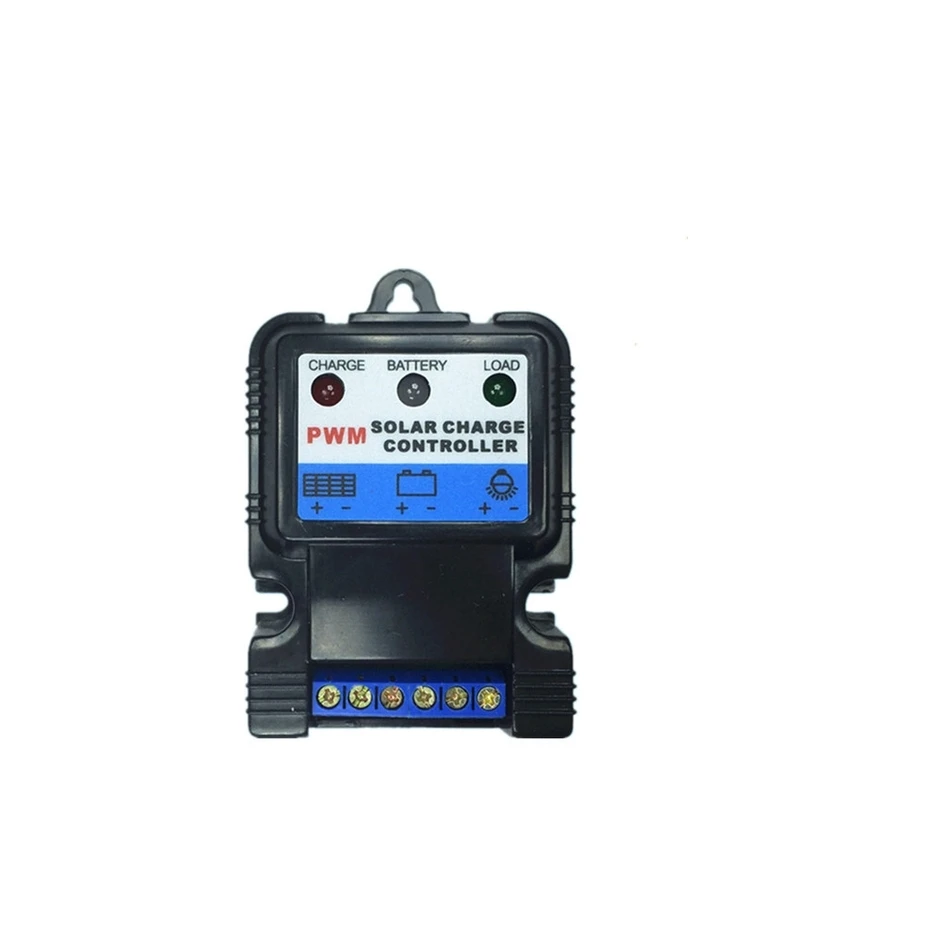

6V батарея 12V5A солнечное зарядное устройство контроллер оптического управления Солнечная
Заводская Высокоэффективная 20a 30A 36 в 48 12 В 24 солнечная станция Контроллер заряда для телекоммуникационных проектов

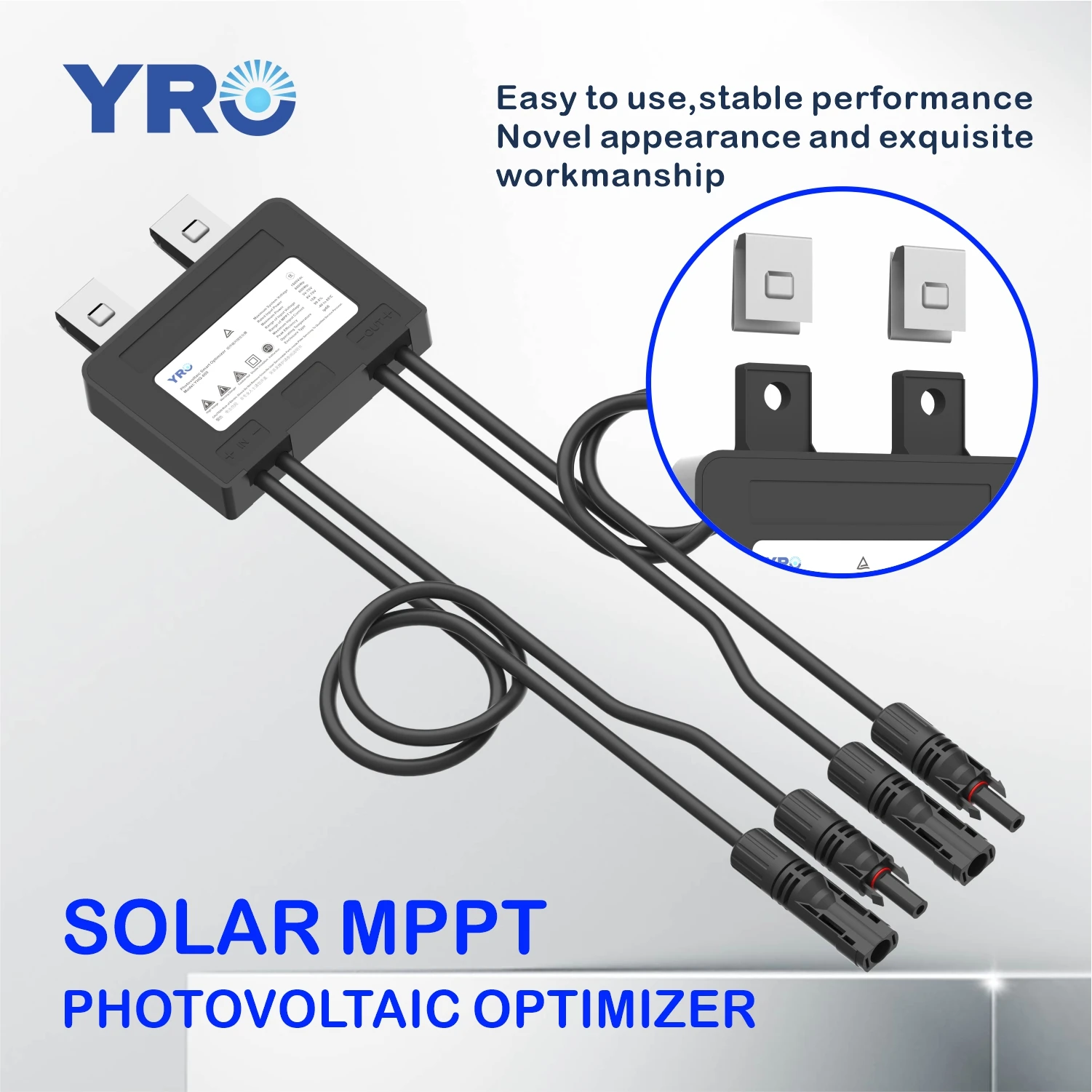

Гироскопический фотоэлектрический оптимизатор MPPT YHQ-600 солнечной энергетической системы солнечные панели 600 Вт в режиме реального времени мониторинг
2 755,21 ₽ - 3 085,84 ₽

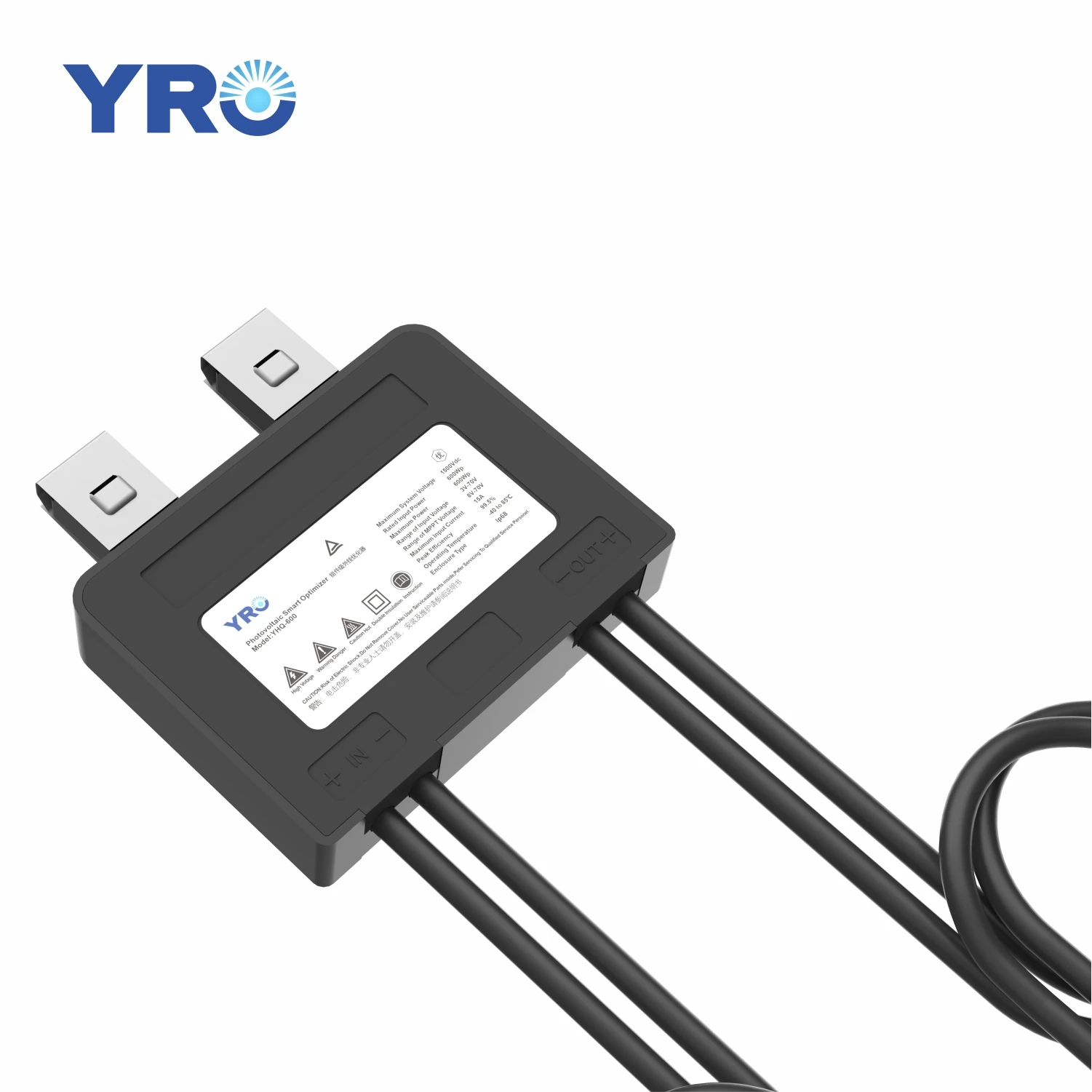

Гироскопический оптимизатор солнечной энергии YHQ-600 модуль-уровень стандарт 600 Вт солнечная панель электрическая система
2 755,21 ₽ - 3 085,84 ₽
Контроллер зарядного устройства для солнечной батареи 20 А/30А/40А 99% эффективный заряда 12 В 24

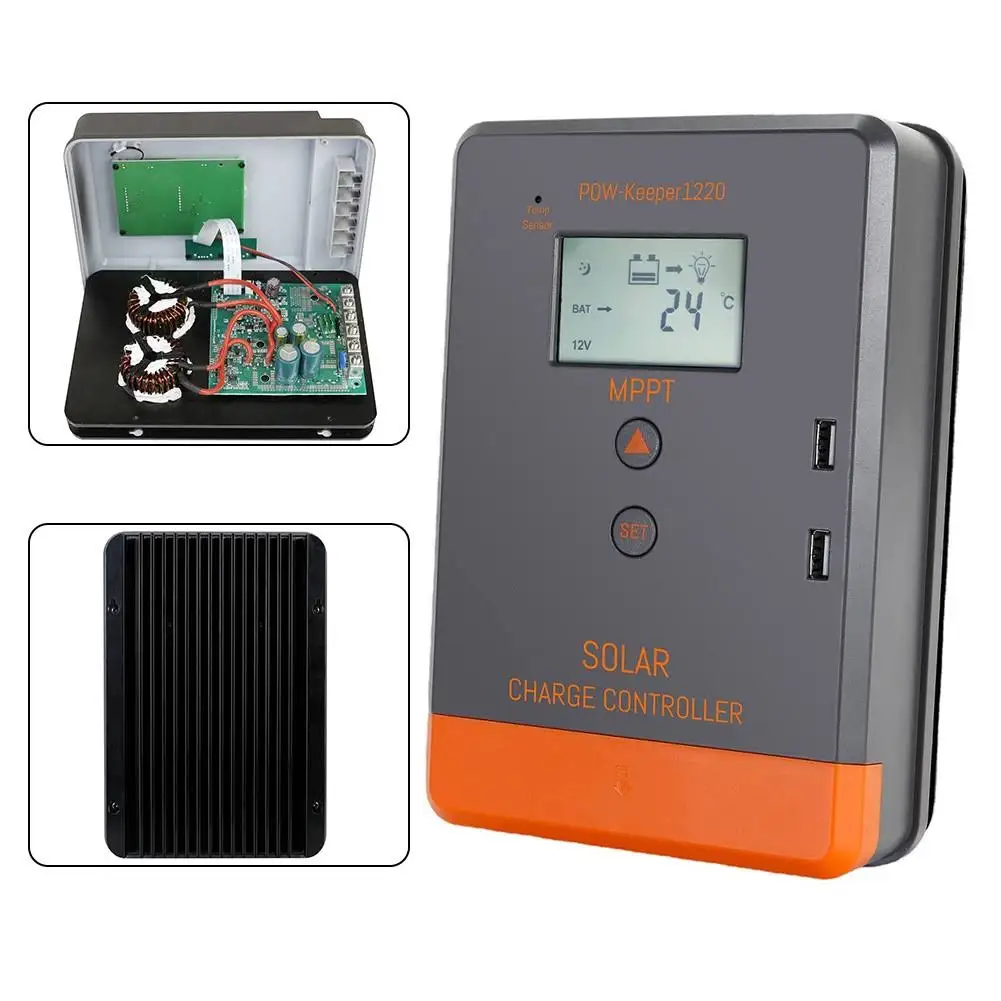

Ipandee регулятор Di Carica со слежением за максимальной точкой мощности контроллер De Carga 12/24/36/48V 40A 50A 60A 80A 100A зарядного устройства
