T11 26000 литров 20 футов ISO контейнер для хранения и доставки с сертификацией LR
17 600,00-18 000,00 $
Un T11 25000L портативный стандарт ASME 316L 304L сосуд 20FT ISO танк контейнер
- Категория: >>>
- Поставщик: Henan Jushixin Transportation Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601041205454:
Описание и отзывы
Характеристики
Products Description
We can carry out production under special technical specifications according to the special requirements put forward by customers.
For example, different requirements for: paint type/color/thickness, steel thickness, corner fitting requirements, etc.
The frame is made of rectangular structural steel, which is light in weight and strong in strength, and is suitable for transit
transportation by sea, road, and railway. It is mainly suitable for road transportation of large-scale container-type flat cars
and ocean-going ships berthing containers for transporting chemically corrosive liquids.
For example, different requirements for: paint type/color/thickness, steel thickness, corner fitting requirements, etc.
The frame is made of rectangular structural steel, which is light in weight and strong in strength, and is suitable for transit
transportation by sea, road, and railway. It is mainly suitable for road transportation of large-scale container-type flat cars
and ocean-going ships berthing containers for transporting chemically corrosive liquids.
Specification
DESIGN CODE: TANK | ASME SECT VIII DIV. 1 IMDG 49CFRADR/RID | ||||
FRAME | CSC,UIC, TIR, ISO, TC. | ||||
AMBIENT TEMPERATURE RANGE | -20°CTO+65°C | ||||
VESSEL DESIGN TEMPERATURE | -40°CTO+130°C | ||||
DESIGN PRESSURE | TANK:4 BAR HEATING COILS:4 BAR | ||||
TEST PRESSURE | TANK:6 BAR HEATING COILS:6 BAR | ||||
EXTERNAL DESIGN PRESSURE | 0.41 BAR | ||||
MATERIALS: FRAME | GB/T1591-0345Dor SPA-H | ||||
SHELL AND ENDS | SANS 50028-7 Wnr 14402/14404 | ||||
SHELL NOMINAL THICKNESS | 4.4 mm | ||||
HEAD NOMINAL THICKNESS | 4.5 mm AFTER FORMING | ||||
CORROSION ALLOWANCE | 0.2 mm | ||||
RADIOGRAPHY SHELL | SPOT | ||||
ENDS | 100% | ||||
NOMINAL CAPACITY | 25.000LITRES NOMINAL | ||||
MAX GROSS WEIGHT | 36,000KG | ||||
TARE WEIGHT (EST) | 3,700KG±3% | ||||
STACKING CAPABILITY | 216,000 KG | ||||
MAX PAYLOAD | 32,300KG | ||||
PRODUCT LIST | AS LISTED UNDER UN PORTABLE TANK | ||||
CONTAINER SIZE | 6058 mmx2438mmx2591 mm | ||||
INSULATION | ROCK WOOL | ||||
CLADDING | GRP | ||||
FRAME FINISH | SHOT BLAST SA2.5:3COAT PAINT SYSTEM | ||||
INSPECTION AUTHORITY | BV or LR | ||||

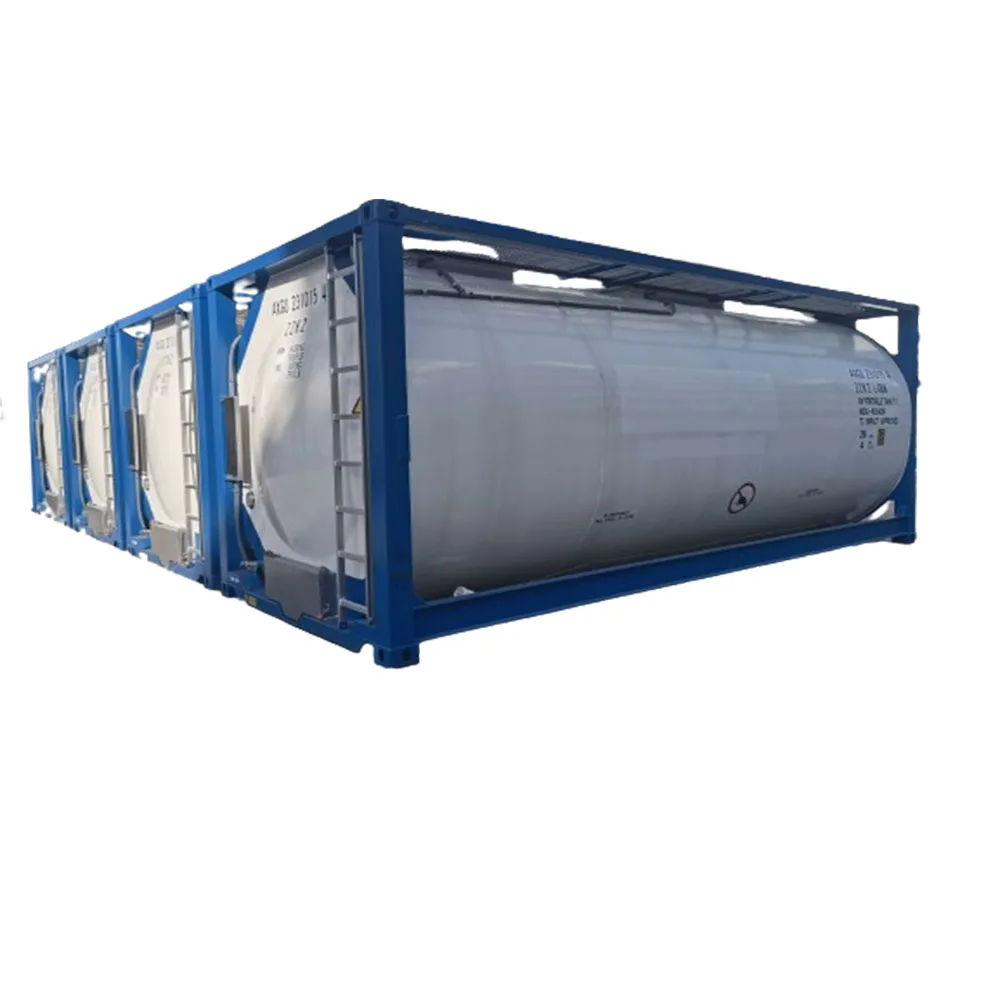

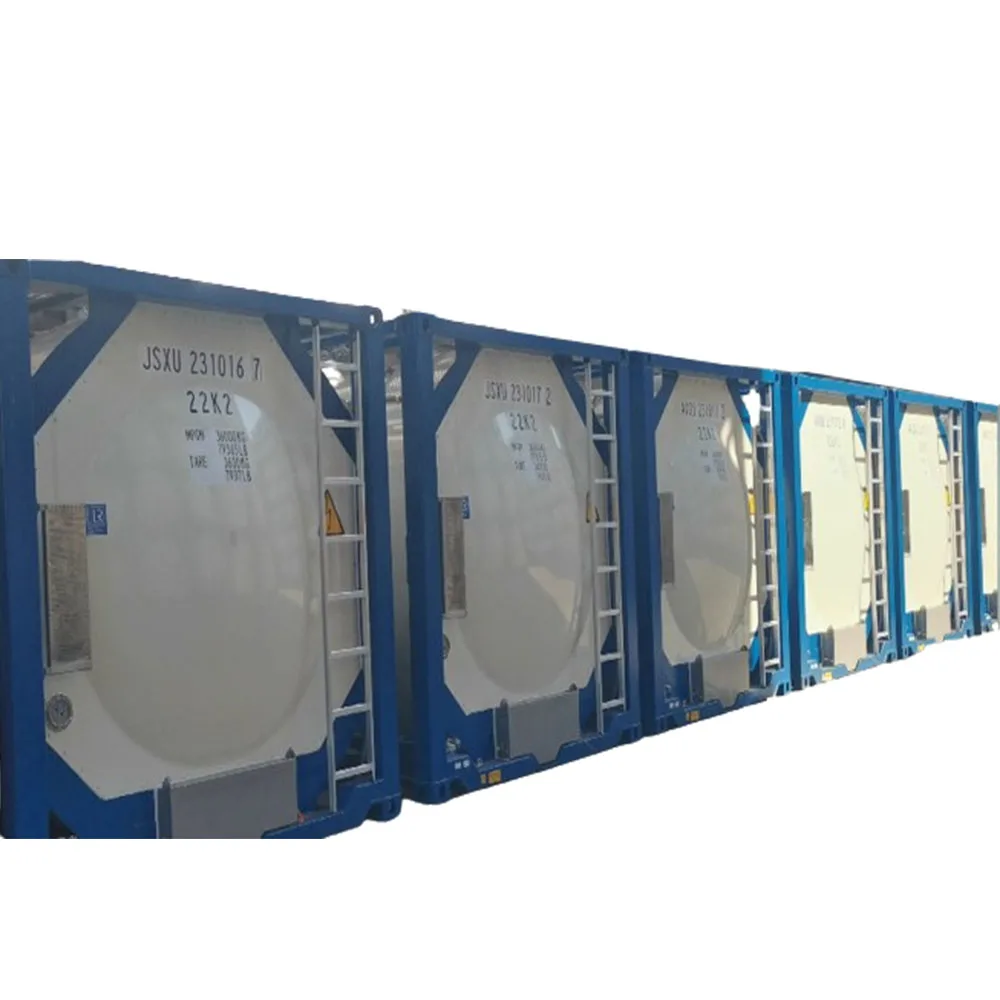

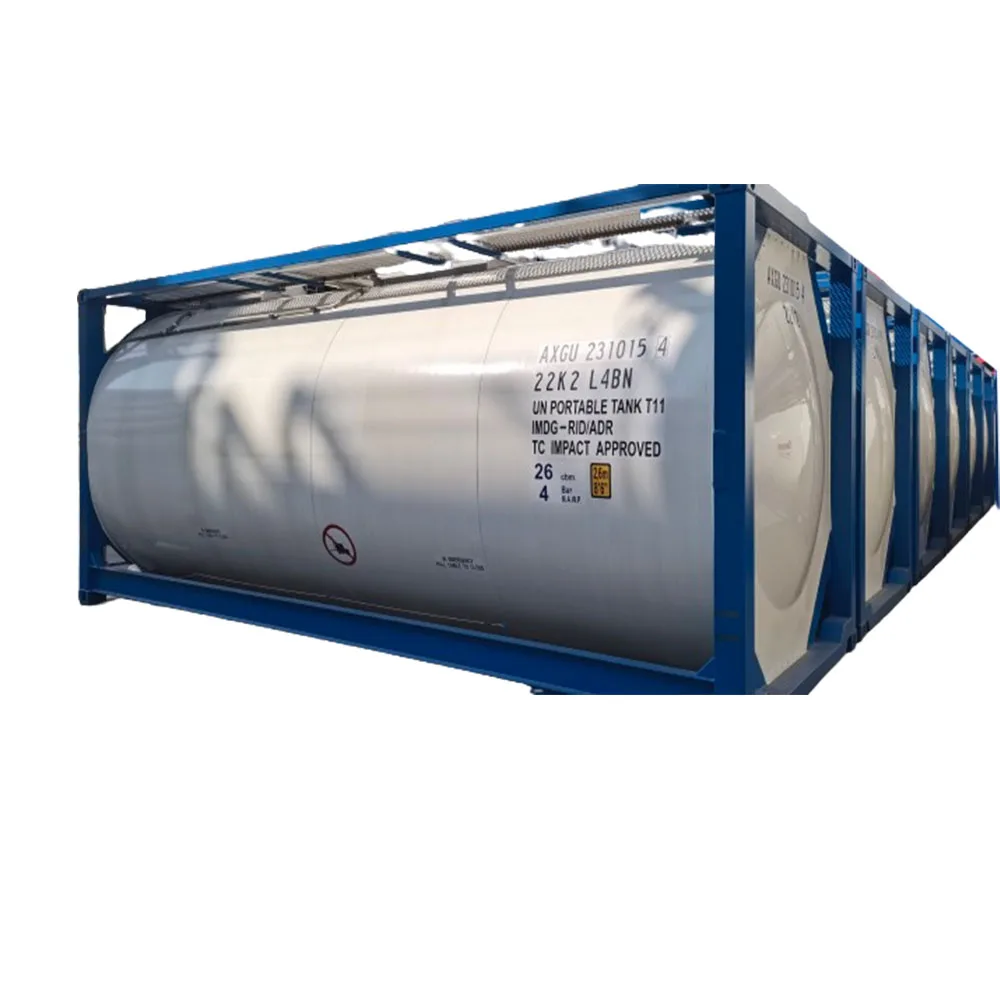

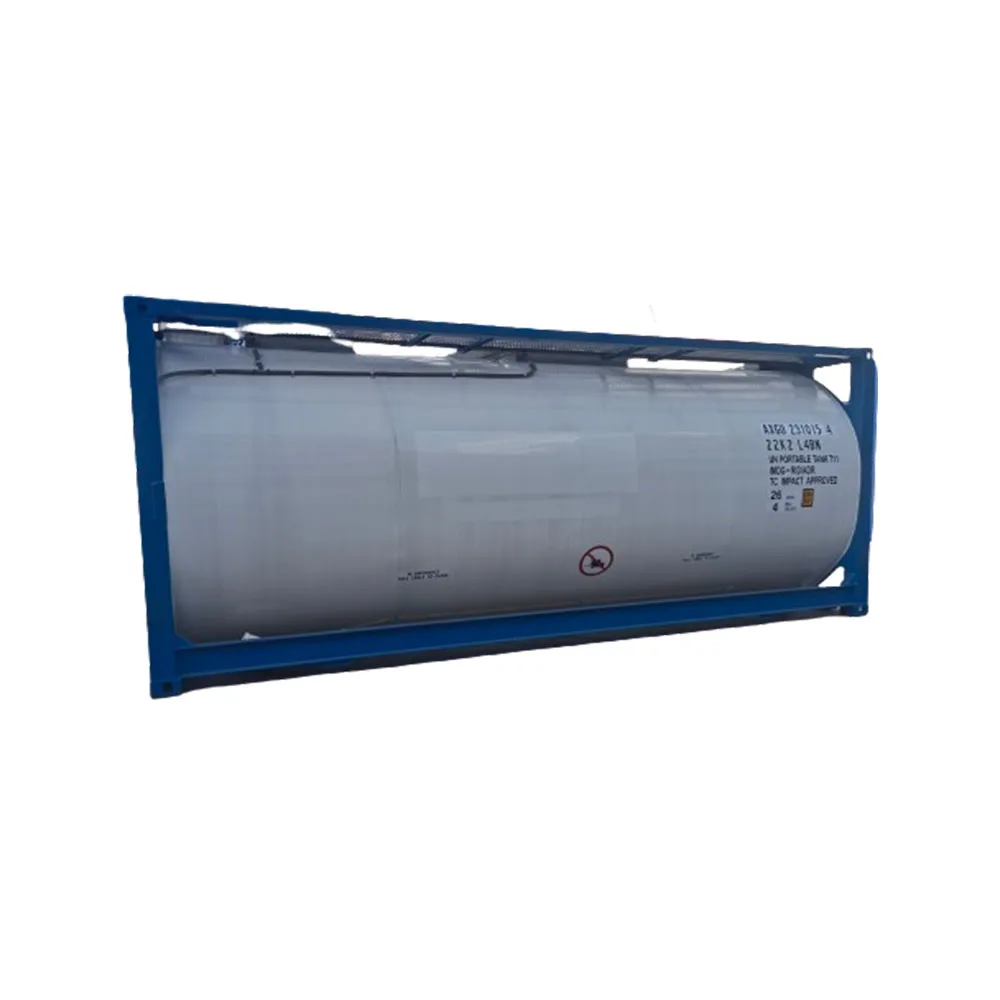

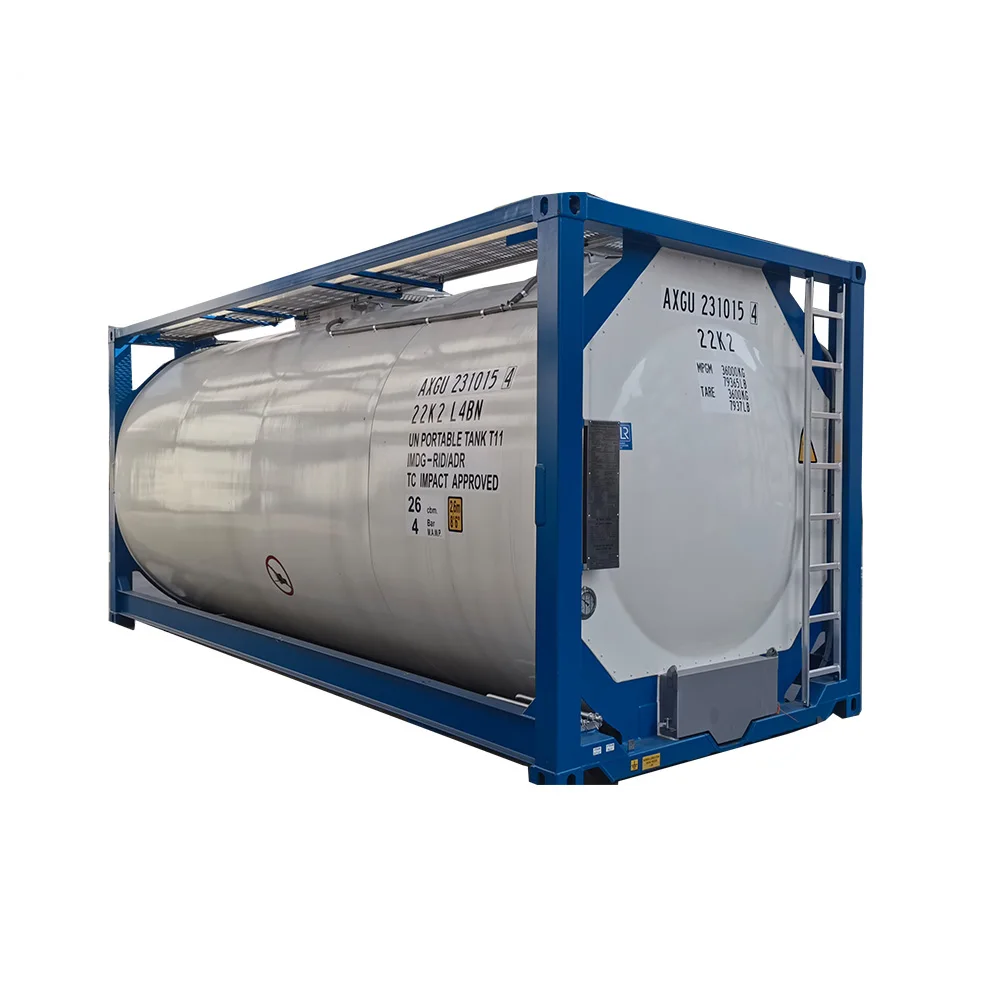

Details Images
Our Advantages
1.This frame tank container should carry out all kinds of the test according to the GB / T16563-1996 and China Classificationm Society "Container Inspection Code".
2.Except for the pictures' mark, the type and size of the welded structure shall be in
accordance with GB / 985.1. The height of the weld foot and weld fillet is according to the thickness of the less thinner steel plate.There should not be crack, slag, porosity, or undercut, etc. on the surface of the welded joint.Weld seam surface will be inspected through the magnetic powder or penetration testing (preferred magnetic powder). Meet NB / t47013.4 (5) -2015, Class I qualified.
accordance with GB / 985.1. The height of the weld foot and weld fillet is according to the thickness of the less thinner steel plate.There should not be crack, slag, porosity, or undercut, etc. on the surface of the welded joint.Weld seam surface will be inspected through the magnetic powder or penetration testing (preferred magnetic powder). Meet NB / t47013.4 (5) -2015, Class I qualified.
3.The accessories for this tank container shall meet the corresponding standards of product quality certification,which can be carried out the air tightness test together with the tank after passing the re-examination and form a complete set then delivery from the factory;
4.Valve opening operation,should be able to withstand the pressure of the air tightness test , fully open, fully closed, flexible operation, no abnormal resistance, idling and so on;
5.All signs, brand names, stickers will be made according to the drawings after the competion of the painting; The area around the signs, brand names and rivets will be sealed with the sealant.
6.The vertical plane of the longitudinal centerline of the tank container shall be coincident with the vertical plane of the longitudinal centerline of the frame. The offset shall not exceed 5mm.
7. All supports of the connections between the tank and the frame should be thin welding, and welding firm and reliable, the weld seam surface shall not have cracks, undercut, stomatal, crater and splash.
8. Tank coating in line with the relevant provisions of JB / T4711-2003. After complete cleaning the rust of the outside carbon steel surface of the tank,coated two anti-rust primer, two white finish.
9. The tank needs to be replaced with nitrogen or vacuumed before leaving the factory.
(1) the use of nitrogen replacement treatment, the oxygen content after treatment is less than 3%, and keep the residual pressure 0.05Mpa ~ 0.1Mpar;
(2) the use of vacuum treatment, the vacuum after treatment is not less than 0.086Mpa.1010. Emergency cut-off device should be installed before the air tightness test, the test medium is air, the test pressure is 0.1Mpa;After the installation is complete,Emergency shut-off device should be done through emergency cut off and filter protection test, gas valve, liquid valve and boostervalve completely closed in 5S qualified, air source control valve rotation flexibility, no jamming phenomenon.
(1) the use of nitrogen replacement treatment, the oxygen content after treatment is less than 3%, and keep the residual pressure 0.05Mpa ~ 0.1Mpar;
(2) the use of vacuum treatment, the vacuum after treatment is not less than 0.086Mpa.1010. Emergency cut-off device should be installed before the air tightness test, the test medium is air, the test pressure is 0.1Mpa;After the installation is complete,Emergency shut-off device should be done through emergency cut off and filter protection test, gas valve, liquid valve and boostervalve completely closed in 5S qualified, air source control valve rotation flexibility, no jamming phenomenon.
workshop
Related Products
We are best at customized product tanks, if you have any needs, please feel free to contact us.
no matter liquid tanks, bulk tanks, or chemical tanks, T75, T50, T11, T4, etc...
Shipping
FAQ
Q: Do you have your own factory?
A: We have our own factory and we sincerely welcome you to visit our factory.
Q: Can I get a sample or order 1 unit?
A: Yes, you can order 1 unit and our MOQ is 1 Unit.
Q: How about the warranty?
A: Our company promise a one-year warranty period. during this period, under normal use if there is damage to the accessories, we
will provide our customers with free replacement.
Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
Q: If Customized Service Provided?
A:Yes, Please contact our sales manger, We can offer customized service on Vehicle Design / Painting/Logo, Etc.
Q: What's your payment terms?
A: T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter at sight.
A: We have our own factory and we sincerely welcome you to visit our factory.
Q: Can I get a sample or order 1 unit?
A: Yes, you can order 1 unit and our MOQ is 1 Unit.
Q: How about the warranty?
A: Our company promise a one-year warranty period. during this period, under normal use if there is damage to the accessories, we
will provide our customers with free replacement.
Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
Q: If Customized Service Provided?
A:Yes, Please contact our sales manger, We can offer customized service on Vehicle Design / Painting/Logo, Etc.
Q: What's your payment terms?
A: T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter at sight.
