Станок для лазерной резки ткани верха обуви

Станок для лазерной резки ткани верха обуви

Категория: >>>
Поставщик: Wuhan Golden Laser Co. Ltd.

Цена:1 220 091,58 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)

Product Description

Laser Fabric Cutting Machine

Leather, or rather synthetic leather just like cork faux leather can very precisely cut in just one working step with CO2 laser systems. Through the dual head just on one machine, the cutter of GoldenLaser are especially flexible for the processing of leather.

Specification

MJG-160100LD Technical Parameters
Laser Type	CO2 DC glass laser tube
Laser Power	80W / 110W / 130W / 150W
Working Area	1600mm×1000mm
Working Table	Conveyor working table
Motion System	Step motor / Servo motor
Positioning Accuracy	±0.1mm
Cooling System	Constant temperature water chiller
Exhaust System	550W / 1.1KW Exhaust fan
Air Blowing System	Mini air compressor
Power Supply	AC220V ± 5% 50/60Hz
Graphic Format Supported	AI, BMP, PLT, DXF, DST
External Dimensions	2480mm (L)×2080mm (W)×1200mm (H)
Net Weight	730KG

Features

__
№.1
Two laser heads that work independently of each other can cut different graphics simultaneously. A variety of processing (cutting, punching, scribing, etc.) can be finished at one time. Precision up to 0.1mm. High efficiency.
№.2
Fully imported servo control system and motion kit. Machine performance with strong stability. A large number of the laser machines have been installed in customers’ factories for mass production.
№.3
Thanks to the advanced Golden Laser original nesting software, a variety of different sizes of graphics can be fully automatic mixed nesting. The nesting effect is more compact so as to maximize the utilization of materials.
№.4
Operation is easy and simple. Nesting on PC and load cutting file to laser machine to cut immediately.

Why XBJGHY-160100LDII for PU Leather Cutting?
__
* Rapid production response - Fast delivery after placing an order, zero inventory.
* Undertake diverse orders - Large, medium and small orders are acceptable and increase profits.
* Consistent high quality - Single ply laser cutting. The finished product has good consistency and no mechanical deformation.
* Simplify the progress - The roll of leather is directly placed on the laser cutting machine, then automatic feeding and laser
cut. Reduce preparation time and increase efficiency.
* Reduce management costs - Save labor and material. The laser machine automatically cuts, only need to regularly maintain the laser machine.
* Digital production - Real-time monitoring and feedback on mission information, capacity targets, current schedule, estimated time, and number of cuts to rationalize the order.

Work Flow

Step 1

- Designing and Grading

Step 2

- Nesting

Step 3

- Laser Cutting

Applications

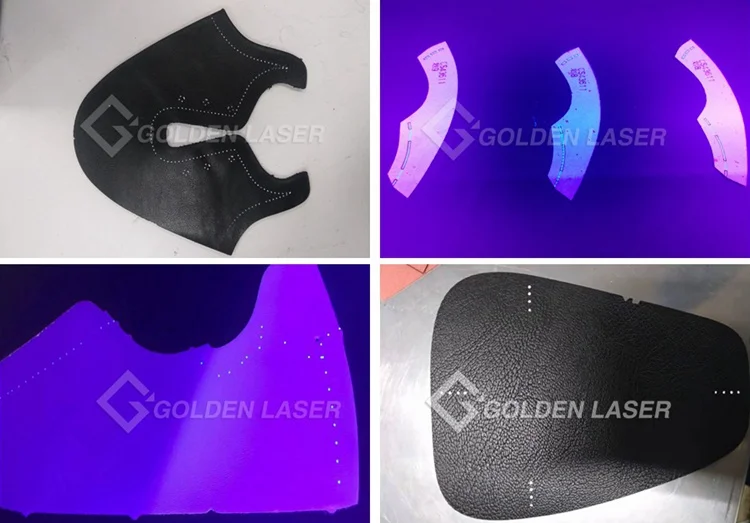

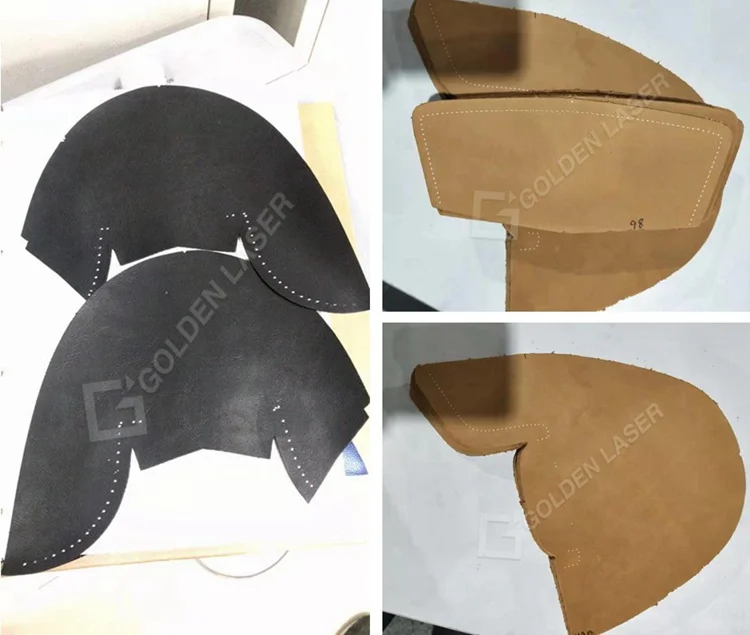

Suitable for synthetic leather and leatherette footwear, Leather Shoes, Textile & Garment, Soft Toys, Home Textile, Leather Bag, etc.

Company Profile

GOLDEN LASER, China's first GEM listed company (stock code: 300220)! Accumulated 20 years of experience in laser equipment manufacturing and exporting. Providing the best cost-effective laser solutions!

► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally

Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and pre-operation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.

Our Team

Packing & Delivery

Ⅰ. Whole Film Packaging Machine

Ⅱ. Plywood Wooden Box With Metal Belt

Ⅲ. Loading

Ⅳ. Shipping

FAQ

Q1: Do you have CE document and other documents for customs clearance?

A1: Yes, we have original. At first, we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q2: I don’t know which one is suitable for me?
A2: Just click "chat now", our team will clear up your confusion one by one.

Q3: I don’t know how to use after I receive or I have problem during use, how to do?
A3: We can provide online service till all of your problems finished. And in some countries, our team can provide local service.

NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.

Contact

Please contact Golden Laser for more info. Your response of following questions will help us recommend the most suitable machine.
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA...)?

Contact Info
Name: Cary
Email Address: laser@goldenlaser.com
Tel: (86)15872363763
