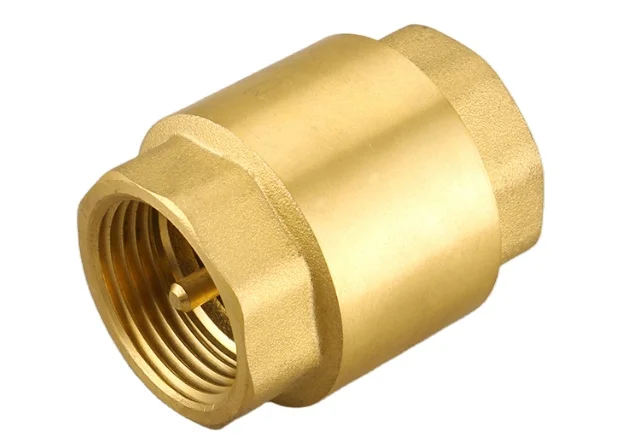

Jdpump SCV-216 CVL пружинный обратный клапан предохранительный несколько размеров интерфейса могут быть настроены нормальной температуры
179,28-356,00 ₽
30 лет заводского производства обратный клапан медный женский Резьбовой пружинный вертикальный латунный
- Категория: >>>
- Поставщик: Shanghai Biaoyi Valve Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601042384150:
Описание и отзывы
Характеристики
Company Profile
Canton Fair
Due to different materials, pressures and sizes, the prices of valves cannot be displayed one by one. Please contact customer service to give a correct quotation.
Why Choose Us
Accept customization
1. Material customization
2. Size customization
3. Color customization
4. Pressure customization
5. Logo customization
3. Color customization
4. Pressure customization
5. Logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! Thank you!
Our company participates in large-scale urban construction projects in China.
1. Project of China Railway
2. Project of GREENTOWN CHINA HOLDINGS LTD
3. Project of Hangzhou asian games village
4. Project of Shenzhen Fangda Plaza
4. Project of Shenzhen Fangda Plaza
Product Description
It is suitable for the oxygen pipe network and other systems as a one-way valve, which plays the role of blocking and non-returning. Mainly used on pipelines where the medium flows in one direction, it can automatically prevent the fluid (medium) from flowing backwards, and only allow the medium to flow in one direction. The working medium is water, oil and gas, the nominal pressure is 1.6MPa, and the working temperature is -10℃≤ t≤120℃.
Main features
1. The product is made of high-quality copper material and adopts the red forging process.
2. The structural material of the vertical soft seal is silicone rubber, and the spring material is stainless steel.
3. It has short structure, small volume and light weight. The valve disc closes quickly and the water hammer pressure is small. The flow channel is smooth, the fluid resistance is small, the action is sensitive, and the sealing performance is good.
4. The valve disc has short stroke, small closing impact, simple and compact overall structure and beautiful appearance.
5. It is easy to install and can be installed on pipelines in both horizontal and vertical directions.
6. The valve plate adopts the design of adding two torsion springs on the dual plate, which can make the valve plate close quickly by itself. Due to the quick closing effect, it can prevent the backflow of the medium and has a strong effect of eliminating water hammer.
2. The structural material of the vertical soft seal is silicone rubber, and the spring material is stainless steel.
3. It has short structure, small volume and light weight. The valve disc closes quickly and the water hammer pressure is small. The flow channel is smooth, the fluid resistance is small, the action is sensitive, and the sealing performance is good.
4. The valve disc has short stroke, small closing impact, simple and compact overall structure and beautiful appearance.
5. It is easy to install and can be installed on pipelines in both horizontal and vertical directions.
6. The valve plate adopts the design of adding two torsion springs on the dual plate, which can make the valve plate close quickly by itself. Due to the quick closing effect, it can prevent the backflow of the medium and has a strong effect of eliminating water hammer.
Relevant implementation standards
Nominal pressure: 1.6MPa
Working medium: hot and cold water, gas, oil, etc
Working temperature: -20℃≤t≤150℃
Thread standard: 55 degree inch pipe thread
Working medium: hot and cold water, gas, oil, etc
Working temperature: -20℃≤t≤150℃
Thread standard: 55 degree inch pipe thread
item | value |
Application | General |
Port Size | DN20~DN32 |
Warranty | 3 years |
Place of Origin | China |
Shanghai | |
Model Number | H12W-16T |
Power | Hydraulic |
Temperature of Media | High Temperature, Low Temperature, Medium Temperature, Normal Temperature |
Brand Name | |
Structure | Check |
Media | Water |
Customized support | OEM, ODM, OBM, Software reengineering |
Product name | H12W-16T |
Nominal pressure | 1.6MPa |
Working medium | hot and cold water, gas, oil, etc |
Working temperature | -20℃≤t≤150℃ |
Thread standard | 55 degree inch pipe thread |
Main parts and materials
Part Name | Material |
Valve body | Brass |
Spring | Stainless steel |
Copper rod | Brass |
Copper core | Brass |
Filler | PTFE |
Main structure and connection dimensions
Dimension（mm） | ||||||
DN | SIZE | L | D | |||
20 | 3/4 | 43 | 30 | |||
25 | 1 | 44.5 | 37 | |||
32 | 1 1/4 | 56 | 44.5 | |||
FAQ
Похожие товары

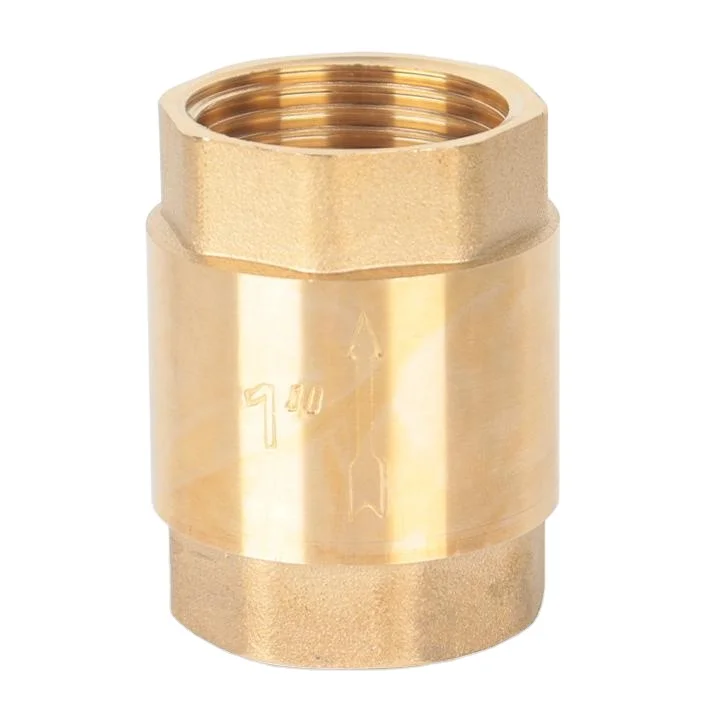

Медный пружинный обратный клапан для водяного насоса
108,08-362,36 ₽
Пружинный обратный клапан для подвального этажа дренажный

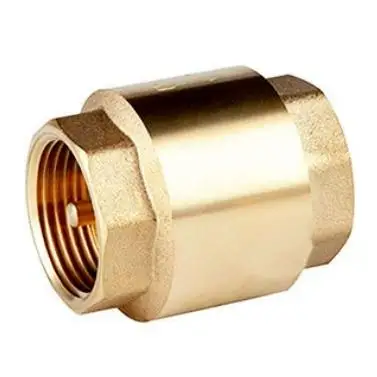

Горячая Распродажа H14 пружинный обратный Valve-H14 клапан
1 271,42 ₽
Пластиковый обратный клапан 1/16 дюйма для пищевой и напитковой промышленности
WCB обратный клапан класса 150 3 дюйма
25 428,38-29 878,35 ₽
Прямой поставка с фабрики 2 дюйма SS 304 нержавеющая сталь фланцевый ножной клапан
5 741,73-7 069,09 ₽

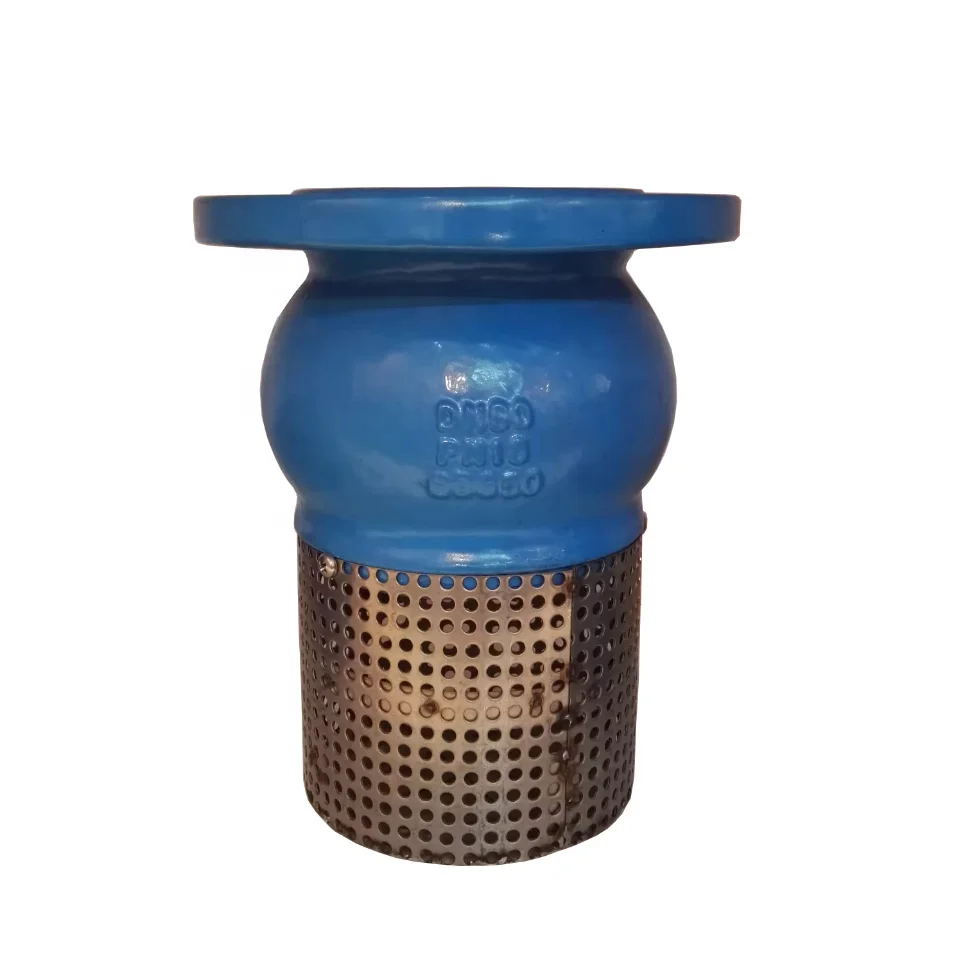

Ножной клапан из высокопрочного чугуна с 304 сеткой фланцевый ножной сетчатым отверстием односторонний
