Дешевый золотой поставщик солнечной микро инверторной системы 2000 Вт deye инвертор 600
18 074,28-20 484,19 ₽
15000 Вт 3 кВт переменный ток инвертор от постоянного тока до переменного чистый синусоидальный солнечный 24 В 220 цена с Mppt солнечным контроллером
- Категория: >>>
- Поставщик: Guangdong Xindun Power Technology Co. Ltd.Guangdong Ltd.
Сохранить в закладки 1601042404777:
Описание и отзывы
Характеристики
Feature
1. Pure sine wave, toroidal low loss transformer, customizable mode dual output voltage.
2.Smart LCD show equipment status and parameters.
3.The adjustable mains charging current range is 0~30A.
4.Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
5.Support diesel and gasoline generators, suitable for various power grid.
6.Suitable for industrial and residential used, wall-mounted desigm.
2.Smart LCD show equipment status and parameters.
3.The adjustable mains charging current range is 0~30A.
4.Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
5.Support diesel and gasoline generators, suitable for various power grid.
6.Suitable for industrial and residential used, wall-mounted desigm.

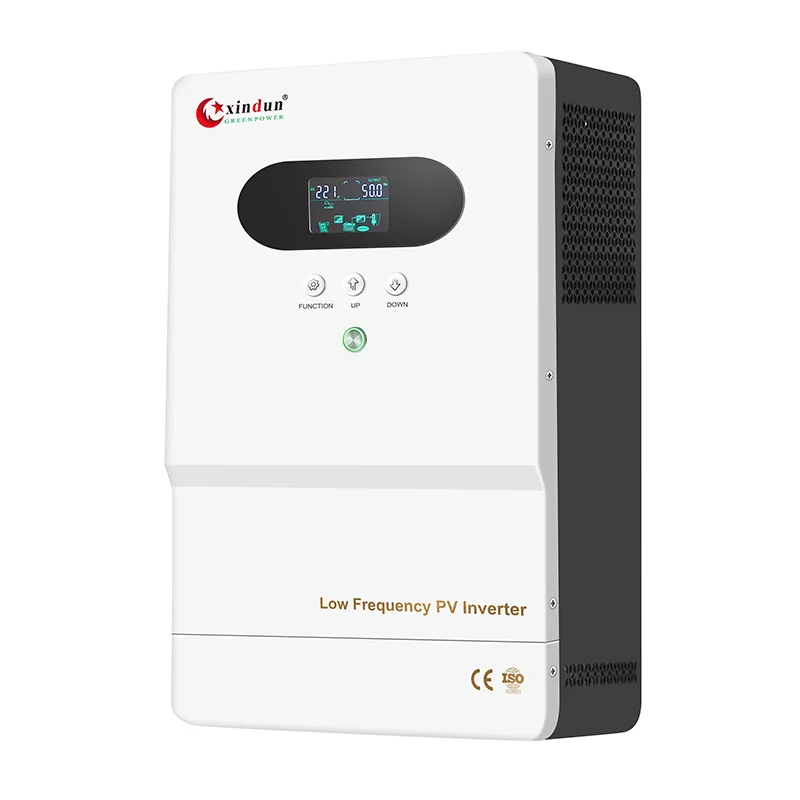

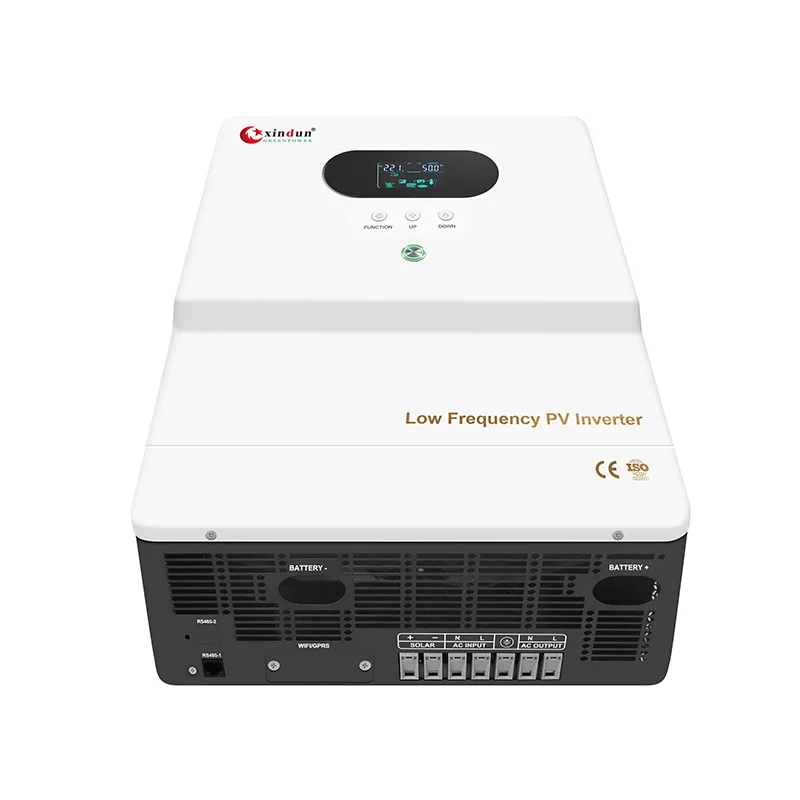

LF Series Model
Highlight
Product Detail
Specification
Specification | ||||||||||||||||||
Model: LF/LF-T | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | 70248 | 80248 | ||||||||||
Rated Power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | ||||||||||
Battery Voltage | 12/24/48VDC | 24/48VDC | 48VDC | |||||||||||||||
Size(L*W*Hmm) | 470x300x148 | 530x335x158 | 684x430x250 | |||||||||||||||
Packing Size(L*W*Hmm) | 545x385x223 | 605x420x233 | 705x485x315 | |||||||||||||||
N.W.(kg) | 13.5 | 18 | 20 | 22 | 24 | 26 | 28 | 47 | ||||||||||
G.W.(kg) | 15 | 19.5 | 21.5 | 24 | 26 | 28 | 30 | 54 | ||||||||||
Installation Method | Wall-Mounted | |||||||||||||||||
Parameter | ||||||||||||||||||
Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | ||||||||||||||||
AC Input Voltage Range | 80VAC~133VAC(105VAC)/85VAC~138VAC(110VAC)/90VAC~143VAC(115VAC)/95VAC~148VAC(120VAC) 170VAC~275VAC(220VAC)/180VAC~285VAC(230VAC)/190VAC~295VAC(240VAC)(1000W~7000W ) 87VAC~123VAC(105VAC)/92VAC~128VAC(110VAC)/97VAC~133VAC(115VAC)/102VAC~138VAC(120VAC) 185VAC~255VAC(220VAC)/195VAC~265VAC(230VAC)/205VAC~275VAC(240VAC)(8KW~12KW) | |||||||||||||||||
AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | |||||||||||||||||
Max AC charging current | 0~30A(Depends on model) | |||||||||||||||||
AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||||||||||
Output | Efficiency(Battery Mode) | ≥85% | ||||||||||||||||
Output Voltage(Battery Mode) | AC105V~120V model: 105VAC±2%/110VAC±2%/115VAC±2%/120VAC±2%(can be set) AC220V~240V model: 220VAC±2%/230VAC±2%/240VAC±2%(can be set) | |||||||||||||||||
Output Frequency(Battery Mode) | 50/60Hz±1%(can be set) | |||||||||||||||||
Output Wave(Battery Mode) | Pure Sine Wave | |||||||||||||||||
Efficiency(AC Mode) | ≥99% | |||||||||||||||||
Output Voltage(AC Mode) | AC 105V~120V model: 105VAC±10%/110VAC±10%/115VAC±10%/120VAC±10%(can be set) AC 220V~240V model: 220VAC±10%/230VAC±10%/240VAC10%(can be set) | |||||||||||||||||
Output Frequency(AC Mode) | Follow input | |||||||||||||||||
Output waveform distortion (Battery Mode) | ≤3%（Linear load） | |||||||||||||||||
No load loss(Battery Mode) | ≤1% rated power | |||||||||||||||||
No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | |||||||||||||||||
No load loss (Energy saving Mode) | ≤10W | |||||||||||||||||
Insidc Solar controller (Optional) | Charging Mode | MPPT | ||||||||||||||||
Charging current | 30A~60A | 60A~100A | 80A~100A | |||||||||||||||
PV Array Maximum Power | 12V system: 420W(30A)/560W(40A)/ 700W(50A)/840W(60A); 24V system: 840W(30A)/1120W(40A)/ 1400W(50A)/1680W(60A); 48V system : 1680W(30A)/2240W(40A)/ 2800W(50A)/3360W(60A) | 24V system : 1680W(60A)/2240W(80A)/2800W(100A); 48V system : 3360W(60A)/4480W(80A)/5600W(100A) | 4480W(80A)/5600W(100A) | |||||||||||||||
Max PV Input Voltage (Voc) (At the lowest temperature) | 12V/24V system: 120VDC; 48V system: 180VDC | |||||||||||||||||
MPPT tracking range | 12V system: 15V-80V; 24V system: 30V-100V; 48V system : 60V-140V | |||||||||||||||||
Standby loss | ≤3W | |||||||||||||||||
Maximum conversion efficiency | ＞95% | |||||||||||||||||
Battery Type | Custom battcry | Charging and discharging parameters of different types of batteries can be set through the operationpanel by oneself | ||||||||||||||||
Protection | Battery lowvoltage alarm / Battery lowvoltage protection / Battery overvoltage alarm / Battery overvoltage protection / Battery overvoltage recovery voltage / Overload power protection / Inverter output short circuit protection / Temperature protection | |||||||||||||||||
Wiring Diagram
1. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
Application
Company Profile
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Industry Experience | 15-year manufacturer, 17-year trading, 11-year alibaba gold supplier | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

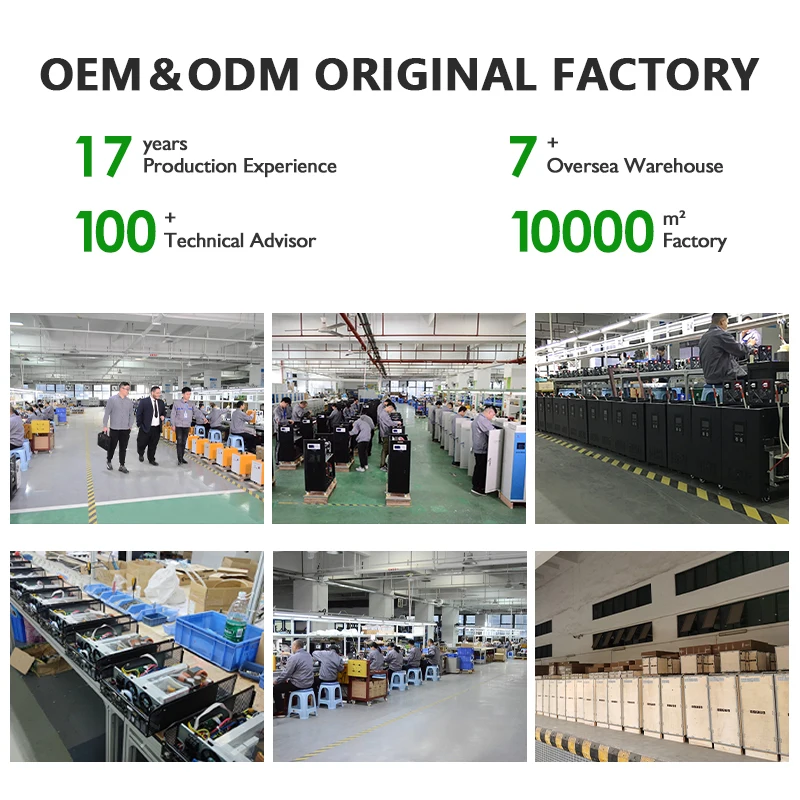

Factory | 7000 Square Meters, 100+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO 14001:2015, CE, IEC, TUV, etc. | |
Patent | Software Paten, Design Patent, Project Pantent | |
