Высоковольтная Штабелируемая батарея 5KWh 10KWH 15KWh 20KWh 30KWH LiFePO4 BESS Hv литиевая батарея для системы хранения солнечной энергии
62 041,24 ₽ - 84 699,78 ₽
15kWh 20kWh 30kWh 40kWh 50kWh Высоковольтная батарея LifePO4 Hv Akku литиевая система хранения солнечной энергии
- Категория: >>>
- Поставщик: Yichun Dawnice Manufacture & Trade Co. Ltd.
Сохранить в закладки 1601043703506:
Описание и отзывы
Характеристики
Specification
Energy Storage Lifepo4 Battery 10Kwh 20Kwh 30Kwh 40KWh 50Kwh Home Storage Solar Power System Battery
1.Based on the original cabinet-type solar energy storage battery, ESS adopts the latest ESS battery system. According to market demand, this type of energy storage battery with high energy density, space saving and powerful power was developed.
2. energy storage bricks are stacked in parallel with 2units or 6UNITS batteries. In the process of power transmission, power consumption is reduced.
3.Fully retain the use of load power.
4.The battery cell uses the best safety
5.LiFePO4 battery to save costs.

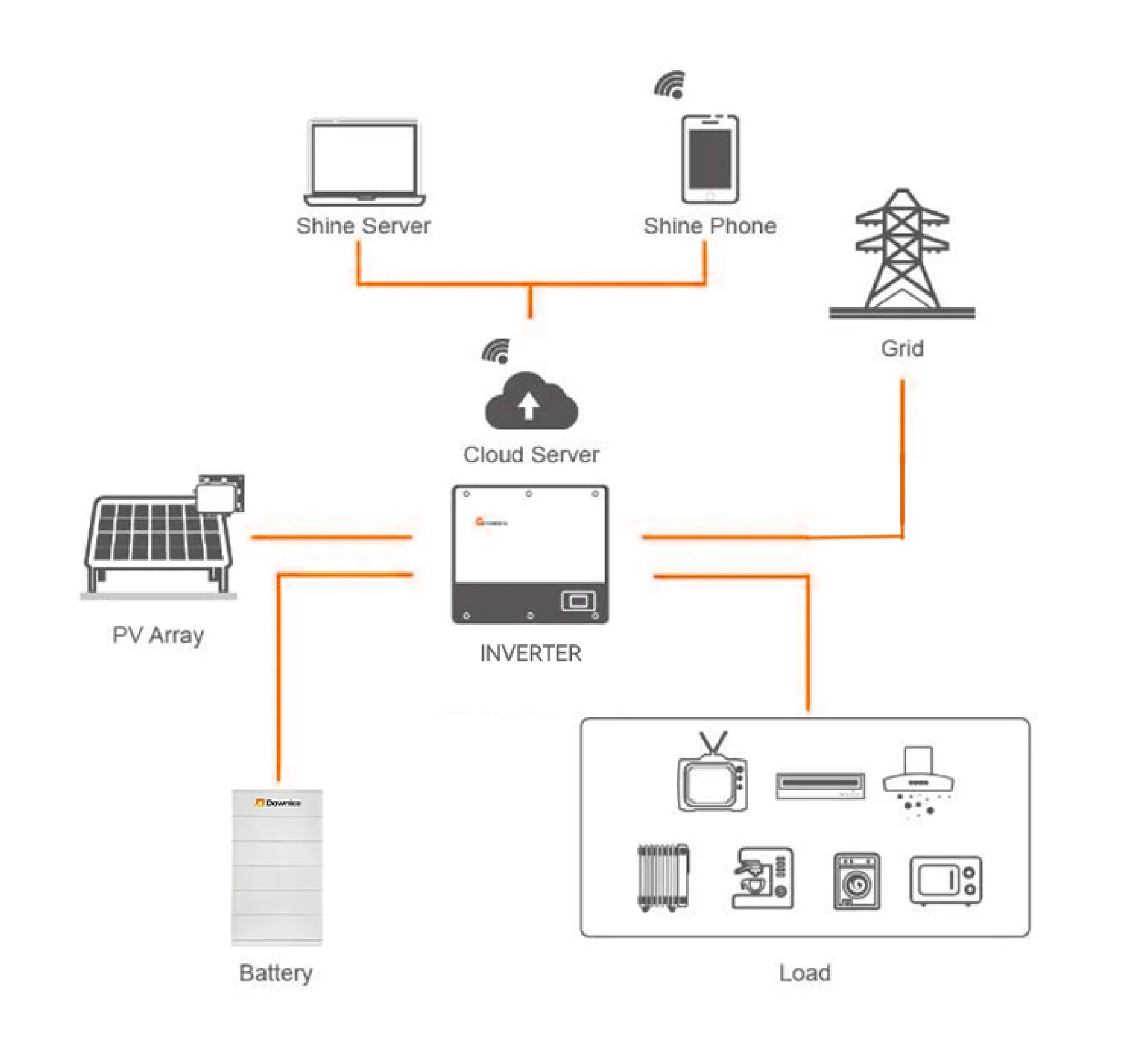

This energy storage system (ESS) provides high-efficiency power regulation capabilities, and its applications include power demand management, power dispatch, and renewable energy. Residential, school, commercial and public utility applications.
1.Based on the original cabinet-type solar energy storage battery, ESS adopts the latest ESS battery system. According to market demand, this type of energy storage battery with high energy density, space saving and powerful power was developed.
2. energy storage bricks are stacked in parallel with 2units or 6UNITS batteries. In the process of power transmission, power consumption is reduced.
3.Fully retain the use of load power.
4.The battery cell uses the best safety
5.LiFePO4 battery to save costs.
This energy storage system (ESS) provides high-efficiency power regulation capabilities, and its applications include power demand management, power dispatch, and renewable energy. Residential, school, commercial and public utility applications.
Products Description
MODEL | DW-15.0HV | DW20.0HV | DW-25.0HV | DW-30.0HV | ||||
Battery Type | LiFeP04(LFP) | |||||||
Nominal Voltage(V) | 153.6V | 204.8V | 256.0V | 307.2V | ||||
Nominal Capacity(KWH) | 16.28KWH | 21.7KWH | 27.13KWH | 32.56KWH | ||||
Usable Capacity (KWH) | 14.65KWH | 19.53KWH | 24.41 KWH | 29.30KWH | ||||
Design Life | 10+Years （25 ℃/77F) | |||||||
Physical | ||||||||
Dimension(mm) | 600*400*683 | 600*400*832 | 600*400*981 | 600*400*1130 | ||||
Weight (kg) | 170 | 215 | 260 | 305 | ||||
ELECTRICAL | ||||||||
Cycle Life | >6000. 25°C | |||||||
Discharge Voltage(V) | 120-144 | 160-192 | 200-240 | 240-288 | ||||
Charge Voltage(V) | 168-175.2 | 224-233.6 | 280-292 | 336-350.4 | ||||
Charge/Discharge Current(A) | 50A (Recommended) 100A(Max) | |||||||
Internal Resistance | ≤30mΩ | |||||||
BMS | ||||||||
Power Consumption | <2W (Work) < 100mW(Sleep) | |||||||
Monitoring Parameters | System voltage, current, cell voltage,cell temperature, module temperature | |||||||
SOC | Intelligent algorithm | |||||||
Communication | CAN/RS-485/RS-232 | |||||||
OPERATION | ||||||||
Operating Temperature Range | -10℃-50℃ | |||||||
Transport or Storage Temperate Range | -20℃-45℃ | |||||||
Humidity | 15% - 85% (No Condensing) | |||||||
WARRANTY | ||||||||
Product Warranty | 5 Years | |||||||
Performance Warranty | 10 Years | |||||||
cliike | ||||||||
Related Products
Company Profile
Yichun Dawnice Manufacture & Trade Co., Ltd., a professional factory of energy storage battery ,we provide outdoor power solutions, commercial solar energy system,OEM/ODM service providers, and specializes in lithium battery outdoor power technology.
We have our own R&D personnel and a local battery factory with 20 years of experience, fast charging and durable batteries. We supply more than 50 domestic trading companies. Starting in 2021, we have established Dawnice, our own sales company and international sales team.To provide you with more professional services.
Welcome all your inquiries and also welcome to visit our factory.
Product packaging
FAQ
1.Q:Is the battery safe?
A:Yes,Our products have strict quality inspections before sending,It uses high-quality battery cells. Due to the BMS system, there will be no explosion to protect your safety.
2.Q:What are the advantages of your company?
A:Strong R & D team, independent R & D and production of main parts, to control product quality from the source.
3.Q:Can you supply OEM &ODM service ?
A:Yes, Welcome to contact us for more information.
4.Q:What kind of certificates your products have acquired ?
A:Most of our products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing
requirements.
5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
A:Yes,Our products have strict quality inspections before sending,It uses high-quality battery cells. Due to the BMS system, there will be no explosion to protect your safety.
2.Q:What are the advantages of your company?
A:Strong R & D team, independent R & D and production of main parts, to control product quality from the source.
3.Q:Can you supply OEM &ODM service ?
A:Yes, Welcome to contact us for more information.
4.Q:What kind of certificates your products have acquired ?
A:Most of our products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing
requirements.
5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
