Выгодная цена высокоэффективная система вентиляции двигателя постоянного тока с функцией восстановления тепла
17 715,63-29 526,05 ₽
IGUICOO 250 см/ч система рекуперации энергии воздушного потока вентиляция гастрономия
- Категория: >>>
- Поставщик: Sichuan Guigu Renju Technology Co. Ltd.Sichuan Ltd.
Сохранить в закладки 1601044211828:
Описание и отзывы
Характеристики
About us
1.Have 2 plants meet the capacity demands 2.Possess 80 patents certificates
3. 11 years experience HVAC industry 4. Have strong R&D and HVAC design team
5. Free installation plan design service 6.A full set of ventilation system installation pipe fitting supply
7.Have 2 laboratories(national approved enthanlpy and 30m³ laboratory
8. Duilt a sound certificate system of ISO9001, ISO 14001， ISO45001， CE certificate and other product certification system.
Products specification
Item | TFKC-015(A2-1D2) Ceiling Heat Exchange Ventilation System |
Warranty | 1 year |
After-sale Service | Online technical support, Free spare parts |
Project Solution Capability | Provide overall solution |
Application | Hotel/School/Commercial building/Real estate project |
Design Style | Modern |
Place of Origin | China |
Model Number | TFKC-015(A2-1D2) |
Air Flow(m³/h) | 150m³/h |
Install type | Celling |
Size | 690*660*200mm |
Maintenance | Bottom door |
Heat Recovery Type | Enthalpy exchanger |
Efficiency(%) | 75% |
Power Voltage(V)/Frequency(HZ) | 210-240/50HZ |
Noise | 32dB(A) |
OEM/ODM | Accept |
Dimensions
TFKC series air volume-static pressure curve
Model | Rated Airflow （m³/h） | Rated E.S.P（Pa） | Temp.Eff. (%) | Noise （dB(A)) | Power input (W) | Connect Size | Size(mm) | N.W(Kg) |
TFKC-015(A1/A2-1A2/1D2) | 150 | 100 | 75-80 | 32 | 75 | 110 | 690*660*220 | 28 |
TFKC-025(A1/A2-1A2/1D2) | 250 | 110 | 75-81 | 36 | 90 | 110 | 690*660*220 | 28 |
TFKC-030(A1/A2-1A2/1D2) | 300 | 200 | 74-82 | 38 | 120 | 150 | 735*735*265 | 35 |
TFKC-035(A1/A2-1A2/1D2) | 350 | 200 | 74-82 | 39 | 150 | 150 | 735*735*265 | 35 |
TFKC-050(A1/A2-1A2/1D2) | 500 | 200 | 76-84 | 42 | 220 | 200 | 735*860*285 | 41 |
Products Features
Feature:
1、Fresh air +Energy recovery
2、Airflow: 100-500 m3/h
3、Counterflow enthalpy exchange
4、Filter: Primary filter+H12(can be customized)
5、Buckle type bottom maintenance easy replace filters
6、Ideal ventilation solution for residential and light commercial project.
2、Airflow: 100-500 m3/h
3、Counterflow enthalpy exchange
4、Filter: Primary filter+H12(can be customized)
5、Buckle type bottom maintenance easy replace filters
6、Ideal ventilation solution for residential and light commercial project.

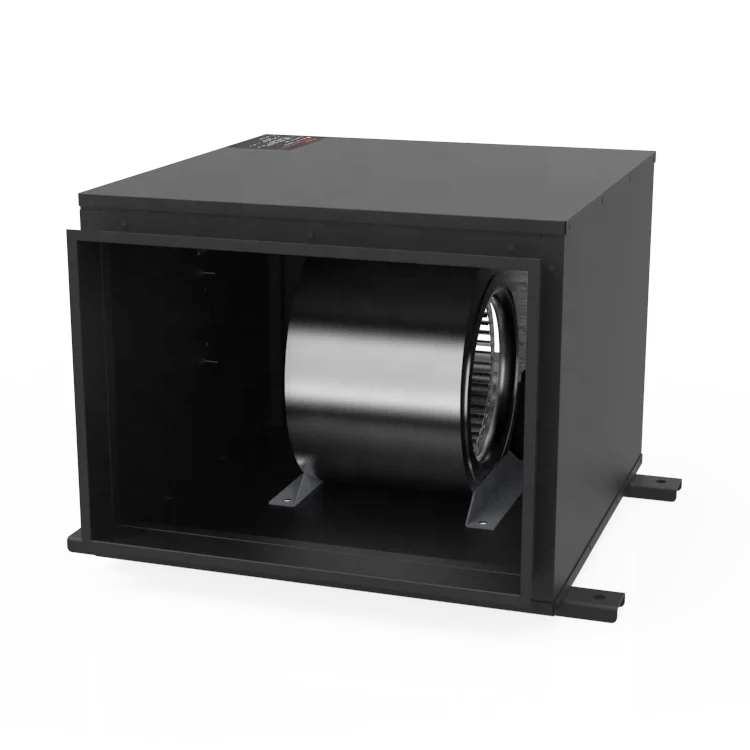

BLDC motor, more save energy
The high-efficiency brushless DC motor is built into the Smart energy recovery ventilator, which can reduce the power consumption by 70% and save energy significantly. VSD control is suitable for most engineering air volume and ESP requirements.
Advantages:
1、Simpler installation and maintenance.
2、High startup power and torque.
3、 Fast response times to starting, stopping, and acceleration.
4、Availability in serval standard voltages.
G4*2+H12(Customizable)
A: Primary purification(G4):
The primary filter is suitable for the primary filtration of ventilation system, mainly used for filtering dust particles above.5μm; the primary filter can be reused after washing.
The primary filter is suitable for the primary filtration of ventilation system, mainly used for filtering dust particles above.5μm; the primary filter can be reused after washing.
B: High efficiency purification(H12):
Effectively purify PM2.5 Particulate, for 0.1 micron and 0.3micron particles, the purification efficiency reaches 99.998%. It traps 99.9% of bacteria and viruses and causes them to die from dehydration within 72 hours.
Controller
Feature (Intelligent controller + Tuya App）
1、2.8-inch TFT LCD screen, PM2.5, CO2, temperature, humidity and other data display, indoor air quality real-time control.
2、Temperature and humidity sensor IC, etc., can accurately detect
3、Filter replacement reminder, intimate protection of air quality.
4、Time programming, can control the time period of the machine, to achieve energy saving personalized program customization
requirements.
5、APP remote control, real-time monitoring data, more convenient control.
6、Multi-languages optional

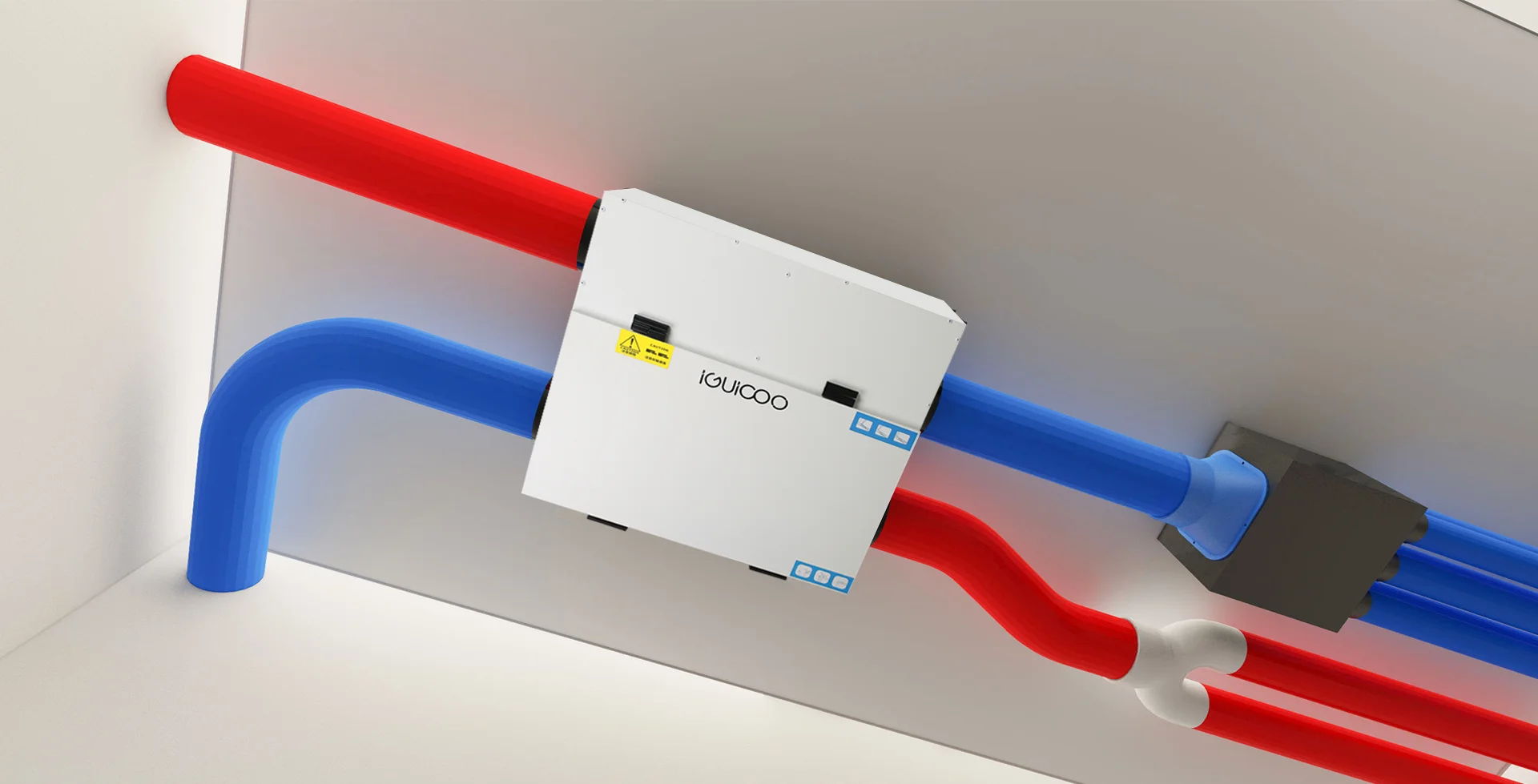

Installation and application
Model Selection Guide and Installation
ERV can be used with kinds of heat pump air conditioning
How to choose the right equipment?
1. Choose the proper installation types based on the building structure
2. Determine the required fresh airflow based on the usage scenario, area size, and persons
3. Select the right specifications and quantity according to the determined fresh airflow
1. Choose the proper installation types based on the building structure
2. Determine the required fresh airflow based on the usage scenario, area size, and persons
3. Select the right specifications and quantity according to the determined fresh airflow
We can provide free pipe layout design according to your house type
Selection of air flow:
Application
Company Profile
FAQ
Q1: How could I get a sample?
A:We do not provide free sample, if you are interested in our products please contact our customer service, she can tell you the details of the sample.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
A:We do not provide free sample, if you are interested in our products please contact our customer service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured.
