NAVLYNX aplepie Rocket Carplay AI Box LTE 4G GPS WIFI Mini Android 13 0 14 беспроводной автомобиль Netflix Youtube Hulu 8G 128G 5G

Сохранить в закладки 1601044959115:


Цена:31 798,04 ₽ - 36 732,22 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Products Description






Supports 3GPP Release 15, supports 5G NSA and SA modes, and is backward compatible with 4G (LTE CAT15) / 3G networks. It also
supports Wi-Fi 6E & DBS, IEEE 802.11a/b/g/n/ac/ax, Wi-Fi 2×2 MU-MIMO and Bluetooth 5.2 technologies.

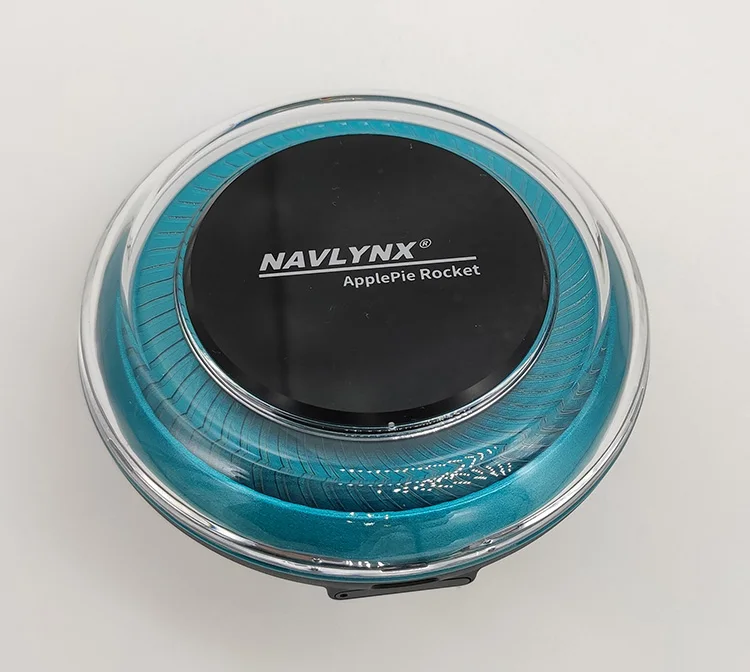

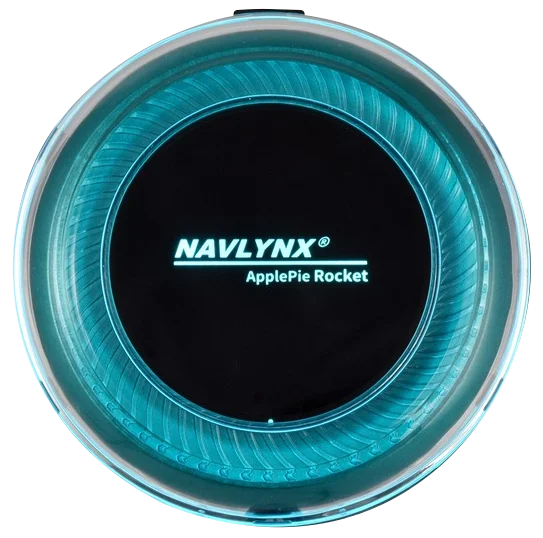

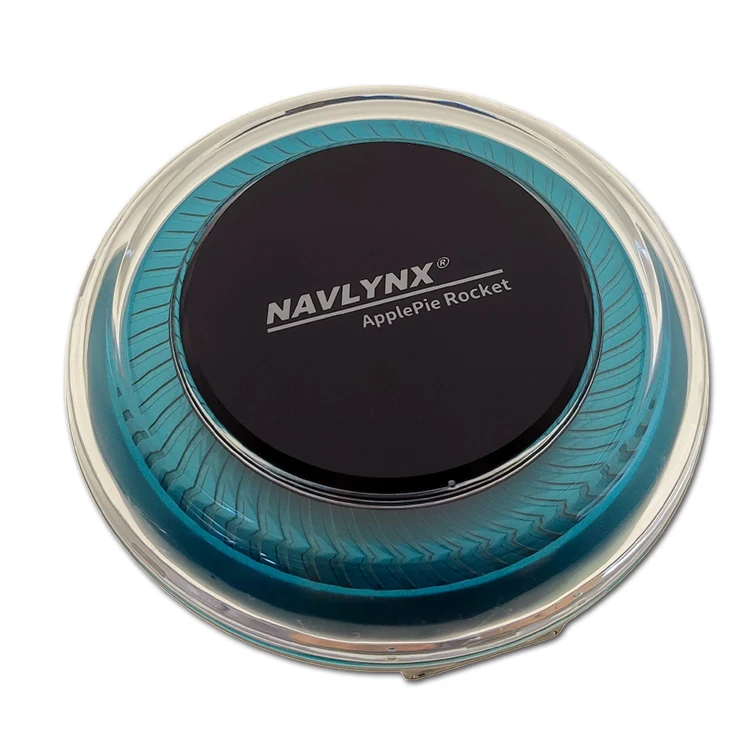

NAVLYNX ApplePie Rocket CarPlay AI Box is designed based on Qualcomm QCM6490 5G SoC processor ( 1 Gold plus core with a main frequency of
2.7 GHz, 3 Gold cores with a main frequency of 2.4 GHz and 4 Silver cores with a main frequency of 1.9 GHz ).
Integrated multi-constellation GNSS receivers to meet the needs of fast and accurate positioning in different environments, and support L1 + L5 dual frequency.The comprehensive computing power of the processor reaches 14 TOPS (AnTuTu benchmark score reaches 600,000 points).




Support split-screen display of applications at the same time.
Instead of using it in the car, it can be used as an IPTV set-top box at home. The set-top box mode has an independent user interface and is easier to operate using an air mouse remote control.

Supporting wireless CarPlay and wireless Android Auto, your phone can access ApplePie Rocket via Bluetooth and Wi-Fi.






Android 13
The Android system version is the latest Android 13 system in the field of current automotive products.


Based on the CarPlay mobile phone side protocol, the connection with the original car OEM head unit is completed, audio and video data transmission is supported, and it supports 98% of the world's car models.
The connection is stable and reliable. If a vehicle model that cannot be connected is found, users can obtain the system log through various channels, such as online uploading or automatic capture of the memory card, and solve the vehicle model connection problem by analyzing the log.
Provide CarPlay in-car protocol app to provide customers’ mobile phones with wireless CarPlay, wireless Android Auto and MirrorLink functions to connect to the screen of the original car OEM head unit.


Car Launcher
A personalized multi-theme car launcher with handy features for your daily drive. It's designed neatly and beautiful, and the most important is very intuitive and easy to use.
Classic Dashboard with Split Screen - It applies a split screen home screen to display the 2 most important features while you drive: Maps and Media so you don't have to jump back and forth between apps. You can also easily access recently used apps from the left sidebar. You can organize your frequently used favorite apps into a tier so they remain in the bottom bar.
The system comes with a widget, which is easy to operate.


The system firmware comes with commonly used APPs by default
The system comes with Google Play by default, and users can download any Android APP they want to use.
The system is preloaded with navigation APPs, such as Google Map, Waze, etc.; audio and video APPs, such as Youtube, Netflix,Youtube Music, Spotify, VLC, etc.



OTA
OTA - Frequently updated versions over the air.








Product Paramenters


Ultra 1.0
UFO 2.0
Ultra 3.0
Rocket
Model
APM1688
APM1288S
APM1688S
APM1888
CPU
Snapdragon 662 (SM6115) Qualcomm octa-core processor, Cortex-A73*4 @2.0GHz +  Cortex-A53*4 @1.8GHz
Snapdragon 665 (SM6125) Qualcomm octa-core processor, Cortex-A73*4 @2.0GHz + Cortex-A53*4 @1.8GHz
Snapdragon 680 (SM6225) Qualcomm octa-core processor, Cortex-A73*4 @2.4GHz + Cortex-A53*4 @1.9GHz
Qualcomm QCM6490 octa-core 5G SoCprocessor, Cortex-A78*1 @2.71GHz + Cortex-A78*3 @2.4GHz +  Cortex-A53*4 @1.9GHz
GPU
Qualcomm Adreno 610
Qualcomm Adreno 610
Qualcomm Adreno 610
Qualcomm Adreno 643L
Memory
LPDDR4X-3733
LPDDR4X-3733
LPDDR4X-4266
LPDDR5-6400
Process
11 nanometers
11 nanometers
6 nanometers
6 nanometers
WI-FI
Wi-Fi 6.0 Ready
2.4GHz & 5GHz,
802.11a/b/g/n/ac/ax-ready
Wi-Fi 5.0
2.4GHz & 5GHz,
802.11a/b/g/n/ac
Wi-Fi 6.0 Ready
2.4GHz & 5GHz,
802.11a/b/g/n/ac/ax-ready
WIFI 6.0 Enhance
2.4GHz & 5GHz & 6GHz,
802.11a/b/g/n/ac/ax,
Support DBS, 2×2 MU-MIMO
Master BT (Qualcomm processor internal Bluetooth)
5.1
5.0
5.1
5.2
Slave BT  (processor external onboard Bluetooth chip)
Realtek BTV8761, BT5.0
Realtek BTV8761, BT5.0
Realtek BTV8761, BT5.0
Realtek BTV8761, BT5.0
2G GSM/EDGE
Supported
Supported
Supported
Supported
3G WCDMA
Supported
Supported
Supported
Supported
4G LTE
Supported
Supported
Supported
Supported
5G SA/NSA
no
no
no
Supported
GNSS
Supports GPS, GLONASS, BeiDou, NavIC, Galileo positioning systems
Supports GPS, GLONASS, BeiDou, Galileo positioning systems
Supports GPS, GLONASS, BeiDou, NavIC, Galileo positioning systems
Supports GPS, GLONASS, BeiDou, NavIC, Galileo, QZSS and SBAS positioning systems
Storage
4GB+64GB or 8GB+128GB
4GB+64GB or 8GB+128GB
4GB+64GB or 8GB+128GB
Only 8GB+128GB
Micro SD Card
card slot
card tray
card slot
card tray
SIM Card
card slot
card tray
card slot
card tray
Mini HDMI
no
yes
no
yes
LED
Blue and Red
Colorful Ambient Light
Blue and Red
Colorful Ambient Light
Antutu Benchmarks
210000
210000
300000
600000
CPU Process
11 nanometers
11 nanometers
6 nanometers
6 nanometers
Release date
Q3/2022
Q1/2023
Q4/2023
Q2/2023
Android Version
13
13
13
13


About the frequency bands of mobile networks
LTE telecommunications networks operate on a specific combination of frequency bands and bandwidth.
The following are the frequency bands supported by various NAVLYNX CarPlay AI Box models and versions in different regions. Basically it is divided into 3 versions: EAU version, NA version, and JP version.

EAU Version:
For Europe/Asia/Australia middle East South America. Except for North America and Japan, other regions are supported.
NA version:
For North America
JP version: For Japan

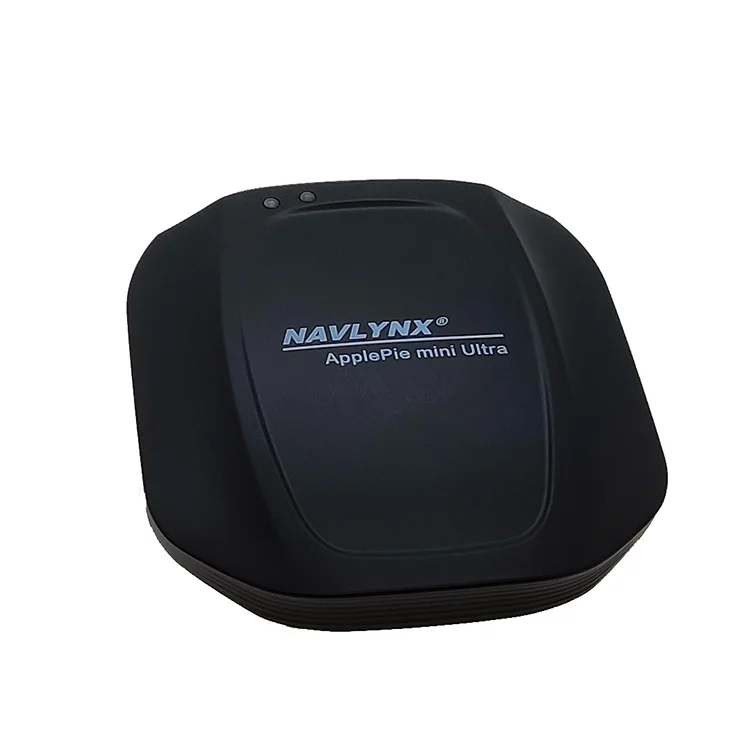

ApplePie Mini Ultra 1.0 (662)
 ApplePie UFO 2.0 (665)
ApplePie Mini Ultra 3.0 (680)
ApplePie Rocket (6490)
EAU
 (Eurasian version)
GSM/EDGE: 850/900/1800MHz
WCDMA: B1,B5,B8
LTE-FDD: B1,B3,B5,B7,B8,B20,B28(B28A,28B)
LTE-TDD: B38,B39,B40,B41
Hierarchical frequency bands: B1,B3,B7,B38,B39,B40,B41
GSM/EDGE: 900/1800 MHz
LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B39/B40/B41/B42
LTE MIMO:
DL 4 × 4 MIMO, B1/B3/B7/B38/B40/B41/B42
5G SA/NSA:
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
5G MIMO:
DL 4 × 4 MIMO, n1/n3/n7/n38/n40/n41/n77/n78
UL 2 × 2 MIMO, n41/n77/n78
NA
(North American version)
GSM/EDGE: 850,900,1900
WCDMA: B2,B4,B5,B8
LTE-FDD: B2,B4,B5,B7,B8,B12,B13,B17,B25,B26
LTE-TDD: B38,B41(2555-2655MHz)
1. The B41 frequency band of Chinese telecom operators refers to 2555-2655MHz (100M)
The B41 frequency band of US telecom operator Sprint refers to 2496-2690MHz (194M)
2. Hierarchical frequency bands: B2, B4, B7, B38, B41
No development yet
JP
(Japan version)
GSM/EDGE: 850,900,1800
WCDMA: B1,B5,B8,B19,B6
LTE-FDD: B1,B3,B5,B9,B18,B19,B26,B7,B8,B20,B28(B28A,28B)
LTE-TDD: B38,B39,B40,B41
No development yet


Manufacturing Technique

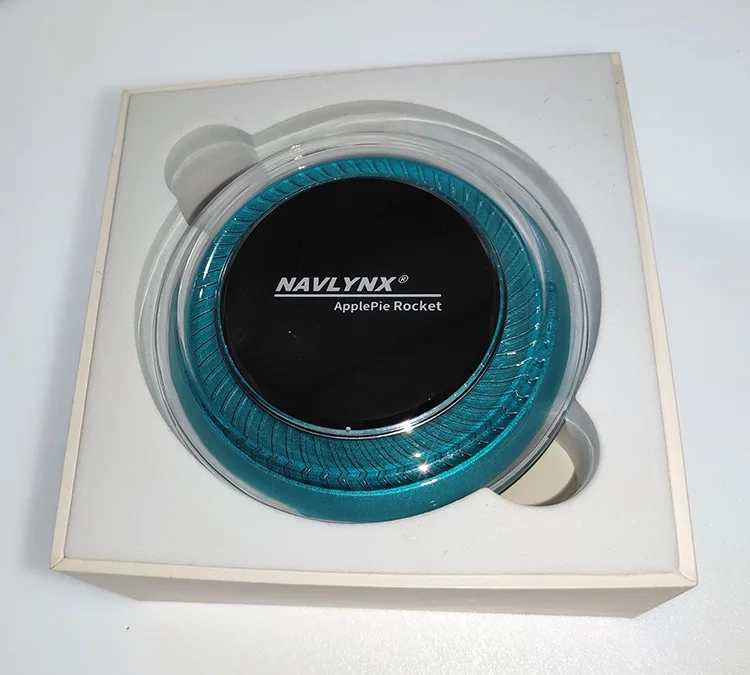

Product packaging






Leadtime


Generic version
Logo customized
Software customization
Hardware customization
1~500
5
Negotiate
Negotiate
Negotiate
500~2000
15
Negotiate
Negotiate
Negotiate
More than 2000
20
Negotiate
Negotiate
Negotiate




Company Profile


Company Profile:

Shenzhen Xiaoqiang Intelligent Technology Co., Ltd was established in 2019, It is a total solution provider for automotive products with strong R&D capabilities.

We focus on CarPlay and Android Auto product solutions, providing seamless audio and video integration systems for car OEM information entertainment systems for global customers. Navlynx is one of our specialized brands, including CarPlay AI Box, wireless CarPlay and Android Auto Adapter and Multimedia Streaming Box.




Our Advantages


Our Advantages:
We have more than 20 years of experience in the design of automotive multimedia electronic products.

Our senior R&D engineers are all from tier one suppliers of automobile manufacturers. They all have strong product development capabilities.

Our biggest advantage is that we can provide customers with deeply customized products in both hardware and software.


Customized process


1. Evaluate the hardware and software requirements of the product that needs to be customized to determine whether the project can be completed.
2. After confirming that the project can be completed, we will organize R&D personnel to communicate directly with customers about software and hardware requirements.
3. Determine the project cycle, provide R&D schedule and customer discussions, and finally determine the delivery time and delivery standards.
