Буровое долото для бурения твердым камнем
- Категория: >>>
- Поставщик: Haojiang Drilling Service Co. Ltd.
Сохранить в закладки 1601044982458:
Описание и отзывы
Характеристики
Product Description
F Fast Series
·Adopting IDS equal wear design models
·Using C2, P1/P2, G2 crown types to optimize the internal cone bearing pressure and improve straight well anti-deviation capabilities
·Using T1, T2, T3 cutters to enhance nose overall performance and shoulder impact resistance
·Applying HI hydraulic structure design to improve cuttings transport speed and prevent mud cake
·Ensuring the balance force is within the green standard, combined with power drilling tools to enhance interlayer penetration capabilities.
·Adopting IDS equal wear design models
·Using C2, P1/P2, G2 crown types to optimize the internal cone bearing pressure and improve straight well anti-deviation capabilities
·Using T1, T2, T3 cutters to enhance nose overall performance and shoulder impact resistance
·Applying HI hydraulic structure design to improve cuttings transport speed and prevent mud cake
·Ensuring the balance force is within the green standard, combined with power drilling tools to enhance interlayer penetration capabilities.
Specification

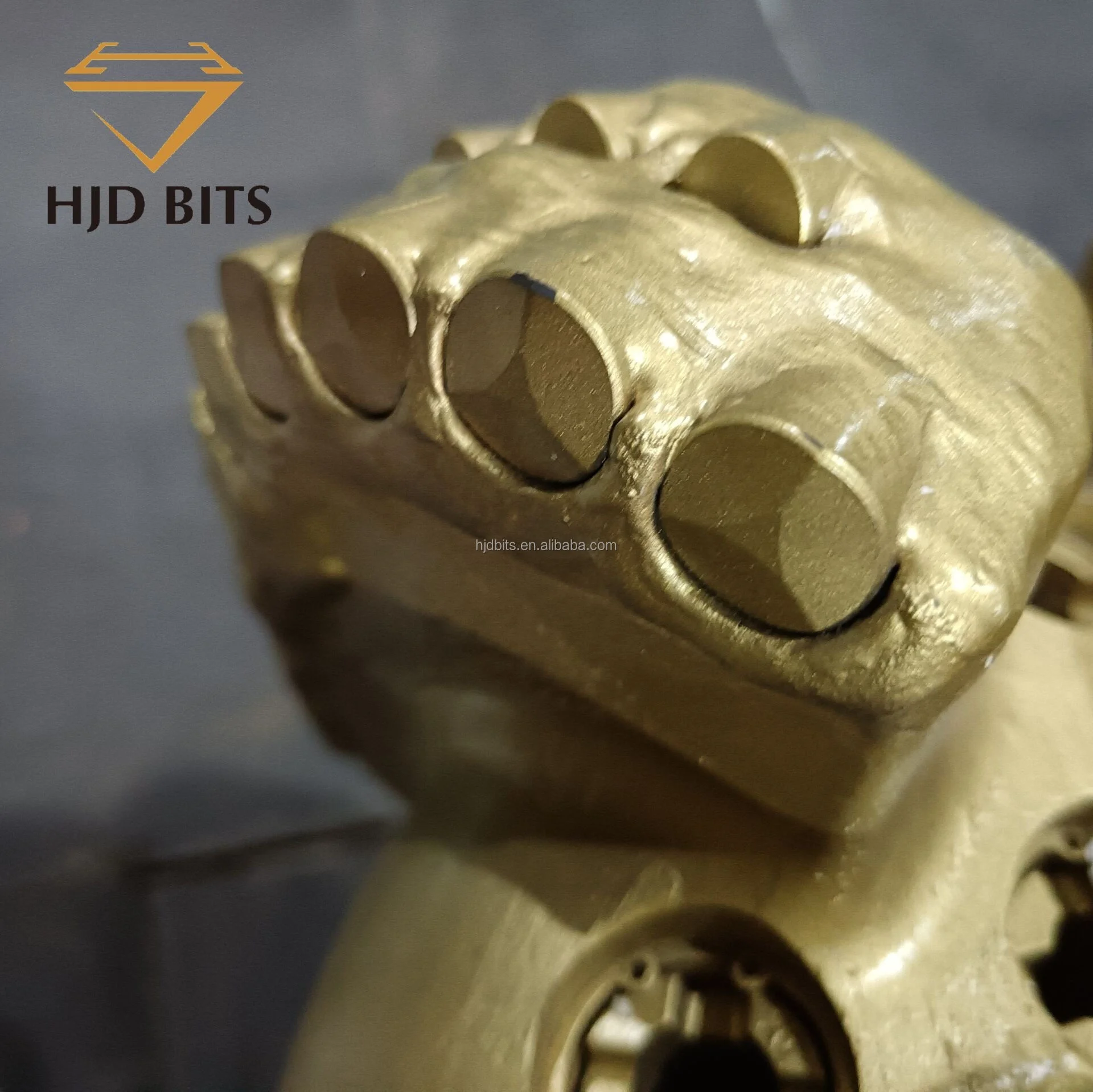

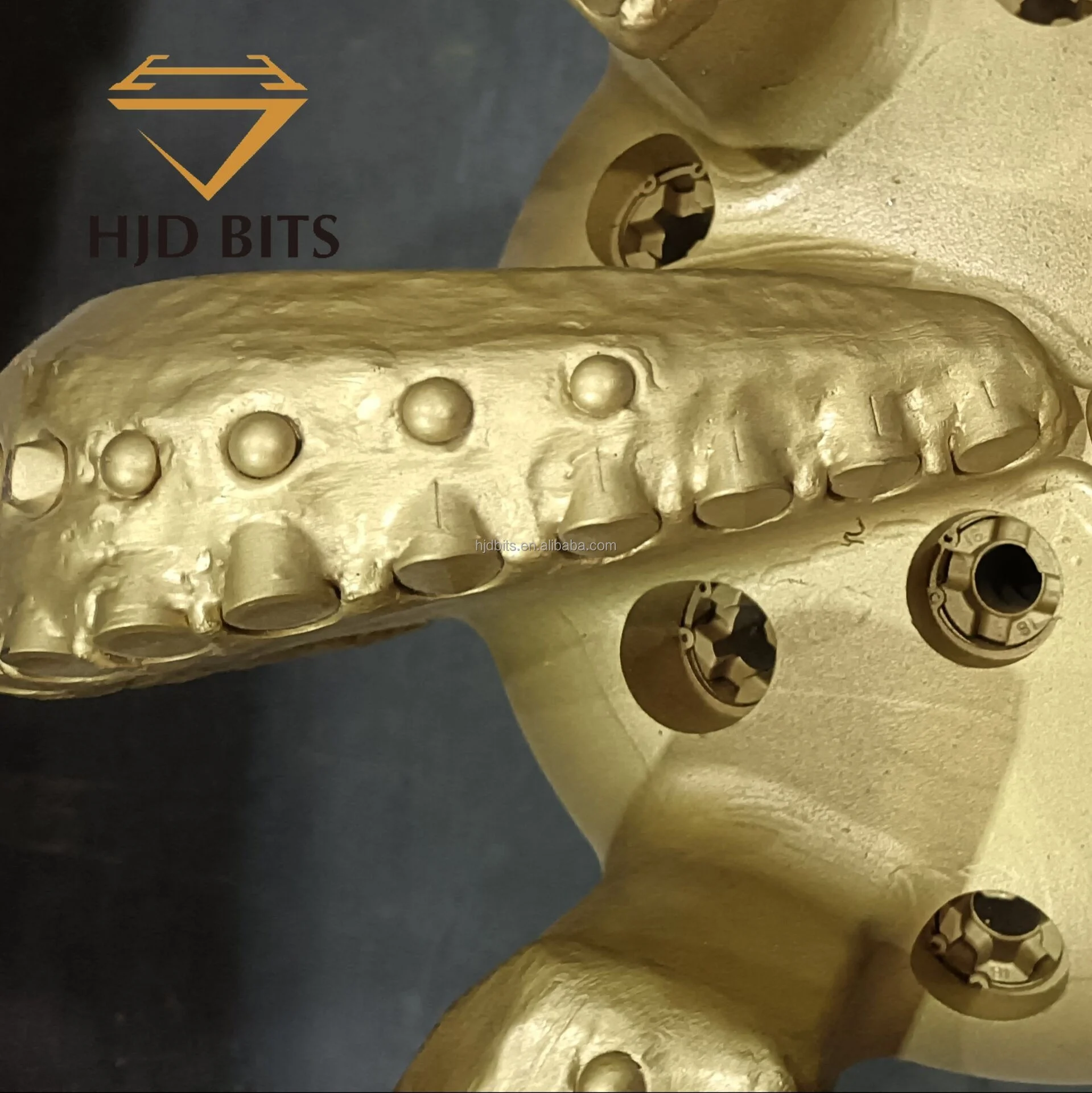

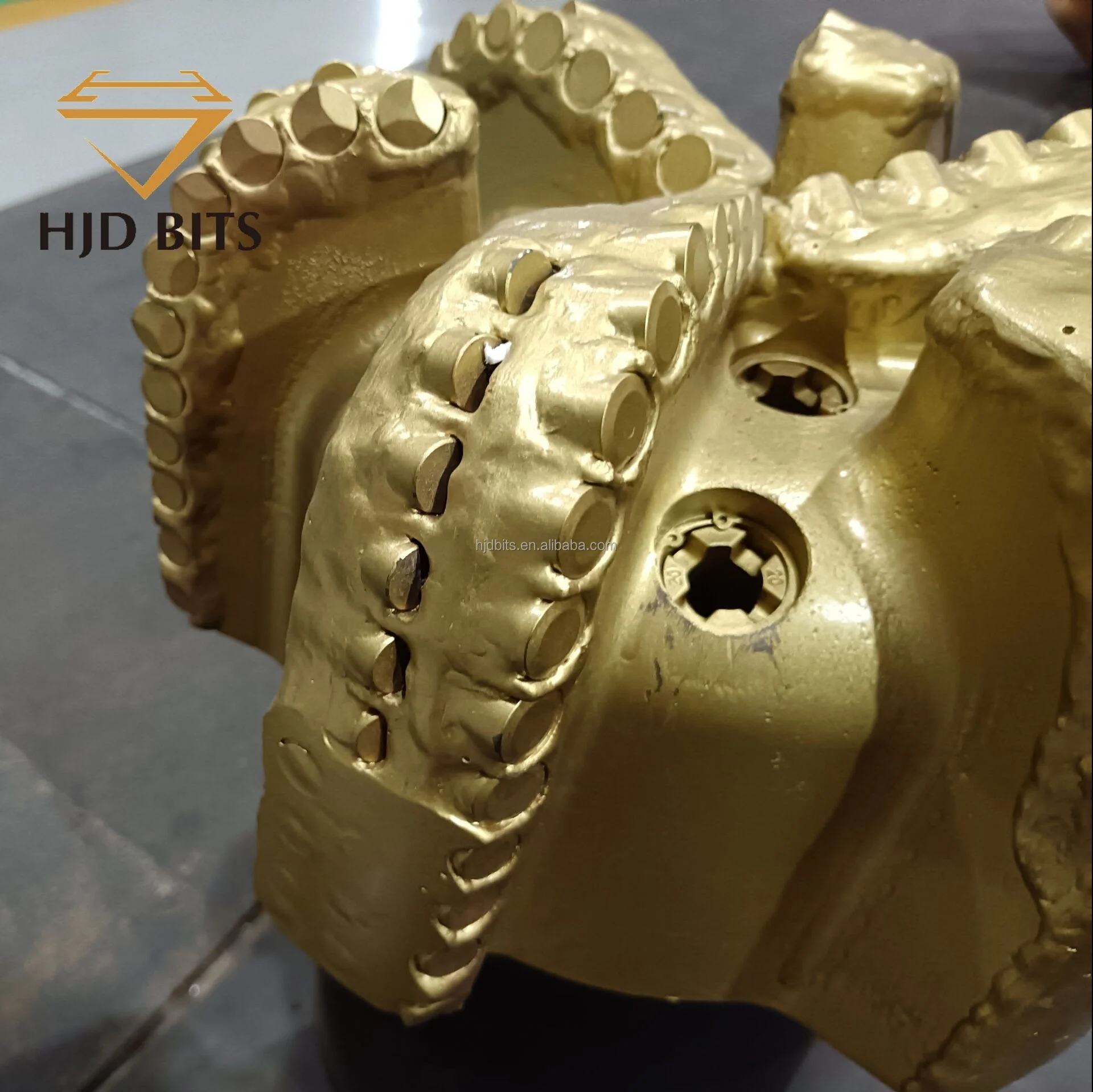

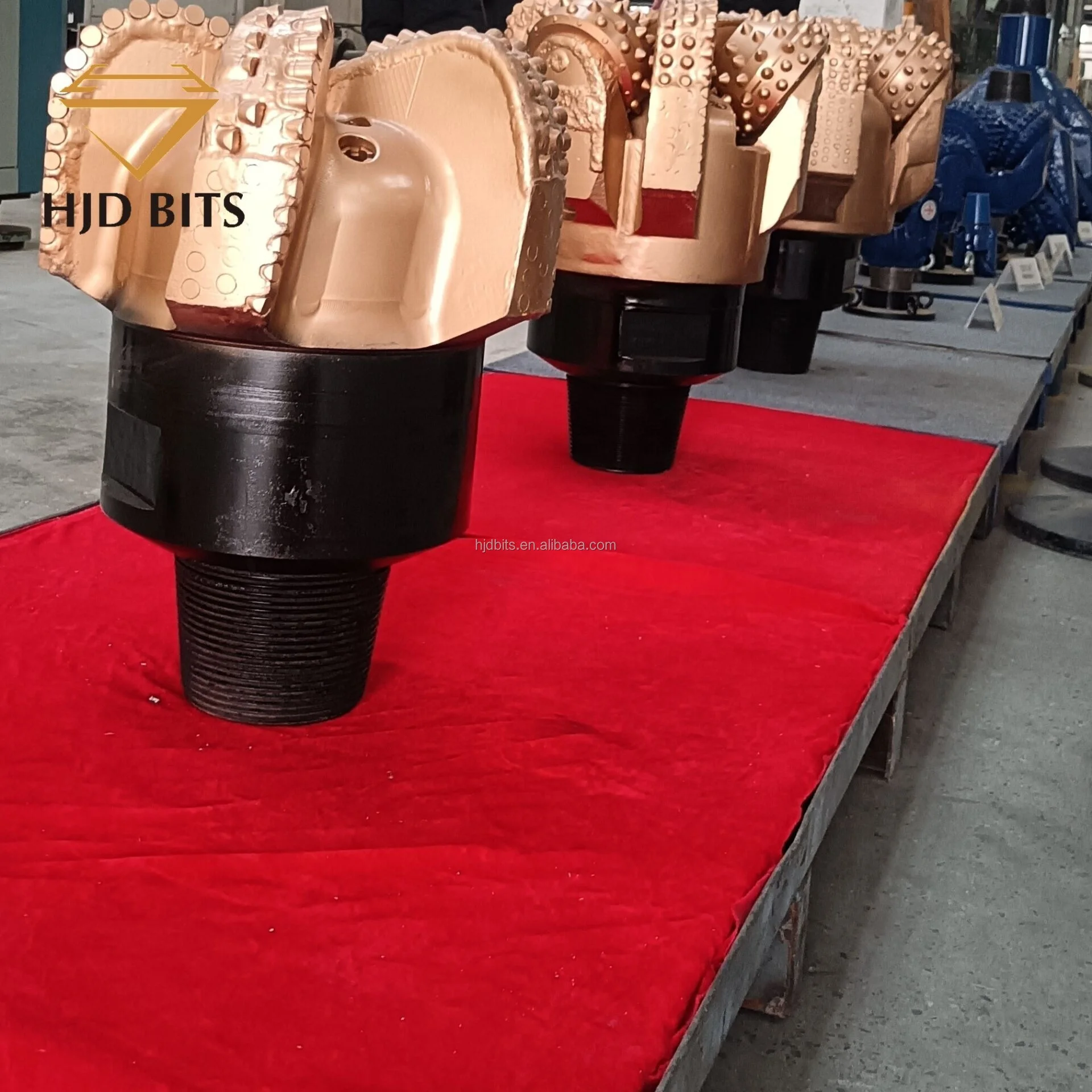

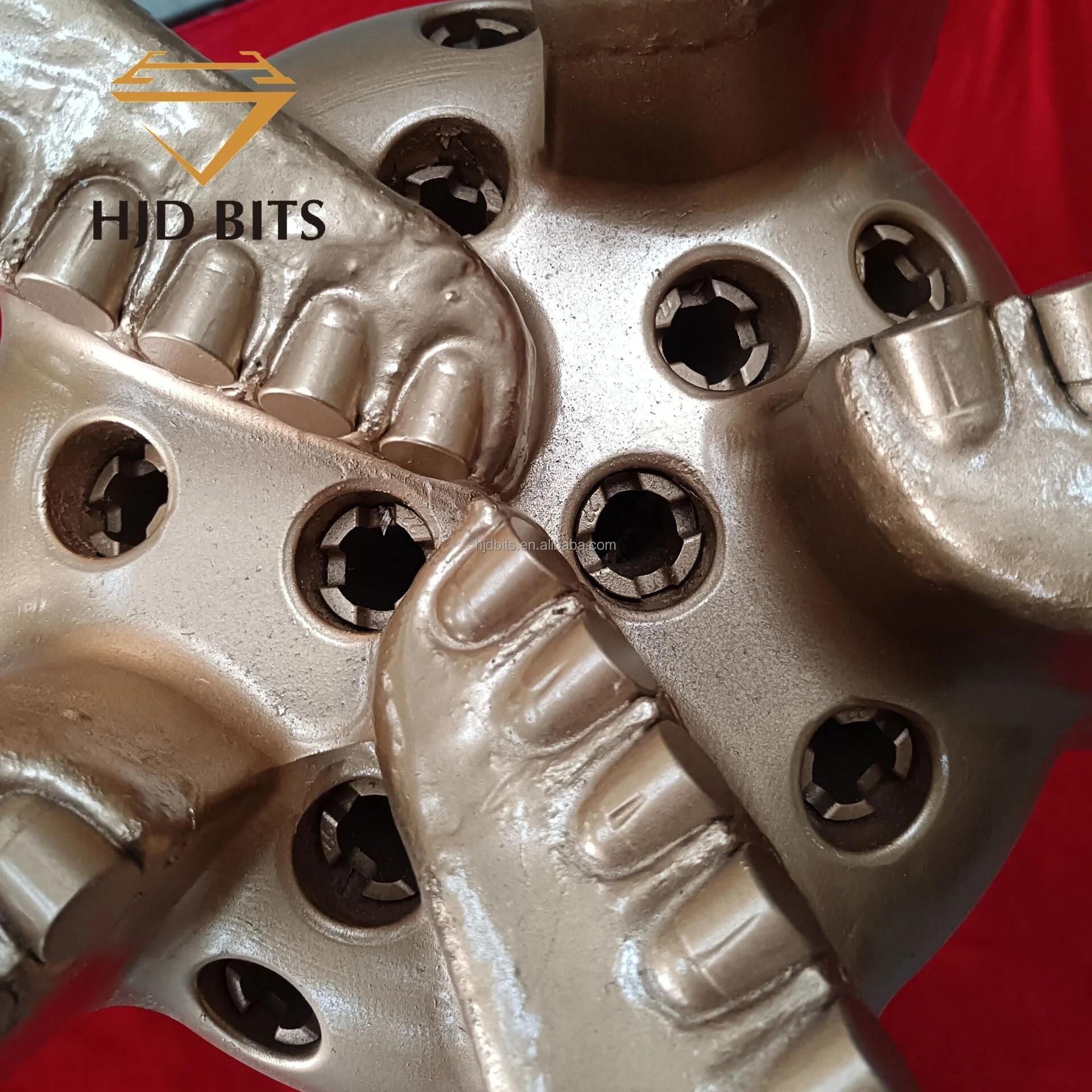

The body of the matrix PDC drill bit is made by high-temperature sintering tungsten carbide powder and bonding metal in a graphite mold, and the body has good erosion resistance; The body of a rigid PDC drill bit is made of a whole block of alloy steel through CNC machining, with a simple process and low production cost, and has become the mainstream of drilling.
Formation | IADC | Lithology | Bits Selection | |
VerySoft | M121/S121 M122/S122 | Clay, Sandstone, Siltstone | M/S316*F, M/S416*F, /S419*F M/S516*F, M/S519*F | |
Soft | M221/S221 M222/S222 | Sandstone, Shale, Marlstone | M/S416*F, M/S519*F, M/S516*F | |
Medium | M322/S322 M323/S323 | Limestone, Sandstone, Conglomerate | M/S516*F, M/S519*F, M/S619*F | |
Naming Rules:Size、 Type、 Blade Qty、 Cutter Size、 Design Code、 Additional Features、 Example:215.9 S51661 | ||||||||||||
Size | Full Size | Nominal diameter, in millimeters, with 2 decimal places reserved | ||||||||||
Bi-Center Bit | Diameter-Enlarged diameter, in mm, with 2 decimal places reserved | |||||||||||
Core Bits | Nominal diameter - core diameter, in millimeters, with 2 decimal places retained. | |||||||||||
Type | S M H B C E | M | H | B | C | E | ||||||
Steel Body | Matrix Body | Hybrid Bits | Bi-center Bits | Core Bits | Engineering Bits | |||||||
Code | Blade Qty- | Code | Blade Qty- | Code | Blade Qty- | |||||||
1 | 1 | 5 | 5 | 9 | 9 | |||||||
2 | 2 | 6 | 6 | A | 10 | |||||||
3 | 3 | 7 | 7 | B | 11 | |||||||
4 | 4 | 8 | 8 | C | 12 | |||||||
Code | Dia.mm | Code | Dia.mm | Code | Dia.mm | |||||||
19 | 19.05 | 13 | 13.44 | 8 | 8 | |||||||
16 | 15.875 | 10 | 10 | |||||||||
Design Code | Typical Type | Design Code | Typical Type | |||||||||
1 | 319,416 | 5 | 616B,716 | |||||||||
2 | 519,516 | 6 | 616B,716B,713 | |||||||||
3 | 519B,516 | 7 | 616B,713B,813B | |||||||||
4 | 516B,616 | 8 | 913,1013 | |||||||||
Hybrid Bits | Cone Qty | |||||||||||
F | Fast Series | RS | Rotary Steering Series | |||||||||
H | Hard Series | R | 360 Cutter Series | |||||||||
D | Directional Series | P | Plasticity Series | |||||||||
Company Profile
HaojiangDrillingService Co., Ltd (referred to asHJD BITS)formerlyknown as Shanghai First Petroleum Machinery Factory, wasestablished in1956 and was the first enterprise in China to produce tricone bits. In 1993, itjointly established Baosheng Drilling Machinery Co., Ltd. with Hongkong BaoliInternational Group Corp. Limited. In 1999, Baosheng Drilling Machinery Co.,Ltd. was acquired by Kingdream Public Limited Company a leading domesticmanufacturer of tricone bits.In2004, at therequest of Kingdream PublicLimited Company, Shanghai Haojiang Drilling Machinery Parts Co., Ltd. wasestablished and became an important cooperative manufacturer of KingdreamPublic Limited Company with its stable and reliable product quality. In 2014,the manufacturing base was built in Kunshan, Suzhou, and Kunshan HaojiangDrilling Tools Co., Ltd.
Packing & Delivery
High quality export wooden boxes or can be customized.
FAQ
CHINA CONE TUNGSTEN CARBIDE ROLLER TDX STEEL TRICONE BIT
1. Are you trading company or manufacturer ?
We are trading company ,but we can supply competitive bits for you . We have supplied to many countries.
We are trading company ,but we can supply competitive bits for you . We have supplied to many countries.
2. Whether accept customized according to customers' requirements ?
Yes, We accept customized, including: size and type , and MOQ is 1 piece .
3. Delivery time and shipping time?
The delivery time depend on quantity of order. Usually it will takes 3-5days shipping to Tianjin Port or Beijing Airport , China.Even the small order or urgent order we can send you by air after received your agreement. According the distance from China to your port, usually from China to European about 25-30 days. To West of American 20-25 days.
4. It is produced according to the standard?
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request , we had strictly inspection in the production
5. How do you guarantee your quality?
We select the advanced production technology and equipment, strictly control the whole production process , and we inspected thefinished drill bits , we can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.
Yes, We accept customized, including: size and type , and MOQ is 1 piece .
3. Delivery time and shipping time?
The delivery time depend on quantity of order. Usually it will takes 3-5days shipping to Tianjin Port or Beijing Airport , China.Even the small order or urgent order we can send you by air after received your agreement. According the distance from China to your port, usually from China to European about 25-30 days. To West of American 20-25 days.
4. It is produced according to the standard?
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request , we had strictly inspection in the production
5. How do you guarantee your quality?
We select the advanced production technology and equipment, strictly control the whole production process , and we inspected thefinished drill bits , we can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.
