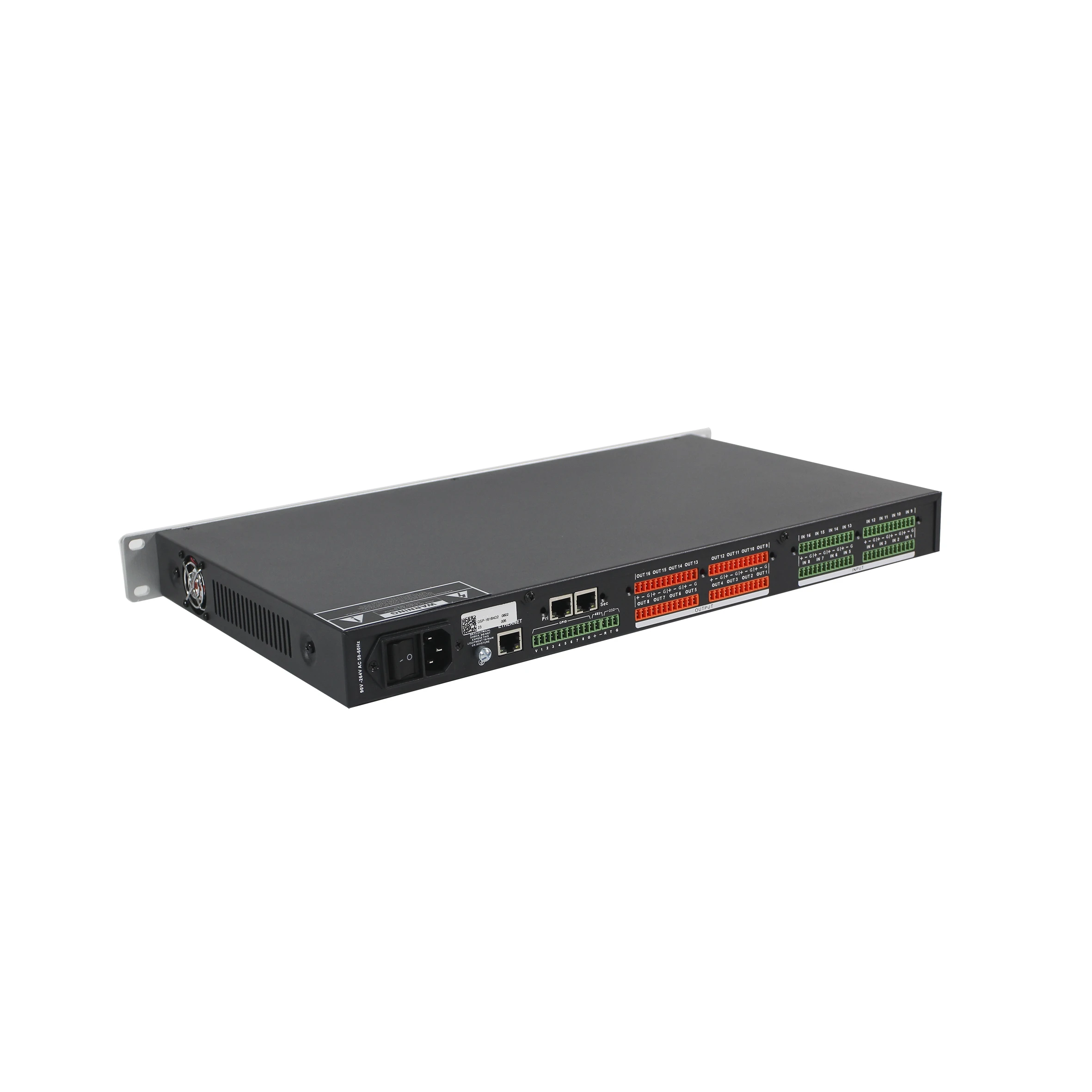

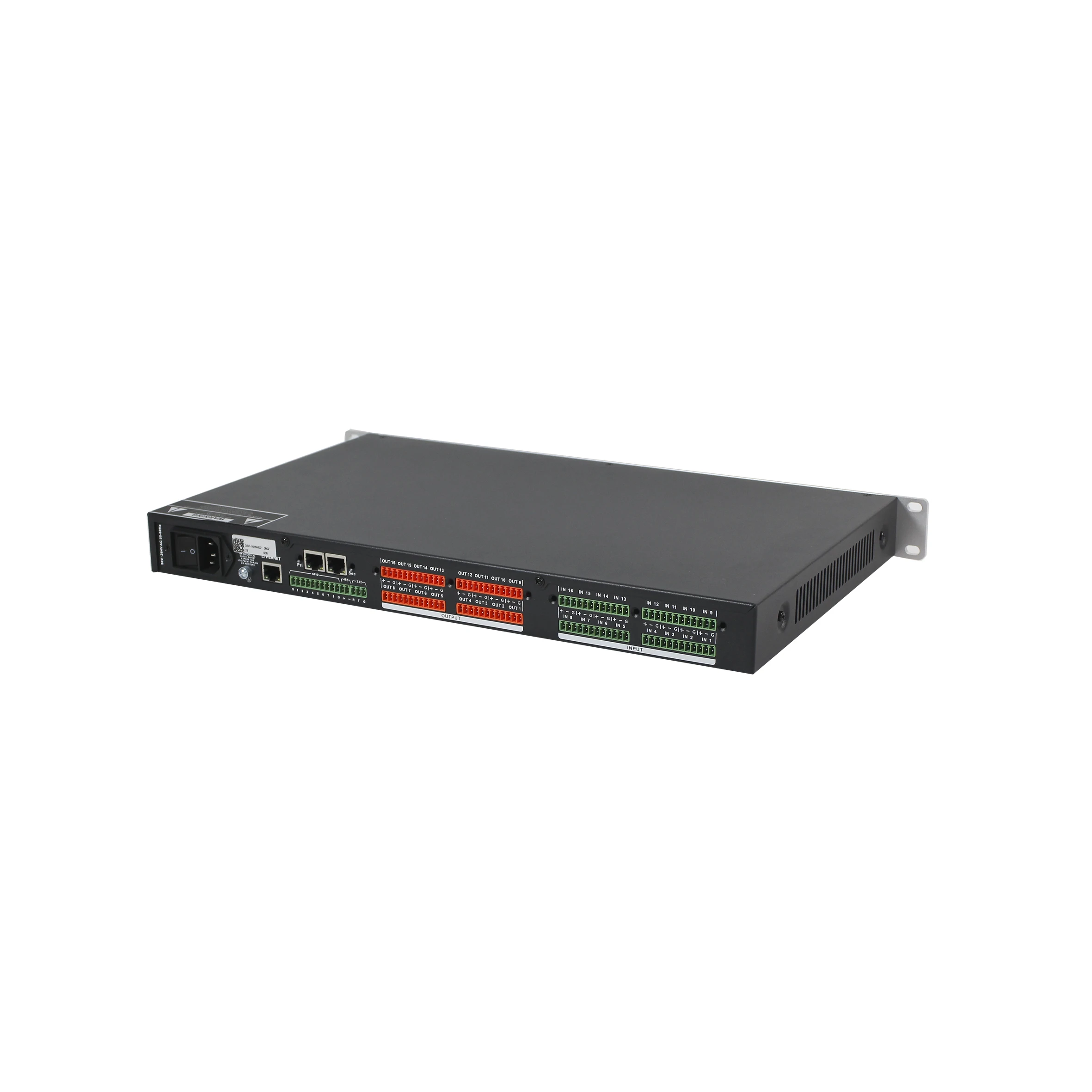

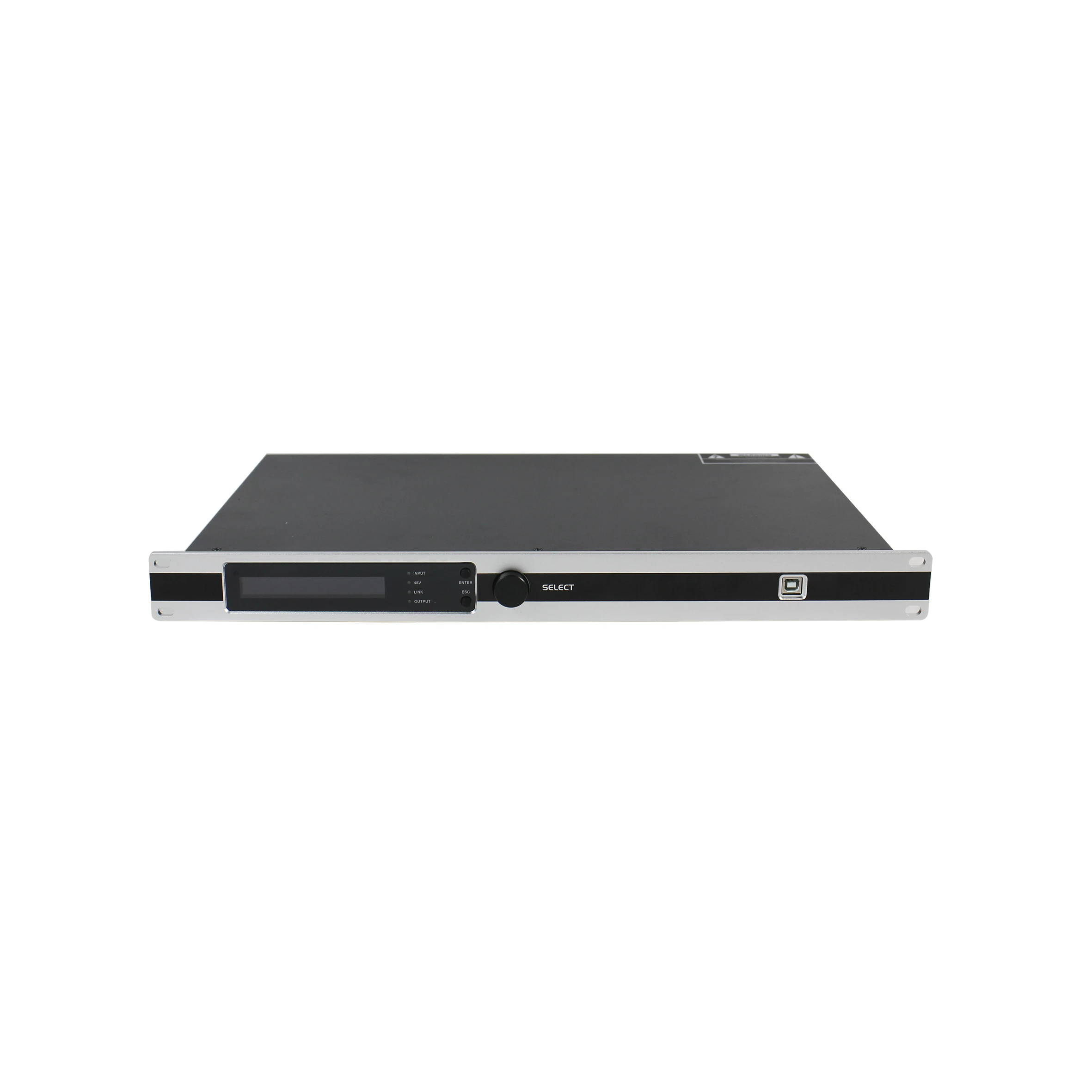

Цифровой аудио процессор NDP260
34 832,34 ₽
16 дюймов и Dante DSP аудио процессор с 48 В фантомное питание для Конференции
- Категория: >>>
- Поставщик: Guangzhou Temeisheng Audio Technic Co. Ltd.
Сохранить в закладки 1601045011803:
Описание и отзывы
Характеристики
Product Description
Description:
The DSP-1616N2/DSP-1616ND2/DSP-1616ND3 audio processor combines Auto Mixer, Matrix Mixer, and Feedback suppressor in one purpose-built DSP processor. At the same time, it has independent FIR/AFC/ AEC/ ANS/ AGC gain sharing automatic mixing, threshold automatic mixing and other processing modules. The /DSP-1616ND2/DSP-
1616ND3 includes 16 mic/line analog inputs, 16 analog outputs to meet the needs of a wide range of audio processing applications such as boardroom, medium/large conference rooms, courtrooms, auditoriums and multi-purpose halls.
Features:
* 16-channel analog input and 8-channel analog output, Microphone or Line in switch
* +48V Phantom power per input channel
* AFC in each input
* AUTO-MIX and MATRIX-MIX
* 15 PEQS per input and 10 PEQS per output
* USB free driver connect, RS232/485 connector for center control
* +48V Phantom power per input channel
* AFC in each input
* AUTO-MIX and MATRIX-MIX
* 15 PEQS per input and 10 PEQS per output
* USB free driver connect, RS232/485 connector for center control
SPECIFICATIONS | DSP-1616ND3 |

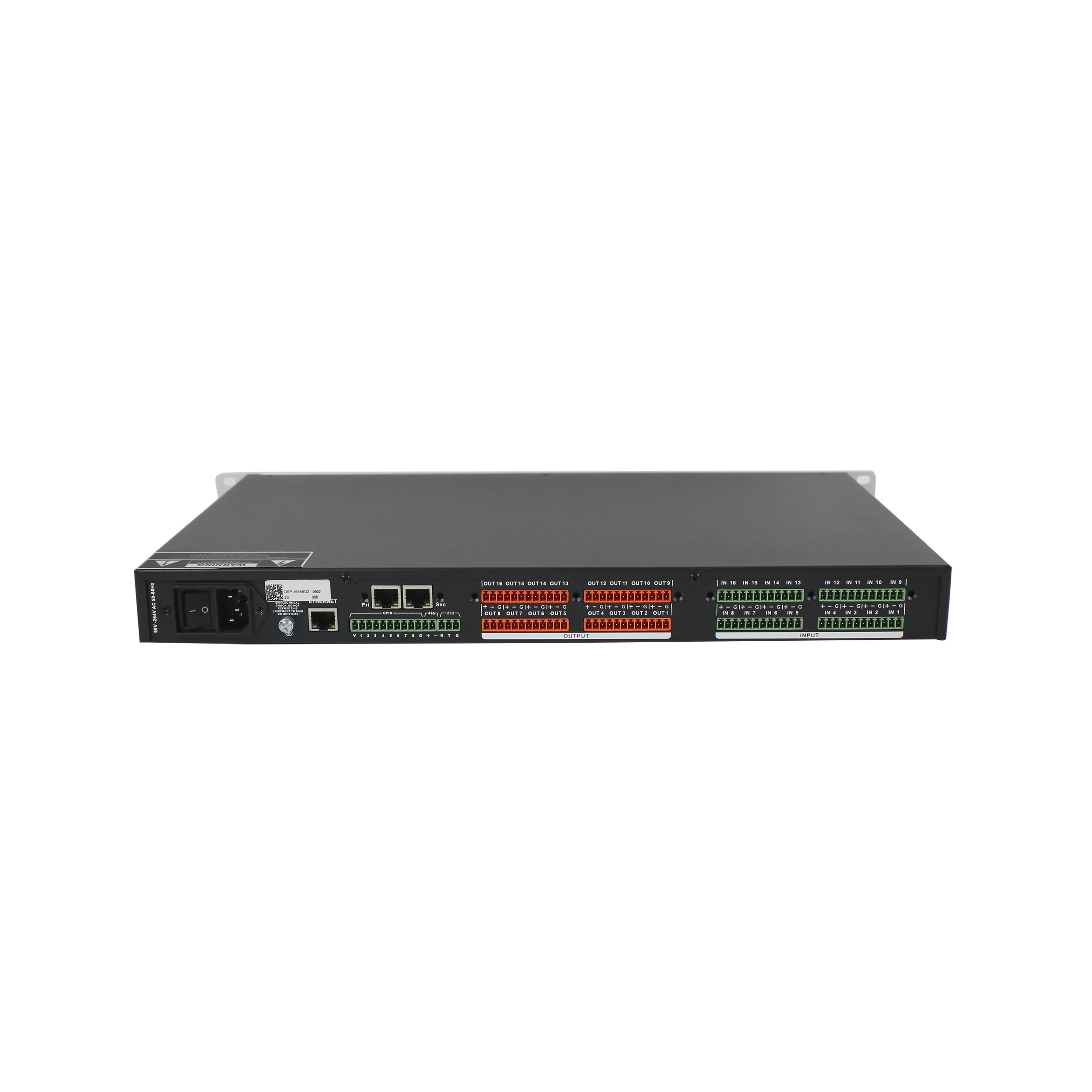

Input Channels | 16 balanced. Mic/line level |
Connectors | 3.81 mm Euro block |
Input Impedance | 11.5KΩ |
Maximum Input Level | 14dBu/Line, -7dBu/Mic |
Phantom Power | +48VDC, 10mA, selectable per input |
Output Channels | 16 balanced, line level |
Output Impedance | 150Ω |
Frequency Response | 20Hz-20kHz(+-0.5dB)/Line |
20Hz-20kHz(+-1.5dB)/Mic | |
THD+N | LINE: 0.003% |
MIC: 0.005% | |
SNR | 105dB(@12dBu,1kHz,A-wt)/Line |
95dB(@-7dBu,1kHz,A-wt)/Mic | |
USB | Micro-B type, free driver |
RS232 | Serial port communication |
TCPIP | RJ-45, Optional |
LED Status Indicators | Power, Link, +48V, Input and Output Audio signal |
Mains Voltage | AC100V---240V 50/60 Hz |
Dimensions | 44mmx483mmx210mm |
Net Weight | 2.8kg |
Operating Temperature | -20℃-60℃ |
Cooling System | Active, Fan inside |
Signal Processor | 32-bit fixed/floating-point DSP 300MHz |
Audio Latency | < 1ms |
A/D and D/A Converters | 24-bit |
Sample Rate | 48KHz |
Related Products
Company Introduction
Lucky Tone specializes in design and manufacturing of Public Address System (PA), Conference System and Professional Audio System.
With power amplification, loudspeaker, and PA system management engineering resources all located under one roof.
Lucky Tone uniquely leverages these technologies to deliver products and systems that far outperform the sum of their parts - providing compelling solutions for public Address and Conference systems, and professional installed sound for customers worldwide.
Lucky Tone advances in manufacturing and quality control processes. The company manufactures in its 8,000 square meter, state-of-the-art factory, located in Guangzhou.
Utilizing a compliment of demand planning, parts procurement, operations and logistics, computer-controlled system, and rigorous testing and control, our facility is designed with build-to-order flexibility, giving the company unprecedented ability to respond to customer needs while keeping both parts and finished goods inventory at well-maintained levels.
With power amplification, loudspeaker, and PA system management engineering resources all located under one roof.
Lucky Tone uniquely leverages these technologies to deliver products and systems that far outperform the sum of their parts - providing compelling solutions for public Address and Conference systems, and professional installed sound for customers worldwide.
Lucky Tone advances in manufacturing and quality control processes. The company manufactures in its 8,000 square meter, state-of-the-art factory, located in Guangzhou.
Utilizing a compliment of demand planning, parts procurement, operations and logistics, computer-controlled system, and rigorous testing and control, our facility is designed with build-to-order flexibility, giving the company unprecedented ability to respond to customer needs while keeping both parts and finished goods inventory at well-maintained levels.
Work Place
Our Mission Statement: Provide high quality and total audio solution to our customers!
Our Company Values:
Quality: Excellent and consistent quality are the base for our company, customers and suppliers.
Service: Timely, friendly, and meet the need for the customers.
Customers: We work together and grow together with customers.
Working: As we provide entertainment products, we will provide happy working environment.
Our Company Values:
Quality: Excellent and consistent quality are the base for our company, customers and suppliers.
Service: Timely, friendly, and meet the need for the customers.
Customers: We work together and grow together with customers.
Working: As we provide entertainment products, we will provide happy working environment.
Exhibition
Certifications
FAQ
1. How long is the lead time?
Generally 4 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster, But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks....
2. What’s your payment term?
Our policy is at least 30% deposit before production, and 70% paid before shipment date. Certainly, L/C is also acceptable.
3. How do you pack my goods to ensure intactness in the course of transportation?
We always take care of our products and pack them properly. For example, we use strong cardbox (export carton) stuffing with enough foam/ bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
4. What’s your delivery term?
We quote and deliver on the term of FOB Huangpu (except EXW term for small orders. Of course, CIF, C&F or even door to door is acceptable, so we will check and quote the shipping cost additionally.
5. How about the warranty and after-sales service?
Our warranty is 2 years, but considering the long transit time to oversea customers, we offer two and half year warranty from the production date on serial numbers on. For any failure (no-human included), we shall provide you free spare parts and instruction for repair.
6. What’s your advantage over competitors?
A very good questions: Our advantage is more than 10 years expertise and experience in the commercial audio industry, we are good at listening to my customers, getting to know their need and proposing right solution with reliable products. With support from specialized R&D and proficient production teams, we succeed in offering innovative and sophisticated audio equipment of cutting-edge technology, and always keep in mind that to make our customers win and profitable is the core in business cooperation.
Generally 4 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster, But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks....
2. What’s your payment term?
Our policy is at least 30% deposit before production, and 70% paid before shipment date. Certainly, L/C is also acceptable.
3. How do you pack my goods to ensure intactness in the course of transportation?
We always take care of our products and pack them properly. For example, we use strong cardbox (export carton) stuffing with enough foam/ bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
4. What’s your delivery term?
We quote and deliver on the term of FOB Huangpu (except EXW term for small orders. Of course, CIF, C&F or even door to door is acceptable, so we will check and quote the shipping cost additionally.
5. How about the warranty and after-sales service?
Our warranty is 2 years, but considering the long transit time to oversea customers, we offer two and half year warranty from the production date on serial numbers on. For any failure (no-human included), we shall provide you free spare parts and instruction for repair.
6. What’s your advantage over competitors?
A very good questions: Our advantage is more than 10 years expertise and experience in the commercial audio industry, we are good at listening to my customers, getting to know their need and proposing right solution with reliable products. With support from specialized R&D and proficient production teams, we succeed in offering innovative and sophisticated audio equipment of cutting-edge technology, and always keep in mind that to make our customers win and profitable is the core in business cooperation.
Похожие товары

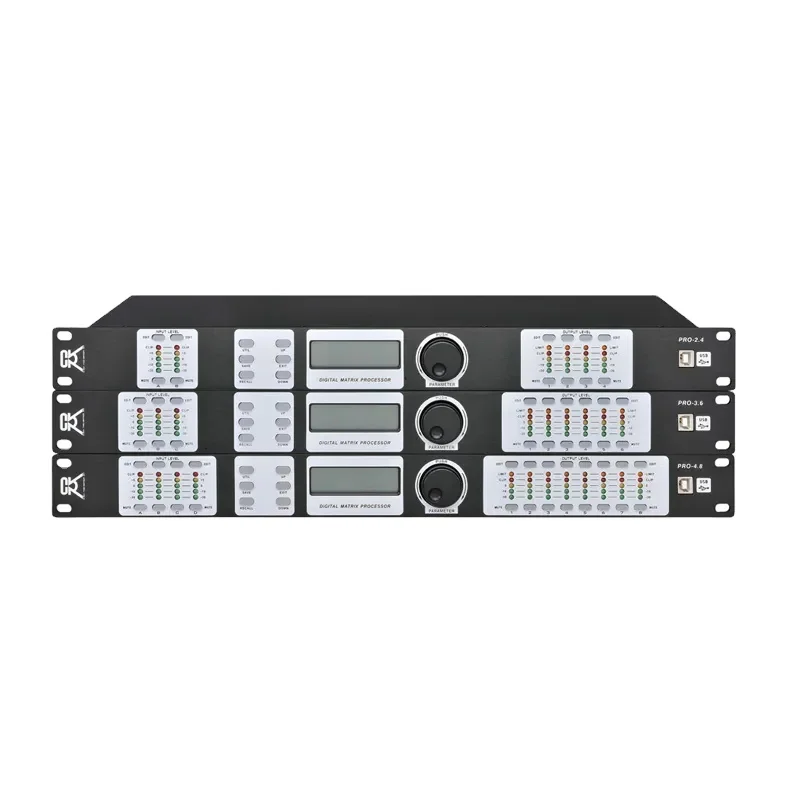

2 в 4 аудио процессор Профессиональный цифровой
19 983,06 ₽

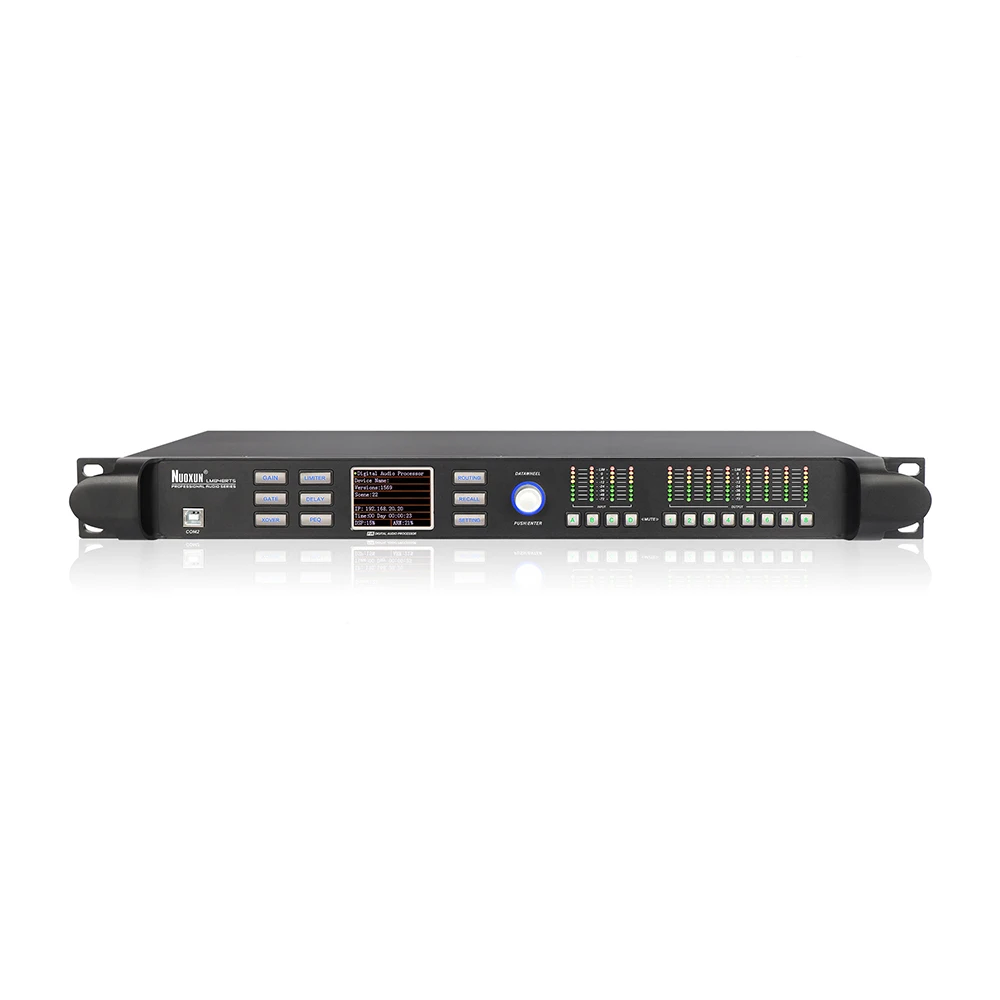

8-канальный высококачественный 8-в-8-в-8-аут DSP цифровой дизайн Аудиопроцессор с ведущим в отрасли чипом ADI SHARC 21489
40 849,34 ₽ - 55 091,40 ₽

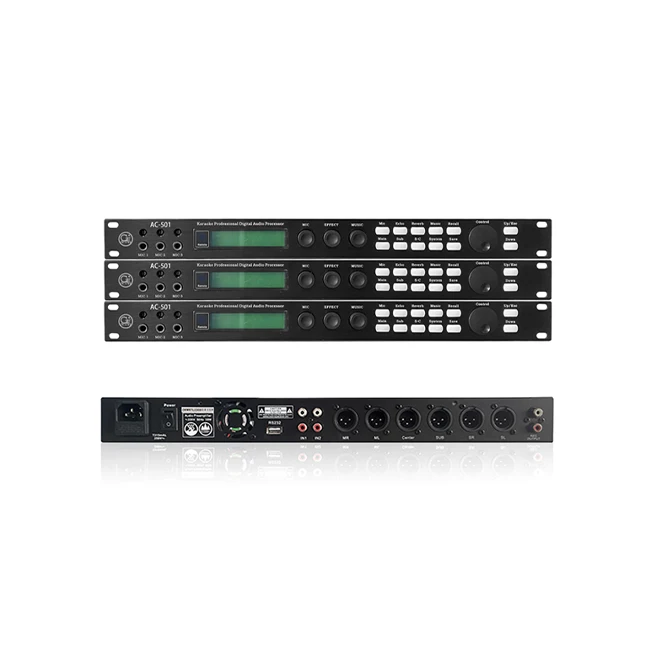

Цифровой аудио процессор динамик AC-501 Профессиональный цифровой Dsp
4 входа 8 выходов 96 кГц процессор FIR AES DSP управление динамиками цифровой аудиопроцессор
35 991,58 ₽ - 60 832,39 ₽

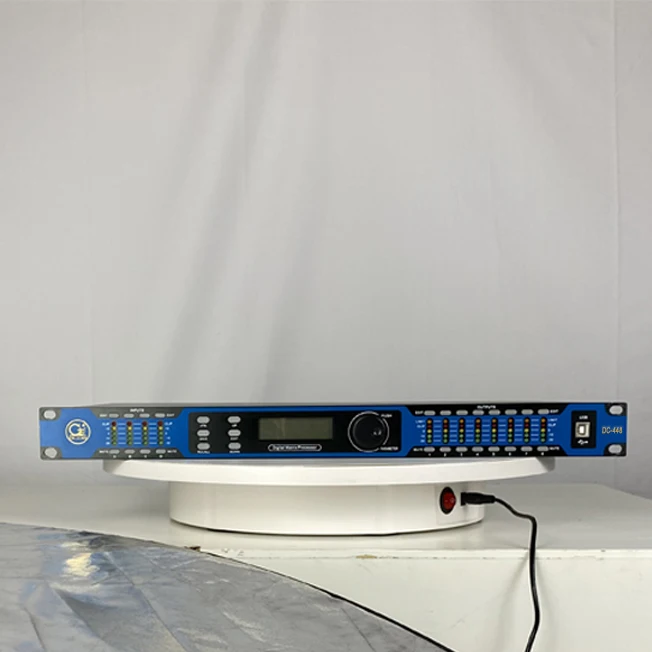

DC-448 профессиональное аудио оборудование цифровой звуковой процессор
