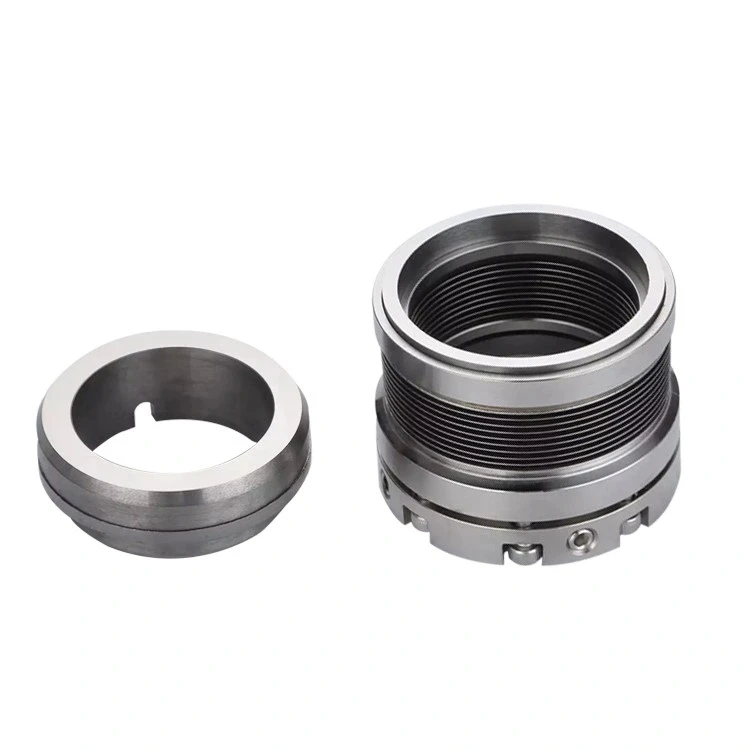

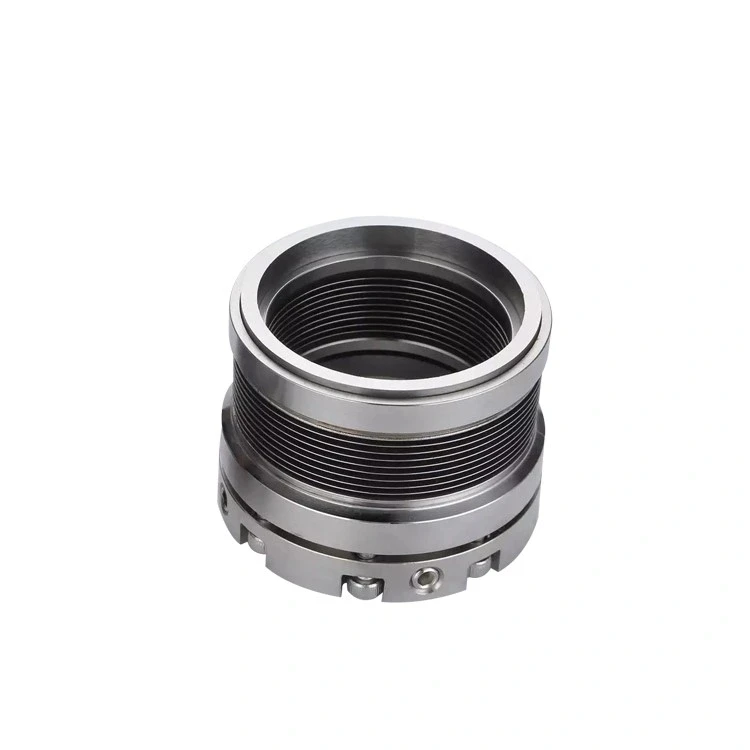

Замена механического уплотнения металла Bellow для типа 606
- Категория: >>>
- Поставщик: Henan Yuanfei Metal Material Co. Ltd.
Сохранить в закладки 1601045016274:
Описание и отзывы
Характеристики

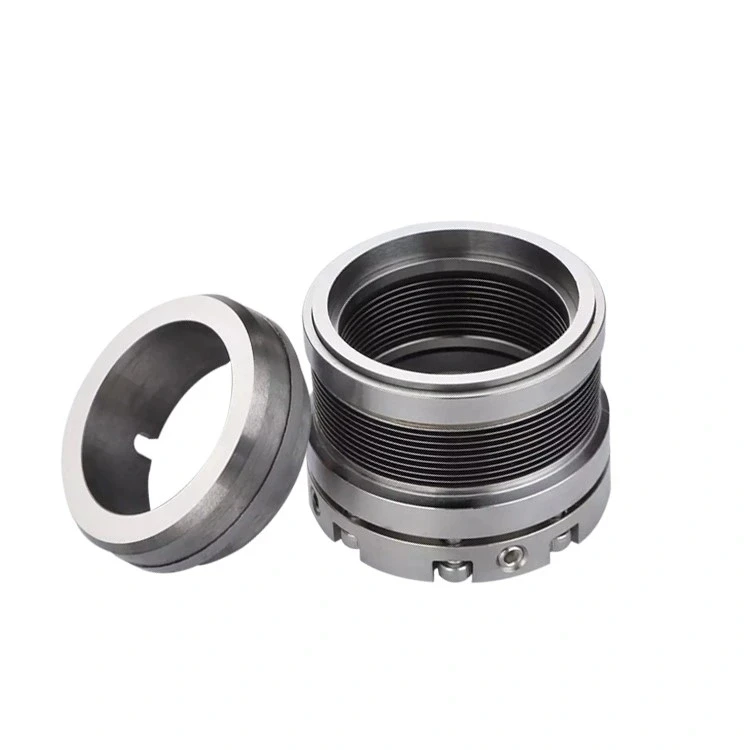

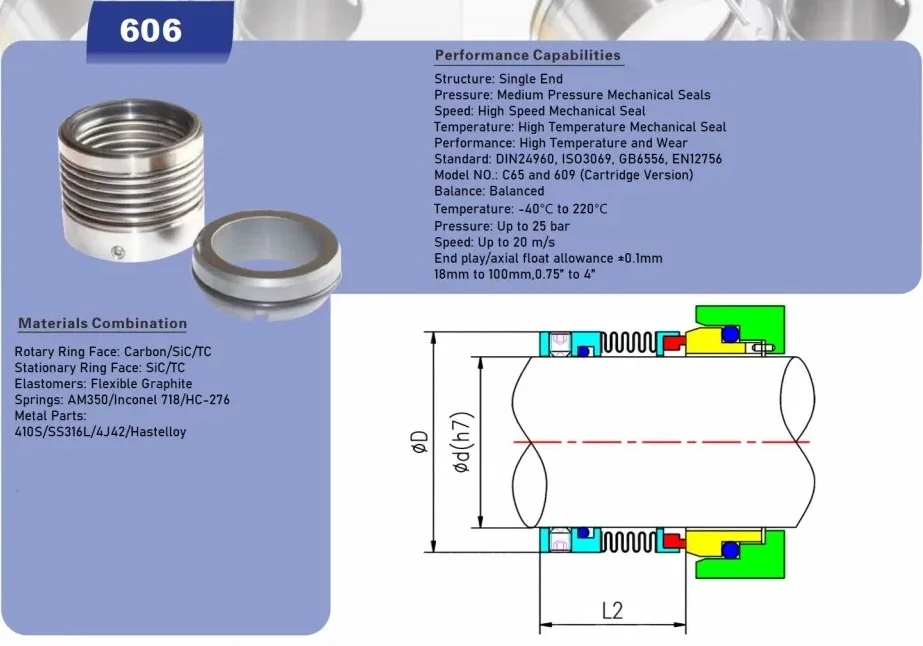

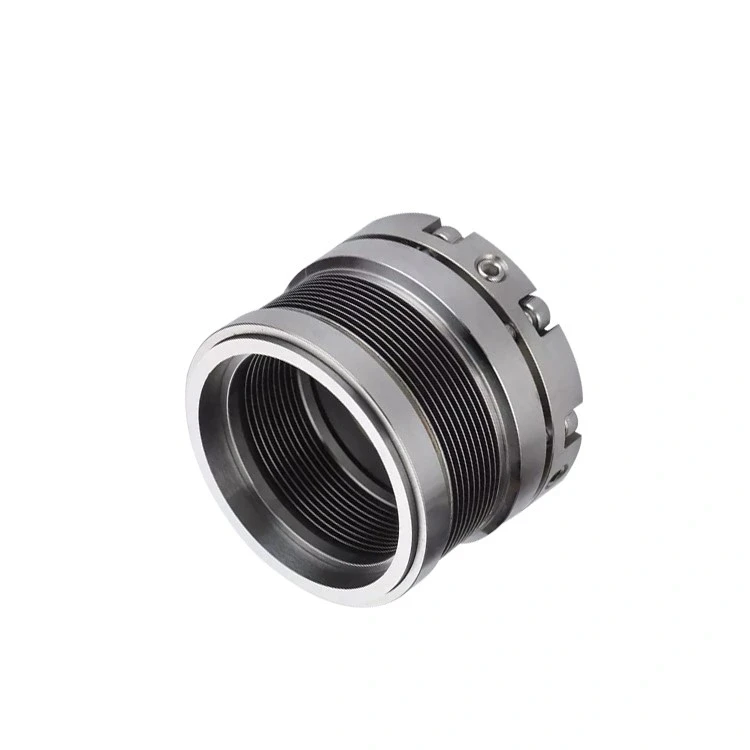

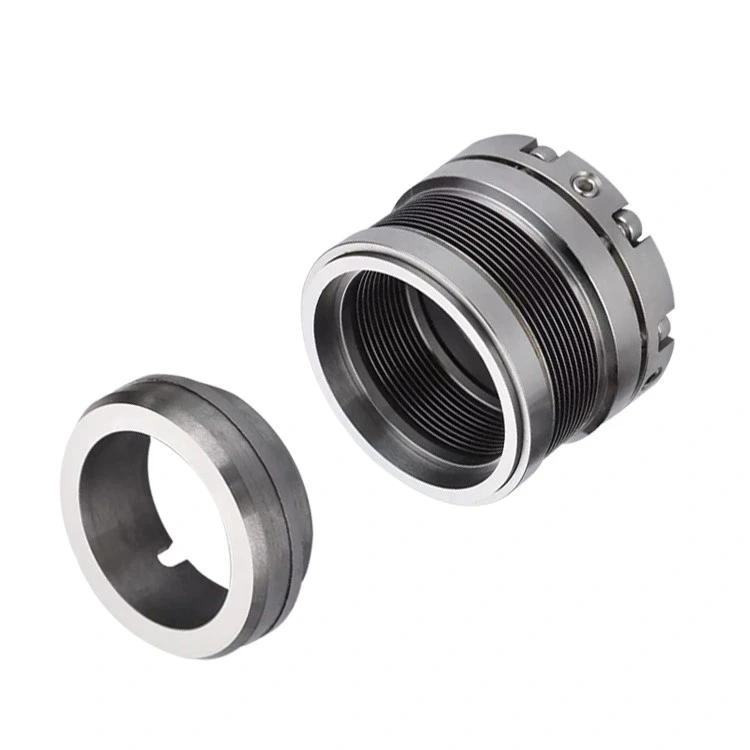

Metal Bellow Mechanical Seal Replacement for Type 606
Description:
The Type 606 is the ideal seal for general-purpose applications. Its rotating Alloy-20 bellows provide corrosion resistance in a broad range of corrosive media. Its cost-effective design, combined with a reliable performance history, has made the Type 680 a standard for low-temperature applications found in the chemical, water and wastewater, pulp and paper, and utility industries. The seal is available with hard faces for abrasive applications and a wide range of elastomers to cover a broad range of applications.
Operating Range:
Temperature: -75° C to +290° C/-100° F to +550° F
Speed: Up to 25mps / 5, 000 FPM
Pressure: Vacuum to 25 barg/360 psig
Standard size: 18-115mm/0.75''-5.25''
Equivalent to John crane Type 680
Material:
Insert/Primary Ring: Premium Carbon Grade; Tungsten Carbide, Silicon Carbide;
Static Seals: Fluorocarbon, EPR, PTFE- Encapsulated Fluorocarbon, Nitrile, Perfluoroelastomer
Applications: Oil,light hydrocarbon,aromatic hydrocarbon, organic solvents,weak acids, alkali,Ammonia,etc.
Edge-welded metal bellows in Alloy 718 or optional heat-treated AM350 SS.
Drive lugs under the bellows for additional rotational drive in viscous or thermosetting applications.
DOUBLE-PLY for high-pressure applications.
High-temperature to 425°C/800°F.
Available in dual and single cartridge arrangements.
Available with secondary containment.
Elastomer-free design with flexible carbon graphite secondary seals.
Seal face is available with premium-grade carbon, silicon carbide, or tungsten carbid
The Type 606 is the ideal seal for general-purpose applications. Its rotating Alloy-20 bellows provide corrosion resistance in a broad range of corrosive media. Its cost-effective design, combined with a reliable performance history, has made the Type 680 a standard for low-temperature applications found in the chemical, water and wastewater, pulp and paper, and utility industries. The seal is available with hard faces for abrasive applications and a wide range of elastomers to cover a broad range of applications.
Operating Range:
Temperature: -75° C to +290° C/-100° F to +550° F
Speed: Up to 25mps / 5, 000 FPM
Pressure: Vacuum to 25 barg/360 psig
Standard size: 18-115mm/0.75''-5.25''
Equivalent to John crane Type 680
Material:
Insert/Primary Ring: Premium Carbon Grade; Tungsten Carbide, Silicon Carbide;
Static Seals: Fluorocarbon, EPR, PTFE- Encapsulated Fluorocarbon, Nitrile, Perfluoroelastomer
Applications: Oil,light hydrocarbon,aromatic hydrocarbon, organic solvents,weak acids, alkali,Ammonia,etc.
Edge-welded metal bellows in Alloy 718 or optional heat-treated AM350 SS.
Drive lugs under the bellows for additional rotational drive in viscous or thermosetting applications.
DOUBLE-PLY for high-pressure applications.
High-temperature to 425°C/800°F.
Available in dual and single cartridge arrangements.
Available with secondary containment.
Elastomer-free design with flexible carbon graphite secondary seals.
Seal face is available with premium-grade carbon, silicon carbide, or tungsten carbid
Why Choose Us
As a professional company, Yuanfei have four groups of experienced teams to be in charge of deferent work:
Project team-customer service；
Engineering team-provide R&D and technical support；
QC team-productive process control and incoming parts inspection；
Warehouse team-warehouse management and logistic service；
Professional Technical Team
The company has a professional and talentedengincering and technical tenm,engaged in designand R&D of moulds,casting parts,stamping purts,truck bodies and cabins.

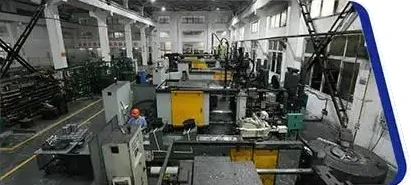

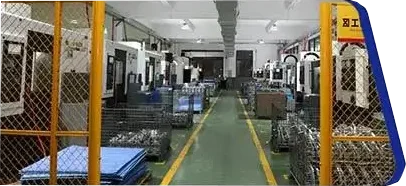

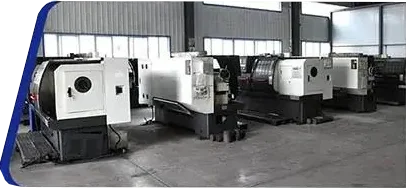

Advanced Eauipment
The company has all kinds of advanced mechanicalcquipmerts,
inchiding automatic stamping productionline,casting producticn
linc,painting produstion line,cabin production line,highspecd CNC machiningcenters,automatie welding cquipments.
Qualty Assurance Ability
The company has advanced testing equipmcnt tocarry out the whole process of quality control.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Henan Yuanfei is one famous company in China which specialized in various metal casting products with over 10 years experience located in China.It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture,Railway and Engineering.
We have a complete line of mold making, casting production, machining and assembly to meet customer requirements for finished parts.
For our customers we have designed and manufactured over hundreds sets of moulds these years. Most of our products have exported to USA, Germany, Italy, U.K., Belgium , Finland and so on.
FAQ
Q1: How soon can I get the quote?
A:It would be very appreciated if you can have following info:
1).Order quantity per patch or per year.
2).Trade terms, such as FOB price or EXW price. (Normally,the quote will be offer in 6-8 hours.)
Q2: How long is your deliverytime?
A: Depend on the structure of the mold and customer's requirements.
Mold: 25-45 days.
Sample: 3-5 days.
Mass production: 10-20 days.
CNC parts: 3-7 days.
Q3:Do you accept OEM or ODM order and to provide samples ?
A: Yes, we accept OEM and ODM service.
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost.
Q4: What is the payment way?
A: In general,we accept T/T(bank transfer),L/C,paypal, western union, moneygram,escrow, cash etc. If you have some other options, let’s talk case by case.
Q5: Are you manufacturer or trading company?
A: The company is affiliated with the manufacturer.
As the factory's external window, specially responsible for processing the factory's orders and business overseas.
